BEDIENUNGSANLEITUNG SATADOM-ML 3SE Innodisk
Datasheet

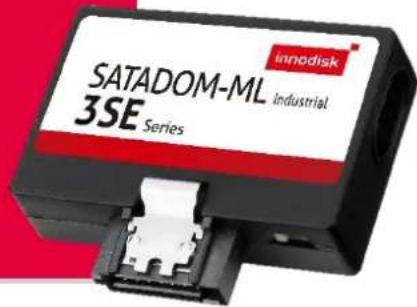

SATADOM-ML
3SE series
- SATA 6Gb/s interface
- iSMART disk health monitoring
- Intelligent error recovery system
- Excellent data transfer speed
- Write protection security
- Zero mechanical interference
- Anti-vibration mechanical design
Introduction
Innodisk SATADOM-ML 3SE is designed as the standard SATA 7 pin connector with SATA interface, and supports SATA III standard (6.0Gb/s) with excellent performance. Regarding of mechanical interference, Innodisk SATADOM-ML 3SE absolutely replaces the traditional hard disk and makes personal computer, in any field, smaller and easier.
Innodisk SATADOM-ML 3SE effectively reduces the booting time of operation system and the power consumption is less than hard disk drive (HDD), and complies with ATA protocol, no additional drives are required, and can be configured as a boot device or data storage device.
SATADOM-ML
3SE series
Contact us for more information about the SATADOM-ML 3SE.
Innodisk is a service-driven provider of industrial embedded flash storage and Dram products and technologies, with a focus on the cloud computing, industrial/embedded, and aerospace and defense industries.

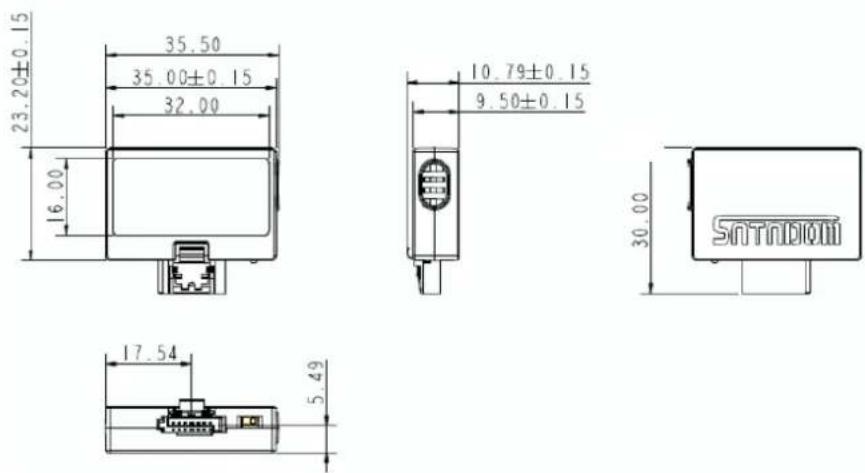

Diagram
Specifications
| Interface | SATA III |
| Flash Type | SLC |
| Capacity | 8GB~64GB |
| Max. Channels | 4 |
| Sequential R/W (MB/sec, max.) | 490/250 |
| Max. Power Consumption | 2W (5V x 400mA) |
| Thermal Sensor | WT only |
| Extended DRAM buffer | - |
| H/W Write Protect | √ |
| ATA Security | √ |
| S.M.A.R.T. | √ |
| Dimension (WxLxH) | 35.5 X 30 X 9.5 mm |
| Environment | Vibration: 20G @7~2000HzShock: 1500G @ 0.5msStorage Temperature: -55°C ~ +95°CMTBF: 3 million hours |
Headquarters (Taiwan)
5F., No. 237, Sec. 1, Datong Rd.,
Xizhi Dist., New Taipei City,
Taiwan (R.O.C.)
Tel: +886-2-7703-3000
Email: sales@innodisk.com
Branch Offices:
USA
usasales@innodisk.com
+1-510-770-9421
Europe
eusales@innodisk.com
+31-(0)40-282-1818
Japan
jpsales@innodisk.com
+81-45-594-7581
China
sales cn@innodisk.com
+86-755-21673689
www.innodisk.com
© 2014 Innodisk Corporation.
All right reserved. Specifications
are subject to change without
prior notice.
20150114
Ordering Information
| Operation Temp. | 8GB | 16GB | 32GB | 64GB |
| Standard Grade (0°C ~ +70°C) | DESML-08GD06SCAQB(F) | DESML-16GD06SCAQB(F) | DESML-32GD06SCAQB(F) | DESML-64GD06SCAQB(F) |
| Industrial Grade (-40°C ~ +85°C) | DESML-08GD06SWAQB(F) | DESML-16GD06SWAQB (F) | DESML-32GD06SWAQB(F) | DESML-64GD06SWAQB(F) |
