Produkttyp	Sicherheitskamera (Netzwerkkamera)
Modell	P1425-LE Mk II
Marke	Axis
Bildsensor	1/2,8" Progressive Scan RGB CMOS
Auflösung	1920 x 1080 (2 MP)
Objektiv	2,8–8 mm Varifokal, P-Iris
Tag/Nacht-Funktion	Ja, automatischer IR-Sperrfilter
IR-Beleuchtung	Eingebaut, Reichweite bis zu 30 m
Minimale Beleuchtung	Farbe: 0,05 Lux, S/W: 0,01 Lux (mit IR)
Video-Komprimierung	H.264, H.265, Motion JPEG
Bildrate	Bis zu 30/25 fps (50/60 Hz)
Stromversorgung	Power over Ethernet (PoE) IEEE 802.3af/at
Leistungsaufnahme	Max. 12,95 W (PoE Klasse 0)
Schutzklasse	IP66, IK10
Betriebstemperatur	-40 °C bis 60 °C
Abmessungen (Ø x L)	100 x 250 mm
Gewicht	Ca. 1,2 kg
Netzwerkschnittstelle	RJ45 10/100/1000BASE-T
Speicher	MicroSD-Kartenslot (max. 256 GB)
Audio	Audioeingang/-ausgang über optionales Kabel
Bewegungserkennung	Ja, konfigurierbar
Lieferumfang	Kamera, Installationsanleitung, Bohrschablone, Anschlusszubehör

Häufig gestellte Fragen - P1425-LE Mk II AXIS

Wie setze ich die Axis P1425-LE Mk II auf Werkseinstellungen zurück?

Halten Sie die Reset-Taste auf der Rückseite der Kamera für etwa 10-15 Sekunden gedrückt, während die Kamera eingeschaltet ist. Die Kamera startet neu und lädt die Standardeinstellungen.

Wie verbinde ich die Kamera mit dem Netzwerk?

Schließen Sie die Kamera über ein Ethernet-Kabel (PoE) an einen PoE-Switch oder Injektor an. Weisen Sie der Kamera eine IP-Adresse zu (DHCP empfohlen) und greifen Sie über einen Webbrowser oder die Axis-Software darauf zu.

Welche Software wird für die Konfiguration empfohlen?

Verwenden Sie den Axis Device Manager oder greifen Sie direkt über die Weboberfläche der Kamera zu. Für die Videoüberwachung eignet sich die Axis Companion-Software oder eine Drittanbieter-VMS (z. B. Milestone).

Kann ich die Kamera auch ohne PoE betreiben?

Ja, verwenden Sie einen PoE-Injektor (z. B. Axis T8120) oder ein separates Netzteil (12 V DC / 24 V AC, optional erhältlich). Achten Sie auf die korrekte Spannung.

Wie installiere ich die Kamera im Außenbereich?

Nutzen Sie das mitgelieferte Montagematerial und die Bohrschablone. Achten Sie auf die IP66-Klassifizierung – die Kamera ist staub- und wasserdicht. Versiegeln Sie die Kabelverbindungen mit Silikonfett.

Wie schiebe ich eine microSD-Karte ein?

Öffnen Sie die Abdeckung an der Unterseite der Kamera und stecken Sie die microSD-Karte in den dafür vorgesehenen Slot. Achten Sie auf die korrekte Ausrichtung. Die Karte wird im Kameramenü formatiert.

Kann ich die Kamera über ein mobiles Endgerät fernsteuern?

Ja, nutzen Sie die Axis Companion App oder die AXIS Camera Station App. Ermöglicht Live-View und Wiedergabe von Aufnahmen.

Welche Lichtverhältnisse sind für die Kamera geeignet?

Die Kamera ist dank Lightfinder-Technologie auch bei schwachem Licht farbfähig. Die IR-LEDs liefern bei völliger Dunkelheit Sicht bis ca. 30 m.

Wie reinige ich die Kamera?

Reinigen Sie das Gehäuse und die Frontscheibe mit einem weichen, fusselfreien Tuch, leicht angefeuchtet mit Wasser oder mildem Reinigungsmittel. Verwenden Sie keine aggressiven Chemikalien.

Wo finde ich die neueste Firmware?

Die aktuelle Firmware steht auf der Axis Support-Seite unter www.axis.com/de/support zum Download bereit. Geben Sie dort das Modell P1425-LE Mk II ein.

BEDIENUNGSANLEITUNG P1425-LE Mk II AXIS

AXISP1425-LEMkIINetworkCamera

AboutthisDocument

ThismanualisintendedforadministratorsandusersofAXISP1425-LE MKIINetworkCamera,andisapplicabletofirmware6.30andlater. Itincludesinstructionsforusingandmanagingtheproductonyour network.Previousexperienceofnetworkingwillbeofusewhenusing thisproduct.SomeknowledgeofUNIXorLinux-basedsystemsmay alsobeusefulwhendevelopingshellscriptsandapplications.Later versionsofthisdocumentwillbepostedatwww.axis.com.Sealsothe product'sonlinehelp,availablethroughtheweb-basedinterface.

LegalConsiderations

Videosurveillancecanberegulatedbylawsthatvaryfromcountryto country.Checkthelawsinyourlocalregionbeforeusingthisproduct forsurveillancepurposes.

Thisproductincludesone(1)H.264decoderlicense.Topurchase furtherlicenses,contactyourreseller.

Liability

Everycarehasbeentakeninthepreparationofthisdocument.Please informyourlocalAxisofficefanyinaccuraciesoromissions.Axis CommunicationsABcannotbeheldresponsibleforanytechnicalor typographicalerrorsandreservestherighttomakechangestothe productandmanualswithoutpriornotice.AxisCommunicationsAB makesnowarrantyofanykindwithregardtothematerialcontained withinthisdocument,including,butnotlimitedto,theimplied warrantiesofmerchantabilityandfitnessforaparticularpurpose.Axis CommunicationsABshallnotbeliablenorresponsibleforincidentalor consequentialdamagesinconnectionwiththefurnishing,performance oruseofthismaterial.Thisproductisonlytobeusedforitsintended purpose.

IntellectualPropertyRights

AxisABhasintellectualpropertyrightsrelatingtotechnologyembodied intheproductdescribedinthisdocument.Inparticular,andwithout limitation,theseintellectualpropertyrightsmayincludeoneormore ofthepatentslistedatwww.axis.com/patent.htmandoneormore additionalpatentsorpendingpatentapplicationsintheUSandother countries.

Thisproductcontainslicensedthird-partysoftware.Seethemenuitem "About"intheproduct'suserinterfaceformoreinformation.

ThisproductcontainssourcecodecopyrightAppleComputer, Inc.,underthetermsofApplePublicSourceLicense2.0(see www.opensource.apple.com/apsl).Thesourcecodeisavailablefrom https://developer.apple.com/bonjour/

EquipmentModifications

This equipment must be installed and used in strict accordance with the instructions given in the user documentation. This equipment contains no user-serviceable components. Unauthorized equipment changes or modifications will invalidate all applicable regulatory certifications and approvals.

TrademarkAcknowledgments

AXISCOMMUNICATIONS, AXIS, ETRAX, ARTPECandVAPIXare registeredtrademarksortrademarkapplicationsofAxisABinvarious jurisdictions. All other company names and products are trademarksor registeredtrademarksof their respective companies.

Apple,Boa,Apache,Bonjour,Ethernet,InternetExplorer,Linux, Microsoft,Mozilla,Real,SMPTE,QuickTime,UNIX,Windows,Windows VistaandWWWareregisteredtrademarksoftherespectiveholders. JavaandallJava-basedtrademarksandlogosaretrademarkors registeredtrademarksofOracleand/oritsaffiliates.UPnP ^TM is certificationmarkoftheUPnP ^TM ImplementersCorporation.

SD, SDHC and SDXC are trademarks or registered trademarks of SD-3C, LLC in the United States, other countries or both. Also, miniSD, microSD, miniSDHC, microSDHC, microSDXC are all trademarks or registered trademarks of SD-3C, LLC in the United States, other countries or both.

RegulatoryInformation

Europe

CE ThisproductcomplieswiththeapplicableCEmarkingdirectives andharmonizedstandards:

- Electromagnetic Compatibility (EMC) Directive 2014/30/EU. See Electromagnetic Compatibility (EMC) on page 2.

LowVoltage(LVDDirective2014/35/EUSeSafetyorpag2

- Restrictions of Hazardous Substances (RoHS) Directive 2011/65/EU. See Disposal and Recycling on page 3. Acopy of the original declaration of conformity may be obtained from Axis Communications AB. See Contact Information on page 3.

Electromagnetic Compatibility(EMC)

This equipment has been designed and tested to fulfill applicable standards for:

- Radiofrequencyemissionwheninstalledaccordingtothe instructionsandusedinitsintendedenvironment.

- Immunitytoelectricalandelectromagneticphenomenawhen installedaccordingtotheinstructionsandusedinitsintended environment.

USA

This equipment has been tested using a shielded network cable (STP) and found to comply with the limits for a Class Digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference or radiocommunications. Operation of this equipment is residential area is likely to cause harmful interference in which case the user will be required to correct the interference that is own expense. The product shall be connected using a shielded network cable (STP) that is properly grounded.

Canada

ThisdigitalapparatuscomplieswithCANICES-3(ClassA).Theproduct shallbeconnectedusingashieldednetworkcycle(STP)thatis properlygrounded.Cetappareilnumériqueestconformeâlanorme NMBICES-3(classeA).Leproduitdoîtéreconnectéal'aided'uncâble réseaublindé(STP)quiestcorrectementmisâlaterre.

Europe

ThisdigitalequipmentfulfillstherequirementsforRFemission accordingtotheClassAlimitofEN55032. Theproductshallbe connectedusingashieldednetworkcable(STP)thatisproperly grounded. Notice! ThisisaClassAproduct.Inadomesticenvironment thisproductmaycauseRFinterference,inwhichcasetheusermaybe requiredtotakeadequatemeasures.

This product fulfill therequirements for immunity according to EN61000-6-1 residential, commercial and light-industrial environments.

Thisproductfulfillstherequirementsforimmunityaccordingto EN61000-6-2industrialenvironments.

Thisproductfulfillstherequirementsforimmunityaccordingto EN55024officeandcommercialenvironments.

Australia/NewZealand

This digitalequipmentfulfillstherequirementsforRFemission according to the ClassAlimitofAS/NZSCISPR22. The product shall be connected using ashieldednetworkable(STP) that is properly grounded. Notice! This is a ClassA product. In domestic environment this product may cause RF interference, in which case the user may be required to take adequate measures.

Japan

この装置は、クラスA情報技術装置です。この装置を家庭環境で使用すると電波妨害を引き起こすことがあります。この場合には使用者が適切な対策を講ずるよう要求されることがあります。本製品は、シールドネットワークケーブル(STP)を使用して接続してください。また適切に接地してください。

Korea

이기기는업무용(A급)전자파적합기기로서판매자또는사용자는이점을주의하시기바라며,가정외의지역에서사용하는것을목적으로합니다.적절히접지된STP(shielded twistedpair)케이블을사용하여제품을연결하십시오.

Safety

ThisproductcomplieswithIEC/EN/UL60950-1and IEC/EN/UL60950-22,SafetyofInformationTechnology Equipment.Theproductshallbegroundedeitherthroughhashielded networkcable(STP)orotherappropriatemethod.

Photobiological Safety

This product fulfill therequirements for photobiological safety according to IEC/EN62471 (riskgroup 1).

Battery

LowbatterypoweraffectstheoperationoftheRTC,causingittoreset ateverpower-up.Whenthebatteryneedsreplacing,alogmessage willappearintheproduct'sserverreport.Formoreinformationabout theserverreport,seetheproduct'ssetuppagesorcontactAxissupport. Thebatteryshouldnotbereplacedunlessrequired,butifthebattery doesneedreplacing,contactAxissupportatwww.axis.com/techsupfor assistance.

Lithiumcoincell3.0Vbatteriescontain1,2-dimethoxyethane;ethylene glycoldimethylether(EGDME),CASno.110-71-4.

WARNING

• Riskofexplosionifthebatteryisincorrectlyreplaced.
• Replaceonlywithanidenticalbatteryorabatterywhichis recommendedbyAxis.
• Disposeofusedbatteriesaccordingtolocalregulationsor thebatterymanufacturer'sinstructions.

DisposalandRecycling

Whenthisproducthasreachedtheendofitsusefullife,disposeof itaccordingtolocallawsandregulations.Forinformationabout yournearestdesignedcollectionpoint,contactyourlocalauthority responsibleforwastedisposal.Inaccordancewithlocallegislation, penaltiesmaybeapplicableforincorrectdisposalofthiswaste.

Europe

Thissymbolmeansthattheproductshallnotbedisposedof togetherwithhouseholdorcommercialwaste. Directive2012/19/EU onwasteelectricalandelectronicequipment(WEEE)isapplicable in theEuropeanUnionmemberstates. Topreventpotentialharmto humanhealthandtheenvironment, theproductmustbedisposed ofinanapprovedandenvironmentallysaferecyclingprocess. For informationaboutyournearestdesignatedcollectionpoint, contact yourlocalauthorityresponsibleforwastedisposal. Businessesshould contacttheproductsupplierforinformationabouthowtodispose ofthisproductcorrectly.

ThisproductcomplieswiththerequirementsofDirective2011/65/EUon therestrictionoftheuseofcertainhazardoussubstancesinelectrical andelectronicequipment(RoHS).

China

Thisproductcomplieswiththerequirementsofthelegislative actAdministrationontheControlofPollutionCausedbyElectronic InformationProducts(ACPEIP).

ContactInformation

AxisCommunicationsAB

Emdalavägen14

22369Lund

Sweden

Tel:[phone]

Fax:[phone]

www.axis.com

Support

Should you require any technical assistance, please contact your Axis reseller. If your questions cannot be answered immediately, your reseller will forward your queries through the appropriate channel to ensure a rapid response. If you are connected to the Internet, you can:

• downloaduserdocumentationandsoftwareupdates
  • findanswerstoresolvedproblemsintheFAQdatabase.Search byproduct, category, orphrase
  • reportproblemstoAxissupportstaffbyloggingintoyourprivate supportarea
• chatwithAxissupportstaff
• visitAxisSupportatwww.axis.com/techsup/

LearnMore!

VisitAxislearningcenterwww.axis.com/academy/forusefultrainings, webinars,tutorialsandguides.

SafetyInformation....6

HazardLevels....6

OtherMessageLevels......6

HardwareOverview....7

ConnectorsandButtons....7

LEDIndicators......8

AccesstheProduct....9

AccessfromaBrowser....9

AccessfromtheInternet....9

SettheRootPassword....1

SetPowerLineFrequency....10

ConfigureCaptureMode....10

TheLiveViewPage....10

MediaStreams

HowtoStreamH.264....13

MJPEG....13

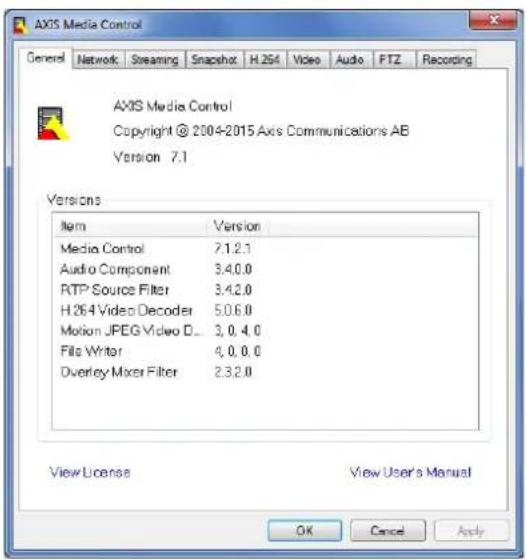

AXISMediaControl(AMC)....13

AlternativeMethodsofAccessingtheVideoStream......14

SetUptheProduct....16

BasicSetup....16

Video....17

SetUpVideoStreams....17

StreamProfiles....19

ONVIFMediaProfiles....20

CameraSettings....20

ViewArea....22

Aboutoverlays....23

PrivacyMask....25

Setfocusandzoom....25

Configure the liveViewPage

PTZ(PanTiltZoom)....29

Aboutpresetpositions....29

Aboutguardtours....29

Advanced....30

ControlQueue....31

Detectors

Aboutcameratampering....32

Howtoconfiguretamperingdetection....32

Howtoconfigureanactionrulefortamperingalarm....32

Applications

ApplicationLicenses....33

UploadApplication....33

ApplicationConsiderations....33

AXIS/idedMotionDetection

Considerations....35

StartandStoptheApplication....35

ConfigureApplication....35

UsingtheApplicationinanActionRule....38

Events....40

SetUpActionRules....40

Add Recipients....42

CreateSchedules......44

SetUpRecurrences....44

Recordings

FindRecordings......45

PlayRecording....45

ExportVideoClip....46

ContinuousRecording....46

Languages....47

SystemOptions....48

Security......48

TableofContents

Date&Time....50

Network....5

Storage....56

Ports&Devices....58

Maintenance....58

Support....59

Advanced....60

ResettoFactoryDefaultSettings....60

Troubleshooting......62

ChecktheFirmware....62

UpgradetheFirmware....62

Symptoms, Possible Causes and Remedial Actions......63

TechnicalSpecifications....66

Connectors....68

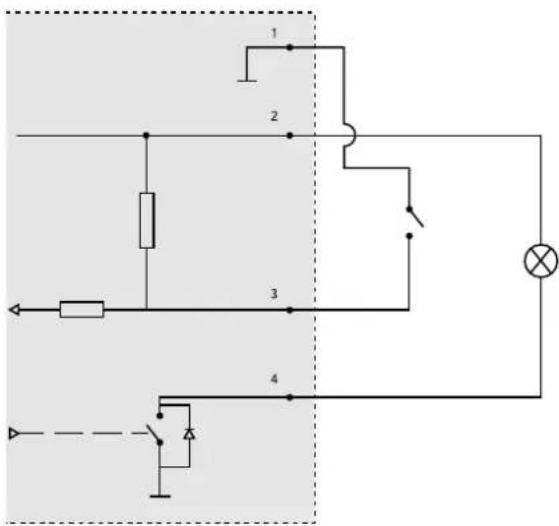

ConnectionDiagrams....69

PerformanceConsiderations....69

SafetyInformation

HazardLevels

DANGER

Indicatesahazardoussituationwhich,ifnotavoided,willresultindeathorseriousinjury.

⚠ WARNING

Indicatesahazardoussituationwhich,ifnotavoided,couldresultindeathorseriousinjury.

CAUTION

Indicatesahazardoussituationwhich,ifnotavoided,couldresultinminorormoderateinjury.

NOTICE

Indicatesasituationwhich,ifnotavoided,couldresultindamagetoproperty.

OtherMessageLevels

Important

Indicatessignificantinformationwhichisessentialfortheproducttofunctioncorrectly.

Note

Indicatesusefulinformationwhichhelpsingettingthemostoutoftheproduct.

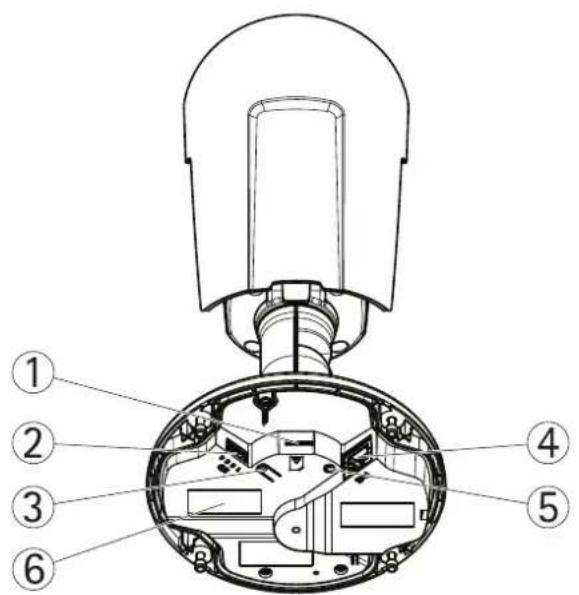

HardwareOverview

Technical diagram of a device with numbered parts labeled 1 through 6, showing internal components and wiring.

1 microSDcardslot
2 I/Oconnector
3 Controlbutton
4 Networkconnector
5 StatusLEDindicator
6 Partnumber(P/N)&Serialnumber(S/N)

ConnectorsandButtons

Fortechnicalspecifications,seepage66.

NetworkConnector

RJ45EthernetconnectorwithPoweroverEthernet(PoE).

NOTICE

The product shall be connected using a shielded network cable (STP). All cables connecting the product to thenetwork shall be intended for their specific use. Makes sure that thenetwork devices are installed in accordance with the manufacturer's instructions for information about regulatory requirements see Electromagnetic Compatibility (EMC) or page

I/OConnector

Use with external devices in combination with, for example, tampering alarms, motion detection, event triggering, timelapserecording and alarm notifications. In addition to the OVD reference point and power (DC output), the Oconnector provides the interfaceto:

DigitabutputForconnectingexternaldevicesuchaselaysandLEDConnecteddevicesarbeactivatedbythe

VAPIX®ApplicationProgrammingInterface,outputbuttonsontheLiveViewpageorbyanActionRule.Theoutputwill showactive(shownundeSystemOptionsPortDevices)thealarmdevicisactivated.

DigitalInputAralarinputoconnectingdevices that cartoggle between an open and closed circuit for example:

PIRs,door/windowcontacts,glassbreakdetectors,etc.Whenasignalisreceivedthestatechangesandtheinputbecomes active(shownunderSystemOptions>Ports&Devices).

SDcardslot

NOTICE

• Riskofdamage to SDcard. Donotuses harptools, metal objects are excessive force when inserting or removing the SDcard. Use your fingersto insert and remove the card.
• Riskofdatalossandcorruptedrecordings.DonotremovetheSDcardwhiletheproductisrunning.Disconnectpoweror unmounttheSDcardfromtheAxisproduct'swebpagesbeforeremoval.

ThisproductsupportsmicroSD/microSDHC/microSDXCcards(notincluded).

ForSDcardrecommendations,see www.axis.com

ControlButton

Forlocationofthecontrolbutton,seeHardwareOverviewonpage7.

Thecontrolbuttonisusedfor:

- Resetting the product to factory default settings. See page 60.

ConnectingarAXISidedHostingSystemserviceSepage52connectpressandholdhbuttonfoabou8secondsuntiltheStatusLEDflashesgreen.

Connecting to AXIS Internet Dynamic DNS Service Se page 52 to connect press and hold the button for about seconds.

LEDIndicators

StatusLED	Indication
Unlit	Connectionandnormaloperation.
GreenShowssteadygreenfor10s	secondsfornormaloperationafterstartupcompleted.
Amber	Steadyduringstartup.Flashesduringfirmwareupgrade.
Amber/Redworkconnectionisunavailableorlost.
UpRedefailure.

Flashesa ashesredforfirmwareu

AccesstheProduct

ToinstalltheAxisproduct,seetheInstallationGuidesuppliedwiththeproduct.

Theproductcanbeusedwithmostoperatingsystemsandbrowsers.Werecommendthefollowingbrowsers:

• InternetExplorer ^® withWindows ^®
• Safari ^ withOSX ^
• Chrome TM orFirefox® withotheroperatingsystems.

ToviewstreamingvideoinInternetExplorer, allowinstallationofAXISMediaControl(AMC)whenprompted.

TheAxisproductincludesone(1)H.264decoderlicenseforviewingvideostreams. ThelicenseisautomaticallyinstalledwithAMC. Theadministratorcandisabletheinstallationofthedecoderstoppreventinstallationofunlicensedcopies.

Note

- QuickTime ^TM is also supported for viewing H.264 streams.

AccessfromaBrowser

1.Startawebbrowser.
2.EntertheIPaddressorhostnameoftheAxisproductinthebrowser'sLocation/Addressfield.

ToaccesstheproductfromaMaccomputer(OSX),gotoSafari,clickonBonjourandselecttheproductfromthe drop-downlist.

If you donot know the I paddress, use AXISIP Utility to locate the product on thenetwork. For information about how to discover and assign I paddress, the document Assign I P Address and Access the video Stream or Axis Support web at www.axis.com/techsup

Note

ToshowBonjourasabrowserbookmark, gotoSafari>Preferences.

1. Enteryourusernameandpassword.Ifthisisthefirsttimetheproductisaccessed,therootpasswordmustfirstbe configured.Forinstructions,seeSettheRootPasswordonpage1 0.
2. The product'sLiveViewpageopensinyourbrowser.

Note

The controls and layout of the liveView pagemay have been customized to meet specific installation requirements and user preferences. Consequently, some of the examples and functions featured her may differ from those displayed in your own liveView page.

Accessfromthelnternet

Onceconnected,theAxisproductisaccessibleonyourlocalnetwork(LAN).ToaccesstheproductfromtheInternetyoumust configureyournetworkroutertoallowincomingdatatrafficctotheproduct.Todothis,enabletheNAT-traversalfeature,which wilattemptautomaticallyconfiguretheroutetallowaccesstheproductThisenabledronSetupSystemOptions>Network>TCP/IPAdvanced.

FomoreinformationedNATraversa(portmapping)ofPv4rpag5SealsAXISnterneDynamidDNServicat www.axiscam.net

ForTechnicalnotesonthisandothertopics,visittheAxisSupportwebatwww.axis.com/techsup

SettheRootPassword

Tacces the Axi product you must the password for the default administrator user of this sloner the Configure Root Passworddialog, which opens when the product is accessed for the first time.

Topreventnetworkeavesdropping,therootpasswordcanbesetviaanencryptedHTTPSconnection,whichrequiresanHTTPS certificate. HTTPS(HypertextTransferProtocoloverSSL)isaprotocolusedtoencrypttrafficbetweenwebbrowsersandservers.The HTTPscertificateensuresencryptedexchangeofinformation.SeeHTTPSonpage49.

The default administrator usename root permanent and cannot be deleted the password for root host the product must be reset which factory default setting See Reset Factor Default Settings page 60.

TosetthepasswordviaastandardHTTPconnection, enteritdirectlyinthedialog.

TosetthepasswordviaanencryptedHTTPSconnection,followthesesteps:

1. ClickUseHTTPS.

A temporary certificate(validforoneyear)iscreated,enabling encryptionofalltraffictoandfromtheproduct,andthe passwordcannowbesetsecurely.

2.Enterapasswordandthenre-enterittoconfirmthespelling.

3.ClickOK.Thepasswordhasnowbeenconfigured.

SetPowerLineFrequency

PowelinfrequencysetfirstimtheAxiproductaccessedandaronlychangedronPlainConfig(sepage60) orbyresettingtheproducttofactorydefault.

Select the power line frequency (50Hz or 60Hz) used at the location of the Axis product. Selecting the wrong frequency may cause image flicker if the product is used in fluorescent light environments.

When using 50Hz, the maximum framerate is limited to 25fps.

Note

Powerline frequency varies depending on geographic region. The Americas usually use 60Hz, whereas most other parts of the world use 50Hz. Local variations could apply. Always check with the local authorities.

ConfigureCaptureMode

CapturemodedefinesthemaximumresolutionandmaximumframerateavailableintheAxisproduct.Ifusingacapturemodewithasmallerresolutionthanthemaximumresolution,theangleofviewisreduced.Thecapturemodealsoaffectslightsensitivity.A capturemodewithahighmaximumframeratehasreducedlightsensitivityandviceversa.

See also Capture Mode on page 20.

TheLiveViewPage

The controls and layout of theLiveViewpagemay have been customized to meet specific installation requirements and user preferences. Consequently, some of the examples and functions featured her may differ from those displayed in your own LiveView page. The following provides an overview of each available control.

ControlsontheLiveViewPage

ClickhViewsizbuttonsshowthimagerfulsiz(righbutton)toscaldowrthemagdo fitthebrowserwindow(leftbutton).

ClickWDRortenableWDRintensbacklightconditionsClickWDRoffalisableWDRnow lightconditionsforoptimalexposure.

SelectstreamprofilefortheLiveViewpagefromtheStreamProfiledrop-downlistEoinformation abouthowtoconfigurestreamprofiles,see page 19.

ClicPulseactivattheproduct'sutputorfodefineperiodoftimeforinformationabouthow tenablendonfiguroutputbuttonssepage28Theutputbottomamemaydiffedependingn thenameenteredinthel/OPortsconfiguration.

ClicktheActive/Inactivebuttonsmanuallyactivatendnactivehproduct'outputporFor informationabouthowtoenableandconfigureoutputbuttons,seepage28.

Use the Manual Trigger button trigger action rule from the Live View page. Information about how to configure and enable the button, see Manual Trigger on page 11.

ClickSnapshots=snapshotThevideImageThisbuttonprimarilyntendedfousewhen theAXISMediaControlviewertoolbarsnotavailable.EnablethisbuttonfromLiveViewConfig>ActionButtons.

The product'sheateriscontrolledbytheambienttemperatureandisturnedonandoffautomatically. If required the heater is activated manually by clicking the heate button to show the button, get SetupLivViewConfigUndeActionButtonsselectShowheatebutton and specify the number of minutes the heaters should be activated.

Activate de-activate Rillumination from Setup Video Camer Settings Enable this button from LiveView Config>Action Buttons. Movetheslidertoincrease or decrease the intensity of the Illumination.

ManualTrigger

TheManuaTriggeruseddriggeactionrulefromtheivViewpageThemanuatriggecarfoexampleusedo validateactionsduringproductinstallationandconfiguration.

Toconfigurethemanualtrigger:

1.GotoSetup>Events.
2.ClickAddtoaddanewactionrule.
BonthTriggedrop-downlistselectnpuSignal.
4. From these second drop-downlist, select Manual Trigger.
5. Select the desired action and configure the other settings as required.

Formoreinformationaboutactionrules,seeEventsonpage40.

ToshowthemanualtriggerbuttonsintheLiveViewpage:

1.GotoSetup>LiveViewConfig.

UndeActionButtonsselecShowmanuatriggebutton.

AXISMediaControlviewertoolbar

TheAXISMediaControlviewetoolbarsavailableInterneExploreonlySeeAXISMediaControl(AMCbrpage)fromoreinformation.Thetoolbardisplaysthefollowingbuttons:

ThePlaybuttonconnectstotheAxisproductandstartsplayingamediastream.

TheStopbuttonstopsthemediastream.

TheSnapshotbuttontakesasnapshotofthevideoimage.

ClickhViewFulScreenbuttonandtheimagewilfilthentirescreenPresESC(Escape)thecomputer keyboardtocancelfullscreenview.

The Recordbuttonisused record the current video stream any computer The location where recording saved carb specified the AMControlPane Enable this button from LiveViewConfigViewSettings.

PTZControls

Note

These controls are available if glita PTZ enabled these selected view areased /viewArecompage22.

With the PTZ controlQueue enabled the time each user is controlled by the PTZ settings limited. Click buttons are required to release a control of the PTZ control the PTZ control Queue setup and PTZ Control Queue.

Click the Emulate joystick mode button and click the image to move the camera view with the direction of the mouse pointer.

Click the Centemod button and click the image to cent the camera view that position.

Thecentermodebuttoncouldalsobeusedtozoominonaspecificarea.Clickintheimageanddragtodrawa rectanglesurroundingtheareatobemagnified.Tozoomout,rotatethemousewheel.

Toviewaspecificviewareaorpresetposition,selectitfromtheSourcelist.

ParandTilbarsUsetharrowToparandltheameraviewoclicorpositionthatsteetheameraviewto thatposition.

Zoombar-Use the arrow to zoom in and out, or click on a position on the bar to zoom to that position.

Clicking Zoom out to overview image will set the camera at the minimum zoom position. This position the camera cannot panortilt. Zoom out to overview image

The PTZ control can be disabled under PTZ Advanced Controlssee Control on page 80.

MediaStreams

TheAxisproductprovidesseveralvideostreamformats.Yourrequirementsandthepropertiesofyournetworkwilldeterminethetypeyouuse.

TheLiveViewpageintheproductprovidesaccesstoH.264andMotionJPEGvideostreams,andtothelistofavailablestream profiles.Otherapplicationsandclientscanaccessvideostreamsdirectly,withoutgoingviatheLiveViewpage.

HowtoStreamH.264

H.264can, without compromising image quality, reduce the size of a digital video file by more than 80% compared with the Motion JPEG format and as much as 50% more than the MPEG-4 standard. This means that much less network bandwidth and storage space are required for a video file. Or seen another way, much higher video quality can be achieved for a given bitrate.

Deciding which combination of protocols and method stoused depends on your viewing requirements, and on the properties of your network. The available options in AXIS Media Control are:

UnicastRTP	Thisunicastmethod(RTPoverUDP)isused forliveunicastvideo,especiallywhenitis importanttohaveanup-to-datevideostream, evenifsomeframesaredropped.	Unicastingisusedforvideo-on-demand transmissionsothatthereisnovideotraffic onthenetworkuntilaclientconnectsand requeststhestream.Notethatthereareamaximumof20 simultaneousunicastconnections.
RTPoverRTSP	Thisunicastmethod(RTPtunneledoverRTSP) isusefulasitisrelativelysimpletoconfigure firewallstoallowRTSPtraffic.
RTPoverRTSPoverHTTP	Thisunicastmethodcanbeusedtotraverse firewalls.Firewallsarecommonlyconfiguredto allowtheHTTPprotocol,thusallowingRTPto betunneled.
MulticastRTP	Thismethod(RTPoverUDP)shouldbeusedforlivemulticastvideo.Thevideostreamisalways up-to-date,evenifsomeframesaredropped.Multicastingprovidesthemostefficientusageofbandwidthwhentherearelargenumbersof clientsviewingsimultaneously.Amulticastcannothowever,passanetworkrouterunlessthe routerisconfiguredtoallowthis.ItisnotpossibletomulticastovertheInternet,forexample.Notealsothatallmulticastviewerscountasoneunicastviewerinthemaximumtotalof20 simultaneousconnections.

AXISMediaControlnegotiateswiththeAxisproducttodeterminethetransportprotocoltouse.Theorderofpriority,listedintheAMCControlPanel,canbechangedandtheoptionsdisabled,tosuitspecificrequirements.

Note

H.264islicensedtechnology.TheAxisproductincludesoneH.264viewingclientlicense.Installingadditionalunlicensed copiesoftheclientisprohibited.Topurchaseadditionallicenses,contactyourAxisreseller.

MJPEG

This formatusesstandardJPEGstillimagesforthevideostream. These images are then displayed and updated at a ratesufficient to create stream that shows constantly updated motion.

TheMotionJPEGstreamusesconsiderableamountsofbandwidth,butprovidesexcellentimagequalityandaccesstoeveryimage containedinthestream.TherecommendedmethodofaccessingMotionJPEGlivevideofromtheAxisproductistousetheAXISMediaControlInInternetExplorerinWindows.

AXISMediaControl(AMC)

AXISMediaControl(AMC)inInternetExplorerinWindowsistherecommendedmethodofaccessinglivevideofromtheAxisproduct.

TheAMCControlPanelcanbeusedtoconfigurevariousvideosettings.PleaseeseetheAXISMediaControlUser'sManualformore information.

TheAMCControlPanelisautomaticallyinstalledonfirstuse,afterwhichitcanbeconfigured.OpentheAMCControlPanelfrom:

- WindowsControlPanel(fromtheStartscreenorStartmenu)

Alternatively right-click the video image Interne Explore and click Settings.

AXIS Media Control Copyright © 2004-2015 Axis Communications AB Version 7.1 Versions Item Version Media Control 7.1.2.1 Audio Component 3.4.0.0 RTP Source Filter 3.4.2.0 H.26.4 Video Decoder 5.0.6.0 Motion JPEG Video D... 3.0.4.0 File Writer 4.0.0.0 Overlay Mixer Filter 2.3.2.0 View License View User's Manual OK Cancel Apply

AlternativeMethodsofAccessingtheVideoStream

YoucanalsoaccessvideoandimagesfromtheAxisproductinthefollowingways:

MotiodPEGervepush(ifupported the client Chromo Firefoxfor example) This option maintains a proper HTTP connection to the browser and sends data as and when required, for as long as required.

StiJPEGImageinbrowserEntethepathhttp:///axis-cgi/jpg/image.cgi

WindowMedPlayerThisrequiresAXISMediaControlandH.264lecodetbinstalledThefollowingpaths canbeused:

-UnicastviaRTP:axrtpu://<ip>/axis-media/media.amp
-UnicastviaRTSP:axrtsp://<ip>/axis-media/media.amp
-UnicastviaRTSP,tunneledviaHTTP:axrtsphttp://<ip>/axis-media/media.amp
-Multicast:axrtpm://<ip>/axis-media/media.amp

- QuickTime TM. The following pathscanbeused:

-rtsp://<ip>/axis-media/media.amp
-rtsp://<ip>/axis-media/media.3gp

Note

• =IPaddress
  •TheAxisproductsupportsQuickTime6.5.1andlater.
• QuickTimemayaddlatencytothevideostream.
• It maybe possible to use other player's view the H.264 stream using the paths above, although Axis does not guarantee this.

SetUptheProduct

The Axproduct are configured by users with administrator operator rights to the product Setup pages click Setup the copyright-hand corner of theLiveViewpage.

- Administratorshaveunrestrictedaccesstoallsettings.

Operator have restricted access settings used on page 48

Seealsotheonlinehelp

BasicSetup

BasicSetupprovidesshortcutstothesettingsthatshouldbemadebeforeusingtheAxisproduct:

1.Users.Seepage48.
2.TCP/IP.Seepage51.
3. Date&Time.Seepage50.
4.VideoStream.Seepage17.
5.Focus&Zoom.See page25.

TheBasicSetupmenucanbedisabledfromSystemOptions>Security>Users.

Video

ItispossibletoconfigurethefollowingvideofeaturesinyourAxisproduct:

•Videostream.See page 17.
- Streamprofiles.See page 19.
•ONVIFMediaProfiles.Seepage20.
- Camerasettings.See page20.
•Viewareas.Seepage22.
•Overlayimage.Seepage23.
- Privacymask.Seepage25.
- Focusandzoom.See page25.

SetUpVideoStreams

To setup product's video streamsgdVideoVideStream.

Thevideostreamsettingsaredividedintothefollowingtabs:

• Image.Seepage17.
  •H.264.Seepage18.
• MJPEG.See page 19.

PixelCounter

Thepixelcountershowsthenumberofpixelsinanareaoftheimage. Thepixelcounterisusefulinsituationswherethereis aspecificsizerequirement,forexampleinfacerecognition.

Thepixelcountercanbeused:

When setting a video stream setup, video streams or page 1. UndePreview clic Open and select this show pixel counterption enable the rectangle the image Us thermous domov and size the rectangle pent the number pixels in the Width and height fields and clic apply.

When setting focussee Set focus and zoom page 2 Select Show pixel counter option enable the rectangle in themage Use themoust on mov and size the rectangle penteth number pixels in the Width and Height fields and click Apply.

- When accessing theLiveViewpageinInternetExplorerwithAXISMediaControl(AMC)inWindows.Right-clickinthe imageandselectPixelcounter.Usethemousetomoveandresizetherectangle.


ThedefaultmagsettingscarbeconfiguredundevideoVideStreamSelectdImagtab.

The followingsettingsareavailable:

- Resolution.Selectthedefaultresolution.

CompressionThe compressionlevel affects the image quality bandwidth and file size of saved images through the compression, the higher the image quality with higher bandwidth requirements and larger file sizes.

• Mirrorimage.lfrequired, theimagecanbemirrored.
• Rotateimage.lfrequired, theimagecanberotated.

Maximunframeate avoid bandwidth problems the frameat allowed each viewer can be limited to fixed amount Alternatively the frameat car base at Unlimited which means the Axis product always delivers the highest framerate possible under the current conditions.

OverlayettingSeeAboutoverlaytextpage23.

ClickSavetoapplythenewsettings.

H.264

H.264,alsoknownasMPEG-4Part10/AVC,isavideocompressionstandardthatprovideshighqualityvideostreamsatlowbitrates. AnH.264videostreamconsistsofdifferenttypesofframessuchasl-framesandP-frames.Anl-frameisacompleteimagewhereas P-framesonlycontainthedifferencesfrompreviousframes.

The H.264streamsettings are configured from the Video Video Streampage Select the H.264 tab The settings defined this pagewill apply to all H.264stream that donotuse a stream profile.

The GOPength the number frames between two consecutive frames Increasing the GOPength may have considerably on bandwidth requirements in some cases, but may also have an adverse effect on image quality.

TheAxisproductsupportsthefollowingH.264profile(s):

BaselineTheBaselineprofileRecommendedforclientsthation'supportCABACentropycoding.

MainTheMairprofilprovideshighercompressionwithmaintainedvidequalitycomparedtheBaselineprofilbut requiresmoreprocessingpowertodecode.

HighTheHighprofilprovides reduced bit at and higher compression with maintained video quality compared the Mainprofilebut requires more processing power to decode.

ThebitateAbstractVariablebitate(VBR)Maximunbitate(MBR)VBRadjustthebitataccordingtheimage complexity,usingupmorebandwidthforincreasedactivityintheimage,andlessforlowerimageactivity.Whentheactivity in thesceneincreases,thebitratewouldusuallyincreaseaswell.Ifthereisasurplusinbandwidth,thismaynotbeanissue and selectingVariablebitate(VBR)wilbescufficientButbandwidthlimiteditrecommendedcontrothebitatobselectingMaximunbitate(MBR)Whertheactivitythecencreases)VBRadjustthebitataccordingthecomplexityusingup morebandwidthforincreasedactivityinthescene,andlessforlowersceneactivity.MBRallowsyoutosetatargetbitratethat limitsthebandwidthconsumption.

TheMBRtargetbitrateworksliketheceilingofatent.Itlimitsthebitrate,whilemaintainingsomeflexibility.Thebitrate maybounceupanddownwithinthesettargetbutwhenitnearsthesettargetvalue,thelimitationkicksin.However,because MBRwillalwaysprioritizeacontinuousvideostream,itallowstemporaryovershootsfromthetargetbitrate.Becausesettinga targetvaluepreventsthebitratefromincreasing,framerateandimagequalityareaffectednegatively.Topartlycompensatefor this,selectwhichvariableshallbeprioritized,framerateorimagequality.Notsettingaprioritymeansthatframerateand imagequalityareequallyaffected.

The current coordinate appearance text overlay UndeOverlay Settings select include text and the t h modifier #binthefield.

Toapplythesettings,clickSave.

AboutZipstream

Axis'ZipstreamTechnologyisabitratereductiontechnologyoptimizedforvideosurveillance.Zipstreamreducetheaveragebitrate intheH.264streambyremovingunnecessarydataandmakesitpossibletoallowhigherresolutions,reducestoragecostor tokeeprecordingsforalongertime.

Toreducethebitrate, Zipstreamreducesthenumberofbitsintheareasoftheimagethatarelessinterestingfromavideo surveillanceperspective,forexamplethebackground. Imagedetailsthatareimportantforforensicvideoanalysis,forexamplefaces andlicenseplates,arepreservedwithenoughnumberofbits.

Axis'ZipstreamTechnologyforH.264conformstotheH.264standardandiscompatiblewiththird-partyclientsandVMSsolutions thatdecodeH.264video.

Recommendeduseofbitratereduction

Zipstream offers number of bitrate reduction presets from Low Extreme Low bitrate reduction enabled by default and safetouse in all applications while still reducing the bitrate.

Forcloud-connectedcamerasorcamerasusingedgestoragethatneedtolimitthebitrateforincreasedstoragetimeitis recommendedselecttheExtremebitrateductionThisettingsuitablecombinewithmotiondetectiontriggeringand variablebitrate(VBR)wherethebitrateisallowedtoadapttochangesincomplexityinthescene.

HowtosavebandwidthandstorageusingZipstream

Thebitratecontrollerbuilt into the product can be combined with Zipstream to ensure maximum bitrate (MBR) limit. We recommend using VBR or MBR with a high bit rate limit to enable the full potential of Zipstream. For instance in railways surveillance where at times there is a lot of movement in the escene and where it is important to capture details, such as facial features, the MBR should be set to 10 Mbit/s (for 1080 resolution at 30 fps).

To further save bandwidth to Setup Video Audio Video Stream and on more of the following:

GodhemagetalandetlovMaximumframevalue.

GothH.264abandethigGOPengthvalue.

GcdhZipstreamabandelecExtremH.264bitrateduction.

GcdhZipstreamEnableDynamicGOPandethighMaxdynamiGOPengthvalue.

GotheZipstreamtalandenableDynamiePS.

Alwaysverifythatthevideostreammeetsthequalityrequirementsforyoursurveillancepurposesafterchangingthevideostream settings.

MJPEG

Sometimes the imagesize is large du et low light to complex scenery. Adjusting them a maximum framesize help to control the bandwidth and storage used by the Motion PEG video stream in these situations. Setting the framesize default setting provides consistently good image quality at the expense of increased bandwidth and storage usage in low light. Limiting the frame size optimizes bandwidth and storage usage, but may give poor image quality. Toprevent increased bandwidth and storage usage, the maximum framesizes should be set to an optimal value.

StreamProfiles

Astreamprofileisasetofpredefinedstreamsettingsincludingresolution,compression,framerateandoverlaysettings.Stream profilescanbeused:

• Whensettinguprecordingusingactionrules.SeeEventsonpage40.
• Whensettingupcontinuousrecording.SeeContinuousRecordingonpage46.

In theLiveViewpageselectstreamprofilefromtheStreamprofiledrop-downlist.

Forquicksetup, useoneofthepredefinedstreamprofiles. Each predefinedprofilehasadescriptivename, indicatingitspurpose. If required, thepredefinedstreamprofilescanbemodifiedandnewcustomizedstreamprofilescanbecreated.

To create new profile to modify existing profile and Setup Video Stream Profiles.

To select default stream profile of the live/view page and setup live view config.

ONVIFMediaProfiles

AnONVIFmediaprofileconsistsofasetofconfigurationsthatcanbeusedtochangemediastreamsettings.ONVIFmediaprofiles canbesetthroughtheONVIFMediaProfileSettingspageandbeusedbyaclienttoconfiguremediastreamproperties.

The ONVI MediProfile page lists such pre-configure profile. These profiles cannot be removed. Pre-configured media profiles have been included in the product for quick setup. It is also possible to configure new ONVI Mediaprofiles as per required specifications. To add new ONVI Mediaprofile click Add and then the required information. You can also modify remove profile from this page.

CameraSettings

The Video Camer Settings page provides access to advanced image settings for the Axi product.

CaptureMode

CapturemodedefinesthemaximumframerateavailableintheAxisproductandaffectslightsensitivity.Acapturemodewithahigh maximumframeratehasreducedlightsensitivityandviceversa.

Tochangecapturemode, followthesesteps:

1. GotoSetup>Video>CameraSettings.
2. Selectthenewcapturemode.
   3.ClickSave.

ImageAppearance

TochangdImageAppearanceddthemenusundeSetupVideoCameraSettings.

Increasing the Colorevel Increase the colosaturation The value 0 gives maximum colosaturation and the value gives minimum colorsaturation.

Thimag Brightness arbe adjusted the range 0-100 where highewalu produces brighter image.

Increasing sharpness can increase bandwidth usage, sharper image might increase image noise especially nowight conditions. Alowersetting reduces image noise, but the whole image will appear less sharp.

The Contrast changes relative difference between light and dark bars adjusted using the slidebar.

WhiteBalance

TochangethissettngotoSetup>Video>CameraSettings

Whitebalanceisusedtomakecolorsintheimageappearthesameregardlessofthecolortemperatureofthelightsource.TheAxis productcanbesettoautomaticallyidentifythelightsourceandcompensateforitscolor.Alternatively,selectthetypeoflight sourcefromthedrop-downlist.Foradescriptionofeachavailablesetting,seetheonlinehelp

The white balance window enabled the Automation and Automation outdoor options that appear in the White balance drop-down list. Select of the options from the drop-downlist set the white balance window properties. Select Automatics the default settings for the Automation and Automation outdoor options (in the White balance drop-downlist). Select Custom manually set a reference window for white balance in the view area.

WideDynamicRange

Widdynamicrange(WDRForensiCapture)providebalancedimagescensewhetherisconsiderablecontrasbetween lightanddarkareasintheimage.Thecameraautomaticallyhandlesthetransitionbeteensuchscenesandlow-lightconditions.In rarelightconditionsdisablingWDRmightgiveabetterimage.

Important

UseWDRincombinationwithautomaticexposurecontrol. Other exposuresettingscouldgiveundesirableresults.

ExposureSettings

Exposure is the amount of light the camera's sensor captures for ascene. To much light results in a washed out image and too little light results in a dark image.

ExposurevalueUsedExposurevalueulidetadjustoveralbrightnessofhimage.

Exposurecontrol-Selectasuitableoptiontocontroleexposure.

FomostceneshAutomaticoptionwilprovidethbestesultsTheshutterspeedautomaticallysetproduceoptimum imagequality.

If the mageflicker that can be caused by fluorescent samples, the light sources are reduced to file the image selection of the Flicker option that matches the power line frequency.

TheHoldcurrentoptionlocksthecurrentexposuresettings.

MaxexposureShutterspeedalscalledexposuretimestandsothdengthofimthecamershutterspenthereby exposingthecamerasensortolight.Ifshutterspeedisfastitcanfreezeactioneffectively.Ifshutterspeedisslow,itcancause movingobjectstoappearblurred.Decreasingtheexposuretimewillreducemotionblur.

Exposure zones This setting determines which part of the images used to calculate the exposure from the situation the Auto setting can be used.

YoucanselectapredefinedareabydefiningIncludeandExcludewindowswithintheimage.Excludewindowsexcludeareasthatare toobrightordark,andIncludewindowsincludeareasinthescenethathavebetterlightingwhichwillcontributetotheexposuredata. TheremustbeatleastoneIncludewindow.TherecanbeatotaloftenIncludeandExcludewindowstotailortheexposurezone.

NotethatanExcludewindowiseffectiveonlywhenplacedinsideanincludewindow.

Tip: IfanareaisextremelybrightdrawanIncludewindowtocoverthewholeareaanddefineExcludewindowswithinitto blockoutthebrightareas.

Shutter&Gain

Theshutterandgainsettingsaffecttheamountofmotionblurandnoiseintheimage.Toadapttodifferentlighting,available storagespaceandbandwidth,itisoftennecessarytoprioritizeeitherlowmotionblurorlownoise.TheAxisproductallows usingdifferentprioritizationinnormallightandinlowlight.

Shutterspeeds related the amount of the shuttle opened and measured second(s) slow shutttespeed allows more lighttoreachthesensorandcanhelpproduceabrighterimageinlowlightsituations. On the other hand, aslowshutter speed can cause moving object to appear blurry.

SetWidDynamizangedWDRffandeShutteto

AutosethshuttespeedautomaticallylfrequiredusMashutterdimthshuttespeedpreventframe ratefrombeingreduced.

Forexample,toget30fps,setMaxshutterto1/30.

•Fixedtouseafixedshutterspeed.

Gainmeasureddecib(dB)theamountofimplificationappliedthemageHighgaimayprovidebettermagenlow lightsituationsbutwillincreasetheamountofimagenoise.

SetGainto

AutodsethegainautomaticallylfrequireduseMaxaintdimithappliedgain.

- Fixedtouseafixedgain.

WherShutterandGainrbothsetoAutoifsspossiblegethePrioritybetweenlowmotionbluandownoismanuallyandousalifferenPriorityNormalLightandLowlight.

Example

Video

Consideranareawherepeopleorvehiclesmoveduringtheday, butwherethereshouldbenomovementsduringnight.Tobeableto, forexample,recognizefacesorlicenseplates,movethenormallightpriorityslidertowardlowmotionblur.Atnighttime,motion detectionismoreimportantthanidentification.Motionblurisacceptableandsincelowlightcancausealotofnoise,move thelowlightpriorityslidertowardlownoise.

Example

Ifstoragespaceorbandwidth this limited, try using a lower gain. This will reduce image noise and produces smaller image files.

Irisadjustment

SelectEnableautomaticisadjustmentautomaticallycompensateforchanginglightconditionsThisoptionisotavailable ifafixedirisused.

UsethdisadjustmentlidetsethepreferredF-valueThecalerepresentshəmountherisopenfsetothiriss openedasmuchaspossible.Ifsetto100,theirisisclosedasmuchaspossible.TheactualF-valueisshownbelowtheslider.If automaticirisadjustmentisenabled,theiriswillstayatthispositionaslongaslightconditionsarefavorable.Iflightconditions change,theiriswilladjustitselftothebestirissettings.Ifautomaticirisadjustmentisdisabled,theiriswilllockontheset positionregardlessoflightconditions

Day/Night

TheIRcutfilterpreventsinfrared(IR)lightfromreachingtheimagesensor.Inpoorlightingconditions,forexampleatnight,orwhenusingarexternalRampsetthIDrcutfilterOffThisincreasesightsensitivityandallowsheproducto"seeInfraredightTheimageisshowninblackandwhitewhentheIRcutfilterisoff.

IfisingautomatiExposurecontrolsetdRefilterAutoautomaticallyswitchbetweenOnandOffaccordingthe lightingconditions.

ThecameralensisICorrected, which mean that it maintains focus in mixed light. A small focus adjustment is recommended when Illumination is used. Select a focus adjustment for Illumination to automatically adjust the focus whether it cut filters switches between on and off.

The Day/Nighthifteveba helpsleterminwher the camerawillshifromdaymodeonightmode Normally the camera automatically changes mode from day onight when very dark level 0 Orthelider Byetting Day/Nighthifteveta lowervalue, the camerawillchangetonightmodeearlier.

Built-inIRIllumination

WARNING

Riskofeyeinjury.DonotlookdirectlyintotheIRLEDatshortdistance.SincethelightprovidedfromtheIRLEDisoutsideof thevisiblerange,itisnotpossibletoseeifitisactive.UsethecameratocheckiftheIRilluminationisactive.

TheIRilluminationcanbeactivatedorde-activated,anditsintensitycanbeincreasedordecreasedbymovingtheslider,from theproduct'sLiveViewpage.

Othesettings can be defined from Setup Video Camer Settings.

De-select the Enable Illumination option to disable Illumination altogether, you disable the Synchronized Illumination with day/nightoption, I Rillumination will not be synchronized with day/night changes.

ViewArea

Aiveware is cropped for the full view. Each view are treated by video source. Live View and has to view stream and PTZ settings.

When setting up avieware aitis recommended that the videostream resolution is the same size as smaller than the view area size. Setting the videostream resolution larger than the view area size implies digitally scaled up video aftersensor capture, requiring more bandwidth without adding image information.

TenablegedVideoCameraSettingsandelecEnableViewAreas.

Toaddanewviewarea:

1. GotoVideo>ViewArea.
   2.ClickAdd.

The new iew are appears under Selected view area Enter descriptiven a mer the Nam field.

SelectAspectationVideestreamresolution.

5.Anewviewareacoversthewholeimage.Usethemousetomoveandresizetheviewarea.
6. SelectEnablePTZtoenabledigitalPTZfortheviewarea.
7.ClickSavetosavethesettings.

TomodifyviewareaselecttheviewarearthdandmodifythsettingsrequiredClickSave.

Toremoveaviewarea,selecttheviewareaandclickRemove.

Note

ThePTZfunctionalityisusefulduringinstallationoftheAxisproduct.Useaviewareatocropoutaspecificpartofthefullview.

Aboutoverlays

Overlaysaresuperimposedoverthevideostream.Theyareusedtoprovideextrainformationduringrecordings,suchasatimestamp,orduringproductinstallationandconfiguration.

Aboutoverlaytext

Anoverlaytextcandisplaythecurrentdateandtime,oratextstring.Whenusingatextstring,so-calledmodifierscanbeusedto displayinformationsuchasthecurrentbitrateorthecurrentframerate.

Italspossible displaytextwhenactionrulestriggeredsedHowtincludeoverlaytransactionrulepage23.

Howtoincludeoverlaytext

GdVideoVideStreamandelecthldmagtab.

Dincludatandimeselectncludatandncludeime.

TincludetextstringselectncludetextandentethextrthfieldModifiersarousedseFileNaminget

Date/TimeFormatsintheonlinehelp

1. Selectsize, color, and placement of the text string.
   5.ClickSave.

TomodifytheLatandimFormatgdsystemOptionsDateTimeSecDateTimeorpage50.

Howtoincludeoverlaytextinanactionrule

Note

Todisplayoverlaytextinmultipleviewareas, overlaytextmustenabledlineachviewarea.

GoVideoVideStreamandelecthImagtab.

UndeOverlassettingsselectncludtext.

Entethemodifie#DWhertheulestriggered#Displacedbythetxspecifiedrthactionrule.

Additional text in this field will be displayed as when the action rule is not active.

@dcEventsActionRulesandcreateyouactionrule.

From the Actionist select OverlayText.

6.EnterthetexttodisplayintheTextField.

Specify the Duration The extarbe displayed while the rule active for fixed number seconds.

Howtodisplaythepanortiltpositionasatextoverlay

Itmaybeusefultoretrieve,forinstancefromarecordedvideo,thepanortiltposition(indegrees)inwhichaneventhastaken place.Thiscanbeobtainedbyincludingthepositionintheimageasatextoverlay,usingamodifier.Todisplaythepanpositionasa textoverlay:

GdSetupVideoVideStream.

L2ndeOverlayoutingsselectncludtext.

Enter#xtoshowthepanposition.

Enter#ytoshowthetiltposition.

1. Configuretheoptionalsize, colorandpositionofthetextoverlay.

4.ClickSave.

5.GototheLiveViewpagetoconfirmthesetting.

Aboutoverlayimages

Anoverlayimageisastaticimagesuperimposedoverthevideostream.Theimage,forexampleacompanylogo,isfirstuploadedto theAxisproductandthenusedtoprovideextrainformationortomaskapartoftheimage.

Imagespecifications:

• The uploaded images should be a Windows 24-bit BMP image with maximum 250 colors.
• Theimagewidthandheight,inpixels,mustbeexactlydivisiblebyfour.
• The image cannot be larger than the maximum image resolution.
• If combining text and image overlays, take into consideration that the text overlay occupies 16 or 32 pixels in height (depending on the resolution) and has the width that the video image.

Sinceitisstatic, the position and size of an overlay image will remain the sameregardless of resolution and span, tiltor zoom movements.

TalwayscoverselectefarbfthmonitoredareauseprivacymaskSeePrivacyMaskorpage25.

Howtuploadanoverlayimage

1. GotoVideo>OverlayImage.
   2.ClickBrowseandbrowsetothefile.
   3.ClickUpload.
2. The Transparency Settings page is now displayed:

TomakcoloithoverlaymagetransparentselectUsertransparencyandentetheRGBhexadecimalvalue forthecolor.Example:Tomakwhitetransparent,enterFFFFFF.

Formoreexamplesofhexadecimalvalues,seetheonlinehelp

TscaltheimageautomaticallyselectScalewithresolutionThimagewibscaledlowrdoftheresolutionusedbytheAxisproduct.

5.ClickSave.

Howtoincludeanoverlayimage

1. GotoVideo>OverlayImage.

SelecthimageousfromtheUsoverlaymageistandclickSave.

GoVideoVideStreamandelectdmagetab.

UndeOverlaySettingsselectinclude overlaymagathcoordinates.

For the image position the horizontal and vertical coordinates The = And = positions the top left corner. If a part of the image is positioned outside the video image, the overlay image will be removed so that the whole image is visible.

6.ClickSave.

PrivacyMask

Aprivacymaskisauser-definedareathatpreventusersfromviewingpartsofthemonitoredarea.Privacymasksappearasblocks ofsolidcolorandareappliedonthevideostream.PrivacymaskscannotbebypassedusingtheVAPIX®applicationprogramming interface(API).

The PrivacyMaskList(VideoPrivacyMask) shows all the mask that are currently configured in the Axis product and indicates if they are enabled.

Youcanaddanewmask,re-sizethemaskwiththemouse,chooseacolorforthemask,andgivethemaskaname.

Formoreinformation,seetheonlinehelp

Important

Adding many privacy masks may affect the product's performance.

Setfocusandzoom

1. Install the camera as described in the Installation Guide.

2.Goto>.

OrthBasicabsethzoomlevelusinghelider.

Clicktheorbuttonmovethezoompositiononstep.

Clickthe< <> buttonmov the zoompositionmultipSteps.

Note

Movementsinfrontofthecamerashouldbeavoidedwhenperformingautofocus.

4.ClickPerformautofocus.

1. If the autofocus was not satisfying, goto the Advanced tab.

OntheAdvancedtab, focuscanbeadjustedmanually:

Video

OliclOpenirisopertheristotsmaximumpositionThisgiveshsmallestdepthfieldanprovidesbest conditionsforfocusing.

1. FocusissetintheFocuswindow. Usethemousetomoveandresizethefocuswindow.
2. ClickintheFocuspositionbartofocusonadesiredlocation.

Click the button to move the focus position on step.

ClickthebuttonmovethfocuspositionmultipSteps.

1. Whensatisfied, clickEnableiristoenabletheiris.

ConfiguretheLiveViewPage

YoucancustomizetheLiveViewpageandalterittosuityourrequirements.ItispossibletodefinethefollowingfeaturesoftheLiveViewpage.

• StreamProfile.Seepage 19.
• DefaultViewerforBrowser.Seepage27.
  -ViewerSettings.Seepage27.
• ActionButtons.ThesearethebuttonsdescribedinControlsontheLiveViewPageonpage1 1.
  -UserDefinedLinks.Seepage28.
• OutputButtons.Seepage28.

DefaultViewerforBrowsers

FromLiveViewConfigDefaultVieweselecthedefaultmethodforviewingideoimagesyoubrowserTheproductattempts toshowthevideoimagesintheselectedvideoformatandviewer.Ifthisisnotpossible,theproductoverridesthesettingsand selectsthebestavailablecombination.

BrowserViewerDescription
WindowsInternetExplorer	AMC	RecommendedviewerinInternetExplorer(H.264/MotionJPEG).
	QuickTime	H.264.
	StillimageDisplays	stillimagesonly.ClicktheRefreshbuttoninyourbrosertoviewa newimage.
Otherbrowsers	ServerPush	Recommendedviewerforotherbrowsers(MotionJPEG).
	QuickTime	H.264.
	StillimageDisplays	stillimagesonly.ClicktheRefreshbuttoninyourbrosertoviewa newimage.

Formoreinformation,pleaseetheonlinehelp

ViewerSettings

Toconfigureoptionsfortheviewer, gotoLiveViewConfig>ViewerSettings.

SelectShowwewetoolbatolisplaytheAXISMediaControl(AMC)thQuickTimeviewetoolbaundethevideoimageinyourbrowser.

H.264decodeinstallationThe administratorandisableinstallationofthe1.264decodeincludedwithAXISMedia Control.Thisisusedtopreventinstallationofunlicensedcopies.Furtherdecoderlicensescanbepurchasedfromyour Axisreseller.

SelectShowcrosshainPTJoystickmode enable crosshatwill indicate the center of the image in PTJoystick mode.

SelectUsePTZoystickmodasdefaultenablejoystickmodeThemodearbechangedemporarilyfromthe PTZcontrolpanel.

SelectEnablerecordingbuttonEnablerecordingfromtheLiveViewpageThisbuttonisavailablewhenusingtheAMCviewer.TherecordingsaresavedtothelocationspecifiedintheAMCControlPanel.SeeAXISMediaControl(AMC)onpage13.

UserDefinedLinks

Todisplayuser-definedinkintheLiveViewpageselectShowcustomlinkoptiongivthinknamandherentethURL tolinkto.Whendefiningaweblinkdonotremovethehttp://fromtheURLaddress.Customlinkscanbeusedtorunscriptsor activateexternaldevicesconnectedtotheproduct,ortheycanlinktoawebpage.Customlinksdefinedascgilinkswillrunthe scriptinthebackground,inahiddenframe.Definingthelinkasaweblinkwillopenthelinkinanewwindow.

OutputButtons

Externall/OdevicesconnectedtotheAxisproduct'soutputportscanbecontrolleddirectlyfromtheLiveViewpage.

TodisplayoutputbuttonsintheLiveViewpage:

1.GotoSetup>LiveViewConfig.
2. UnderOutputButtons, select the type of controltouse:

Pulsactivates the output for define period time. The pulse time can be from 1/10 seconds to 60 seconds.

-Active/Inactive displaywobuttons, oneoreachaction.

ToconfigureactivandnactivstatesgodSystemOptionsPortDevicesl/Portandethport'Normastate.

FormoreinformationaboutI/Oports,seeI/OPortsonpage58.

PTZ(PanTiltZoom)

ThePTZmenuisavailableifdigitalPTZ(pan,tiltandzoom)isenabledintheselectedviewarea.Formoreinformationonviewareas, seeViewAreaonpage22.

Aboutpresetpositions

Apresetpositionisasavedviewthatcanbeusedtoquicklysteerthecameratoaspecificposition.Apresetpositionconsistsof thefollowingvalues:

•Panandtiltpositions
- Zoomposition

Eachviewareahasitsownpresetpositions.

Howtoaccessthepresetpositions

Presetpositionscanbeaccessedinseveralways:

• ByselectingthepresetfromtheSourcedrop-downlistintheLiveViewPage.
• Whensettingupactionrules.Seepage40.
• Whensettingupguardtours.Seepage29.

Howtoaddapresetposition

1. GotoSetup>PTZ>PresetPositions.
   Click the image of the control to the camera view the desire position see About prese positions.
   3.EnteradescriptivenameintheCurrentpositionfield.
   4.ClickAddtosavethepresetposition.

To include these position am a mith overlay text go video select includ over lay ext and enteth modified. The field form or information about modifiers see File Naming Date/Time format in the online help

?

SettheHomePosition

The entire view are treated with the composition which readily accessible by clicking the HomeButton or the live view page and in the Preset Position setup window.

TheproductcanbeconfiguredtoreturntotheHomepositionwhenthePTZfunctionalityhasbeeninactiveforaspecifiedlengthoftimeEntethdengthofimintheturrthomaftefiefieldandlicSavSethdimdzerdopreventhproducfromautomaticallyreturningtotheHomeposition.

Aboutguardtours

Aguardtourdisplaysthevideostreamfromdifferentpresetpositions,one-by-one,inapredeterminedorderoratrandomandforconfigurabletimeperiods.Theenabledguardtourwillkeeprunningaftertheuserhasloggedofforclosedthebrowser.

Note

Forproductsthatsupportlimitedguardtours,thereisafixedminimumviewtimeof10seconds.

Howtocreateaguardtour

1. GotoSetup>PTZ>GuardTour.
   2.ClickAdd.
   3.Typeaname.
2. Specify the pause length between runs.
3. Selectapresetpositionfromthedrop-downlistandclickAdd.
4. Foreachpresetposition, entertheViewTimeinsecondsorminutes.
   SpecifyViewOrderofthepresepositionsoselecRandomvieworder.
   8.ClickSave.

Howtoeditaguardtour

1. GotoSetup>PTZ>GuardTour.
2. Select the guard tour in the Guard Tour List.
   3.ClickModify.

Howtodeleteaguardtour

1. GotoSetup>PTZ>GuardTour.
2. Select the guard tour in the Guard Tour List.
   3.ClickRemove.

Advanced

Controls

AdvancedPTZsettingscanbeconfiguredunderPTZ>Advanced>Controls.

The PaneShortcutCommandButton sisthowshuser-defined button that can be accessed from the LiveViewpage's Ctrl panel. These buttons are used to provide direct access command issued using the APIX® application programming interface. ClickAddtoaddanewshortcutcommandbutton.

The following PTZ controls are enabled by default:

•Pancontrol
- Tiltcontrol
- Zoomcontrol

Tolisable specific controls deselect options under Enable/Disable controls.

Ifusing multiple view areas, deselecting a control will only disable the control in these selected view area.

ControlQueue

Note

• The administratorcanenableanddisablePTZcontrolsforselectedusers.
• Toidentifydifferentusersintheviewergroup,cookiesmustbeabledontheclient.

The ControqueupoltimesmeasuredsecondsFromoreinformationsethonlinehelp

The administrator setup que ufo PTZ controller from PTZ Control Queue Once set up the PTZ Control Queue buttons appear in theLiveViewpageofferingoneviewerexclusivecontrolforalimitedperiodoftime. Other users will be placedinqueue.

Ausewho belongs to grouped users or page 48 with higher PT priority and before the users in the queue and take control of the product. The order of priority is as follows:

Administrator\Administrator takesove PTZ control regardless of who's first queue. The administrator will be removed from the queue 60 seconds after the last PTZ control command.

Event-TheAxiproductarbeconfiguredtopresepositionwhertriggeredbyalarm(seEventsorpage40). Theeventwillimmediatelybeplacedfirstinthequeueexceptwhenanadministratorisincontrol.

1. Operator—Sameas administrator but with lower priority

GuardTour-Aguardou(sepage29)APTZontrofoanindefinitperiodbfimd.mayoverridderbyan operator,eventoradministrator.Theguardtourwillresumewhenhigherprioritygroupsleavethequeue.

Viewer-MultipleviewersmustwaifotheiturnTheviewehasSecondPTZontrobeforecontrolpassed ontothenextviewerinqueue.

Detectors

Aboutcameratampering

CameraTamperingcangenerateanalarmwhenthecameraisrepositioned,orwhenthelensiscovered,spray-paintedorseverely de-focused.Tosendanalarmsuchasbywayofemail,anactionrulemustbesetup.

Howtoconfiguretamperingdetection

1. GotoDetectors>CameraTampering.

Seth Minimum duration that the time that must be before alarm generated increase to prevent false alarms for known condition that affect the image.

Select Alarmfodarkimages for alarm should be generated when lights are dimmed turned off for the lens sprayed, covered, or rendered severely out of focus.

4.ClickSave.

Howtoconfigureanactionrulefortamperingalarm

1. GotoEvents>ActionRules.

2.ClickAddtosetupanewactionrule.

1. EnteraNamefortheactionrule.

UndeConditionselecDetectorfromtheTriggerist.

1. SelectTamperingfromthelistofdetectors.

2. Optionally, select as schedule and set additional conditions.

SelectactionExampleToendaremailselectSendNotificationandselectRecipientfromtheistoflined recipients.

Note

The Whileuclactive option under Duration can be used with camera tamperings since camera tampering does not have duration and once it has been triggered by will not automatically return to its untriggered state.

Formoreinformationonactionsrules,seeEventsonpage40.

Applications

AXISCameraApplicationPlatform(ACAP)isanopenplatformthatenablesthirdpartiestodevelopanalyticsandotherapplications forAxiproductsFoinformationaboutavailableapplicationsdownloadstrialsandicensesgovwww.axis.com/applications

Note

The application AXIS/ided Motion Detection is included with this product. See AXIS/ided Motion Detection or page 35.

- Several applications can run at the same time but some applications might not be compatible with each other. Certain combination of applications might require to much processing power or memory resources when run in parallel. Verify that the applications work together before deployment.

ApplicationLicenses

Someapplicationsneedalicensetorun.Licensescanbeinstalledintwoways:

•Automaticinstallation—requiresaccesstothelnternet
- Manualinstallation—obtainthelicensekeyfromtheapplicationvendoranduploadthekeytotheAxisproduct

Torequestalicense, theAxisproductserialnumber(S/N) is required. The serial number can be found on the product label and under SystemOptions > Support > SystemOverview.

UploadApplication

Touploadandstartanapplication:

1. GotoSetup>Applications.

2ndeUploadApplicationclickBrowseLocatchapplicationfileandclickUploadPackage.

1. Install the license (if applicable). For instructions, seethedocumentation provided by the application vendor.

Start the applicationGd page Applications select the application in the disf installed applications and click Start.

1. Configuretheapplication.Forinstructions,seethedocumentationprovidedbytheapplicationvendor.

Note

• Applicationscanbeuploadedbyproductadministrators.
• ApplicationsandlicensescanbeinstalledonmultipleproductsatthesametimeusingAXISCameraManagement,version 3.10andlater.

To generate of file that application to Application Select the application and click Log.

ApplicationConsiderations

Ifanapplicationisupgraded, applicationsettings, including the license, will be removed. The license must be installed and the application reconfigured.

If the Axis product's firmware is upgraded, uploaded applications and their settings will remain unchanged, although this is not guaranteed by Axis Communications. Not that the application must be supported by thenew firmware. For information about firmware upgrades, see Upgrade the Firmware on page 62.

If the Axis product is restarted, running applications will restart automatically.

If the Axis product is restored, uploaded applications remain unchanged but must be restarted. Tostart the application, goto Setup Application Select the application in the dis installed applications and click Star Information about restoring the Axis product, see Maintenance on page 58.

If theAxisproductisresettofactorydefault, uploadedapplicationsandtheirsettingsareremoved.Forinformationaboutfactory default, see ResettoFactoryDefaultSettingsonpage60.

AXISVideoMotionDetection

AXISVideoMotionDetectionisanapplicationthatdetectsmovingobjectsinthecamera'sfieldofview.Whenamovingobject isdetected,AXISVideoMotionDetectionssendsanalarmthatcanbeusedbytheAxisproductorbythird-partysoftwaretoforexample,recordvideoorsendanotification.

AXIS/ided MotionDetection included with the Axis product and available under SetupApplications. Use AXIS/ideo MotionDetection, the application must first best started. To avoid detecting unwanted objects, the applications should be configured. During configuration, visual confirmation can be used to help understand the effect of the different filters. When visual confirmation is enabled, red polygonsshow which objectsthe application detects and green polygonsshow which objectsthe application ignores.

Considerations

BeforeusingAXISVideoMotionDetection3,takethefollowingintoconsideration:

• Smallanddistantobjectsmightnotbedetected.
• Detection accuracy may be affected by weather conditions such as heavy rainorsnow.
• MakesurethatthelightingconditionsarewithintheAxisproduct'sspecification.Addadditionallightingifneeded.
• Makesurethatthecameraisnotsubjecttoexcessivevibrations.Vibrationsmightcausefalsedetections.

StartandStoptheApplication

TstarthapplicationselectrthInstalledApplicationsisbrtheApplicationspagandclickStart.

Tostoptheapplication,selectitinthelistandclickStop.

ConfigureApplication

The application is available from SetupApplicationsMotionDetectionGoSettingsandherclickAXIS AXIS AXIS Video Motion Motion Detection Settings/scopingtheapplication'swebpage.

ToconfigureAXISVideoMotionDetection3,followthesesteps:

Modify the size of position of include area This there are in which moving objects will be detected. Send include Area on page 35.

Optionally added more exclud areas Objects are excluded will be ignored See Exclude Are on page 36.

3.ClickSavetoapplythechanges.

Use visual confirmation to verify the settings. See Visual Confirmation on page 36.

Ifo many unwanted objects are detected, enable and configure on more the ignored filter. Sed ignored Filters on page 37.

After modifying setting click Save to apply the changes The video stream will be restarted and may take few seconds before the change is applied.

IncludeArea

Theincludeareaistheareainwhichmovingobjectswillbedetected.Objectsmovingoutsidetheincludeareawillbeignored. Theobjectwillbedetectedalsoifonlyapartoftheobjectisinsidetheincludearea.

Note

Tomodifytheincludearea,InternetExplorerandAXISMediaControl(AMC)mustbeused.

Thedefaultincludeareaisasquarethatcoversthewholeimage.Clickonthe icontohighlghtthearea.

Usethemousetoreshapeandresizetheareasothatitonlycoversthepartoftheimageinwhichmovingobjectsshouldbedetected. Thedefaultsquarecanbechangedtoapolygonwithupto20points(corners).

• Toaddanewpoint, clickontheincludeareaborder.Dragthepointtothedesiredposition.
• Toremoveapoint, right-clickonthepoint.
• Tomoveapoint, dragthepointtothenewposition.
• Tomovetheentireincludearea, placethemousepointerinsidethearea. Whenthepointerbecomesacross, dragthe areatothenewposition.
• Toselecttheincludearea,clickontheborder.

Toresettheincludeareatoitsdefaultsize,clickReset.

ExcludeArea

Anexcludeareaisanareainwhichmovingobjectswillbeignored.Useexcludeareasifthereareareasinsidetheincludearea thattriggeralotofunwanteddetectedobjects.Upto10excludeareascanbeused.

Note

Toaddandmodifyexcludeareas,InternetExplorerandAXISMediaControl(AMC)mustbeused.

To address excluding a click Add default exclude a rectangle placed in the center of the image. The theme mouse to move, reshape and resize the areas so that it covers the desired part of the image. The defaults square can be changed to a polygon with up to 20 points (corners).

• Tomovetheexcludearea, placethemousepointerinsidethearea. When the pointer becomes across, drag the area to thenew position.
• Toaddanewpoint, clickontheexcludeareaborder.Dragthepointtothedesiredposition.
• Toremoveapoint, right-clickonthepoint.
• Tomoveapoint, dragthepointtothenewposition.
• Toselectanexcludearea,clickontheborder.

Toremoveanexcludearea,selecttheareaandthenclickRemove.

Tohighlighttheexcludeareas,clickonthe

icon.

VisualConfirmation

Visualconfirmationisusedtovalidatethatthesettingsarecorrect,thatis,thatallobjectsthatshouldbedetectedaredetected.

Note

Tousevisualconfirmation, Internet Explorer and AXIS Media Control (AMC) must be used.

When visual confirmation is enabled, all moving objects found by the application will be circled and followed by polygons. A red polygon indicates that the object is found and detected as a moving object. Agreen polygon indicates that the object is found but is ignored because it is not in the include area or because of one of the ignore filters.

Toenablevisualconfirmation:

1. Select the Enable visual confirmation option.
   2.ClickSave.

Note

- Visualconfirmationisdisabledafter15minutes.

After modifying setting click Save apply the change The video stream will be restarted and may take few seconds before the change is applied.

- Enablingvisualconfirmationmayintroducevideolatency.

IgnoreFilters

IfAXISVideoMotionDetection3detectstoomanyunwantedobjects,startbymodifyingtheincludeandexcludeareas.Ifstilltoo manyobjectssaredetected,useoneormoreoftheignorefilters.

Supportedignorefilters:

• Swayingobjects—Usedtoignoreobjectsthatonlymoveashortdistance
• Short-livedobjects—Usedtoignoreobjectsthatonlyappearintheimageforashortperiodoftime
• Smallobjects—Usedtoignoresmallobjects

Ignorefiltersareappliedtoallmovingobjectsfoundbytheapplicationandshouldbeconfiguredwithcaretoensurethatno importantobjectsareignored.

Onlyuseignorefiltersifneededanduseasfewfiltersaspossible. Enableandconfigureonefilteratatimeandusevisualconfirmation toverifythesettingsbeforeenablinganotherfilterWhenconfiguringfilterstartwithsmallfiltersizeclicSavendusevisual confirmationtoverifythesettings.lfrequired,increasethefiltersizeinsmallstepsuntilthenumberofunwantedobjectsisreduced.

SwayingObjectIgnoreFilter

Theswayingobjectfilterisusedtoavoiddetectingobjectsthatonlymoveashortdistance,forexamplemovingtrees,flagsandtheir shadows.Usethefilterifsuchobjectscausealotoffalsedetections.Iftheswayingobjectsinthescenearelarge,forexamplelarge pondsorlargetrees,useexcludeareasinsteadofthefilter.Thefilterwillbeappliedtoallmovingobjectsinsceneand,ifsettoavaluetoolarge,importantobjectsmightnotbedetected.

When the waying object filter is enabled and the application finds a moving object, the object will not be reported as detected (red polygon in visual confirmation) until the travel distance is larger than the set filtersize. The alarms sent by the application will be sent when the object is detected. If the alarm is used to start are recording, configure the pre-trigger times that there are cording also include the time the object moved in the scene before being detected.

Toenablethefilter:

1. Select the Swaying objectsoption.
   2.Clickonthe icontoshowthefiltersizeintheimage.
2. Usethemousetoadjustthefiltersize.Startwithasmallsize.Objectsmovingadistanceshorterthanthedistancefrom thecenterofthecrosstooneofthearrowheadswillbeignored.Thefiltercanbemovedtothelocationofaswaying objecttomakeiteasiertoadjustthesize.Notethatthefilterwillbeappliedtoallobjectsintheimage,notonlytothe onesatthelocationwherethefilterisplaced.
   4.ClickSavetoapplythefilter.
3. Usevisualconfirmation to verify the settings.
4. If the result is not satisfactory, increase the filtersize small steps.

Thefiltersizecanalsobesetbyenteringavaluebetween10and50inthefield.Thevaluecorrespondstothedistancefromthe centerofthecrosstooneofthearrowheads.Thevalue100impliesthatanobjectmusttravelfromitsinitialpointtoonethirdofthe imagewidthtorheightbeforebeingdetected.Thevalue50implieshalfthatdistance,thatis,theobjectmusttraveladistanceof onesixthoftheimagewidthtorheightbeforebeingdetected.

Short-LivedObjectIgnoreFilter

Theshort-livedobjectfilterisusedtoavoiddetectingobjectsthatonlyappearforashortperiodoftime,suchaslightbeamsfroma passingcarandquicklymovingshadows.Usethefilterifsuchobjectscausealotoffalsedetections.

Whentheshort-livedobjectfilterisenabledandtheapplicationfindsamovingobject,theobjectwillnotbereportedasdetected(redpolygoninvisualconfirmation)untilthesetimeaspassed.Thealarmsentbytheapplicationwillbesentwhentheobjectis detected.Ifthealarmisusedtostartarecording,configurethepre-triggertimesothattherecordingalsoincludesthetimethe objectmovedinthescenebeforebeingdetected.

Toenablethefilter:

1. SelecttheShort-livedobjectsoption.
   2.Enterthenumberofsecondsinthefield.Thenumberofsecondsistheminimumtimethatmustpassbeforetheobjectis detected.Startwithasmallnumber.
   3.ClickSavetoapplythefilter.
2. Usevisualconfirmation to verify the settings.
3. If the result is not satisfactory, increase the filtersize in small steps.

SmallObjectIgnoreFilter

Thesmallobjectfilterisusedtoavoiddetectingobjectsthataretoosmall.Forexample,ifonlymovingcarsshouldbedetected,the smallobjectfiltercanbeusedtoavoiddetectingpeopleandanimals.

Ifusingthesmallobjectfilter, take into consideration that an object far from the camera appears smaller than an object closet to the camera. If the filter is set to ignore object sthesize of a person, people that are closet to be cameracan still be detected because they are larger than the filters size.

Toenablethefilter:

1. SelecttheSmallobjectsoption.

2.Clickonthe

icontoshowthefiltersizeintheimage.

1. Usethemousetoadjustthefiltersize.Startwithasmallsize.Movingobjectsthatfitinsidetherectanglewillbeignored. Thefilterdisplayedintheimagecanbemovedtomakeiteasiertocomparethefiltersizewiththesizeofobjects intheimage.Notethatthefilterwillbeappliedtoalobjectsintheimage,alsotoobjectsthatarenotlocatedat thepositionofthedisplayedfilter.
   4.ClickSavetoapplythefilter.
2. Usevisualconfirmation to overify the settings.
3. If the result is not satisfactory, increase the filtersize in small steps.

Thefiltersizecanalsobesetbyenteringthewidthandheightinthefields. Thewidthhandheightarethemaximumwidthand maximumheightoftheobjectstoignoreandaremeasuredinpercentoftheimagewidthandheight.Valuesbetween5and100 canbeused.

Using the Application in an Action Rule

The following examples show to configure the Axis product to record video when AXIS Video Motion Detection 3 detectsmotion.

InsertarS deardrtheAxiproductogd SetupSystemOptionsStoragertheAxiproduct'swebpagesand configuretheproducttouseanetworkshare.

Optionallygd:SetupVideoStreamProfilesandcreatestreamprofileusforecording.

GdoSetupEventsActionRulesandclickAddcreatenewactionrule.

FrontheTriggeredrop-downlistselectApplicationsandtherselectVMD.

Configure the settings required. For example only record video during certain time periods, select Schedule.

UndeActions\$elecRecord/idedfromthTypdrop-downlist.

1. Selectthestreamprofileandstoragedevicetouseandconfigurethepre-andpost-triggertimes.

2. MakesurethattheruleisenabledandthenclickOK.

Note

TappearthTriggeristthapplicationomusbstartedandtstatususbddloRunning.

Events

TheEventpagesallowyoutoconfiguretheAxisproducttoperformactionswhendifferenteventsoccur. Forexample, theproduct canstartarecordingorsendanemailnotificationwhenmotionisdetected.Thesetofconditionsthatdefineshowandwhen theactionistriggerediscalledanactionrule.

SetUpActionRules

Anactionruledefinestheconditionsthatmustbemetfortheproducttoperformanaction,forexemplerecordvideoorsendan emailnotification.Iffmultipleconditionsaredefined,allofthemmustbemettotriggertheaction.

FomoreinformationaboutavailabletriggersandactionssedTriggersorpage4andActionsorpage4 1.

The following example describes how to setup an action rule to record video to an network share if there is movement in the camera's field of view.

Setupmotiondetectionandaddanetworkshare:

GdoApplicationsstartandconfigureAXIS/idedMotionDetectionSeeAXIS/idedMotionDetection.

QdsSystemOptionsStorageandetupthetworkshareSeepage58.

Setuptheactionrule:

GdEventsActionRulesandclicAdd.

1. SelectEnableruleandenteradescriptivenamefortherule.

SelectApplicationsfromtheTriggerdrop-downlistandheselect/MD3

OptionallyselectScheduleandAdditionaConditionSebelow.

UndeActionsselectRecordVidedfromthTypedrop-downlist.

SelectStreamprofilandconfiguretheDurationsettingsdescribedbelow.

1. SelectNetworkSharefromtheStoragedrop-downlist.

Touse mortharondriggefothaction rules elect Additional conditions and lic Add add additionatriggers When using additional conditions, all conditions must bemettotrigger theaction.

To prevent an action from being triggered repeatedly, Wait east time can be set Ent the time hours minutes and seconds, during which the triggers should be ignored before the action rule can be activated again.

The recording Duration of actions can be set into a threshold immediately before and after the event. Select Pre-trigger time and oPost-triggered number of seconds When while the active enabled and action is triggered again during the post-trigger time, thereocording timewill be extended with another post-trigger time period.

Formoreinformation,seetheonlinehelp

Triggers

Available actionultriggersandconditionsinclude:

ApplicationsUsedinstalledapplicationsstriggetheRuleSeeApplicationsorpage33.

VMD3Trigger rule when AXIS/ided Motion Detection detects moving object See AXIS/ided Motion Detection.

- Detectors

Events

Day/NightModeTriggerthe rule whether product switches between day mode (IRcutilteon) and night mode (IRcutfilteroff). This can forexample be used to control an external infrared (IR) light connected to an output port.

LivStreamAccessedTrigger the rule when any stream is accessed and during ed storage playback. This can forexample be used to send notifications.

TamperingTrigger rule whertamperings detected See About cameratamperingor page 32.

- Hardware

NetworkTrigger the rule network connection is restored. This example used start recording to the SDcard.

TemperatureTriggetheulifthtemperaturfallsoutsideinsidtheoperatingangofthproductThis canforexamplebeusedtosendmaintenancenotifications.

- InputSignal

DigitalInputPortTriggetheulwherarl/OportreceivesignafromconnecteddevicSed/0 Portsonpage58.

ManualTriggerTriggertheRuleusingtheManualTriggerbuttonirthLiveViewpageSecControlson theLiveViewPageonpage1 1.Thiscanforexamplebeusedtovalidateactionsduringproductinstallation andconfiguration.

VirtualInputscanused by MSVidedManagementSystem;driggeactionsVirtualInputscanfor example,beconnectedtobuttonsintheVMSuserinterface.

•PTZ

MovingTrigger the rule whether the camera view moves dueto PT Z operation This afo example based as an additional condition to prevent an action rule triggered by motion detection to record video while the camera view moves dueto PT Z operation.

PreseReachedTrigger rule when the cameratops at prese position This can be example used with the Send Images action to upload images from the preset position.

•Storage

DisruptionTrigger theule storage problems are detected for example if storage devices is unavailable, removed, full, locked or if other reader or write problems occur. This can forexample be used to send maintenance notifications.

RecordingTriggertheulwhertheAxiproductrecordsthestoragedeviceTheecordingstatusrigger canbeusedtonotifytheoperator,forexamplebyflashingLEDlights,iftheproducthasstartedorstoppedto recordtothestoragedevice.Notethat,thistriggercanbeusedonlyforedgestoragerecordingstatus.

•System

SystemReadyTriggetheulewhertheproduchabeerstartedandalservicesareunningThisarfor examplebeusedtosendanotificationwhentheproductrestarts.

•Time

RecurrenceTrigger the rul periodically Se Set Up Recurrences or page 4 This afo example used to upload an image every 5 minutes.

UsScheduleTriggertheulaccordingtheselectedscheduleSeeCreateScheduleorpage44.

Actions

Availableactionsinclude:

Events

- IRIllumination-ActivateordeactivateIRlight.

Day/NightVisionModeSetlaymode(IRufilterpn)nightmode(IRufilterpff).

- OutputPort-ActivateanI/Oporttocontrolanexternaldevice.

OverlayTextDisplayanoverlaytextSeeHowtincludeoverlaytextinteractionrulepage23.

- PTZControl

-PresetPosition-Gotoapresetposition.

GuardTourStartguardourSeeAboutguardtoursorpage29.

- RecordVideo–Recordvideotoaselectedstorage.

- SendImages–Sendimagestoarecipient.

- SendNotification-Sendanotificationmessagetoarecipient.

SendSNMTrapSendSNMTrapmessagetheOperatorMake surthaSNMP enabled and configured underSystemOptionsNetworkSNMP.

- SendVideoClip-Sendavideocliptoarecipient.

- WDRMode-TheWDRModecanbeturnedonoroffwhentheactionruleistriggered.

AddRecipients

Theproduct cansendmediafilesandmessagesto notifyusersaboutevents.Beforetheproductcansendmediafilesornotification messagesyoumustdefinonoremorerecipientsFoinformationaboutavailableoptionsseeRecipienttypesorpage42.

Toaddarecipient:

GetEventsRecipientsandlicAdd.

2.Enteradescriptivename.

3.SelectarecipientType.

4.Entertheinformationneededfortherecipienttype.

5.ClickTesttotesttheconnectiontotherecipient.

6.ClickOK.

RecipientTypes

The following recipients are available:

RecipientUsewithaction	Notes
Email	SendImagesSendNotificationSendVideoClip	Anemailrecipientcancontainmultipleemailaddresses.
FTP	SendImagesSendVideoClip

Events

SFTPSendImages	SendVideoClip	EncryptedfiletransferusingSSHFileTransportProtocol (SFTP).SFTPisamoresecuremethodthanFTPbutfile transfermightbeslower,especiallyforlargefilessuchashigh resolutionvideo.SpecifylogininformationfortheSFTPserverandtheserver's publickeyMD5fingerprint(32hexadecimaldigits).TheSFTPrecipientsupportsSFTPserversusingSSH-2with RSAandDSAhostkeytypes.RSAisthepreferredmethod.To useDSA,disabletheRSAkeyontheSFTPserver.
HTTP	SendImagesSendNotificationSendVideoClip
HTTPSSendImages	SendNotificationSendVideoClip	EncryptedfiletransferusingHyperTextTransferProtocol Secure(HTTPS).SpecifylogininformationfortheHTTPSserverandvalidate theserver'scertificate.IfthereisaproxybetweentheAxis productandtheHTTPSserver,alsospecifytheproxysettings.
NetworkShareSendImages	SendVideoClip	Anetworksharecanalsobeusedasastoragedevicefor recordedvideo.GoSystemOptions>Storagetoconfigure anetworksharebeforesettingupacontinuousrecordingor anactionruletorecordvideo.Formoreinformationabout storagedevices,seeStorageonpage56.
TCPSendNotification

SetUpEmailRecipients

Emailrecipientscanbeconfiguredbyselectingoneofthelistedemailproviders,orbyspecifyingtheSMTPserver,portand authenticationusedby,forexample,accorporateemailserver.

Note

Some email providers have security filter that prevent users from receiving or viewing large amount of attachments, from receiving scheduled emails and similar. Check the email provider's security policy to avoid delivery problems and locked email accounts.

Tosetupanemailrecipientusingoneofthelistedproviders:

GdEventsRecipientandlicAdd.

EnterNameandelecEmailfromthTypeist.

Entethemailaddresses to end emails for the field Usecommas separate multiple addresses.

1. Select the email provider from the Provider list.
   5.Entertheuser|Dandpasswordfortheemailaccount.
   6.ClickTesttosendatestemail.

To setup email recipient using example corporate mail server follow instructions above but elect used as Provider Enteth email address appears to send the From field Select Advanced settings and specify SMTServer address or authentication method. Optionally select us encryption to send emails over encrypted connection. The server certificate can be validated using the certificates available in the Axis product. For information on how to upload certificates, see About certificates on page 50.

CreateSchedules

Schedulescanbeusedasactionruletriggersorasadditionalconditions,forexampletorecordvideoifmotionisdetectedoutside officehours.Useoneofthepredefinedschedulesorcreateanewscheduleasdescribedbelow.

Tocreateanewschedule:

GdEventsSchedulesandclicAdd.

2.Enteradescriptivenameandtheinformationneededforadaily,weekly,monthlyoryearlyschedule.
3.ClickOK.

Taus the scheduler action rule selects the schedule from the Schedule drop-down list the Action Rule Setup page.

SetUpRecurrences

Recurrencesareusedtotriggeractionrulesrepeatedly,forexampleevery5minutesoreveryhour.

Tosetuparecurrence:

GdEventsRecurrencesandlicAdd.

2.Enteradescriptivenameandrecurrencepattern.
3.ClickOK.

To set the recurrence in action rule first select Time from the triggered drop-downlist the Action Rule Setup page and then select the recurrence from these second drop-downlist.

TomodifyremoverecurrencesselecttherecurrencerthRecurrenceListandClickModifyRemove.

Recordings

TheAxisproductcanbeconfiguredtorecordvideocontinuouslyoraccordingtoanactionrule:

• Tostartacontinuousrecording,seepage46.
• Tosetupactionrules,seepage40.
  • Toaccessrecordings, see FindRecordings on page 45.
  • Toplayrecordings, see PlayRecordingonpage45.
  • Toexportarecordingasavideoclip, see ExportVideoCliponpage46.
• Toconfigurecameracontrolledstorage,seeStorageonpage56.

FindRecordings

RecordingstorebirthSD:ardnetworkharcarbaccessedrothRecordingsListpageThepagdistallrecordingon thestoragedeviceandshowseachrecording'sstartdateandtime,durationandtheeventthattriggeredtherecording.

Note

Therecording'sstartdateandtimeissetaccordingtotheAxisproduct'sdateandtimesettings.IftheAxisproductisconfiguredausetimzonendifferenfromthocatimezonemakeuretconfigurehRecordingimfiltersaccordingttheproduct'stizemazDateandtimesettingsareconfiguredundeSystemOptionsDateTimesedDateTimeonpage50.

Tofindarecording, followthesesteps:

1. GotoRecordings>List.

AreductnumberfecordingsdisplayedselecthdesireoptionsundeFilter:

RecordingtimeListecordingthatstartedbetweenFromanddimes.

EventListecordingthatwerdriggeredbyspecificEventSelectcontinuoudistontinuousrecordings.

Storage-Listrecordingsfromaspecificstoragedevice.

Sort-Specifyhowrecordingsshouldbesortedinthelist.

Results–Specify maximum number of recording stodisplay.

To apply the filters click the Filte button Some filters may take long time complete.

1. TherecordingsaredisplayedintheRecordinglist.

T play recording select the recording and click Play Se also Play Recording or page 45.

To view detailed information about recording, select the recording and lic Properties.

To export recording, part of recording via video clip select the recording and lic Export Seals Export/ided Clip on page 46.

To remove recording from the storage device, select the recording and click Remove.

PlayRecording

RecordingsontheSDcardornetworksharecanbeplayeddirectlyfromtheAxisproduct'swebpages.

Toplayarecording, followthesesteps:

1. GotoRecordings>List.

DreducethenumberofecordingsdisplayedselecthdesiredoptionsundeFilteandclickthFiltebuttorto applythefilters.SeealsoFindRecordingsonpage45.

Select recording and licPlayThe recording will be played a new browser window.

ExportVideoClip

Recordings on the SD cardornetworkshare can be exported as videoclips. It is possible to export a complete recording or part of are cording.

Note

TheexportedrecordingisaMatroskavideofile(.mkv).ToplaytherecordinginWindowsMediaPlayer,AXISMatroskaFileSplittemusbinstalledAXISMatroskaFilSplittercabdownloadedfromwww.axis.com/techsup/software

Toexportavideoclip, followthesesteps:

1. GotoRecordings>List.

DreducethnumbeofecordingdisplayedselectddesiredoptionsundeFilteandclickthFiltebuttorto applythefilters.SeealsoFindRecordingsonpage45.

Select recording and click Export The Export Recording dialog opens.

1. Bydefault, the completerecording is selected. To export a part of the recording, modify the start and stop times.

2. Optionally, enterafilename for therecording.

6.ClickExport.

Note

Recordingscanalsobeexportedfromtheplaybackwindow.

ContinuousRecording

The Axiproductarbeconfigured continuously saved storage device information about storage devices; Storage or page 50 prevent the disk from becoming full is recommended configured by disk automatically removed recordings.

Ifanewstreamprofileisselectedwhilearecordingisongoing,therecordingwillbestoppedandsavedintherecordinglistanda newrecordingwiththenewstreamprofilewillstart.Allpreviouscontinuousrecordingswillremainintherecordinglistuntilthey areremovedmanuallyorthroughautomaticremovalofoldrecordings.

Tostartacontinuousrecording,followthesesteps:

1. GotoRecordings>Continuous.

2.SelectEnabled.

1. SelectthetypeofstoragedevicefromtheStoragelist.

2. SelectaStreamprofiletouseforcontinuousrecordings.

5.ClickSavetosaveandstarttherecording.

Languages

MultiplelanguagescanbeinstalledintheAxisproduct.AllwebpagesincludingtheonlinehelpwillbedisplayedintheselectedlanguageTo switchlanguagesgoSetupLanguagesandfirstuploadthenewLanguagefileBrowseandocatchthe landfillclicktheUploadLanguagebutton.SelectthenewlanguagefromthelistandclickSave.

Note

• Resetting the product to factory default settings will erase any uploaded language files and reset the product language to English.
• ClickingtheRestorebuttonontheMaintenancepagewillnotaffectthelanguage.
• Afirmwareupgradewillnotaffectthelanguageused. However if you have uploaded an ewlanguageto the product and later upgradethe firmware, it may happen that the translation no longer match the product's web pages. In this case, upload an updated language file.
• Alanguagealreadyinstalledintheproductwillbereplacedwhenacurrentoralaterverersionofthelanguagefileisuploaded.

SystemOptions

Security

Users

Use access controlled enabled by default and a configuration under SystemOptions Security Users Administrator can setup other users by giving them usernames and passwords. It is also possible to allow anonymous viewer login, which means that anybody may access the live view page.

Theuserlistdisplaysauthorizedusersandusergroups(accesslevels):

• ViewershaveaccesstotheLiveViewpage
- Operatorshaveaccesstoallsettingsexcept:
-creatingandmodifyingPTZpresets
-creatingandmodifyingPTZcontrolsettings
-creatingandmodifyingprivacymasksettings
-uploadingapplicationsandlanguagefiles
-anyofthesettingsincludedintheSystemOptions

Administrator have unrestricted accessal settings. The administrator can add modify and remove other users.

Note

Not that whether option Encrypted unencrypted selected the web serve will encrypt the password This default option for anewunitor a unit reset to factory default settings.

UndeHTTP/RTSIPasswordSettingsselecttheypofpasswordallowYoumayneedallowunencryptedpasswordsifthereareviewingclientsthatdonotsupportencryption,orifyouupgradedthefirmwareandexistingclientssupportencryptionbutneedtologinagainandbeconfiguredtousethisfunctionality.

UndeUseSettingsselecttheEnablanonymousvieweloginoptiortallowanonymoususersaccessdtheLiveViewpage.

Select the Enable Anonymou PTZ control into allow an anonymous user access the PTZ controls.

DeselecttheEnablBasiSetupoptionthetaBasiSetupmenuBasiSetupprovidesquickaccesssettingthatshouldbe madebeforeusingtheAxisproduct.

ONVIF

ONVIF(OpenNetworkVideoInterfaceForum)isaglobalinterfacestandardthatmakesiteasierforendusers,integrators,consultants,andmanufacturerstotakeadvantageofthepossibilitiesofferedbynetworkvideotechnology.ONVIFenablesinteroperabilitybetweendifferentvendorproducts,increasedflexibility,reducedcostandfuture-proofsystems.

BycreatingauseryouautomaticallyenableONVIFcommunication.UsetheusernameandpasswordwithallONVIFcommunication withtheproduct.Formoreinformationseewww.onvif.org

IPAddressFilter

IAddressfiltering enableorth SystemOptions Security IAddressFilterpage Once enabled the listed address are allowed denied access the Axiproduct Select Allow Den from the distance Apply enable address filtering.

The administrator can add up to 256IP addressentriestothelist (asingleentry can contain multipleIP addresses).

HTTPS

HTTPS(HyperTextTransferProtocoloverSecureSocketLayer,orHTTPoverSSL)isawebprotocolprovidingencryptedbrowsing. HTTPScanalsobeusedbyusersandclientstoverifythatthecorrectdeviceisbeingaccessed. Thesecuritylevelprovidedby HTTPSisconsideredadequateformostcommercialexchanges.

TheAxisproductcanbeconfiguredtorequireHTTPSwhenusersfromdifferentusergroups(administrator, operator, viewer)login.

TouseHTTPSarHTTPScertificatenusfirsbeinstalledGoSystemOptionsSecurityCertificatesinstallandmanage certificates.SeeAboutcertificatesonpage50.

ToenableHTTPSontheAxisproduct:

1. GotoSystemOptions>Security>HTTPS
2. SelectanHTTPCertificatefromthelistofinstalledcertificates.
3. Optionally, click Ciphers and select the encryption algorithm for SSL.
4. SettheHTTPSConnectionPolicyforthedifferentusergroups.
   5.ClickSavetoenablethesettings.

Taccess the Axis product via desired protocol, the address field browser, https://fortheHTTPprotocol. and http://fortheHTTPprotocol.

The HTTP Sport change or the System Options Network TCP/IP Advance page.

IEEE802.1X

IEEE802.1Xisastandardforport-basedNetworkAdmissionControlprovidingsecureauthenticationofwiredandwirelessnetwork devices.IEEE802.1XisbasedonEAP(ExtensibleAuthenticationProtocol).

ToaccessanetworkprotectedbyIEEE802.1X,devicesmustbeauthenticated.Theauthenticationisperformedbyanauthentication servertypicallyRADIUServerexampleswhichareFreeRADIUSandMicrosoftInternetAuthenticationService.

InAxisimplementation, theAxisproductandtheauthenticationserveridentifythemselveswithdigitalcertificatesusingEAP-TLS (ExtensibleAuthenticationProtocolTransportLayerSecurity)ThecertificatesareprovidedbyCertificationAuthorityCA). Youneed:

• aCAcertificatetoauthenticatetheauthenticationserver.
• aCA-signedclientcertificatetoauthenticatetheAxisproduct.

TreatandInstallcertificatesgodSystemOptionsSecurityCertificateSeeAboutcertificatesorpage50ManyCA certificatesarepreinstalled.

ToallowtheproducttoaccessanetworkprotectedbyIEEE802.1X:

1. GotoSystemOptions>Security>IEEE802.1X.
   SelectCAcertificatandClienCertificatfromtheistoInstalledcertificates.
   UndeSettingsselecttheEAPVersionanprovidetheEARidentityassociatedwiththeClientertificate.
2. ChecktheboxtoenableIEEE802.1XandclickSave.

Note

Forauthenticationtoworkproperly, the date and timesettings in the Axis product should be synchronized with an NTP server. See Date & Time on page 50.

Aboutcertificates

Certificatesareusedtoauthenticatedevicesonanetwork.Typicalapplicationsincludeencryptedwebbrowsing(HTTPS),network protectionviaIEEE802.1Xandsecureuploadofimagesandnotificationmessagesforexampleviaemail.Twotypesofcertificates canbeusedwiththeAxisproduct:

Server/Clientcertificates: To authenticate the Axiproduct/Server/Clientcertificate can self-signed issued by Certificate Authority(CA). Aself-signed certificate offers limited protection and can be used before a CA-issued certificate has been obtained.

CAcertificatesToauthenticatpeecertificatesforexamplethecertificatoAuthenticationserveincastheAxisproducts connectedtoanIEEE802.1Xprotectednetwork.TheAxisproductisshippedwithseveralpreinstalledCAcertificates.

Note

• If the product is reset to factory default, all certificates, except preinstalled CA certificates, will be deleted.
• If the product is reset to factory default, all preinstalled CA certificate that have been deleted will bere installed.

Howtocreateaself-signedcertificate

1. GotoSetup>SystemOptions>Security>Certificates.
2. ClickCreateself-signedcertificateandprovidetherequestedinformation.

HowtocreateandinstallaCA-signedcertificate

Createself-signedcertificatesedHowtocreateself-signedcertificatiorpage50.
2. GotoSetup>SystemOptions>Security>Certificates.
ClickCreatecertificatesigningequestanprovidetherequestedinformation.
4. CopythePEM-formattedrequestandsendtotheCAofyourchoice.
Whether signed certificates returned click install certificate and upload certificate.

HowtoinstalladditionalCAcertificates

1. GotoSetup>SystemOptions>Security>Certificates.
2. ClickInstallcertificateanduploadthecertificate.

Date&Time

The Axi product's lat and im settings are configured under SystemOptionsDateTime.

CurrenServeTimedisplaythecurrentlatandtime(24clock)Thetimecarbeisplayednl2hclockthedetexverlay(see below).

TochangchelatandimsettingsselecthepreferredTimmodendeNewServeTime:

SynchronizewithcomputeTimeSetslatandimaccordingthecomputer'slockWiththisoptiondatandtimearesetonceandwillnotbeupdatedautomatically.
SynchronizewithNTPServerObtainslatandimfromaNTBerverWiththisoptiondatandimsettingare updatedcontinuouslyEoinformationoNTBettingssedNTPConfigurationorpage53.
IfusinghostnamefortheNTRerveraDNServemuseconfiguredSeeDNSConfigurationorpage53.
- Setmanually—Allowsyoutomanuallysetdateandtime.

Ifusing NTServer select your Timezonefrontdrop-downlistrequiredcheckAutomaticallyadjustfordaylightsaving timechanges.

TheDateTimeFormaUsedImagesthe datandimformatdisplayedstexverlayrthevidestreamUsthe

predefinedformatsorsee FileNaming&Date/TimeFormatsintheonlinehelp forinformationonhowtocatecustomdateand timeformatsToincludeDatandimethoverlaytextg0dVideandselectIncluldatandIncludtime.

Network

BasicTCP/IPSettings

TheAxisproductsupportsIPversion4andIPversion6.Bothversionscanbeenabledsimultaneously, andatleastoneversion mustalwaysbeenabled.

IPv4AddressConfiguration

Bydefault, theAxisproductissettouseIPv4(IPversion4) and to obtain theIPaddress automatically via DHCP. TheIPv4settings are configured under SystemOptions > Network > TCP/IP > Basic.

DHCP(DynamicHostConfigurationProtocol) allows network administrator stocentrally manage and automate the assignment of IP addresses. DHCP should only be enabled if using dynamicIP address notification, or if the DHCP can update a DNS server. It is then possible to access the Axis product by name (hostname).

If DHCPisenabledandtheproductcannotbeaccessed,runAXISIPUtilitytosearchthenetworkforconnectedAxisproducts,orresettheproductdthefactordefaultsetting(sepage60)andherperformtheninstallationagain.

ToustatidAddresscheckUsethe followingAddressandspecifythdAddresssubnetmasklandefaultouter.

IPv6AddressConfiguration

IfIPv6(IPversion6)isenabled,theAxisproductwillreceiveanIPaddressaccordingtotheconfigurationinthenetworkrouter.

TenablePv6gotoSystemOptionsNetworkTCP/IPBasicOthesettingsforPvShouldbeconfiguredrthenetworkrouter.

ARP/Ping

The product's Address can be assigned using ARP and PingForm instructions see Assign/Address Using ARP/Ping or page 5 1.

TheARP/Pingserviceisenabledbydefaultbutisautomaticallydisabledtwominutesaftertheproductisstarted,orassoonasanIP addressisassigned.Tore-assignIPaddressusingARP/Ping,theproductmustberestartedtoenableARP/Pingforanadditional twominutes.

TodisabletheServicegdoSystemOptionsNetworkTCP/IPBasicandleathoptionEnableARP/PingettingofPaddress.

Pinging the product is still possible when the service is disabled.

AssignIPAddressUsingARP/Ping

Theproduct'sIPaddresscanbeassignedusingARP/Ping.Thecommandmustbeissuedwithin2minutesofconnectingpower.

1. AcquireafreestaticIPaddressonthesamenetworksegmentasthecomputer.
2. Locatetheserialnumber(S/N) on the product label.
   3.Openacommandpromptandenterthefollowingcommands:

Linux/Unixsyntax

arp-s<IPaddress><serialnumber>temp
ping-s408<IPaddress>

Linux/Unixexample

arp-s192.168.0.12500:40:8c:18:10:00temp
ping-s408192.168.0.125

Windowssyntax(thismayrequirethatyourunthecommandpromptasanadministrator)

arp-s<IPaddress><serialnumber> ping-1408-t<IPaddress>

Windowsexample(thismayrequirethatyourunthecommandpromptasanadministrator)

arp-s192.168.0.12500-40-8c-18-10-00
ping-l408-t192.168.0.125

1. Check that thenetworkable is connected and then restart the product by disconnecting and reconnecting power.

Glosthe command prompt whether product responds with Reply from 92.168.0.125:.. osimilar.

Openbrowseandyphttp://irtheLocation/Addressfield.

Fothemethods of assigning the Addressed Document Assignment/Address and Access the Video Stream or Axis Support web at www.axis.com/techsup

Note

ToperformmandpromptWindowspperthStartmenuandtypecmdirthRun/Searchfield.

- TousetheARPcommandinWindows8/Windows7/WindowsVista,right-clickthecommandprompticonandselectRunasadministrator.

To open command prompt Mac OS x perth Termin utility from Application Utilities.

AXISVideoHostingSystem(AVHS)

AVHSusedinconjunctionwithanAVHSservice,provideaseasyandsecureInternetaccesstoliveandrecordedvideoaccessiblefromanylocation.FormoreinformationandhelptofindalocalAVHSServiceProvidergotowww.axis.com/hosting

The AVHSettings are configured under SystemOptionsNetworkTCPBasic the possibility to connect AVHService is enabled by default. Todisable, clear the Enable AVHSbox.

One-clickenablesPressandholdtheproduct'sontrobutton(seeHardwareOverviewpage)aboutSecondso connectorAVHSServiceovethenterneOncregisteredAlwayswilbenabledtheAxiproductstaysconnectedo theAVHSservice.Iftheproductisnotregisteredwithin24hoursfromwhenthebuttonispressed,theproductwilldisconnect fromtheAVHSservice.

Always The Ax product will constantly attempt to connect the AVH Service over the Internet. Once registered the product will stay connected to the service. This option can be used when the product is already installed and is not convenient to use the one-click installation.

AXISInternetDynamicDNSService

AXISnterneDynamidDNServiceassignshostnamefoeasyaccesstdthproductFomoreinformationsewww.axiscam.net

ToregistetheAxisproductwithAXISnterneDynamicDNSServicegdsystemOptionsNetworkTCP/IPBasidUnderServicesclicktheAXISnterneDynamicDNSServiceSettingsbutton(requiresaccessdInternet)Thedomainamecurrently registeredatAXISInternetDynamicDNSservicefortheproductcanatanytimeberemoved.

Note

AXISInternetDynamicDNSServicerequiresIPv4.

AdvancedTCP/IPSettings

DNSConfiguration

DNSDomainNamServiceprovideshtranslationofhostnameidAddressesTheDNSettingsareconfiguredundecSystem Options>Network>TCP/IP>Advanced.

SelectObtainDNServeaddress via DHCP to the DNSetting provided by the DHCP server.

TomakemanuasettingsselectUsethe followingDNServeaddressandspecifythe following:

DomainamEntethelomain(s)searchfothenoshamusedbytheAxiproductMultipledomainsarbeseparated by semicolonsTheoshnameiswaythefirsparbfullyqualifieddomainameforexamplenyserverithoshamerthefullyqualifieddomainamenyserver.mycompany.comwheremycompany.comthelomainame.

Primary/SecondaryDNServerEntethAddressofthprimaryandsecondaryDNServerThesecondaryDNServes optionalandwillbeusediftheprimaryisunavailable.

NTPConfiguration

NTP(NetworkTimeProtocol)isusedtosynchronizetheclocktimesofdevicesinanetwork.TheNTPsettingsareconfiguredunder SystemOptions>Network>TCP/IP>Advanced.

SelectObtainNTBerveaddressviaDHCRousetheNTBettingsprovidedbytheDHCRerver.

TomakmanuasettingsselectUsethfollowingNTBerveaddressandentethnosthamofAddressoftheNTBerver.

HostNameConfiguration

TheAxisproductcanbeaccessedusingahostnameinsteadofanIPaddress.ThehostnameisusuallythesameastheassignedDNS nameThehostnameconfiguredundesystemOptionsNetworkTCP/IPAdvanced.

SelectObtainmoshamviaPv4DHCRushoshamprovidedbytheDHCServerunningrlPv4.

SelectUsethehostnametosetthehostnamemanually.

SelectEnablDynamiDNSUpdates dynamically update docaDNServers whenever the Axis product's Paddress changes.

Formoreinformation,seetheonlinehelp

Link-LocalIPv4Address

Link-LocalAddress enabled default assignment the product additional address which can be used to access the product from other hosts on the same segment on the local network. The product can have a Link-LocalIPandastic or DHCP-suppliedIPaddressatthesametime.

This function can be disabled under System Options Network TCP/IP Advanced.

HTTP

The HTTP port used by the Axisproduct are changed under SystemOptionsNetworkTCP/IP Advanced addition the default setting, which is 80, any port in therange 1024-65535 can be used.

HTTPS

The HTTPSportused by the Axi product are changed under SystemOptions Network TCP/IP Advanced addition to the default setting, which is 443, any portion in the range 1024-65535 can be used.

TenableHTTPSgdsystemOptionsSecurityHTTPSFomoreinformationsedHTTPSorpage49.

NATtraversal(portmapping)forIPv4

Anetworkrouterallowsdevicesonaprivatenetwork(LAN)toshareasingleconnectiontothelnternet.Thisisdonebyforwarding networktrafficfromtheprivatenetworktothe"outside",thatis,theInternet.Securityontheprivatenetwork(LAN)isincreased sincemostroutersarepre-configuredtostopattemptsstoaccesstheprivatenetwork(LAN)fromthepublicnetwork(Internet).

Use NATraversawhthertheAxisproductlocatedbraintranet(LAN)andyouwishtomakitavailablefromthe(WAN)side ofaNATrouter.WithNATtraversalproperlyconfigured,allHTTPtraffictoanexternalHTTPportintheNATrouterisforwardedto theproduct.

NATraversalsconfiguredundesystemOptionsNetworkTCP/IPAdvanced.

Note

• ForNATtraversaltowork, this must be supported by the router. Therouter must also support UPnP
  TM.
• In this context, router refer to an any network routing devices such as NATrouter, Networkrouter, Internet Gateway, Broadbandrouter, Broadband sharing device, or as softwares such as firewall.

Enable/Disable Where enabled the Axi product attempts to configure port mapping in NAT route by you network using UPnP Notethat UPnP ^TM must be enabled in the product (see System Options > Network > UPnP).

TM.

Usmanually selected NATouteSelect this option manually select NAToute and the address that the route in the field. If norouter is specified, the product automatically searches for NATrouterson your network. If more than one router is found, the default router is selected.

Alternative HTTP port Select this option manually defines externa HTTP Enterprise range 024-65535. The portfield isemptyor contains the default setting, which is 0, a port number is automatically selected when enabling NAT traversal.

Note

• AnalternativeHTTPportcanbeusedorbeactiveevenifNATtraversalisdisabled. ThisisusefulifyourNATrouterdoesnot supportUPnPandyouneedtomanuallyconfigurereportforwardingintheNATrouter.
• If you attempt to manually enter a port that is already in use, another available port is automatically selected.
  WherthportselectedautomaticallyitsdisplayedthisfieldTochangthisentemewportnumberandclickSave.

FTP

TheFTPserverrunningintheAxisproductenablesuploadofnewfirmware,userapplications,etc.TheFTPservercanbedisabled underSystemOptions>Network>TCP/IP>Advanced.

Note

ThisFTPserverhasnothingtodowiththeproduct'sabilitytotransferimagesviaFTPtootherlocationsandservers.

RTSP

TheRTSPserverrunningintheAxisproductallowsaconnectingclienttostartanH.264stream.TheRTSPportnumbercanbe changedundeSystemOptionsNetworkTCP/IBAdvancedThedefaultport554.

Note

H.264videostreamswillnotbeavailableiftheRTSPserverisdisabled.

SOCKS

SOCKSisanetworkingproxyprotocol.TheAxisproductcanbeconfiguredtouseaSOCKSservertoreachnetworksontheother sideofafirewallorproxyserver.ThisfunctionalityisusefuliftheAxisproductislocatedonalocalnetworkbehindafirewall,and notifications,uploads,alarms,etcneedtobesenttoadestinationoutsidethelocalnetwork(forexamplethelnternet).

SOCKSconfiguredundesystemOptionsNetworkSOCKSFomoreinformationsettheonlinehelp

QoS(QualityofService)

QoS(QualityofService)guaranteesacertainlevelofaspecifiedresourcetoselectedtrafficonanetwork.AQoS-awarenetwork prioritizesnetworktrafficandprovidesagreaternetworkreliabilitybycontrollingtheamountofbandwidthanapplicationmayuse.

The DoSettings are configured under SystemOptions Network QoS Using DSCP Differentiated Service Codepoint values the Axisproduct can mark different types of traffic.

SNMP

TheSimpleNetworkManagementProtocol(SNMP) allows remotemanagementofnetworkdevices.AnSNMPcommunityisthe groupofdevicesandmanagementstationrunningSNMP.Communitynamesareusedtoidentifygroups.

AXISVideoMIB(ManagementInformationBase)forvideohardwarecanbeusedtomonitorAxis-specific,hardware-related issuesthatmayneedadministrativeattention. FormoreinformationaboutAXISVideoMIBandtodownloadMIBfiles,goto www.axis.com/techsup

Tenable and configure SNMPth the Axi product get th System Options Network SNMP page.

Dependingonthelevelofsecurityrequired,selecttheversiononSNMPtouse.

Trapareused by the Axis product send messages to management system important events and status changes Check Enable transparente the Address where the trap message should be sent and the community that should receive the message.

Note

IfHTTPSisenabled,SNMPv1andSNMPv2cshouldbedisabled.

TrapfoSNMR1/v2areused by the Axiproduct sendmessage management system important events and status change Check EnabletrapamentethAddress where the trap message should be sent and the community that should receive them message.

The followingtrapsareavailable:

•Coldstart
•Warmstart
- Linkup
- Authenticationfailed

Note

AllAXISVideoMIBtrapsareenabledwhenSNMPv1/v2ctrapsareenabled.Itisnotpossibletoturnonoroffspecifictraps.

SNMR3provide:encryptionandsecurepasswordsTostrapwithSNMR3arSNMR3managementapplicationrequired.

TousSNMR3HTTPSmustenablededsethTPSorpage49.enableSNMR3checkboxanprovidethenitialuser password.

Note

The initial password can only be set once. If the password is lost, the Axis product must be reset to factory default, see ResettoFactoryDefaultSettingspage60.

UPnP ^TM

TheAxisproductincludessupportforUPnP ^TM .UPnP ^TM isenabledbydefaultandtheproductisautomaticallydetectedbyoperating systemsandclientsthatsupportthisprotocol.

UPnPTM canbedisabledunderSystemOptions>Network>UPnP

RTP/H.264

The RTportangandmulticastettings are configured under SystemOptionsNetworkRTP.

The RTP portranged defines the range of ports from which the video ports are automatically selected. Form multicast streams, only certain IP addresses and port numbers should be used.

SelectAlwayMulticastVidedstartmulticaststreamingwithoutpeningarRTSBession.

Bonjour

TheAxisproductincludessupportforBonjour.Bonjourisenabledbydefaultandtheproductisautomaticallydetectedbyoperating systemsandclientsthatsupportthisprotocol.

BonjourcanbedisabledunderSystemOptions>Network>Bonjour.

Storage

SDCard

NOTICE

Topreventdatacorruption, the SDcardshouldbeunmountedbeforeremoval.

Note

ForSDcardrecommendationssee www.axis.com

TheAxisproductsupportsmicroSD/microSDHC/microSDXCcards.

The following SDcardfilesystemsaresupported:

ext4-recommendedluditsresiliencagainstlatalosifhecardsjectediftherebruppowelosstaccess datastoredonthecardfromtheWindowsoperatingsystem,athird-partyext4driverorapplicationisrequired.
• vFAT—supportedbymostoperatingsystemsforpersonalcomputers.

The SDcardsmanagedorthSystemOptionsStoragePageClickSDCardOpenStorageManagement.

If the card's status shows failed, click Check disk to see the problem can be found and then Repair this option only available for SD cards with next 4. For SD cards with v FAT, use a card reader or computer to troubleshoot the card.

T avoid filling the card is recommended to remove recordings continuously. UndeGenera Settings select Remove recordings older than and select then number of days or weeks.

Tstopwriting the card an protectecording from being removed select Lockunde Genera Settings.

MountandUnmountSDCard

NOTICE

Topreventcorruptionofrecordings,theSDcardshouldalwaysbeunmountedbeforeitisejected.

TheSDcardisautomaticallyymountedwhenthecardisinsertedintotheAxisproductorwhentheproductisstarted.Amanual mountisonlyrequiredifthecardhasbeenunmountedandnotejectedandre-inserted.

TounmounttheSDcard:

OpertheAxiproduct'swebpagesandSetupSystemOptionsStorage.

2.ClickSDCard.

3.ClickUnmount.

1. The card can now be removed.

FormatSDCard

NOTICE

FormattingtheSDcardwillremovealldataandrecordingsstoredonthecard.

TheAxisproductcanbeconfiguredtoautomaticallyformatSDcardsthataareinsertedintotheproduct.lfautoformatisenabledandanSDcardisinserted,theproductwillcheckiftheSDcardhastheext4filesystem.Ifthecardhasadifferentfilesystem,thecardwillautomaticallybeformattedtoext4.

Important

Ifautoformatisenabled,onlyuseneworemptySDcards.Anydatastoredonthecardwillbelostwhenthecardisinserted intotheAxisproduct.

Toenableautomaticformatting, followthesesteps:

OpertheAxisproduct'swebpagesandSetupSystemsOptionsStorage.

2.ClickSDCard.

UndeGeneraSettingsselectAutoformato.

4.ClickOKtosavesettings.

AnSDcardinsertedintotheproductcanbemanuallyformattedtooneofthesupportedfilesystems.Tomanuallyformatthe SDcard,followthesesteps:

1. Insert the SD card in the SD card slot.

OpertheAxisproduct'swebpagesandSetupSystemsOptionsStorage.

3.ClickSDCard.

1. ClickFormatandselectthedesiredfilesystem.

5.ClickOKtostartformattingthecard.

EncryptSDCardData

Topreventunauthorizedindividualsandsystemsfromaccessingrecordedvideo,theSDcardcontentcanbeencrypted.Encryption canonlybeenabledwhenthecardisunmounted.Afterenablingencryption,theSDcardmustbeformattedsothatnounencrypted dataremainsonthecard.Thecardmustalsobemountedbeforeitcanbeused.

Note

Ifautoformatisenabled, thecardwillbeformattedandmountedautomaticallywhenencryptionisenabled. Theformatand mountstepsbelowshouldthenbeskipped.

ToencrypttheSDcardcontent:

OpertheAxisproduct'swebpagesandSetupSystemsOptionsStorage.

Click CardoperStorageManagement.

1. If the SD card is mounted, click Unmounttounmountthecard.

4.ClickEncrypt.

1. SelectEnableSDcardencryptionandenterapassphrase.

2. BackinStorageManagement, clickFormattoformattheSDcard.

7.ClickMounttomounttheSDcard.

It possible changing the passphrase without e formatting the card Oper Storage Management clic Encrypt and the hold and new passages. The passphrase can only be changed when the card is mounted. Ongoing recordings will not be affected if the passphrase is changed.

Talisable encryption unmounted Card and follow the steps above but leath Enable Card encryption option The card must be formatted and mounted when encryption has been disabled.

NetworkShare

NetworkshareallowsyoutoaddnetworkstoragesuchasaNAS(network-attachedstorage).TheNASshallbededicatedfor recordingsanddatafromtheAxisproductsconnectedtothenetwork.ForinformationaboutreferenceNASdevices,goto www.axis.com/products/axis-camera-companion/support-and-documentation

Note

ForNASrecommendationsseewww.axis.com

Toaddanetworkshare:

1. GotoSystemOptions>Storage.
   2.ClickNetworkShare.
   3.EntertheIPaddress,DNSorBonjourametothehostserverintheHostfield.
   4.EnterthenameoftheshareintheSharefield.Subfolderscannotbeused.

I ^s required ^e selectTheshare requires ogirandentethusenamenanspassword.

6.ClickConnect.

TeleaalrecordingsandatafromtheAxiproduct'soldeorthdesignatedshareclickCleaundeStorageTools.

To avoid filling the share if recommended remove recordings continuously Under Recording Settings; select Remove recordings older than and select then number of days or weeks.

Tstopwriting@shareanprotectecordingfrombeingemovedselectLockundeRecordingSettings.

Ports&Devices

I/OPorts

TheAxisproductprovidesoneinputportandoneoutputportforconnectionofexternaldevices.Forinformationabouthowtoconnectexternaldevices,seeConnectorsonpage68.

The/Oportcarconfigured/DeSystemOptionsPortsDevicesl/O portscarbegindescriptivenamesandtheir NormatatescarconfiguredOpencircuitGroundedircuit.

PortStatus

The disbrthSystemOptionsPort DevicesPortStatuspage show the status of the product's input and output ports.

Maintenance

The Axi produc provides several maintenance functions. These are available under System Options Maintenance.

ClickRestart perform correct start the Axiproducts nobehaving expected this will have affected the current settings.

Note

ArestartclearsallentriesintheServerReport.

ClickRestordoesetmosettingsdhfactorydefaultvaluesThefollowingsettingsremotaffected:

•thebootprotocol(DHCPorstatic)
- thestaticIPaddress
- thedefaultrouter
- thesubnetmask
- thesystemtime
• theIEEE802.1Xsettings
•thefocusposition

- uploadedapplicationsarekeptbutmustberestarted

ClickDefaultresetsettingsincludinghdAddress,dthefactorydefaultvaluesThisbuttonshouldusedwithcautionTheAxisproductalsdresetfactorydefaultusingthecontroltosedResetFactoryDefaultSettingspage60.

TorestheopticsclicCalibrateundesystemOptionsMaintenanceOpticsThismaynecessaryisituationswherethe opticshaslostitscalibrationduringtransportorhasbeenexposedtoextremevibrations.Ifnecessaryconfigurefocusandzoom again(seeBasicSetuponpage 16).

Forinformationaboutfirmwareupgrade,seeUpgradetheFirmwareonpage62.

Support

SupportOverview

Th SystemOptionsSupportSupportOverviewpageprovidesinformationtroubleshootingandcontactinformation, shouldyourequiretechnicalassistance.

See also Troubleshooting on page 62.

SystemOverview

Together overview of the Axi product's status and settings go System Options Support System Overview Information that can be found here includes firmware version, IP address, network and security settings, event settings, images settings and recent log items. Many of the captions are linked to the proper setup page.

Logs&Reports

The SystemOptionsSupportLogReportpage generates logs and reports useful for system analysis and troubleshooting of contactingAxisSupport, please provide a valid Server Report with your query.

SystemLog-Providesinformationaboutsystemevents.

AccesLogists failed attempt to access the product The AccesLogans also configured disalt connection to the product (see below).

ServeReport Provides information about the product status: pop-up window. The Access Log automatically included in the Server Report.

Youcanviewordownloadtheserverreport.Downloadingtheserverreportcreatesa.zipfilethatcontainsacompleteserverreport texfileUTF-formatSelecthincludesnapshowwithdefaultmagsettingsoptionincludesnapshotoftheproductLive View.Theserverreport.zipfileshouldalwaysbeincludedwhencontactingsupport.

ParametelisShowshproduct parameters and their current setting This may prove useful when troubleshooting or when contacting AxisSupport.

ConnectionList-Listsallclientsthatarecurrentlyaccessingmediastreams.

CrashReport-Generatesanarchivewithdebugginginformation.Thereporttakesseveralminutestogenerate.

Advanced

Scripting

Scriptingallowsexperienceduserstocustomizeandusetheirownscripts.

NOTICE

ImproperusemaycauseunexpectedbehaviorandlossofcontactwiththeAxisproduct.

Axisstronglyrecommendsthatyoudonotusethisfunctionunlessyouunderstandtheconsequences.AxisSupportdoesnotprovide assistanceforproblemswithcustomizedscripts.

To Perth Script Editor and System Options Advanced Scripting Scriptause problems, reset the product of factory default settings, see page 60.

Formoreinformation,seewww.axis.com/developer

FileUpload

Files,forexamplewebpagesandimages,canbeuploadedtotheAxisproductandusedascustomsettings.Tuploadafile,go toSystemOptions>Advanced>FileUpload.

Uploadedfile accessed through http:///local// where user is the selected user group (viewer, operator or administrator) for the uploaded file.

PlainConfig

PlainConfigisforadvanceduserswithexperienceofAxisproductconfiguration.Mostparameterscanbesetandmodifiedfrom thispage.

TooperPlainConfigdSystemOptionsAdvancedPlainConfigAxiSupportdoesnoprovideassistance.

ResettoFactoryDefaultSettings

Important

Resettofactorydefaultshouldbeusedwithcaution.Aresettofactorydefaultwillresetallsettings,includingtheIP address,tothefactorydefaultvalues.

Note

The installation and management software tools are available from the support pages on www.axis.com/techsup

Toresettheproducttothefactorydefaultsettings:

1. Disconnectpowerfromtheproduct.
   PresandholdhcontrobuttonandeconnectpowerSedHardwareOvervieworpag
2. Keep the control button pressed for 15–30 seconds until the status LED indicator flashes amber.

3. Releasethecontrolbutton. The process is complete when the status LED indicator turns green. The product has been reset that factory default settings in DHC servers available on the network the default address 92.168.0.90

4. Using the installation and management software tools, assign anIP address, set the password, and access the videostream.

It's possible to re parameters factory default via web interface Go Setup System Options Maintenance and clickDefault.

Troubleshooting

ChecktheFirmware

Firmwareissoftwarethatdeterminesthefunctionalityofnetworkdevices.Oneofyourfirstactionswhentroublershootingaproblem shouldbetocheckthecurrentfirmwareversion.Thelatestversionmaycontainacorrectionthatfixesyourparticularproblem.The currenfirmwareversiontheAxiproductsdisplayedthepagSetupBasiSetupandrSetupAbout.

UpgradetheFirmware

Important

• Yourdealerreservestherighttochargeforanyrepairattributabletofaultyupgradebytheuser.
• Preconfiguredandcustomizedsettingsaresavedwhenthefirmwareisupgraded(providingthefeaturesareavailableinthenewfirmware)althoughthisisnotguaranteedbyAxisCommunicationsAB.

Note

• Aftertheupgradeprocesshascompleted, theproductwillrestartautomatically. Ifrestartingtheproductmanuallyafterthe upgrade, wait10minutesevenifyoususpecttheupgradehasfailed.
• When you upgrade the Axis product with the latest firmware from Axis website, the product receives the latest functionality available. Always read the upgrade instructions and releases notes available with each new release before upgrading the firmware.

Toupgradetheproduct'sfirmware:

1. Download the latest firmware file to your computer, available free of charge at www.axis.com/techsup
2. GotoSetup>SystemOptions>Maintenanceintheproduct'swebpages.
   UndeUpgradServeryclicBrowseandocatchfileyourcomputer.
   4.ClickUpgrade.
3. Wait approximately 10 minutes while the product is being upgraded and restarted. Then access the product.
   6.GotoSetup>BasicSetuptoverifythefirmwareupgrade.

AXISCameraManagementabusedomultiplupgradesSeewww.axis.comfrominformation.

EmergencyRecoveryProcedure

If power or network connection is lost during the upgrade, the process fails and the product may become unresponsive. Flashing red Status indicator indicates a failed upgrade. Torecover the product, follow the steps below. The serial number is found on the product's label.

1. In UNIX/Linux, typethefollowing from the commandline:
arp-s<IPaddress><serialnumber>temp
ping-1408<IPaddress>

In Window type the following from command/DO prompt(this may require that your the command prompts an administrator):

arp-s<IPaddress><serialnumber>
ping-1408-t<IPaddress>

1. If the product does not reply in 30 seconds, restart it and wait for areply. Press CTRL + Ctstop Ping.

Openbrowseandypirtheproduct'sAddressrthepagchappensustheBrowsbuttontoselectheupgrade filetouse.ThenclickLoadtorestarttheupgradeprocess.

1. After the upgrade is complete (1–10 minutes), the product automatically restarts and shows a steady green on the Status indicator.
2. Reinstall the product, referring to the Installation Guide.

If the emergency recovery procedure does not get the product up and running again, contact Axissupport at www.axis.com/techsup/

Symptoms, Possible Causes and Remedial Actions

ProblemssettingthelPaddress
WhenusingARP/Ping	Trytheinstallationagain.TheIPaddressmustbesetwithintwominutesafterpowerhasbeen appliedtotheproduct.EnsurethePinglengthissetto408.Forinstructions,seeAssignIPAddress UsingARP/Pingonpage51.
Theproductislocatedona differentsubnet	IfthelPaddressintendedfortheproductandthelPaddressofthecomputerusedtoaccessthe productarelocatedondifferentsubnets,youwillnotbeabletosethelPaddress.Contactyour networkadministratortoobtainanIPaddress.
ThelPaddressisbeingused byanotherdevice	DisconnecttheAxisproductfromthenetwork.RunthePingcommand(inaCommand/DOS window,typepingandthelPaddressoftheproduct):Ifyoureceive:Replyfrom:bytes=32;time=10... thismeansthatthelPaddressmayalreadybeinusebyanotherdeviceonthenetwork. ObtainanewIPaddressfromthenetworkadministratorandreinstalltheproduct.IyoureceiveRequestimedutthismeansthathedPaddressasavailable forusewiththeAxisproductCheckallcablingandreinstalltheproduct.
PossibleIPaddressconflict withanotherdeviceonthe samesubnet	ThestaticIPaddressintheAxisproductisusedbeforetheDHCPserversetsadynamicaddress. ThismeansthatifthesamedefaultstaticIPaddressisalsousedbyanotherdevice,theremay beproblemsaccessingtheproduct.
Theproductcannotbeaccessedfromabrowser
Cannotlogin	WhenHTTPSisenabled,ensurethatthecorrectprotocol(HTTPorHTTPS)isusedwhenattempting tdognYoumayneedmanuallytypehttphttpsithebrowser'saddressfield.Ifthepasswordfortheuserrootislost,theproductmustberesettothefactorydefaultsettings.SeeResettoFactoryDefaultSettingsonpage60.
ThelPaddresshasbeen changedbyDHCP	IPaddressesobtainedfromaDHCPserveraredynamicandmaychangdfthelPaddresshas beenchanged,useAXISIPUtilityorAXISCameraManagementtolocatetheproductonthe networkIdentifytheproductusingitsmodelorserialnumber,orbytheDNSname(ifthename hasbeenconfigured).Ifrequired,astaticIPaddresscanbeassignedmanually.Forinstructions,seethedocumentAssign anIPAddressandAccesstheVidedStreamonAxiSupportwebatwww.axis.com/techsup.
Certificateerrorwhenusing IEEE802.1X	Forauthenticationtoworkproperly,thedateandtimesettingsintheAxisproductshouldbe synchronizedwithNTBerveSecDateETimorpage50.
Theproductisaccessiblelocallybutnotexternally
Routerconfigur#ouroutetallowincomingdatatraffictheAxisproductenabledtheNAT-traversal featurewhichwillattempttoautomaticallyconfiguretheroutertoallowaccesstotheAxis productseeNATtraversa(portmapping)forIPv4orpage54TheoutemustsupportUPnP TM.

Troubleshooting

Firewallprotection	ChecktheInternetfirewallwithyournetworkadministrator.
Defaultroutersrequired	CheckifyouneedtoconfiguretheroutersettingsfromSystemOptions>Network>TCP/IP>Basic.

ProblemswithstreamingH.264

ProblemswithAXISMedia Control(InternetExplorer only)	ToenabletheupdatingofvideoimagesinInternetExplorer,setthebrowsertoallowActiveX controls.Also,makesurethatAXISMediaControlisinstalledonyourcomputer.
NoH.264displayedinthe client	CheckthattherelevantH.264connectionmethodsandcorrectinterfaceareenabledintheAMC ControlPanel(streamingtab).SeeAXISMediaControl(AMC)onpage 13.
	IntheAMCControPanelselectdH.264tabandlicSetodefaulH.264decoder.
	CheckthatRTSRenabledundeSystemOptionsNetworkTCP/IPAdvanced.
MulticastH.264only accessiblebylocalclients	Checkifyourroutersupportsmulticasting,orifteroutersettingsbetweentheclientandthe productneedtobeconfigured.TheTTL(TimeToLive)valuemayneedtobeincreased.
NomulticastH.264 displayedintheclient	CheckwithyournetworkadministratorthatthemulticastaddressesusedbytheAxisproduct arevalidforyournetwork.
	Checkwithyournetworkadministratortoseefthereisafirewallpreventingviewing.
PoorrenderingofH.264 images	Ensurethatyourgraphicscardisusingthelatestdriver.Thelatestdriverscanusuallybe downloadedfromthemanufacturer'swebsite.
Colorsaturationisdifferent inH.264andMotionJPEG	Modifythesettingsforyourgraphicsadapter.Refertoheadapter'sdocumentationformore information.
Lowerframeratethan expected	SeePerformanceConsiderationsonpage69.
	Reducethenumberofapplicationsrunningontheclientcomputer.
	Limitthenumberofsimultaneousviewers.
	Checkwiththenetworkadministratorthatthereisenoughbandwidthavailable.
	CheckintheAMCControlPanel(H.264tag)thatvideoprocessingisNOTsettoDecodeonly keyframes.
	Lowertheimageresolution.
	Themaximumframespersecondisdependentontheutilityfrequency(60/50Hz)oftheAxis product.SeeTechnicalSpecificationsonpage66.

Videoandimageproblems,general

Imageunsatisfactory	CheckthevidestreamandcamersettingsundefSetupVideoVideStreamandSetup>Video>CameraSettings.
Storageanddiskmanagementproblems
Storagedisruption	Astoragedisruptionalarmissentifastoragedeviceisunavailable,removed,full,lockedorifotherreadwriteproblemsoccurToidentifythsourceofhproblemcheckSystemLogunderSystemOptions>Support>LogsetReports.Dependingontheproblem,itmightbenecessaryto re-mountthestoragedevice.Forinformationonhowtosetupastoragedisruptionalarm,seeEventsonpage40.

Videocannotberecorded

CheckthattheSDcardisnotwriteprotected(thatis,readonly).

SDcardcannotbemountedReformattheSDcardandthenclickMount.

NOTICE

Formattingthecardwillremoveallcontent,includingallrecordings,fromtheSDcard.

TechnicalSpecifications

Camera
Imagesensor	ProgressivescanCMOS1/2.8"
Lens3-10.5mm,F1.4Horizontalfieldofview93°-33°Verticalfieldofview50°-18°Varifocal,Autofocus,Remotefocusandzoom,P-Iriscontrol,IRcorrected
DayandnightAutomaticallyremovableinfrared-cutfilter
Minimumillumination	Color:0.16luxatF1.4,25/30fpsColor:0.32luxatF1.4,50/60fpsB/W:0.03luxatF1.4,25/30fpsB/W:0.06luxatF1.4,50/60fpsOluxwithIRilluminationon
Shuttertime	1/66500sto1s
Video
Videocompression	H.264High,MainandBaselineprofiles(MPEG-4Part10/AVC)MotionJPEG
Resolutions	HDTV1080p25/30fps(WDR):1920x1080to160x90HDTV1080p50/60fps(noWDR):1920x1080to160x90MeetsrelevantpartsofSMPTE274M(HDTV1080p)
Framerate	Upto50/60fps(50/60Hz,noWDR)inalIresolutions
Vidostreaming	Multiple,individuallyconfigurablestreamsinH.264andMotionJPEG,Controllableframerateandbandwidth,VBR/MBRH.264Axis'ZipstreamtechnologyinH.264
Imagesettings	Manualshuttertime,Compression,Color,Brightness,Sharpness,Whitebalance,Exposurecontrol,Exposurezones,Finetuningofbehavioratlowlight,Textandimageoverlay,Privacymasks,IRilluminationWideDynamicRange-ForensicCapture:Upto120dBdependingonscene,MirroringofimagesRotation:0°,90°,180°,270°,includingCorridorFormat
Pan/Tilt/Zoom	DigitalPTZ
Network
SecurityPasswordprotection,IPaddressfiltering,HTTPSauthentication,Useraccesslog	aencryption,IEEE802.1X a networkaccesscontrol,Digest
Supportedprotocols	IPv4/v6,HTTP,HTTPS a,SSL/TLS a,QoSLayer3DiffServ,FTP,CIFS/SMB,SMTP,Bonjour,UPnP (MIB-II),DNS,DynDNS,NTP,RTSP,RTP,SFTP,TCP,UDP,IGMP,RTCP,ICMP,DHCP,ARP,SOCKS,SSH TM,SNMPv1/v2c/v3
Systemintegration
Application Programming Interface	OpenAPIforsoftwareintegration,includingVAPIX®andAXISCameraApplicationPlatform;specificationsatwww-axis.comONVIFProfileS,specificationatwww.onvif.orgONVIF®ProfilesSandG,specificationsatwww.onvif.org
AnalyticsVideoMotionDetectionSupportforAXISCameraApplicationPlatformenablinginstallationofAXISVideoMotionDetection3,AXISCrossLineDetection,AXISDigitalAutotrackingandthird-partyapplications,seewww axis.com/acap
EventtriggersAnalyticsDetectors:Day/NightMode,LiveStreamAccessedTamperingHardware:Network,TemperatureInputSignal:ManualTrigger,VirtualInputsStorage:Disruption,Recording

TechnicalSpecifications

	System:SystemReadyTime:UseSchedule,Recurrences
Eventactions	Fileupload:FTP,SFTP,HTTP,HTTPSnetworkshareandemailNotification:email,HTTP,HTTPSandTCPandSNMPtrapExternaloutputactivationVideorecordingtoedgestoragePre-andpost-alarmvideobufferingWDRmodePTZcontrol,OverlaytextIRillumination
Built-in installation aids	Pixelcounter,Remotezoom(3.5xoptical),Remotefocus
Data streaming	Eventdata
General
Casing	IP66,IP67-andNEMA4X-ratedcasing(polyesterpolycarbonateblend)
SustainabilityPVCfree
Memory512MBRAM,256MBFlash
Power	PoweroverEthernetIEEE802.3af/802.3atType1Class3Typical:4.6W,max11W
Connectors	RJ4510BASE-T/100BASE-TXPoEI/O:4-pinterminalblockfor1alarminputand1output
IRillumination	OptimizedIR,highlyefficientLEDswithadjustableintensityandangleofillumination.Rangeupto20m(66ft)
Storage	SupportformicroSD/microSDHC/microSDXCcardSupportforrecordingtodedicatednetwork-attachedstorage(NAS)ForSDcardandNASrecommendationsseewww axis.com
Operating conditions	-30°Cto50°C(-22°Fto122°F)Humidity10-100%RH(condensing)
Storage conditions	-40°Cto65°C(-40°Fto149°F)
Approvals	EN61000-6-1,EN61000-6-2,EN50121-4,IEC62236-4,EN50581,EN55024,EN55032ClassA,FCCPart15SubpartBClassA,ICES-003ClassA,VCCIClassA,RCMAS/NZSCISPR22ClassA,KCCKN-32ClassA,KN-35,IEC/EN/UL60950-1,IEC/EN/UL60950-22,IEC/EN62471,IEC60068-2-1,IEC60068-2-2,IEC60068-2-6,IEC60068-2-14,IEC60068-2-27,IEC60068-2-30,IEC60068-2-78,IEC/EN60529IP66/IP67,IEC/EN62262IK08,NEMA250Type4X,IEC60825-1
WeightWithweathershield:800g(1.75lb)
Dimensions	∅132x260mm(∅53/16x101/4in)
Included accessories	Mountingbracket,Drilltemplate,InstallationGuide,Windowsdecoder1-userlicenseAXISWeatherShieldL
Optional accessories	AXIST94F01MJ-Box/GangBoxPlateAXIST91A47PoleMountAXIST94P01BCornerBracketAXIST94F01PConduitBackBoxAXISWeatherShieldKAxisPoEMidspansFormoreaccessories,see www axis.com
Video management software	AXISCameraCompanion,AXISCameraStation,VideomanagementsoftwarefromAxis'ApplicationDevelopment Partnersavailableonwww.axis.com/techsup/software
Languages	English,German,French,Spanish,Italian,Russian,SimplifiedChinese,Japanese,Korean,Portuguese
Warranty	Axis3-yearwarrantyandAXISExtendedWarrantyoption,seewww.axis.com/warranty

aThisproductincludessoftwaredevelopedbytheOpenSSIProjectfousintheOpenSSIToolkit(http://www.openssl.org/)andcryptographicsoftwarewrittenbyEricYoung([e-mail]).

Environmental responsibility: www.axis.com/environmental-responsibility

Connectors

I/OConnector

4-pinterminalblock

Foranexamplediagram, see I/O Connectoronpage69

FunctionPinNotes			Specifications
oVDC(-)	1		0DC
DCoutput	2	Canbeusedtopowerauxiliaryequipment.Note:Thispincanonlybeusedaspowerout.	12VDCMaxload=25mA
DigitalInput	3	Connecttopin1toactivate,orleavefloating(unconnected)todeactivate.	Otomax30VDC
DigitalOutput	4	Connectedtopin1whenactivated,floating(unconnected)whendeactivated.Ifusedwithaninductiveload,e.g.arelay,adiodemustbeconnectedinparallelwiththeload,forprotectionagainstvoltagetransients.	Otomax30VDC,opendrain,100mA

ConnectionDiagrams

I/OConnector

Electrical circuit diagram with labeled components including resistors, switches, and a lamp

1 OVDC(-)
2 DCoutput12V,max25mA
3 Digitalinput
4 Digitaloutput

PerformanceConsiderations

Whensettingupyour system, it is important to consider how various settings and situations will affect performance. Some factors affect the amount of bandwidth (the bitrate) required, others can affect the framerate, and some affect both. If the load on the CPU reaches its maximum, this will also affect the framerate.

The following factors are among them most important to consider:

• Highimageresolutionand/orlowercompressionlevelsresultinimagescontainingmoredata.Bandwidthaffected.
• AccessbylargenumbersofMotionJPEGand/orunicastH.264clients.Bandwidthaffected.
• Simultaneousviewingofdifferentstreams(resolution, compression)bydifferentclients.Effectonframerateand bandwidth.
• AccessingMotionJPEGandH.264videostreamssimultaneously.Framerateandbandwidthaffected.
• Heavyusageofeventsettingsaffecttheproduct'sCPUload.Framerateaffected.
• UsingHTTPSmayreduceframerate, inparticularifstreamingMotionJPEG.
  • Heavynetworkutilizationduetopoorinfrastructure.Bandwidthaffected.
• Viewingonpoorlyperformingclientcomputerslowersperceivedperformance.Framerateaffected.
• RunningmultipleAXISCameraApplicationPlatform(ACAP)applicationssimultaneouslymayaffecttheframerateand thegeneralperformance.
