Table of Contents

Safety & General Use

Safety Precautions....4

Backup Your Data 5

About Your G-RAID USB

Introduction 7

What's in the Box 8

System Requirements 8

Overview of the Drive 9

Activity & Failure LED 10

Using Your Drive on Mac

Easy Installation for Mac 12

Optimize Performance 12

Use With Time Machine 13

Disconnect the Drive 15

Using RAID Modes

Supported RAID Modes 17

The RAID Configuration Utility for Mac ..... 18

Configure the RAID Mode for Mac 19

RAID 1 Degraded Mode & Rebuild (Mac) ..... 22

The RAID Configuration Utility (Windows) .... 23

Configure the RAID Mode for Windows ..... 24

RAID 1 Degraded Mode & Rebuild (Win.) ..... 27

Maintenance for Your Drive

Initialize the Drive for Mac 29

Restore the Drive Icon 33

Reformat with Partitions 35

Replace a Failed Drive Module 40

Using Your Drive on Windows

Windows Use 43

Cross Platform Use 43

Support & Warranty

Technical Support 47

Limited Warranty 48

Copyright 50

G RAID USB

with removable drives

Safety & General Use

• Safety Precautions p. 4
• Backup Your Data ......p. 5

G Technology*

Safety Precautions

G-RAID USB's warranty may be void as a result of the failure to respect the precautions listed here. If you detect a problem with your drive, please contact our Technical Support department.

If the product is returned with damage caused by improper handling, the warranty will be void and liability will rest with the user. Please read our Limited Warranty.

• Servicing: Your drive contains no user-serviceable parts. If it appears to be malfunctioning, have it inspected by a qualified Technical Support representative.
• Moisture: Place the device away from moisture or liquids. To reduce the risk of damage, do not expose this drive to rain or moisture. Do not use it in damp or wet conditions. Never place objects containing liquids on the drive as they may spill into its openings.
• Ventilation: Place the device in a vented area. The drive should never be placed near or over a radiator or heat source.
• Temperature: Do not expose this drive to temperatures outside the range of 5°C to 35°C (41°F to 95°F); or to operational humidity beyond 5-80%, non-condensing, or non-operating humidity beyond 10-90%, non-condensing. Avoid placing your drive near a source of heat, or exposing it to sunlight (even through a window), or in an environment that is too cold or humid.
• Physical Damage: Do not place heavy objects on the drive. Never use excessive force on your drive.

Backup Your Data

The disk drives contained in your G-RAID USB device are delicate electronic instruments and are susceptible to damage due to excessive physical shock. Under no circumstances will G-Technology be held liable for the recovery or restoration of lost data. Any loss, corruption or destruction of data while using a G-Technology drive is the sole responsibility of the user.

Make Two Backups

To help prevent the loss of your data, we highly recommend that you keep TWO copies of your data in separate storage locations. Keep one copy on your G-Technology drive. Keep a second copy on your internal hard drive, another G-Technology drive or a form of removable storage media. If possible, it is advisable to keep your data in two physically disparate locations for added safety.

GRAID USB

with removable drives

About Your G-RAID USB

• Introduction......p. 7
• What's in the Box......p. 8
• System Requirements ...... p. 8
• Overview of the Drive .....p. 9
• Activity & Failure LED......p. 10

G Technology

GRAID'USB

About Your G-RAID USB

Introduction

Thank you for purchasing G-RAID USB from G-Technology. The G-RAID USB hard drive is a high-speed, low-cost RAID that provides an ideal storage solution for content creation professionals. With its unique industrial design and all-aluminum housing, G-RAID USB is the de facto standard for many post-production facilities worldwide.

G-RAID USB features a USB 3.0 interface. When connected via the USB 3.0 interface, G-RAID USB provides data transfer rates up to 400MB/second to support the most demanding professional content creation applications such as Final Cut Pro ^® , Avid and Adobe Premiere ^® .

With its built-in RAID controller, the G-RAID USB is not tied to a single workstation and can be easily transported for use in the edit bay or on the road. The unit contains an internal RAID controller and can be configured in RAID 0 (Performance), RAID 1 (Protected) or JBOD mode.

In the RAID 1 or JBOD mode of operation, if a single hard drive failure occurs, your data will still be safe and accessible (in RAID 1 all your data is safe, whereas in JBOD all your data in the good drive is safe).

What's in the Box

The following items are included in the box:

• G-RAID USB storage solution with two removable disk modules
• USB cable (3.0; backward compatible with USB 2.0 ports)
• External AC power supply and cable

If any items are missing, please contact G-Technology at [e-mail] or call [phone].

Silver GDDR2 smartphone with speaker grille and logo (no visible text or symbols beyond branding)

System Requirements

G-RAID USB supports the following operating systems:

• Mac OS ^ 10.7 +
• Windows ^® 8.1, 8 and 7 (via reformat)

The drive has been preconfigured in RAID 0 (Performance) mode for use with Mac OS ^® systems, formatted as "HFS+ with Journaling."

Overview of the Drive

The following diagram shows the helpful features of your G-RAID USB.

The compact and quiet G-RAID USB features two removable HGST 7200 RPM SATA III hard drives. It has a uniquely designed all-aluminum enclosure with an activity/failure LED in the front panel. The rear panel features a Kensington™ security slot, a high-speed USB 3.0 port, a DC power in slot and a soft-touch on/off switch. The features combine to provide universal connectivity and industry-leading performance. All cables are included.

IMPORTANT: G-RAID USB has been set up at the factory in RAID 0 (Performance) mode. To change to RAID 1 (Protected) mode or JBOD mode, read Configure the RAID Mode.

Activity LED

Kensington® Security Slot USB 3.0 Port DC In On/Off Switch

Activity and Failure LEDs

G-RAID USB contains LEDs for drive activity (WHITE) and drive failure (RED) that are next to each other on the front panel and describe the following operations:

• System initialization
• System ready
• Disk activity
• Disk drive failure

The following table explains the meaning of each combination of LEDs on the drive. When both LEDs are illuminated, the color turns lighter RED.

State Activity/Power LED Drive Failure LED
System Initialization	On	Flashing
System ready	On	Off
Disk Activity	Flashing	Off
Disk 1 or Disk 2 Failure (RAID 0)	On	On (constant RED)
Fail Sato Mode (RMD 1) Disk 1 failure	On	Flashing 1 time/sec
Fail Sato Mode (RMD 1) Disk 2 failure	On	Flashing 4 times/sec

The activity light will glow when power is applied. It will flash brighter as data is transferred to or from the hard drive.

In the event of a disk drive failure, the RED drive failure LED located on the front panel will illuminate. In RAID 1 mode - If the red light flashes once per second, it indicates that the top drive has failed; if the red light flashes four times per second, it indicates that the bottom drive has failed. If a drive failure occurs in RAID 0 mode then the LED in the front panel turns constant RED.

• If configured in protected RAID 1 mode, all the data stored on the system will be intact.
• If configured in JBOD mode, only the data in the bad drive will be lost; the rest of the data will be intact.
• If configured in RAID 0 mode, all data will be lost. Please contact Technical Support for help if the RED LED is constantly lit indicating drive failure.

GRAID USB

with removable drives

Using Your Drive on Mac

• Easy Installation for Mac ...... p. 12
• Optimize Performance ......p. 12
  • Use With Time Machine....p. 13
• Disconnect the Drive ......p. 15

G Technology*

Easy Installation for Mac

G-RAID USB attaches to your computer via a USB 3.0 port.

Connect the power cord to the unit and plug the other end into a surge protector or wall outlet. Press and hold the power button until the unit turns on. The drive will automatically mount on the desktop if you are running Mac OS X.

Kensington* Security Slot USB 3.0 Port DC In On/Off Switch

Optimize Performance

G-RAID USB can be connected to any Mac or Windows machine equipped with USB 3.0 or USB 2.0.

If you are going to use the drive on a Windows machine, read Using Your Drive on Windows.

Use with Time Machine ^®

Your G-RAID USB can be easily used as a backup drive via Time Machine when connected to a Mac. Time Machine is an application that ships with your Mac and provides automatic file backup. The following steps will quickly set up G-RAID USB with Time Machine.

When you attach your G-RAID USB for the first time, the Time Machine dialog box should automatically appear. Click the Use as Backup Disk button.

Do you want to use G-RAID USB (12 TB) to back up with Time Machine? Time Machine keeps an up-to-date copy of everything on your Mac. It not only keeps a spare copy of every file, it remembers how your system looked, so you can revisit your Mac as it appeared in the past. Encrypt Backup Disk ? Decide Later Don't Use Use as Backup Disk

If the Time Machine dialog box does not launch, go to the Apple Menu > System Preferences. Click on the Time Machine icon. The Time Machine Preference panel will open. Click the Select Backup Disk button.

Time Machine OFF ON Select Backup Start... Time Machines range: • Injury backup for the past 10 times • Daily backup for the previous 10 times • Newer backup for all previous 10 times The latest backup is obtained when you still become fail. Show Time Machines in more bar Options...

In the subsequent dialog box, select the G-RAID USB. Click the Use Disk button.

G-RAND USB 12.78 Volume/G-RAND USB Other AirPort Time Capture Set up an AirPort Time Capture that is not listed here ? Encrypt backups Cancel Use Data Show Time Machine in menu bar Options...

Make sure the Time Machine switch is set to ON. You can set its options by clicking the Options button. Do this to choose volumes, folders, or files you do NOT want to backup.

G-RAID USB will now backup your important files automatically with Time Machine. It's really that easy!

Time Machine OFF ON G-RAID USB 12 KB of 12 KB available Oldest backup: None Latest backup: None Next backup: 113 seconds... Select Disk... Time Machine keeps: • Hourly backups for the past 34 hours • Daily backups for the past month • Weekly backups for all previous months The oldest backups are deleted when your disk becomes full. Show Time Machine in menu bar Options...

Disconnect the Drive

A great feature of G-RAID USB is its ability to connect and disconnect while your computer is running. To prevent failures and/or data loss, it is important to follow the steps below when disconnecting or "unmounting" the drive from your computer.

1. Before powering down and disconnecting the drive, unmount the system by dragging the G-RAID USB icon to the trash located in the dock. Keyboard shortcut: Select the drive icon and hit Command+E.

1. It is safe to remove the drive from your system when the drive icon is no longer present on your desktop.
2. To power off G-RAID USB, press and hold the On/Off power button until the unit shuts down.

Helpful links

• To use G-RAID USB on Windows, go to Windows Use.
• To use G-RAID USB on Mac and Windows together, go to Cross-Platform Use.

GRAID USB

with removable drives

Using RAID Modes

• Supported RAID Modes.... p. 17
• The RAID Configuration Utility for Mac.... p. 18
- Configure the RAID Mode for Mac ...... p. 19
• RAID 1 Degraded Mode and Rebuild for Mac ..... p. 22
• The RAID Configuration Utility for Windows ...... p. 23
- Configure the RAID Mode for Windows ...... p. 24
• RAID 1 Degraded Mode and Rebuild for Windows ..... p. 27

G Technology

G RAID USB

with remarkable virtue

Using RAID Modes

Supported RAID Modes

G-RAID is preconfigured in RAID 0 (Performance) mode, for use with Mac OS systems. The drive can also be configured in RAID 1 (Protected) mode or JBOD mode. The following table explains the advantages and disadvantages for each RAID level.

RAID Level Advantage Description			Disadvantage	Ideal For
RAID 0	Disk Striping	Highest read/write performance Storage capacity is 100% utilized.	No fault tolerance. Single drive failure will result in complete data loss.	Highest storage capacity utilization and highest performance.
RAID 1	Disk mirroring	Complete data protection in case of a single drive failure.	Read/write performance is reduced to half of RAID 0 performance.	Sensitive data, which requires constant backing up. High performance not required.
JBOD	Disks not RAIDxd	Storage capacity is 100% utilized. Partial data protection if a single drive fails.	Read/write performance is reduced to half of RAID 0 performance.	Highest storage capacity utilization when partial data loss is acceptable.

To change the RAID mode of G-RAID USB, follow the steps in Configure the RAID Mode.

RAID 0 (Performance)

G-RAID USB ships in RAID 0 (Performance) mode. This RAID mode is ideal for maximizing your throughput when video editing. In RAID 0 mode, the drives are combined and data is split between the two drives for increased performance.

RAID 1 (Protected)

RAID 1 is great for protecting and securing data, making it ideal for sensitive data, but it operates at the speed of a single drive. In RAID 1, the array will be at 50 percent of its total capacity as the same data is written or mirrored to both drives simultaneously.

JBOD

JBOD mode is great for maximum capacity utilization without fear of losing all your data, as in the case of RAID 0, but they each operate at the speed of a single drive.

The RAID Configuration Utility for Mac

The G-Technology RAID Configurator is used to change the RAID level of your G-RAID USB. To configure G-RAID USB, it will need to be the only device connected to your computer.

The RAID Configurator utility is available for download from the G-Technology website at g-technology.com/support.

Once you have downloaded the RAID Configurator, you should launch it directly from the mounted disk image.

Configure the RAID Mode for Mac

You can easily configure G-RAID USB's RAID mode with the following steps.

Important Note: Changing the RAID level will erase all data on the drive. Be sure all of the data and files you want to save are backed up to separate media.

1. Launch the G-Technology RAID Configuration utility. A dialog window will ask you to disconnect all other external hard disks from your computer. This is important to ensure that the configurator does not affect other eSATA, FireWire or USB devices on your system.

G-Technology RAID Configuration Utility Welcome to the G-Technology RAID Configuration Utility. This application is used to change the RAID level of your G-Technology storage system. THIS PROCESS WILL ERASE ALL DATA ON YOUR DRIVE. Make sure the drive you want to configure is the USB, FireWire or eSATA drive connected to your computer before you continue. Continue Exit

1. Click the Continue button. A window will appear telling you that the utility is searching for your G-RAID USB.

C-Technology AND Configuration Utility Searching for Compatible C-Technology Storage Systems... G-Technology® Exit

1. Once the utility finds your G-RAID USB, the following window will appear. Select your desired configuration: RAID 1 (Protected), RAID 0 (Performance) or JBOD. Then click the Configure button to continue.

C-Technology RAID Configuration Utility Device detected: C-RAID Select RAID level ● RAID 0 (Performance) ○ RAID 1 (Protected) ○ RAID Configure Exit

1. Two warning windows will appear, letting you know that the following step will erase all your data. Click the Yes buttons to continue.

1. A window will appear telling you that the configuration is in progress. The next window will confirm that your G-RAID USB is configured in RAID 1, RAID 0 or JBOD mode.

G-Technology BIOS Config update Utility Updating reconfigurants: DO NOT INTUO THE DEVICE G-Technology™

G-Technology R&D Configuration Utility Configuration Successful Your storage system has been reconfigured to your closed R&D tool and is now ready to be formatted for use with your operating systems. Exit

1. Changing the RAID mode of G-RAID USB will require you to re-initialize the disk with the Disk Utility application. The disk insertion dialog below should appear. Click the Initialize button to launch Disk Utility. Then follow the simple steps to initialize G-RAID USB for use with Mac OS.

1. NOTE: If the Disk Insertion dialog does not appear, go to Application > Utilities and open the Disk Utility program. Once Disk Utility is open, you are ready to initialize and partition G-RAID USB for use with Mac.

RAID 1 Degraded Mode and Rebuild for Mac

If your G-RAID USB is in RAID 1 configuration and either a single drive failure occurs or if a member of the RAID 1 set is removed, then the active drive will operate in degraded mode.

What is Degraded Mode? In a two-drive RAID 1 array, if one of the drives fails or if one of the drives is removed then the active drive keeps the user data intact but without any fail-safe mechanism until the RAID array is rebuilt. This state of operation is called degraded mode.

To rebuild the RAID 1 set, please insert a new drive in place of the failed drive or the drive that has been removed. If this new drive is not formatted then the Disk Utility function will automatically launch and you can format the drive. If this replacement drive is formatted then you are ready to rebuild the RAID set. To see how to replace a failed drive, please refer to the section Replace a Failed Drive Module.

G-RAID USB has an auto rebuild feature built into it. Once you insert a formatted replacement disk the RAID 1 will start rebuilding automatically. Total rebuild time is dependent on the total capacity of each drive. The rebuild time is approximately two hours per terabyte.

The RAID Configuration Utility for Windows

The G-Technology RAID Configurator is used to change the RAID level of your G-RAID USB. To configure your G-RAID USB, it will need to be the only device connected to your computer.

The RAID Configurator utility is available for download from the G-Technology website at g-technology.com/support.

Once you have downloaded the RAID Configurator, you should launch it directly from the zipped package with the application inside.

Compressed (zipped) Folders This application may depend on other compressed files in this folder. For the application to run properly, it is recommended that you first extract all files. Extract all Run Cancel

Configure the RAID Mode for Windows

You can easily configure G-RAID USB's RAID mode with the following steps.

Important Note: Changing the RAID level will erase all data on the drive. Be sure all of the data and files you want to save are backed up to separate media.

1. Launch the G-Technology RAID configuration utility. A dialog window will ask you to disconnect all other external hard disks from your computer. This is important to ensure that the Configurator does not affect other eSATA, FireWire or USB devices on your system.

G- Technology RAID Configuration Utility Welcome to the G-Technology RAID Configuration Utility. This application is used to change the RAID level of your G-Technology storage system. THIS PROCESS WILL ERASE ALL DATA ON YOUR DRIVE. Make sure the drive you want to configure is the USR1, FireWise or aSATA drove connected to your computer before you continue. Continue Exit

1. Click the Continue button. A window will appear telling you that the utility is searching for G-RAID USB.

G-Technology RAID Configuration Utility Searching for Compatible G-Technology Storage Systems... G-Technology® Edit

1. Once the utility finds your G-RAID USB, the following window will appear. Select your desired configuration: RAID 1 (Protected), RAID 0 (Performance) or JBOD. Then click the Configure button to continue.

G-Technology RAID Configuration Utility Device detected: HGST HDS724040ALE640 Select RAID level ○ RAID 0 (Performance) ○ RAID 1 (Protected) ● JBOO Configure Exit

1. Two warning windows will appear, letting you know that the following step will erase all your data. Click the OK and Yes buttons to continue.

Warning!!! This will ERASE all the data on your G-Technology storage system... OK Cancel Warning!!! Are you sure you want to ERASE all data and re-configure? Yes No

1. A window will appear telling you that the configuration is in progress. The next window will confirm that your G-RAID USB is configured in RAID 1, RAID 0 or JBOD mode.

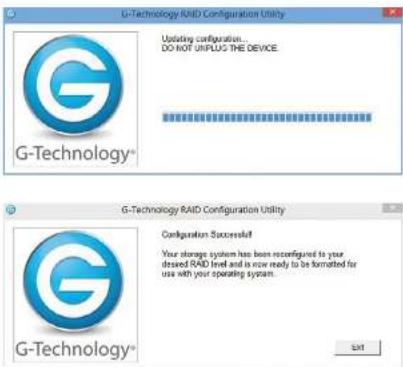

G-Technology RAID Configuration Utility Updating configuration... DO NOT UNPLUS THE DEVICE G-Technology® G-Technology RAID Configuration Utility Configuration Successful Your storage system has been reconfigured to your desired RAID level and is now ready to be formatted for user with your operating system. G-Technology® EXIT

1. Changing the RAID mode of G-RAID USB will require you to re-initialize the disk. For helpful information on initializing your drive with Windows, please visit g-technology.com/windows.

RAID 1 Degraded Mode and Rebuild for Windows

If your G-RAID USB is in RAID 1 configuration and either a single drive failure occurs or if a member of the RAID 1 set is removed, then the active drive will operate in degraded mode.

What is Degraded Mode? In a two-drive RAID 1 array, if one of the drives fails or if one of the drives is removed then the active drive keeps the user data intact but without any fail-safe mechanism until the RAID array is rebuilt. This state of operation is called degraded mode.

To rebuild the RAID 1 set, please insert a new drive in place of the failed drive or the drive that has been removed. If this new drive is not formatted. For more information about formatting your drive to NTFS for Windows please CLICK HERE and you can format the drive. If this replacement drive is formatted then you are ready to rebuild the RAID set. To see how to replace a failed drive, please refer to the section Replace a Failed Drive Module.

G-RAID USB has an auto rebuild feature built into it. Once you insert a formatted replacement disk the RAID 1 will start rebuilding automatically. Total rebuild time is dependent on the total capacity of each drive. The rebuild time is approximately two hours per terabyte.

G RAID USB

with removable drives

Maintenance for Your Drive

• Initialize the Drive for Mac ......p. 29
• Restore the Drive Icon ......p. 33
  • Reformat with Partitions ..... p. 35
• Replace a Failed Drive Module ......p. 40

G Technology

G RAID USB

with remonable status

Maintenance for Your Drive

Initialize the Drive for Mac

G-RAID USB is factory formatted or "initialized" for use with Mac OS. You can follow these steps to reinitialize your drive if you would like to quickly erase the contents of the drive.

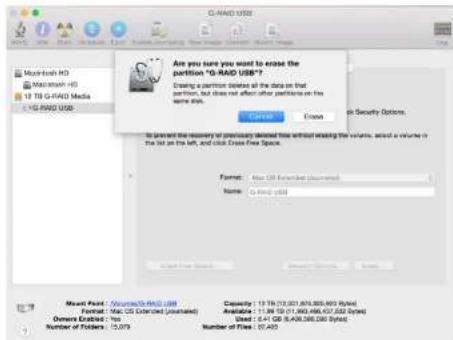

1. Open the Disk Utility application. Disk Utility is located on your hard drive under Applications/Utilities/Disk Utility. The window below will appear. Your G-RAID USB will be displayed in the left column.
2. Select G-RAID USB by clicking its drive icon in the left column. Information about the drive will be displayed at the bottom of the window.

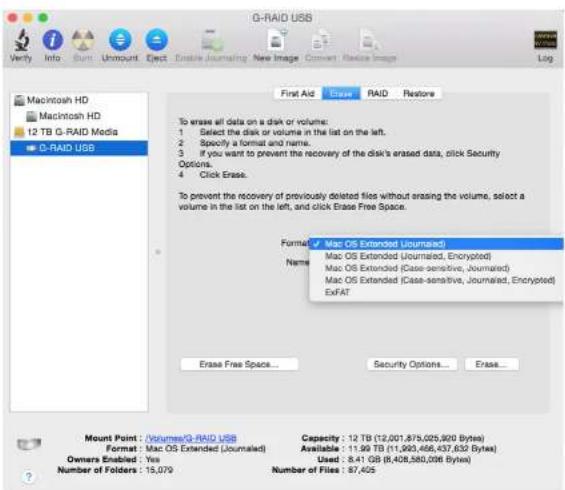

3. Select the Erase tab to view the formatting options. By default, the Format pop-up menu is set to the Mac OS Extended (Journaled) option.

G-RAID USB Macintosh HD Macintosh HD 12 TB G-RAID Media G-RAID USB First Aid Scope RAID Restore To erase all data on a disk or volume: 1. Select the disk or volume in the list on the left. 2. Specify a format and name. 3. If you want to prevent the recovery of the disk's erased data, click Security Options. 4. Click Erase. To prevent the recovery of previously deleted files without erasing the volume, select a volume in the list on the left, and click Erase Free Space. Format: Mac OS Extended (Unmailed) Name: G-RAID USB Erase Free Space... Security Options... Erase... Mount Point : Volume/G-RAID USB Capacity : 12 TB (12,001,879,025,820 Bytes) Available : 11.99 TB (11,993,466,437,632 Bytes) Used : 9.41 GB (8,408,580,398 Bytes) Owner Enabled : Yes Number of Folders : 15,079 Number of Files : 97,405

1. Choose the Format option you prefer.

2. Mac OS Extended (Journalled): This basic File System format is intended for generally formatted drives including Time Machine backup and creating separate bootable Disk Images.

3. Mac OS Extended Case-sensitive and Encryption options: The Case-sensitive option treats file names that are the same but with different cases as different while the Encryption option adds an additional layer of security for your personal files.

G-RAID USB Macintosh HD Macintosh HD 12 TB G-RAID Media D-RAID USB First Aid Close RAID Restore To erase all data on a disk or volume. 1 Select the disk or volume in the list on the left. 2 Specify a format and name. 3 If you want to prevent the recovery of the disk's erased data, click Security Options. 4 Click Erase. To prevent the recovery of previously deleted files without erase the volume, select a volume in the list on the left, and click Erase Free Space. Format: Mac OS Extended (Journals) Name: Mac OS Extended (Journals, Encrypted) Mac OS Extended (Case-sensitive, Journals) Mac OS Extended (Case-sensitive, Journals, Encrypted) ExFAT Erase Free Space... Security Options... Erase... Mount Point: Volumes/G-RAID USB Capacity: 12 TB (12,001,875,025,920 Bytes) Available: 11.99 TB (11,993,466,437,637 Bytes) Owners Enabled: Yes Used: 8:41 GB (8,408,580,098 Bytes) Number of Folders: 15,079 Number of Files: 87,405

1. Click the Erase button in the lower-right corner of the window. A dialog box will appear asking if you want to erase the G-RAID USB partition.

G-RAND USB Are you sure you want to erase the partition "G-RAND USB?" Drawing a partition series at the data on that partition, but does not affect other partitions on the same data. Cancel Finish on Security Options. To expand the recovery of previously designed time without making the versions, set as a volume in the list on the left, and close Cross Free Space. Format: Mac OS (Standard) (Standard) Name: G-RAND (.std) Capacity: 13 TB (13.021.876.855.093 Kb/d) Available: 11.98 TB (11.853.466.417.822 S/yrd) Used: 6.41 GB (5.438.396.093 S/yrd) Number of Followers: 15,079 Mount Point: MacOS@G-RAND USB Format: Mac OS (Std (Unadjusted)) Owners Excluded: No Number of Followers: 15,079 Capacity: 13 TB (13.021.876.855.093 Kb/d) Available: 11.98 TB (11.853.466.417.822 S/yrd) Used: 6.41 GB (5.438.396.093 S/yrd)

WARNING: THIS NEXT STEP WILL ERASE ALL DATA ON YOUR DRIVE.

1. Click the Erase button to continue. A progress bar in the lower-right corner of the window will show the progress of the disk's reformatting process.

1. After the drive is re-initialized, you should automatically see the Time Machine dialog box.

2. Click the Use as Backup Disk button if you want to use the drive with Time Machine.

3. Click the Don't Use or Decide Later buttons if you do not want to use Time Machine at this point.

Do you want to use G-RAID (8 TB) to back up with Time Machine? Time Machine keeps an up-to-date copy of everything on your Mac. It not only keeps a spare copy of every file, it remembers how your system looked, so you can revisit your Mac as it appeared in the past. □ Encrypt Backup Disk ? Decide Later Don't Use Use as Backup Disk

1. Quit the Disk Utility program. After you reinitialize the drive, the custom icon for G-RAID USB will be erased. You can optionally restore this icon with the steps on the next page.

Restore the Drive Icon

If the G-RAID USB drive icon was erased during the configuration process (see the previous section), you can restore the icon with the following easy steps.

NOTE: This process is not required for the operation of the G-RAID USB. However, it will make your drive's appearance on the computer desktop look cleaner and more accurate.

1. To get the G-Technology icon package, go to www.g-technology.com/support and navigate to your product. There will be a link to download the icons on the product support page.

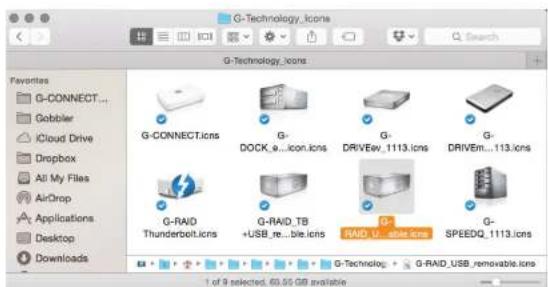

2. Once downloaded, the G-Technology icons folder shown below should load automatically. If not, double-click the zip file to open. Next, double-click the DMG file to open the G-Technology icons package.
3. Click to select the drive icon for G-RAID USB in the package window. Press Command+C to copy the icon.

G-Technology Icons Favorites G-CONNECT... Gobbler iCloud Drive Dropbox All My Files AirDrop Applications Desktop Downloads G-CONNECT.ics G- DOCK_s...icon.ics G- DRIVEv_1113.ics G- DRIVEm...113.ics G-RAID Thunderbolt.ics G-RAID_TB +USB_re...ble.ics G- RAID_G...able.ics G- SPEEDQ_1113.ics G-Technolog. G-RAID_USB_removable.ics 1 of 9 selected, 60.55 GB available

1. Select the default G-RAID USB drive icon on your desktop and press Command+I. This opens the Get Info window (below left).
2. Select the default icon in the Get Info window (below left).
3. Press Command+V to paste the custom G-RAID USB icon into the Get Info window (below right).

G-RAID USB Info G-RAID USB Modified: Today, 3:17 PM Add Tags... General: Kind: Volume Created: Today, 2:57 PM Modified: Today, 3:17 PM Format: Mac OS Extended (Journal) Capacity: 12 TB Available: 11.86 TB Used: 8,397,946,675 bytes (8.4 GB on days) Shared Folder More Info: Name & Extension: Comments: Preview:

G-RAID USB Modification: Today, 3:18 PM Add Tags: General: Kind: Volume Created: Today, 2.57 PM Modified: Today, 3.18 PM Format: Mac OS Extended (Unmarked) Capacity: 12 TB Available: 1.99 TB Used: 3,397,349,675 bytes (0.4 GB on disk) Shared folder None Info: Name & Extension: Comments: Preview:

The icon for your G-RAID USB has been restored and you can close the Get Info window. Your drive is now ready for use!

Reformat with Partitions

Partitioning a hard drive is the process of dividing a hard drive into separate, discrete sections called volumes. Each volume works like a separate disk. You can create up to 16 different partitions on a hard drive in Mac OS X, and each partition can be a different size and format.

With hard drives getting bigger, it is useful to partition your hard drive so you can use sections of its space for different purposes. For instance, you can segment user data from backup data, set up a multi-boot environment with different operating systems, or create a dedicated capture scratch disk for programs such as Final Cut Pro and Adobe Premiere.

The following steps will guide you through the simple process of partitioning your drive. In this example, we will partition a 12TB G-RAID USB connected via USB 3.0. The steps will be identical for your drive, although the name may be different.

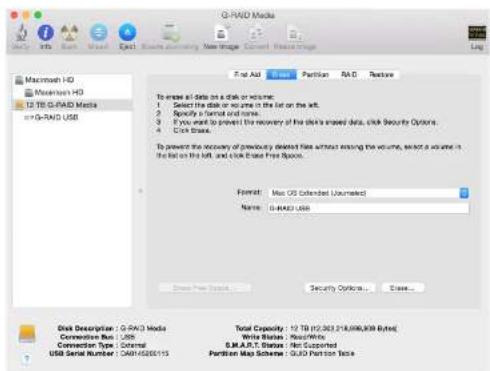

1. Open the Disk Utility program. This application is located on your hard drive under Applications/Utilities/Disk Utility. The window below will appear. Your G-Technology drive will be displayed in the left column.

G-PACK Media Macintosh HD Maximium HD 12 TB G-PACK Media =G-PACK USB To add a disk on a disk or volume: 1. Select the disk or volume in the disk on the left. 2. Specify a tunnel and zone. 3. If you want to prevent the recovery of the disk's removed data, click Security Options. 4. Click Share. To prevent the recovery of previous disked files without entering the volume, select a volume in the disk on the left, and click Close Free Space. Format: Max US Extended Unmarked Name: G-PACK USB Close Free Stock Security Options... Close... Disk Description: G-PACK Media Conversion Run: USB Converter Type: External USB Serial Number: C401-6500015 Total Capacity: 12 TB (92,303,218,000,838 Bytes) Write Status: Read/Write R & M & R T; Status: Not Supported Partition Map Scheme: QUD Partition Tools

1. Select the USB icon — not the G-Technology drive icon — by clicking it in the left column.

1. Click on the Partition button in the main window.

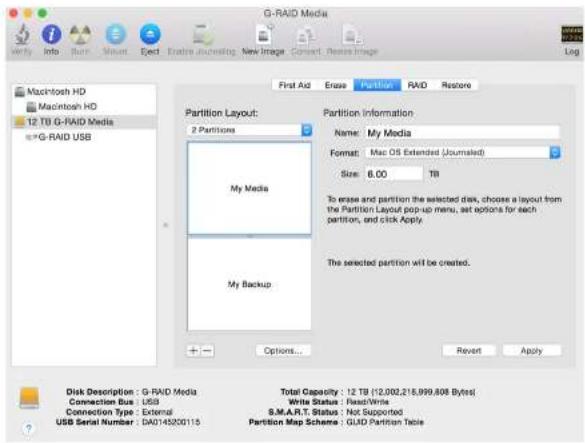

1. Select the number of partitions you would like from the Partition Layout menu. Below, we have selected "2 Partitions" to create two partitions.

G-RAID Media Macintosh HD 12 TB G-RAID Media =G-RAID USB First Aid Erase Partition RAID Restore Partition Layout: 2 Partitions My Media My Backup Partition Information Name: My Media Format: Mac OS Extended (Journals) Size: 6.00 TB To erase and partition the selected disk, choose a layout from the Partition Layout pop-up menu, set options for each partition, and click Apply. The selected partition will be created. Options... Revert Apply Disk Desorption : G-RAID Media Connection Bus : USB Connection Type : External USB Serial Number : DA014520G115 Total Capacity : 12 TB (12,002,218,999,608 Bytes) White Status : Read/Write S.M.A.R.T. Status : Not Supported Partition Map Scheme : GUID Partition Table

1. Click on the first partition in the Partition Layout area. Your partition will be in a white box surrounded by blue lines.

• In the Name field, type a name for the partition.
- From the Format menu, choose your desired disk format. If you will use your drive primarily on Mac OS, it is recommended to use Mac OS Extended (Journaled). For details about formats, go here.
- In the Size field, type in a size for the partition. Alternately, you can drag the bar between each partition in the Partition Layout area to quickly change the size.

1. Repeat this process for each partition you have created.

2. Click the Apply button in the lower-right corner of the window. A dialog box will appear asking if you want to erase the G-Technology drive partition.

WARNING: THE NEXT STEP WILL ERASE ALL DATA ON YOUR DRIVE.

MVIDIA HD Microsoft HD 123.0 AMD Media SPG-RAD USB Partition Layout My Media My Backup Partition Information Name: My Media Layout: New 25 Ethernet (Windows) Size: 6.00 KB To ensure and partition the selected disk, unless a label from the "P-RAID" disk is open, so exists, and allows for the next partition and close-up. The selected partition and to be created. Options Back Apply Disk Description: A-RAID Media Configuration Type: USB Description Type: External USB Serial Modems: S407-839110 Total Capacity: 27.76 (10,362,219,865,803 Bytes) RAM/RTI 1.000000000000000000000000000000000000000000000000000000000000000000000000 This partition will be created: "My Audio" "My Backup" Are you turn you want to partition the disk "G-RAID Media"? Parturing this disk will create all the disk on this disk. This partition will be created: "G-RAID USB" These partitions will be added: "My Audio" "My Backup" Cave Partition

1. Click on the Partition button to continue. A progress bar in the lower-right corner of the window will show you the progress of the disk's reformatting.

1. When partitioning is complete, the multiple partitions will be displayed in the left panel of Disk Utility.
2. Quit the Disk Utility program. After re-initializing the drive, the custom icon for the G-Technology drive has been erased. To restore the G-RAID USB icon for each partition follow the steps from the Restore the Drive Icon section.

1. The multiple partitions of the G-Technology drive will be displayed on your desktop. Your drive is now set up with two or more partitions and is ready for use.

My Media My Backup

Replace a Failed Drive Module

The internal components of G-RAID USB continually monitor the health of each of its disk drives. In the event of a drive failure, a visual alarm will appear. Read more in Activity and Failure LEDs.

RAID 0: If G-RAID USB was configured in RAID 0 (Performance) mode, a drive failure will result in data loss.

RAID 1: If G-RAID USB is configured as RAID 1, a single drive failure will not result in data loss. However, the array is now in a degraded or unprotected state, and the failed drive should be replaced as soon as possible to avoid data loss.

Read more in Supported RAID Modes.

Follow the steps below to identify and replace a failed drive.

1. With the unit powered on, the flashing RED LED will indicate which drive module failed. For more information, see Activity and Failure LEDs.
2. Remove the failed drive by pressing the module release button, and gently sliding the drive module out of the enclosure.
3. Replace the failed drive with a new disk module. Secure it in place by pushing in the drive and latching the handle.

NOTE: During the 3-Year warranty period, contact G-Technology Technical Support for replacement of a defective drive module.

Product photo of a gray G8003 hard drive with two external units and a red circular logo (no visible text or symbols)

G RAID USB

1. If G-RAID USB was set up in RAID 1 mode, the unit will begin rebuilding data on the drive. During this process, the activity LED will indicate data access. The rebuild time is approximately two hours per terabyte.
2. Once the rebuild process is complete, G-RAID USB is back to normal and once again protecting your valuable data. Furthermore the drive LED light will return to a solid white light visually indicating a healthy RAID 1 set.

Helpful tips

You can continue using G-RAID USB even while the drive volume is being rebuilt. However, it will run at a slower data rate.

It is good practice to keep at least one spare drive module on hand in case of a disk failure. That way, you can rebuild your array in hours rather than wait days for a new one to ship.

G RAID USB

with removable drives

Using Your Drive on Windows

• Windows Use ......p. 43
  • Cross Platform Use ......p. 43

G Technology

G RAID USB

with permeable values

Using Your Drive on Windows

Windows Use

G-RAID USB is set up at the factory for use with Mac OS systems. A simple initialization will prepare your drive for use with Windows 7, 8 and 8.1 systems.

For helpful information on configuring and using your drive with Windows, please visit g-technology.com/windows.

Cross Platform Use

You can set up G-RAID USB for use on both Windows and Mac systems by formatting the drive as 'exFAT'. To do this, use the Disk Utility application on the Mac system and format the drive to exFAT.

1. First, open the Mac system's Disk Utility program. This application is located on your hard drive under Applications/Utilities/Disk Utility. The window below will appear. Your G-RAID USB will be displayed in the left-hand column.
2. Select the G-RAID USB by clicking on its drive icon in the left-side column. Information about the drive will be displayed at the bottom of the window.
3. Select the Erase tab to view the formatting options.

G-ARC Data Maximark HD G-ARC Data 10.000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 Maximark HD 1. 12. 13. 14. 15. 16. 17. 18. 19. 20. 21. 22. 23. 24. 25. 26. 27. 28. 29. 30. 31. 32. 33. 34. 35. 36. 37. 38. 39. 40. 41. 42. 43. 44. 45. 46. 47. 48. 49. 50. 51. 52. 53. 54. 55. 56. 57. 58. 59. 60. 61. 62. 63. 64. 65. 66. 67. 68. 69. 70. 71. 72. 73. 74. 75. 76. 77. 78. 79. 80. 81. 82. 83. 84. 85. 86. 87. 88. 89. 90. 91. 92. 93. 94. 95. 96. 97. 98. 99. 100. To create a data set of a key or more. • Set the data set to account in the local field. • Specify a format set of data. • You want to be present the necessary of the disk's important data, with Security Options. • Edit Rule. • To prevent the usage of any specific data set, we should not use any other data set to access your own network. For this set to the disk, and USB is assigned to: • Max OS Extended (unrealized) • Max OS Extended (systematic, unrealized) • Max OS Extended (systematic, unrealized) • Max OS Extended (systematic, unrealized) Format: G-ARC Symbol: Data Settings: G-ARC Data Connection Run: USB Conversion Type: USB/ANOS USB Serial Number: G-ARC Data Total Capacity: -17,781,13,699,314,589,828 GB (Pakay) Wire Width: Pakay/WR USB/ANOS: Web Supported Partition Shop Software: QI-QI/Service Table

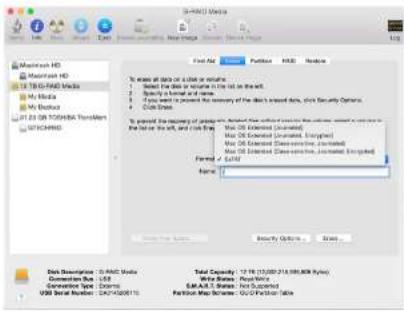

1. Select exFAT File System from the Format pop-up menu. This will format to exFAT.

NOTE: You may need to rename the drive because exFAT does not support more than 11 letters in the drive name.

✓ Mac OS Extended (Journalled) Mac OS Extended (Journalled, Encrypted) Mac OS Extended (Case-sensitive, Journalled) Mac OS Extended (Case-sensitive, Journalled, Encrypted) ExFAT

WARNING: THIS NEXT STEP WILL ERASE ALL DATA ON YOUR DRIVE.

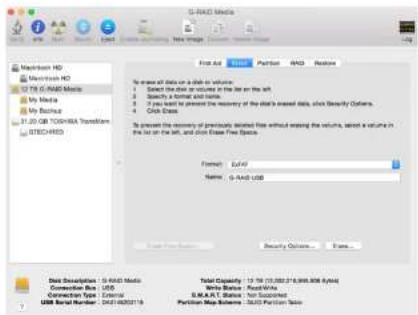

1. Click the Erase button in the lower right corner of the window. A dialog box will appear asking if you want to erase the G-RAID USB partition.

Macintosh HD Macintosh HD 1278.0 KB/MB Media My Media My Backup 31.20 GB TOSHISA Transmission METHACHI First Ad Second Partition RAG Balance To ensure all data is available on volume. 1 Select the data or volume in the list on the list 2 Search & format and name. 3 2 pc link to prevent the recovery of the data's exposed data, which Security Options. 4 Click Data To prevent the recovery of previously deleted file without wrapping the returns, select a volume in the list on the list, and select these Free Space. Format: E-mail Name: G-RAD-USB Security Options... Date Data Descriptions Connection Bus Connection Type USB Serial Number: G-RAD Media USB External 2457-00000719 Total Capacity: 1278 (10,000,218,000,308 bytes) Memory Radius: Full/MATs Non-Supported Partition Map Systems: Multi Partition Size:

1. Click the Erase button in the pop-up dialog box. A progress bar in the lower right corner of the window will show the progress of the disk's reformatting. Your drive will be formatted to its full capacity as exFAT.

1. Quit the Disk Utility program. You are finished!

2. After reinitializing, the custom icon for the G-RAID USB will be erased.

With this format, you will be able to read/write on Windows Vista, Windows 7 and on Mac OS machines.

G RAID USB

with removable drives

Support & Warranty

• Technical Support ...... p. 47
- Limited Warranty ......p. 48
• Copyright p. 50

G Technology

GRAID'USB

Support & Warranty

Technical Support

Thank you for purchasing G-RAID USB. If you have any comments or questions about this manual or the product, please let us know!

As a valued customer, G-Technology strives to provide you with the finest products and support. If you encounter any difficulties while installing or using you G-RAID USB, our tech support team members will gladly assist you at: g-technology.com/support.

Helpful information for support

When contacting Technical Support, it's best to be in front of your computer and have the following information available:

• Your G-RAID USB serial number (on bottom of unit)
• Operating System and version
• Computer model
  • List of other devices attached to your computer

Limited Warranty

HGST, a Western Digital Company including G-Technology for External Hard Disk Drives.

What does this limited warranty cover?

This Limited Warranty applies to new HGST products purchased from an authorized HGST dealer by the original purchaser for normal use and not for resale. HGST warrants that a covered product is free from defects in materials and workmanship, with the exceptions stated below.

How long does limited warranty coverage last?

This limited warranty lasts for 1 year, 2 years, 3 years or 5 years, or a fixed period from date of purchase, depending on when and where it was originally purchased. To determine the warranty specifically for your product, visit www.g-technology.com. A valid proof of purchase may be required to prove eligibility. If you do not have a valid proof of purchase, the limited warranty period will be measured from the date of sale from HGST to the authorized distributor.

What does this limited warranty not cover?

The limited warranty does not cover damage resulting from commercial use, misuse, accident, modification or alteration to hardware or software, tampering, unsuitable physical or operating environment beyond product specifications, improper maintenance, or failure caused by a product for which HGST is not responsible.

There is no warranty of uninterrupted or error-free operation. There is no warranty for loss of data—you must regularly backup the data stored on your product to a separate storage product. There is no warranty for product with removed or altered identification labels.

HGST DOES NOT PROVIDE ANY OTHER WARRANTIES OF ANY KIND, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. SOME JURISDICTIONS DO NOT ALLOW THE LIMITATION OF IMPLIED WARRANTIES, SO THIS LIMITATION MAY NOT APPLY TO YOU. HGST is not responsible for returning to you product, which is not covered by this limited warranty.

What must you do?

If you are having trouble with a product, before seeking limited warranty service, first follow the troubleshooting procedures that HGST or your reseller provides.

To obtain limited warranty service, you must first obtain a Return Materials Authorization (RMA) and ship-to address by contacting G-Technology at http://www.g-technology.com/support. Please follow the instructions found on the website. You must return the covered hard disk drive using approved packaging to our logistics center. You must pay any associated transportation charges, duties and insurance in shipping the drive to our logistics center. You should remove all personal information from the product prior to its return.

What will HGST do?

HGST will replace the drive with a functionally equivalent replacement product, transportation prepaid. HGST may replace your product with a product that was previously used, repaired and tested to meet HGST specifications. You receive title to the replaced product at delivery to the carrier at HGST's shipping point. You are responsible for importation of the replaced product, if applicable. HGST will not return the original drive to consumers; therefore, the consumer is responsible for moving data to another media before returning. Data Recovery is not covered under this warranty and is not part of the warranty returns process. HGST warrants that the replaced products are covered for the remainder of the original product warranty or 90 days, whichever is greater.

How is our liability limited?

HGST AND ITS AFFILIATES, SUPPLIERS, DISTRIBUTORS, AND RESELLERS ARE NOT LIABLE FOR ANY OF THE FOLLOWING: 1) THIRD-PARTY CLAIMS AGAINST YOU FOR DAMAGES (OTHER THAN BODILY INJURY INCLUDING DEATH AND TANGIBLE PERSONAL PROPERTY; 2) LOSS OF, OR DAMAGE TO, YOUR DATA; OR 3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING LOST PROFITS OR SAVINGS), EVEN IF INFORMED OF THE POSSIBILITY. SOME JURISDICTIONS DO NOT ALLOW LIMITATION OF LIABILITY, INCIDENTAL DAMAGES, OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.

How do local laws apply?

THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM JURISDICTION TO JURISDICTION.

CAPACITY DEFINITION AND DISCLAIMER

For G-Technology products 1TB or greater: "One gigabyte (GB) is equal to one billion bytes and one terabyte (TB) equals 1,000 GB (one trillion bytes). Accessible capacity will vary from the stated capacity due to formatting and partitioning of the hard drive, the computer's operating system, and other factors."

For G-Technology products less than 1TB: "One gigabyte (GB) is equal to one billion bytes when referring to hard drive capacity. Accessible capacity will vary depending on the operating environment and formatting."

Copyright

G-RAID, G-Technology and the G-Technology logo are registered trademarks of G-Technology and its affiliates in the U.S. and other countries. Apple, Mac, MacBook Pro, Time Machine and the Mac logo are trademarks of Apple, Inc. RED and MINI-MAG are trademarks or registered trademarks of Red.com, Inc. in the USA and other countries. Other trademarks are the property of their respective owners. ©2015 G-Technology, G-Technology, a Western Digital Corporation brand. All rights reserved. R1 1015

G-Technology®

USA GTechnology GTechnologyEUROPE GTechnology GTechnology GTechnology GTechnology GTechnology EUROPE G-TechnologyEUROPE G-Technology G-Technology G-Technology G-Technology G-Technology G-Technology FRANCE G-TechnologyPR G-TechnologyPR G-TechnologyPR G-TechnologyPR GERMANY G-TechnologyOE G-TechnologyOE G-TechnologyOE G-TechnologyOE G-TechnologyOE G-TechnologyOE G-TechnologyOE

AP-SOUTH G-TechnologySP TAIWAN HSDT.com.tw HONG-KONG G-TechnologyHK JAPAN G-TechnoogpP AP-CHINA e.webat.com/u-2539203800

g-technology.com
