BEDIENUNGSANLEITUNG MTZ55160 HISENSE
How to use your new Freezer
Fridgemaster®
SAFETY
WARNING IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OR REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.
TO AVOID THE RISK OF AN ELECTRIC SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.
Locks
If your refrigerator is fitted with a lock, to prevent children being entrapped keep the key out of reach and not in the vicinity of the appliance. If disposing of an old refrigerator, break off any old locks or latches as a safeguard.
The appliance was designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.
CE marking certifies that this appliance conforms to: Low Voltage Equipment - 73/23/EEC & 93/68EEC Electromagnetic Compatibility - 89/336/EEC, 92/31EEC & 93/68EEC
Information concerning disposal
Disposal of packaging
The packaging protects your appliance from damage during transit. Please contribute to a better environment by disposing of the packaging materials in an environmentally friendly manner.
Observe local environmental standards when disposing of packaging material for recycling purposes.
Please ask your dealer or inquire at your local authority about current means of disposal.
Keep packaging materials out of the reach of children! It can become a choking or suffocation hazard.
Disposal of your old appliance
Old appliances are not worthless rubbish! Recycling old appliances can reclaim valuable raw materials.
This appliance has been identified in accordance with the European directive 2002/96/EC on Waste Electrical and Electronic Equipment – WEEE.
The directive requires that old household electronic appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.
Consumers may take their old appliances to public waste collection areas, other communal collection areas, or if national legislation allows return it to a retailer when purchasing a similar new product.
Old appliances still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant used in your appliance and insulation materials require special disposal procedures. Ensure that none of the pipes on the back of the appliance are damaged prior to disposal. Up to date information concerning options for disposing of your old appliance and packaging from the new one can be obtained from your local council office.
Redundant appliances:
Cut off the mains plug and discard it. Refrigerators contain refrigerants and the insulation contains gases. Refrigerant and gases must be disposed of properly.
Ensure the tubing of the refrigerant circuit is not damaged prior to proper disposal.
SAFETY
Safety and warning information
Before you switch ON the appliance
Please read the operating and installation instructions carefully. They contain important information on how to install, use and maintain the appliance. Keep all documentation for subsequent use or for the next owner.
Technical safety
This appliance contains a small quantity of environmentally friendly but flammable R600a refrigerant. Ensure that the tubing of the refrigeration circuit is not damaged during transportation and installation. Leaking refrigerant may ignite.
If damage has occurred
- Keep naked flames and/or ignition sources away from the appliance.
- Pull out the mains plug.
- Thoroughly ventilate the room for several minutes.
- Notify customer services.
The more refrigerant an appliance contains, the larger the room must be. Leaking refrigerant can form a flammable gas-air mixture in rooms which are too small. The room must be at least 1m³ per 8 g of refrigerant.
The amount of refrigerant in your appliance is indicated on the rating label on your appliance.
Important information when using the appliance
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or experience or knowledge, unless they have been given supervision or instructions concerning the use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Never use electrical appliances inside the refrigerator (e.g. heater, electric ice maker, etc.). Explosion hazard!
- Never use a steam cleaner to clean the appliance. The steam may pen-
etrate electrical parts and cause a short circuit. Risk of electric shock! - Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliances. Explosion hazard!
- Do not stand or support yourself on the base, drawers or doors, etc.
- Before defrosting and cleaning the appliance, pull out the mains plug or switch off the fuse. Do not pull out the mains plug by tugging the cable.
- Commerciallyfrozen pre-packed food should be stored in accordance with the frozen food manufacturers instruction.
- Bottles containing a high percentage of alcohol must be sealed and stored in an upright position.
- Keep plastic parts and the door seal free of oil and grease. Otherwise, the plastic and door seal will become porous.
- Never cover or block the ventilation openings for the appliance.
- Do not store bottled or canned drinks (especially carbonated drinks) in the ice compartment. Bottles and cans may explode!
- Never put frozen food, or ice cubes, straight from the ice compartment into your mouth. Risk of frost burns to the lips and tongue!
- Avoid prolonged touching of frozen food, ice or the inner freezer walls or tubing etc. Risk of frost burns to the skin.
- Do not scrape off frost or stuck frozen food with a knife or pointed object. You could damage the refrigerant tubing. Leaking refrigerant may ignite. Only use a plastic scraper.
- In the case of malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning to the appliance.
- When the appliance is unplugged please wait for 5 minutes before plugging it in again. Otherwise, the compressor will be overloaded.
- Do not use electrical appliances such as a hairdryer or heaters near your refrigerator.
- Do not store inflammable gases or liquids inside your refrigerator.
Children in the household
- Keep children away from the packaging and its parts. Danger of suffocation from folding cardboard and plastic film!
- Do not allow children to tamper with the controls or play with the appliance. It is not a toy. Under no circumstances should children be allowed to sit on the bins or hang from the door.
- If the appliance features a lock, keep the key out of the reach of children.
General requirements
- The appliance is designed for domestic use inside the home and is not intended for commercial or industrial use.
- The appliance must be used to store food products by adults only and according to the instruction manual.
- Try to avoid keeping the door open for long periods or opening the door too frequently in order to conserve energy.
- Do not fill the appliance with too much food: cold air must circulate freely for food to be preserved properly.
GETTING TO KNOW YOUR FREEZER
Before use
Please read these instructions and the Safety guidelines on page 2 & 3 carefully before using your new Fridgemaster Freezer. The Freezer is for indoor, domestic use only. Please keep these instructions in a safe place for future reference.


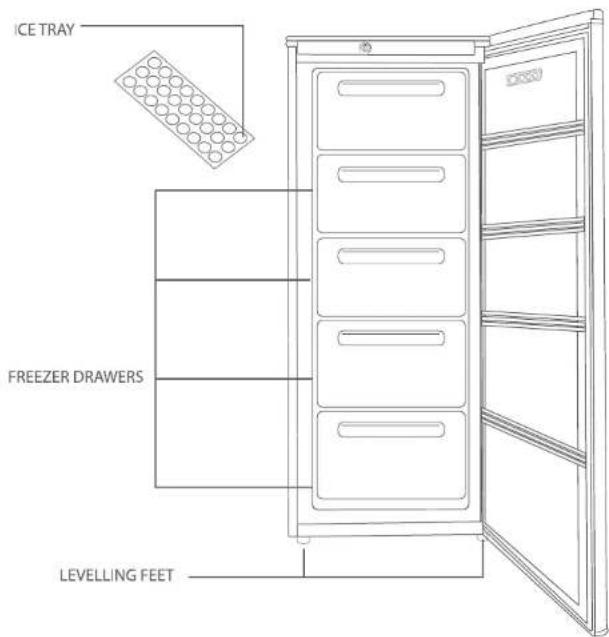

ICE TRAY FREEZER DRAWERS LEVELLING FEETINSTALLATION
Location
When selecting a position for your freezer you should make sure the floor is flat and firm and the room is well ventilated with an average room temperature of between 16°C and 38°C. Avoid locating your Freezer near a heat source, eg. cooker, boiler or radiator. Also avoid direct sunlight. Never place the Freezer in a wall recess or into fitted cabinets of furniture.
When your freezer is working, the sides may become warm. It must therefore be installed so there is at least 75mm (3") separating the back of the freezer to the wall, at least 100mm
(3.9") from its top and clear space in front to allow the door to open 160°. The Freezer door can either open to the right or the left, depending on the location which suits you. Please see page 9. Do not drape the Freezer with any covering
Levelling the Freezer
The Freezer has a front feet which are adjustable. Once the Freezer is put in it's final location, make sure it is level. Turn the levelling feet at the front to adjust. If the Freezer is not level, the door and magnetic seal alignment will be affected.
Cleaning before use
Wipe the inside of the Freezer with a weak solution of bicarbonate of soda. Then rinse with warm water using a 'wrung-out' sponge or cloth. Wipe completely dry before replacing the shelves and baskets. You could clean the Freezer externally with wax polish. If you require more information refer to CLEANING on page 8.
Before plugging in YOU MUST
Check that you have a socket which is compatible with the plug supplied with the Freezer. If not, see the section called ELECTRICAL CONNECTIONS on page 11.
Before switching on!
DO NOT SWITCH ON UNTIL FOUR HOURS AFTER MOVING THE FREEZER. The coolant fluid needs time to settle
Before using your Freezer
Before placing frozen foods in your Freezer, turn the Freezer on and wait for 24 hours, to make sure it is working properly and to allow the Freezer to fall to the correct temperature.
USING YOUR FREEZER
Shopping for frozen foods
Your freezer is 4 star ★★★★
When you are buying frozen food, look at the storage guidelines on the packaging. You will be able to store each item of frozen food for the period shown against the 4 star rating. This is usually the period stated as 'Best Before', on the front of the packaging.
Check the freezer temperature
Check the temperature of the frozen food cabinet in the shop where you buy your frozen foods. It should show a temperature lower than -18°C.
Choose packs carefully
Take a quick look at the frozen food package and make sure it is in perfect condition.
Purchase frozen food last
Always buy frozen products last on your shopping trip or visit to the supermarket.
Keep frozen foods together
When you are going around the supermarket and when you are travelling home, if you keep all the frozen foods together they will help to keep each other cold.
Store food straight away
Don't buy frozen food unless you can freeze it straight away. Special insulated bags can be bought from most supermarkets and hardware shops. These keep frozen food cold for longer.
Thawing frozen food
For some foods, thawing before cooking is unnecessary. Vegetables and pasta can be added directly to boiling water or steam cooked. Frozen sauces and soups can be put into a saucepan and heated gently until thawed.
To thaw frozen foods
1 Cover food loosely.
2. Thaw at room temperature. Don't forget that thawing in a warm area encourages the growth of bacteria.
3 Always make sure there are no ice crystals in the food before cooking, particularly with meat. These crystals indicate that the food is not fully thawed. They result in lower temperatures when cooking. Lower cooking temperatures may not destroy dangerous bacteria.
4 Cook food as soon as possible after thawing.
5 Drain off and throw away any liquid lost during thawing.
Oven Thawing
Many microwaves and ovens have thaw settings. To avoid bacterial build up, only use these if you intend to cook the food immediately afterwards.
Safety Tips
- Never re-freeze anything that has thawed out unless you cook it again, to kill off harmful bacteria.
• Never re-freeze thawed shellfish.
Useful Tip
Re-seal packs properly after removing items. This prevents drying or 'freezer burn' and a build up of frost on any remaining food.
Freezing fresh foods
Useful tips
Use quality food and handle it as little as possible. Freeze food in small quantities, it freezes faster, takes less time to thaw and enables you to eat it in the quantity you need.
Freezing fresh foods
First, estimate the amount of food you will be freezing. Your freezer has a fast freeze setting called MAX on the thermostat control dial (see 'Adjusting the Temperatu re' on page 3) which makes your freezer colder (approx-28°C), it will therefore freeze quicker and keep in the goodness.
However you should use it sparingly to conserve energy.
| TO FREEZE | MAX |
| A loaf of breadA small casserole | not required |
| Up to 2lb/900gm | 2hrs. before placing food in freezerand 4hrs. after placing food in freezer |
| Over 6lb/a.7kg | 6hrs. before placing food in freezer and12hrs. after placing food in freezer |
| Maximum of 18 lb/ 8 kg | 24hrs. before placing food in freezerand 24hrs. after placing food in freezer |
What not to freeze
Bananas, Pomegranates, Pears or Carbonated liquids.
NOTE Do not store flammable gases or liquids.
USING YOUR FREEZER
Recommended Storage Periods (when frozen from fresh)
| Fruit Syrup or Sugar packed Fruit | up to 12 months |
| Open Frozen or Puréed Fruit | up to 12 months |
| Fruit juices | up to 6 months |
| Beef | up to 9 months |
| Lamb | up to 8 months |
| Veal | up to 6 months |
| Pork | up to 5 months |
| Minced meat | up to 3 months |
| Cured meats | up to 2 months |
| Sausages | up to 3 months |
| Packed bacon | up to 7 months |
| Smoked bacon/chops/gammon steaks | up to 2 months |
| Unsmoked bacon/chops/gammon steaks | up to 1 month |
| Chicken | up to 12 months |
| Duck | up to 5 months |
| Goose | up to 5 months |
| Turkey | up to 6 months |
| White fish | up to 7 months |
| Oily fish including salmon | up to 2 months |
| Smoked salmon | up to 3 months |
| Caviar | don't freeze |
| Shellfish | up to 1 month |
| Butter | up to 8 months |
| Cheese | up to 5 months |
| Cream - double/ whipping | up to 3 months |
| Eggs - only freeze separated | up to 3 months |
| Suet | up to 6 months |
| Milk | up to 1 month |
| Yogurt | up to 6 weeks |
DEFROSTING
Defrosting
After a period of time frost will build up in certain areas in the Freezer compartment. As a temporary measure, this frost should be scraped away using a plastic scraper. NEVER use a metal or sharp instrument. Complete defrosting will however become necessary approximately once per year, or if the frost layer exceeds 5mm to maintain the efficiency of the Freezer. This should be carried out if the frost build-up
cannot be scraped away, or if it be to interfere with the food storage. Choose a time when the stock of frozen food is low and proceed as follows:
Take out the frozen food, turn the Freezer off at the mains supply and leave the doors open. Ideally the frozen food should be put into another Freezer or refrigerator. If this is not possible wrap the food, firstly in several sheets of newspaper or large towels and then in a thick rug or blanket and keep it in a cool place.
2 Place a suitable container below the bottom edge of the Freezer compartment to collect any water that results from the defrosting.
3 Pour away the water as it melts into the drawer.
4. Scrape away as much frost build-up as possible using the plastic scraper. To accelerate the thawing process place bowls of hot water inside the Freezer cabinet. As the solid frost loosens, prize it away with the plastic scraper and remove.
5 When defrosting is completed, clean your Freezer as described in CLEANING on page B.
CLEANING
Cleaning inside the Freezer
After defrosting you should clean the Freezer internally with a weak solution of bicarbonate of soda. Then rinse with warm water using a 'wrung-out' sponge or cloth. Wipe the Freezer dry before replacing the drawers.
Cleaning the outside of the Freezer
Use standard furniture polish to clean the Freezer exterior. Make sure that the doors are closed, to prevent polish getting on the magnetic door seal or inside.
Do not use harsh cleaners, scouring pads or solvents to clean any part of the Freezer.
Cleaning tip
Defrost when food stocks are low.
TROUBLE SHOOTING
Power cut
If the internal temper ature of the Freezer compartment is -18°C or colder when the power returns, your food is safe. The food in your Freezer will remain frozen for approx 12 hours with the door closed. Don't open the Freezer doors more than necessary.
The Freezer is particularly cold
You may have accidentally adjusted the Thermostat Control Dial.
The Freezer is particularly warm
The compressor may not be working. Turn the Thermostat Control Dial to the maximum setting and wait a few minutes.
If there is no humming noise, it is not working. Call your Customer Service Department.
The Freezer is not working
Check it is plugged in and switched on. Check that the fuse in the plug has not blown. Plug in another appliance, such as a lamp, to see if the socket is working. The Freezer should be placed in a well ventilated room with an ambient temperature of between 16°C and 38°C.
Condensation appears on the outside of the Freezer
This may be due to a change in the room temperature. Wipe off any residue of moisture. If the problem continues call your Customer Service Department.
Noises inside the Freezer!
If you have not owned a Freezer before, you may notice that it makes some rather unusual noises.
Most of these are perfectly normal, but you should be aware of them!
GURGLING, WHOOSHING
These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your Freezer.
MAINTENANCE
HUMMING, PURRING OR PULSATING
This is the compressor motor working, as it pumps the refrigerant around the system.
Moving your Freezer
Location
Do not locate your Freezer near a heat source, eg. cooker, boiler or radiator. Also avoid direct sunlight.
Levelling the Freezer
Make sure the Freezer is level. Use the rotating levelling feet at the front. If the Freezer is not level, the doors and magnetic seal alignments will be affected.
Do Not Turn on the Freezer for 2 Hours
After the Freezer is in place it needs to be left for 2 hours. The coolant fluid needs time to settle.
Installation
Don't cover or block the vents or grilles of your appliance.
Servicing
This product should be serviced by an authorised engineer and only genuine spare parts should be used.
Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your Customer Service Department,
When the appliance is not in use for long periods, disconnect from the electricity supply, empty all foods and clean the appliance, leaving the door ajar to prevent unpleasant smells.
REVERSING THE DOOR SWING
The door of your refrigerator can be reversed.
. Ensure the fridge is unplugged and empty.
. We recommend you have someone to assist you
Tools required
. Philips style screwdriver
. Flat bladed screwdriver
.8mm socket
10mm socket or spanner
When trying to gain access to the base of the
fridge, do not tip it back at more than a 45^ angle.
Rest the fridge on soft foam packaging or similar
material to avoid damaging the back of the appliance
If the door seal does not fit against the cabinet, on any side, warm theseal with hot water and tease it into position. This can be done using a hair dryer but care must be taken not to overheat the seal or burn your hands
Check the door is aligned horizontally and vertically and that the seal is closed on all sides before finally tightening hinge bolts. Replace the lid and screws.
Locks
If your Freezer is fitted with a lock, to prevent children being entrapped keep the key out of reach and not in the vicinity of the appliance. If disposing of an old Freezer break off any old locks or latches as a safeguard.
| MODEL | MTZ55160 |
| Rated Voltage (V) | 220 -240 |
| Rated Frequency (Hz) | 50 |
| Energy Class | A+ |
| Net Storage Volume (Litres) | 160 |
| Weight (Net) (Kg) | 45-5 |
| Product Dimension h/w/d (cm) | 144 x 55.4 x |
| Star Rating | 4 Star |
| Sound Decibel Rating (dB[A]) | 43 |
| Refrigerant | R600a |
The policy of Fridgemaster is one of continuously seeking new ways of improving its products. Therefore the Company reserves the right to change the specification of items illustrated and described, at any time.
ELECTRICAL CONNECTIONS
THIS APPLIANCE MUST BE EARTHED.
This appliance is fitted with a fused three-pin plug to BS 1363 which will be suitable for use in all houses fitted with sockets to current specifications.
If the fitted plug is not suitable for your socket outlets, it should be cut off and carefully disposed of. To avoid a possible shock hazard, do not insert the discarded plug into a socket.
Fitting a new plug
If for any reason you need to fit a new plug, the flexible mains lead must be connected as shown here.
CONNECT BLUE TO NEUTRAL (N)
CONNECT GREEN AND YELLOW TO EARTH (E) (Note: some appliances do not have earth wires.)
CONNECT BROWN TO LIVE (L)
MAKE SURE THE CABLE IS HELD BY THE CLAMP
The wires in the mains lead fitted to this appliance are coloured in accordance with the following code:
If the colours of the wires in the mains lead of this appliance do not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:
The wire which is coloured Green and Yellow MUST be connected to the terminal which is marked with the letter E (Earth) or symbol ^2 or coloured Green. The wire which is coloured Blue MUST be connected to the terminal which is marked with the letter N or coloured Black. The wire which is coloured Brown MUST be connected to the terminal which is marked with the letter L or coloured Red.
Before refitting the plug cover, check that there are no cut or stray strands of wire inside the plug.
Use a 13 Amp BS1362 fuse, only BSI or ASTA approved fuses should be used. If you are in any way unsure which plug or fuse to use, always refer to a qualified electrician.
Note: After replacing or changing a fuse on a moulded plug which has a fuse cover, the cover must be refitted to the plug, the appliance must not be used without a fuse cover. If lost, replacement fuse covers can be obtained from an electrical shop.
This appliance complies with the following EEC Directives: 73 / 23 EEC (Low Voltage Directive) 89 / 336 EEC (EMC Directive).
FRIDGEMASTER
Unit D, Global Avenue
Global Park Millshaw, Leeds LS11 8PR
Tel: +44(0) 113 395 6930
Fax: +44(0) 113 270 8599
For further information please contact
the Fridgemaster Technical Helpline on:
0845 0508536
This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.
