LPR659 - Geschirrspüler Prima - Kostenlose Bedienungsanleitung

Marke	Prima
Modell	LPR659
Produkttyp	Geschirrspüler
Einbauart	freistehend
Breite	60 cm
Tiefe	57 cm
Höhe	85 cm
Gewicht	ca. 50 kg
Energieeffizienzklasse	E
Stromverbrauch pro 100 Zyklen	95 kWh
Wasserverbrauch pro Zyklus	10 L
Anzahl Maßgedecke	12
Programme	Eco 50°C, Intensiv 70°C, Schnell 65°C, Glas 40°C, Vorspülen
Trocknungssystem	Wärmetauscher
Schalldämpfung	Kunststoffbehälter mit Isolierung
Schalldruckpegel	49 dB(A) re 1 pW
Wasserschutzsystem	AquaStop
Anschlusswert	2100 W
Absicherung	10 A
Netzspannung	220-240 V / 50 Hz
Zubehör enthalten	Salzbehälter, Klarspülerdosierer, Besteckkorb, Geschirrkörbe
Reinigung und Pflege	Filter regelmäßig reinigen, Sprüharme entkalken
Ersatzteile und Reparatur	Ersatzteile online verfügbar, Reparaturanleitung in der Bedienungsanleitung

Häufig gestellte Fragen - LPR659 Prima

Wie kann ich den Salzbehälter befüllen?

Öffnen Sie den Salzbehälterdeckel, füllen Sie Speisesalz (Korngröße 1-4 mm) bis zur Markierung, verschließen Sie den Deckel und lassen Sie das Gerät ohne Geschirr einen Kurzprogramm laufen.

Warum leuchtet die Salz-Kontrollleuchte?

Die Kontrollleuchte zeigt an, dass der Salzbehälter nachgefüllt werden muss. Verwenden Sie ausschließlich spezielles Geschirrspülsalz.

Wie oft muss der Filter gereinigt werden?

Reinigen Sie den Feinfilter und den Grobfilter mindestens einmal im Monat, um Verstopfungen und Gerüche zu vermeiden. Siehe Kapitel 'Reinigung und Pflege'.

Was bedeutet der Fehlercode E1?

Fehlercode E1 weist auf ein Problem mit dem Wasserzulauf hin. Überprüfen Sie den Wasserhahn, den Zulaufschlauch und den Filter. Wenn das Problem bestehen bleibt, wenden Sie sich an den Kundendienst.

Welches Programm ist für stark verschmutztes Geschirr geeignet?

Das Programm Intensiv 70°C ist optimal für stark verschmutztes Geschirr, Töpfe und Pfannen. Es arbeitet mit höherer Temperatur und längerer Einwirkzeit.

Wie stelle ich den Klarspüler richtig ein?

Öffnen Sie die Klarspülerkammer, füllen Sie Klarspüler bis zur Markierung 'MAX'. Stellen Sie die Dosierung über den Regler ein (1-6). Bei Wasserflecken erhöhen Sie die Dosierung.

Kann ich den Geschirrspüler als Schrank nutzen?

Nein, der Geschirrspüler ist nur zum Spülen von Geschirr konzipiert. Nutzen Sie ihn nicht als Arbeitsplatte oder Ablage.

Warum bleibt das Geschirr feucht?

Mögliche Ursachen: Klarspüler fehlt, Trocknungsprogramm nicht ausgewählt, Geschirr zu dicht gestapelt. Nach dem Spülgang Tür einen Spalt öffnen für bessere Trocknung.

Welche Wasserhärte ist eingestellt?

Aktuell ist Härtebereich 2 (mittel) voreingestellt. Sie können die Härte über das Bedienfeld anpassen, um Salzverbrauch zu optimieren. Siehe Kapitel 'Wasserenthärtung'.

Wie setze ich das Gerät zurück?

Drücken Sie die Tasten 'Start' und 'Reset' gleichzeitig für 3 Sekunden, um auf Werkseinstellungen zurückzusetzen. Ein Neustart erfolgt automatisch.

BEDIENUNGSANLEITUNG LPR659 Prima

Dishwasher

Instruction Manual

LPR659

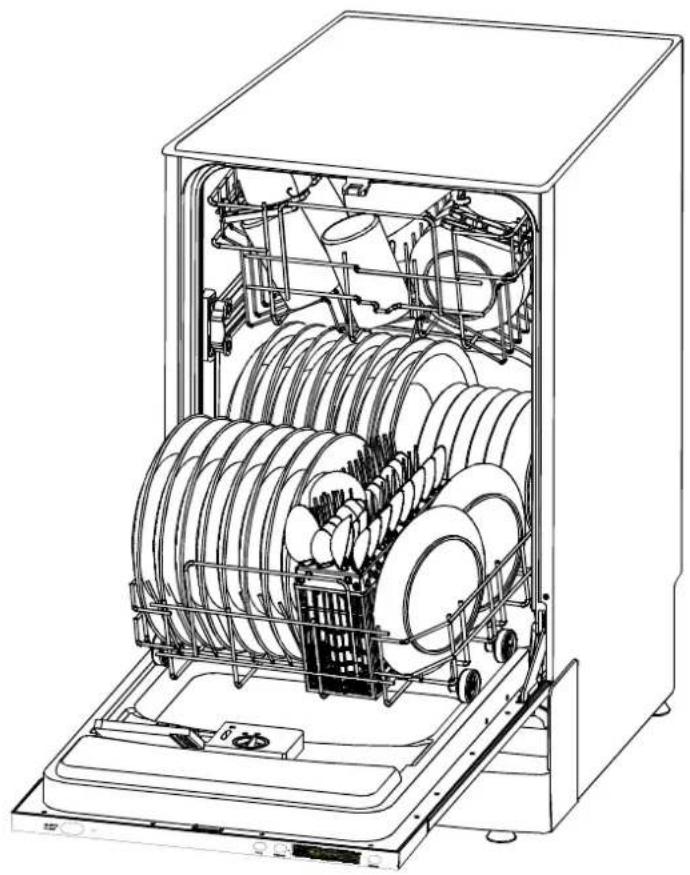

Technical line drawing of a multi-level kitchen appliance with visible dish arrangement and wheels (no text or labels)

Read this Manual

Dear Customer,

Please carefully read this manual before using the dishwasher, it will help you to use and maintain the dishwasher properly.
- Keep it to refer to it at a later date.
■ Pass it on to any subsequent owner of the appliance.

This manual contains sections on safety Instructions, Operating Instructions, Installation Instructions and Troubleshooting Tips, etc.

Before Calling for Service

To review the section on troubleshooting Tips will help you to solve some common problems by yourself.
If you can not solve the problems by yourself, please ask for the help of professional technicians.

NOTE:

The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.

1) Safety Information....1
2) Disposal....2
3) Operating Instructions....3 Control Panel....3 Dishwasher Features....3.
4) Prior using for the first time....4

A、Water Softener....4 B、Loading the Salt into the Softener....5. C、Fill the Rinse Aid Dispenser....5 D、Function of Detergent ....7. How to use the 3IN1 program....9

5) Loading the Dishwasher Basket....10 Attention before or after loading the Dishwasher Baskets....10 Loading the upper Basket....10 Loading the Lower Basket....11 Cutlery Basket......12...

6) Starting a washing programme....14 Wash Cycle Table....14 Turning on the Appliance....15 Change the Programme....15 At the End of the Wash Cycle....15

7) Maintenance and cleaning....16 Filtering System....16 Caring for the Dishwasher....17

8) Installation instruction....18 Please carefully read the installation instruction....19 Aesthetic panel's dimensions and installation Tension adjustment of the door spring....21 Connection of drain hoses....21. Dishwasher installation steps....22 About Electricity Connecting....23 Water Connection....24

9) Troubleshooting Tips....25 Before calling for service....25 Error codes....26 Technical information....27

1. IMPORTANT SAFETY INFORMATION READ ALL OF THE INSTRUCTIONS BEFORE USING

WARNING!

When using your dishwasher, follow the precautions listed below:

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the even malfunction or breakdown, grounding will reduce the risk of an electric shock by providing a least resistance of electric current. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug.
■ The plug must be plugged into an appropriate that is installed and grounded in accordance all local codes and ordinances.

WARNING!

Improper connection of the equipment-grounding conductor can result in the risk of an electric shock
Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded. Do not modify the
The outlet provided with the appliance; If it does not fit the outlet. Have a proper outlet installed by a qualified electrician.

WARNING! PROPER USE

■ Do not abuse, sit on, or stand on the door rack of the dishwasher.
■ Do not touch the heating element during or immediately after use. (This instruction is only applicable to machine with a visual heating element.)
■ Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water squirting
Do not place any heavy objects on or stand door when it is open. The appliance could be forward.
■ When loading items to be washed: 1) Locate sharp items so that they are not like to damage the door seal; 2) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points downor placed in a horizontal position.
When using your dishwasher, you should prevent plastic items from coming into contact with the heating element.(This instruction is on applicable to machines with a visual heating element.)
- Check that the detergent compartment is empty after completion of the wash cycle.
■ Do not wash plastic items unless they are m dishwasher safe or the equivalent. For plastic not so marked, check the manufacturer's recommendations.
■ Use only detergent and rinse additives designed for an automatic dishwasher.
■ Never use soap, laundry detergent, or hand washing detergent in your dishwasher. Keep these products out of the reach of children

Keep children away from detergent and rinse aid, keep children away from the open door of the dishwasher, there could still be some detergent left inside.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Dishwasher detergents are strongly alkaline, they can be extremely dangerous if swallowed. Avoid contact with skin and eyes and keep children away from the dishwasher when the door is open.

The door should not be left open, since this could increase the risk of tripping. If the supply cord is damaged, it must be repl by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

Remove the door to the washing compartment when removing an old dishwasher from service or discarding

- Please dispose of packing materials properly. - Use the dishwasher only for its intended function.

During installation, the power supply must not be excessively or dangerously bent or flattened. Marks not tamper with controls.

■ The's appliance is to be connected to the water mains using new hose sets and that old hose-sets should not be reused.

■ The maximum number of place settings to be washed is 8.

The maximum permissible inlet water pressure is 1Mpa.

■ The minimum permissible inlet water pressure is 0.04Mpa.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY

SAVE THESE INSTRUCTIONS

2.Disposal

Dispose of the dishwasher packaging material correctly.

All packaging materials can be recycled.

Plastic parts are marked with thestandard international abbreviation

■ PE—for polyethylene, e.g. sheet wrapping material
■ PS — for polystyrene, e.g. padding material
■ POM —polyoxymethylene, e.g. plastic clips
■ PP—polypropylene, e.g. Salt filler
■ ABS—Acrylonitrile Butadiene Styrene, e.g. Control Panel.

WARNING!

■ Packaging material could be dangerous for children!
For disposing of package and the appliance please go to a recycling centre. Therefore cut off the power supply cable and make the door closing device unusable.
■ Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling.
■ By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
■ For more detailed information about recycling of this product, please contact your local city office and your household waste disposal service.

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

3. Operation Instruction

IMPORTANT!

To get the best performance from your dishwasher, read operating instructions before using it for the first time.

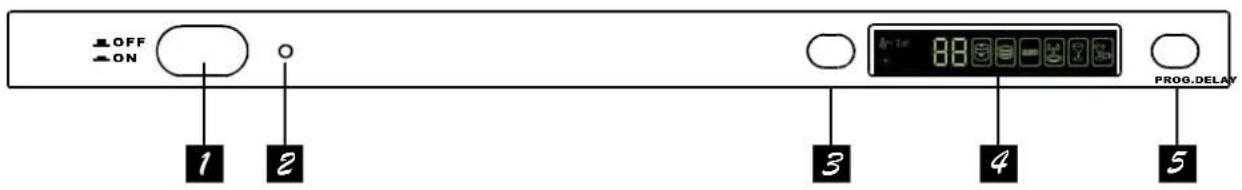

Control Panel

1 ON/OFF Button: To turn on/off the power supply. 4 Display Window: delay time, running indicator, faut codes and etc.
2 Power on light: To come on when Power ON/OFF button is pressed down.
3 Delayed Start Button: Press this button to set the delayed hours for washing. You can delay the start of washing up to 24 hours. One press on this button delays the start of washing by one hour.

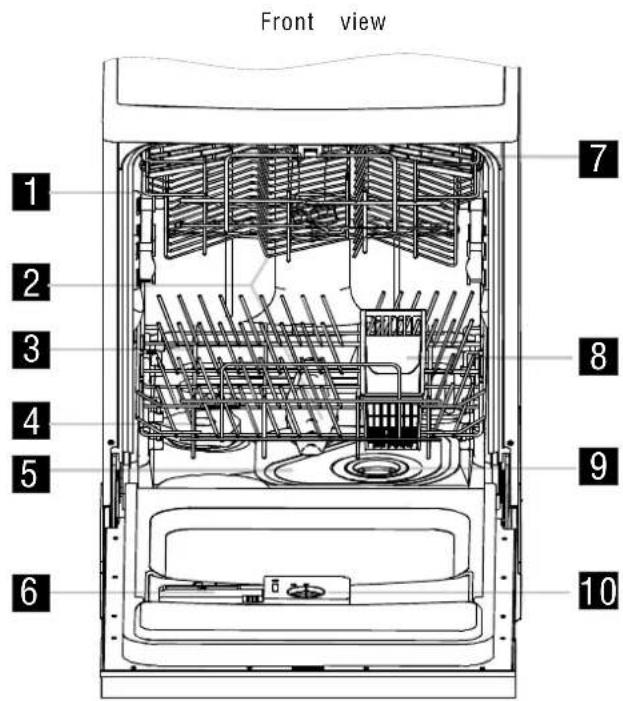

Dishwasher Features

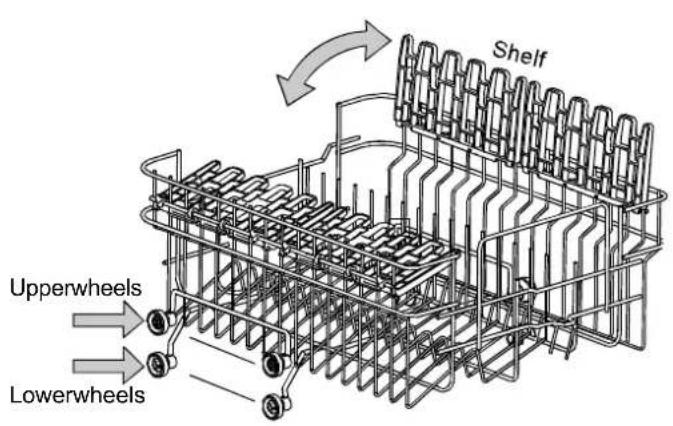

1 Upper Basket
2 Spray Arms
3 Lower Basket

4 Salt Container
5 Main Filter
6 Detergent Dispenser

7 Cup Shelf

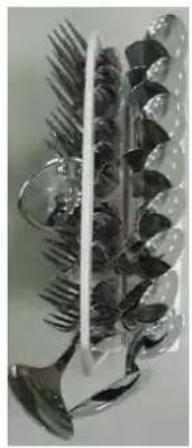

8 Cutlery Basket

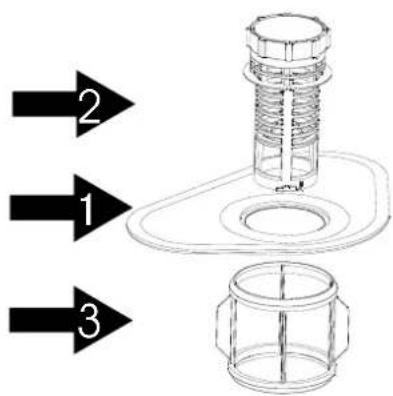

9 Coarse Filter

10 Rinse Aid Dispenser

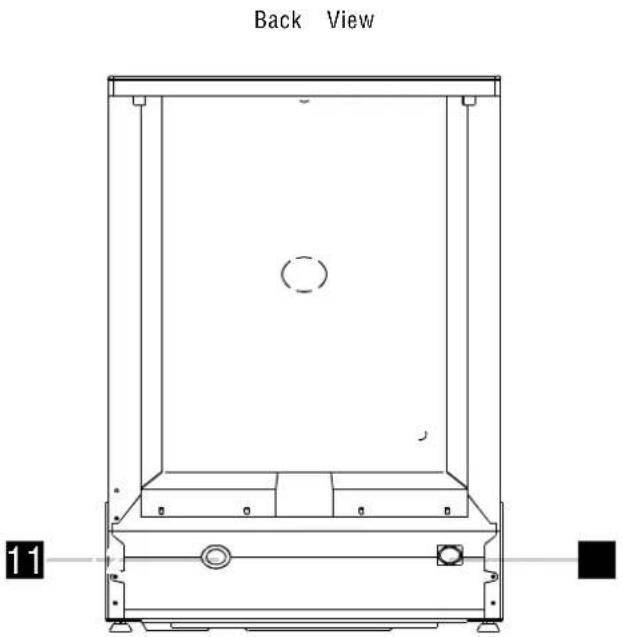

11 Drain pipe connector
12 Inlet pipe connector

4. Prior using for the first time

Before using your dishwasher for the first time:

A. Set the water softener
B. Pour 1/2 litre of water inside the salt container and then fill with dishwasher salt
C. Fill the rinse aid dispenser
D. Fill in detergent

A. Water Softener

The water softener must be set manually, using the water hardness dial.

The water softener is designed to remove minerals and salts from the water, which would have adetrimental or adverse effect on the operation of the appliance. The higher the content of these minerals and salts, the harder your water is. The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area.

Adjusting Salt Consumption

The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of the water used. This is intended to optimise and customise the level of salt consumption.

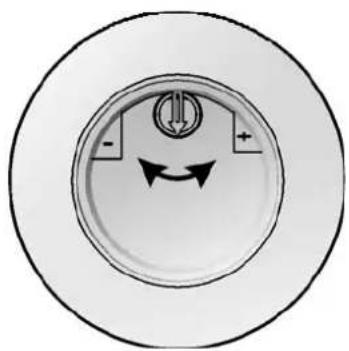

Circular diagram with a central circular component and directional arrows, no text or symbols present.

Please follow the steps below for adjustment in salt consumption.

1. Unscrew the cap from the salt container.
2. There is a ring on the container with an arrow on it (see figure on the side), if necessary, rotate the ring in the anticlockwise direction from the "-" Setting toward the "+" sign, based on the hardness of the water being used. It is recommended that adjustments should be made in accordance with the following scheme:

WATER HARDNESS				Selector Position	Salt consumption (gram/cycle)	Auto nomy (cycles/1kgs)
dH	fH	Clarke	mmol/l
	0~140~8	0~10		/ 0~1.4	0	/
8~22	14~39	10~28	1.4~3.9	-	20	50
22~45	39~80	28~56	3.9~8	Mid	40	25
45~60	80~107	56~75	8~11	+	60	16

Note:1

^ dH=1.25 ^ Clarke=1.78 fH=0.178mmol/l

^ DH: German degree

°fH: French degree

°Clark: British degree

Note:2

"/"	No salt need added
"-"	Setting toward the"- " sign
"+"	Setting toward the"+ " sign
"Mid"	Setting toward between the "-" sign and "+ " sign

Contact your local water board for information on the hardness of your water supply.

NOTE: If your model does not have any water softener, you may skip this section.

WATER SOFTENER

The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils.

The appliance is equipped with a special softener that uses a salt container specifically designed to eliminate lime and minerals from the water.

B. Loading the Salt Into the Softener

Always use the salt intended for use with dishwasher.

The salt container is located beneath the lower basket and should be filled as explained in the following:

Attention!

■ Only use salt specifically designed for the use in dishwashers! Every othertype of salt not specifically designed for the use in a dishwasher, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any damages caused.

■ Only fill with salt just before starting one of the complete washing programs. This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion.

Diagram of a mechanical device with a hand holding a bracket, showing internal components like gears and a shaft (no text or symbols)

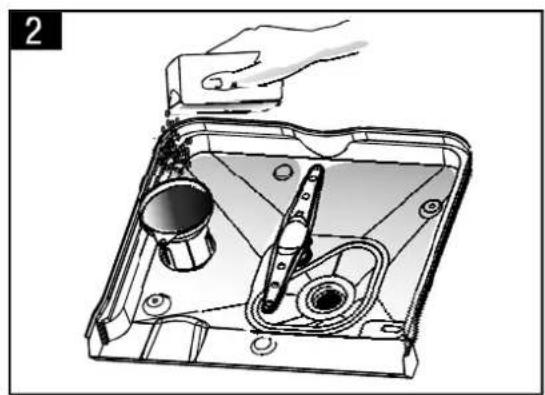

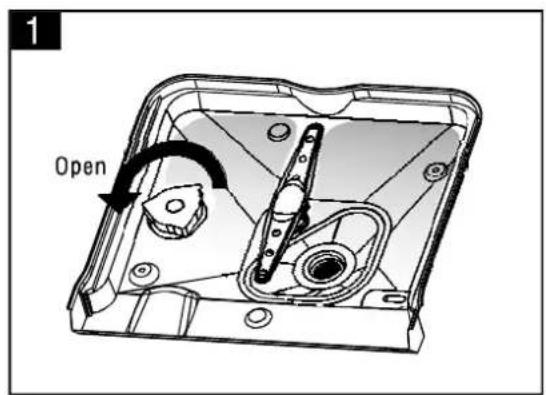

A Remove the lower basket and then unscrew and remove the cap from the salt container. 1

B Before the first wash, fill 1lt. of water in the salt container of your machine.

C Place the end of the funnel (supplied) into the hole and introduce about 1kg of salt.

It is normal for a small amount of water to come ou2 of the salt container.

D After filling the container , screw the cap tightly backclockwise.

E Usually, the salt warning light will stop being illuminated within 2–6 days after the salt container has been filled with salt.

F Immediately after filling the salt into the salt container, a washing program should be started (We suggest to use the soak or rapid program). Otherwise the filter system, pump or other important parts of the machine may be damaged by salty water. This is out of warranty.

NOTE:

1. The salt container must only be refilled when the salt warning light in the control panel comes on. Depending on how well the salt dissolves, the salt warning light may still be oneventhoughthe salt container is filled.
   If there is no salt warning light in the control panel (for some Models), you can estimate when to fill the salt into the softener by the cycles that the dishwasher has run.
2. If there are spills of the salt, a soak or a rapid program should be run to remove the excessive salt.

C. Fill the Rinse Aid Dispenser

Rinse Aid Dispenser

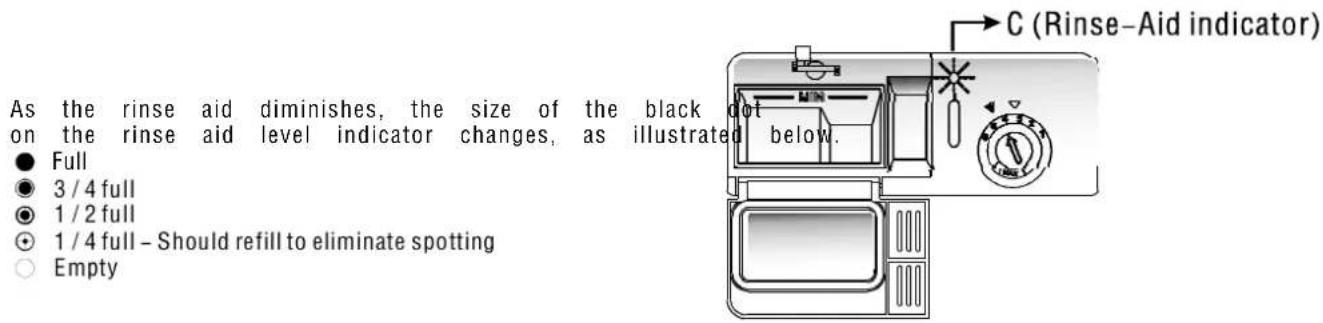

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser.

To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns complete black. The volume of the rinse aid container is about 110ml.

Function of Rinse Aid

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.

Attention!

Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

If there is no rinse-aid warning light in the control panel, you can judge the amount of rinse-aid by the color of the optical level indicator "D" located next to the cap. When the rinse-aid container is full, the whole indicator will be dark. As the rinse-aid diminishes, the size of the dark dot decreases. You should never let the rinse aid get below 1 / 4 full.

RINSE AID DISPENSER

Hand holding a card with a scroll, showing a hand pressing a button (no text or symbols visible)

Illustration of a cleaning tool with a bottle and a magnifying glass (no text or symbols)

Illustration of a hand pressing down on a device with a scroll wheel (no text or symbols)

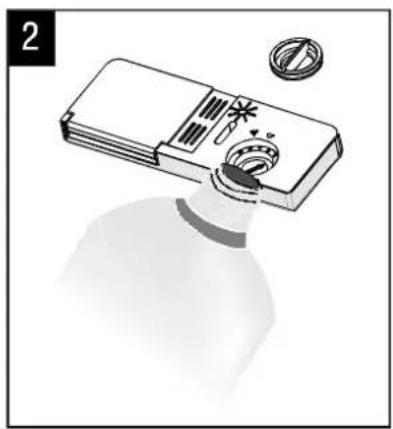

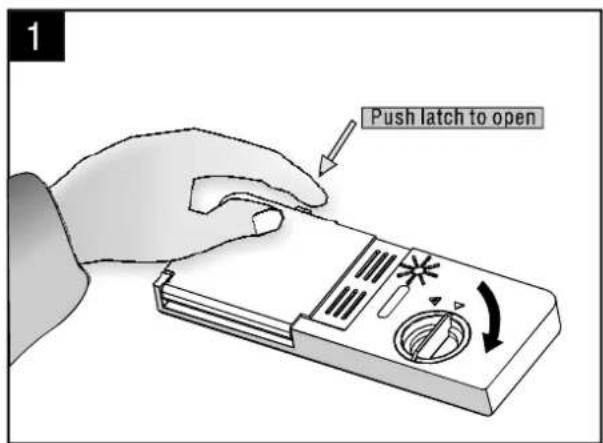

To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
2 Pour the rinse aid into the dispenser, being careful not to overfill.

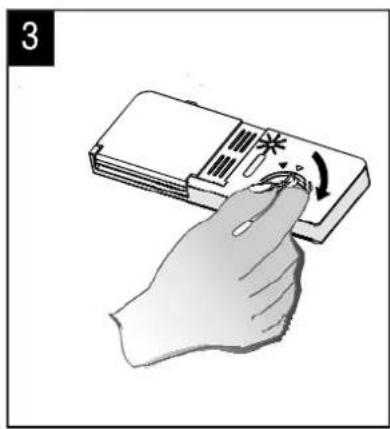

3 Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.

Be careful not to overfill the dispenser, because this could cause over sudsing. Wipe away any spills with a damp cloth. Don't forget to replace the cap before you close dishwasher door.

Attention!

Clean up any rinse aid split during filling with an absorbent cloth to avoid excess foaming during the next wash.

Adjusting Rinse Aid Dispenser

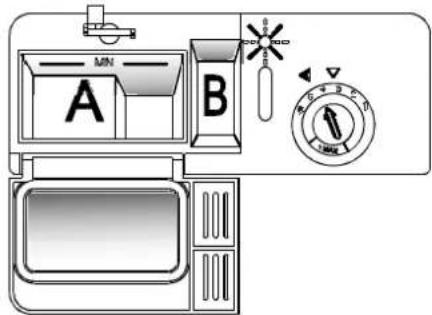

Adjust lever (Rinse)

The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4". If spots and poor drying are a problem, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "5". If the dishes still are not drying properly or are show spots, adjust the dial to the next higher lever until your dishes are spot-free. The recommended setting is "4". (Factory value is "4".)

NOTE:

Increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or knife blades.

D. Function of Detergent

Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose.

Concentrated Detergent

Based on their chemical composition, detergents can be split in two basic types:

■ conventional, alkaline detergents with caustic components
■ low alkaline concentrated detergents with natural enzymes

The use of “normal” washing programs in combination with concentrated detergents reduces pollution and is good for your dishes; these wash programs are specifically matched to the dirt-dissolving properties of the enzymes of the concentrated detergent. For this reason “no rmal” wash programs in which conce ntra ted d etergents are used can achieve the same results that can otherwise only be achieved using “intensive” programs.

Detergent Tablets

Detergent tablets of different brands dissolve at different speeds. For this reason some detergent tablets cannot dissolve and develop their full cleaning power during short programs. Therefore please use long programs when using detergent tablets, to ensure the complete removal of detergent residuals.

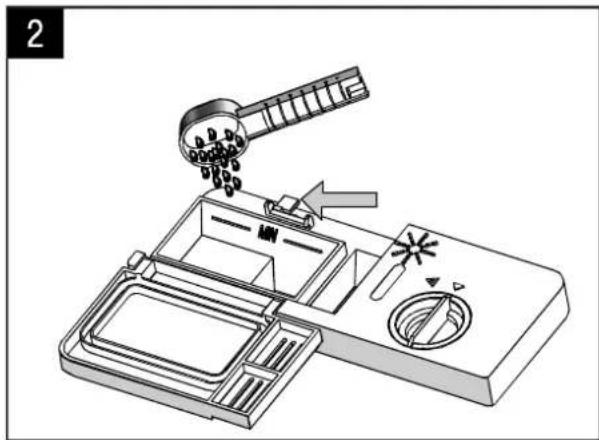

Detergent Dispenser

The dispenser must be refilled before the start of each wash cycle following the instructions provided in the wash cycle table. Your dishwasher uses less detergent and rinse aid than Conventional dishwasher. Generally, only one tablespoon of detergent is needed for a normal wash load. More heavily soiled items need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve properly.

Amount of Detergent to Use

NOTE:

■ If the lid is closed: press release button. The lid will spring open.
■ Always add the detergent just before starting each wash cycle.
■ Only use branded detergent aid for dishwasher.

WARNING!

Dishwasher detergent is corrosive! Take care to keep it out of reach of children.

Proper Use of Detergent

Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and dry.

Don't put powdered detergent into the dispenser until you're ready to wash dishes.

Fill in detergent

Fill the detergent dispenser with detergent.

Themarking indicates the dosing levels, as illustrated on the right:

A The place of main wash cycle detergent placed, "MIN" means approximately 20g of detergent.

B The place of pre-wash cycle detergent placed, approximately 5g of detergent

Please observe the manufacturers dosing and storage recommendations asstated onthe detergent packaging.

Close the lid and press until it locks in place.

If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.

NOTE:

You find information about the amount of detergent for the single programmes on the last page. Pleaseaware, that according to the level soiling and the specific hardness of water differences are possible.

Please observe the manufacturer's recommendations on the detergent packaging.

Detergents

There are 3 sorts of detergents

1. With phosphate and with chlorine
2. With phosphate and without chlorine
3. Without phosphate and without chlorine

Normally new pulverised detergent is without phosphate. Thus the water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when the hardness of water is only 6°dH. If detergents without phosphate are used in the case of hard water often white spots appear on dishes and glasses. In this case please add more detergent to reach better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not be removed completely. In this case please choose a program with a higher temperature.

Attention

Keep all detergents in a safe place out of children's reach. Always add the detergent in the dispenser just before starting the dishwasher.

How To Use The 3IN1 Function

Your dishwasher has a 3in1 function which needs no salt and rinse aid but a 3in1 tablet. This dishwasher comes with a 3in1 tablet container as an accessory.

NOTE: Only the 3in1 function(for the program: intensive/Normal/Eco.) Can be used with 3in1 tablets.

If you use 3in1 tablets in other programs, the appliance will not achieve a good perform

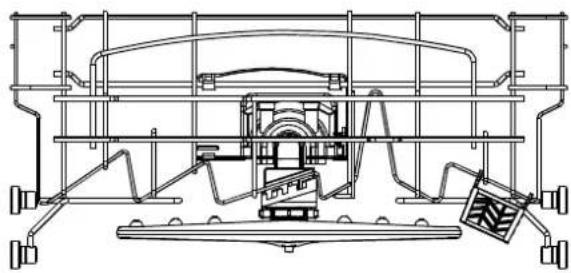

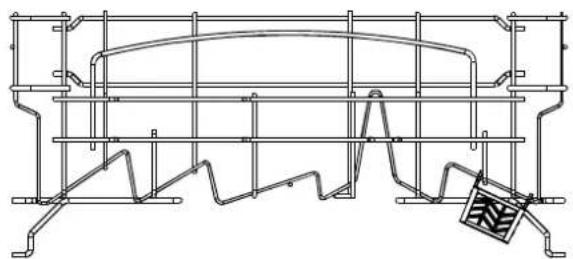

1. The figure below shows how to hang the 3in1 tablet container on the upper basket.

Technical line drawing of a structural frame with supports and a hanging tag (no text or symbols)

1. Rotate the upper sprayer and change the location of the container to ensure the upper sprayer is not obstructed by the 3in 1 tablet container. Refer to the figure below for reference.

Technical line drawing of a vehicle chassis frame with support systems and a crane (no text or symbols)

1. Put the 3in1 tablet into the container, then start the 3in1 program.

NOTE:

When using 3in1 combination / compact Detergents ,please pay attention to make sure that the size of the combination detergents fits to the dispenser, so that combination detergents can be easily put into the dispenser, and the dispenser would not be broken.

5. Loading the Dishwasher Basket

For best performance of the dishwasher, follow these loading guidelines. Features and appearance of baskets and cutlery baskets may vary from your model.

Attention before or after Loading the Dishwasher Baskets

Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans.

It is not necessary to rinse the dishes under running water.

Place objects in the dishwasher in following way:

1. Items such as cups, glasses, pots/pans, etc. are faced downwards.

2. Curved items, or ones with recesses, should be loaded aslant so that water can runoff.

3. All utensils are stacked securely and can not tip over.

4. All utensils are placed in the way that the spray arms can rotate freely during washing.

Very small items should not be washed in the dishwasher as they could easily fall out of the baskets.

Removing the Dishes

To prevent water dripping from the upper basket into the lower back, we recommend that you empty the lower basket first and then the upper basket.

Loading the Upper Basket

The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cup and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty).

Position the dishes and cookware so that they do not get moved by the spray of water.

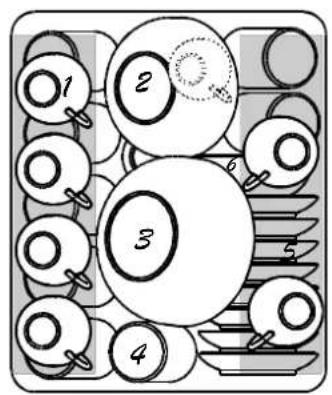

1 Cups
2 Small serving bowl
3 Large serving bowl
4 Glasses
5 Saucers
6 Dish

Adjusting the Upper Basket

The height of the upper basket can be adjusted in order to create more space for large utensils both for the upper/lower basket. The height of the upper basket can be adjusted by placing the wheels on different height of the rails. Long items, serving cutlery, salad servers and knives should be placed on the shelf so that they do not obstruct the rotation of the spray arms. The shelf can be folded back or be removed when not required for use.

Close-up of a mechanical component with a white arrow pointing to a cylindrical feature (no visible text or symbols)

Close-up of a mechanical component with a curved arm and a small circular component, no visible text or symbols

Loading the Lower Basket

We recommend that you place large items which are most difficult to clean into the lower basket:

pots, pans, lids, serving dishes and bowls, as shown in the figure to the right.

It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.

Pots, servingbowls, etc. must always be placed top down.

Deep pots should be slanted to allow water to flow out.

Thebottom basket featurefold down tine rows so that larger or more pots and pans can be loaded.

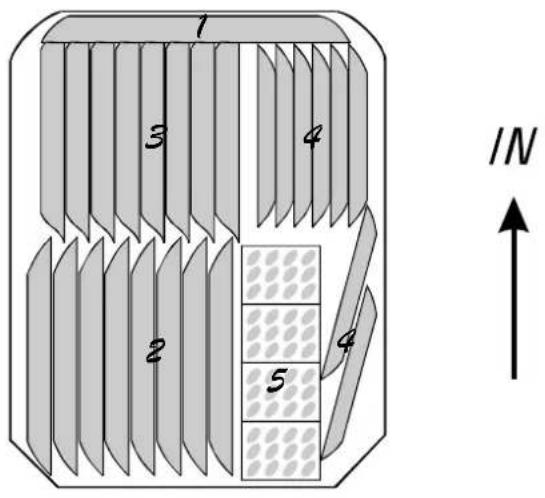

1 Oval platter

2 Dinner plates

3 Soup plates

4 Dessert dishes

5 Silverware basket

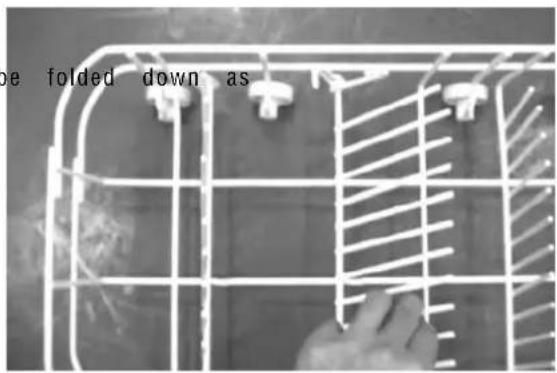

Folding spikes

For better stacking of pots and pans, thespikes can show inthe picture right.

Cutlery Basket

Cutlery should be placed in the cutlery basket with the handles at the bottom. If the rack has side baskets, the spoons should be loaded separately into the appropriate slots, especially long utensils should be placed in the horizontal position at the front of the upper basket as shown in the picture.

Close-up of a transparent plastic object with coiled, metallic surfaces (no text or symbols visible)

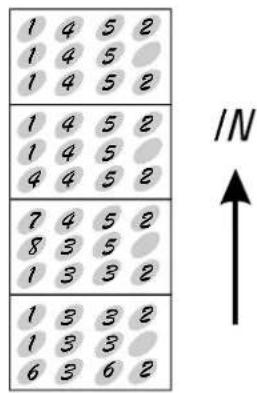

1 Forks

5 Knife

2 Soup spoons

6 Serving spoon

3 Dessert spoons

7 Gravy ladle

4 Teaspoons

8 Serving fork

▲ WARNING!

Do not let any item extend through bottom.

For washing in the dishwasher the following cutlery/dishes

Are not suitable

Cutlery with wooden, horn china or mother-of-pearl handles

Plastic items that are not heat resistant

Older cutlery with glued parts that are not temperature resistant

Bonded cutlery items or dishes

Pewter or cooper items

Crystal glass

Steel items subject to rusting

Wooden platters

Items made from synthetic fibres

Are of limited suitability

Some types of glasses can become dull after a large number of washes

Silver and aluminum parts have a tendency to discolour during washing

Glazed patterns may fade if machine washed frequently

NOTE:

Do not put in items that are dirty of cigarette ash, candle wax, lacquer or paint. If you buy new dishes please make sure that they are suitable for dishwashers.

NOTE:

Please do not overload your dishwasher. There is only space for 8 standard dishes. Do not use dish that is not suitable for dishwashers. This is important for good results and for reasonable energy consume.

Loading cutlery and dishes

Before loading the dishes, you should:

Removelarge left-over

Soften remnants of burnt food in pans

When loading the dishes and cutlery, please note:

Dishes and cutlery must not impede the rotation of the spray arms

Load hollow items such as cups, glasses, pans etc. withtheopening downwards so that

water cannot collect in the container or a deepbase

Dishes and items of cutlery must not lie inside one another, or cover each other

■ To avoid damage to glasses, they must not touch

■ Load large items which are most difficult to clean into the lower rack

■ The upper rack is designed to hold more delicate and lighter dishware such as glasses, coffe and tea cups

Attention!

Long bladed knives stored in an upright position are a potential hazard! Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.

Damage to glassware and other dishes

Possible causes:

■ Type of glass or manufacturing process. Chemical composition of detergent.

■ Water temperature and duration of dishwasher programme.

Suggested remedy:

■ Use glassware or porcelain dishes that have been marked dishwasher-proof by the manufacturer

■ Use a mild detergent that is described as kind of dishes If necessary, seek further information from detergent manufacturers.

■ Select a programme with as low a temperature.

■ To prevent damage, take glass and cutlery out of the dishwasher as soon as possible after the programme has ended.

6.Starting a washing programme

WASH CYCLE TABLE

Program	Cycle	Cycle Selection Information	Description of Cycle	Detergent pre/main	Running time(min)	Energy (Kwh)	Water (l)
3 In1	3 In1	For normally soiled loads, such as pots, plates, glasses and lightly soiled pans. standard daily cycle.	Pre-wash pre-wash wash45 rinse68 °C drying	3in1	160	0.95	14.7
Strong		For the heaviest soiled loads, such as pots, pans, casserole dishes and dishes that have been sitting with dried food on them for a while.	Pre-wash Pre-wash(50°C) Wash (60 °C) Rinse (70 °C) Drying	4/20 g.	160	1.10	12.9
Normal	(IEC-EN 50242)	For normally soiled loads, such as pots, plates, glasses and lightly soiled pans. standard daily cycle.	Pre-wash Pre-wash Wash (50 °C) Rinse (65 °C) Drying	4/20 g.	155	0.74	12.9
Economy	ECO	For lightly soiled loads, such as plates, glasses, bowls and lightly soiled pans.	Pre-wash Wash (45 °C) Rinse (60 °C) Drying	20 g.	105	0.65	10.2
Rinse		For dishes that need to be rinsed and dried only.	Wash(45 °C) Rinse (70 °C) Drying		85	0.75	7.5
Glass		For lightly soiled loads, as glasses, crystal and china.	Pre-wash such wash(40 °C) Rinse(70 °C) drying	15 g.	110	0.75	10.2
Rapid		A shorter wash for lightly soiled loads that do not need drying.	Wash (40 °C) Rinse (45 °C)	15 g.	30	0.35	6.5

Turning on the Appliance

Starting a wash cycle...

1 Draw out the lower and upper basket, load the dishes and push them back. It is commended that loading the lower basket first, than the upper one (see the section entitled ____ "Loading the Dishwasher").

2 Pour in the detergent (see the section entitled "Salt, Detergent and Rinse Aid").

3 Insert the plug into the socket. The power supply is 220-240 VAC 50 HZ, the specification of the socket is 10 A 250 VAC. Make sure that the water supply is turned on to full pressure.

4 Open the door, press the ON/OFF button, and the ON/OFF light will turn on.

Press the "prog. "Button to select a desired "Wash cycle".(see the section entitled."Wash Cycle Table".)

5 With a little force to ensure the door is properly closed. NOTE: A click could be heard when the door is closed perfectly. 6 When the washing is over, you can shut off the switch by pressing ON/OFF button.

Change the Programme...

Premise: A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section entitled "Loading the Detergent"). Open the door, Press current prog. Button more than three seconds to cancel the program, then you can change the program to the desired cycle setting (see the section entitled "Starting a wash cycle..."). Then, close the door.

NOTE: If you open the door when washing, the machine will pause. When you close the door, the machine will keep on working after 10 seconds.

The 7 program lights show s the state of the dishwasher: a) All program lights off --> stand by b) One of the program lights on --> pause c) One of the program lights blinking --> run

NOTE:

If all the lights begin to glimmer, that indicates the machine is out of order, please turn off the main power and water supply before calling a service.

Forget to Add a Dish?

A forgotten dish can be added at any time before the detergent cup opens.

1 Open the door a little to stop the washing.

3 Load the forgotten dishes.

2 After the spray arms stop working, you can open the completely.

doar Close the door, the dishwasher will start running ag; after 10 seconds.

▲ WARNING!

It is dangerous to open the door when washing, because the hot water may scald you.

At the End of the Wash Cycle

When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher.

Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage. They will also dry better.

■ Switch Off the Dishwasher

In the digital display appears 0 (remaining programme time), only in this case the programme has ended.

1.Switch off the dishwasher by pressing the ON/OFF button.

2.Turn off the water tap!

■ Open the door carefully.

Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes before removing from the appliance.

Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they will be cooler and the drying will be improved.

■ Unloading the dishwasher

It is normal that the dishwasher is wet inside.

Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto the dishes in the lower one.

7. Maintenance and Cleaning

Filtering System

The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed.

The filter system consists of a coarse filter, a flat (Main filter) And a microfilter (Fine filter).

Main filter 1

Food and soil particles trapped in this filter are pulverized by a special jet on the lower spray arm and washed down the drain.

Coarse filter 2

Larger items, such as pieces of bones or glass, that could clog the drain are trapped in the coarse filter. To remove an item caught in this filter, gently squeeze the taps on the top of this filter and lift it out.

Fine filter 3

This filter holds soil and food residues in the sump area and prevents it from being redeposit on the dishes during a cycle.

-Inspectthefiltersforblockingafter everytimethedishwasherhasbeenused.

- By unscrewing the coarse filter. you can remove the filters system. Remove any food remnants a filters under running water.

step 1: Turn the filter in anti-clockwise direction, then lift it up

step 2 : lift the Main filter up

step 3: lift the Fine filter up

NOTE:

When following this procedure from step1 to step 3, the filter system will be removed; when following it from Step 3 to Step 1, the filter system will be installed.

Filter assembly

For best performance and results, the filter assembly must be cleaned. The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle. For best performance and results, the filter must be cleaned regularly. For this reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water.

To remove the filter device, pull the cup handle in the upward direction. The entire filter assembly should be cleaned once a week.

To clean the coarse filter and the fine filter, use a cleaning brush. Then, reassemble the filter parts as shown in the figures left and reinsert the entire assembly in the dishwasher, positioning in its seat and pressing downward.

The dishwasher must never be used without the filters. Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

▲ WARNING!

■ The dishwasher must never be used without the filters.
■ Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

Cleaning the Spray Arms

It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings.

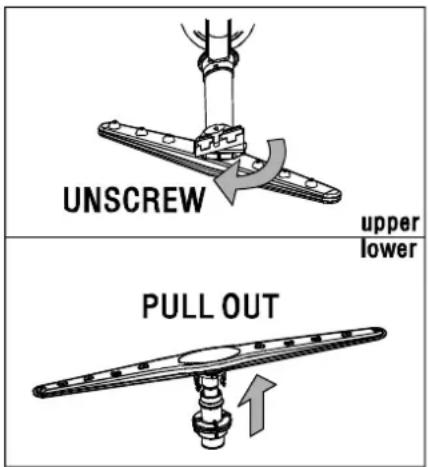

Remove the upper spray arm

To remove the upper spray arm, screw off the nut clockwise then r the arm.

Remove the lower spray arm

To remove the lower spray arm, pull out the spray arm upward.

Wash the arms

Wash the arms in soapy and warm water and use a soft brush t the jets. Replace them after rinsing them thoroughly.

Caring for the Dishwasher

The control panel can be cleaned by using a lightly dampened cloth. After cleaning, make sure to dry it thoroughly.

For the exterior, use a good appliance polish wax.

Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

Protect Against Freezing

please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows:

1. Cut off the electrical power to the dishwasher.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve. (Use a pan to catch the water)
4. Reconnect the water inlet pipe to the water valve.

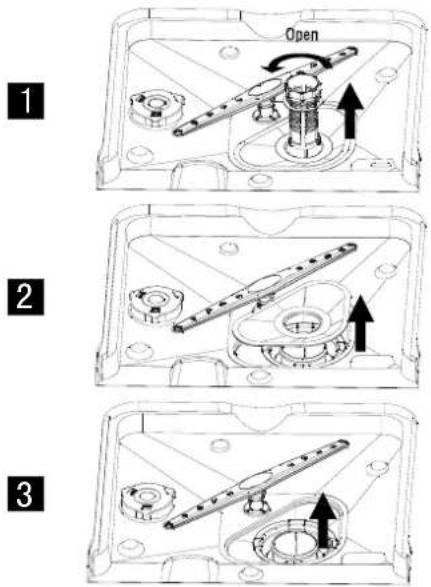

5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.

Technical line drawing of a mechanical component or housing assembly (no text or symbols)

To clean the edge around the door, you should use only a soft warm, damp c To avoid penetration of water into the door lock and electrical components, donot use a spray cleaner of any kind.

WARNING!

■ Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components.
■ Abrasive agents or some paper towels should not be used because of the risk of scratching or leaving spots on the stainless steel surface.

How to Keep Your Dishwasher in Shape

After Every Wash

After every wash, turn off the water supply to appliance and leave the door slightly ajar so that moisture and odours are not trapped inside.

Remove the Plug

Before cleaning or performing maintenance, always remove the plug from the socket. Do not run

No Solvents or Abrasive Cleaning

To clean the exterior and rubber parts of the do not use solvents or abrasive cleaning product

Rather, useonlya cloth and warm soapy water. To remove spots or stains from the surface of interior, use a cloth dampened with water and a vinegar, or a cleaning product made specifically dishwashers.

When not in Use for a Long Time

When you go on holiday, it is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply at leave the door of the appliance slightly ajar. This will the seals to last longer and prevent odours from formi within the appliance.

^s Moving the Appliance

If the appliance must be moved, try to keep it in the shoulder. If absolutely necessary, it can be positioned its back.

the Seals

little of the factors that cause odours to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

8. Installation instruction

▲ Attention:

The installation of the pipes and electrical equipments should be done by professionals.

! Warning

Electrical Shock Hazard Disconnect electrical power before installing dishwasher.

Failure to do so can result in dea electrical shock.

• Installation preparation

The installation position of dishwasher should be near the existing inlet and drain power cord.

One side of the cabinet sink should be chosen to facilitate the connection ofdrainh the dishwasher.

Note: please check the accompanying installation accessories(hook for aesthetic pane, screw)

Please carefully read the installation instruction.

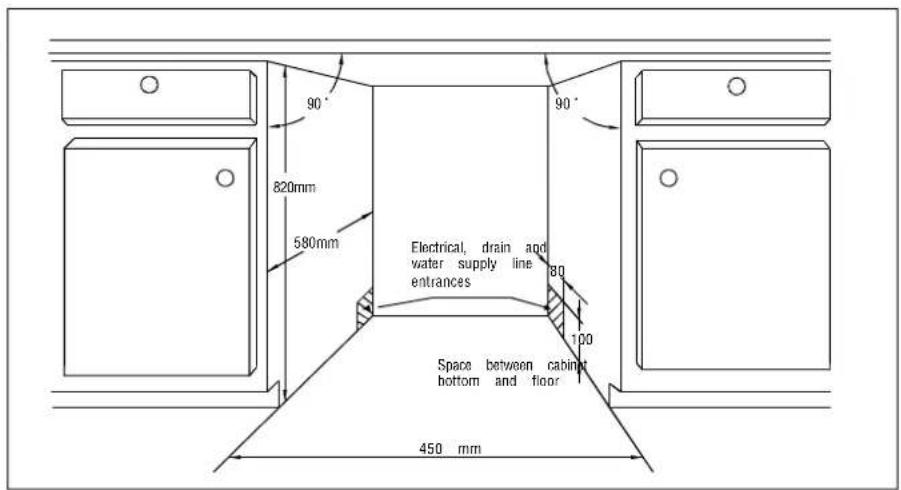

Illustrations of cabinet dimensions and installation position of the dishwasher

Preparations should be made before moving the dishwasher to the installation place.

1 Choose a place near the sink to facilitate the installation of inlet and drain hoses (see figure 1).
2 If dishwasher is installed at the corner of the cabinet, there should be some space (illustrated in figure 2) when the door is opened.

【Figure1】

Cabinet dimensions Less than 5mm between the top of dishwasher and cabinet and the outer door aligned to cabinet.

【Figure 2】

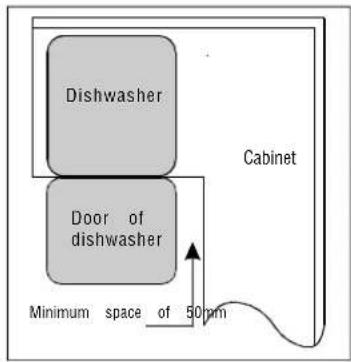

Minimum space when the door is opened

● Aesthetic panel's dimensions and installation

1 The aesthetic wooden panel could be processed according to the

【Figure 3】

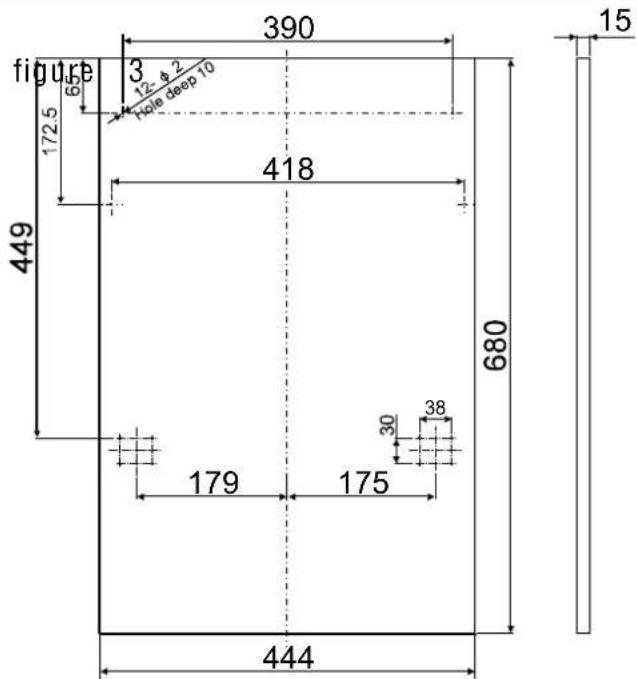

The aesthetic panel should be processed in accordance with the illustrated dimensions

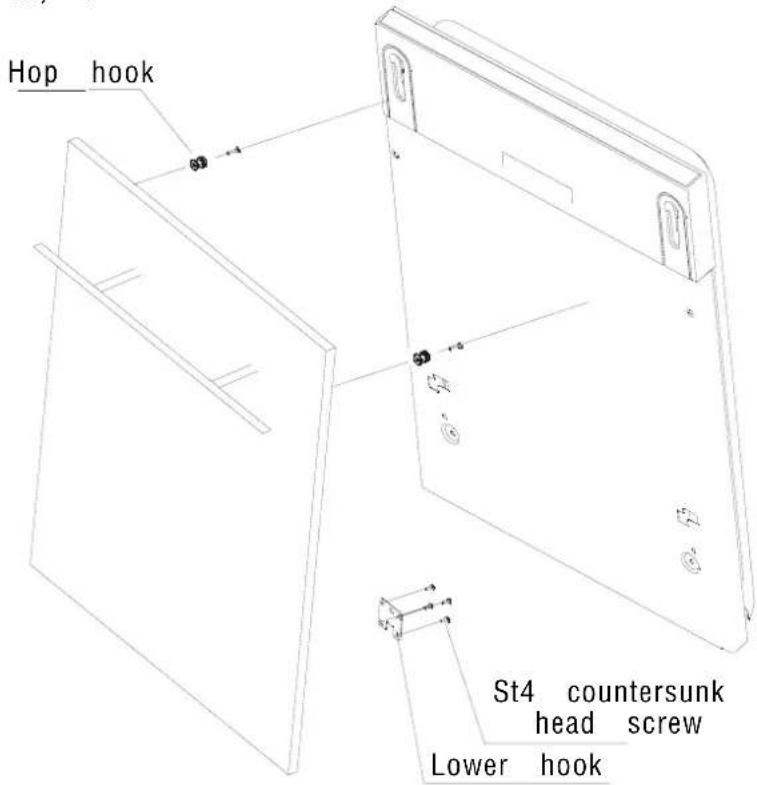

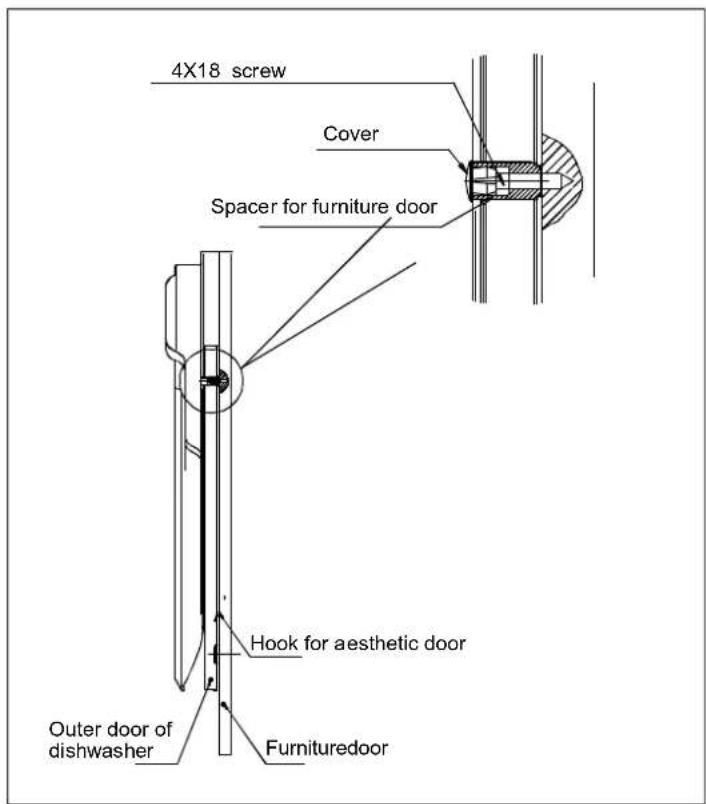

2 Install the hook on the aesthetic wooden panel and put the hook into the slot of the outer door of dishwasher(see figure 4a). After positioning of the panel, fix the panel onto the outer door by screws and bolts(See figure 4b).

【Figure 4a】

Installation of aesthetic panel

【Figure4b】

Installation of aesthetic wooden panel

1. Takeawaythecover
2. Pinupthescrew
3. Getback thecover

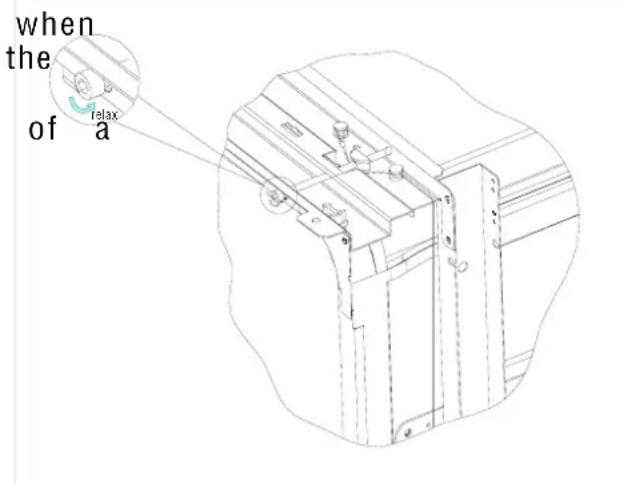

- Tension adjustment of the door spring

The door springs are set at the factory to the proper tension for the outer do wooden panel are installed, you will have to adjust the door spring tension. Rot a screw to drive the adjustor to strain or relax the steel cable(see figure 5).

Door spring tension is correct the door remains horizontal in fully opened position, yet rises to a close with the slight lift finger.

【Figure 5】
Tension adjustment of the door spring

- Connection of drain hoses

Insert the drain hose into a drain pipe with a minimum diameter of 4cm, or let run into the sink, making sure to avoid bending or crimping it. Use the special plastic support that comes with the appliance (figure 6). The free and of the h must be at a height between 400 and 1000mm and must not be immersed in to avoid the back flow of it. ATTENTION: The special plastic hose support must solidly fastened to the wall to prevent the drain hose from moving and allowing to spill outside the drain.

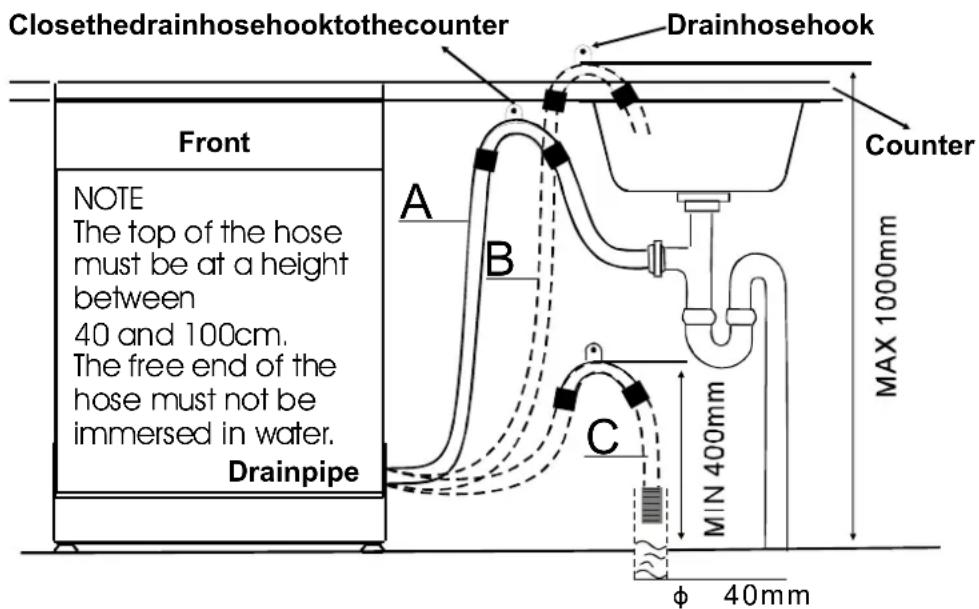

【Figure6】

Drain pipe connection

- Dishwasher installation steps

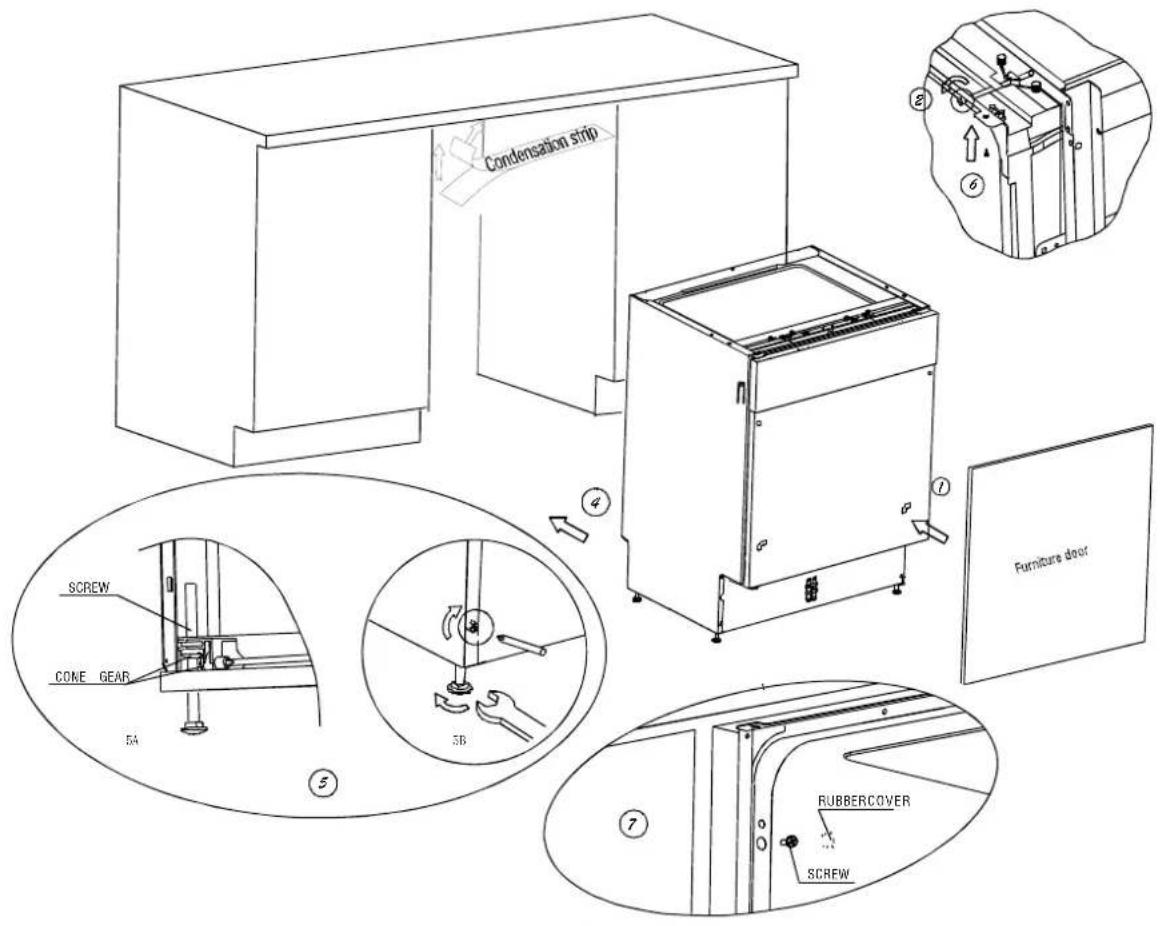

1 Install the furniture door to the outer door of the dishwasher using the brackets provided. Refer to the template for positioning of the brackets.
2 Adjust the tension of the door springs by using an Allen key turning in a clockwise motion to tighten the left and right door springs. Failure to do this could cause damage to your dishwasher (Illustration 2).
3 Connect the inlet hose to the cold water supply.
4 Connect the drain hose. Refer to diagram.(Figure 6)
5 Connect the power cord.
6 Affix the condensation strip under the work surface of cabinet. Please ensure the condensation strip is flush with edge of work surface.
7 Place the dishwasher into position.
8 Level the dishwasher. The rear feet can be adjusted from the front of the dishwasher by turning the screws on the left and right hand side of the cabinet (Illustration 5A). To adjust the front feet, use a wrench and turn the front feet until the dishwasher is level (Illustration 5B).
9 The dishwasher must be secured in place. There are two ways to do this:

A. Normal work surface–secure to the work surface by using two woodscrews ensuring the dishwasher weight is not being hit by the surface (Illustration 6).

B. Marble or granite work top-secure the bracket to the side panel of the dishwasher and secure the dishwasher to the furniture housing. Put the rubber cap over the screw (Illustration 7).

【Figure 7】

Dishwasher must be level for proper dish rack operation and wash performance.

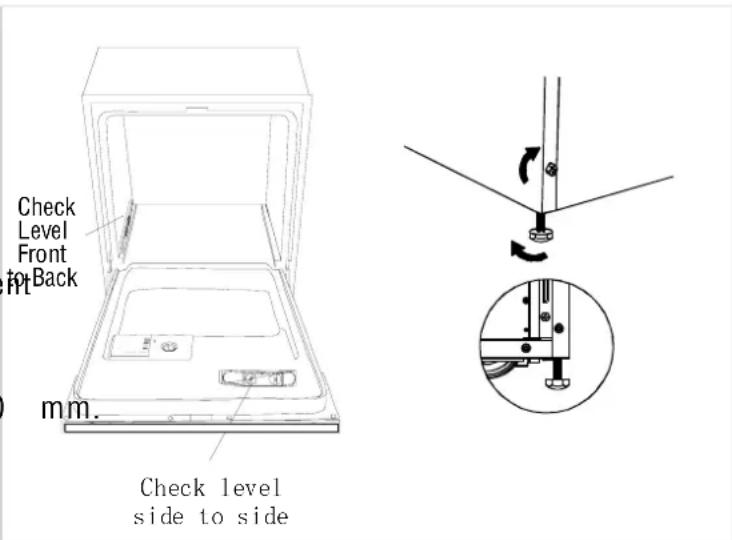

1 Place level on door and rack track inside the tub as shown to check that the dishwasher is level.
2 level the dishwasher by adjusting the four leveling legs individually.
3 When level the dishwasher, please pay attention not to let the dishwasher tip over.

【Figure 8】

Illustration of feet adjustment

NOTE:

The maximum adjustment

height of the feet is 60

About Electricity Connecting

WARNING!

For personal safety:

■ DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS AF
■ DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE EARTHING CONNECTION FROM THE POWER CORD.

Electrical Requirements

Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

Electrical Connection

⚠️ Insure proper ground exists before use

Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or they could cause overheating and burns.

GROUNDING INSTRUCTIONS

This appliance must be earthed. In the event of a malfunctionor breakdown, earthing will improve connection of the equipment-reduce the risk of electric shock by providing an electric shock. Check with a qualified path of least resistance for the electric current. This appliance is equipped with a cord having an electrician or service representative if you are in doubt whether the appliance is equipment-earthing conductor and an earthing plug. The plug must be plugged into an appropriate ground. Do not modify the plug outlet that is installed and earthed in accordance with the appliance; If it is not fit with all local standards and requirements. For the outlet. Have a proper outlet installed by a qualified electrician.

Line drawing of a hand holding a pipe fitting with a handle (no text or symbols)

Connect the cold water supply hose to a threaded 3/4(inch) connector and that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of water run to make sure that the water is clear. This precaution is needed to risk of the water inlet to be blocked and damage the appliance.

Hot Water Connection

The water supply to the appliance can also be connected to the household hot v line (such as, central system, heating system),as long as it does not exceed a temperature of 60°C.In this case, the wash cycle time will be shortened by abi minutes and the wash efficiency slightly reduced. The connection must be made to the hot water line following the same procedure described in the section for the connection to the cold water line.

Positioning the Appliance

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.

How to Drain Excess Water From Hoses

If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.

Water Outlet

Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water drain hose is not kinked or squashed.

Extension Hose

If you need a drain hose extension, make sure to use a similar drain hose. It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced.

Syphon Connection

The waste connection must be at a height of between 40 cm (minimum) and 100 cm (maximum) from the bottom of the dish. The water drain hose should be fixed by a hose clip. The free end of the hose must not be immersed in water.

Start of Dishwasher

The following things should be checked before starting the dishwasher.

1 The dishwasher is level and fixed properly
2 The inlet valve is open
3 There is a leakage at the connections of the conducts
4 The wires are tightly connected
5 The power is switched on
6 The inlet and drain hoses are knotted
7 All packing materials and printings should be taken out from the dishwasher

Attention: After installation, please make sure to keep this manual.

The content of this manual is very helpful to the users.

9. Troubleshooting Tips

Before Calling for Service

Review the charts on the following pages may save you from calling for service.

Problem	Possible Causes	What To Do
Dishwasher doesn't start	Fuse blown, or the circuit breaker acted appliances	Replace fuse or reset circuit breaker. Remove any other circuit breaker. Remove any other circuit breaker acted appliances sharing the same circuit with the dishwashes
	Power supply is not turned on	Make sure the dishwasher is turned on and the door closed securely.Make sure the power cord is properly plugged into the wall socket.
	Error code:E1; Water pressure islow	Check that the water supply is connected properly and the water is turned on.
	Door ofdishwasher notproperly closed.	Make sure to close the door properly and latch it.
water not pumped form dishwasher	Kink in drain hose	Check drain hose.
	Filter clogged	Check coarse the filter (see section titled " Cleaning The Filter ")
	Kitchen sink clogged	Check the kitchen sink to make sure it is draining w If the problem is the kitchen sink not draining ,you need a plumber rather than a serviceman for dishwash
Suds in the tub	Improper detergent	Use only the special dishwasher detergent to avoid suds. If this occurs, open the dishwasher and let su evaporate. Add 1 gallon of cold water to the tub. C and latch the dishwasher, then Start the "soak" wash cycle to drain out the water . Repeat if necessary.
	Spilled rinse-aid	Always wipe up rinse-aid spills immediately.
Stained tub interior	Detergent with colourant was used	Make sure that the detergent is the one without colourant.
White film on inside surface	Hard water minerals	To clean the interior, use a damp sponge with dishwasher detergent and wear rubber gloves. Never use any other cleaner than dishwasher detergent for the risk of foaming or suds.
There are rust stains on cutlery	Theaffected items are not corrosion resistant.
	A program mewasn run after dishwasher salt was added.	Always run the quick wash programme . without any crockery in the dishwasher and without selecting the Turbo function (if present), Traces of salt have after adding dishwasher salt. gotten into the wash cycle.
	Thelid of the softer is loose	Check the lip .Ensure the fix is fine.
Knocking noise in the wash cabinet	Asprayarmis knocking against an item in a basket	Interrupt the programme, and rearrange the items which are obstructing the spray arm.
Rattling noise in the wash cabinet	Items of crockery are loose in the wash cabinet	Interrupt the programme, and rearrange the items of crockery.
Knocking noise in the water pipes	This may be caused This has no influence on the dishwasher function. by on-site installation if in doubt, contact a suitably qualified plumber. or the cross-section of the piping.

	Problem	Possible Causes	What To Do
Unsatis-factory washing result	The dishes are not clean	Thedishes were not loaded correctly.	See notes in " Loading the Dishwasher Baskets ".
		Theprogramme was notpowerful enough.	Select a more intensive programme.See" Wash Cycle Table ".
		Not enough detergent was dispensed.	Use more detergent, or change your detergent.
		Items are blocking the path of spray arms.	Rearrange the items so that the spray can rotate f
		Thefilter combination in the base of wash cabinet is not clean is not correctly fitted.This may cause the spray arm jets to get blocked.	Clean and/or fit the filter combination correctly.Clean the spray arm jets. See "Cleaning the Spray oArms".
	Cloudiness on glassware	Combination of soft water and too much detergent.	Use less detergent if you have soft water and seleashortestcycletowashtheglasswareandtoget them clean.
	Black or gray marks on dishes	Aluminum utensils have rubbed against dishes.	Use a mild abrasive cleaner to eliminate those mark
	Detergent left in dispenser cups	Dishes block detergent cups.	Re-loading the dishes properly.
Unsatis-factory drying result	The dishes are not drying	Improper loading	Load the dishwasher as suggested in the directions.
		Too little rinse-aid	Increase the amount of rinse-aid/refill the rinse-aid dispenser.
		Dishes are removed too soon	Do not empty your dishwasher immediately after washing. Open the door slightly so that the steam escape. Begin unloading the dishwasher only once t he dishes are barely warm to the touch. Empty the basket first. This prevents water form dropping off dishes in the upper basket.
		Wrong program hasbeen selected	In short program the washing temperature is lowerThis also lowers cleaning performance. Choose a program with along washing time.
		Use of cutlery with alow-quality coating	Water drainage is more difficult with these items.Cutlery or dishes of this type are not suitable for washing in the dishwasher.

ERROR CODES

When some malfunctions come on, the appliance will display error codes to warn you:

Codes	Meanings	Possible Causes
E1	Longer inlet time.	Faucets is not opened, or water intake is restricted,or water pressure is too low.
E3	Longer heating time,but not reaching required temperature	Malfunction of temperature sensor or of heating element.
E4	Overfilled.	Too much inlet water. .
E6	Failure of temperature sensor	Open circuit or break of temperature sensor
E7	Failure of temperature sensor	Short circuit or break of temperature sensor

WARNING!

■ If overflow occurs, turn off the main water supply before calling a

■ If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.

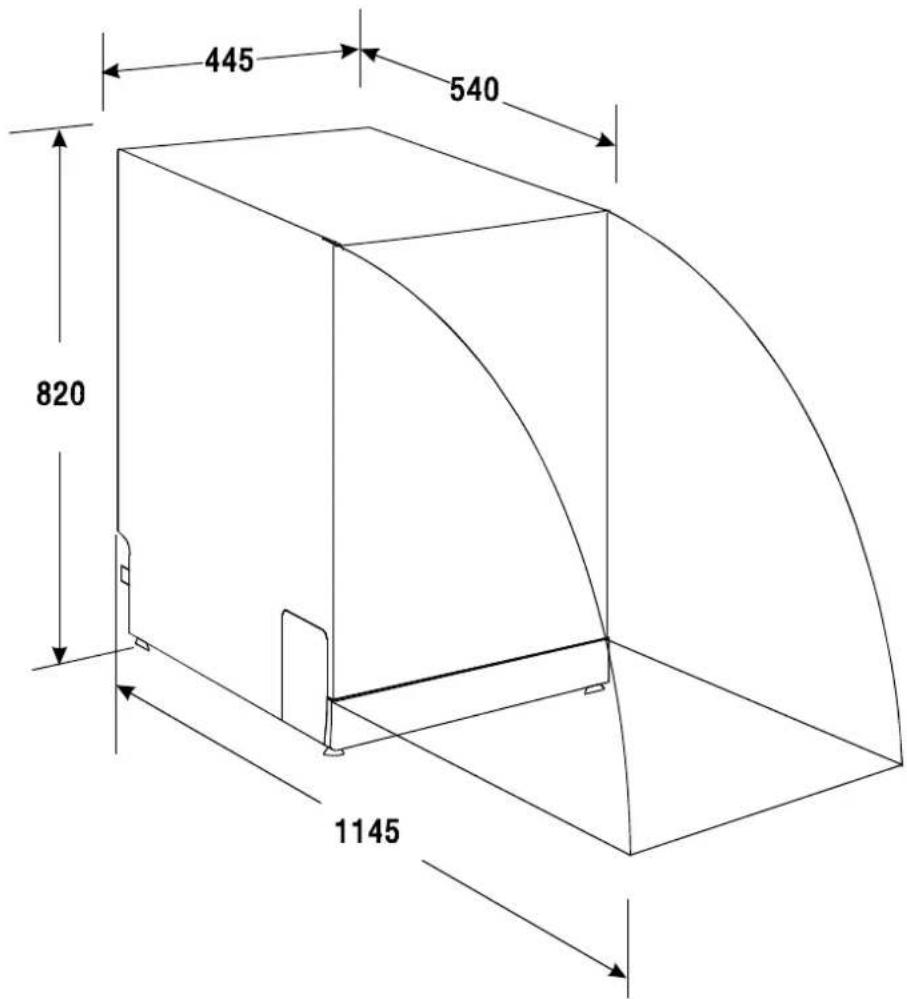

Height : 820mm(adjustable+60mm)
Width : 445mm
Depth : 540mm
Voltage connected Load : see rating label
Water pressure: 0.04-1.0MPa
Hot water connection : max 60 °C
Power supply: see rating label
Capacity: 8 Place settings
