Produkttyp	Netzwerk-Überwachungskamera (Fixed Dome)
Bildsensor	Progressiver Scan RGB CMOS 1/2.8"
Objektiv	Varifokal 2,8–10 mm, F1.6, IR-korrigiert, fernsteuerbarer Fokus und Zoom, P-Iris
Tag- und Nachtmodus	Automatisch entfernbarer Infrarot-Sperrfilter
Minimale Beleuchtung	Farbe: 0,3 Lux, S/W: 0,06 Lux
Videokompression	H.264 (Baseline, Main, High Profile), Motion JPEG
Auflösung	1280x960 bis 160x90 Pixel
Bildrate	Bis zu 25/30 fps bei 50/60 Hz
Video-Streaming	Mehrere individuell konfigurierbare Streams in H.264 und Motion JPEG, VBR/MBR
Digitaler PTZ	Ja, über View Area
Netzwerk	RJ45 10BASE-T/100BASE-TX PoE, IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS, SNMP, u.v.m.
Sicherheit	Passwortschutz, IP-Adressfilter, HTTPS-Verschlüsselung, IEEE 802.1X, Benutzerzugriffsprotokoll
Analysefunktionen	Bewegungserkennung, Manipulationsalarm, Unterstützung für ACAP-Anwendungen (z. B. AXIS Video Motion Detection 3)
Ereignisaktionen	Datei-Upload (FTP, SFTP, HTTP, HTTPS, Netzwerkfreigabe, E-Mail), Benachrichtigung, Videoaufzeichnung auf Edge-Speicher, Overlay-Text
Speicher	microSD/microSDHC/microSDXC-Karte (nicht im Lieferumfang), Netzwerkspeicher (NAS)
Stromversorgung	Power over Ethernet (PoE) IEEE 802.3af/at Typ 1 Klasse 3, max. 8,4 W, typ. 3,5 W
Gehäuse	Aluminium-Innenmodul mit vergossener Elektronik, IP66, NEMA 4X, IK10, Polycarbonat-Gehäuse mit Entfeuchtungsmembran, Farbe: Weiß NCS S 1002-B
Abmessungen (H x B x T)	101 mm x 149 mm x 149 mm
Gewicht	790 g (1,7 lb)
Betriebstemperatur	-30 °C bis 50 °C
Luftfeuchtigkeit	10–100 % RH (kondensierend)
Mitgeliefertes Zubehör	Installationsanleitung, Windows-Decoder-Lizenz (1 Benutzer), Montagehalterung, Kabeldichtung, Widerstand, T20-Inbusschlüssel, Bohrschablone, Wetterabdeckung
Garantie	3 Jahre Axis-Garantie, erweiterte Garantieoption verfügbar

Häufig gestellte Fragen - P3214-Ve AXIS

Wie kann ich das Standard-Administratorkennwort zurücksetzen, wenn ich es vergessen habe?

Wenn Sie das Kennwort für den Benutzer 'root' vergessen haben, muss die Kamera auf die Werkseinstellungen zurückgesetzt werden. Halten Sie dazu die Steuertaste gedrückt, während Sie die Stromversorgung wiederherstellen, und lassen Sie sie nach 15–30 Sekunden los, bis die Status-LED orange blinkt. Danach wird die Kamera auf die Standardeinstellungen zurückgesetzt (IP-Adresse: 192.168.0.90). Weitere Details finden Sie im Abschnitt Reset auf Werkseinstellungen der Bedienungsanleitung.

Welche Videoformate werden unterstützt und wie kann ich die Videoqualität anpassen?

Die Kamera unterstützt H.264 (Baseline, Main, High Profile) und Motion JPEG. Sie können Auflösung, Komprimierung, Bildrate und andere Einstellungen unter Setup > Video > Videostream anpassen. Für H.264 stehen verschiedene Profile und Bitraten zur Verfügung (VBR/MBR). Die optimale Einstellung hängt von Ihren Bandbreiten- und Qualitätsanforderungen ab.

Wie kann ich die Kamera über das Internet von außerhalb meines Netzwerks erreichen?

Aktivieren Sie die NAT-Traversal-Funktion unter Setup > Systemoptionen > Netzwerk > TCP/IP > Erweitert. Diese versucht, Ihren Router automatisch zu konfigurieren, um eingehenden Datenverkehr zur Kamera zuzulassen. Ihr Router muss UPnP unterstützen. Alternativ können Sie auch den AXIS Internet Dynamic DNS Service nutzen. Weitere Informationen finden Sie im Abschnitt Zugriff über das Internet.

Was bedeutet die Status-LED und wie kann ich Fehler erkennen?

Die Status-LED zeigt verschiedene Betriebszustände an: Aus = Normalbetrieb, Grün (10 Sek.) = Normalbetrieb nach Start, Orange = Startvorgang oder Firmware-Update, Orange/Rot blinkend = Netzwerkverbindung nicht verfügbar, Rot blinkend = Fehler beim Firmware-Update. Bei Problemen prüfen Sie das Server-Report unter Systemoptionen > Support > Protokolle und Berichte.

Kann ich die Kamera an der Decke oder an der Wand montieren?

Ja, die Kamera kann sowohl an der Decke als auch an der Wand montiert werden. Bei der ersten Inbetriebnahme werden Sie nach der Montageart gefragt. Diese Einstellung kann später nur durch einen Werksreset geändert werden. Die Kamera verfügt über einen Schwenkbereich von ±180°, Neigung 90° und Rotation ±95°.

Wie richte ich eine kontinuierliche Aufnahme ein?

Gehen Sie zu Setup > Aufnahmen > Daueraufnahme. Aktivieren Sie die Option und wählen Sie das Speichergerät (SD-Karte oder Netzwerkfreigabe) aus. Es wird empfohlen, die automatische Löschung alter Aufnahmen zu aktivieren, um ein Überlaufen des Speichers zu verhindern. Detaillierte Schritte finden Sie im Abschnitt Daueraufnahme.

Wie kann ich eine Bewegungserkennung einrichten und bei Erkennung eine E-Mail erhalten?

1. Starten Sie die Anwendung AXIS Video Motion Detection 3 unter Setup > Anwendungen. 2. Konfigurieren Sie den Erkennungsbereich. 3. Gehen Sie zu Setup > Ereignisse > Aktionsregeln und erstellen Sie eine neue Regel. Wählen Sie als Auslöser Anwendungen > VMD3 und als Aktion Benachrichtigung senden. Fügen Sie einen E-Mail-Empfänger hinzu (unter Ereignisse > Empfänger). Stellen Sie sicher, dass die E-Mail-Server-Einstellungen korrekt sind.

Welche Speichermöglichkeiten gibt es?

Die Kamera unterstützt microSD/microSDHC/microSDXC-Karten (nicht im Lieferumfang) und Netzwerkspeicher (NAS). Die SD-Karte kann verschlüsselt werden. Konfigurieren Sie die Speichergeräte unter Systemoptionen > Speicher. Bei Verwendung einer SD-Karte kann der Inhalt verschlüsselt werden, um unbefugten Zugriff zu verhindern. NAS-Empfehlungen finden Sie auf der Axis-Website.

Wie kann ich die Kamera auf Werkseinstellungen zurücksetzen?

Es gibt zwei Methoden: 1. Über die Weboberfläche: Gehen Sie zu Setup > Systemoptionen > Wartung und klicken Sie auf Standard. 2. Hardware-Reset: Trennen Sie die Stromversorgung, halten Sie die Steuertaste gedrückt, schließen Sie das Netzteil wieder an und halten Sie die Taste 15–30 Sekunden gedrückt, bis die Status-LED orange blinkt. Lassen Sie die Taste los. Die Kamera startet mit den Werkseinstellungen (IP: 192.168.0.90).

Unterstützt die Kamera Power over Ethernet (PoE)?

Ja, die Kamera wird über Power over Ethernet (PoE) gemäß IEEE 802.3af/at Typ 1 Klasse 3 versorgt. Die maximale Leistungsaufnahme beträgt 8,4 W, typisch 3,5 W. Dadurch ist nur ein einziges Kabel für Daten und Strom erforderlich. Ein separates Netzteil ist nicht notwendig.

BEDIENUNGSANLEITUNG P3214-Ve AXIS

AXISP3214-VENetworkCamera

Aboutthisdocument

Thismanualisintendedforadministratorsandusersofthe AXISP3214-VEFixedDomeNetworkCamera, andisapplicableto firmware6.10andlater.Itincludesinstructionsforusingandmanaging theproductonyournetwork.Previousexperienceofnetworking willbeofusewhenusingthisproduct.SomeknowledgeofUNIXor Linux-basedsystemsmayalsobebeneficial, fordevelopingshellscripts and applications.Laterversionsofthisdocumentwillbepostedtothe Axiswebsite, asrequired.Seealsotheproduct'sonlinehelp, available viatheweb-basedinterface.

LegalConsiderations

Videosurveillancecanberegulatedbylawsthatvaryfromcountryto country.Checkthelawsinyourlocalregionbeforeusingthisproduct forsurveillancepurposes.

Thisproductincludesone(1)H.264decoderlicense.Topurchase furtherlicenses,contactyourreseller.

Liability

Everycarehasbeentakeninthepreparationofthisdocument.Please informyourlocalAxisofficefanyinaccuraciesoromissions.Axis CommunicationsABcannotbeheldresponsibleforanytechnical or typographicalerrorsandreservestherighttomakechangestothe productandmanualswithoutpriornotice.AxisCommunicationsAB makesnowarrantyfanyakindwithregardtothematerialcontained withinthisdocument,including,butnotlimitedto,theimplied warrantiesofmerchantabilityandfitnessforaparticularpurpose.Axis CommunicationsABshallnotbeliablenorresponsibleforincidental or consequentialdamagesinconnectionwiththefurnishing,performance oruseofthismaterial.Thisproductisonlytobeusedforitsintended purpose.

IntellectualPropertyRights

AxisABhasintellectualpropertyrightsrelatingtotechnologyembodied intheproductdescribedinthisdocument.Inparticular,andwithout limitation,theseintellectualpropertyrightsmayincludeoneormore ofthepatentslistedatwww.axis.com/patent.htmandoneormore additionalpatentsorpendingpatentapplicationsintheUSandother countries.

Thisproductcontainslicensedthird-partysoftware.Seethemenuitem "About"intheproduct'suserinterfaceformoreinformation.

ThisproductcontainssourcecodecopyrightAppleComputer, Inc.,underthetermsofApplePublicSourceLicense2.0(see www.opensource.apple.com/apsl).Thesourcecodeisavailablefrom https://developer.apple.com/bonjour/

EquipmentModifications

This equipment must be installed and used in strict accordance with the instructions given in the user documentation. This equipment contains nouser-serviceable components. Unauthorized equipment changes or modifications will invalidate all applicable regulatory certifications and approvals.

TrademarkAcknowledgments

AXISCOMMUNICATIONS, AXIS, ETRAX, ARTPECandVAPIXare registeredtrademarksortrademarkapplicationsofAxisABinvarious jurisdictions. All other company names and products are trademarksor registeredtrademarksof their respective companies.

Apple,Boa,Apache,Bonjour,Ethernet,InternetExplorer,Linux,Microsoft,Mozilla,Real,SMPTE,QuickTime,UNIX,Windows,Windows VistaandWWWareregisteredtrademarksoftherespectiveholders. JavaandallJava-basedtrademarksandlogosaretrademarkor registeredtrademarksofOracleand/oritsaffiliates.UPnP ^TM is certificationmarkoftheUPnP ^TM ImplementersCorporation. SD,SDHCandSDXCaretrademarksorregisteredtrademarksofSD-3C,LLCintheUnitedStates,othercountriesorboth.Also,miniSD,microSD, miniSDHC,microSDHC,microSDXCarealltrademarksorregistered trademarksofSD-3C,LLCintheUnitedStates,othercountriesorboth.

RegulatoryInformation

Europe

ThisproductcomplieswiththeapplicableCEmarkingdirectives andharmonizedstandards:

- Electromagnetic Compatibility (EMC) Directive 2014/30/EU. See Electromagnetic Compatibility (EMC) on page 2.

LowVoltage(LVD)Directive2014/35/EUSeSafetyopaga

- Restrictions of Hazardous Substances (RoHS) Directive 201 1/65/EU. See Disposal and Recycling on page 3. Acopy of the original declaration of conformity may be obtained from Axis Communications AB. See Contact Information on page 3.

Electromagnetic Compatibility(EMC)

This equipment has been designed and tested to fulfill applicable standards for:

- Radiofrequencyemissionwheninstalledaccordingtothe instructionsandusedinitsintendedenvironment.

- Immunitytoelectricalandelectromagneticphenomenawhen installedaccordingtotheinstructionsandusedinitsintended environment.

USA

Usinganunshieldednetworkcable(UTP)—Thisequipmenthas beentestedusinganunshieldednetworkcable(UTP)andfoundto complywiththelimitsforaClassAdigitaldevice,pursuantopart 15oftheFCCRules.Theselimisaredesignedtoprovidereasonable protectionagainstharmfulinterferencewhentheequipmentis operatedinacommercialenvironment.Thisequipmentgenerates, uses,andcanradiatoradiofrequencyenergyand,ifnotinstalledand usedinaccordancewiththeinstructionmanual,maycauseharmful interferencetoradiocommunications.Operationofthisequipmentina residentialareaislikelytocauseharmfulinterferenceinwhichcase theuserwillberequiredtocorrecttheinterferenceathisownexpense.

Usingashieldednetworkcable(STP)—Thisequipmenthasalso beentestedusingashieldednetworkcable(STP)andfoundtocomply withthelimitsforaClassBdigitaldevice,pursuanttopart15ofthe FCCRules.Theselimitsaredesignedtoprovidereasonableprotection againstharmfulinterferenceinaresidentialinstallation.This equipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycause harmfulinterferencetoradiocommunications.However,thereisno guaranteeethatinterferencewillnotoccurinaparticularinstallation.If thisequipmentdoescauseharmfulinterferencetoradioortelevision reception,whichcanbedeterminedbyturningtheequipmentoffand on,theuserisencouragedtotrytocorrecttheinterferencebyoneor moreofthefollowingmeasures:

•Reorientorrelocatethereceivingantenna.

- Increase these separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that which there receiver is connected.

- Consultthedealeroranexperiencedradio/TVtechnicianforhelp. Tobeusedinaresidentialareaorademandingelectricalenvironment, theproductshallbeconnectedusingashieldednetworkcable(STP) thatisproperlygrounded.

Canada

ThisdigitalapparatuscomplieswithCANICES-3(ClassB).Theproduct shallbeconnectedusingashieldednetworkcable(STP)thatis properlygrounded.Cetappareilnumériqueestconformeàlanorme CANNMB-3(classB).Leproduitdoîtêtreconnectéal'aided'uncâble réseaublindé(STP)quiestcorrectementmisàlaterre.

Europe

This digitalequipmentfulfillstherequirementsforRFemission according to the ClassBlimitofEN55022. Theproduct shall be connected usingashieldednetworkcable(STP) that is properly grounded.

Thisproductfulfillstherequirementsforemissionandimmunity according to EN50121-4 and EC62236-4 railway applications. Thisproductfulfillstherequirementsforimmunity according to EN61000-6-1 residential, commercial and light-industrial environments.

Thisproductfulfillstherequirementsforimmunityaccordingto EN55024officeandcommercialenvironments.

Australia/NewZealand

This digitalequipmentfulfillstherequirementsforRFemission according to the ClassBlimitofAS/NZSCISPR22. The product shall be connected using ashieldednetworkable(STP) that is properly grounded.

Japan

この装置は、クラスB情報技術装置です。この装置は、家庭環境で使用することを目的としていますが、この装置がラジオやテレビジョン受信機に近接して使用されると、受信障害を引き起こすことがあります。取扱説明書に従って正しい取り扱いをして下さい。本製品は、シールドネットワークケーブル(STP)を使用して接続してください。また適切に接地してください。

Korea

이기기는가정용(B급)전자파적합기기로서주로가정에서사용하는것을목적으로하며,모든지역에서사용할수있습니다.적절히접지된STP(shieldedtwistedpair)케이블을사용하여제품을연결하십시오.

Safety

ThisproductcomplieswithIEC/EN/UL60950-1and IEC/EN/UL60950-22,SafetyofInformationTechnology Equipment.Theproductshallbegroundedeitherthroughashielded networkcable(STP)orotherappropriatemethod.

Battery

TheAxisproductusesa3.0VCR2032lithiumbatteryasthepower supplyforitsinternalreal-timeclock(RTC).Undernormalconditions thisbatterywilllastforaminimumoffiveyears.

LowbatterypoweraffectstheoperationoftheRTC,causingittoresetateverypower-up.Whenthebatterynneedsreplacing,alogmessagewillappearintheproduct'sserverreport.Formoreinformationabouttheserverreport,seetheproduct'ssetuppagesorcontactAxissupport.

The battery should not bereplaced unless required, but if the battery does need replacing, contact Axissupport at www-axis.com/techsupfor assistance.

Lithiumcoincell3.0Vbatteriescontain1,2-dimethoxyethane;ethylene glycoldimethylether(EGDME),CASno.110-71-4.

WARNING

• Riskofexplosionifthebatteryisincorrectlyreplaced.
• Replaceonlywithanidenticalbatteryorabatterywhichis recommendedbyAxis.
• Disposeofusedbatteriesaccordingtolocalregulationsor thebatterymanufacturer'sinstructions.

DisposalandRecycling

Whenthisproducthasreachedtheendofitsusefullife,disposeof itaccordingtolocallawsandregulations.Forinformationabout yournearestdesignatedcollectionpoint,contactyourlocalauthority responsibleforwastedisposal.Inaccordancewithlocallegislation, penaltiesmaybeapplicableforincorrectdisposalofthiswaste.

Europe

Thissymbolmeansthattheproductshallnotbedisposedof togetherwithhouseholdorcommercialwaste.Directive2012/19/EU onwasteelectricalandelectronicequipment(WEEE)isapplicablein theEuropeanUnionmemberstates.Topreventpotentialharmto humanhealthandtheenvironment, theproductmustbedisposed ofinanapprovedandenvironmentallysaferecyclingprocess.For informationaboutyournearestdesignatedcollectionpoint,contact yourlocalauthorityresponsibleforwastedisposal.Businessesshould contacttheproductsupplierforinformationabouthowtodispose ofthisproductcorrectly.

ThisproductcomplieswiththerequirementsofDirective2011/65/EUon therestrictionoftheuseofcertainhazardoussubstancesinelectrical andelectronicequipment(RoHS).

China

Thisproductcomplieswiththerequirementsofthelegislative actAdministrationontheControlofPollutionCausedbyElectronic InformationProducts(ACPEIP).

ContactInformation

AxisCommunicationsAB

Emdalavägen14

22369Lund

Sweden

Tel:[phone]

Fax:[phone]

www.axis.com

Support

Should you require any technical assistance, please contact your Axis reseller. If your questions cannot be answered immediately, your reseller will forward your queries through the appropriate channel to ensure rapid response. If you are connected to the Internet, you can:

• downloaduserdocumentationandsoftwareupdates
  •findanswerstoresolvedproblemsintheFAQdatabase.Search byproduct, category, orphrase
  • reportproblemstoAxissupportstaffbyloggingintoyourprivate supportarea
• chatwithAxissupportstaff
• visitAxisSupportatwww.axis.com/techsup/

LearnMore!

VisitAxislearningcenterwww.axis.com/academy/forusefultrainings, webinars,tutorialsandguides.

SafetyInformation....6

HazardLevels....6

OtherMessageLevels......6

HardwareOverview....7

ConnectorsandButtons....7

LEDIndicators......8

AccesstheProduct....9

AccessfromaBrowser....9

AccessfromtheInternet....9

SettheRootPassword....10

CameraOrientation....10

SetPowerLineFrequency....10

TheLiveViewPage....1 1

MediaStreams

HowtoStreamH.264....13

MJPEG....13

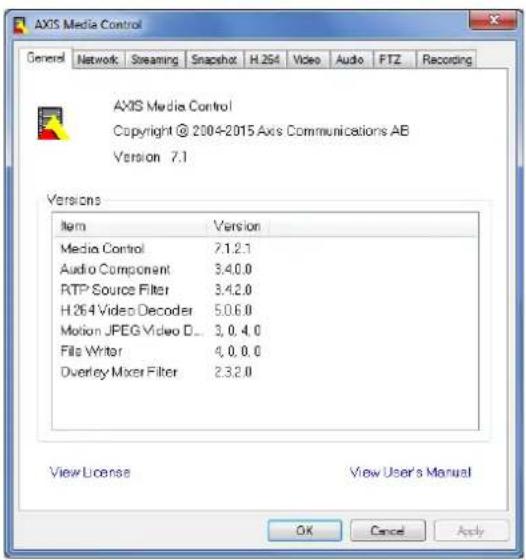

AXISMediaControl(AMC)....13

AlternativeMethodsofAccessingtheVideoStream....14

SetUptheProduct....15

BasicSetup....15

Setfocusandzoom....15

Video....16

SetUpVideoStreams....16

StreamProfiles....18

ONVIFMediaProfiles....18

CameraSettings....18

ViewArea....20

Aboutoverlays....20

PrivacyMask....22

Configure the liveViewPage

PTZ(PanTiltZoom)......25

PresetPositions....25

GuardTour....25

Advanced....26

ControlQueue....26

Detectors....27

CameraTampering....27

Applications

ApplicationLicenses......28

UploadApplication....28

ApplicationConsiderations....28

AXIS/ideoMotionDetection

Considerations....30

StartandStoptheApplication....30

ConfigureApplication....30

UsingtheApplicationinanActionRule....33

Events....35

SetUpActionRules....35

Add Recipients....37

CreateSchedules....38

SetUpRecurrences....39

Recordings....40

FindRecordings....40

PlayRecording....40

ExportVideoClip....41

ContinuousRecording....41

Languages....42

SystemOptions....43

Security....43

Date&Time....45

Network......46

TableofContents

Storage....51

Maintenance....53

Support....54

Advanced....54

ResettoFactoryDefaultSettings....55

Troubleshooting....56

ChecktheFirmware....56

UpgradetheFirmware....56

Symptoms, Possible Causes and Remedial Actions....57

TechnicalSpecifications....59

PerformanceConsiderations....61

SafetyInformation

HazardLevels

DANGER

Indicatesahazardoussituationwhich,ifnotavoided,willresultindeathorseriousinjury.

⚠ WARNING

Indicatesahazardoussituationwhich,ifnotavoided,couldresultindeathorseriousinjury.

CAUTION

Indicatesahazardoussituationwhich,ifnotavoided,couldresultinminorormoderateinjury.

NOTICE

Indicatesasituationwhich,ifnotavoided,couldresultindamagetoproperty.

OtherMessageLevels

Important

Indicatessignificantinformationwhichisessentialfortheproducttofunctioncorrectly.

Note

Indicatesusefulinformationwhichhelpsingettingthemostoutoftheproduct.

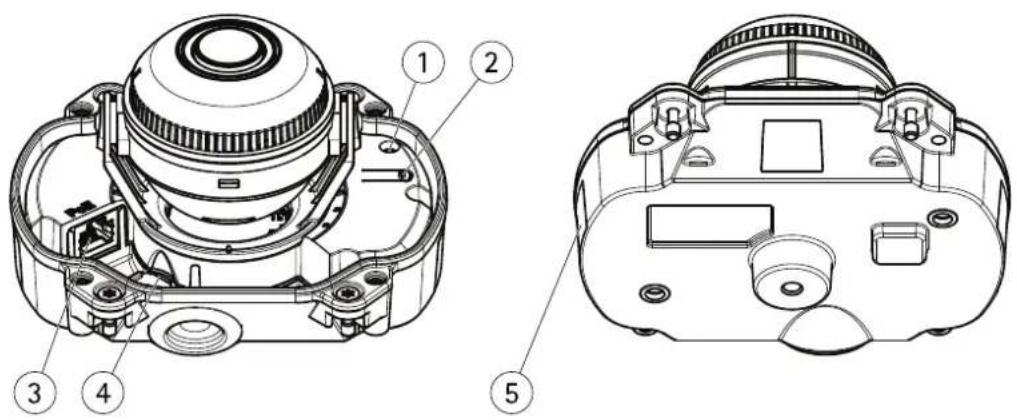

HardwareOverview

1 StatusLEDindicator
2 Controlbutton
3 Networkconnector(PoE)
4 SDmemorycardslot
5 Partnumber(P/N)&Serialnumber(S/N)

ConnectorsandButtons

Fortechnicalspeci cations,seepage59.

NetworkConnector

RJ45EthernetconnectorwithPoweroverEthernet(PoE).

NOTICE

Duetolocalregulationsortheenvironmentalandelectricalconditionsinwhichtheproductistobeused,ashieldednetwork cable(STP)maybeappropriateorrequired.Allcablesconnectingtheproducttothenetworkandthatareroutedoutdoors orindemandingelectricalenvironmentsshallbeintendedfortheirspeci cuse.Makesurethatthenetworkdevices areinstalledinaccordancewiththemanufacturer'sinstructions.Forinformationaboutregulatoryrequirements,see ElectromagneticCompatibility(EMC)onpage2.

SDCardSlot

NOTICE

• RiskofdamagetoSDcard.Donotusesharptools,metalobjectsorexcessiveforcewheninsertingorremovingthe SDcard.Useyour ngerstoinsertandremovethecard.
• Riskofdatalossandcorruptedrecordings.DonotremovetheSDcardwhiletheproductisrunning.Disconnectpoweror unmounttheSDcardfromtheAxisproduct'swebpagesbeforeremoval.

ThisproductsupportsmicroSD/microSDHC/microSDXCcards(notincluded).

ForSDcardrecommendations,see www.axis.com

ControlButton

Forlocationofthecontrolbutton,seeHardwareOverviewonpage7.

Thecontrolbuttonisusedfor:

- Resetting the product to factory default settings. See page 55.

Connecting an AXIS/ided Hosting Systems Service Page 4.1 connect press and hold button for about seconds until the Status LED flashes green.

ConnectingoAXlInterneDynamidDNServiceSepage47connectpressandholdhdbuttorfonaboußseconds.

LEDIndicators

StatusLED	Indication
Unlit	Connectionandnormaloperation.
GreenShowssteadygreenfor10s	secondsfornormaloperationafterstartupcompleted.
Amber	Steadyduringstartup.Flashesduringfirmwareupgrade.
Amber/RedFlashesamber/redifnetworkconnectionisunavailableorlost.
RedFlashesredforfirmwareupgradedefailure.

AccesstheProduct

ToinstalltheAxisproduct,seetheInstallationGuidesuppliedwiththeproduct.

Theproductcanbeusedwithmostoperatingsystemsandbrowsers.Werecommendthefollowingbrowsers:

• InternetExplorer ^® withWindows ^®
• Safari ^ withOSX ^
• Chrome TM orFirefox® withotheroperatingsystems.

ToviewstreamingvideoinInternetExplorer, allowinstallationofAXISMediaControl(AMC)whenprompted.

TheAxisproductincludesone(1)H.264decoderlicenseforviewingvideostreams. ThelicenseisautomaticallyinstalledwithAMC. Theadministratorcandisabletheinstallationofthedecoderstoppreventinstallationofunlicensedcopies.

Note

- QuickTime ^TM is also supported for viewing H.264 streams.

AccessfromaBrowser

1.Startawebbrowser.
2.EntertheIPaddressorhostnameoftheAxisproductinthebrowser'sLocation/Addressfield.

ToaccesstheproductfromaMaccomputer(OSX),gotoSafari,clickonBonjourandselecttheproductfromthe drop-downlist.

If you donot know the I paddress, use AXISIP Utility to locate the product on thenetwork. For information about how to discover and assign I paddress, the document Assign I P Address and Access the video Stream or Axis Support web at www.axis.com/techsup

Note

ToshowBonjourasabrowserbookmark, gotoSafari>Preferences.

1. Enteryourusernameandpassword.Ifthisisthefirsttimetheproductisaccessed,therootpasswordmustfirstbe configured.Forinstructions,seeSettheRootPasswordonpage10.
2. The product'sLiveViewpageopensinyourbrowser.

Note

The controls and layout of the liveView page may have been customized to meet specific installation requirements and user preferences. Consequently, some of the examples and functions featured her may differ from those displayed in your own live view page.

Accessfromthelnternet

Onceconnected,theAxisproductisaccessibleonyourlocalnetwork(LAN).ToaccesstheproductfromtheInternetyoumust configureyournetworkroutertoallowincomingdatatrafficctotheproduct.Todothis,enabletheNAT-traversalfeature,which wilattemptautomaticallyconfiguretheroutetallowaccesstheproductThisenabledronSetupSystemOptions>Network>TCP/IPAdvanced.

FomoreinformationedNATraversa(portmappingforPv4orpage4SeAlsoAXISnterneDynamidDNServicat www.axiscam.net

ForTechnicalnotesonthisandothertopics,visittheAxisSupportwebatwww.axis.com/techsup

SettheRootPassword

Tacces the Axi product you must the password for the default administrator user of this sloner the Configure Root Passworddialog, which opens when the product is accessed for the first time.

Topreventnetworkeavesdropping,therootpasswordcanbesetviaanencryptedHTTPSconnection,whichrequiresanHTTPS certificate. HTTPS(HypertextTransferProtocoloverSSL)isaprotocolusedtoencrypttrafficbetweenwebbrowsersandservers.The HTTPscertificateensuresencryptedexchangeofinformation.SeeHTTPSonpage44.

The default administrator names are root permanent and cannot be deleted the password for root to stop the product must be reset another default setting. See ResetFactor Default Settings page 55.

TosetthepasswordviaastandardHTTPconnection,enteritdirectlyinthedialog.

TosetthepasswordviaanencryptedHTTPSconnection,followthesesteps:

1. ClickUseHTTPS.
   A temporary certificate(validforoneyear)iscreated,enabling encryptionofalltraffictoandfromtheproduct,andthe passwordcannowbesetsecurely.
   2.Enterapasswordandthenre-enterittoconfirmthespelling.
   3.ClickOK.Thepasswordhasnowbeenconfigured.

CameraOrientation

ThisettingsdefinedthfirstimethoproductsaccessedDependingprhowtheAxisproductinstalledselecteilingwall

Tochangethesesettings, the product must be restored to the original factory default settings. To restore restore the product, goto SetupSystemOptions MaintenanceProduct's webpages. For information about these and restored Maintenance page 53.

Camera Orientation

How is this camera mounted?

OK

This camera works differently depending on if it is wall mounted or ceiling mounted. Make sure to select the correct camera orientation before saving.

SetPowerLineFrequency

PowelinfrequencysetfirstimtheAxiproductaccessedandaronlychangedronPlainConfig(sepage55) orbyresettingtheproducttofactorydefault.

Select the power line frequency (50Hz or 60Hz) used at the location of the Axis product. Selecting the wrong frequency may cause image flicker if the product is used in fluorescent light environments.

When using 50Hz, the maximum framerate is limited to 25fps.

Note

Powerline frequency varies depending on geographic region. The Americas usually use 60Hz, whereas most other parts of the world use 50Hz. Local variations could apply. Always check with the local authorities.

TheLiveViewPage

The controls and layout of the liveView pagemay have been customized to meet specific installation requirements and user preferences. Consequently, some of the examples and functions featured her may differ from those displayed in your own live view page. The following provides an overview of each available control.

ControlsontheLiveViewPage

Click the viewsize button to show the imageful size (right button) to scale down the image to fit the browser window (left button).

SelectstreamprofileofthLiveViewpagfromhStreamProfiledrop-downlistEoinformation abouthowtoconfigurestreamprofiles,see page 18.

The ManualTriggerbutton is used to trigger an action rule from the Live View page. Information about how to configure and enable the button, see ManualTrigger on page 1.

ClickSnapshotsav snapshotthe videoimage this button primarily intended for when the AXISMediaControlviewertoolbarisnotavailable. Enable this button fromLiveViewConfig> ActionButtons.

The product'sheateriscontrolledbytheambienttemperatureandisturnedonandoffautomatically. If required the heaterabactivated manually by clicking the heatebutton to show the button, go SetupLivViewConfigIndeActionButtons; select Showheatebutton and specify the number of minutes the heaters should be activated.

ManualTrigger

The ManualTriggerusedTriggeraction rule from the LiveViewpage. The manual trigger carfo example used to validate actions during product installation and configuration.

Toconfigurethemanualtrigger:

1. GotoSetup>Events.
   2.ClickAddtoaddanewactionrule.
   BonthTriggerdrop-downlistselectnpufignal.
2. From these second drop-down list, select Manual Trigger.
3. Select the desired action and configure the other settings as required.

Formoreinformationaboutactionrules,seeEventsonpage35.

ToshowthemanualtriggerbuttonsintheLiveViewpage:

1.GotoSetup>LiveViewConfig.

UndeActionButtonsselectShowmanuatriggebutton.

AXISMediaControlviewertoolbar

TheAXISMediaControlviewetoolbarsavailableInterneExploreOnlySeeAXISMediaControl(AMC)brpagefomore information.Thetoolbardisplaysthefollowingbuttons:

ThePlaybuttonconnectstotheAxisproductandstartsplayingamediastream.

TheStopbuttonstopsthemediastream.

TheSnapshotbuttontakesasnapshotofthevideoimage.

Click the View Full Screen button and the video image will fill entire screen press ESC Escape or the computer keyboard to cancel full screen view.

TheRecordbuttonusedrecordthecurrentvidestreamonyoucomputerThelocationwhertherecordingsavedcarspecifiedrthAMControlPaneEnabletibuttorfromLiveViewConfigVieweSettings.

PTZControls

Note

These controls are available to digit aPTz enabled through selected view areased/view area page 20.

With the PTZControlQueue enabled the time each user is controlled by the PTZetting limited click button or requests release controlled by the PTZcontrol The PTZControlQueue setup de PTZControlQueue.

Click the Emulate joystick mode button and click the image to move the camera view in the direction of the mousepointer.

Click the Centemode button and click the image to cent the camera viewth a position.

Thecentermodebuttoncouldalsobeusedtozoominonaspecificarea.Clickintheimageanddragtodrawa rectanglesurroundingtheareatobemagnified.Tozoomout,rotatethemousewheel.

Toviewaspecificviewareaorpresetposition,selectitfromtheSourcelist.

ParandTilbarsUsdharrowspananditheameraviewocliconpositionorthbatsteethameraviewto thatposition.

Zoombar-Usethearrowstozoominandout,orclickonapositiononthebartozoomthatposition.

Clicking Zoom out to overview image will set the camera at the minimum zoom position, this position the camera cannot panortilt. Zoom out to overview image

The PTZ control is a disabled under PTZ Advanced ControlsseeControlspage26.

MediaStreams

TheAxisproductprovidesseveralvideostreamformats.Yourrequirementsandthepropertiesofyournetworkwilldeterminethetypeyouuse.

TheLiveViewpageintheproductprovidesaccessoH.264andMotionJPEGvideostreams,andtothelistofavailablestream profiles.Otherapplicationsandclientscanaccessvideostreamsdirectly,withoutgoingviatheLiveViewpage.

HowtoStreamH.264

H.264can, without compromising image quality, reduce the size of a digital video file by more than 80% compared with the Motion JPEG format and as much as 50% more than the MPEG-4 standard. This means that much less network bandwidth and storage space are required for a video file. Or seen another way, much higher video quality can be achieved for a given bitrate.

Deciding which combination of protocols and method stoused depends on your viewing requirements, and on the properties of your network. The available options in AXIS Media Control are:

UnicastRTP	Thisunicastmethod(RTPoverUDP)isused forliveunicastvideo,especiallywhenitis importanttohaveanup-to-datevideostream, evenifsomeframesaredropped.	Unicastingisusedforvideo-on-demand transmissionsothatthereisnovideotraffic onthenetworkuntilaclientconnectsand requeststhestream.Notethatthereareamaximumof20 simultaneousunicastconnections.
RTPoverRTSP	Thisunicastmethod(RTPtunneledoverRTSP) isusefulasitisrelativelysimpletoconfigure firewallstoallowRTSPtraffic.
RTPoverRTSPoverHTTP	Thisunicastmethodcanbeusedtotraverse firewalls.Firewallsarecommonlyconfiguredto allowtheHTTPprotocol,thusallowingRTPto betunneled.
MulticastRTP	Thismethod(RTPoverUDP)shouldbeusedforlivemulticastvideo.Thevideostreamisalways up-to-date,evenifsomeframesaredropped.Multicastingprovidesthemostefficientusageofbandwidthwhentherearelargenumbersof clientsviewingsimultaneously.Amulticastcannothowever,passanetworkrouterunlessthe routerisconfiguredtoallowthis.ItisnotpossibletomulticastovertheInternet,forexample.Notealsothatallmulticastviewerscountasoneunicastviewerinthemaximumtotalof20 simultaneousconnections.

AXISMediaControlnegotiateswiththeAxisproducttodeterminethetransportprotocoltouse.Theorderofpriority,listedintheAMCControlPanel,canbechangedandtheoptionsdisabled,tosuitspecificrequirements.

Note

H.264islicensedtechnology.TheAxisproductincludesoneH.264viewingclientlicense.Installingadditionalunlicensed copiesoftheclientisprohibited.Topurchaseadditionallicenses,contactyourAxisreseller.

MJPEG

This formatusesstandardJPEGstillimagesforthevideostream. These images are displayed and updated at a rather sufficient to create stream that shows constantly updated motion.

TheMotionJPEGstreamusesconsiderableamountsofbandwidth,butprovidesexcellentimagequalityandaccesstoeveryimage containedinthestream.TherecommendedmethodofaccessingMotionJPEGlivevideofromtheAxisproductistousetheAXISMediaControlInInternetExplorerinWindows.

AXISMediaControl(AMC)

AXISMediaControl(AMC)inInternetExplorerinWindowsistherecommendedmethodofaccessinglivevideofromtheAxisproduct.

TheAMCControlPanelcanbeusedtoconfigurevariousvideosettings.PleaseeseetheAXISMediaControlUser'sManualformore information.

TheAMCControlPanelisautomaticallyinstalledonfirstuse,afterwhichitcanbeconfigured.OpentheAMCControlPanelfrom:

- WindowsControlPanel(fromtheStartscreenorStartmenu)

Alternatively right-click the video image Interne Explore and click Settings.

AlternativeMethodsofAccessingtheVideoStream

YoucanalsoaccessvideoandimagesfromtheAxisproductinthefollowingways:

MotiodPEGervepush(ifupported the client Chromo Firefoxfor example) This option maintains a proper HTTP connection to the browser and sends data as and when required, for as long as required.

Window Media Player This requires AXIS Media Control and the 264 decoder installed. The following paths can be used:

- QuickTime TM. The following pathscanbeused:

Note

• =IPaddress
  •TheAxisproductsupportsQuickTime6.5.1andlater.
• QuickTimemayaddlatencytothevideostream.
• It maybe possible to use other player to view the H.264 stream using the paths above, although Axis does not guarantee this.

SetUptheProduct

The Axproduct are configured by users with administrator operator rights to the product Setup pages click Setup the copyright-hand corner of theLiveViewpage.

- Administratorshaveunrestrictedaccesstoallsettings.

Operator have restricted access settings used on page 43

Seealsotheonlinehelp

BasicSetup

BasicSetupprovidesshortcutstothesettingsthatshouldbemadebeforeusingtheAxisproduct:

1.Users.Seepage43.
2.TCP/IP.Seepage46.
3. Date&Time.Seepage45.
4.VideoStream.Seepage16.
5.Focus&Zoom.See page 15.

TheBasicSetupmenucanbedisabledfromSystemOptions>Security>Users.

Setfocusandzoom

1. Install the camera as described in the Installation Guide.

@VideoFocusoom.

OrthBasicabsethezoomevelusinghølider.

Clicktheobuttortomovthezoompositiononstep.

Clickthebuttonmovthezoompositionimultiplsteps.

Note

Movementsinfrontofthecamerashouldbeavoidedwhenperformingautofocus.

4.ClickPerformautofocus.
5. If the autofocus was not satisfying, goto the Advanced tab.

OntheAdvancedtab, focuscanbeadjustedmanually:

ClickOpenrisopertherisotsmaximumpositionThisgiveshsmallestlepthofieldanprovideshbest conditionsforfocusing.

1. FocusissetintheFocuswindow. Usethemousetomoveandresizethefocuswindow.
   3.ClickintheFocuspositionbartofocusonadesiredlocation.

Clicktheorbuttonmovthfocuspositiononstep.

ClickthebuttonmovethfocuspositionmultipSteps.

1. Whensatisfied, clickEnableiristoenabletheiris.

Video

ItispossibletoconfigurethefollowingvideofeaturesinyourAxisproduct:

•Videostream.See page 16.
- Streamprofiles.See page 18.
•ONVIFMediaProfiles.Seepage18.
- Camerasettings.See page 18.
•Viewareas.Seepage20.
•Overlayimage.Seepage20.
- Privacymask.Seepage22.
- Focusandzoom.See page 15.

SetUpVideoStreams

Toetuphproduct'sidestreamsgdVideoVideStream.

Thevideostreamsettingsaredividedintothefollowingtabs:

• Image.Seepage16.
  •H.264.Seepage17.
• MJPEG.Seepage17.

PixelCounter

Thepixelcountershowsthenumberofpixelsinanareaoftheimage. Thepixelcounterisusefulinsituationswherethereis aspecificsizerequirement,forexampleinfacerecognition.

Thepixelcountercanbeused:

When setting a video stream setup, video streams or page 1. UndePreview clic Open and select this show pixel counterption enable the rectangle in the image Us thermous domov and size the rectangle pent the number pixels in Width and height fields and click Apply.

When setting focus see Set focus and zoom or page SelectShowpixel counter option enable the rectangle in themageUse themoustomovandesizthe rectangle pentethumberpixelstringWidthandHeight fieldsandclickApply.

- When accessing theLiveViewpageinInternetExplorerwithAXISMediaControl(AMC)inWindows.Right-clickinthe imageandselectPixelcounter.Usethemousetomoveandresizetherectangle.


ThedefaultmagsettingscarbeconfiguredundevideoVideStreamSelectdImagtab.

The followingsettingsareavailable:

- Resolution.Selectthedefaultresolution.

CompressionThe compressionlevel affects the image quality bandwidth and file size of saved images through the compression, the higher the image quality with higher bandwidth requirements and larger file sizes.

• Mirrorimage.lfrequired, theimagecanbemirrored.
• Rotateimage.lfrequired, theimagecanberotated.

Maximunframerate avoid bandwidth problems the framerate allowed each viewer and limited fixed amount Alternatively the framerate carbesea Unlimited which means the Axis product always delivers the highest framerate possible under the current conditions.

OverlayettingSeeAboutoverlaytextpage20.

ClickSavetoapplythenewsettings.

H.264

H.264,alsoknownasMPEG-4Part10/AVC,isavideocompressionstandardthatprovideshighqualityvideostreamsatlowbitrates. AnH.264videostreamconsistsofdifferenttypesofframessuchasl-framesandP-frames.Anl-frameisacompleteimagewhereas P-framesonlycontainthedifferencesfrompreviousframes.

The H.264streamsettings are configured from the VideoVideoStreampageSelect the H.264tab The settings defined this pagewillapplytoall H.264streamsthatdonotuseastreamprofile.

The GOPength the number of frames between two consecutive frames, increasing the GOPength may have considerably on bandwidth requirements in some cases, but may also have an adverse effect on image equality.

TheAxisproductsupportsthefollowingH.264profile(s):

BaselineTheBaselineprofileRecommendedforclientsthadon'supportCABACentropycoding.

MainTheMairprofilprovideshighercompressionwithmaintainedvidequalitycomparedtheBaselineprofilbut requiresmoreprocessingpowertodecode.

ThebitatecarbetsVariablebitate(VBR)Maximunbitate(MBR)VBRadjustthebitateaccordingdhimage complexity,usingupmorebandwidthforincreasedactivityintheimage,andlessforlowerimageactivity.Whentheactivityin theceneincreases,thebitratewouldusuallyincreaseaswell.Ifthereisasurplusinbandwidth,thismaynotbeanissueand selectingVariablebitate(VBR)wil sufficientButbandwidthlimiteditrecommendedcontrothebitatoyselectingMaximunbitate(MBR)Whertheactivitythecencreases)VBRadjustthebitateaccordingdhcomplexityusingup morebandwidthforincreasedactivityinthescene,andlessforlowersceneactivity.MBRallowsyoutosetatargetbitratethat limitsthebandwidthconsumption.

TheMBRtargetbitrateworksliketheceilingofatent.Itlimitsthebitrate,whilemaintainingsomeflexibility.Thebitrate maybounceupanddownwithinthesettargetbutwhenitnearsthesettargetvalue,thelimitationkicksin.However,because MBRwillalwaysprioritizeacontinuousvideostream,itallowstemporaryovershootsfromthetargetbitrate.Becausesettinga targetvaluepreventsthebitratefromincreasing,framerateandimagequalityareaffectednegatively.Topartlycompensatefor this,selectwhichvariableshallbeprioritized,framerateorimagequality.Notsettingaprioritymeansthatframerateand imagequalityareequallyaffected.

The current coordinate can set appearance over overlay. Under Overlay Settings, select include text and the t h modifier #bin the field.

Toapplythesettings,clickSave.

MJPEG

Sometimes the imagesize is large duolow light or complex scenery. Adjusting them a maximum framesize help to control the bandwidth and storage used by the Motion PEG video stream in these situations. Setting the framesize default setting provides consistently good image quality at the expense of increased bandwidth and storage usage in low light. Limiting the frame size optimizes bandwidth and storage usage, but may give poor image quality. Toprevent increased bandwidth and storage usage, the maximum framesizes should be set to an optimal value.

StreamProfiles

Astreamprofileisasetofpredefinedstreamsettingsincludingresolution,compression,framerateandoverlaysettings.Stream profilescanbeused:

• Whensettinguprecordingusingactionrules.SeeEventsonpage35.
• Whensettingupcontinuousrecording.SeeContinuousRecordingonpage41.

In the live view pages select the stream profile from the Stream profile drop-down list.

Forquicksetup,useoneofthepredefinedstreamprofiles.Eachpredefinedprofilehasadescriptivename,indicatingitspurpose.If required,thepredefinedstreamprofilescanbemodifiedandnewcustomizedstreamprofilescanbecreated.

To create new profile to modify existing profile to Setup VideoStreamProfiles.

To select default stream profile for the live/view page and Setup Live View Config.

ONVIFMediaProfiles

AnONVIFmediaprofileconsistsofasetofconfigurationsthatcanbeusedtochangemediastreamsettings.ONVIFmediaprofiles canbesetthroughtheONVIFMediaProfileSettingspageandbeusedbyaclienttoconfiguremediastreamproperties.

The ONVIFmediProfilepagedistalsuchpre-configureprofile. These profiles cannot be removed. Pre-configured media profiles have been included in the product for quick setup. It is also possible to configure new ONVIFmediaprofiles as per required specifications. To add new ONVIFmediaprofile click Add and then the required information You can also modify remove profile from this page.

CameraSettings

The Video Camer Settings page provides access to advanced image settings for the Axis product.

ImageAppearance

TochangemagAppearance@dthemenusindeSetupVideoCameraSettings.

Increasing the Colorevel Increase the colosaturation The value gives maximum colosaturation and the value gives minimum colorsaturation.

Thimag Brightness arbe adjusted the range 0–100 where highewalu produces brighte image.

Increasing h Sharpness can increase bandwidth usage sharper image might increase image noises especially now light conditions. Alowersetting reduces image noise, but the whole image will appear less sharp.

The ContrastangestrelativdifferencbteweerlightandarktcaradjustedusingtheSlidebar.

WhiteBalance

TochangethissettngotoSetup>Video>CameraSettings

Whitebalanceisusedtomakecolorsintheimageappearthesameregardlessofthecolortemperatureofthelightsource.TheAxis productcanbesettoautomaticallyidentifythelightsourceandcompensateforitscolor.Alternatively,selectthetypeoflight

sourcefromthedrop-downlist.Foradescriptionofeachavailablesetting,seetheonlinehelp

The white balance window enabled for the Automatic and Automatic outdoor options that appear in the White balance drop-down list. Select the options from the drop-down list to the white balance window properties. Select Automatic and the default settings for the Automatic and Automatic outdoor options (in the White balance drop-down list). Select Custom manually set a reference window for white balance in the view area.

WideDynamicRange

Widdynamic range (Dynamic Contrast) can improve the exposure whether there is considerable contrasst between light and dark areas in the image. Enable WDRinintensebacklightconditions. Disable WDRinlowlightconditions for optimalexposure.

Note

Thissettingisonlypossiblewhenusingautomaticexposurecontrol.

ExposureSettings

ExposurevalueUsedExposurevalueclidetadjusttheoveralbrightnessofhimage.

ExposurecontrolExposuretheamountfighthecamera'sensorcapturefosceneToomuchlightresultsnawashedout photoandtoolittleightresultsinadarkscene.Selectasuitableoptiontocontrolexposure. The Flicker-free5060HoptionemovesflickethatscausedbyfluorescentandthelightsourcesTheHoldcurrenoption locksthecurrentexposuresettings.

MaxexposureShutterspeedalscalledexposuretimestandforthengthofimthecamershutterspenthereby exposingthecamerasensortolight.Ifshutterspeedisfastitcanfreezeactioneffectively.Ifshutterspeedisslow,itcancause movingobjectstoappearblurred.Decreasingtheexposuretimewillreducemotionblur.

Enable Backlight compensation Enable this option bright spofights such as light bulb causes the area arthimage to appeartoodark.

Exposureones This setting determines which part of the image used to calculate the exposure from the Auto setting can be used. You can select predefined area by defining Include and Excludewindows within the image. Excludewindows exclude area that are to brightordark, and include windows include areas in the escenethath have better lighting which will contribute to the exposure data. Theremust beat least one Includewindow. There can be total often Include and Excludewindow stotal or the exposure zone. Not that an Excludewindow is effective only when placed inside an includewindow. Tip: If an area is extremely bright draw an Includewindow to cover the whole area and define Excludewindows within it to block out the bright areas.

Shutter&Gain

NormalLightUsechelidetcethePrioritybetweenLowmotionBluandLownoiseWhenprioritizingownoise(slider allthewaytotheleft)theAxisproductwillautomaticallydecreaseshutterspeedasbrightnessdecreases.Whentheshutter speedreaches/3&theAxisproductwillincreasegainuntitheetmaximungairfonormalightsreachedSelecttheMax gainvalufronthdrop-downlisThisdefinesheupperfimifogainrthecontexbfnormalighMaxfasthuttersets shutterspeedlimitinnormallightconditions.Dependingonascenario,theshutterspeedlimitmayneedtobedefined.Thisis donthroughSystemOptionsAdvancedPlainConfig.

LowLightUschelidetsethPrioritybetweenLowmotionbluandwnoiseWheprioritizingowmotionblu(slider allthewaytotheright)thecamerawillautomaticallyincreasegainasbrightnessdecreases.Whenthegainreachesthet maximumgainforlowlight,thecamerawilldecreaseshutterspeeduntilthesetmaximumshutterforlowlightisreached. Thisisthedefaultprioritysettingforlowlight.

Irisadjustment

SelectEnableautomaticadjustmentautomaticallycompensateforchanginglightconditionsThisoptionisotavailable ifafixedirisisused.

UsethedrisadjustmentlidetsethepreferredF-valuethescalerepresentthemountherisoperlfetotheriis openedasmuchaspossible.Ifsetto100,theirisisclosedasmuchaspossible.TheactualF-valueisshownbelowtheslider.If automaticirisadjustmentisenabled,theiriswillstayatthispositionaslongaslightconditionsarefavorable.Iflightconditions change,theiriswilladjustitselftothebestirissettings.Ifautomaticirisadjustmentisdisabled,theiriswilllockontheset positionregardlessoflightconditions

Day/Night

TheIRcutfilterpreventsinfrared(IR)lightfromreachingtheimagesensor.Inpoorlightingconditions,forexampleatnight,orwhenusingarexternalRampsethldRcutfiltertoOffThisincreasesightsensitivityandallowstheproductd'seeInfraredightTheimageisshowninblackandwhitewhenthelRcutfilterisoff.

IfisingautomaticExposurecontrolsetheRufilterAutoautomaticallyswitchbetweenOrandOffaccordingthe lightingconditions.

The Day/Nightshiftevebahelpsleterminwherthe camerawilshiffrondaymodetonightmodeNormallythe camera automaticallychangesnodefromdaytonightwherverdarklevel00rtheliderByettingDay/Nightshifteveta lowervalue, the camerawillchangetonightmodeearlier.

ViewArea

AivewareiscroppepfarbthefulViewEachviewarestreatedawideosourcerLiveViewandhastownvideostreamandPTZsettings.

When setting up avieware aitis recommended that the videostream resolution is the same size as smaller than the view area size. Setting the videostream resolution larger than the view area size implies digitally scaled up video aftersensor capture, requiring more bandwidth without adding image information.

TenablegddVideoCameraSettingsandelecEnableViewAreas.

Toaddanewviewarea:

1. GotoVideo>ViewArea.

2.ClickAdd.

The new view appears under Selected view area. EnterscriptivenamertheNamefield.

SelectnAspectation and Videostreamresolution.

5.Anewviewareacoversthewholeimage.Usethemousetomoveandresizetheviewarea.

1. SelectEnablePTZtoenabledigitalPTZfortheviewarea.

7.ClickSavetosavethesettings.

TomodifyviewareaselecttheviewareartheistandmodifythsettingsasequiredClickSave.

Toremoveaviewarea,selecttheviewareaandclickRemove.

Note

ThePTZfunctionalityisusefulduringinstallationoftheAxisproduct.Useaviewareatocropoutaspecificpartofthefullview.

Aboutoverlays

Overlays a superimposed over the videostream. They are used to provide extra information during recordings, such as timestamp, or during product installation and configuration.

Aboutoverlaytext

Anoverlaytextcandisplaythecurrentdateandtime,oratextstring.Whenusingatextstring,so-calledmodifierscanbeusedto displayinformationsuchasthecurrentbitrateorthecurrentframerate.

Italspossible displaytextwhenactionrulestriggeredsedHowtincludeoverlaytextinteractionrulepage21.

Howtoincludeoverlaytext

GoVideoVideStreamandelecthmagtab.

Tincludelatandimeselectncludelatandncludetime.

TincludetextstringselectncludetextandentethextrthfieldModifiersbanusedseFileNamingt

Date/TimeFormatsintheonlinehelp

1. Selectsize, color, and placement of the text string.

5.ClickSave.

TomodifytheDateandimformatgdsystemOptionsDateTimeSecDateTimeorpage45.

Howtoincludeoverlaytextinanactionrule

Note

Todisplayoverlaytextinmultipleviewareas, overlaytextmustenabledlineachviewarea.

GdVideoVideStreamandelecthImagtab.

UndeOverlaySettingsselectncludtext.

Entethemodifier# DWherthrulestriggered# Displacedbythextspecifiedrthactionrule.

Additional text in this field will be displayed also when the action rule is not active.

@dcEventsActionRulesandcreateyouactionrule.

From the ActionList selec OverlayText.

6.EnterthetexttodisplayintheTextField.

SpecifyDurationThextarbe displayedwhiletheuleactiveoffixednumberseconds.

Aboutoverlayimages

Anoverlayimageisastaticimagesuperimposedoverthevideostream.Theimage,forexampleacompanylogo,isfirstuploadedto theAxisproductandthenusedtoprovideextrainformationortomaskapartoftheimage.

Imagespecifications:

• The uploadedimages should be a Windows 24-bit BMP image with maximum 250 colors.
• Theimagewidthandheight,inpixels,mustbeexactlydivisiblebyfour.
• The image cannot be larger than the maximum image resolution.
• If combining text and image overlays, take into consideration that the text overlay occupies 16 or 32 pixels in height (depending on the resolution) and has the same width the video image.

Sinceitisstatic, the position and size of an overlay image will remain the sameregardless of resolution and span, tiltorzoom movements.

To always over selected part of the monitored area use privacy mask See Privacy Mask page 22.

Howtuploadanoverlayimage

1. GotoVideo>OverlayImage.
   2.ClickBrowseandbrowsetothefile.

3.ClickUpload.

1. The Transparency Settings page is now displayed:

TomakcoloithoverlaymagetransparentselectUstransparencyandentetheRGBhexadecimalvalue forthecolor.Example:Tomakwhitetransparent,enterFFFFFF.

Formoreexamplesofhexadecimalvalues,seetheonlinehelp

TscaltheimageautomaticallyselectScalewithresolutionThimagwillscaledlowrtothe resolutionusedbytheAxisproduct.

5.ClickSave.

Howtoincludeanoverlayimage

1. GotoVideo>OverlayImage.

SelectimagedousfronthdUsoverlaymageistandliclSave.

GoVideoVideStreamandelectdImageab.

UndeOverLayoutingsselectinclude overlaymagath coordinates.

For the image position the horizontal and vertical coordinates. The = and = positions the top left corner. If a part of the image is positioned outside the video image, the overlay image will be removed so that the whole image is visible.

6.ClickSave.

PrivacyMask

Aprivacymaskisauser-definedareathatpreventusersfromviewingpartsofthemonitoredarea.Privacymasksappearasblocks ofsolidcolorandareappliedonthevideostream.PrivacymaskscannotbebypassedusingtheVAPIX®applicationprogramming interface(API).

The PrivacyMaskList(VideoPrivacyMask) shows all the mask that are currently configured in the Axis product and indicates if they are enabled.

Youcanaddanewmask,re-sizethemaskwiththemouse,chooseacolorforthemask,andgivethemaskaname.

Formoreinformation,seetheonlinehelp

Important

Adding many privacy masks may affect the product's performance.

ConfiguretheLiveViewPage

YoucancustomizetheLiveViewpageandalterittosuityourrequirements.ItispossibletedefinethefollowingfeaturesoftheLiveViewpage.

• StreamProfile.Seepage 18.
• DefaultViewerforBrowser.Seepage23.
  -ViewerSettings.Seepage23.

ActionButtonsThesearchbuttonsdescribedControlsorthedLiveViewPage1 1.

-UserDefinedLinks.Seepage24.

DefaultViewerforBrowsers

FromLiveViewConfigDefaultVieweselecthedefaultmethodofviewingideimagesyoubrowserTheproductattempts toshowthevideoimagesintheselectedvideoformatandviewer.Ifthisisnotpossible,theproductoverridesthesettingsand selectsthebestavailablecombination.

BrowserViewerDescription
WindowsInternetExplorer	AMC	RecommendedviewerinInternetExplorer(H.264/MotionJPEG).
	QuickTime	H.264.
	StDisplaystillImage	gesonly.ClicktheRefreshbuttoninyourbrosertoviewa newimage.
Otherbrowsers	ServerPush	Recommendedviewerforotherbrowsers(MotionJPEG).
	QuickTime	H.264.
	StDisplaystillImage	gesonly.ClicktheRefreshbuttoninyourbrosertoviewa newimage.

Formoreinformation,pleaseesetheonlinehelp

ViewerSettings

Toconfigureoptionsfortheviewer, gotoLiveViewConfig>ViewerSettings.

SelectShowewetoolbatalisplaytheAXISMediaControl(AMC)theQuickTimeviewetoolbaundethideoimageinyourbrowser.

H264lecodeinstallationThe administrator and disable installation of the H.264lecode included with AXISMedia Control. This is used to prevent installation of unlicensed copies. Further decoder licenses can be purchased from your Axisreseller.

SelectShowcrosshainPTJoystickmode enable crosshatwill indicate the center of the image PTJoystick mode.

SelectUsePTZoystickmodasdefaultenablejoystickmodehemodecanchangedemporarilyfromthe PTZcontrolpanel.

SelectEnablerecordingbutton enablerecordingfromtheLiveViewpageThisbuttonisavailablewhenusingtheAMCviewer.TherecordingsaresavedtothelocationspecifiedintheAMCControlPanel.SeeAXISMediaControl(AMC)onpage13.

UserDefinedLinks

Todisplayuser-definedinkintheLiveViewpageselecthShowcustomlinkoptiongivthdlnanamandherentethURL tolinkto.Whendefiningaweblinkdonotremovethehttp://fromtheURLaddress.Customlinkscanbeusedtorunscriptor activateexternaldevicesconnectedtotheproduct,ortheycanlinktoawebpage.Customlinksdefinedascgilinkswillrunthe scriptinthebackground,inahiddenframe.Definingthelinkasaweblinkwillopenthelinkinanewwindow.

PTZ(PanTiltZoom)

ThePTZmenuisavailableifdigitalPTZ(pan,tiltandzoom)isenabledintheselectedviewarea.Formoreinformationonviewareas, seeViewAreaonpage20.

PresetPositions

Apresetpositionisasavedviewthatcanbeusedtoquicklysteerthecameratoaspecificposition.Apresetpositionconsistsof thefollowingvalues:

•Panandtiltpositions
- Zoomposition

Eachviewareahasitsownpresetpositions.

AccessthePresetPositions

Presetpositionscanbeaccessedinseveralways:

• ByselectingthepresetfromtheSourcedrop-downlistintheLiveViewPage.
• Whensettingupactionrules.Seepage35.

AddaPresetPosition

1. GotoPTZ>PresetPositions.

Click them agous the control to te the camera view the desire position see Preset Positions.

3.EnteradescriptivenameintheCurrentpositionfield.
4.ClickAddtosavethepresetposition.

To include these positionamaint overlay text guide, select include overlay and enteth modified by the field. From more information about modifiers or FileNaming Date/TimeFormat in the online help

SettheHomePosition

The entire view area is treated with a composition which readily accessible by clicking the HomeButton or the LiveView page and in the Preset Position setup window.

TheproductcanbeconfiguredtoreturntotheHomepositionwhenthePTZfunctionalityhasbeeninactiveforaspecifiedlengthoftimEntenthengthoftimenthReturnhomeftefieldandlicSavSethdimderdpreventheproducfromautomaticallyreturningtotheHomeposition.

GuardTour

Aguardtourdisplaysthevideostreamfromdifferentpresetpositions,one-by-one,inapredeterminedorderoratrandomandforconfigurabletimeperiods.Theenabledguardtourwillkeeprunningaftertheuserhasloggedofforclosedthebrowser.

Toaddaguardtour:

GdPTZGuardTouandclicAdd.

2.Enteradescriptivename.
3. Specify the pause length between runs.

1. SelectanavailablepresetpositionandclickApply.

2. Specify theViewTimeinsecondsorminutes.

Specify the View Order Select the Random View Word option.

7.ClickSave.

TomodifyremoveguardoursgdtPTZGuardTourselectheguardouritheGuardTouListandlicModify/Remove.

Formoreinformationseetheonlinehelp

Advanced

Controls

AdvancedPTZsettingscanbeconfiguredunderPTZ>Advanced>Controls.

The PaneShortcutCommandButtonisshowtheuser-definedbuttonthataraccessedfromtheViewpage'Ctrl panelThe buttons are used to provide direct access command issued using the APIX® application programming interface. ClickAddtoaddanewshortcutcommandbutton.

The following PTZ controls are enabled by default:

•Pancontrol
- Tiltcontrol
- Zoomcontrol

Todisable specific controls deselect options unde Enable/Disable controls.

Ifusing multiple view areas, deselecting a control will only disable the control in these selected view area.

ControlQueue

Note

• The administratorcanenableanddisablePTZcontrolsforselectedusers.
• Toidentifydifferentusersintheviewergroup,cookiesmustbeenabledontheclient.

The Controqueupoltime measured seconds from information set online help

The administrator can setup one to PTZ controller from PTZ Control Due. Once setup the PTZ Control Due buttons appear in the View page offering one viewer exclusive control for a limited period of time. Other users will be placed in queue.

Auser who belongs to group (used Users or page 43) with higher PT priority and before the users in the queue and take control of the product. The order of priority is as follows:

Administrator-AradministratotakesovePTZcontrolregardlessofwhofirstqueueTheadministratorwilbe removedfromthequeue60secondsafterthelastPTZcontrolcommand.

Event-TheAxisproductarbeconfiguredtoqpresepositionwhertriggeredbyalarm(seeEventsorpage35). Theeventwillimmediatelybeplacedfirstinthequeueexceptwhenanadministratorisincontrol.

1. Operator—Sameas administrator but with lower priority

Viewer-Multiplicity viewers must wait their return. The view has second PTZ control before control passed onto the next viewing queue.

Detectors

CameraTampering

CameraTamperingcangenerateanalarmwheneverthecameraisrepositioned,orwhenthelensiscovered,spray-paintedorseverely defocused.Tosendanalarm,forexampleanemail,anactionrulemustbesetup.

Toconfigure tampering detection:

1. GotoDetectors > CameraTampering.

SethMinimundurationthattheimthatmustlapsbeforealarmigeneratedincreaseimdprevent falsealarmsforknownconditionsthataffecttheimage.

Select Alarmfodarkimagesfinalarmshouldbegeneratedfightaredimmedturnedoffpithdenisprayed, covered,orrenderedseverelyoutoffocus.

4.ClickSave.

Toconfiguretheproducttosendanalarmwhentamperingoccurs:

1. GotoEvents>ActionRules.

2.ClickAddtosetupanewactionrule.

1. EnteraNamefortheactionrule.

UndeConditionselecDetectorsfromthTriggerist.

1. SelectTamperingfromthelistofdetectors.

2. Optionally, select as schedule and set additional conditions.

SelectactionTo sendaremailselectSendNotificationandselectRecipientfromtheDisbDefinedrecipients.

Note

The Which Executive Option Unde Duration cannot be used with cameramperings since camerampering does not have duration and onceithasbeentriggereditwillnotautomaticallyreturntoitsuntriggeredstate.

Formoreinformationonactionsrules,seeEventsonpage35.

Applications

AXISCameraApplicationPlatform(ACAP)isanopenplatformthatenablesthirdpartiestodevelopanalyticsandotherapplications forAxiproductsF[e-mail]/applications

Note

The application AXIS/ided Motion Detection is included with this product. See AXIS/ided Motion Detection.

- Several applications can run at the same time but some applications might not be compatible with each other. Certain combination of applications might require to much processing power or memory resources when run in parallel. Verify that the applications work together before deployment.

ApplicationLicenses

Someapplicationsneedalicensetorun.Licensescanbeinstalledintwoways:

•Automaticinstallation—requiresaccesstothelnternet
- Manualinstallation—obtainthelicensekeyfromtheapplicationvendoranduploadthekeytotheAxisproduct

Torequestalicense, theAxisproductserialnumber(S/N) is required. The serial number can be found on the product label and under SystemOptions > Support > SystemOverview.

UploadApplication

Touploadandstartanapplication:

1. GotoSetup>Applications.

2ndeUploadApplicationclickBrowseLocatethapplicationfileandclickUploadPackage.

1. Install the license (if applicable). For instructions, seethedocumentation provided by the application vendor.

Start the applicationGd page Applications select the application in the disf installed applications and click Start.

1. Configure the application. For instructions, seethedocumentation provided by the application vendor.

Note

• Applicationscanbeuploadedbyproductadministrators.
• ApplicationsandlicensescanbeinstalledonmultipleproductsatthesametimeusingAXISCameraManagement,version 3.10andlater.

To generate of file for the application to Application Select the application and click Log.

ApplicationConsiderations

Ifanapplicationisupgraded, applicationsettings, including the license, will be removed. The license must be installed and the application reconfigured.

If the Axis product's firmware is upgraded, uploaded applications and their settings will remain unchanged, although this is not guaranteed by Axis Communications. Not that the application must be supported by thenew firmware. For information about firmware upgrades, see Upgrade the Firmware.

If the Axis product is restarted, running applications will restart automatically.

If the Axis product is restored, uploaded applications remain unchanged but must be restarted. Tostart the application, goto Setup Application Select the application in the dis installed applications and click Start Information about restoring the Axis product, see Maintenance.

If theAxisproductisresettofactorydefault, uploadedapplicationsandtheirsettingsareremoved.Forinformationaboutfactory default, see ResettoFactoryDefaultSettings.

AXISVideoMotionDetection

AXISVideoMotionDetectionisanapplicationthatdetectsmovingobjectsinthecamera'sfieldofview.Whenamovingobject isdetected,AXISVideoMotionDetectionssendsanalarmthatcanbeusedbytheAxisproductorbythird-partysoftware,to,forexample,recordvideoorsendanotification.

AXIS/ided MotionDetection included with the Axis product and available under SetupApplications. Use AXIS/ideo MotionDetection, the application must first best started. To avoid detecting unwanted objects, the applications should be configured. During configuration, visual confirmation can be used to help understand the effect of the different filters. When visual confirmation is enabled, red polygonsshow which objectsthe application detects and green polygonsshow which objectsthe application ignores.

Considerations

BeforeusingAXISVideoMotionDetection3,takethefollowingintoconsideration:

• Smallanddistantobjectsmightnotbedetected.
• Detection accuracy may be affected by weather conditions such as heavy rainorsnow.
• MakesurethatthelightingconditionsarewithintheAxisproduct'sspecification.Addadditionallightingifneeded.
• Makesurethatthecameraisnotsubjecttoexcessivevibrations.Vibrationsmightcausefalsedetections.

StartandStoptheApplication

TstarthapplicationselectrthInstalledApplicationsisbrtheApplicationspagandclickStart.

Tostoptheapplication,selectitinthelistandclickStop.

ConfigureApplication

The application is available from SetupApplicationsMotionDetectionGoSettingsandherelickAXIS AXIS AXIS Video Motion Motion Detection Settings/scopingtheapplication'swebpage.

ToconfigureAXISVideoMotionDetection3,followthesesteps:

Modify the size of position of include area This there are in which moving objects will be detected. Send include Area on page 30.

Optionally added more exclud areas Objects are excluded by ignored See Exclude Are on page 1.

3.ClickSavetoapplythechanges.

Use visual confirmation to verify the settings. See Visual Confirmation on page 1.

Iso many unwanted objects are detected, enable and configure non more of the ignore filter. See ignore Filters on page 32.

After modifying setting click save apply the changes. The video stream will be restarted and may take few seconds before the change is applied.

IncludeArea

Theincludeareaistheareainwhichmovingobjectswillbedetected.Objectsmovingoutsidetheincludeareawillbeignored. Theobjectwillbedetectedalsoifonlyapartoftheobjectisinsidetheincludearea.

Note

Tomodifytheincludearea,InternetExplorerandAXISMediaControl(AMC)mustbeused.

Thedefaultincludeareaisasquarethatcoversthewholeimage.Clickontheicontohighlighthearea.

Usethemousetoreshapeandresizetheareasothatitonlycoversthepartoftheimageinwhichmovingobjectsshouldbedetected. Thedefaultsquarecanbechangedtoapolygonwithupto20points(corners).

• Toaddanewpoint, clickontheincludeareaborder.Dragthepointtothedesiredposition.
• Toremoveapoint, right-clickonthepoint.
• Tomoveapoint, dragthepointtothenewposition.
• Tomovetheentireincludearea, placethemousepointerinsidethearea. Whenthepointerbecomesacross, dragthe areatothenewposition.
• Toselecttheincludearea,clickontheborder.

Toresettheincludeareatoitsdefaultsize,clickReset.

ExcludeArea

Anexcludeareaisanareainwhichmovingobjectswillbeignored.Useexcludeareasifthereareareasinsidetheincludearea thattriggeralotofunwanteddetectedobjects.Upto10excludeareascanbeused.

Note

Toaddandmodifyexcludeareas,InternetExplorerandAXISMediaControl(AMC)mustbeused.

To address excluding a click Add default exclude a rectangle placed in the center of the image. The theme to remove, reshape and resize the areas so that it covers the desired part of the image. The defaults square can be changed to a polygon with up to 20 points (corners).

• Tomovetheexcludearea, placethemousepointerinsidethearea. When the pointer becomes across, drag the area to thenew position.
• Toaddanewpoint, clickontheexcludeareaborder.Dragthepointtothedesiredposition.
• Toremoveapoint, right-clickonthepoint.
• Tomoveapoint, dragthepointtothenewposition.
• Toselectanexcludearea,clickontheborder.

Toremoveanexcludearea,selecttheareaandthenclickRemove.

Tohighlighttheexcludeareas,clickonthe

icon.

VisualConfirmation

Visualconfirmationisusedtovalidatethatthesettingsarecorrect,thatis,thatalobjectsthatshouldbedetectedaredetected.

Note

Tousevisualconfirmation, Internet Explorer and AXIS Media Control (AMC) must be used.

When visual confirmation is enabled, all moving objects found by the application will be circled and followed by polygons. A red polygon indicates that the object is found and detected as a moving object. Agreen polygon indicates that the object is found but is ignored because it is not in the include area or because of one of the ignore filters.

Toenablevisualconfirmation:

1. Select the Enable visual confirmation option.
   2.ClickSave.

Note

- Visualconfirmationisdisabledafter15minutes.

After modifying setting click Save apply the change The video stream will be restarted and may take few seconds before the change is applied.

- Enablingvisualconfirmationmayintroducevideolatency.

IgnoreFilters

IfAXISVideoMotionDetection3detectstoomanyunwantedobjects,startbymodifyingtheincludeandexcludeareas.Ifstilltoo manyobjectssaredetected,useoneormoreoftheignorefilters.

Supportedignorefilters:

• Swayingobjects—Usedtoignoreobjectsthatonlymoveashortdistance
• Short-livedobjects—Usedtoignoreobjectsthatonlyappearintheimageforashortperiodoftime
• Smallobjects—Usedtoignoresmallobjects

Ignorefiltersareappliedtoallmovingobjectsfoundbytheapplicationandshouldbeconfiguredwithcaretoensurethatno importantobjectsareignored.

Onlyuseignorefiltersifneededanduseasfewfiltersaspossible. Enableandconfigureonefilteratatimeandusevisualconfirmation toverifythesettingsbeforeenablinganotherfilterWhenconfiguringfilterstartwithsmallfiltersizeclicSavendusevisual confirmationtoverifythesettings.lfrequired,increasethefiltersizeinsmallstepsuntilthenumberofunwantedobjectsisreduced.

SwayingObjectIgnoreFilter

Theswayingobjectfilterisusedtoavoiddetectingobjectsthatonlymoveashortdistance,forexamplemovingtrees,flagsandtheir shadows.Usethefilterifsuchobjectscausealotoffalsedetections.Iftheswayingobjectsinthescenearelarge,forexamplelarge pondsorlargetrees,useexcludeareasinsteadofthefilter.Thefilterwillbeappliedtoallmovingobjectsinsceneand,ifsettoavaluetoolarge,importantobjectsmightnotbedetected.

When the waying object filter is enabled and the application finds a moving object, the object will not be reported as detected (red polygon in visual confirmation) until the travel distance is larger than the set filtersize. The alarms sent by the application will be sent when the object is detected. If the alarm is used to start are recording, configure the pre-trigger times that there are cording also include the time the object moved in the scene before being detected.

Toenablethefilter:

1. Select the Swaying objectsoption.
   2.Clickonthe icontoshowthefiltersizeintheimage.
2. Usethemousetoadjustthefiltersize.Startwithasmallsize.Objectsmovingadistanceshorterthanthedistancefrom thecenterofthecrosstooneofthearrowheadswillbeignored.Thefiltercanbemovedtothelocationofaswaying objecttomakeiteasiertoadjustthesize.Notethatthefilterwillbeappliedtoallobjectsintheimage,notonlytothe onesatthelocationwherethefilterisplaced.
   4.ClickSavetoapplythefilter.
3. Usevisualconfirmation to verify the settings.
4. If the result is not satisfactory, increase the filtersize small steps.

Thefiltersizecanalsobesetbyenteringavaluebetween10and50inthefield.Thevaluecorrespondstothedistancefromthe centerofthecrosstooneofthearrowheads.Thevalue100impliesthatanobjectmusttravelfromitsinitialpointtoonethirdofthe imagewidthtorheightbeforebeingdetected.Thevalue50implieshalfthatdistance,thatis,theobjectmusttraveladistanceof onesixthoftheimagewidthtorheightbeforebeingdetected.

Short-LivedObjectIgnoreFilter

Theshort-livedobjectfilterisusedtoavoiddetectingobjectsthatonlyappearforashortperiodoftime,suchaslightbeamsfroma passingcarandquicklymovingshadows.Usethefilterifsuchobjectscausealotoffalsedetections.

Whentheshort-livedobjectfilterisenabledandtheapplicationfindsamovingobject,theobjectwillnotbereportedasdetected(redpolygoninvisualconfirmation)untilthesettimeaspassed.Thealarmsentbytheapplicationwillbesentwhentheobjectis detected.Ifthealarmisusedtostartarecording,configurethepre-triggertimesothattherecordingalsoincludesthetimethe objectmovedinthescenebeforebeingdetected.

Toenablethefilter:

1. SelecttheShort-livedobjectsoption.
   2.Enterthenumberofsecondsinthefield.Thenumberofsecondsistheminimumtimethatmustpassbeforetheobjectis detected.Startwithasmallnumber.
   3.ClickSavetoapplythefilter.
2. Usevisualconfirmation to verify the settings.
3. If the result is not satisfactory, increase the filtersize in small steps.

SmallObjectIgnoreFilter

Thesmallobjectfilterisusedtoavoiddetectingobjectsthataretoosmall.Forexample,ifonlymovingcarsshouldbedetected,the smallobjectfiltercanbeusedtoavoiddetectingpeopleandanimals.

Ifusingthesmallobjectfilter, take into consideration that an object far from the camera appears smaller than an object closet to the camera. If the filter is set to ignore object sthesize of a person, people that are closet to be cameracan still be detected because they are larger than the filters size.

Toenablethefilter:

1. SelecttheSmallobjectsoption.

2.Clickonthe

icontoshowthefiltersizeintheimage.

1. Usethemousetoadjustthefiltersize.Startwithasmallsize.Movingobjectsthatfitinsidetherectanglewillbeignored. Thefilterdisplayedintheimagecanbemovedtomakeiteasiertocomparethefiltersizewiththesizeofobjects intheimage.Notethatthefilterwillbeappliedtoalobjectsintheimage,alsotoobjectsthatarenotlocatedat thepositionofthedisplayedfilter.
   4.ClickSavetoapplythefilter.
2. Usevisualconfirmation to overify the settings.
3. If the result is not satisfactory, increase the filtersize in small steps.

Thefiltersizecanalsobesetbyenteringthewidthandheightinthefields. Thewidthhandheightarethemaximumwidthand maximumheightoftheobjectstoignoreandaremeasuredinpercentoftheimagewidthandheight.Valuesbetween5and100 canbeused.

Using the Application in an Action Rule

The following examples show to configure the Axis product to record video when AXIS Video Motion Detection 3 detectsmotion.

InsertarS deardrtheAxiproductogd SetupSystemOptionsStoragertheAxiproduct'swebpagesand configuretheproducttouseanetworkshare.

Optionallygd:SetupVideoStreamProfilesandcreatestreamprofileusforecording.

GdoSetupEventsActionRulesandClickAddcreatenewactionrule.

From the Triggeredrop-downlistselectApplicationsandtherselectVMD.

Configure the settings required. For example only record video during certain time periods, select Schedule.

UndeActionsselectRecordVidedfromthTypdrop-downlist.

1. Selectthestreamprofileandstoragedevicetouseandconfigurethepre-andpost-triggertimes.

2. MakesurethattheruleisenabledandthenclickOK.

Note

TappeairthTriggeristthapplicationomusbstartedandtstatusmustedloRunning.

Events

TheEventpagesallowyoutoconfiguretheAxisproducttoperformactionswhendifferenteventsoccur. Forexample, theproduct canstartarecordingorsendanemailnotificationwhenmotionisdetected.Thesetofconditionsthatdefineshowandwhen theactionistriggerediscalledanactionrule.

SetUpActionRules

Anactionruledefinestheconditionsthatmustbemetfortheproducttoperformanaction,forexemplerecordvideoorsendan emailnotification.Ifmfultipleconditionsaredefined,allofthemmustbemettotriggertheaction.

FomoreinformationaboutavailabletriggersandactionssedTriggersorpage35andActionsorpage36.

The following example describes how to setup an action rule to record video to an network share if there is movement in the camera's field of view.

Setupmotiondetectionandaddanetworkshare:

GdoApplicationsstartandconfigureAXIS/idedMotionDetectionSeeAXIS/idedMotionDetection.

QdsystemOptionsStorageandsetupnetworkshareSepage53.

Setuptheactionrule:

GddEventsActionRulesandclicAdd.

1. SelectEnableruleandenteradescriptivenamefortherule.

SelectApplicationsfromtheTriggerdrop-downlistandtheselectVMD3

OptionallyselectScheduleandAdditionaConditionSebelow.

UndeActionsselectRecordVidedfromthTypdrop-downlist.

SelectStreamprofilandconfiguretheDurationsettingsdescribedbelow.

1. SelectNetworkSharefromtheStoragedrop-downlist.

Touse mortharondriggefothaction rules elect Additional conditions and lic Add add additionatriggers When using additional conditions, all conditions must bemettotrigger theaction.

To prevent an action from being triggered repeatedly, Waiteastime can be set Ent the time hours minutes and seconds, during which the triggers should be ignored before the action rule can be activated again.

The recording Duration of actions can be set into a threshold immediately before and after the event. Select Pre-trigger time and oPost-triggered number of seconds When while the active enabled and action is triggered again during the post-trigger time, thereocording timewill be extended with another post-trigger time period.

Formoreinformation,seetheonlinehelp

Triggers

Available actionultriggersandconditionsinclude:

ApplicationsUsinstalledapplicationsstriggetheRuleSeeApplicationsorpage28.

VMD3Trigger rule when AXIS/ided Motion Detection detects moving object See AXIS/ided Motion Detection.

- Detectors

Events

Day/NightModeTrigger rule whether product switches between day mode (IRcutilten) and night mode (IRcutilteroff). This can forexample be used to control an external infrared (IR) light connected to an output port.

LivStreamAccessedTrigger the rule when any stream is accessed and during ed storage playback. This can forexample be used to send notifications.

TamperingTriggetheulewhertamperingsdetectedSeeCameraTamperingpage27.

- Hardware

NetworkTriggertheulefetworkconnectionisostrestoredThisaforexampleusedstart recordingtotheSDcard.

TemperatureTriggetheulethtemperaturfallsoutsideinsidethoperatingangofthproductThis canforexamplebeusedtosendmaintenancenotifications.

- InputSignal

ManualTriggerTriggertheULusinghManualTriggerbuttonintheLiveViewpageSeeControlson theLiveViewPageonpage11.Thiscanforexamplebeusedtovalidateactionsduringproductinstallation andconfiguration.

VirtualInputsearchused by MSVidedManagementSystem;driggeractionsVirtualInputscanfor example,beconnectedtobuttonsintheVMSuserinterface.

•PTZ

MovingTrigger the rule whether the camera view moves due to PT operation This is a example based as an additional condition to prevent an action rule triggered by motion detection to record video while the camera view moves due to PT operation.

PreseReachedTriggertheulewherthecameratops@presepositionThisandofexampleused withtheSendImagesactiontouploadimagesfromthepresetposition.

•Storage

DisruptionTrigger the rule for storage problems are detected for example of storage device is unavailable, removed, full, locked or if other reader or write problems occur. This can forecast be used to send maintenance notifications.

RecordingTriggertheulwhertheAxiproductrecorddthestoragedeviceTherecordingstatusrigger canbeusedtonotifytheoperator,forexamplebyflashingLEDlights,iftheproducthasstartedorstoppedto recordtothestoragedevice.Notethat,thistriggercanbeusedonlyforedgestoragerecordingstatus.

•System

SystemReadyTriggetheulewhertheproduchabeerstartedandalservicesareunningThisarfor examplebeusedtosendanotificationwhentheproductrestarts.

•Time

RecurrenceTrigger the ul periodically Se Set Up Recurrences page 39 This far example used to upload an image every 5 minutes.

UsScheduleTriggertheRuleaccordingtheSelectedScheduleSeeCreateSchedulesorpage38.

Actions

Availableactionsinclude:

Day/NighVisionModeSetlaymodel(Reufilteon)nightmode(Reufilteoff).

OverlayTextDisplayroverlaytextSeeHowtincludeoverlaytextfractionrulonpage21.

Events

- PTZControl

-PresetPosition-Gotoapresetposition.

- RecordVideo–Recordvideotoaselectedstorage.

- SendImages–Sendimagestoarecipient.

- SendNotification-Sendanotificationmessagetoarecipient.

SendSNMTrapSendSNMRapmessagechoperatorMakeurchaSNMPenabledandconfigured undeSystemOptionsNetworkSNMP.

- SendVideoClip-Sendavideocliptoarecipient.

AddRecipients

Theproduct cansendmediafilesandmessagesto notifyusersaboutevents.Beforetheproduct cansendmediafilesornotification messagesyoumustdefinonoremorerecipientsFormformationaboutavailableoptionsseRecipienttypesorpage37.

Toaddarecipient:

GdEventsRecipientandclicAdd.

2.Enteradescriptivename.

3.SelectarecipientType.

1. Enter the information needed for the recipient type.

5.ClickTesttotesttheconnectiontotherecipient.

6.ClickOK.

RecipientTypes

The following recipients are available:

RecipientUsewithaction	Notes
Email	SendImagesSendNotificationSendVideoClip	Anemailrecipientcancontainmultipleemailaddresses.
FTP	SendImagesSendVideoClip
SFTPSendImages	SendVideoClip	EncryptedfiletransferusingSSHFileTransportProtocol (SFTP).SFTPisamoresecuremethodthanFTPbutfile transfermightbeslower,especiallyforlargefilessuchashigh resolutionvideo.SpecifylogininformationfortheSFTPserverandtheserver's publickeyMD5fingerprint(32hexadecimaldigits).TheSFTPrecipientsupportsSFTPserversusingSSH-2with RSAandDSAhostkeytypes.RSAisthepreferredmethod.To useDSA,disabletheRSAkeyontheSFTPserver.
HTTP	SendImagesSendNotificationSendVideoClip
HTTPSSendImages	SendNotificationSendVideoClip	EncryptedfiletransferusingHyperTextTransferProtocol Secure(HTTPS).SpecifylogininformationfortheHTTPSserverandvalidate theserver'scertificate.IfthereisaproxybetweentheAxis productandtheHTTPSserver,alsospecifytheproxysettings.
NetworkShareSendImages	SendVideoClip	Anetworksharecanalsobeusedasastoragedevicefor recordedvideo.GoSystemOptions>Storagetoconfigure anetworksharebeforesettingupacontinuousrecordingor anactionruletorecordvideo.Formoreinformationabout storagedevices,seeStorageonpage51.
TCPSendNotification

SetUpEmailRecipients

Emailrecipientscanbeconfiguredbyselectingoneofthelistedemailproviders,orbyspecifyingtheSMTPserver,portand authenticationusedby,forexample,accorporateemailserver.

Note

Some email providers have security filter that prevent users from receiving or viewing large amount of attachments, from receiving scheduled emails and similar. Check the email provider's security policy to avoid delivery problems and locked email accounts.

Tosetupanemailrecipientusingoneofthelistedproviders:

GdEventsRecipientandclicAdd.

EnterNamandelecEmaifronthTypeist.

Entethemailaddresses send emails forth field Usecommas separate multiple addresses.

1. Select the email provider from the Provider list.

5.Entertheuser|Dandpasswordfortheemailaccount.

6.ClickTesttosendatestemail.

To setup email recipient using example, incorporate email server follow-instructions above but select used as ProviderEntethemailaddressappeansendeithFromfieldSelectAdvancedettingsandspecifySMTServer addressportandauthenticationmethodOptionallyselectUsencryptiontoendmailsoverencryptedconnectionTheserver certificatecanbevalidatedusingthecertificatesavailableintheAxisproduct.Forinformationonhowtuploadcertificates, see Certificatesonpage45.

CreateSchedules

Schedulescanbeusedasactionruletriggersorasadditionalconditions,forexampletorecordvideoifmotionisdetectedoutside officehours.Useoneofthepredefinedschedulesorcreateanewscheduleasdescribedbelow.

Tocreateanewschedule:

GdEventsSchedulesandliclAdd.

2.Enteradescriptivenameandtheinformationneededforadaily,weekly,monthlyoryearlyschedule.

3.ClickOK.

Taus the schedule in action rules select the schedule from the Schedule drop-down list the Action Rule Setup page.

SetUpRecurrences

Recurrencesareusedtotriggeractionrulesrepeatedly,forexamplevery5minutesoreveryhour.

Tosetuparecurrence:

GdEventsRecurrencesandliclAdd.

1. Enteradescriptivenameandrecurrencepattern.

3.ClickOK.

ToustherecurrencenaractionulefirstselectTimefromtheTriggedrop-downlisttheActionRulSetuppagandhen selecttherecurrencefromthesecondrop-downlist.

To modify remove recurrences select the recurrence path. Recurrence List and click Modify Remove.

Recordings

TheAxisproductcanbeconfiguredtorecordvideocontinuouslyoraccordingtoanactionrule:

• Tostartacontinuousrecording,seepage41.
• Tosetupactionrules,seepage35.
  • Toaccessrecordings, see FindRecordings on page 40.
  • Toplayrecordings, see PlayRecordingonpage40.
  • Toexportarecordingasavideoclip, see ExportVideoCliponpage41.
• Toconfigurecameracontrolledstorage,seeStorageonpage51.

FindRecordings

RecordingstorebirthSCardnetworksharcarbaccessedrothRecordingsListpageThepagedistallrecordingon thestoragedeviceandshowseachrecording'sstartdateandtime,durationandtheeventthattriggeredtherecording.

Note

Therecording'sstartdateandtimeissetaccordingtotheAxisproduct'sdateandtimesettings.IftheAxisproductisconfiguredausetimzonedifferenfromthdocatimezonemakeuretconfigurehRecordingimfiltersaccordingtchproduct'stizoneDatandtimesettingsareconfiguredundeSystemOptionsDateTimeedDateTimeonpage45.

Tofindarecording, followthesesteps:

1. GotoRecordings>List.

Dreducethnumberfecordingsdisplayedselecthe desireoptionsundeFilter:

RecordingtimeListecordingthatstartedbetweenFromanddimes.

EventListecordingthatwerdriggeredbyspecificEventSelectcontinuoudistontinuousrecordings.

Storage-Listrecordingsfromaspecificstoragedevice.

Sort-Specifyhowrecordingsshouldbesortedinthelist.

Results–Specify maximum number of recording stodisplay.

To apply the filters click the Filte button Some filters may take long time complete.

1. TherecordingsaredisplayedintheRecordinglist.

T play recording select the recording and click Play Se also Play Recording or page 40.

To view detailed information about recording, select the recording and lic Properties.

To export recording, part of recording via eclip select the recording and lic Export Seals Export/ided Clip on page 41.

To remove recording from the storage device, select the recording and click Remove.

PlayRecording

RecordingsontheSDcardornetworksharecanbeplayeddirectlyfromtheAxisproduct'swebpages.

Toplayarecording, followthesesteps:

1. GotoRecordings>List.

DreducethenumberofecordingsdisplayedselecthdesiredoptionsundeFilteandclickthFiltebuttorto applythefilters.SeealsoFindRecordingsonpage40.

Select recording and click Play The recording will be played a new browser window.

ExportVideoClip

Recordings on the SD cardornetworkshare can be exported as videoclips. It is possible to export a complete recording or part of are cording.

Note

TheexportedrecordingisaMatroskavideofile(.mkv).ToplaytherecordinginWindowsMediaPlayer,AXISMatroskaFile SplittemusbinstalledAXISMatroskaFileSplittercandownloadedfromwww.axis.com/techsup/software

Toexportavideoclip, followthesesteps:

1. GotoRecordings>List.

DreducethnumbeofecordingdisplayedselectddesiredoptionsundeFilteandclickthFiltebuttorto applythefilters.SeealsoFindRecordingsonpage40.

Select recording and click Export The Export Recording dialog opens.

1. Bydefault, the completerecording is selected. To export a part of the recording, modify the start and stop times.

2. Optionally, enterafilename for therecording.

6.ClickExport.

Note

Recordingscanalsobeexportedfromtheplaybackwindow.

ContinuousRecording

The Axiproductarbeconfigured continuously saved storage device information about storage devices see Storage or page 5 to prevent the disk from becoming full is recommended configuration disk automatically removed in recordings.

Ifanewstreamprofileisselectedwhilearecordingisongoing,therecordingwillbestoppedandsavedintherecordinglistanda newrecordingwiththenewstreamprofilewillstart.Allpreviouscontinuousrecordingswillremainintherecordinglistuntilthey areremovedmanuallyorthroughautomaticremovalofoldrecordings.

Tostartacontinuousrecording,followthesesteps:

1. GotoRecordings>Continuous.

2.SelectEnabled.

1. SelectthetypeofstoragedevicefromtheStoragelist.

2. SelectaStreamprofiletouseforcontinuousrecordings.

5.ClickSavetosaveandstarttherecording.

Languages

MultiplelanguagescanbeinstalledintheAxisproduct.AllwebpagesincludingtheonlinehelpwillbedisplayedintheselectedlanguageTo switchlanguagesgoSetupLanguagesandfirstuploadthenewLanguagefileBrowseandocatchefilandclicktheUploadLanguagebutton.SelectthenewlanguagefromthelistandclickSave.

Note

• Resetting the product to factory default settings will erase any uploaded language files and reset the product language to English.
• ClickingtheRestorebuttonontheMaintenancepagewillnotaffectthelanguage.
• Afirmwareupgradewillnotaffectthelanguageused.Howeverify you have uploaded an ewlanguageto the product and later upgradethe firmware, it may happen that the translation no longer match the product's web pages. In this case, upload an updated language file.
• Alanguagealreadyinstalledintheproductwillbereplacedwhenacurrentoralaterverersionofthelanguagefileisuploaded.

SystemOptions

Security

Users

Use access controlled by default and a configuration under SystemOptions Security Users Administrator can setup other users by giving them usernames and passwords. It is also possible to allow anonymous viewer login, which means that anybody may access the Live View page.

Theuserlistdisplaysauthorizedusersandusergroups(accesslevels):

•ViewershaveaccesstotheLiveViewpage
-Operatorshaveaccesstoallsettingsexcept:
-creatingandmodifyingPTZpresets
-creatingandmodifyingPTZcontrolsettings
-creatingandmodifyingprivacymasksettings
-uploadingapplicationsandlanguagefiles
-anyofthesettingsincludedintheSystemOptions

Administrator have unrestricted accessal settings. The administrator can add modify and remove other users.

Note

NotchawtherthoptionEncryptedunencryptedselectedtheobserverwilencypthepasswordThisthedefault optionforanewunitoraunitresettofactorydefaultsettings.

UndeHTTP/RTSIPasswordSettingsselecttheTypeofpasswordallowYoumayneedallowunencryptedpasswordsifthereareviewingclientsthatdonotsupportencryption,orifyouupgradedthefirmwareandexistingclientssupportencryptionbutneedtologinagainandbeconfiguredtousethisfunctionality.

UndeUseSettingsselecttheEnablanonymousvieweloginoptiontallowanonymoususersaccesstheLiveViewpage.

Select the Enablanonymou PTZontrologirtallowanonymoususeraccess the PTZ controls.

DeselecttheEnablBasiSetupoptionthetaBasiSetupmenuBasiSetupprovidesquickaccesssettingsthatshouldbe madebeforeusingtheAxisproduct.

ONVIF

ONVIF(OpenNetworkVideoInterfaceForum)isaglobalinterfacestandardthatmakesiteasierforendusers,integrators,consultants,andmanufacturerstotakeadvantageofthepossibilitiesofferedbynetworkvideotechnology.ONVIFenablesinteroperabilitybetweendifferentvendorproducts,increasedflexibility,reducedcostandfuture-proofsystems.

BycreatingauseryouautomaticallyenableONVIFcommunication.UsetheusernameandpasswordwithallONVIFcommunication withtheproduct.Formoreinformationseewww.onvif.org

IPAddressFilter

IAddressfiltering enableorth SystemOptions Security. IAddressFilterpage. Once enabled the listed address are allowed, denied access the AxiproductSelectAllowoDenyronthdistanceLApply, enable the address filtering.

The administrator can add up to 256IP addressentriestothelist (asingleentry can contain multipleIP addresses).

HTTPS

HTTPS(HyperTextTransferProtocoloverSecureSocketLayer,orHTTPoverSSL)isawebprotocolprovidingencryptedbrowsing. HTTPScanalsobeusedbyusersandclientstoverifythatthecorrectdeviceisbeingaccessed. Thesecuritylevelprovidedby HTTPSisconsideredadequateformostcommercialexchanges.

TheAxisproductcanbeconfiguredtorequireHTTPSwhenusersfromdifferentusergroups(administrator, operator, viewer)login.

TouseHTTPSarHTTPScertificatenusfirsbeinstalledGoSystemOptionsSecurityCertificatesinstallandmanage certificates.SeeCertificatesonpage45.

ToenableHTTPSontheAxisproduct:

1. GotoSystemOptions>Security>HTTPS
2. SelectanHTTPCertificatefromthelistofinstalledcertificates.
3. Optionally, click Ciphers and select the encryption algorithm for SSL.
4. SettheHTTPSConnectionPolicyforthedifferentusergroups.
   5.ClickSavetoenablethesettings.

Taccess the Axis product via desired protocol, the address field browser, https://fortheHTTPprotocol. and http://fortheHTTPprotocol.

The HTTP Sport change or the System Options Network TCP/IP Advance page.

IEEE802.1X

IEEE802.1Xisastandardforport-basedNetworkAdmissionControlprovidingsecureauthenticationofwiredandwirelessnetwork devices.IEEE802.1XisbasedonEAP(ExtensibleAuthenticationProtocol).

ToaccessanetworkprotectedbyIEEE802.1X,devicesmustbeauthenticated.Theauthenticationisperformedbyanauthentication servertypicallyRADIUServerexampleswhichareFreeRADIUSandMicrosoftInternetAuthenticationService.

InAxisimplementation, theAxisproductandtheauthenticationserveridentifythemselveswithdigitalcertificatesusingEAP-TLS (ExtensibleAuthenticationProtocolTransportLayerSecurity)ThecertificatesareprovidedbyCertificationAuthorityCA). Youneed:

• aCAcertificatetoauthenticatetheauthenticationserver.
• aCA-signedclientcertificatetoauthenticatetheAxisproduct.

To create and install certificates go to System Options Security Certificates See Certificates or page 45 Many CA certificates are preinstalled.

ToallowtheproducttoaccessanetworkprotectedbyIEEE802.1X:

1. GotoSystemOptions>Security>IEEE802.1X.
   SelectCAcertificatandClienCertificatfromtheistoInstalledcertificates.
   UndeSettingsselecttheEAPVersionanprovidetheEARidentityassociatedwiththeClientertificate.
2. ChecktheboxtoenableIEEE802.1XandclickSave.

Note

Forauthenticationtoworkproperly, the date and timesettings in the Axis product should be synchronized with an NTP server. See Date & Time on page 45.

Certificates

Certificatesareusedtoauthenticatedevicesonanetwork.Typicalapplicationsincludeencryptedwebbrowsing(HTTPS),network protectionviaIEEE802.1Xandsecureuploadofimagesandnotificationmessagesforexampleviaemail.Twotypesofcertificates canbeusedwiththeAxisproduct:

Server/Clientcertificates-ToauthenticatetheAxisproduct.

CAcertificatesToauthenticatpeecertificatesforexamplethecertificatoofauthenticationserveincastheAxisproducts connectedtoanIEEE802.1Xprotectednetwork.

Note

Installedcertificates,exceptpreinstalledCAcertificates,willbedeletediftheproductisresettofactorydefault.Preinstalled CAcertificatesthathavebeendeletedwillbereinstalled.

Server/Client certificate can be self-signed issued by Certificate Authority(CA) Self-signed certificate offers limited protection and can be used before CA-issued certificate has been obtained.

Toinstallaself-signedcertificate:

1. GotoSetup>SystemOptions>Security>Certificates.
2. ClickCreateself-signedcertificateandprovidetherequestedinformation.

TocreateandinstallaCA-signedcertificate:

1. Createaself-signedcertificateasdescribedabove.
2. GotoSetup>SystemOptions>Security>Certificates.
   ClickCreatecertificatesigningequestanprovidetherequestedinformation.
3. CopythePEM-formattedrequestandsendtotheCAofyourchoice.
   Whether signed certificates returned clicked install certificate and upload certificate.

Server/Clientcertificates:baninstalled.Certificatfronsigningequesta.CertificatanprivatkeySelectCertificate andprivatekeyiftheprivatekeyistobeuploadadasaseparatefileorifthecertificateisinPKCS#12format.

The Axis product shipped with severapreinstalled CAcertificates, required additional CAcertificates, can be installed:

1. GotoSetup>SystemOptions>Security>Certificates.
2. ClickInstallcertificateanduploadthecertificate.

Date&Time

The Axi product's lat and dim settings are configured under System OptionsDateTime.

CurrenServeTimedisplaythecurrentlatandtime(24clock)Thetimecarbeisplayednl2hclockirthetexoverlay(see below).

TachangthedatandimsettingsselecthepreferredTimmodundeNewServeTime:

SynchronizwithcomputetimeSetslatandimaccordingthecomputer'slockWiththisoptiondatandtimearesetonceandwillnotbeupdatedautomatically.
SynchronizwithNTServerObtainslatandimfromNTServerWiththisoptiondatandimsettingsare updatedcontinuouslyEoinformationonNTBettingsseeNTPConfigurationorpage48.
IfusingnostamefothENTServerDNServermustconfiguredSeeDNSConfigurationorpage48.
- Setmanually—Allowsyoutomanuallysetdateandtime.

Ifusing NTServerselect your Timezone from the drop-downlist, required check Automatically adjust todaylight saving timechanges.

The DateTimeFormatUsedImageshedatandimformadisplayedstexoverlaythevidestreamUsche

predefinedformatsorsee FileNaming&Date/TimeFormatsintheonlinehelp forinformationonhowtocatecustomdateand timeformatsIncluddatandimethoverlaytextgVideoandelectIncluddatandIncludtime.

Network

BasicTCP/IPSettings

TheAxisproductsupportsIPversion4andIPversion6.Bothversionscanbeenabledsimultaneously, andatleastoneversion mustalwaysbeenabled.

IPv4AddressConfiguration

Bydefault, theAxisproductissettouseIPv4(IPversion4) and to obtain theIPaddress automatically via DHCP. TheIPv4settings are configured under SystemOptions > Network > TCP/IP > Basic.

DHCP(DynamicHostConfigurationProtocol) allows network administrator to centrally manage and automate the assignment of IP addresses. DHCP should only be enabled if using dynamicIP address notification, or if the DHCP can update a DNS server. It is then possible to access the Axis product by name (hostname).

If DHCP is enabled and the product cannot be accessed, run AXISIP Utility to search then network for connected Axis products, or reset the product that factory default settings (see page 55) and he perform then installation again.

To usestatid PaddresscheckUsech following Paddress and specify the Paddress subnet mask and default router.

IPv6AddressConfiguration

IfIPv6(IPversion6)isenabled,theAxisproductwillreceiveanIPaddressaccordingtotheconfigurationinthenetworkrouter.

TenablePv6gctSystemOptionsNetworkTCP/IPBasicOthesettingsforIPvShouldbeconfiguredrthetworkouter.

ARP/Ping

The product's Address can be assigned using ARP and Ping for instructions see Assign1Address Using ARP/Ping or page 46.

TheARP/Pingserviceisenabledbydefaultbutisautomaticallydisabledtwominutesaftertheproductisstarted,orassoonasanIP addressisassigned.Tore-assignIPaddressusingARP/Ping,theproductmustberestartedtoenableARP/Pingforanadditional twominutes.

TodisabletheServicegtoSystemOptionsNetworkTCP/IPBasicandleathoptionEnableARP/PingettingofPaddress.

Pinging the product is still possible when the service is disabled.

AssignIPAddressUsingARP/Ping

Theproduct'sIPaddresscanbeassignedusingARP/Ping.Thecommandmustbeissuedwithin2minutesofconnectingpower.

1. AcquireafreestaticIPaddressonthesamenetworksegmentasthecomputer.
2. Locatetheserialnumber(S/N) on the product label.
   3.Openacommandpromptandenterthefollowingcommands:

Linux/Unixsyntax

arp-s<IPaddress><serialnumber>temp
ping-s408<IPaddress>

Linux/Unixexample

arp-s192.168.0.12500:40:8c:18:10:00temp
ping-s408192.168.0.125

Windowssyntax(thismayrequirethatyourunthecommandpromptasanadministrator)

arp-s<IPaddress><serialnumber>
ping-1408-t<IPaddress>

Windowsexample(thismayrequirethatyourunthecommandpromptasanadministrator)

arp-s192.168.0.12500-40-8c-18-10-00
ping-l408-t192.168.0.125

1. Check that thenetwork cable is connected and then restart the product by disconnecting and reconnecting power.

ClosthecommanpromptwhertheproductespondswithReplyfrom92.168.0.125:..osimilar.

Openbrowseandyphttp://irtheLocation/Addressfield.

For themethods of assigning the addresses the document Assignor/Address and Access the Video Stream or Axis Support web at www.axis.com/techsup

Note

To open command prompt Windowsoperth Start menu and type cmdth Run/Searchfield.

- TousetheARPcommandinWindows8/Windows7/WindowsVista,right-clickthecommandprompticonandselectRunasadministrator.

To open command prompt Mac OS Xoperth Termin utility from Application Utilities.

AXISVideoHostingSystem(AVHS)

AVHSusedinconjunctionwithanAVHSservice,provideseasyandsecureInternetaccesstoliveandrecordedvideoaccessiblefromanylocation.FormoreinformationandhelptofindalocalAVHSServiceProvidergotowww.axis.com/hosting

The AVHSetting are configured under SystemOptions Network TCP Basic The possibility to connect AVHService is enabled by default. Todisable, clear the Enable AVHSbox.

One-clickable Press and hold the product's contro button (sed Hardware Overview page) on bous Second so connect to AVHS service over the Internet. Once registered Always will be enabled and the Ax product stays connected to the AVHS service. If the product is not registered within 24 hours from when the button is pressed, the product will disconnect from the AVHS service.

AlwaysTheAxiproductwilconstantlyattemptconnecttheAVHServiceovethinternetOnceregisteredtheproductwill stayconnectedtotheservice.Thisoptioncanbeusedwhentheproductisalreadyinstalledanditisnotconveniettousethe one-clickinstallation.

AXISInternetDynamicDNSService

AXISnterneDynamidDNServiceassignshostnamefoeasyaccesstdthproductFomoreinformationsewww.axiscam.net

To regist the Axis product with AXIS Interne Dynamic DNS Service System Options Network TCP/IPBasid Under Services click the AXIS Interne Dynamic DNS Service Setting button (requires access to Internet) The domain name currently registered at AXIS Internet Dynamic DNS service for the product can at any time be removed.

Note

AXISInternetDynamicDNSServicerequiresIPv4.

AdvancedTCP/IPSettings

DNSConfiguration

DNSDomainNamServiceprovideshtranslationofhostnameidAddressesTheDNSettingsareconfiguredundecSystem Options>Network>TCP/IP>Advanced.

SelectObtainDNServeaddress via DHCP to the DNSetting provided by the DHCP server.

TomakemanuasettingsselectUsethe followingDNServeaddressandspecifythe following:

DomainamEntethelomain(s)searchfothenoshamusedbytheAxiproductMultipledomainsarbeseparated by semicolonsTheoshnameiswaythefirsparbfullyqualifieddomainameforexamplenyserverithoshamerthefullyqualifieddomainamenyserver.mycompany.comwheremycompany.comthelomainame.

Primary/SecondaryDNServerEntethAddressofthprimaryandsecondaryDNServerThesecondaryDNServes optionalandwillbeusediftheprimaryisunavailable.

NTPConfiguration

NTP(NetworkTimeProtocol)isusedtosynchronizetheclocktimesofdevicesinanetwork.TheNTPsettingsareconfiguredunder SystemOptions>Network>TCP/IP>Advanced.

SelectObtainNTBerveaddress via DHCP, use the NTBetting provided by the DHCP server.

TomakmanuasettingsselectUsethfollowingNTBerveaddressandentethnosthamofAddressoftheNTBerver.

HostNameConfiguration

TheAxisproductcanbeaccessedusingahostnameinsteadofanIPaddress.ThehostnameisusuallythesameastheassignedDNS nameThehostnameconfiguredundesystemOptionsNetworkTCP/IPAdvanced.

SelectObtainmoshamviaPv4DHCR@shoshamprovidedbytheDHCServerunningrlPv4.

SelectUsethehostnametosetthehostnamemanually.

SelectEnablDynamiDNSUpdates dynamically update docaDNServers whenever the Axis product's Paddress changes.

Formoreinformation,seetheonlinehelp

Link-LocalIPv4Address

Link-LocalAddress enabled default assignment the product additional address which can be used to access the product from other hosts on the same segment on the local network. The product can have a Link-LocalIPandastic or DHCP-suppliedIPaddressatthesametime.

This function can be disabled under System Options Network TCP/IP Advanced.

HTTP

The HTTP port used by the Axiproductar be changed under SystemOptionsNetworkTCP/IP Advanced addition the default setting, which is 80, any port in therange 1024-65535 can be used.

HTTPS

The HTTPSportused by the Axi product are changed under SystemOptions Network TCP/IP Advanced addition to the default setting, which is 443, any portion in the range 1024-65535 can be used.

TenableHTTPSgdsystemOptionsSecurityHTTPSFomoreinformationsedHTTPSpage44.

NATtraversal(portmapping)forIPv4

Anetworkrouterallowsdevicesonaprivatenetwork(LAN)toshareasingleconnectiontothelnternet.Thisisdonebyforwarding networktrafficfromtheprivatenetworktothe"outside",thatis,theInternet.Securityontheprivatenetwork(LAN)isincreased sincemostroutersarepre-configuredtostopattemptsstoaccesstheprivatenetwork(LAN)fromthepublicnetwork(Internet).

Use NATraversawhetherAxiproductslocatedbrarintranet(LAN)andyouwishtomakitavailabfromthe(WAN)side ofaNATrouter.WithNATtraversalproperlyconfigured,allHTTPtraffictoanexternalHTTPportintheNATrouterisforwardedto theproduct.

NATraversalsconfiguredindeSystemOptionsNetworkTCP/IPAdvanced.

Note

• ForNATtraversaltowork, this must be supported by the router. Therouter must also support UPnP
  TM.
• In this context, router refer to an any network routing devices such as NATrouter, Networkrouter, Internet Gateway, Broadbandrouter, Broadband sharing device, or as softwares such as firewall.

Enable/DisableWhenenabledtheAxiproductattemptsconfigurportmappingnAToutepryournetworkusingUPnP NotethatUPnP™ mustbeenabledintheproduct(seeSystemOptions>Network>UPnP).

TM.

Usmanually selected NATouteSelect this option manually select NAToute and the address that the route in the field. If norouter is specified, the product automatically searches for NATrouterson your network. If more than one router is found, the default router is selected.

Alternative HTTP port Select this option manually defines external HTTP Port Enter port the range 024-65535. The portfield isempty or contains the default setting, which is 0, a port number is automatically selected when enabling NAT traversal.

Note

• AnalternativeHTTPportcanbeusedorbeactiveevenifNATtraversalisdisabled. ThisisusefulifyourNATrouterdoesnot supportUPnPandyouneedtomanuallyconfigurereportforwardingintheNATrouter.
• If you attempt to manually enter a port that is already in use, another available port is automatically selected.
  WherthportselectedautomaticallyitsdisplayedthisfieldTochangthisentenewportnumberandclickSave.

FTP

TheFTPserverrunningintheAxisproductenablesuploadofnewfirmware,userapplications,etc.TheFTPservercanbedisabled underSystemOptions>Network>TCP/IP>Advanced.

Note

ThisFTPserverhasnothingtodowiththeproduct'sabilitytotransferimagesviaFTPtootherlocationsandservers.

RTSP

TheRTSPserverrunningintheAxisproductallowsaconnectingclienttostartanH.264stream.TheRTSPportnumbercanbe changedindeSystemOptionsNetworkTCP/IPAdvancedThedefaultport554.

Note

H.264videostreamswillnotbeavailableiftheRTSPserverisdisabled.

SOCKS

SOCKSisanetworkingproxyprotocol.TheAxisproductcanbeconfiguredtouseaSOCKSserververtoreachnetworksontheother sideofafirewallorproxyserver.ThisfunctionalityisusefuliftheAxisproductislocatedonalocalnetworkbehindafirewall,and notifications,uploads,alarms,etcneedtobesenttoadestinationoutsidethelocalnetwork(forexamplethelnternet).

SOCKSconfigured under System Options Network SOCKS from more information set the online help

QoS(QualityofService)

QoS(QualityofService)guaranteesacertainlevelofaspecifiedresourcetoselectedtrafficonanetwork.AQoS-awarenetwork prioritizesnetworktrafficandprovidesagreaternetworkreliabilitybycontrollingtheamountofbandwidthanapplicationmayuse.

The DoSettings are configured under SystemOptions Network. QoS Using DSCI Differentiated Service Codepoint values the Axisproduct can mark different types of traffic.

SNMP

TheSimpleNetworkManagementProtocol(SNMP) allows remotemanagementofnetworkdevices.AnSNMPcommunityisthe groupofdevicesandmanagementstationrunningSNMP.Communitynamesareusedtoidentifygroups.

AXISVideoMIB(ManagementInformationBase)forvideohardwarecanbeusedtomonitorAxis-specific,hardware-related issuesthatmayneedadministrativeattention. FormoreinformationaboutAXISVideoMIBandtodownloadMIBfiles,goto www.axis.com/techsup

Tenable and configure SNMPth the Axi product get th System Options Network SNMP page.

Dependingonthelevelofsecurityrequired,selecttheversiononSNMPtouse.

Trapareused by the Axis product send messages to management system important events and status changes Check Enable traps and enter the address where the trap message should be sent and the trap community that should receive the message.

Note

If HTTPSisenabled, SNMPv1 and SNMPv2 should be disabled.

TrapfoSNMR1/v2areused by the Axiproduct send messages to management system important events and status change. Check Enable trap and the address where the trap message should be sent and the community that should receive them message.

The followingtrapsareavailable:

•Coldstart
•Warmstart
- Linkup
- Authenticationfailed

Note

AllAXISVideoMIBtrapsareenabledwhenSNMPv1/v2ctrapsareenabled.Itisnotpossibletoturnonoroffspecifictraps.

SNMR3 provides encryption and secure passwords to strap with SNMR3 and SNMR3 management application required.

TousSNMR3HTTPSmustenablededsedHTTPSorpage4tenableSNMR3checkboxanprovidthenitialuser password.

Note

The initial password can only be set once. If the password is lost, the Axis product must be reset to factory default, see ResettoFactoryDefaultSettingspage55.

UPnP ^TM

TheAxisproductincludessupportforUPnP ^TM .UPnP ^TM isenabledbydefaultandtheproductisautomaticallydetectedbyoperating systemsandclientsthatsupportthisprotocol.

UPnP ^TM canbedisabledunderSystemOptions>Network>UPnP

RTP/H.264

The RTportangandmulticastettings are configured under SystemOptionsNetworkRTP.

The RTP portranged defines the range of ports from which the video ports are automatically selected. Form multicast streams, only certain IP addresses and port numbers should be used.

SelectAlwayMulticastVidedstartmulticaststreamingwithoutpeningarRTSBession.

Bonjour

TheAxisproductincludessupportforBonjour.Bonjourisenabledbydefaultandtheproductisautomaticallydetectedbyoperating systemsandclientsthatsupportthisprotocol.

BonjourcanbedisabledunderSystemOptions>Network>Bonjour.

Storage

SDCard

NOTICE

Topreventdatacorruption, the SDcardshouldbeunmountedbeforeremoval.

Note

ForSDcardrecommendationssee www.axis.com

TheAxisproductsupportsmicroSD/microSDHC/microSDXCcards.

The following SDcardfilesystemsaresupported:

ext4-recommendedluditsresiliencagainstlatalosifhecardsjectediftherebruppowelosstaccess datastoredonthecardfromtheWindowsoperatingsystem,athird-partyext4driverorapplicationisrequired.
• vFAT—supportedbymostoperatingsystemsforpersonalcomputers.

The SDcardsmanagedorthSystemOptionsStoragePageClickSICardopenStorageManagement.

If he card's tatushows a failed click Check disk to see if problem car found and her try Repair this option only available for SD cards with next 4. For SD cards with v FAT, use acard reader or computertot roubles hoot the card.

T avoid filling the card is recommended to remove recordings continuously. UndeGenera Settings select Remove recordings older than and select then number of days or weeks.

Tstopwriting the card an protectecording from being removed select Lockunde Genera Settings.

MountandUnmountSDCard

NOTICE

Topreventcorruptionofrecordings,theSDcardshouldalwaysbeunmountedbeforeitisejected.

TheSDcardisautomaticallyymountedwhenthecardisinsertedintotheAxisproductorwhentheproductisstarted.Amanual mountisonlyrequiredifthecardhasbeenunmountedandnotejectedandre-inserted.

TounmounttheSDcard:

OpertheAxiproduct'swebpagesandSetupSystemsOptionsStorage.

2.ClickSDCard.

3.ClickUnmount.

1. The card can now be removed.

FormatSDCard

NOTICE

FormattingtheSDcardwillremovealldataandrecordingsstoredonthecard.

TheAxisproductcanbeconfiguredtoautomaticallyformatSDcardsthataareinsertedintotheproduct.lfautoformatisenabledandanSDcardisinserted,theproductwillcheckiftheSDcardhastheext4filesystem.Ifthecardhasadifferentfilesystem,thecardwillautomaticallybeformattedtoext4.

Important

Ifautoformatisenabled,onlyuseneworemptySDcards.Anydatastoredonthecardwillbelostwhenthecardisinserted intotheAxisproduct.

Toenableautomaticformatting, followthesesteps:

OpertheAxisproduct'swebpagesandSetupSystemsOptionsStorage.

2.ClickSDCard.

UndeGeneraSettingsselectAutoformato.

4.ClickOKtosavesettings.

AnSDcardinsertedintotheproductcanbemanuallyformattedtooneofthesupportedfilesystems.Tomanuallyformatthe SDcard,followthesesteps:

1. Insert the SD card in the SD card slot.

OpertheAxisproduct'swebpagesandSetupSystemsOptionsStorage.

3.ClickSDCard.

1. ClickFormatandselectthedesiredfilesystem.

5.ClickOKtostartformattingthecard.

EncryptSDCardData

Topreventunauthorizedindividualsandsystemstoaccessrecordedvideo,theSDcardcontentcanbeencrypted.Encryptioncanonly beenabledwhenthecardisunmounted.Afterenablingencryption,theSDcardmustbeformattedsothatnounencrypteddata remainonthecard.Thecardmustalsobemountedbeforeitcanbeused.

Note

Ifautoformatisenabled, thecardwillbeformattedandmountedautomaticallywhenencryptionisenabled. The format and mountsteps below should then beskipped.

ToencrypttheSDcardcontent:

OpertheAxisproduct'swebpagesandSetupSystemsOptionsStorage.

Click CardoperStorageManagement.

1. If the SD card is mounted, click Unmounttounmountthecard.

4.ClickEncrypt.

1. SelectEnableSDcardencryptionandenterapassphrase.

2. BackinStorageManagement, clickFormattoformattheSDcard.

7.ClickMounttomounttheSDcard.

It possible changing the passphrase without e formatting the card Open Storage Management clic Encrypted ethold and new passages. The passphrase can only be changed when the card is mounted. Ongoing recordings will not be affected if the passphrase is changed.

Talisable encryption unmounted Card and follow the steps above but leath Enable Card encryption option The card must be formatted and mounted when encryption has been disabled.

NetworkShare

NetworkshareallowsyoutoaddnetworkstoragesuchasaNAS(network-attachedstorage).TheNASshallbededicatedfor recordingsanddatafromtheAxisproductsconnectedtothenetwork.ForinformationaboutreferenceNASdevices,goto www.axis.com/products/axis-camera-companion/support-and-documentation

Note

ForNASrecommendationsseewww.axis.com

Toaddanetworkshare:

1. GotoSystemOptions>Storage.
   2.ClickNetworkShare.
   3.EntertheIPaddress,DNSorBonjourametothehostserverintheHostfield.
   4.EnterthenameoftheshareintheSharefield.Subfolderscannotbeused.

I ^s required ^e selectTheshare requires ogirandentethusenamananspassword.

6.ClickConnect.

TeleaalrecordingsandatafromtheAxiproduct'soldeorthdesignatedshareclickCleaundeStorageTools.

To avoid filling the share if recommended remove recordings continuously Under Recording Settings; select Remove recordings older than and select then number of days or weeks.

Tstopwriting@shareanprotectecordingfrombeingemovedselectLockundeRecordingSettings.

Maintenance

The Axis product provides several maintenance functions. These are available under System Options Maintenance.

ClickRestart perform correct start the Axiproducts nobehaving expected This will have affected the current settings.

Note

ArestartclearsallentriesintheServerReport.

ClickRestoreresetmostsettingsdhfactorydefaultvaluesThefollowingsettingsarenotaffected:

• thestaticIPaddress
• thedefaultrouter
• thesubnetmask
• thesystemtime
  • theIEEE802.1Xsettings

•thebootprotocol(DHCPorstatic)

•thefocusposition
- uploadedapplicationsarekeptbutmustberestarted

ClicDefaultresetsettingsincludinghdAddressdthefactorydefaultvaluesThisbuttonshouldusedwithcautionTheAxiproductaralsdresetfactorydefaultusinghcontrobuttonsedResetFactoryDefaultSettingspage55.

Toesethoptics, click Calibrate under System Options Maintenance Optics This may be necessary situations where the optics has lost its calibration during transportor has been exposed to extreme vibrations. If necessary configure focus and zoom again (see Basic Setup on page 15).

Forinformationaboutfirmwareupgrade,seeUpgradetheFirmwareonpage56.

Support

SupportOverview

The SystemOptionsSupportSupportOverviewpage provides information on troubleshooting and contact information, should you require technical assistance.

See also Troubleshooting on page 56.

SystemOverview

Together overview of the Axis product's status and settings and System Options Support System Overview Information that can be found here includes firmware version, IP address, network and security settings, event settings, imagesettings and recent log items. Many of the captions are linked to the proper setup page.

Logs&Reports

ThSystemOptionsSupportLogReportpaggeneratelogsandeportusefufosystemanalysisandroubleshootingf contactingAxisSupport,pleaseprovideavalidServerReportwithyourquery.

SystemLog-Providesinformationaboutsystemevents.

AccesLogists failed attempts to access the product The AccesLogans also configured distal connections the product (see below).

ServeReport Provides information about the product status: pop-up window The Access Log automatically included in the Server Report.

Youcanviewordownloadtheserverreport.Downloadingtheserverreportcreatesa.zipfilethatcontainsacompleteserverreport texfileUTF-formatSelectdIncludsnapshowwithdefaultmagsettingsoptionincludesnapshobfthproductlive View.Theserverreport.zipfileshouldalwaysbeincludedwhencontactingsupport.

ParametelisShowProduct parameters and their current setting This may prove useful when troubleshooting or when contacting AxisSupport.

ConnectionList-Listsallclientsthatarecurrentlyaccessingmediastreams.

CrashReport-Generatesanarchivewithdebugginginformation.Thereporttakesseveralminutestogenerate.

Advanced

Scripting

Scriptingallowsexperienceduserstocustomizeandusetheirownscripts.

NOTICE

ImproperusemaycauseunexpectedbehaviorandlossofcontactwiththeAxisproduct.

Axisstronglyrecommendsthatyoudonotusethisfunctionunlessyouunderstandtheconsequences.AxisSupportdoesnotprovide assistanceforproblemswithcustomizedscripts.

To Perth Script Editor and System Options Advanced Scripting Scriptause problems, reset product of factory default settings, see page 55.

Formoreinformation,seewww.axis.com/developer

FileUpload

Files,forexamplewebpagesandimages,canbeuploadedtotheAxisproductandusedascustomsettings.Tuploadafile,go toSystemOptions>Advanced>FileUpload.

Uploadedfile accessed through http:///local//wherethe selectedusergroup(viewer, operatoror administrator)for the uploaded file.

PlainConfig

PlainConfigisforadvanceduserswithexperienceofAxisproductconfiguration.Mostparameterscanbesetandmodifiedfrom thispage.

TooperPlainConfigdSystemOptionsAdvancedPlainConfigAxisSupportdoesnoprovideassistance.

ResettoFactoryDefaultSettings

Important

Resettofactorydefaultshouldbeusedwithcaution.Aresettofactorydefaultwillresetallsettings,includingtheIP address,tothefactorydefaultvalues.

Note

The installation and management software tools are available from the support pages on www.axis.com/techsup

Toresettheproducttothefactorydefaultsettings:

1. Disconnectpowerfromtheproduct.
   PresandholdthecontrobuttonandreconnectpowerSeeHardwareOvervieworpag
2. Keep the control button pressed for 15–30 seconds until the status LED indicator flashes amber.
3. Releasethecontrolbutton. The process is complete when the status LED indicator turns green. The product has been reset td hefactorydefaultsettings in DHCServer available on the network the default address is 92.168.0.90
4. Using the installation and management software tools, assign an IP address, set the password, and access the videostream.

It's possible to re parameters factory default via web interface Gdo Setup System Options Maintenance and clickDefault.

Troubleshooting

ChecktheFirmware

Firmwareissoftwarethatdeterminesthefunctionalityofnetworkdevices.Oneofyourfirstactionswhentroublershootingaproblem shouldbetocheckthecurrentfirmwareversion.Thelatestversionmaycontainacorrectionthatfixesyourparticularproblem.The currenfirmwareversiontheAxiproductsdisplayedthepagSetupBasiSetupandrSetupAbout.

UpgradetheFirmware

Important

• Yourdealerreservestherighttochargeforanyrepairattributabletofaultyupgradebytheuser.
• Preconfiguredandcustomizedsettingsaresavedwhenthefirmwareisupgraded(providingthefeaturesareavailableinthenewfirmware)althoughthisisnotguaranteedbyAxisCommunicationsAB.

Note

• Aftertheupgradeprocesshascompleted, theproductwillrestartautomatically. Ifrestartingtheproductmanuallyafterthe upgrade, wait10minutesevenifyoususpecttheupgradehasfailed.
• When you upgrade the Axis product with the latest firmware from Axis website, the product receives the latest functionality available. Always read the upgrade instructions and releases notes available with each new release before upgrading the firmware.

Toupgradetheproduct'sfirmware:

1. Download the latest firmware file to your computer, available free of charge at www.axis.com/techsup
2. GotoSetup>SystemOptions>Maintenanceintheproduct'swebpages.
   UndeUpgradServeryclicBrowseandocatchfileyourcomputer.
   4.ClickUpgrade.
3. Wait approximately 10 minutes while the product is being upgraded and restarted. Then access the product.

AXIScameralManagementarbeusedomultiplupgradesSeewww.axis.comfromoreinformation.

EmergencyRecoveryProcedure

If powerornetworkconnectionislostduringtheupgrade, the process fails and the product may become unresponsive. Flashing redStatusindicator indicates a failed upgrade. Torecover the product, follow the steps below. The serial number is found on the product's label.

1. In UNIX/Linux, typethefollowing from the commandline:

arp-s<IPaddress><serialnumber>temp
ping-1408<IPaddress>

In Window styp ch following from command/DO prompt(this may require that your the command prompts an administrator):

arp-s<IPaddress><serialnumber>
ping-1408-t<IPaddress>

1. If the product does not reply in 30 seconds, restart it and wait for areply. Press CTRL + Ctstop Ping.

Openbrowseandyparthproduct'sAddressrthepagdhabpensustheBrowsbuttontoselectheupgrade filetouse.ThenclickLoadtorestarttheupgradeprocess.

1. After the upgrade is complete (1–10 minutes), the product automatically restarts and shows a steady green on the Status indicator.
2. Reinstall the product, referring to the Installation Guide.

If the emergency recovery procedure does not get the product up and running again, contact Axissupport at www.axis.com/techsup/

Symptoms, Possible Causes and Remedial Actions

ProblemssettingtheIPaddress
WhenusingARP/Ping	Trytheinstallationagain.TheIPaddressmustbesetwithintwominutesafterpowerhasbeen appliedtotheproduct.EnsurethePinglengthissetto408.Forinstructions,seeAssignIPAddress UsingARP/Pingonpage46.
Theproductislocatedona differentsubnet	IfthelPaddressintendedfortheproductandthelPaddressofthecomputerusedtoaccessthe productarelocatedondifferentsubnets,youwillnotbeabletosethelPaddress.Contactyour networkadministratortoobtainanIPaddress.
ThelPaddressisbeingused byanotherdevice	DisconnecttheAxisproductfromthenetwork.RunthePingcommand(inaCommand/DOS window,typepingandthelPaddressoftheproduct):Ifyoureceive:Replyfrom:bytes=32;time=10... thismeansthatthelPaddressmayalreadybeinusebyanotherdeviceonthenetwork. ObtainanewIPaddressfromthenetworkadministratorandreinstalltheproduct.Ifyoureceive:Requesttimedout,thismeansthatthelPaddressisavailable forusewiththeAxisproduct.Checkallcablingandreinstalltheproduct.
PossibleIPaddressconflict withanotherdeviceonthe same subnet.	ThestaticIPaddressintheAxisproductisusedbeforetheDHCPserversetsadynamicaddress. ThismeansthatifthesamedefaultstaticIPaddressisalsousedbyanotherdevice,theremay beproblemsaccessingtheproduct.
Theproductcannotbeaccessedfromabrowser
Cannotlogin	WhenHTTPSisenabled,ensurethatthecorrectprotocol(HTTPorHTTPS)isusedwhenattempting todognYoumayneedmanuallytypehttporthpithebrowser'saddressfield.Ifthepasswordfortheuserrootislost,theproductmustberesettothefactorydefaultsettings.SeeResettoFactoryDefaultSettingspage55.
ThelPaddresshasbeen changedbyDHCP	IPaddressesobtainedfromaDHCPserveraredynamicandmaychange.IfthelPaddresshas beenchanged,useAXISIPUtilityorAXISCameraManagementtolocatetheproductonthe network.Identifytheproductusingitsmodelorserialnumber,orbytheDNSname(ifthename hasbeenconfigured).Ifrequired,astaticIPaddresscanbeassignedmanually.Forinstructions,seethedocumentAssign andIPAddressandAccesstheVidestramorAxisSupportwebatwww axis.com/techsup.
Certificateerrorwhenusing IEEE802.1X	Forauthenticationtoworkproperly,thedateandtimesettingsintheAxisproductshouldbe synchronizedwithanNTPserver.SeeDate&Timeonpage45.
Theproductisaccessiblelocallybutnotexternally
RouterconfigurationToconfigureyourroutertoallowincomingdatatrafficitotheAxisproduct,enabletheNAT-traversal featurewhichwillattempttoautomaticallyconfiguretheroutertoallowaccesstotheAxis productsedNATtraversa(portmapping)forIPv4brpage49TheroutermustsupportUPnP	TM.
Firewallprotection	ChecktheInternetfirewallwithyournetworkadministrator.
Defaultroutersrequired	CheckifyouneedtoconfiguretheroutersettingsfromSystemOptions>Network>TCP/IP>Basic.

ProblemswithstreamingH.264

ProblemswithAXISMedia Control(InternetExplorer only)	ToenabletheupdatingofvideoimagesinInternetExplorer,setthebrowsertoallowActiveX controls.Also,makesurethatAXISMediaControlisinstalledonyourcomputer.
NoH.264displayedinthe client	CheckthattherelevantH.264connectionmethodsandcorrectinterfaceareenabledintheAMC ControlPanel(streamingtab).SeeAXISMediaControl(AMC)onpage 13.IntheAMCControPaneSelectdH.264andLlicSetdefaultH.264decoder.CheckthatRTSRenabledundeSystemOptionsNetworkTCP/IPAdvanced.
MulticastH.264only accessiblebylocalclients	Checkifyourroutersupportsmulticasting,orifteroutersettingsbetweentheclientandthe productneedtobeconfigured.TheTTL(TimeToLive)valuemayneedtobeincreased.
NomulticastH.264 displayedintheclient	CheckwithyournetworkadministratorthatthemulticastaddressesusedbytheAxisproduct arevalidforyournetwork.Checkwithyournetworkadministratortoseeifthereisafirewallpreventingviewing.
PoorrenderingofH.264 images	Ensurethatyourgraphicscardisusingthelatestdriver.Thelatestdriverscanusuallybe downloadedfromthemanufacturer'swebsite.
Colorsaturationisdifferent inH.264andMotionJPEG	Modifythesettingsforyourgraphicsadapter.Refertoheadapter'sdocumentationformore information.
Lowerframeratethan expected	SeePerformanceConsiderationsonpage61.Reducethenumberofapplicationsrunningontheclientcomputer.Limitthenumberofsimultaneousviewers.Checkwiththenetworkadministratorthatthereisenoughbandwidthavailable.CheckintheAMCControlPanel(H.264tag)thatvideoprocessingisNOTsettoDecodeonly keyframes.Lowertheimageresolution.Themaximumframespersecondisdependentontheutilityfrequency(60/50Hz)oftheAxis product.SeeTechnicalSpecificationsonpage59.

Videoandimageproblems,general

Imageunsatisfactory	CheckthevidestreamandcamersettingsundesetupVideoVideStreamandSetup>Video>CameraSettings.
Storageanddiskmanagementproblems
Storagedisruption	Astoragedisruptionalarmissentifastoragedeviceisunavailable,removed,full,lockedorifotherreadwriteproblemsoccurToidentify thesourceoftheproblemcheckSystemLogunderSystemOptions>Support>Logs&Reports.Dependingontheproblem,itmightbenecessaryto re-mountthestoragedevice.Forinformationonhowtosetupastoragedisruptionalarm,seeEventsonpage35.
Videocannotberecorded	CheckthattheSDcardisnotwriteprotected(thatis,readonly).
SDcardcannotbemountedReformattheSDcardandthenclickMount.

NOTICE

Formattingthecardwillremoveallcontent,includingallrecordings,fromtheSDcard.

TechnicalSpecifications

Camera
Imagesensor	ProgressivescanRGBCMOS1/2.8"
LensVarifocal,2.8-10mm,F1.6Horizontalfieldofview:92°-33°Verticalfieldofview:49°-20°Remotefocusandzoom,P-Iriscontrol,IRcorrected
DayandnightAutomaticallyremovableinfrared-cutfilter
Minimumillumination	Color:0.3lux,F1.6B/W:0.06lux,F1.6
Shuttertime	1/33500sto2s
Cameraangleadjustment	Pan±180°,Tilt90°,Rotation±95°
Video
Videocompression	H.264(MPEG-4Part10/AVC)Baseline,MainandBaselineProfileMotionJPEG
Resolutions	1280x960to160x90
Framerate	Upto25/30fpswithpowerlinefrequency50/60HzinalIresolutions
Vidostreaming	Multiple,individuallyconfigurablestreamsinH.264andMotionJPEGControllableframerateandbandwidth,VBR/MBRH.264
Multi-viewstreaming	2individuallycroppedoutviewareas
Imagesettings	Compression,Color,Brightness,Sharpness,Contrast,Whitebalance,Exposurecontrol(includingautomaticgain control),Exposurezones,Backlightcompensation,Finetuningofbehavioratlowlight,WDR-DynamicContrast, Textandimageoverlay,Mirroringofimages,PrivacymaskRotation:0°,90°,180°,270°,includingCorridorFormat
Pan/Tilt/Zoom	DigitalPTZ
Network
SecurityPasswordprotection,IPaddressfiltering,HTTPS authentication,Useraccesslog,CentralizedCertificateManagement	a encryption,IEEE802.1X a networkaccesscontrol,Digest
Supportedprotocols	IPv4/v6,HTTP,HTTPS a,SSL/TLS a,QoSLayer3DiffServ,FTP,CIFS/SMB,SMTP,Bonjour,UPnP TM,SNMPv1/v2c/v3(MIB-II),DNS,DynDNS,NTP,RTSP,RTP,SFTP,TCP,UDP,IGMP,RTCP,ICMP,DHCP,ARP,SOCKS,SSH
Systemintegration
ApplicationProgrammingInterface	OpenAPIforsoftwareintegration,includingVAPIX®andAXISCameraApplicationPlatform;specificationsatwww.axis.comAXISVideoHostingSystem(AVHS)withOne-ClickConnectionONVIFProfileS,specificationatwww.onvif.org
AnalyticsVideomotiondetection,ActivetamperingalarmSupportforAXISCameraApplicationPlatformenablinginstallationofAXISVideoMotionDetection3,AXISCrossLineDetection,AXISDigitalAutotrackingandthird-partyapplications,seewww.axis.com/acap
EventtriggersAnalytics,Edgestorageevents
Eventactions	Fileupload:FTP,SFTP,HTTP,HTTPS,networkshareandemailNotification:email,HTTP,HTTPS,TCPandSNMPtrapVideorecordingtoedgestoragePre-andpost-alarmvideobufferingSendvideoclipOverlaytext
Data streaming	Eventdata
Built-in installation aids	Remotezoom,Remotefocus,Pixelcounter
General
Casing	AluminuminnercameramodulewithencapsulatedelectronicsIP66-andNEMA4X-rated,IK10impact-resistant, polycarbonatecasingwithdehumidifyingmembraneColor:WhiteNCSS1002-BForrepaintinginstructionsofskincoverorcasingandimpactonwarranty,contactyourAxispartner.
SustainabilityPVCfree
Memory256MBRAM,128MBFlash
Power	PoweroverEthernetIEEE802.3af/802.3atType1Class3Max8.4W,Typical3.5W
Connectors	RJ4510BASE-T/100BASE-TXPoE
Storage	SupportformicroSD/microSDHC/microSDXCcardSupportforrecordingtodedicatednetwork-attachedstorage(NAS)ForSDcardandNASrecommendationsseewww.axis.com
Operating conditions	-30°Cto50°C(-22°Fto122°F)Humidity10to100%RH(condensing)
Storage conditions	-40°Cto65°C(-40°Fto149°F)
Approvals	EN55022ClassB,EN61000-6-1,EN61000-6-2,EN55024,EN50121-4,IEC62236-4,FCCPart15SubpartBClassA+B,ICES-003ClassB,VCCIClassB,C-tickAS/NZSCISPR22,KCCKN22ClassB,KN24,IEC/EN/UL60950-22,IEC60068-2-1,IEC60068-2-2,IEC60068-2-6Class4M4,IEC60068-2-27Class4M4,IEC60068-2-14,IEC60068-2-78Class4K3,IEC/EN60529IP66,NEMA250Type4X,IEC/EN62262IK10
Weight	790g(1.7lb)
Dimensions	101x149x149mm(4.0x5.9x5.9in)
Included accessories	InstallationGuide,Windowsdecoder1-userlicense,Mountingbracket,Cablegasket,ResistorxT20L-key,Drill templateWeathershield
Optional accessories	AXIST90BlluminatorsAXISACIConduitBracketAAXIST94T01DPendantKitincludingweathershieldAXIST94M01LRecessedMountAXIST94T01SMountingBracketAXIST91MountsAXIST98A17-VESurveillanceCabinet
Video management software	AXISCameraCompanion,AXISCameraStation,VideomanagementsoftwarefromAxis'ApplicationDevelopment Partnersavailableonwww axis.com/techsup/software
Languages	German,French,Spanish,Italian,Russian,SimplifiedChinese,Japanese,Korean,Portuguese
Warranty	Axis3-yearwarrantyandAXISExtendedWarrantyoption,seewww axis.com/warranty

aThisproductincludessoftwaredevelopedbytheOpenSSIProjectfousertheOpenSSIToolkit(www.openssl.org)andcryptographicsoftwarewrittenbyEricYoung([e-mail]).
Environmental responsibility:

www.axis.com/environmental-responsibility

PerformanceConsiderations

Whensettingupyour system, it is important to consider how various settings and situations will affect performance. Some factors affect the amount of bandwidth (the bitrate) required, others can affect the framerate, and some affect both. If the load on the CPU reaches its maximum, this will also affect the framerate.

The following factors are among them most important to consider:

• Highimageresolutionand/orlowercompressionlevelsresultinimagescontainingmoredata.Bandwidthaffected.
• AccessbylargenumbersofMotionJPEGand/orunicastH.264clients.Bandwidthaffected.
• Simultaneousviewingofdifferentstreams(resolution, compression)bydifferentclients.Effectonframerateand bandwidth.
• AccessingMotionJPEGandH.264videostreamssimultaneously.Framerateandbandwidthaffected.
• Heavyusageofeventsettingsaffecttheproduct'sCPUload.Framerateaffected.
• UsingHTTPSmayreduceframerate, inparticularifstreamingMotionJPEG.
• Heavynetworkutilizationduetopoorinfrastructure.Bandwidthaffected.
• Viewingonpoorlyperformingclientcomputerslowersperceivedperformance.Framerateaffected.
• RunningmultipleAXISCameraApplicationPlatform(ACAP)applicationssimultaneouslymayaffecttheframerateand thegeneralperformance.
