BEDIENUNGSANLEITUNG SD Pro 1 SENNHEISER
Premium Sound Quality
SD Pro 1

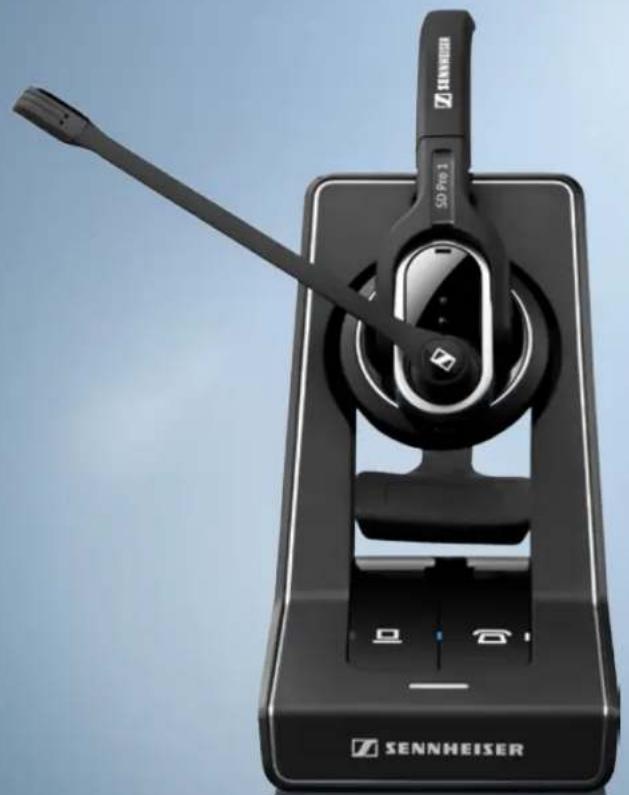

Single-sided DECT headset
Enjoy your calls in HD voice clarity and get natural high-definition sound for superior voice clarity. Work safe in the knowledge that the ActiveGard® technology will protect your hearing.
Imagine making every call in comfort, and being able to focus on what's important: the CONVERSATION.
Benefits and Features:
■ Iconic design – crafted for best comfort
■ Sennheiser HD voice clarity – wideband sound for natural listening experiences
- High comfort wearing styles - perfect adjustment to your ear for a full day wearing comfort
■ Ultra noise-canceling microphone filters out unwanted background noise
- One touch on the base station to select the channel you wish to call from - between desk phone and softphone
- Pairing for desk sharing and phone conferences – intuitive and easy to set up
- Microphone mute and volume up and down – intuitive user interface
■ Full workday talk time – 8 hours in wide-band sound mode and 12 hours in narrowband sound mode
■ Re-charge 50% of your battery in 20 minutes – intelligent fast charging
- Long distance wireless range – in typical office building: up to 180 ft and in line of sight: up to 590 ft
■ ActiveGard® technology – protects your hearing against acoustic shock
Product Information
| Product name | SD Pro 1 - US |
| Order name | SD 20 – US |
| EAN No. | 40 44155 08833 5 |
| UPC No. | 6 15104 24742 0 |
| Art. No. | 506007 |
| Technical Data | |
| DECT for US | DECT 6.0 (1.920 to 1.930 MHz) |
| GAP compatible | Yes (Headset) |
| Headset | Connect to Base |
| Base set | Connect to desk phone and softphone |
| Headset Auto Link to Base | Yes, can be activated on the base station |
| EHS (Electronic Hook Switch) | Yes (accessory – order EHS adapter separately) |
| Mechanical Hook Lifter | HSL 10 (accessory – order separately) |
| Soft phone call control Software | HeadSetup (included on CD) |
| Microphone | |
| Frequency response Wideband Mode | 150 Hz – 6.8 KHz |
| Frequency response Narrowband Mode | 300 Hz – 3.5 KHz |
| Mute Microphone | Yes |
| Speaker | |
| Speaker type | Neodymium Magnet Speaker |
| Frequency response Wideband Mode | 150 Hz – 6.8 KHz |
| Frequency response Narrowband Mode | 300 Hz – 3.5 KHz |
| All acoustic parts observe the TIA-920 wideband standards | |
Product Information
| General Data | |
| Operational temperature range | +41 °F to +113 °F |
| Storage temperature range | -4 °F to +158 °F |
| Weight Headset | 2.3 oz |
| Ear pad size | ø 1.96 inches |
| Battery (Lithium Polymer) | Exchangeable for service (see manual) |
| Personalization | Yes with nameplate on headset |
| Range – line of sight | 590 ft |
| Range – in typical office building | 180 ft |
| Automatic power adjustment | Yes (distance between headset and base) |
| Talk time in Wideband Mode | Up to 8 hours |
| Talk time in Narrowband Mode | Up to 12 hours |
| Stand by time | Up to 100 Hours |
| Auto – headset OFF when out of range | Yes ➔ after 30 minutes |
| Charge time 0 – 50% | 20 minutes |
| Charge time 0 – 100% | 1 hour |
| Packaging | |
| Package dimensions (H x W x D) | 6.5 x 6.3 x 6.3 in |
| Package weight | 30.27 oz |
| Units in distributor master carton | 8 |
| Master carton dimensions (H x W x D) | 14 x 15 x 15 in |
| Master carton weight | 18.63 lbs |
| Safety | |
| Automatic Acoustic Shock Protection | YES ➔ ActiveGard® |
| EU/AUS Limiter | YES ➔ Activation by dip switch |
| Delivery content | |
| ■ Headset (with name plate) | |
| ■ Base Station | |
| ■ Power supply | |
| ■ USB cable | |
| ■ Audio phone cable | |
| ■ Printed QuickGuide | |
| ■ CD with Manual, QuickGuide, nameplate template and HeadSetup Installation Program | |
| ■ Printed safety guide | |
| Accessories | |
| Order name Art. No EAN No. UPC No. | |
| EHS Avaya adaptor | CEHS-AV 03 504536 40 44155 081671 6 15104 23371 3 |
| EHS Avaya adaptor | CEHS-AV 04 504589 40 44155 087987 6 15104 24686 7 |
| EHS Avaya adaptor | CEHS-AV 05 506037 40 44155 090291 6 15104 25053 6 |
| EHS Snom adaptor | CEHS-SN 01 504101 40 44155 047394 6 15104 17408 5 |
| EHS Snom adaptor | CEHS-SN 02 504188 40 44155 074574 6 15104 22297 7 |
| EHS Alcatel adaptor | CEHS-AL 01 504102 40 44155 047400 6 15104 17422 1 |
| EHS Cisco adaptor | CEHS-CI 01 504103 40 44155 047417 6 15104 17423 8 |
| EHS Cisco adaptor | CEHS-CI 02 504533 40 44155 080230 6 15104 23183 2 |
| EHS Cisco adaptor | CEHS-CI 03 506038 40 44155 090307 6 15104 25054 3 |
| EHS Polycom adaptor | CEHS-PO 01 504104 40 44155 047424 6 15104 17424 5 |
| EHS DHSG adaptor | CEHS-DHSG 504105 40 44155 047431 6 15104 17425 2 |
| Mobile phone adaptor | CEHS-MB 01 506033 40 44155 089165 61 5104 24889 2 |
| EHS ShoreTel adaptor | CEHS-SH 01 504590 40 44155 088038 6 15104 24692 8 |
| Handset Lifter | HSL 10 500712 40 44156 012384 6 15104 11795 2 |
| Interface box for AEI EHS | TCI 01 500275 40 44156 001913 6 15104 10232 3 |
| Headset Charger | CH 10 504366 40 44155 050998 6 15104 18053 6 |
| Spare Headset Charger - USB | CH 10 USB 504365 40 44155 051001 6 15104 18055 0 |
| Multi USB Power Source | MCH 7 504348 40 44155 050820 6 15104 18030 7 |
| Single components | |
| Headset and base station can be purchased separately. This allows a 2nd headset to be added to any SD Series base station or used as a spare. | |
| Order name Art. No EAN No. UPC No. | |
| SD Pro 1, Headset | SD 20 HS 506001 40 44155 088274 6 15104 24732 1 |
| SD base set | SD BS - US 506021 40 44155 088472 6 15104 24769 7 |
| Base including power supply, audio cable and USB cable | |
Spare parts
Order name Art. No EAN No. UPC No.
Power supply US
UNI PS US 01 92893 40 12418 928933 6 15104 92893 0
Spare battery
DW BATT 03 504374 40 44155 051087 6 15104 18067 3
Earpad
HZP 27 DW 20+30 504350 40 44155 050844 6 15104 18032 1
Name plate set
Name plate set, SD 20+30 506062 40 44155 090727 6 15104 25154 0
Audio cable RJ 45 - RJ 9
RJ 45 - RJ9 - DW 504364 40 44155 050981 6 15104 18052 9
USB cable
USB cable - DW 504363 40 44155 050974 6 15104 18051 2
Mic foam
Spare Mic foam, DW 20/30 504362 40 44155 050967 6 15104 18049 9
Battery Lid
Battery Lid, DW Pro 1 504375 40 44155 051094 6 15104 18068 0
Fixation kit for Handset Lifter
Fixation kit - HSL10 504032 40 44155 046984 6 15104 17342 2
Experience Sennheiser
Perfection is always relative: Users have different expectations from their headsets depending on their needs. For professional users, that need is to communicate as effectively as possible.
With Sennheiser's range of headsets, the combination of exceptional HD sound, quality design and build – and a focus on real life usability - give the best performance possible in busy offices, call centers and Unified Communications environments.
Please visit us at: www.sennheiser.com/cco
SENNHEISER
Sennheiser is one of the world's leading manufacturers of headphones, microphones, wireless transmission systems and high-quality headsets for both business and entertainment.
Drawing on the electro acoustics expertise of Sennheiser and the leading hearing healthcare specialist William Demant, Sennheiser Communications' wireless and wired headsets for contact centers, offices and Unified Communications professionals are the result of Sennheiser's and William Demant's joint leadership in sound quality, design, wearing comfort and hearing protection.
For further information, please visit: www.sennheiser.com/cco
Sennheiser Communications A/S
Langager 6 · DK-2680 Solrød Strand · Denmark
