CLASS D MonoBlock Car Audio Amplifiers

Congratulations on your purchase of a BOSS AUDIO SYSTEMS Class D Amplifier.

It has been designed, engineered and manufactured to bring you the highest level of performance and quality, and will afford you years of listening pleasure.

Thank you for making BOSS AUDIO SYSTEMS your choice for car audio entertainment!

USER'S MANUAL

page

CONTENTS

2 Introduction
2 Features
3 What is included?
3 General precautions
3 Installation precautions
3 Mounting the amplifier
4 Connecting the amplifier
5 Important system considerations
5 Tips for a safe system
6 Low level input wiring
7 Speaker wiring
8 Power connections Normal and with Stiffening Capacitor
10 Bridging two R2400D or R3400D Amplifiers
12 Troubleshooting
13 Specifications

Introduction

With the BOSS Class D amplifier series, we are introducing two new CLASS D amplifiers, both designed in the USA.

These models feature variable low pass and subsonic filters and a variable input gain control. The R2400D and R3400D also incorporate a phase selector switch to help compensate for time delays in subwoofer applications.

For further flexibility in the use of a subwoofer, a variable 0-+18dB Bass Boost control has been included. You can control the subwoofer level with the remote level control module.

BOSS understands that amplifiers are placed in many different kinds of installations, so we have also included an input sensitivity control to help you integrate the amp into your system regardless of the nature of your input source.

A special feature on this Class D amp is DataLink circuitry, which allows you to "strap" together two R2400D's or two R3400D models for an astounding total maximum output power of 5000 watts, respectively.

Features

Your new amplifier features the following:

• Class D operation
  • MOSFET PWM (Pulse Width Modulated) Power Supply
  • One Ohm stable mono operation
  • Thermal, overload and speaker short protection
• Soft turn-on circuit
  • Remote turn-on/turn-off circuit
  • Variable input gain control
• Input voltage sensitivity selector
  • Variable subsonic filter: 15-40 Hz, 12dB/octave
  • Variable low pass filter: 50-150 Hz, 12dB/octave
  • Variable 0-+18dB Bass Boost
  • 0/180° Phase Shift selector
  • Nickel-plated RCA low level inputs
• Nickel-plated speaker and power terminals
  • LED power and protection indicators
• Black anodized heatsink
• Remote subwoofer level control

Notes

What is included?

When first unpacking your new amplifier, please check first that the package contains all of the items below. If something is missing, contact the store where you purchased the amplifier.

• Class D amplifier
• Remote subwoofer level control
• Remote subwoofer control cable
• DataLink cable (for strapping two identical Class D amps together)
  • Four (4) mounting screws

General precautions

Before installing and using your new BOSS amplifier, please become familiar with all the information contained in this manual.

Please keep this manual in a safe place for future reference.

- Do not open or attempt to repair this unit yourself. Dangerous high voltages are present which may result in electric shock. Refer any repairs to a qualified service technician.

• To avoid risk of electric shock or damage to the amplifier, do not permit any of this equipment to become damp or wet from water or drinks. If this does occur, immediately unplug the power wires and send the amplifier to your local dealer or service center as soon as possible.

- If there is smoke or any peculiar odor present during use or if there is damage to any of the component enclosures, immediately unplug the power cord and send the amplifier to your local dealer or service center as soon as possible.

Installation precautions

Before you drill or cut any holes, investigate your car's layout very carefully. Take special care when you work near the gas tank, fuel lines, hydraulic lines and electrical wiring.

Never operate the amplifier when it is unmounted. Attach all audio system components securely to prevent damage, especially in an accident.

Before making or breaking power connections in your system, disconnect the vehicle battery. Confirm that your head unit or other equipment is turned off while connecting the input jacks and speaker terminals.

If you need to replace the power fuse, replace it only with a fuse identical to that supplied with the amplifier. Using a fuse of a different type or rating may result in damage to your audio system or your amplifier which is not covered by the manufacturer's warranty.

Mounting the amplifier

1. Find a suitable location in the vehicle in which to mount the amplifier.
2. Make sure there is sufficient air circulation around the intended mounting location.

R2400D · R3400D Amplifier User's Manual - page 3

1. Mark the location for the mounting hole screws by positioning the amplifier where you wish to install it. Use a scribe or mounting screw, inserted through each of the amp's mounting holes, to mark the mounting surface. If the mounting surface is carpeted, measure the hole centers and mark with a felt tip pen.

2. Drill pilot holes in the mounting surface for the mounting screws. Place the amplifier in position, and attach the amplifier to the mounting surface securely using screws.

Connecting the amplifier

Before doing any wiring, look through this manual and identify the diagrams to follow for power, input and speaker connections for your particular installation. Be sure you understand all the connections before you proceed.

1. Connect the amplifier's power ground terminal to the closest point on the chassis of the car. Keep this ground wire to less than 39" (100 cm) in length. Use 4 gauge (or heavier) wire.

2. Connect the remote terminal to the remote output of the head unit using 16 gauge (or heavier) wire.

3. Connect an empty fuse holder within 18" (45 cm) of the car battery, and run 4 gauge (or heavier) cable from this fuse to the amplifier location.

The purpose of placing a fuse in this location is to protect your vehicle's battery in the event that this wire accidentally touches the chassis ground on its run to the amplifier.

1. Check that the fuse holder is empty. Then connect the fuse holder to the "BATT+" connection on the amplifier.

2. If multiple amplifiers are being used in your system, either:

- Run a separate pair of cables from the battery and a chassis ground point to each amplifier. Each (+) cable must have its own inline fuse. -or-

- Run a #0 cable from the fuse holder at the battery to a distribution block at or near the amplifier's location. Then run separate cables from the amplifier to this distribution block and to independent chassis ground points.

1. Connect all line inputs and outputs (if used) using high-quality cables. Connect all speakers, following the diagrams in this manual. Be sure to observe proper polarity to avoid audio phase problems.

2. Insert fuse(s) into the battery fuse holder(s).

3. Recheck all connections before powering up the amplifier.

4. Set all level controls to minimum position, and set all crossover controls/switches to the desired frequency points.

5. Power up the head unit and the amplifier. Then set the volume control on the head unit to about 3/4 volume, and adjust the amplifier's input level control(s) to just below the level of distortion.

6. Further fine tuning of the various controls may be necessary to obtain best results.

Specifications

CLASS D MonoBlock Car Audio Amplifier

MODEL	R2400D	R3400D
RMS POWER into 4 Ohms	650W x 1	1050W x 1
MAX POWER into 2 Ohms	1600W x 1	2000W x 1
MAX POWER into 1 Ohm	2400W x 1	3400W x 1
Min. speaker impedance	1 Ohm Mono	1 Ohm Mono
THD	0.01%	0.01%
Input impedance	20k Ohm	20k Ohm
Input sensitivity	Selectable 100mV-2V or 2V-8V	Selectable 100mV-2V or 2V-8V
Frequency response	15Hz-150Hz	15Hz-150Hz
Signal-to-noise ratio	>100dB	>100dB
Crossover/filter range low pass	50Hz-150Hz	50Hz-150Hz
subsonic	15Hz-40Hz	15Hz-40Hz
Bass Boost	Variable 0 ~+18dB	Variable 0 ~+18dB
Phase Shift	Selectable 0/180°	Selectable 0/180°
Fuse rating	35A x 2	40A x 3
Dimensions:	11.57"x10.43"x2.25" 13.54"x10.43"x2.25"

All specifications subject to change without notice.

Troubleshooting

If you experience operation or performance problems with this product, compare your installation with the electrical wiring diagram on the previous pages. If problems persist, read the following troubleshooting tips which may help eliminate the problems.

SYMPTOM
POSSIBLE REMEDY

Amplifier will not power up.	Check to make sure you have a good ground connection.Check that the Remote Input (Turn-On) has at least 3VDC.Check that there is battery power on the (+) terminal.Check that there is at least 12v.Check all fuses, replace if necessary.Make sure that the Protection LED is not illuminated. If it is lit, shut off the amplifier briefly, and then repower it.
Protection LED comes on when amplifier is powered up.	Check for short circuits on speaker leads.Turn down the volume control on the head unit to prevent overdriving.Remove speaker leads, and reset the amplifier. If the Protection LED still comes on, then the amplifier is faulty and needs servicing.
No output.	Check that all fuses are OK.Check that amplifier is properly grounded.Check that the Remote Input (Turn-On) has at least 3VDC.Check that the RCA audio cables are plugged into the proper inputs.Check all speaker wiring.
Low output.	Reset the Level Control.Check the Crossover Control settings.
Audio present in only one channel.	Check the RCA interconnect cables.Check all speaker wiring.
High hiss in the speakers.	Disconnect all RCA inputs to the amplifiers. If the hiss disappears, then plug in the component driving the amplifier and unplug its inputs. If the hiss disappears at this point, go on until the faulty/noisy component is found.It is best to set the amplifier's input level control as low as possible. The best subjective signal-to-noise ratio is achieved in this manner. Try to set the head unit as high as possible (without distortion) and the amp input level as low as possible.
Squealing noise from speakers.	Check for improperly grounded RCA interconnects.
Distorted sound.	Check that the Input Level Control is set to match the signal level of the head unit. Always try to set the Input Level as low as possible.Check that all crossover frequencies are properly set.Check for short circuits on the speaker leads.
Amplifier gets very hot.	Check that the minimum speaker impedance for the amp model is correct.Check that there is good air circulation around the amp. In some applications, it may be necessary to add external cooling fan.
Engine noise (static type)	This is usually caused by poor quality RCA cables,which can pick up radiated noise. Use only the best quality cables, and route them away from power cables.
Engine noise (alternator whine)	Check that speaker leads are not shorted to the vehicle chassis.Check that the RCA grounds are not shorted to the vehicle chassis.Check that the head unit is properly grounded.

Important installation considerations for using this amplifier.

Your Class D amplifier is designed to run with a minimum load of 1 Ohm.

Operating the R2400D or R3400D with a speaker impedance load below 1 Ohm may result in poor sound quality and damage to the amplifier circuitry. Such damage is not covered under the warranty for this product.

The fuse ratings for these amps is 70A (using two 35A fuses) for the R2400D and 120A (using three 40A fuses) for the R3400D.

Although sufficient for normal working conditions, overloading the amp may result in blown fuses. Please try to avoid overloading the amp in this manner.

Don't misuse the level control!

Do not mistake the input level control for a volume control! It is designed ONLY to match the output level of your audio source to the input level of your amplifier.

Do not adjust this input level to maximum unless your input level requires it.

Ignoring these instructions will result in an input overload to the amplifier, and excessive audio distortion. It can also cause the protection circuit to engage.

Tips for making your system as safe as possible

When making electrical connections to the amplifier, please observe the following:

• Always use 4GA or heavier wire for power and ground connections.
- Wire the amplifier directly to the car battery. Make sure there is circuit protection (such as a fuse) on the positive power lead within 18" of the battery.
- When making a ground connection, always use the shortest possible wire to a good chassis ground point.
- Wire the remote turn-on connection to the remote turn-on lead of your EQ or head unit. In some cases, this may be the power antenna lead of the head unit.
- Fuses protect BOTH the amplifier and the electrical system of your vehicle from faulty conditions. If you must replace a fuse on the amplifier, you must use a fuse of exactly the same type and rating. A different type of fuse or rating may result in damage or cause a fire.

SHOCK HAZARD! Do not open the case of this product. There are dangerous voltages present within the unit. There are no user-serviceable parts within the unit.

Low Level Input Wiring

Low-level (RCA) input wiring is preferred for best audio performance. Always use a high-quality RCA cable for best audio performance.

R2400D and R3400D

Remote Subwoofer Level Control BIOTS Sensitivity LEVEL SUBWELL FILTER LEFT LOW PRESS FILTER RIOUT SLOD 0 WINSLOCK POWER AMPLIUM RIOT To Audio Inputs of satellite amplifier (if present) 302S

To Audio Outputs of head unit or Subwoofer outputs of a signal processor

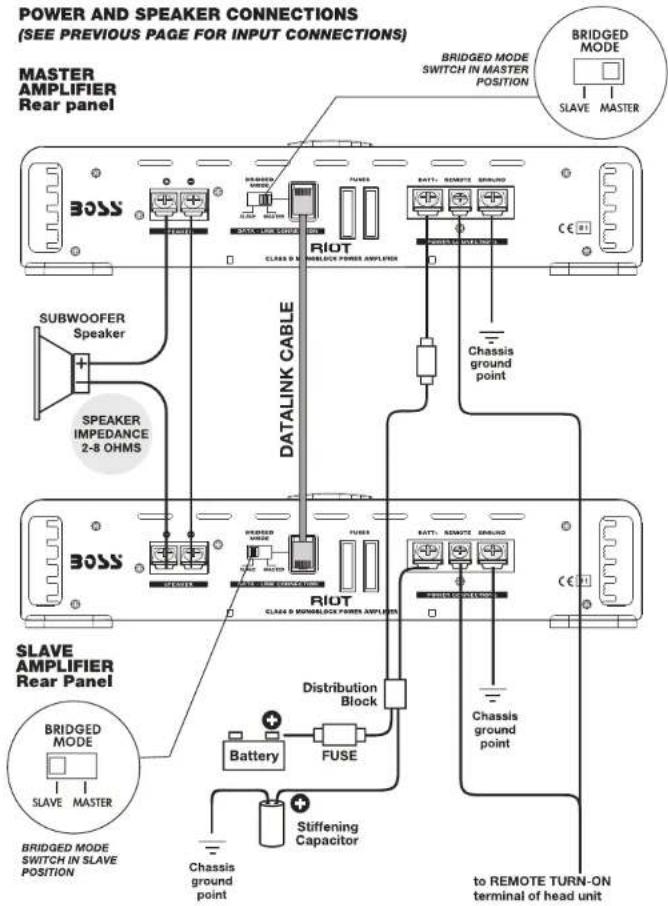

Bridging Two R2400D or R3400D Amplifiers

When bridging two R2400D or R3400D amplifiers, the minimum speaker impedance is 2 ohms.

POWER AND SPEAKER CONNECTIONS (SEE PREVIOUS PAGE FOR INPUT CONNECTIONS) MASTER AMPLIFIER Rear panel BRIDGED MODE SWITCH IN MASTER POSITION BRIDGED MODE SLAVE MASTER BOSS BIODER BIODER BIODER BIODER BIODER BIODER BIODER BIODER BIODER BIODER BIODER BIODER BIODER BIODER BIODER BIODER BIODER BIODER BIODER BIODER BIODER BIODER BIODER BIODER BIODER BIODDER BIODDER BIODDER BIODDER BIODDER BIODDER BIODDER BIODDER BIODDER BIODDER BIODDER BIODDER BIODDER BIODDER BIODDER BIODDER BIODDER BIODDER BIODDER BIODDER BIODDER BIODDER BIODDER BIODDER BIODDER BIODDED MODE SLAVE MASTER BRIDGED MODE SWITCH IN SLAVE POSITION BRIDGED MODE SWITCH IN SLAVE POSITION BRIOT DIATALINK CABLE DIALINK CABLE BRIOT DIATALINK CABLE BRIOT DIATALINK CABLE BRIOT DIATALINK CABLE BRIOT DIATALINK CABLE BRIOT DIATALINK CABLE BRIOT DIATALINK CABLE BRIOT DIATALINK CABLE BRIOT DIATALINK CABLE BRIOT DIATALINK CABLE BRIOT DIATALINK CABLE BRIOT DIATALINK CABLE BRIOT DIATALINK CABLE BRIOT DIATALINK CABLE BRIOT DIATALINK CABLE BRIOT DIATALINK CABLE BRIOT DIATALINK CABLE BRIOT DIATALINK CABLE BRIOT DIATALINK CABLE CASSIS GROUND POINT CASSIS GROUND POINT CASSIS GROUND POINT CASSIS GROUND POINT CASSIS GROUND POINT CASSIS GROUND POINT CASSIS GROUND POINT CASSIS GROUND POINT CASSIS GROUND POINT CASSIS GROUND POINT CASSIS GROUND POINT CASSIS GROUND POINT CASSIS GROUND POINT CASSIS GROUND POINT

Bridging Two R2400D or R3400D Amplifiers

INPUT CONNECTIONS

(SEE NEXT PAGE FOR POWER, SPEAKER AND DATALINK CONNECTIONS)

MASTER
AMPLIFIER
Front panel

BOSS SENSITIVE LEVEL SUBWATER FILTER LEFT LOW PRESS FILTER RASS PRESS PHASE RELATION POWER PROTECTION RIOT CLASS O MINILOCK POWER AMPLIUMER To Audio Outputs of head unit or Subwoofer outputs of a signal processor Remote Subwoofer Level Control

SLAVE
AMPLIFIER
Front Panel

BOSS SENSITIVITY LEVELS HIGH POWER SELECTOR INPUT CONTROLS SUBGRADE LEVELS HIGH POWER SELECTOR INPUT CONTROLS LOW OUT LEVELS POWER SELECTOR INPUT CONTROLS LOW OUT LEVELS POWER SELECTOR INPUT CONTROLS LOW OUT LEVELS POWER SELECTOR INPUT CONTROLS RIOT CLASS D INSHEE/LOCK FOURS AMPLIERS

PLEASE NOTE:

In this MASTER AMP/SLAVE AMP configuration, the Slave amp receives its audio signal from the Master Amp. Therefore, DO NOT USE THE INPUTS ON THE SLAVE AMP!

PLEASE NOTE:

In this MASTER AMP/SLAVE AMP configuration, the Slave amp receives its audio signal from the Master Amp. Therefore, DO NOT USE THE SUBWOOFER LEVEL CONTROL ON THE SLAVE AMP!

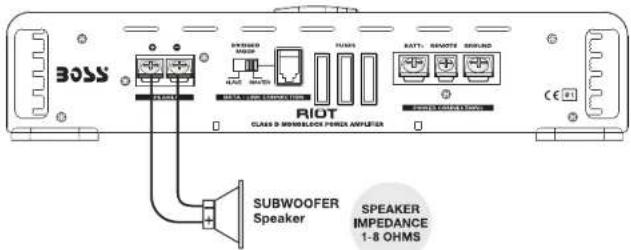

Speaker Connections

R2400D

BOSS RIOT CLASS & MUNIBLOCK POWER AMPLIERS SUBWOOFER Speaker SPEAKER IMPEDANCE 1-8 OHMS

R3400D

BOSS RIOT CLASS 2 MIMO/LOCK SWITCH AMPUER SUBWOOFER Speaker SPEAKER IMPEDANCE 1-8 OHMS

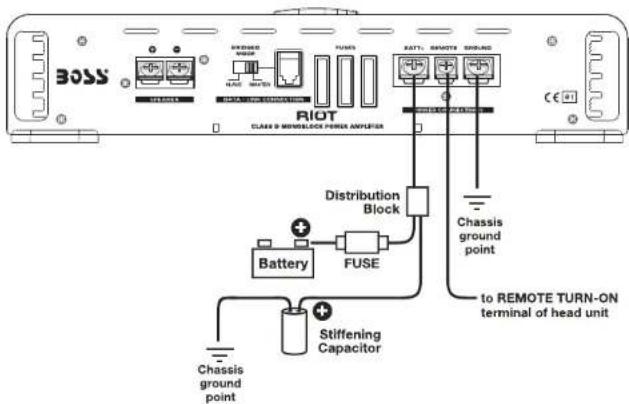

Power Connections
