Produkttyp	DVD-Player
Modell	DVH-1241
Marke	Denver
Abmessungen (B x T x H)	360 x 235 x 33 mm
Nettogewicht	1,5 kg
Stromversorgung	AC 100-240 V ~ 50/60 Hz, 15 W
Unterstützte Disc-Formate	DVD, VCD, HDCD, CD, DVD±R/RW, AVI, WMA, MP3, Kodak Picture CD
Videoausgänge	HDMI, Scart, Composite (Video), S-Video, YPbPr (Komponente)
Audioausgänge	5.1-Kanal, digital koaxial, digital optisch, 2x Cinch (L/R)
HDMI-Auflösungen	480p, 576p, 720p, 1080i, 1080p
Frequenzbereich (CD)	4 Hz - 20 kHz
Frequenzbereich (DVD)	4 Hz - 22 kHz (48 kHz Abtastung) / 4 Hz - 44 kHz (96 kHz Abtastung)
Signal-Rausch-Abstand	> 92 dB
Klirrfaktor (THD)	< 0,04 %
Videoausgangspegel	1 Vpp (75 Ω)
Audioausgangspegel	2 Vpp
USB-Anschluss	5V, 200 mA (kein Verlängerungskabel erlaubt)
Kartensteckplatz	SD/MMC/MS
Fernbedienung	Ja (IR, Reichweite ca. 45°)
Kindersicherung (Parental Control)	Ja, einstellbar mit Passwort (Standard 8888)
Reinigung	Gerät vor Reinigung vom Netz trennen; nur mit leicht feuchtem Tuch abwischen; keine Flüssigreiniger verwenden
Sicherheitshinweise	Nicht Regen oder Feuchtigkeit aussetzen; ausreichende Belüftung (min. 10 cm Abstand); Netzkabel nicht quetschen
Reparatur	Nur von qualifiziertem Servicepersonal; keine Selbstreparatur
Ersatzteile	Nur vom Hersteller freigegebene Teile verwenden

Häufig gestellte Fragen - DVH-1241 DENVER

Die Fernbedienung funktioniert nicht. Was soll ich tun?

Überprüfen Sie die Batterien und ersetzen Sie sie bei Bedarf. Richten Sie die Fernbedienung auf den IR-Sensor (max. 45°). Entfernen Sie Hindernisse zwischen Fernbedienung und Gerät. Falls weiterhin Probleme auftreten, schalten Sie das Gerät aus und wieder ein.

Das Gerät liest meine CD/DVD nicht ab. Woran liegt das?

Stellen Sie sicher, dass die Disc sauber und nicht verkratzt ist. Verwenden Sie nur unterstützte Formate (DVD, VCD, CD, MP3, etc.). Bei selbstgebrannten Discs kann es aufgrund unterschiedlicher Aufnahmeverfahren zu Lesefehlern kommen. Versuchen Sie, die Disc vorsichtig zu reinigen.

Wie schließe ich den DVD-Player per HDMI an den Fernseher an?

Verbinden Sie ein HDMI-Kabel (nicht im Lieferumfang) mit dem HDMI-Ausgang des Players und dem HDMI-Eingang des Fernsehers. Wählen Sie am Fernseher den HDMI-Eingang. Drücken Sie auf der Fernbedienung Setup → Video → HD-Auflösung und wählen Sie die gewünschte Auflösung (480p, 576p, 720p, 1080i, 1080p).

Wie reinige ich den DVD-Player richtig?

Ziehen Sie vor der Reinigung den Netzstecker. Verwenden Sie ein leicht feuchtes Tuch (keine nassen Tücher oder Reinigungssprays) und wischen Sie die Außenseite des Geräts ab. Achten Sie darauf, dass keine Flüssigkeit in das Gerät eindringt.

Wie kann ich die Kindersicherung (Parental Control) einstellen?

Drücken Sie Setup, dann Rating und wählen Sie Parental Control. Geben Sie den Standardcode 8888 ein. Wählen Sie die gewünschte Altersfreigabe. Unter Set Password können Sie das Passwort ändern.

Die Disc lässt sich nicht aus dem Laufwerk auswerfen. Was tun?

Schalten Sie das Gerät aus und wieder ein. Drücken Sie sofort die Open/Close-Taste auf der Fernbedienung oder am Gerät. Wenn die Disc immer noch nicht ausgeworfen wird, wenden Sie sich an den Kundendienst.

Wie kann ich den DVD-Player auf die Werkseinstellungen zurücksetzen?

Drücken Sie bei gestopptem Gerät auf der Fernbedienung die Reset-Taste. Das Passwort der Kindersicherung wird dabei nicht zurückgesetzt. Schalten Sie das Gerät aus und wieder ein, falls nötig.

Warum habe ich kein Bild über Scart?

Wenn Sie ein Scart-Kabel verwenden, stellen Sie sicher, dass die Videoausgangseinstellung auf RGB gesetzt ist. Drücken Sie Setup → Video → Video Output → RGB.

Das Gerät spielt MP3-Dateien nicht ab. Woran kann das liegen?

Überprüfen Sie, ob die MP3-Dateien auf einem unterstützten Medium (CD, DVD, USB) gespeichert sind. Die Dateien sollten im MPEG-1/2/3-Format vorliegen. Bei USB-Sticks darf kein Verlängerungskabel verwendet werden. Maximal 500 Dateien pro Ordner werden erkannt.

Wie kann ich die Untertitel während der DVD-Wiedergabe anpassen?

Drücken Sie während der Wiedergabe die Subtitle-Taste auf der Fernbedienung mehrmals, um durch die verfügbaren Untertitelsprachen zu wechseln (bis zu 32 Sprachen, je nach Disc).

BEDIENUNGSANLEITUNG DVH-1241 DENVER

DENVER®

DVD

INSTRUCTION MANUAL

DVH-1241

IMPORTANT

READ THESE INSTRUCTIONS

BEFORE USE AND RETAIN

FOR FUTURE REFERENCE.

IMPORTANT SAFEGUARDS

For your protection, please read these safety instructions completely before operating the appliance, and keep this manual for future reference.

Carefully observe all warnings, precautions and instructions on the appliance and in the operating instructions, and adhere to them.

INSTALLATION

Water and Moisture - Do not use powering operated appliances near water - for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc.

Heat - Do not place the appliance near or over a radiator or heat register, or where it is exposed to direct sunlight.

Simple line drawing of an electronic component with no text or symbols

Ventilation - The slots and openings in the cabinet are provided for necessary ventilation. To ensure reliable operation of the appliance, and to protect it from overheating, these slots and openings must never be blocked or covered.

- Never cover the slots and openings with a cloth or other materials.

- Never block the slots and openings by placing the appliance on a bed, sofa, rug or other similar surface.

- Never place the appliance in a confined space, such as a bookcase, or built-in cabinet, unless proper ventilation is provided.

Accessories - Do not place the appliance on an unstable cart, stand, tripod, bracket, or table. The appliance may fall, causing serious injury to a child or an adult, and serious damage to the appliance. Use only a cart, stand, tripod, bracket, or table recommended.

- An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

WALL or Ceiling Mounting - If your appliance can be mounted to a wall or ceiling, mount it only as recommended.

USE

Power Source - This appliance should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of electrical power supplied to your home, consult your dealer or local power company. For those appliances designed to operate from battery power, or other sources, refer to the operating instructions.

Grounding or Polarization - This appliance is equipped with a polarized AC power cord Plug(a plug having one blade wider than the other), or with two-wire grounding type plug) Plug having a second pin for grounding). A follow the instructions below:

- For the appliance with a polarized AC power Cord plug

This plug will fit into the power outlet only one way. This is a safety feature if you are unable to insert the plug fully into the outlet, try reversing The plug. If the plug should still fail to fit, contact your electrician to have a suitable outlet installed. Do not defeat the safety purpose of the Polarized plug by forcing it in.

Overloading - Do not overload wall outlets, extension cords or convenience receptacles beyond their capacity, since this can result in fire or electric shock.

When not in use - Unplug the power cord of the appliance from the outlet when left unused for a long period of time. To disconnect the cord, pull it out by grasping the plug. Never pull the plug out by the cord.

Simple line drawing of a person inside a doorway and a plug inserted into a socket (no text or symbols)

Power-Cord Protection - Route the power cord so that it is not likely to be walked on or pinched by items placed upon or against them, paying particular attention to the plugs, receptacles, and the point where the cord exits from the appliance.

Lightning - For added protection for this appliance during a lightning storm, or when it is left unatlanded and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the appliance due to lightning and powerline surges.

Cleaning - Unplug the appliance from the wall outlet before cleaning or polishing it. Do not use liquid cleaners or aerosol cleaners. Use a cloth lightly dampened with water for cleaning the exterior of the appliance. Clean the appliance only as recommended.

Object and Liquid Entry - Never push objects of any kind into the appliance through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the appliance.

ANTENNAS

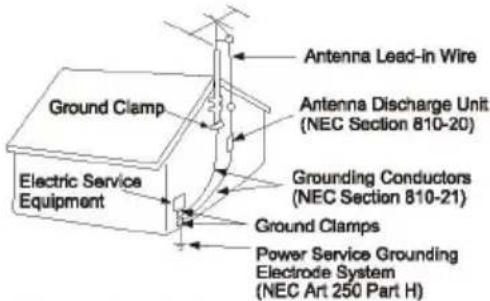

Outdoor Antenna Grounding - If an outdoor antenna or cable system is installed, follow the precautions below.

An outdoor antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can come in contact with such power lines or circuits. WHEN INSTALLING AN OUTDOOR ANTENNA SYSTEM, EXTREME CARE SHOULD BE TAKEN TO KEEP FROM CONTACTING SUCH POWER LINES OR CIRCUITS AS CONTACT WITH THEM IS ALMOST INVARIABLY FATAL.

Be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code provides information with respect to proper grounding of the mast and supporting structure. Grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

Antenna Grounding According to the National Electrical code

NEC-NATIONAL ELECTRICAL CODE

SERVICE

Damage Requiring Service- Unplug the appliance from the wall outlet and refer servicing to qualified service personnel under the following conditions: - When the power cord or plug is damaged or frayed.

- If liquid has been spilled or objects have fallen into the appliance.

Simple line drawing of a person reacting to a device with a bulb above, no text or symbols present

- If the appliance has been exposed to rain or water.

Illustration of a hand inserting a device into a device (no text or symbols visible)

- The appliance does not appear to operate normally or exhibits a marked change in performance. - This indicates a need for service.

- If the appliance does not operate normally when following the operating instructions, adjust only those controls that are specified in the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the appliance to normal operation.

- If the appliance has been subject to excessive shock by being dropped, or the cabinet has been damaged.

Servicing - Do not attempt to service the appliance yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel

Replacement parts- When replacement parts are required, be sure the service technician has used replacement parts specified that have the same characteristics as the original parts. Unauthorized substitutions may result in fire, electric shock, or other hazards.

Safety Check - Upon completion of any service or repairs to the appliance, ask the service technician to perform routine safety checks) as specified ) to determine that the appliance si in safe operating condition.

1. Do not install this equipment in a confined or building-in space such as a book case or similar unit, and remain a well ventilation conditions. The ventilation should not be impeded by covering the ventilation openings with items such as newspaper, table-cloths, curtains etc. Minimum 10 cm distance around the apparatus for sufficient ventilation.
2. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that objects filled with liquids, such as vases, shall not be placed on apparatus.
3. WARNING: The batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
4. WARNING: The mains plug is used as disconnect device, the disconnect device shall remain readily operable.
5. Invisible laser radiation when open and interlocks defeated. Avoid exposure to beam of laser.
6. Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

FRONT PANEL AND REAR PANEL ILLUSTRATION

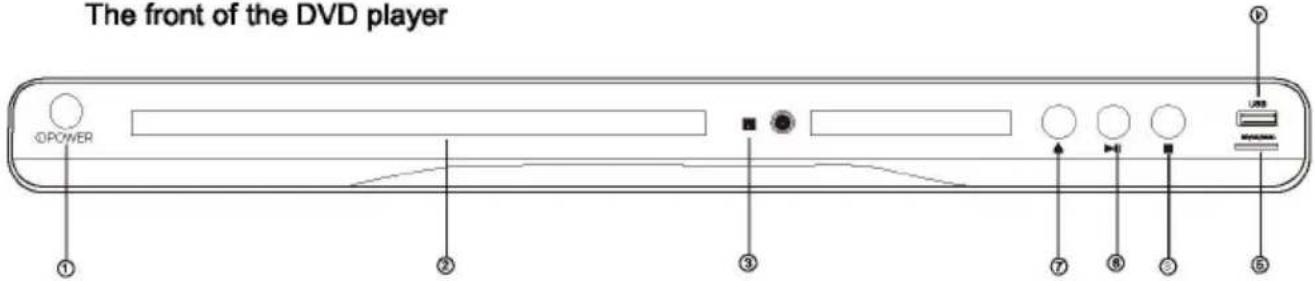

FRONT PANEL

The front of the DVD player

① POWER

③ REMOTE SENSOR

⑤ SD/MMC/MS

⑦ OPEN/CLOSE

② CD DOOR

④ USB

⑥PLAY/PAUSE

⑧ STOP

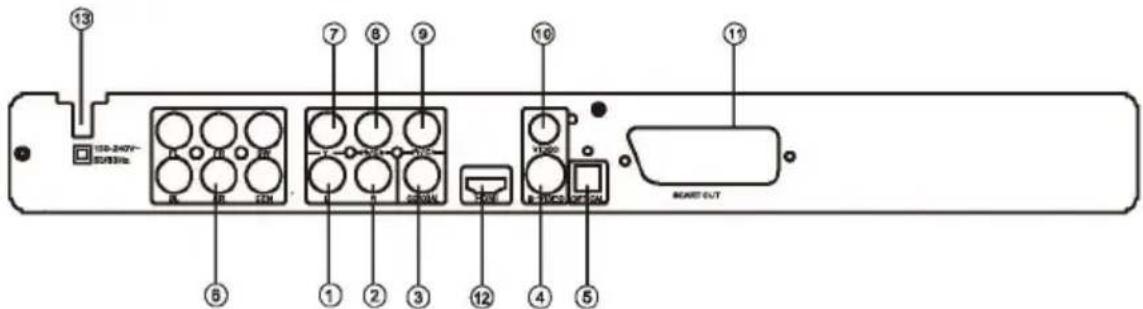

The back of the DVD player

① LEFT output jack
② RIGHT output jack
③ Digital signal COAXIAL output jack
④ S-Video output jack
⑤ Optical output jack

⑧ 5.1CH output jack
⑦ Y output jack
⑧ Pb/Cb output jack
⑨ Pr/Cr output jack
⑩ VIDEO output jack

⑪ Scart output jack
⑫ HDMI output jack
⑬ Power cord jack

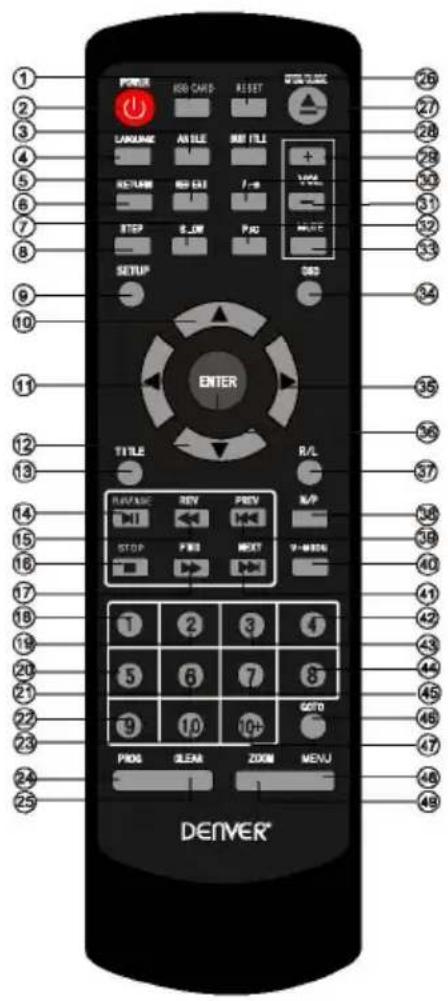

REMOTE CONTROL

• When use, direct the remote control to the infra-red sensor (within 45 degrees)
• Do not put remote control near to the place with high temperature or moisture
• Do not put water or any other object on remote control
• Do not use new and old batteries or different type batteries together
• Please replace batteries when find remote control is out of work or weak sensitivity.

1 USB/CARD	21 6	41 NEXT
2 POWER	22 9	42 4
3 ANGLE	23 10	43 3
4 LANGUAGE	24 PROG	44 8
5 REPEAT	25 CLEAR	45 7
6 RETURN	26 RESET	46 GO TO
7 SLOW	27 OPEN/CLOSE	47 10+
8 STEP	28 SUBTITLE	48 MENU
9 SETUP	29 VOL +	49 ZOOM
10 UP	30 A-B
11 LEFT	31 VOL -
12 DOWN	32 PBC
13 TITLE	33 MUTE
14 PLAY/PAUSE	34 OSD
15 REV	35 RIGHT
16 STOP	36 ENTER
17 FWD	37 R/L
18 1	38 N/P
19 2	39 PREV
20 5	40 V-MODE

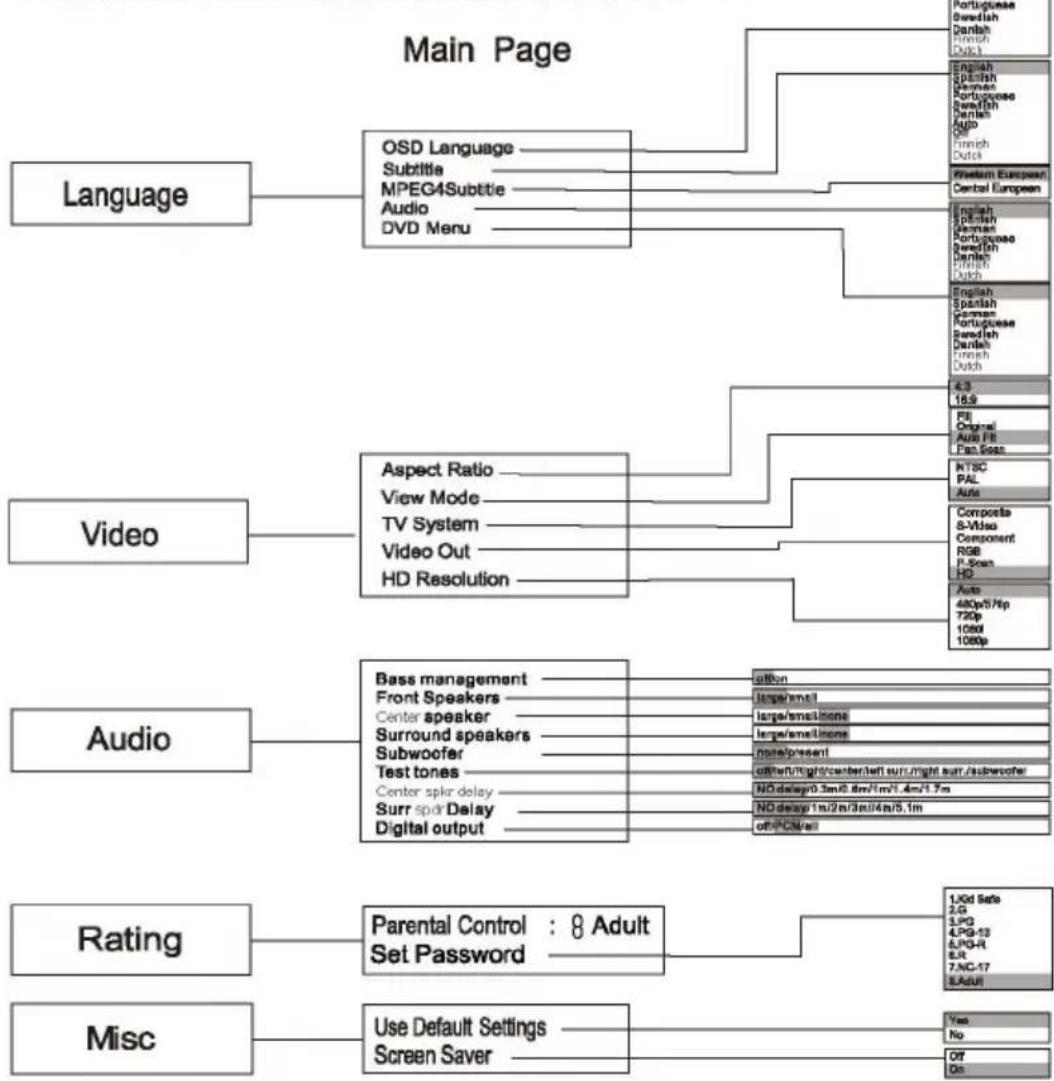

OSD SETUP

This player allows you to customise the performance to your personal preferences.

Displaying the setup menu screen

The setup preferences.

The selected category will provide you the setting details using the following screen.

    A --> H["Video"]
    H --> I["Aspect Ratio"]
    H --> J["View Mode"]
    H --> K["TV System"]
    H --> L["Video Out"]
    H --> M["HD Resolution"]

    A --> N["Audio"]
    N --> O["Bass management"]
    N --> P["Front Speakers"]
    N --> Q["Center speaker"]
    N --> R["Surround speakers"]
    N --> S["Subwoofer"]
    N --> T["Test tones"]
    N --> U["Center spike delay"]
    N --> V["Surr spdr Delay"]
    N --> W["Digital output"]

    O --> X["offlon"]
    P --> Y["Impairment"]
    Q --> Z["large/smaltions"]
    R --> AA["large/smaltions"]
    S --> AB["mata/present"]
    T --> AC["offlet/right/center/left surr/right surr/subwoofer"]
    U --> AD["NO delay/0.3m/0.8m/1m/1.4m/1.7m"]
    V --> AE["NO delay/1m/2m/3m/4m/5.1m"]
    W --> AF["offPCM/all"]

    N --> AG["Rating"]
    AG --> AH["Parental Control : 8 Adult Set Password"]

    A --> AI["Misc"]
    AI --> AJ["Use Default Settings"]
    AI --> AK["Screen Saver"]

    B --> AL["English Spanish German Portuguese Swedish Danish AUD Off Dutch Western European Central European English Spanish German Portuguese Swedish Danish Danish Dutch English Spanish German Portuguese Swedish Danish Danish Dutch 6-3 16-9 PB Original Auto PB Fan Box RTSC PAL Auto Composite S-Visa Component RGB P-Scan HD Auto 480p5/Np 720p 1080 1080p"]

    N --> AI

Notice: when connect to SCART connector of a TV, please set Video Output to be "RGB" accordingly. Setting via pressing "Setup" in the remote control --> "Video" --> "Video Output" --> "RGB".

Set on "PARENTAL CONTROL" under "Rating", Press "enter" and input code 8888 (The original factory code is 8888). After input and confirm the code, press "PARENTAL CONTROL" and choose the desired rating. Move below to "SET PASSWORD", press enter and input the code "8888", then input the new code, Under "SET PASSWORD", input again the code, and confirm. The function of "PARENTAL CONTROL" is effective.

REMOTE CONTROL OPERATION

POWER

OPEN CLOSE

TITLE

MENU

V-MODE

OSD

During playback, press POWER to stop the player and close the power.

To open the disc tray, press OPEN/CLOSE

To close the disc tray, press OPEN/CLOSE again.

During DVD playback, press TITLE to display the DVD title menu or play the first title.

Note: this function is subject to the disc.

During DVD playback, press MENU to display the disc menu of the current title.

Note: This function is subject to the disc

Under the stop mode, Press this button to switch the video of ① Composite ② Component ③ S-video

④ RGB ⑤ P-scan ⑥ HD

During VCD/DVD playback, press OSD to display the current time counter position as follows.

VCD 2.0

Elapsed time Left time for the current track

DVD VIDEO

Elapsed time Left time for the current track

0-10 Keys

During VCD/SVCD playback, Press PBC to select the mode of PBC On or PBC Off

PBC is: playback control used to navigate VCD/SVCD

These keys are used to input the time, as well as title, chapter and track numbers

- When a CD,DVD,MP3 or VCD is playing (with PBC off), press the 0-10 keys to select a track Directly.

- When a numeric item is displayed on the screen, press the 0-10 keys to select the desired entry,

During AVI,DVD, VCD or SVCD playback, press SLOW for slow motion playback.

Once you press SLOW, the disc will play at 1/2, 1/4, 1/6 and 1/8 normal speed.

- Press PLAY to resume normal playback.

During AVI,DVD, CD,MP3 or VCD playback, press PREV to play the previous chapter, title or track.

During AVI,DVD, CD,MP3or VCD playback, press NEXT to play the next chapter, title or track.

● Each press of the REPEAT button will change the repeat mode.

During VCD, CD ,MP3 playback, there are three modes: repeat Single, repeat All and Off.

During AVI/DVD, playback, there are three modes: repeat chapter, repeat title and Off.

Note: During VCD playback, the PBC mode must be set to Off

SLOW

PRFV

NEXT

REPEAT

A-B

During playback, press A-B to select point A

- Press it again to select point B. The player will repeat the section from A to B automatically.

- Press A-B a third time to cancel A-B repeat and clear points A and B.

Note: During MPEG4/CD/VCD/SVCD playback, points A and B must be within the same track.

During AVI/DVD playback, points A and B can be selected from different chapters.

REV

During AVI/DVD, CD, MP3 or VCD playback, press REV To in reverse.

the disc at 2, 4, 8 and 16 times speed

- Press PLAY to resume normal playback.

During AVI/DVD, CD ,MP3 or VCD playback, press FWD to forward. The disc at 2, 4, 8 and 16 times speed.

- Press PLAY to resume normal playback.

- Press N/P when in STOP mode to select the mode from PAL / AUTO /NTSC .

FWD

N/P

REMOTE CONTROL OPERATION

MUTE

Press MUTE to turn off the audio.

Press MUTE again to resume normal sound.

R/L

During VCD/SVCD playback, press R/L repeatedly to select the channel of audio-output: Left / Right / Mix / Stereo.

CLEAR

Press CLEAR to delete the numbers you have entered.

PLAY/PAUSE

Press PAUSE during playback to pause playback.

Press again to step forward one frame

Press PLAY to resume normal palyback.

NOTE: the step function is not available during CD playback

STOP

Press STOP once during playback to stop and hold playback.

Press PLAY to resume playback from the point you have pressed STOP.

Press STOP twice to stop playback completely.

RETURN

When the PBC is on, press return ,and you can select once again from the menu displaying. This function is only valuable to VCD.

ZOOM

During VCD/SVCD/DVD playback, press ZOOM to magnify the image

This function can zoom, can't lessen

STEP

When playing AVI/DVD, VCD, SVCD disc, press STEP once, the picture changes to next frame, Press PLAY to resume normal play.

SETUP

Press the SETUP button on you remote control to access the setup menu. The setup menu is a Multi-level Menu.

Use the ▼ or ▲ buttons to select the menu option that you need.

Use the ◀ and ▶ to go back to previous level menu or to enter the next level menu.

Press ENTER button to confirm selection.

Press SETUP button to exit setup.

RESET

Under the stop mode, Press this key to reset the DVD player to default mode, this will not recover your Password set up.

REMOTE CONTROL OPERATION

VOL

Press VOL + to increase the volume. Press VOL - to reduce the volume.

ANGLE

During DVD playback, Press ANGLE to view scenes from different camera angles. Press ANGLE repeatedly to change from one camera angle to another. Note: This function is disc specific.

SUBTITLE

During DVD playback, Press SUBTITLE repeatedly to select from up to 32 subtitle languages. Note: This function is disc specific (language will vary).

LANGUAGE

Press LANGUAGE repeatedly to select from up to 6 audio languages/formats during DVD playback. Press repeatedly to select from up to 4 audio languages/formats during SVCD playback. Note: This function is disc specific LANGUAGE

GOTO

During AVI/DVD, VCD playback,

press GOTO, and the menu will display as follow:

Use ↑ ↓ to select TITLE, CHAPTER, TIME. Use the number keys to input the desired time or track, then press ENTER to Confirm. During DVD playback, press SEARCH, and the menu will display as follow:

Use ↑ ↓ to select TRACK, TIME or DISC TIME. Use the number keys to input the desired time, title or chapter, then press ENTER to confirm.

Note: 1) TIME searches for an exact time in the track. 2) TRACK searches for a desired title or chapter. 3) For some DVD discs, the search function is unavailable.

USB/CARD

Choose this button to setup the DISC,USB and CARD output mode:

DISC: Choose this settings if your DISC output mode is connected to a DISC.

USB: Choose this settings if your USB output mode is connected to a USB.

CARD: Choose this settings if your CARD output mode is connected to a CARD.

The default setting is DISC. Only press STOP buton can you switch to USB or

CARD mode when this unit on playbacking disc.

Note: For the electrostatic discharge (ESD) test of EN55020, it was found that manual operation (by switching power ON/OFF switch) is needed to resume normal operation as intended after the test. No USB-Extension cable allowed. USB output: 5V, 200mA.

PROG

Press PROG to get program menu when reading DVD & VCD, then program your wanted songs. (DVD programme needs TITLE and MENU.)

REMOTE CONTROL OPERATION

Program

When playing mp3, press "right", "up" or "down" and "enter" to choose edit mode, and then Press "left" and "enter" to choose the music you want.

After that, press "right" and "enter" to choose "add to program", and then "up" and "enter" to choose "program view", next press "up" to choose "edit mode" and then press "Left" and "enter" to choose the music, press "play" to play the music.

Cancel program

After program, press "stop" twice, and press "right" to choose "edit mode", and then press "left" to choose the music you'd like to cancel and "enter" to confirm your operation.

Press "right" and "enter" to choose "clear program", then press "Right" to "browse view" and return to play in order.

Note :

If you are playing Mp3 songs or viewing Jpeg pictures, the maximum supported files on each folder is 500. In the case of having more than 500 pictures or songs, then you need to create a new folder and make sure each of them. Do not exceed more than 500 files. For example: if you have 1020 files then you need to create 3 different folders where in 2 of them you will need to record 500, Files in each and the third folder with the remaining 20 files. This way the unit will be able to recognize the folders and thus play all the content.

HDMI Function

1. Connect HDMI cable to HDMI output of the rear panel of DVD player and TV.
2. Set TV mode to 'HDMI' mode
3. Press 'setup' button on remote control, in system setup/HD output, please choose the HDMI mode (480P, 576P, 720P, 1080i, 1080P) you want.

Note: This DVD Player is set up for HDMI Connection, with connection to the TV via an HDMI cable (not supplied) connecting the HDMI socket on your TV and on the DVD player.

However IF you connect to a TV using the SCART socket, please set the Video Output on the DVD Player to be "RGB" accordingly. To set the Video Output to RGB on the DVD Player, press "Setup" on the remote control then--> "Video" -->then "Video Output" -->then "RGB".

TROUBLE SHOOTING

REMOTE CONTROL IS INSENSITIVE OR DOES NOT WORK

Check the batteries of remote control and make sure that they are powerful and in good conductivity

Direct the remote control to the IR sensor of the player.

Check whether there are some obstacles between the remote control and IR sensor.

ABNORMAL FUNCTION OPERATION

Turn off the power, and then turn on again.

DISC IS LOCKED IN THE TRAY

The disc can not be taken out of the tray when the player is reading, so you have

to turn off the power and turn on again, and press OPEN/CLOSE key immediately to open the tray.

Type of Disc	DVD/VCD/HDCD/CD/DVD±R/RW,AVI/WMA,MP3,Kodak Picture CD	Frequency Response	CD: 4Hz 20KHz (EIAT)
			DVD: 4Hz 22KHz (48K)4Hz 44KHz (96K)
Audio Format	MPEG 1, LAYER 1,LAYER 2 , LAYER 3	S/N radio	>92 dB
		THD	<0.04%
Signal Output	Color System: PAL/NTSC/MULTIAudio System: AC-3 Digital outputAudio DAC 16bit/48KHzVideo Output: 1 Vpp (at 75 ohm)Audio Output: 2 Vpp	Output Terminals	Video (composite) output X 1S-Video output X 15.1ch output X 1Digital coaxial output X1Digital optical output X1YPbPr output X 1Scart output X1HDMI output X1
		Power input	AC100-240V~ 50/60Hz 15W
		Dimensions	Body size : W360XD235XH33mmNet weight : 1.5KG

Notes:

• There are many non-standardized AVI/DVD/MP3/WMA/CD-recording procedures and copyprotection procedures now in use, and many different kinds of DVD±R,DVD±RW,CD-R and CD-RW blank disks. Therefore,in some cases read errors or read delays may be encountered. This is not a defect of the device.
• This player not responsible for play ability of MP3 in any case, Due to recording condition such as PC performance, writing software, media ability or etc.
• For CD-RW of CD-R, it may not be played according to the type of this disc.

Imported by:

Inter Sales A/S

Stavneagervej 22

DK-8250 Egaa

Denmark

All rights reserved

Copyright Denver Electronics

www.denver-electronics.com

Instructions on environment protection

Electric and electronic equipment and included batteries contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment and batteries) is not handled correctly.

Electric and electronic equipment and batteries is marked with the crossed out trash can symbol, seen below. This symbol signifies that electric and electronic equipment and batteries should not be disposed of with other household waste, but should be disposed of separately.

As the end user it is important that you submit your used batteries to the appropriate and designated facility. In this manner you make sure that the batteries are recycled in accordance with legislature and will not harm the environment.

All cities have established collection points, where electric and electronic equipment and batteries can either be submitted free of charge at recycling stations and other collection sites, or be collected from the households. Additional information is available at the technical department of your city.
