Produkttyp	AXIS P5414-E PTZ Dome Netzwerkkamera
Bildsensor	1/2.9" progressiver Scan RGB CMOS
Maximale Auflösung	1280x720 (HD)
Objektiv	4.7–84.6 mm, F1.6–2.8, Autofokus, 18x optischer Zoom, 12x digitaler Zoom (gesamt 216x)
Schwenkbereich	±135° (horizontal)
Neigebereich	0–90° (vertikal)
Videokompression	H.264 (Main/Baseline), Motion JPEG
Audio	Zwei-Wege-Audio, AAC LC, G.711, G.726
Netzwerkprotokolle	IPv4/v6, HTTP, HTTPS, FTP, SMTP, Bonjour, UPnP, SNMP, NTP, RTSP, RTP, TCP, UDP, DHCP, ARP
Stromversorgung	Power over Ethernet Plus (PoE+) IEEE 802.3at Typ 2 Klasse 4 oder 20–28 V DC
Leistungsaufnahme	Max. 30 W (PoE+), max. 16 W (DC)
Schutzart	IP66, NEMA 4X
Betriebstemperatur	-20 °C bis 50 °C
Gewicht	3,5 kg (7,7 lb)
Gehäusematerial	Aluminium, klare Polycarbonat-Kuppel, ASA-Sonnenschutz
Speicher	256 MB RAM, 128 MB Flash
Lokaler Speicher	SD-Kartenslot (SD/SDHC/SDXC bis 64 GB, Klasse 10 empfohlen)
PTZ-Funktionen	100 Voreinstellungen, Guard Tour, Gatekeeper, Steuerungswarteschlange, Fokusfenster
Ereignisauslöser	Bewegungserkennung, Audioerkennung, externer Eingang, Temperatur, Speicherkarte voll, Zeitplan
Sicherheit	Passwortschutz, IP-Adressfilter, HTTPS-Verschlüsselung, IEEE 802.1X Netzwerkzugangskontrolle
Videoanalyse	Bewegungserkennung, Advanced Gatekeeper, Unterstützung für AXIS Camera Application Platform
Konformität	CE, FCC Klasse B, ICES-003, VCCI, C-tick, KC, UL/IEC 60950-1
Lieferumfang	Installationsanleitung, AVHS-Authentifizierungsschlüssel, CD mit Installations- und Verwaltungssoftware, 1-Benutzer-Lizenz für Windows-Decoder
Wartung und Reinigung	Gehäuse mit weichem, trockenem Tuch reinigen; Kuppel lackierbar; keine vom Benutzer wartbaren Teile außer SD-Karte

Häufig gestellte Fragen - P5414-E AXIS

Wie setze ich die Kamera auf die Werkseinstellungen zurück?

Wie lege ich das Root-Passwort fest?

Wie verbinde ich die Kamera mit dem Netzwerk?

Wie konfiguriere ich die Bewegungserkennung?

Wie richte ich eine kontinuierliche Aufnahme ein?

Wie greife ich von außerhalb des lokalen Netzwerks auf die Kamera zu?

Wie installiere ich ein Zertifikat für HTTPS?

Wie führe ich ein Firmware-Update durch?

Wie reinige ich die Kamera richtig?

Welche Speicherkarte wird empfohlen?

BEDIENUNGSANLEITUNG P5414-E AXIS

USERMANUAL

AXISP5414-EPTZDomeNetworkCamera

AboutthisDocument

ThismanualisintendedforadministratorsandusersoftheAXIS P5414-EPTZDomeNetworkCamera, andisapplicabletofirmware 5.55andlater.Itincludesinstructionsforusingandmanagingthe productonyournetwork.Previousexperienceofnetworkingwillbeof usewhenusingthisproduct.SomeknowledgeofUNIXorLinux-based systemsmayalsobeneficial, fordevelopingshellscriptsand applications.LaterverersionsofthisdocumentwillbepostedtotheAxis website, asrequired.Seealsotheproduct'sonlinehelp, availablevia theweb-basedinterface.

LegalConsiderations

Videoandaudiosurveillancecanberegulatedbylawsthatvaryfrom countrytocountry.Checkthelawsinyourlocalregionbeforeusing thisproductforsurveillancepurposes.

Thisproductincludesone(1)H.264decoderlicenseandone(1)AAC decoderlicense.Topurchasefurtherlicenses,contactyourreseller.

Liability

Everycarehasbeentakeninthepreparationofthisdocument.Please informyourlocalAxisofficefanyinaccuraciesoromissions.Axis CommunicationsABcannotbeheldresponsibleforanytechnical or typographicalerrorsandreservestherighttomakechangestothe productandmanualswithoutpriornotice.AxisCommunicationsAB makesnowarrantyfanyakindwithregardtothematerialcontained withinthisdocument,including,butnotlimitedto,theimplied warrantiesofmerchantabilityandfitnessforaparticularpurpose.Axis CommunicationsABshallnotbeliablenorresponsibleforincidental or consequentialdamagesinconnectionwiththefurnishing,performance oruseofthismaterial.Thisproductisonlytobeusedforitsintended purpose.

IntellectualPropertyRights

AxisABhasintellectualpropertyrightsrelatingtotechnologyembodiedintheproductdescribedinthisdocument.Inparticular,andwithoutlimitation,theseintellectualpropertyrightsmayincludeoneoremoreofthepatentslistedathttp://www.axis.com/patent.htmandoneoremreadditionalpatentsorpendingpatentapplicationsintheUSandothercountries.

Thisproductcontainslicensedthird-partysoftware.Seethemenuitem "About"intheproduct'suserinterfaceformoreinformation.

ThisproductcontainssourcecodecopyrightAppleComputer, Inc.,underthetermsofApplePublicSourceLicense2.0(see http://www.opensource.apple.com/apsl).Thesourcecodeisavailable from http://developer.apple.com/darwin/projects/bonjour/

EquipmentModifications

This equipment must be installed and used in strict accordance with the instructions given in the user documentation. This equipment contains nouser-serviceable components. Unauthorized equipment changes or modifications will invalidate all applicable regulatory certifications and approvals.

TrademarkAcknowledgments

AXISCOMMUNICATIONS, AXIS, ETRAX, ARTPEC and VAPIX are registered trademarks to trademark applications of AxisAB in various jurisdictions. All other company names and products are trademarks or registered trademarks of their respective companies.

Apple,Boa,Apache,Bonjour,Ethernet,InternetExplorer,Linux,Microsoft,Mozilla,Real,SMPTE,QuickTime,UNIX,Windows,Windows VistaandWWWaregisteredtrademarksoftherespectiveholders. JavaandallJava-basedtrademarksandlogosaretrademarkor registeredtrademarksofOracleand/oritsaffiliates.UPnP ^TM is certificationmarkoftheUPnP ^TM ImplementersCorporation. SD,SDHCandSDXCaretrademarksorregisteredtrademarksofSD-3C,LLCintheUnitedStates,othercountriesorboth.Also,miniSD,microSD, miniSDHC,microSDHC,microSDXCarealltrademarksorregistered trademarksofSD-3C,LLCintheUnitedStates,othercountriesorboth.

RegulatoryInformation

Europe

ThisproductcomplieswiththeapplicableCEmarkingdirectives andharmonizedstandards:

- ElectromagneticCompatibility(EMC)Directive2004/108/EC.See ElectromagneticCompatibility(EMC),onpage2.

LowVoltage(LVD)Directive2006/95/ECSeSafetyprpag@

- Restrictions of Hazardous Substances (RoHS) Directive 2011/65/EU. See Disposal and Recycling, on page 2. Acopy of the original declaration of conformity may be obtained from Axis Communications AB. See Contact Information, on page 3.

Electromagnetic Compatibility(EMC)

This equipment has been designed and tested to fulfill applicable standards for:

- Radiofrequencyemissionwheninstalledaccordingtothe instructionsandusedinitsintendedenvironment.

- Immunitytoelectricalandelectromagneticphenomenawhen installedaccordingtotheinstructionsandusedinitsintended environment.

USA

This equipment has been tested using a shielded network cable (STP) and found to comply with the limits for a Class Digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference or radiation communications. However, there is no guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference or radio television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•Reorientorrelocatethereceivingantenna.

- Increase these separation between the equipment and receiver.

- Connecttheequipmentintoanoutletonacircuitdifferentfrom thattowhichthereceiverisconnected.

- Consultthedealeroranexperiencedradio/TVtechnicianforhelp. Canada

ThisClassBdigitalapparatuscomplieswithCanadianICES-003.

Europe

This digitalequipmentfulfillstherequirementsforRFemission according to the ClassBlimitofEN55022.

This product fulfill therequirements for immunity according to EN61000-6-1 residential, commercial and light-industrial environments.

Thisproductfulfillstherequirementsforimmunityaccordingto EN61000-6-2industrialenvironments.

Thisproductfulfillstherequirementsforimmunityaccordingto EN55024officeandcommercialenvironments

Australia/NewZealand

This digitalequipmentfulfillstherequirementsforRFemission according to the ClassBlimitofAS/NZSCISPR22.

Japan

この装置は、クラスB情報技術装置です。この装置は、家庭環境で使用することを目的としていますが、この装置がラジオやテレビジョン受信機に近接して使用されると、受信障害を引き起こすことがあります。取扱説明書に従って正しい取り扱いをして下さい。

Korea

이기기는가정용(B급)전자파적합기기로서주로가정에서사용하는것을목적으로하며,모든지역에서사용할수있습니다.

Safety

ThisproductcomplieswithIEC/EN/UL60950-1and IEC/EN/UL60950-22,SafetyofInformationTechnology Equipment.

The powersupply used with this product shall fulfill therequirements for Safety Extra Low Voltage (SELV) and Limited Power Source (LPS) according to IEC/EN/UL60950-1.

DisposalandRecycling

Whenthisproducthasreachedtheendofitsusefullife,disposeof itaccordingtolocalrawsandregulations.Forinformationabout yournearestdesignatedcollectionpoint,contactyourlocalauthority responsibleforwastedisposal.Inaccordancewithlocallegislation, penaltiesmaybeapplicableforincorrectdisposalofthiswaste.

Europe

Thissymbolmeansthattheproductshallnotbedisposedof togetherwithhouseholdorcommercialwaste.Directive2012/19/EU onwasteelectricalandelectronicequipment(WEEE)isapplicablein theEuropeanUnionmemberstates.Topreventpotentialharmto humanhealthandtheenvironment,theproductmustbedisposed ofinanapprovedandenvironmentallysaferecyclingprocess.For informationaboutyournearestdesignatedcollectionpoint,contact yourlocalauthorityresponsibleforwastedisposal.Businessesshould contacttheproductsupplierforinformationabouthowtodispose ofthisproductcorrectly.

ThisproductcomplieswiththerequirementsofDirective2011/65/EU ontherestrictionoftheuseofcertainhazardoussubstancesin electricalandelectronicequipment(RoHS).

China

Thisproductcomplieswiththerequirementsofthelegislative actAdministrationontheControlofPollutionCausedbyElectronic InformationProducts(ACPEIP).

ContactInformation

AxisCommunicationsAB

Emdalavägen14

22369Lund

Sweden

Tel:[phone]

Fax:[phone]

www.axis.com

Support

Should you require any technical assistance, please contact your Axis reseller. If your questions cannot be answered immediately, your reseller will forward your queries through the appropriate channel to ensure a rapid response. If you are connected to the Internet, you can:

• downloaduserdocumentationandsoftwareupdates
  • findanswerstoresolvedproblemsintheFAQdatabase.Search byproduct, category, orphrase
  • reportproblemstoAxissupportstaffbyloggingintoyourprivate supportarea

- chatwithAxissupportstaff(selectedcountriesonly)

- visitAxisSupportatwww.axis.com/techsup/

LearnMore!

VisitAxislearningcenterwww.axis.com/academy/forusefultrainings, webinars,tutorialsandguides.

TableofContents

HardwareOverview....6

ConnectorsandButtons....6

LEDIndicators....7

AccessingtheProduct......8

AccessfromaBrowser......8

AccessfromtheInternet....9

SettheRootPassword....9

TheLiveViewPage....9

MediaStreams....13

HowtoStreamH.264....13

MJPEG....13

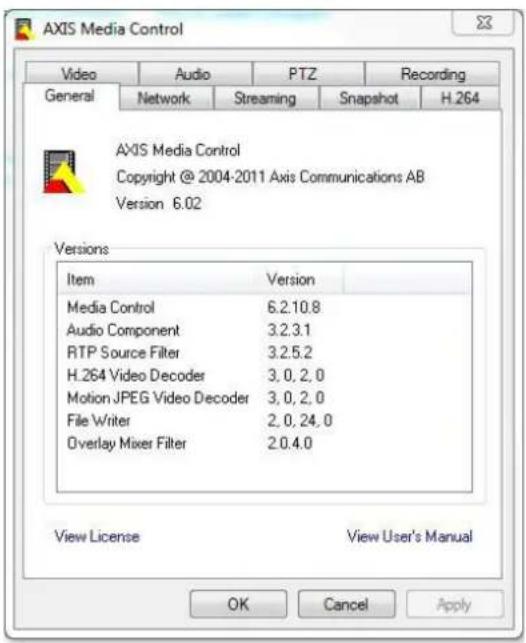

AXISMediaControl(AMC)....13

AlternativeMethodsofAccessingtheVideoStream....14

AccessingAudioStreams....15

SettingUptheProduct....16

BasicSetup....16

VideoandAudio....17

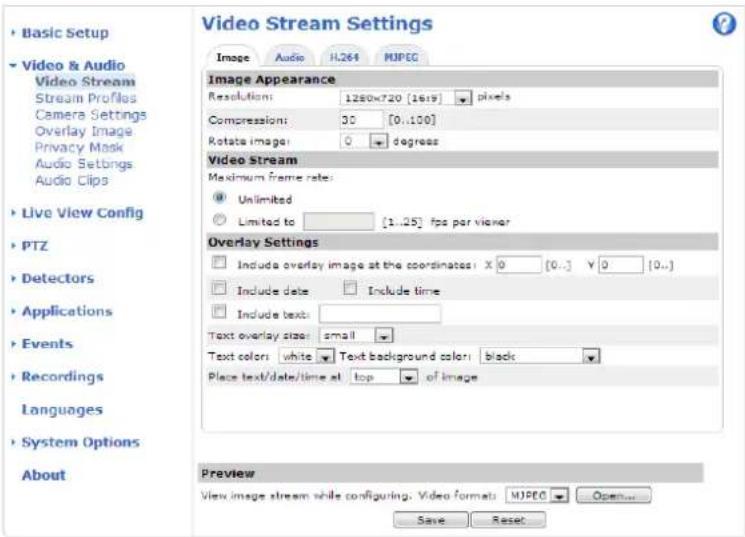

VideoStream....17

StreamProfiles....18

CameraSettings....18

Overlay....20

PrivacyMask....22

AudioSettings....22

AudioClips....23

LiveViewConfig....24

PTZ(PanTiltZoom)....27

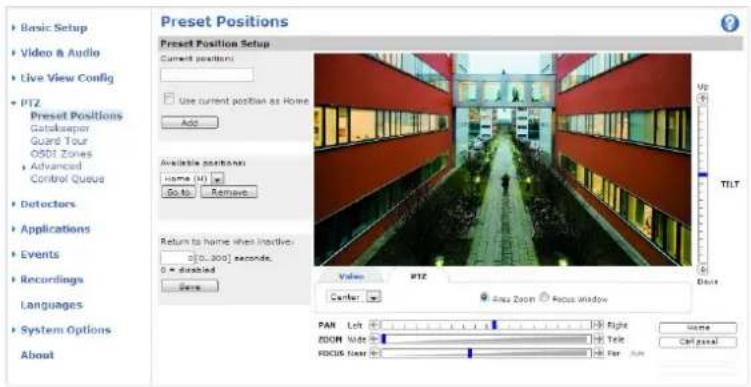

PresetPositions....27

Gatekeeper....28

GuardTour....28

OSDIZones....28

Advanced....29

ControlQueue....29

Detectors....31

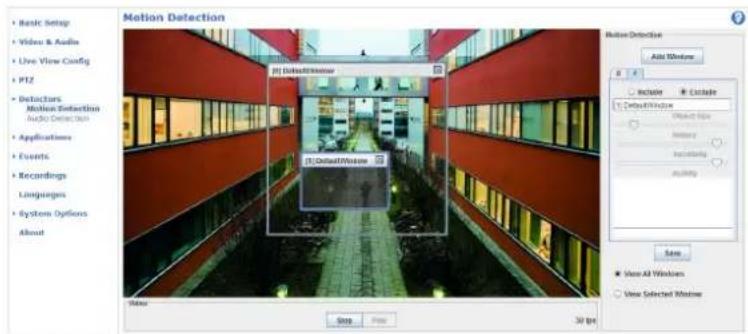

MotionDetection....31

AudioDetection....32

Applications....33

ApplicationLicenses....33

InstallApplication....33

ApplicationConsiderations....33

Events....35

SettingUpanActionRule....36

Recipients....37

Schedules....38

Recurrences....38

Recordings....40

RecordingList....40

ContinuousRecording....40

Languages....41

SystemOptions....42

Security....42

Date&Time....44

Network......45

Storage....50

Ports&Devices....51

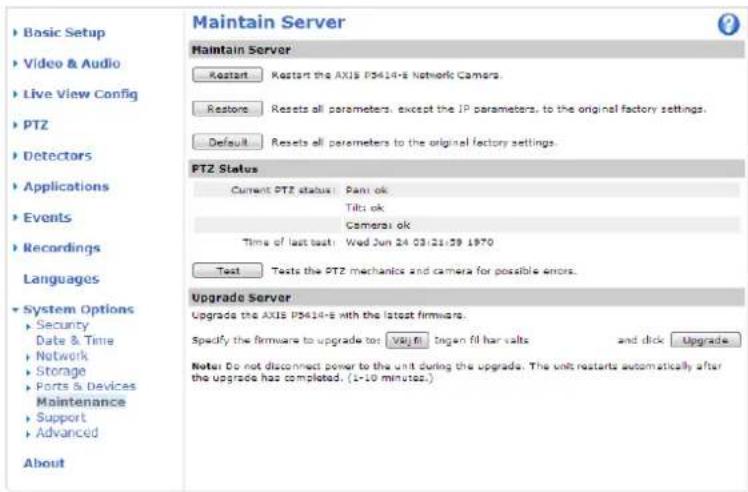

Maintenance....51

Support....52

Advanced....52

ResettoFactoryDefaultSettings....53

RepaintingtheCamera....54

Troubleshooting....55

CheckingtheFirmware....55

TableofContents

UpgradingtheFirmware....55

Symptoms, Possible Causes and Remedial Actions....56

TechnicalSpecifications....59

Connectors....61

PerformanceConsiderations....63

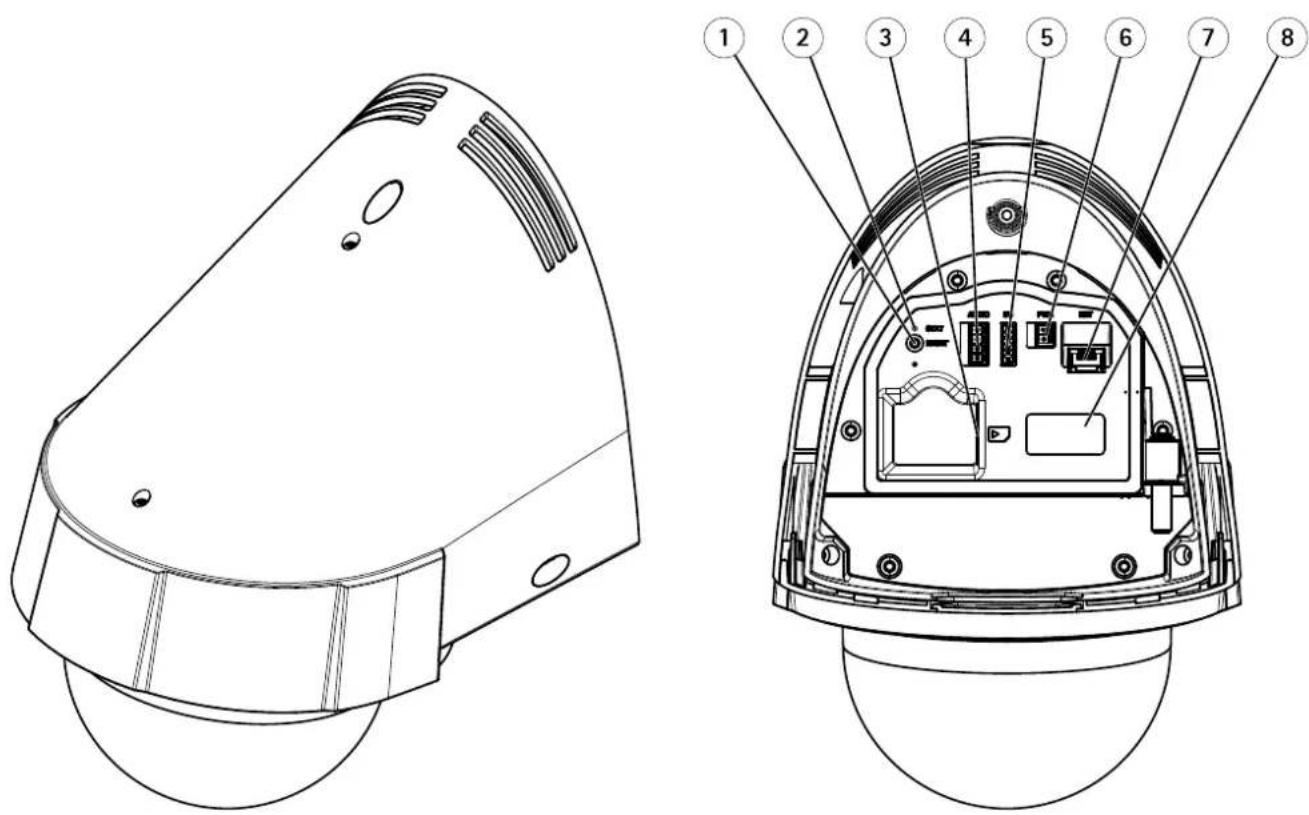

HardwareOverview

1 Controlbutton
2 StatusLEDindicator
3 SDmemorycardslot
4 Audioconnector
5 I/Oconnector
6 Powerconnector
7 Networkconnector(PoE+)
8 Partnumber(P/N)&Serialnumber(S/N)

ConnectorsandButtons

Fortechnicalspecifications,seepage59.

NetworkConnector

RJ45Ethernetconnector.SupportsPoweroverEthernetPlus(PoE+).

NOTICE

The product shall be connected using a shielded network cable (STP) or an optical fiber cable. All cables connecting the product to the network shall be intended for their specific use. Makes sure that the network devices are installed in accordance with the manufacturer's instructions: information about regulatory requirements, electromagnetic Compatibility (EMC), on page 2.

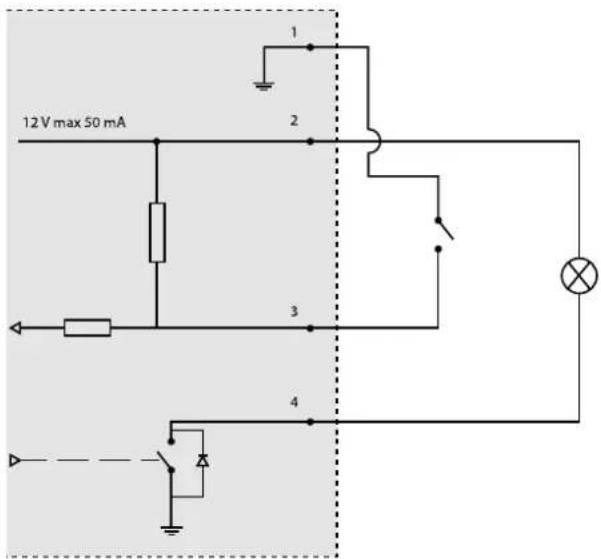

I/OConnector

Useinapplicationsfore.g.motiondetection, eventtriggering, timelapserecording and alarm notifications. In addition to an auxiliary power and a GNDpin, the / O terminal connector provides the interface to:

DigitabutputForconnectingexternaldevicesuchaselayandLEDConnecteddevicesarbeactivatedbythe VAPIX®ApplicationProgrammingInterface,outputbuttonsontheLiveViewpageorbyanActionRule.Theoutputwill showactiv(shownundeSystemOptionsPortsDevices)thealarmdevicesactivated.

DigitalInputAalarminpuforconnectingdevicethatartogglebetweenamperandclosedcircuitforexample: PIRs,door/windowcontacts,glassbreakdetectors,etc.Whenasignalisreceivedthestatechangesandtheinputbecomes active(shownunderSystemOptions>Ports&Devices).

PowerConnector

2-pinterminalblockforpowerinput.UseaSafetyExtraLowVoltage(SELV)compliantlimitedpowersource(LPS)witheitherarated outputpowerlimited≤100Varatedoutputcurrentlimited≤5A.

AudioConnector

4-pinterminalblockforaudioinputandoutput.

SDCardSlot

ArSCard(notincluded)carbusedforocarecordingwithremovablestorageEomoreinformationedTechnicalSpecifications.

NOTICE

Tpreventcorruption recording the Card should be unmounted before removal. Unmountgd Setup System Options>Storage>SDCardandclickUnmount.

ControlButton

Thecontrolbuttonisusedfor:

- Resetting the product to factory default settings. See page 53.

Connecting an AXISided Hosting System service Se page 46 connect press and hold the button for about second until the Status LED flashes green.

Connecting to AXIS Interne Dynamic DNS Service Seepage 46 To connect press and hold the button for about seconds.

LEDIndicators

LED	Color	Indication
Status	Unlit	Connectionandnormaloperation
	Amber	Steadyduringstartup.Flashesduringfirmwareupgrade.
	Amber/redFlashesamber/red	fnetworkconnectionisunavailableorlost.
	RedFlashesredforfirmwareupgradefailure.
	GreenShowssteadygreenfor10	secondsfornormaloperationafterrestart.

AccessingtheProduct

ToinstalltheAxisproduct, refertothel InstallationGuidesupplied with the product.

The product can be used with most operating systems and browsers. There recommended browsers are Internet Explorer with Windows, Safari with Macintosh and Firefox with the operating system. See Technical Specifications or page 59.

ToviewstreamingvideoinInternetExplorer,allowinstallationofAXISMediaControl(AMC)whenprompted.

Note

• QuickTime ^TM isalsosupportedforviewingH.264streamsandforaudio.
• If your computer restrict the use of additional software components, the product can be configured to use a Java applet for viewing Motion JPEG.

AccessfromaBrowser

1. Startabrowser(InternetExplorer, Firefox, Safari).
   2.EntertheIPaddressorhostnameoftheAxisproductinthebrowser'sLocation/Addressfield.ToaccesstheproductfromaMacintoshcomputer(MacOSX),clickontheBonjourtabandselecttheproductfromthedrop-downlist.

If you donot know the I paddress, use AXISIP Utility to locate the product on thenetwork. For information about how to discover and assign a P address, eth installation and Management Software CDoth document AssignariI Address and Access the Video Streamon Axis Support web at www axis.com/techsup

1. Enteryourusernameandpassword.Ifthisisthefirsttimetheproductisaccessed,therootpasswordmustfirstbe configured.Forinstructions,seeSettheRootPassword,onpage9.
2. The product'sLiveViewpageappearsinyourbrowser.

Note

The controls and layout of the liveView page may have been customized to meet specific installation requirements and user preferences. Consequently, some of the examples and functions featured her may differ from those displayed in your own live view page.

AccessfromtheInternet

Onceconnected,theAxisproductisaccessibleonyourlocalnetwork(LAN).ToaccesstheproductfromtheInternetyoumust configureyournetworkroutertoallowincomingdatatraffictotheproduct.Todothis,enabletheNAT-traversalfeature,which wilattemptautomaticallyconfiguretheroutetallowaccesstheproductThisenabledfromSetupSystemOptions>Network>TCP/IPAdvanced.

FomoreinformationsevNATraversa(portmapping)forPv4orpage4SealsAXISnterneDynamiDNService atwww.axiscam.net

ForTechnicalnotesonthisandothertopics,visittheAxisSupportwebatwww.axis.com/techsup

SettheRootPassword

Tacce the Axi product you must the password that default administrator user of this slone the Configur Root Passworddialog, which appears when the product is accessed for the first time.

Topreventnetworkeavesdropping,therootpasswordcanbesetviaanencryptedHTTPSconnection,whichrequiresanHTTPS certificate. HTTPS(HypertextTransferProtocoloverSSL)isaprotocolusedtoencrypttrafficbetweenwebbrowsersandservers.The HTTPScertificatensureencryptedexchangofinformationSedHTTPSprpage42.

The default administrator usenamroot permanent and cannot be deleted the password for out of the product must be reset the factory default settings See Reset Factory Default Settings page 53.

TosetthepasswordviaastandardHTTPconnection,enteritdirectlyinthedialog.

TosetthepasswordviaanencryptedHTTPSconnection,followthesesteps:

1. ClickUseHTTPS.

A temporary certificate(validforoneyear)iscreated, enabling encryption of all traffic and from the product, and the password can now be set securely.

2.Enterapasswordandthenre-enterittoconfirmthespelling.

3.ClickOK.Thepasswordhasnowbeenconfigured.

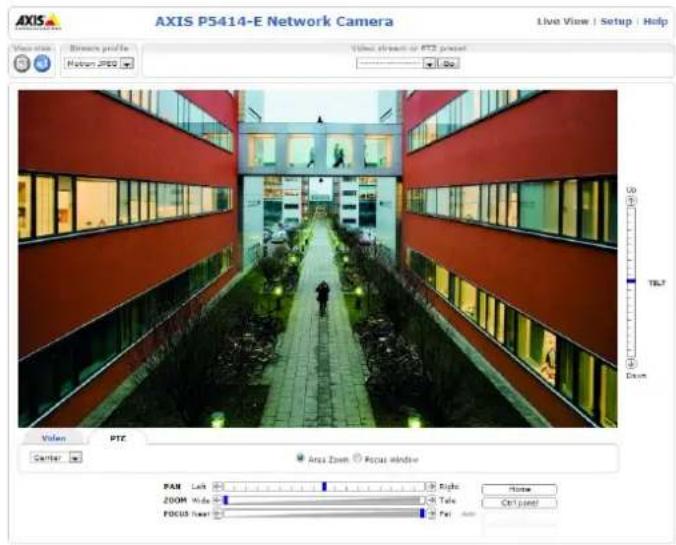

TheLiveViewPage

The controls and layout of the liveView pagemay have been customized to meet specific installation requirements and user preferences. Consequently, some of the examples and functions featured her may differ from those displayed in your own live view page. The following provides an overview of each available control.

ControlsontheLiveViewPage

ClicViewsizetoscalethemagedowrto80pixelswidodtfulscaleOnlyavailableMJPEG.

SelectstreamprofileoftheLiveViewpagefromtheStreamProfiledrop-downlistInformationabouthowtoconfigurestreamprofiles,seepage18.

ClicPulstactivatethproduct'sutputporforefineperiodofimeEinformationabouthowtenable andconfigureoutputbuttons,see page25.

AccessingtheProduct

Click the Active/Inactive button to manually activate and activate the product output portion information about how to enable and configure output buttons, see page 25.

The ManualTriggerbutton is used to trigger an action rule from the LiveView page. For information about how to configure and enable the button, see ManualTrigger, on page 10.

ClickSnapshots=snapshots#the#imageRight-click#videimagesave#PEGformatyour computer.ThisbuttonisprimarilyintendedforusewhentheAXISMediaControlviewertoolbarsisnotavailable. EnablethisbuttonfromLiveViewConfig>ActionButtons.

The Audioliprop-downlistallows/outplayaudioliprontheLivViewpageSelectaudioclipandclickthePlaybutton.

Enabled disable the Gatekeeper by selecting On Offron the drop-down list Read more about the Gatekeeper on page 28.

ManualTrigger

The ManualTriggerusedTriggeractionulfromtheLiveViewpage. The manualatriggercarfoexampleusedo validateactionsduringproductinstallationandconfiguration.

Toconfigurethemanualtrigger:

1.GotoSetup>Events.
2.ClickAddtoaddanewactionrule.

BonthTriggedrop-downlistselectnpuSignal.

1. From these second drop-down list, select Manual Trigger.
2. Select the desired action and configure the other settings as required.

Formoreinformationaboutactionrules,seeEvents,onpage35.

ToshowthemanualtriggerbuttonsintheLiveViewpage:

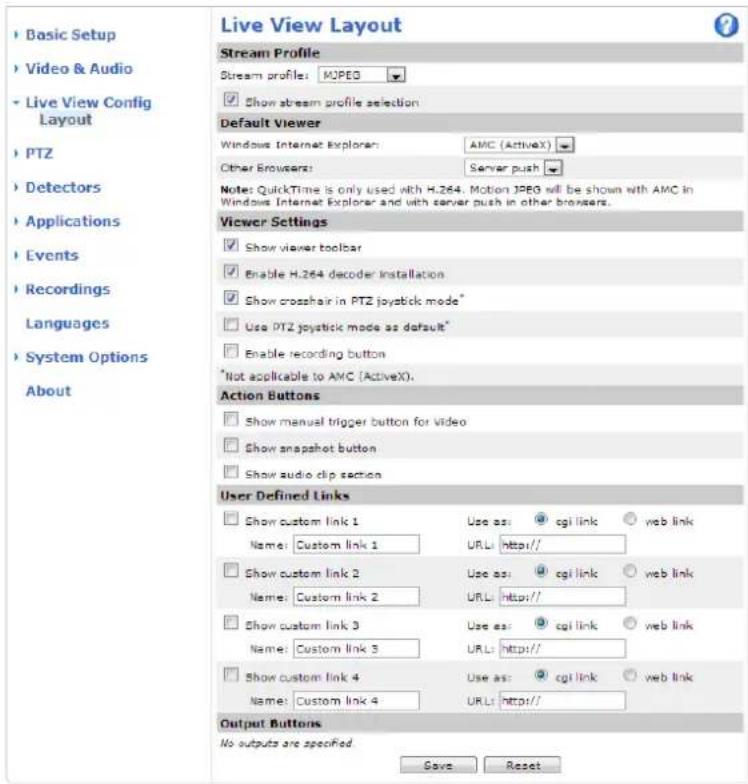

1.GotoSetup>LiveViewLayout.

UndeActionButtons;selectShowmanuatriggebutton.

AXISMediaControlviewertoolbar

TheAXISMediaControlviewetoolbarsavailableInterneExploreOnlySeeAXISMediaControl(AMC)prpage1fromore information.Thetoolbardisplaysthefollowingbuttons:

ThePlaybuttonconnectstotheAxisproductandstartsplayingamediastream.

TheStopbuttonstopsthemediastream.

ThSnapshottortakesnapshotofthevideimage. The location where the images saved are specified in the AMCControlPanel.

AccessingtheProduct

ClickhViewFulScreerbuttonandtheideoimagovilfilthentirescreenPresESCEscapebrthecomputer keyboardtocancelfullscreenview.

TheRecordbuttonisusedrecordthecurrentvidestreamThelocationwhetherecordingsavedcarspecifiedn theAMControlPaneEnablethisbuttonfromLiveViewConfigVieweSettings.

AMCAudioControls

AMCaudiobuttonscontrolthespeakersandmicrophoneconnectedtotheclientcomputer.Thebuttonsareonlyvisiblewhen audioisenabled.

Speakerbutton—Clicktoturnthespeakersonoroff.

Microphone button Clickmutor unmut themicrophoned Simplex speaker only mode the Microphon and Talk button must both be activetosendaudiotothe Axis product. Clickeither button to stop a audiotransmission.

Use the sliderto control the volume of the speakers and the microphone.

Half-duplexmode

TheTalk/Listerbuttonusedswitchbetweensending and receiving audio The buttoncarbe configured from the AudiotabintheAMCControlpanel:

- Push-To-Talkmode: Clickandholdthebuttontotalk/send. Releasethebuttontolisten.

- Togglemode: Clickoncetoswitchbetweentalkingandlistening.

Simplex-speakeronlymode

To end audio the Tall and Microphon buttons mus both active click the buttort stop audio transmission.

PTZControls

TheLiveViewpagealsodisplaysPan/Tilt/Zoom(PTZ)controls.Theadministratorcanenable/disablecontrolsforspecifiedusersunder SystemOptions>Security>Users.

With the PT2ControlQueue enabled the timeachuser is a controb of the PT2setting is limited Click button or request release control of the PT2 controls the PT2 control Queue setup under PT2 Control Queue.

SelectFocuswindowtodefineareofthecamera'simagethafocushouldbappliednIfthfocuswindowisefrom theLiveViewpage,anychangeinthecamerapositionwillreturntheautofocustotheentirewindow.Tosetapermanentfocus window,seePresetPositions,onpage27

Click the Emulate joystick mode button and click the image to move the camera view in the direction of the mousepointer.

Click the Centemode button and click the image docent the camera view that position the centemode button could also be used to zoom on an as specific area. Click the image and drag to draw a rectangular surrounding the are at obemagnified. To zoom out, rotate the mouse wheel.

ClickhCtrpanebuttortoperthePTZontropanewhichprovidesadditionaPTZontrols. User-definedbuttonscanalsoappearintheControlpanel.SeeControls,onpage29.

SelectaPTZpresetpositiontosteerthecameraviewtothesavedposition.SeePresetPositions, onpage27.

AccessingtheProduct

PanandTiltbars—Usethearrowstopanandtiltthecameraview,orclickonapositiononthebartosteerthe cameraviewtothatposition.

Zoombar-Usethearrowstozoominandout,orclickonapositiononthebartozoomtothatposition.

Focusbar-Usethearrowstofocusthecamera,orclickonapositiononthebartosetthefocusposition.Usingthe focusbarwilldisabletheproduct'sautofocus.Tore-enable,usethePTZcontrolpanelwhichisopenedbyclicking theCtrlpanelbutton(seeabove).

The PTZ control sarbe disabled under PTZ Advanced Controlssee Controlsprpage29.

MediaStreams

TheAxisproductprovidesseveralaudioandvideostreamformats.Yourrequirementsandthepropertiesofyournetworkwill determinethetypeyouuse.

TheLiveViewpageintheproductprovidesaccesstoH.264andMotionJPEGvideostreams,audiostreamsandtothelistofavailablestreamprofiles.Otherapplicationsandclientscanaccessvideoandaudiostreamsdirectly,withoutgoingviatheLiveViewpage.

HowtoStreamH.264

The videocompression standard H.264 makes good use of bandwidth, and can provide high quality video streams at less than 1 Mbit/s.

Deciding which combination of protocols and method stoused depends on your viewing requirements, and on the properties of your network. The available options in AXIS Media Control are:

UnicastRTP	Thisunicastmethod(RTPoverUDP)isused forliveunicastvideo,especiallywhenitis importanttoalwayshaveanup-to-datevideo stream,evenifsomeimagesaredropped.	Unicastingisusedforvideo-on-demand transmissionsothatthereisnovideotraffic onthenetworkuntilaclientconnectsand requeststhestream.Notethatthereareamaximumof20 simultaneousunicastconnections.
RTPoverRTSP	Thisunicastmethod(RTPtunneledoverRTSP) isusefulasitisrelativelysimpletoconfigure firewallstoallowRTSPtraffic.
RTPoverRTSPoverHTTP	Thisunicastmethodcanbeusedtotraverse firewalls.Firewallsarecommonlyconfiguredto allowtheHTTPprotocol,thusallowingRTPto betunneled.
MulticastRTP	Thismethod(RTPoverUDP)shouldbeusedforlivemulticastvideo.Thevideostreamisalways up-to-date,evenifsomeimagesaredropped.Multicastingprovidesthemostefficientusageofbandwidthwhentherearelargenumbersof clientsviewingsimultaneously.Amulticastcannothowever,passanetworkrouterunlessthe routerisconfiguredtoallowthis.ItisnotpossibletomulticastoverthelInternet,forexample.Notealsothatallmulticastviewerscountasoneunicastviewerinthemaximumtotalof20 simultaneousconnections.

AXISMediaControlnegotiateswiththeAxisproducttodeterminethetransportprotocoltouse.Theorderofpriority,listedintheAMCControlPanel,canbechangedandtheoptionsdisabled,tosuitspecificrequirements.

Note

H.264islicensedtechnology.TheAxisproductincludesoneH.264viewingclientlicense.Installingadditionalunlicensed copiesoftheclientisprohibited.Topurchaseadditionallicenses,contactyourAxisreseller.

MJPEG

This formatusesstandardJPEGstillimagesforthevideostream. These images are then displayed and updated at a rate sufficient to create stream that shows constantly updated motion.

TheMotionJPEGstreamusesconsiderableamountsofbandwidth,butprovidesexcellentimagequalityandaccesstoeveryimage containedinthestream.TherecommendedmethodofaccessingMotionJPEGlivevideofromtheAxisproductistousetheAXISMediaControlInInternetExplorerinWindows.

AXISMediaControl(AMC)

AXISMediaControl(AMC)inInternetExplorerinWindowsistherecommendedmethodofaccessinglivevideofromtheAxisproduct.

MediaStreams

TheAMCControlPanelcanbeusedtoconfigurevariousvideoandaudiosettings.PleaseeseetheAXISMediaControlUser's Manualformoreinformation.

TheAMCControlPanelisautomaticallyinstalledonfirstuse,afterwhichitcanbeconfigured.OpentheAMCControlPanelfrom:

- WindowsControlPanel(fromtheStartmenu)

Alternatively right-click the video camera Interne Explore and click Settings.

AlternativeMethodsofAccessingtheVideoStream

YoucanalsoaccessvideoandimagesfromtheAxisproductinthefollowingways:

MotionPEGervepush(fupported by the client Firefox example) This option maintains proper HTTP connection to the browser and sends data as and when required, for as long as required.

StiUPEGmagesnbrowserEntethepathhttp:///axis-cgi/jpg/image.cgi

Window Media Player This requires AXIS Media Control and the 1.264 decoder to installed the following paths can be used:

-UnicastviaRTP:axrtpu://<ip>/axis-media/media.amp
-UnicastviaRTSP:axrtsp://<ip>/axis-media/media.amp
-UnicastviaRTSP,tunneledviaHTTP:axrtsphttp://<ip>/axis-media/media.amp
-Multicast:axrtpm://<ip>/axis-media/media.amp

- QuickTime TM. The following pathscanbeused:

-rtsp://<ip>/axis-media/media.amp
-rtsp://<ip>/axis-media/media.3gp

Note

• =|Paddress
  •TheAxisproductsupportsQuickTime6.5.1andlater.
• QuickTimeaddslatencytothevideostream.
• It maybe possible to use other player's view the H.264 stream using the paths above, although Axis does not guarantee this.

AccessingAudioStreams

TheLiveViewpageprovidesaccesstoaudiothroughAXISMediaControl;inadditionaudiocanbeaccessedinthefollowingways:

VAPIX®ApplicationProgrammingInterface(API)Fomoreinformationyisitwww.axis.com/developer

-WindowsMediaPlayersupportssimplexaudio.Thefollowingpathscanbeused:
-UnicastviaRTP:axrtpu://<ip>/axis-media/media.amp
-UnicastviaRTSP:axrtsp://<ip>/axis-media/media.amp
-UnicastviaRTSP,tunneledviaHTTP:axrtsphttp://<ip>/axis-media/media.amp
-Multicast:axrtpm://<ip>/axis-media/media.amp

-QuickTime TM supportsG.711andAACaudioencoding.Thefollowingpathscanbeused:
-rtsp://<ip>/axis-media/media.amp
-rtsp://<ip>/axis-media/media.3gp
-TheJavaappletsupportssimplexaudiowithG.711encoding.

SettingUptheProduct

The Axproduct are configured by users with administrator operator rights to the product's setup pages, including the copyright-hand corner of the Live View page.

• Administratorshaveunrestrictedaccesstoallsettings.
• OperatorshaveaccesstoallsettingsexceptSystemOptions

Seealsotheonlinehelp

BasicSetup

BasicSetupprovidesshortcutstothesettingsthatshouldbemadebeforeusingtheAxisproduct:

1.Users.Seepage42.
2.TCP/IP.Seepage45.
3. Date&Time.Seepage44.
4.VideoStream.Seepage17.
5.AudioSettings.See page22.

TheBasicSetupmenucanbedisabledfromSystemOptions>Security>Users.

VideoandAudio

Thevideoandaudiosettingscanbeusedtooptimizevideoandaudioquality.Youcanconfigurethefollowing:

•Videostreamsettings.Seepage17.
- Streamprofiles.See page 18.
- Camerasettings.See page 18.
•Overlayimage.Seepage20.
- Privacymask.Seepage22.
• Audiosettings.Seepage22.
• Audioclips.Seepage23.

VideoStream

You can defin the following video stream settings from Video & Audio Vide Stream:

• Image.Seepage17.
  •H.264.Seepage18.
• MJPEG.Seepage18.


ThedefaultmagsettingscarbeconfiguredundevidedAudioVideStreamSelectdImagtab.

The followingsettingsareavailable:

- Resolution.Selectthedefaultresolution. CompressionThe compressionlevel affects the image quality bandwidth and file size of saved images, the higher the image quality with higher bandwidth requirements and larger filesizes.

- Rotateimage.Ifrequired,theimagecanberotated.

MaximunframeateAvoidbandwidthproblemsthframerateallowedeachviewerandLimitedfixed amountAlternativelythframeratecarbeetalUnlimitedwhichmeanstheAxisproductalwaysdeliverstheighest frameratepossibleunderthecurrentconditions.

OverlayettingSeeOverlaypage20.

ClickSavetoapplythenewsettings.

H.264

H.264,alsoknownasMPEG-4Part10/AVC,isavideocompressionstandardthatprovideshighqualityvideostreamsatlowbitrates. AnH.264videostreamconsistsofdifferenttypesofframessuchasl-framesandP-frames.Anl-frameisacompleteimagewhereas P-framesonlycontainthedifferencesfrompreviousframes.

The GOVength the number frames between two consecutive frames increasing the GOVength may save considerable bandwidth requirement sinsome cases, but may also have an adverse effect on image equality.

The AxiproductsupportswdH.264profilesTheMainprofilprovidesighecompressiorthartheBaselinprofilwiththesamevideoquality,butrequiresmoreprocessingpowertodecode.

ThebitatcarbeseVariableBiRate(VBR)ConstantBiRate(CBR)VBRadjustthebitataccordingtheimage complexity,usingupmorebandwidthforincreasedactivityintheimage,andlessforlowerimageactivity.CBRallowsyoutoseta fixedtargebitathatconsumespredictableamountbandwidthAthebitatowouldusuallyneedincreaseforincreased imageactivity,butinthiscasecannot,framerateandimagequalityareaffectednegatively.Topartlycompensateforthis,itis possibletoprioritizeeitherframerateorimagequality.Notsettingaprioritymeansthatframerateandimagequalityareequally affected.Youmustsaveyoursettingsbefoetheycantakeeffect.

The current table can be set appear text overlay to this select the include text checkbox option under Overlay Settings and enter them modifier # bin the field.

MJPEG

Sometimes the imagesize is large duolow light to complex scenery. Adjusting them a maximum framesize help to control the bandwidth and storage used by Motion PEG video stream in these situations. Setting the framesize default setting provides consistently good image quality at the expense of increased bandwidth and storage usage in low light. Limiting the frame size optimizes bandwidth and storage usage, but may give poor image quality. Toprevent increased bandwidth and storage usage, them a maximum framesizes should be set to an optimal value.

StreamProfiles

Astreamprofileisasetofpredefinedstreamsettingsincludingresolution,compression,framerateandoverlaysettings.Stream profilescanbeused:

• Whensettinguprecordingusingactionrules.SeeEvents,onpage35.
• Whensettingupcontinuousrecording.SeeContinuousRecording,onpage40.

In the live view pages select the stream profile from the Stream profile drop-down list.

For quick setup, use one of the predefined stream profiles. Each predefined profile has a descriptiven name, indicating its purpose. If required, the predefined stream profiles can be modified and new customized stream profiles can be created.

To create new profile to modify existing profile to Setup Video Audio Stream Profiles.

To select default stream profile for the Live View page and Setup Live View Config.

CameraSettings

The VideoAudioCameraSettingspage provides access to advanced image settings for the Axis product.

ImageAppearance

Increasing the color level Increase the color saturation The value gives maximum color saturation The value gives black and white image.

Thémage Brightnessar based therange-100wherighelvalu produces brighteimage.

Increasing h Sharpness can increase bandwidth usage sharper image might increase image noise especially now light conditions. Alowersetting reduces image noise, but the whole image will appear less sharp.

The Contrast changes relative difference between light and dark car based using the slidebar.

WhiteBalance

Whitebalanceisusedtomakecolorsintheimageappearthesameregardlessofthecolortemperatureofthelightsource.TheAxis productcanbesettoautomaticallyidentifythelightsourceandcompensateforitscolor.Alternatively,selectthetypeoflight

sourcefromthedrop-downlist.Foradescriptionofeachavailablesetting,seetheonlinehelp

The white balance window is enabled for the Automation and Automation outdoor options that appear in the White balance drop-down list. Select of the options from the drop-down list to the white balance window properties. Select Automatics the default settings for the Automation and Automation outdoor options (in the White balance drop-down list). Select Custom manually set a reference window for white balance in the view area.

WideDynamicRange

Widdynamic range(Dynamic Contrast) can improve the exposure whether there is considerable contras between light and dark areas in the image. Enable WDRin intense backlight conditions. Disable WDRin low light conditions for optimale exposure.

Note

Thissettingisonlypossiblewhenusingautomaticexposurecontrol.

ExposureSettings

Configure the exposures setting stosuit the image quality requirements in relation to lighting, framerate and bandwidth considerations.

Exposurevalue-Clickinthebartofine-tunetheexposure.

Enable Backlight compensation Enable this option brightspotfightforexamplelightbulbcauses the area in the imagetoappeartoodark.

Exposure zones This settings determines which part of the images used calculate the exposure from the situations that Auto setting can be used. For particular requirement, select a predefined area.

Shutter&Gain

Theshutterandgainsettingsaffecttheamountofmotionblurandnoiseintheimage.Toadapttodifferentlighting,available storagespaceandbandwidth,itisoftennecessarytoprioritizeeitherlowmotionblurorlownoise.TheAxisproductallows usingdifferentprioritizationinnormallightandinlowlight.

Shutterspeedrelatedthemounbfimthehutterisopenedandmeasuredsecond(s)Aslowshutterspeedallows morelighttoreachthesensorandcanhelpproduceabrighterimageinlowlightsituations.Ontheotherhand,aslowshutter speedcancausemovingobjectstoappearblurry.

SetShutterto

AutogethshutterspeedautomaticallylfrequiredusMaxhutterdimthshutterspeedpreventframe ratefrombeingreduced.Forexample,toget30fps,setMaxshutterto1/30.

•Fixedtouseafixedshutterspeed.

VideoandAudio

Gainmeasureddecibe(dB)is the amount amplification applied the image highaimay provide better image low lightsituations but will increase the amount of image noise.

SetGainto

Autdosethegainautomatically,requireduseMaxairtdimitheappliedain.

- Fixedtouseafixedgain.

WherShutterandGainarebothsetAutoifispossiblegethePrioritybetweenlowmotionbluandownoismanuallyandousdifferenPriorityNormalLightandLowLight.

Example

Consideranareawherepeopleorvehiclesmoveduringtheday, butwherethereshouldbenomovementsduringnight.Tobeableto, forexample, recognizefacesorlicenseplates, movethenormallightpriorityslidertowardlowmotionblur. Atnighttime, motion detectionismoreimportantthanidentification. Motionblurisacceptableandsincelowlightcancausealotofnoise, move thelowlightpriorityslidertowardldownoise.

Example

Ifstoragespaceorbandwidth this limited, try using a lowerergain. This will reduce image noise and produces smaller image files.

Day/Night

TheIRcutfilterpreventsinfrared(IR)lightfromreachingtheimagesensor.Inpoorlightingconditions,forexampleatnight,orwhenusingarexternalRampsethldRcutfeltertoOffThisincreasesightsensitivityandallowstheproducto"seeInfraredightTheimageisshowninblackandwhitewhenthelRcutfilterisoff.

If using automatic exposure control, the Rufilter to Auto automatically switch between Orand Off according the lighting conditions.

Overlay

Overlaysareusedtoprovideextrainformation,forexampleforforensicvideoanalysisorduringproductinstallationand configuration.Overlaysaresuperimposedoverthevideostream.

Anoverlaytextcandisplaythecurrentdateandtime,oratextstring.Whenusingatextstring, modifierscanbeusedtodisplay informationsuchashecurrentbitatothecurrentframeofinformationaboutavailablemodifiersseFileNamingt

Date/TimeFormatsintheonlinehelp.

Italspossible displaytextwhenactionrulestriggeredsedUsingOverlayTextmanActionRule.

Toenableoverlays:

GoldVide&AudioVideStreamandelecthæmagetab.

Tinclude overlayimages select include overlaymagath coordinates The overlaymagenustfirsbe uploaded to theAxisproduct, see OverlayImage.

Bincludatandimeselectncludatandncludime.

TincludetextstringselectIncludetextandentethdextrthefieldModifiersausedseFileNaminget

Date/TimeFormatsintheonlinehelp

1. Definetextoverlaycharacteristicsintherelevantfields.

6.ClickSave.

Tomodify the date and time format grid System Options DateTime See Date Time per page 44.

OverlayImage

Anoverlayimageisastaticimagesuperimposedoverthevideostream.Theimage,forexamplecompanylogo,isusedtoprovide extrainformationortomaskapartoftheimage.

Sinceitisstatic, thepositionandsizeofanoverlayimagewillremainthesameregardlessofresolutionandPan/Tilt/Zoom movementsTo setupdynamimaskwhichwillalwaysmaskthespecifiedfarbmonitoredareaseePrivacyMask.

Touseanoverlayimage, theimagemustfirstbeuploadedtotheAxisproduct:

GoVideoAudioOverlaymage.

2.ClickBrowseandbrowsetothefile.
3.ClickUpload.
4. Select the imagetouse from the Use overlay imagelist.
5.ClickSave.

Todisplaytheoverlayimage:

GoVideoAudioVideStreamandelectdmagtab.

UndeOverlaySettingsselectincludeoverlaymagathecoordinatesandentetheandcoordinates.

3.ClickSave.

Forinformationaboutsupportedimageformats,seetheonlinehelp

UsingOverlayTextinanActionRule

Actionrulespage85cardisplayaroverlaytextwhertheulestriggedltextarbusedprovidenformationforforensicvideoanalysis,notifiesurveillanceoperatorsorvalidatetriggersandactionsduringproductinstallationandconfiguration.

Talisplayverlátetwheractionrulistriggeredthemodifiè! ShouldbeseasdescribedbelowWhetherules triggered,#Dwillbereplacedbythetextspecifiedintheactionrule.

Startbyenablingoverlaytextinthevideostream:

GoVideoAudioVideStreamandelecthImagtab.

UndeOverlassettingsselectncludtext.

Enterthemodifier#Landoptionallyadditionatextwhichwilbdisplayedalsowherthactionrulənotactive.

Createtheactionrule:

1. GotoEvents>ActionRules
   2.ClickAddtocreateanewrule.

SelectTriggerandoptionally,ScheduleandAdditionaConditionsSethonlinhelpodetails.

1. From the Actionslist, select OverlayText

Entethext Display the Textfield This thext that Dwilbereplaced by.

SpecifyDurationThextarbeisplayedwhiletheuleactiveoffixednumberseconds.

Example

T display text Motion detected when motion is detected. The number of degrees of motion detected in the text field when setting up the action rule.

PrivacyMask

Aprivacymaskisanareaofsolidcolorthatprohibitsusersfromviewingpartsofthemonitoredarea.Privacymaskscannotbe bypassedviatheVAPIX®ApplicationProgrammingInterface(API).

The PrivacyMaskListVideoAudioPrivacyMaskshows the mask that are currently configured the Axis product and indicates if they are enabled.

SincethePan/Tilt/Zoomcoordinatesdefineitssizeandposition,aprivacymaskisdynamicinrelationtothemonitoredarea.This meansthatregardlessoftheangleandzoomofthelens,thesameplaceorobjectwillbehidden.BoDefineatwhatmagnificationthe maskshouldbedisplayed,zoomtothedesiredlevelandclickSetlevel.

Youcanaddanewmask,re-sizethemaskwiththemouse,chooseacolorforthemask,andgivethemaskaname.

Formoreinformation,seetheonlinehelp

Important

Adding many privacy masks may affect the product's performance.

AudioSettings

The audifunctionalityforeachvidestreamenabledundevidedAudioVideStreamAudio.

AudioModes

TheAxisproductsupportsthefollowingaudiomodes:

Fulltuple Simultaneous two-way audio allowing the Axiproduct transmit and receive audio the same time. There is echocancellation; if feedback loops appear, try moving themicrophone or the speaker.

Half-duplexAudiocartransmittedandrontheAxiproductbonlyrondirectionatTimeTransmitaudiusingtheLiveViewpageuschTalkandListerbuttonsseeAMCAudioControlsprpage1.

SimplexspeakeonlyAudiotransmittedfromclienttheAxiproductandarbeplayedbyspeakerconnectedttheproductdtransmitaudiusingtheLiveViewpagetheTalkandMicrophonbuttonsnusbothbactiveseeAMCAudioControls,onpage11.

Simplex-microphononlyAudio captured by the product microphonetransmitted from the Axis production on more clients.

Toethaudiomodeg@videoAudioAudioSettingsandselecthedesiredmodefromtheAudiomodelrop-downlist.

Audiolnput

Select Microphonon use external microphone. Lind use Liner device, graudionixefomultiplic microphones oramicrophonewith built-in amplifier, as audiosource.

Select the microphone sensitivity level (High/Low) depending on the sound level monitored area. For example, the Axis product installed in this environment, getting the input sensitivity level.

The MicrophonopoweroptionprovidedDPowefoarexternalmicrophoneMicrophonopowershouldonlypersedwith microphonesthathavenobattery.Thissettingshouldnotbeenabledwhenusingadynamicorbatterypoweredmicrophone. Microphonepowerwillnotharmthemicrophone;ifyouareuncertain,tryswitchingitoffandon.Touseaprofessionalmicrophone requiring48Vphantompower,youneedanexternalpowersupplyandabalanced-unbalancedconverter(audiotransformer)in between.

Use the input gain control the volume (Full Scale) the audio input the sound to how choose high B to amplify the sound of sound to high choices down B. The level bag gives visual representation of the audio signal level in B relative to the full-scale input level.

- Green—thesignalisatagoodlevel.

VideoandAudio

• Yellow—thesignalisbecomingdistorted.
• Red—thesignalisdistorted.

UsetheEncodingoptiontoselectdigitalaudioencodingformat.

AAC requires license for both encoding and decoding AAC the least complicated and most widely used coded achieving the best possible audio quality is priority, AAC is there recommended codectouse. An AAC license is included in the Axis product.

G71 is unlicensed standard code that useful when integrating audiointal System
G726anunlicensedspeechcodethatmostcommonlyusedwithinthesecurityindustry.

ThSampleate defines the number of time per second sounds sampled. Higher sample rate will provide better audio quality, but also requires a greater bandwidth.

SetherequiredBitatedependingthselectedencodingAnighebitatewilgivbetteaudiaqualityAowebitatemayhavelatencyordelay,butwillrequirelessbandwidth.

Formoreinformationaboutthesesettings,pleaseetheonlinehelp

AudioOutput

Configure the audio output settings under Video & Audio Audio Settings.

OutputainControlvolume(dBulScale)theinaudioutputthesoundstodowchooshighedBlthesoundstoohigh,choosealowerdB.

AudioClips

AaudioclipsoundilchatarplayedwhereventoccundirectlyfromthLivViewpageTheaudiclipmustirsbe uploadedtotheAxisproductorrecordedbyamicrophoneconnectedtotheproduct.

To adddownloadmodifyremoveaudioclipsgdVidedAudioAudioClipsFomoreinformationsethonlinehelp

ToconfiguretheAxisproducttoplayaudioclipswhenaneventoccurs,anactionrulemustbesetup.Formoreinformation,seeEvents,onpage35.

Note

Audiclip:annobusedtheproduct's audifunctionality enabledThe audifunctionality enabledtheAudio tabunderVideo&Audio>VideoStream.

LiveViewConfig

YoucancustomizetheLiveViewpageandalterittosuityourrequirements.ItispossibletedefinethefollowingfeaturesoftheLiveViewpage.

• StreamProfile.Seepage18.
• DefaultViewerforBrowser.Seepage24.
  -ViewerSettings.Seepage25.

ActionButtonsThesearchbuttonsdescribedControlstheLiveViewPageprpag

-UserDefinedLinks.Seepage25.
- OutputButtons.Seepage25.

DefaultViewerforBrowsers

FromLiveViewConfigDefaultVieweselecthedefaultmethodforviewingvideimagesyoubrowserTheproductattempts toshowthevideoimagesintheselectedvideoformatandviewer.Ifthisisnotpossible,theproductoverridesthesettingsand selectsthebestavailablecombination.

BrowserViewerDescription
WindowsInternetExplorer	AMC	RecommendedviewerinInternetExplorer(H.264/MotionJPEG).
	QuickTime	H.264.
	Javaapplet	AslowerimagingalternativetoAMC(MotionJPEG).Requiresoneofthe followinginstalledontheclient:•JVM(J2SE)1.4.2orhigher.•JRE(J2SE)5.0orhigher.
	StillimageDisplaysstillimagesonly.ClicktheRefreshbuttoninyourbrosertoviewa newimage.
Otherbrowsers	ServerPush	Recommendedviewerforotherbrowsers(MotionJPEG).
	QuickTime	H.264.
	Javaapplet	AslowerimagingalternativetoServerPush(MotionJPEGonly).
	StillimageDisplaysstillimagesonly.ClicktheRefreshbuttoninyourbrosertoviewa newimage.

Formoreinformation,pleaseetheonlinehelp.

ViewerSettings

Toconfigureoptionsfortheviewer,gotoLiveViewConfig>ViewerSettings.

SelectShowewetoolbatalisplaytheAXISmediaControl(AMC)theQuickTimeviewetoolbaundethevideoimageinyourbrowser.

H.264lecodeinstallationThe administratorandisableinstallationofH.264lecodeincludedwithAXISMedia Control.Thisisusedtopreventinstallationofunlicensedcopies.Furtherdecoderlicensescanbepurchasedfromyour Axisreseller.

SelectShovercrosshainPTJoystickmode enable crosshatwill indicate the center of the image PTJoystick mode.

SelectUsePTZystickmodasdefaultenablejoystickmode. The mode can be changed temporarily from the PTZcontrolpanel.

SelectEnableecordingbuttonEnablerecordingfromtheLiveViewpagThisbuttonisavailablewhenusingtheAMCviewer.TherecordingsaresavedtothelocationspecifiedintheAMCControlPanel.SeeAXISMediaControl(AMC),onpage 13.

UserDefinedLinks

Todisplayuser-definedinkinthliveViewpageselecthShowcustomlinkoptiongivthedinknamandherentethURL tolinkto.Whendefiningaweblinkdonotremovethehttp://fromtheURLaddress.Customlinkscanbeusedtorunscriptor activateexternaldevicesconnectedtotheproduct,ortheycanlinktoawebpage.Customlinksdefinedascgilinkswillrunthe scriptinthebackground,inahiddenframe.Definingthelinkasaweblinkwillopenthelinkinanewwindow.

OutputButtons

Externall/OdevicesconnectedtotheAxisproduct'soutputportscanbecontrolleddirectlyfromtheLiveViewpage.

TodisplayoutputbuttonsintheLiveViewpage:

1. GotoSetup>LiveViewConfig.

2. UnderOutputButtons, select the type of controltouse:

Pulsactivates the output for define period of time. The pulse time can be seen from 10 seconds to 60 seconds.

-Active/Inactive displaywobuttons, oneoreachaction.

ToconfigureactiveandnactivstatesgdSystemOptionsPortsDevicesl/Portandethport'Normastate.

Formoreinformationaboutl/Oports,seeI/OPorts,onpage51.

PTZ(PanTiltZoom)

PresetPositions

Apresetpositionisapredefinedviewthatcanbeusedtoquicklysteerthecameratoaspecificlocation.Presetpositionscan beaccessedinseveralways:

Byelecting the prese from the Prese positions drop-down list the Live View Page.

• Whensettingupactionrules.Seepage35.
• WhensettingupGuardTour.Seepage28.
• WhensettinguptheGatekeeper.See page28

Toaddapresetposition:

1. GotoPTZ>PresetPositions.
2. Usethepan, tilt and zoom control, tosteer the camera view to the desired position.
3. EnteradescriptivenameintheCurrentpositionfield.
4. If required, select UsecurrentpositionasHome.

ClickAddThe camera's position and focus settings are saved as preseposition.

The Composition is readily accessible by clicking the HomeButton or the Live View page and the Prese Position setup window.

To a customized composition select user position home when adding preposition the user-defined home position will have (H) added,forexample,Entrance(H).The default Home position, called "Home",will still be available.

TheproductcanbeconfiguredtoreturntotheHomepositionwhenthePTZfunctionalityhasbeeninactiveforaspecifiedlengthofimeEntethlengthfimenthReturnhomewheinactivefieldandlicSavSethaimdzerdpreventheproductfromautomaticallyreturningtotheHomeposition.

To include the preposition am in the overlay text provided by AudioSelect including overlay text and the modification. Ein

thefieldFomoreinformationaboutmodifiersseeFileNamingDate/TimeFormatsthenlinhelp

FocusWindow

The focus window makes it possible to select an area of the camera's image that focus should be applied. This can be useful there is a part of the image where focus is more critical, or if a part of the images should be ignored by the autofocus.

If the focus window is set from theLiveViewpage, any change in the cameraposition will return the autofocus the entire window.

If the focus window is from the Preset Positions page, it will be included in these settings for that preset. The focus window can be redefined for the preset, but it cannot be deleted unless the preset is deleted.

Gatekeeper

TheAdvancedGatekeepermonitorsanareasuchasanentrancegate.Whenmotionisdetectedinthemonitoredarea,theGatekeeper willsteerthecameratoaselectedpresetposition.Usingazoomed-inpresetpositioncanmakeitpossibleto,forexample,reada licenseplateoridentifyaperson.Whenmotionisnolongerdetected,thecamerareturnstoitsHomepositionafteradefinedtime.

TenablethGatekeepergptPTZGatekeeperandfollowthonlininstructions.

Italspossibletoexamplerecordvideosavimage(takesnapshot)whiletheGatekeepersactiveGoEvents andsetupanactionrulewithPTZPresetReachedastrigger.

GuardTour

Aguardtourdisplaysthevideostreamfromdifferentpresetpositions,one-by-one,inapredeterminedorderoratrandomandforconfigurabletimeperiods.Theenabledguardtourwillkeeprunningaftertheuserhasloggedofforclosedthebrowser.

Toaddaguardtour:

GdPTZGuardTouandclicAdd.

2.Enteradescriptivename.

1. Specifythepauselengthbetweenruns.

2. SelectanavailablepresetpositionandclickApply.

3. SpecifytheMoveSpeed.

4. Specify theViewTimeinsecondsorminutes.

SpecifyViewOrderselecttheRandomviewDeoption.

8.ClickSave.

TomodifyremoveguardoursgdoPTZGuardTourselectheguardouritheGuardTouListandlicModify/Remove.

Formoreinformationseetheonlinehelp

OSDIZones

On-ScreerDirectionIndicator(OSDI)onescanincludedtheoverlayex(seOverlayprpage20)aid thesetto navigate theAxisproduct.EachOSDIzoneissetupwithcoordinatesandadescriptivename.

OSDzonearesetupundePTZOSDZoneTheAxiproductsethecoordinatesofthecentefthiewtsethdower leftandupperrightzoneareas.FirstnavigatetowhereyouwouldlikethelowermostleftpointoftheOSDlzonetobelocated.

ClickGetoethecoordinatesProceedowherthupperighpointfzonshouldobocatedandclicGetGivthezonedescriptivenameandclickOK.

TocluddthenamoftheOSDtonethoverlaytextgVideoAudioVideStreamOverlaSettingsCheckthe Includdexboxandentethenodifie#TirthfieldFomoreinformationaboutmodifiersseFileNamingDate/Time

Formatsintheonlinehelp

Advanced

Limits

Definethepan, tilt, zoom and focus limits for the Axis product. Movement to the left and right, up and down, can be restricted to narrow the area and undersurveillance.

Configurethenearfocuslimittoavoidfocusingonobjectstooclosetothecameralens.

Movespeedsetsthespeedofthecamera'spanandtiltmovements. Thedefaultsettingismaximumspeed.

When using joystick (oemulating new mouse) the Enable proportional speed setting can be used to reduce the maximum pan/tiltmovementspeed, i.e. the speed the cameraview moves at when the joystick is pushed all the way out in any direction. This is useful thenthe view is zoomed in nonan object.

Seetheonlinehelp formoreinformation.

Controls

PaneShortcuCommandButtons:abconfigured provide direct access command issued via the APIX® Application Programming Interface. The button will be displayed in the PTZ control panel, which is available in the Live View page through the Ctr pane button page 1.

DeselectoptionsundeEnable/Disablecontrolsolisablethepantiltzoomandfocuscontrols.

Note

DisablingPTZcontrolswillnotaffectpresetpositions. Forexample, ifthetiltcontrolisdisabled, theproductcanstillmoveto presetpositionsthatrequireatiltmovement.

ControlQueue

The administrator setup que ufo PTZ controller from PTZControlDueo Oncsetup the PTZControlDueu buttons appear in theLiveViewpageofferingoneviewerexclusivecontrolforalimitedperiodoftime. Other users will be placedinqueue.

Ausewhbelongsgroupsed/usersprpage42withhighePTprioritycangbeforetheusersinthequeuandtakecontroloftheproduct.Theorderofpriorityisasfollows:

Administrator\Administrator takesovePTZ control regardless of who first queue the administrator will be removed from the queue 60 seconds after the last PTZ control command.

Event-TheAxisproductarbeconfiguredoctapresetpositionwhertriggeredbyalarm(seeEventsorpage35). Theeventwillimmediatelybeplacedfirstinthequeueexceptwhenanadministratorisincontrol.

1. Operator—Sameas administrator but with lower priority

GuardTour-Aguardou(sepage28haPTZontrofoarindefinitperiodofimeImmayoverriddenbyan operator,eventoradministrator.Theguardtourwillresumewhenhigherprioritygroupsleavethequeue.

Viewer-MultipleviewersmustwaifotheiturnTheviewehasSecondPTZontrobeforecontrolpassed ontothenextviewerinqueue.

Note

• The administrator can enable and disable PTZ controls for selected users.
• Toidentifydifferentusersintheviewergroup,cookiesmustbeenabledontheclient.

Detectors

MotionDetection

Motiondetectionisusedtogenerateanalarmwhenevermovementstartsorstopsinthecameraview.

Motiondetectionisconfiguredbydefiningupto10IncludeandExcludewindows:

- Includewindows—defineareaswheremotionsshouldbedetected

Excludowindowsdefinareaswithiraincludowindowthathouldignored(areaoutsidendcludewindows areautomaticallyignored).

Forinstructions, see SetupMotionDetectionWindows, onpage31.

To control the number of motion detection alarm parameters ObjectSizeHistory and Sensitivity can be adjusted. See MotionDetectionParameters, on page 32.

Oncemotiondetectionwindowsareconfigured, theAxisproductcanbeconfiguredtoperformactionswhenmotionisdetected. Possible actions include uploading images and start recording. For more information setting UponActionRulepage36.

Note

• Usingthemotiondetectionfeaturemaydecreasetheproduct'soverallperformance.
• ThepositionoftheMotionDetectionWindowisrelativetotheorientationoftheCamera.Changingtheorientationofthe camerawillalsochangethepositionoftheMotionDetectionWindow.

SetUpMotionDetectionWindows

TosetupamotiondetectionIncludeWindow, followtheseinstructions:

1. GotoDetectors > MotionDetection.

Select the Configur included Window option and lic New Select the new window the disb windows and enter adescriptivename.

1. Adjustthesize(dragthebottomright-handcorner) and the position(clickonthetextatthetopanddragtothedesired position) of the window.

Adjust the Object Size History and Sensitivity profile slider (sed Motion Detection Parameters for details) Any detected motion within an active window is indicated by red peaks in the Activity window.

5.ClickSave.

To exclude part of the inclusion window, select the Configure Excluded Window and position the exclusion window within the inclusion window.

ToletanincludeexcludewindowselectehwindowitheistofwindowsandlicDel.

MotionDetectionParameters

The parameters controlling motion detection are described in the table below:

Parameter	ObjectSize	History	Sensitivity
Description	Objectsizerelativetowindow size.	Objectmemorylength.	Differenceinluminance betweenbackground and object.
Highlevel(100%)	Onlyverylargeobjectstrigger motiondetection.	Anobjectthatappearsin thewindowtriggersmotion detectionforalongtime beforeitisconsideredas non-moving.	Ordinarycoloredobjectson ordinarybackgroundstrigger motiondetection.
Mediumlevel(50%)			Alargedifferenceinluminance isrequiredtotriggermotion detection.
Lowlevel(0%)	Evenverysmallobjectstrigger motiondetection.	Anobjectthatappearsin thewindowtriggersmotion detectiononlyforaveryshort timebeforeitisconsideredas non-moving.	Onlyverybrightobjectson adarkbackgroundtrigger motiondetection.
Recommendedvalues	5–15%60–90%75–95%
Defaultvalues	15%90%90%

Note

• Totriggeronsmallobjectsormovements, useseveralsmallmotiondetectionwindowsratherthanonelargewindow andselectalowobjectsize.
• To avoid triggering on small objects, select a high object size.
• Whilemonitoringanareawheremovingobjectsarenotexpected,selectahighhistorylevel.Thiswillcausemotion detectiontotriggeraslongastheobjectispresentinthewindow.
• Toonlydetectflashinglight,selectalowsensitivity.Inothercaseshighsensitivityisrecommended.

AudioDetection

TheAxisproductcanbeconfiguredtogenerateanalarmwhenaudiorisesaboveorfallsbelowthethresholdvalue.Thethreshold valuecanbesetintherange0-100where0isthemostsensitiveand100theleastsensitive.

1. GotoDetectors>AudioDetection.

2. Set the audio alarm level and click Save.

GdEventsActionRulesandetuparactionruleseSettingUpanActionRuleprpage36.

Detected audio indicated by colore peak birth Activity indicator Are vent triggered when detected audio rises above falls below the threshold value, which is represented by the bar.

Applications

ThirdpartyapplicationscanbeuploadedtoandinstalledontheAxisproduct. Applicationsaddfunctionalitytotheproduct,for examplevideoanalyticsandintelligentvideocapabilitiessuchasrecognition,tracking,detectionandcounting.Forinformation aboutavailableapplications,downloads,trialsandlicenses,goto www.axis.com/applications

Note

• Itisrecommendedtorunoneapplicationatatime.
• Avoidrunningapplicationswhenthebuilt-inmotiondetectionisactive.

ApplicationLicenses

Someapplicationsneedalicensetorun.Licensescanbeinstalledintwoways:

•Automaticinstallation—requiresaccesstothelnternet
- Manualinstallation—obtainthelicensekeyfromtheapplicationvendoranduploadthekeytotheAxisproduct

Torequestalicense, theAxisproductserialnumber(S/N) is required. The serial number can be found on the product label and under SystemOptions > Support > SystemOverview.

InstallApplication

Toinstallandstartanapplication:

1. GotoSetup>Applications.
   UndeUploadApplicationclickBrowseLocatethapplicationfileandclickUploadPackage.
2. Install the license (if applicable). For instructions, seethedocumentation provided by the application vendor.
   Start the applicationG40 page Applications select the application in the disf installed applications and click Start.
3. Configuretheapplication.Forinstructions,seethedocumentationprovidedbytheapplicationvendor.

Note

• Applicationscanbeuploadedbyproductadministrators.
• ApplicationsandlicensescanbeinstalledonmultipleproductsatthesametimeusingAXISCameraManagement,version 3.10andlater.

To generate log file of the application to Application Select the application and click Log.

ApplicationConsiderations

Ifanapplicationisupgraded, applicationsettings, including the license, will be removed. The license must be installed and the application reconfigured.

If the Axis product's firmware is upgraded, installed applications and their settings will remain unchanged, although this is not guaranteed by Axis Communications AB. Not that the application must be supported by the new firmware. For information about firmware upgrades, see Upgrading the Firmware.

If the Axis product is restarted, running applications will restart automatically.

If theAxisproductisrestored, installed applications remain unchanged but must be restarted. Tostarttheapplication, goto SetupApplicationSelectapplicationirtheisbinstalled applications and clickStartInformationaboutestoring theAxisproduct, seeMaintenance.

Applications

If theAxisproductisresettofactorydefault, installed applications and their settings are removed. For information about factory default, see ResettoFactoryDefaultSettings.

Events

TheAxisproductcanbeconfiguredtoperformactionswhendifferenteventsoccur,forexample,startarecordingwhenmotionis detectedThesecondditionshatefineshowandwhethactionstriggeredsalledActionRule.

AvailableActionRuletriggersandconditionsinclude:

Applications=usinstalled applicationsdriggetheuleseeApplicationsprpage33.

- Detectors

AudioDetection-triggered rule when audiosdeltected see AudioDetectionpage32.

Day/NightMode-triggethe rule/wherthproductswitches between day model (Rcfilter) and night mode (IRcutfilteroff). This can forexample be used to control an external infrared (IR) light connected to an output port.

LivStreamAccessed-triggered user when any streami accessed and during dsg storage playback. This can forexample be used to send notifications.

MotionDetection-triggered Rule when motion is detected see Motion Detection page 3.1.

- Hardware

Network-triggered network connection is restored. This example used start recording to the SDcard.

Temperature-triggered temperature falls outside inside the operating range of the product This can forexample be used to maintain anencenotifications.

- InputSignal

DigitalInputPort-triggetheulwheran/Oporteeivesignafromconnecteddevicesed/OPorts,onpage51.

ManualTriggerTriggerButtonusingtheManualTriggerbuttonintheLiveViewpagesControlson theLiveViewPage,onpage9.Thiscanforexamplebeusedtovalidateactionsduringproductinstallation andconfiguration.

VirtualInputs-carbused by VMSVidedManagementSystemdriggeactionsVirtualInputscanfor example,beconnectedtobuttonsintheVMSuserinterface.

•PTZ

Error-triggetheulefthPTFunctionalitynotworkingcorrectlyThisaforexampleusedo sendmaintenancenotifications.

Moving-triggered rule where the camera view moves dueto PTZ operation This is a example used as an additional condition to prevent an action rule triggered by motion detection to record videowhile the camera view moves dueto PTZ operation.

PreseReached-triggered rule where the camera stops at prese position This bar before example used with the Send Images action to upload images from the preset position.

Ready-triggered rule where the PT functionality ready to be used. This example is used to steer the camerato as specific preset position when the product is started.

•Storage

Disruption-triggered eule storage problem are detected for example if the storage device unavailable, removed, full, locked or if other reader or write problems occur. This can forexample be used to send maintenance notifications.

Events

Recording-trigger theulwhertheAxiproductrecorddthstoragedeviceTherecordingstatustrigger canbeusedtonotifytheoperator,forexamplebyflashingLEDlights,iftheproducthasstartedorstoppedto recordtothestoragedevice.Notethat,thistriggercanbeusedonlyforedgestoragerecordingstatus.

•System

SystemReady-triggered rule whenthe product has been started and services running This for example be used to send an notification when the product restarts.

•Time

Recurrence-triggered ul periodically see Recurrences page 38 This far example should upload an image every 5 minutes.

UsSchedule-triggered uul according the selected schedules e Schedules pr page 38.

Availableactionsinclude:

Day/NightVisionMode-setlaymodel(Reufilteron)nightmode(Reufilteroff).

- OutputPort—activateanl/Oporttocontrolanexternaldevice.

OverlayText-displayaroverlaytextsedUsingOverlayTextActionRuleprpage21.

PlayAudioClip-seeAudioClipsorpag23.

- PTZControl

-PresetPosition—gotoapresetposition.

GuardTour-startguardourseGuardTourpage28.

- RecordVideo—recordvideotoaselectedstorage.

- SendImages—sendimagestoarecipient.

- SendNotifications—sendanotificationmessagetoarecipient.

- SendVideoClip—sendavideocliptoarecipient.

SettingUpanActionRule

Anactionruledefinestheconditionsthatmustbemetfortheproducttoperformanaction,forexemplerecordvideoorsendan emailnotification.Ifmultipleconditionsaredefined,allofthemmustbemettotriggertheaction.

The following example describes how to setup an action rule to record video to an network share if there is movement in the camera's field of view.

Setupmotiondetectionandaddanetworkshare:

Gdd Detectors Motion Detection and configure motion detection window page 31

QdsSystemOptionsStorageandetupthenetworkshareseepage50.

Setuptheactionrule:

GdEventsActionRulesandlicAdd.

1. SelectEnableruleandenteradescriptivenamefortherule.

SelectDetectorsfromthTriggerdrop-downlist.

SelectMotionDetectionfromthedrop-downlistSelectthemotiondetectionwindowtause.

OptionallyselectScheduleandAdditionaconditionssebelow.

Events

UndeActionsselecRecordVidedfromthTypdrop-downlist.

SelectStreamprofil and configure the Duration settings as described below.

1. SelectNetworkSharefromtheStoragedrop-downlist.

To additionacriteriaselecttheAdditionaconditionsoptionandadditionatriggersPreventractionfrombeing triggeredepeatedlyWaiteasttimeCarbEntethimemhoursminutesandsecondsduringwhichthrigger shouldbeignoredbeforetheactionrulecanbeactivatedagain.

The recording Duration of actions can be set into a double dimensionally before and after the event Select Pre-trigger time and oPost-triggered number seconds. When while the active enabled and action is triggered again during the post-trigger time, there cording timewill be extended with another post-trigger time period.

Formoreinformation,seetheonlinehelp

FallbackAction

Afallbackactionisstartediftheprimaryactioncannotbested,forexampleifconnectiontoarecipientcannotbeestablished.

Fallbackactionsaretypicallyusedtosendemailnotificationsonfailedactionsortuploadimagestoasecondaryrecipient.

Recipients

Recipientsreceivemediafilesandnotificationmessages.Thefollowingrecipientsareavailable:

RecipientUsewithaction
Email^1	SendImagesSendNotificationSendVideoClip
FTP	SendImagesSendVideoClip
HTTP	SendImagesSendNotificationSendVideoClip
HTTPSSendImages	SendNotificationSendVideoClip
NetworkShare2	SendImagesSendVideoClip
TCPSendNotification

Some email providers have security filters that prevent users from receiving viewing charges amount attachments from receiving scheduled emails and similar. Check the email provider's security policy to avoid delivery problems and locked email accounts.

An2workshare can also be used for storage device forecorded video System Options Storage configuration network share before setting continuous recording action rule recorded video Storage page from more information about storage devices.

Toaddarecipient:

GoEventsRecipientandclicAdd.

Events

2.Enteradescriptivename.
3.SelectarecipientType.
4. Enter the information needed for the recipient type.
5.ClickTesttotesttheconnectiontotherecipient.
6.ClickOK.

SettingUpanEmailRecipient

Emailrecipientscanbeconfiguredbyselectingoneofthelistedemailproviders,orbyspecifyingtheSMTPserver,portand authenticationusedby,forexample,accorporateemailserver.

Note

Some email providers have security filter that prevent users from receiving or viewing large amount of attachments, from receiving scheduled emails and similar. Check the email provider's security policy to avoid delivery problems and locked email accounts.

Tosetupanemailrecipientusingoneofthelistedproviders:

GoEventsRecipientsandlicAdd.

EnterNameandelecEmaifronthTypeist.

Entethemailaddresses send emails forth To field Usecommatseparatemultipladdresses.

1. Select the email provider from the Provider list.
   5.Entertheuser|Dandpasswordfortheemailaccount.
   6.ClickTesttosendatestemail.

To setup a email recipient using for example a corporate mail server follow the instructions above to select User defined as Provider Enteth email address appears to send either From field Select Advanced settings and specify SMTServer address port and authentication method. Optionally select User encryption to send emails over encrypted connection. The server certificate can be validated using the certificates available in the Axis product. For information on how to upload certificates, see Certificates, on page 43.

Schedules

Schedulescanbeusedasactionruletriggersorasadditionalconditions,forexampletorecordvideoifmotionisdetectedoutside officehours.Useoneofthepredefinedschedulesorcreateanewscheduleasdescribedbelow.

Tocreateanewschedule:

GoEventsSchedulesandClickAdd.

2.Enteradescriptivenameandtheinformationneededforadaily,weekly,monthlyoryearlyschedule.
3.ClickOK.

Taus the scheduled Action Rule selects the scheduled front schedule drop-down list the Action Rule Setup page.

Recurrences

RecurrencesareusedtotriggerActionRulesrepeatedly,forexampleevery5minutesoreveryhour.

Tosetuparecurrence:

Events

GdEventsRecurrencesandliclAdd.

2.Enteradescriptivenameandrecurrencepattern.
3.ClickOK.

To set the recurrence in Action Rule first select time from the triggered drop-downlist the Action Rule setup page and then select the recurrence from these second drop-downlist.

To modify remove recurrences select the recurrence path Recurrence List and click Modify Remove.

Recordings

TheAxisproductcanbeconfiguredtorecordvideocontinuouslyoraccordingtoanactionrule:

• Tostartacontinuousrecording,see page40.
• Tosetupactionrules,seepage36.
  •Toaccessrecordings,seeRecordingList,onpage40.
• Toconfigurecameracontrolledstorage,seeStorage,onpage50.

RecordingList

Recorded videos and the Recordings List page the shows a recording start at and time duration and the event that triggered therecording.

Toplayordownloadarecording, followthesesteps:

1. GotoRecordings>List.

Use filter to narrow disb recording Enteth desired filter criterion and lic Filte Some filters may take along timetocomplete.

1. Selecttherecording.

@licPlayplaythecording?clickDownloaddownloadhecording.

Multiple recordingscarbdownloadedatsameTimeSelectRecordingsandlicDownloadThedownloadedfilezipfile containingaminimumofthreefiles,ofwhichtheMatroska(mkv)filesaretheactualrecordings.Therecordingsaretime-stamped withthedateandtimetheyweredownloaded(thatis,notthedatetherecordingsweremade).

Note

ToplayrecordingsinWindowsMediaPlayer,AXISMatroskaFileSplittermustbeinstalled.AXISMatroskaFileSplitter canbedownloadedfromwww.axis.com/techsup/software

For detailed recording and video information, select recording and lic Properties.

Toremovearecording,selecttherecordingandclickRemove.

ContinuousRecording

The AxiproductarbeconfiguredcontinuouslyavoidedstoragedeviceSeeStorageprpage50omoreinformation aboutstoragedevices.Topreventthediskfrombecomingfull,itisrecommendedtoconfigurethedisktoautomaticallyremoveold recordings.Ifanewstreamprofileisselectedwhilearecordingisongoing,therecordingwillbestoppedandsavedintherecording listandanewrecordingwiththenewstreamprofilewillstart.Allpreviouscontinuousrecordingswillremainintherecordinglist untiltheyareremovedmanuallyyorthroughautomaticremovalofoldrecordings.

Tostartacontinuousrecording,followthesesteps:

1. GotoRecordings>Continuous.
   2.SelectEnabled.
2. SelecttypeofstoragedevicefromtheDisklist.
3. SelectaStreamprofiletouseforcontinuousrecordings.
   5.ClickSavetosaveandstarttherecording.

Languages

Languages

MultiplelanguagescanbeinstalledintheAxisproduct.AllwebpagesincludingtheonlinehelpwillbedisplayedintheselectedlanguageSwitchlanguagesgetSetupLanguagesandfirstuploadthenewlanguagefileBrowseandocatchelandclicktheUploadLanguagebutton.SelectthenewlanguagefromthelistandclickSave.

Note

• Resetting the product to factory default settings will erase any uploaded language file and reset the product language to English.
• ClickingtheRestorebuttonontheMaintenancepagewillnotaffectthelanguage.
• Afirmwareupgradewillnotaffectthelanguageused.Howeverifyouhaveuploadedanewlanguagetotheproductandlaterupgradethefirmware,itmayhappenthatthetranslationnolongermatchestheproduct'swebpages.Inthiscase,uploadanupdatedlanguagefile.
• Alanguagealreadyinstalledintheproductwillbereplacedwhenacurrentoralaterverersionofthelanguagefileisuploaded.

SystemOptions

Security

Users

Use access controlled enabled by default and bar configured under System Options Security Users Administrator can setup other users by giving them usernames and passwords. It is also possible to allow anonymous viewer login, which means that anybody may access the Live View page.

Theuserlistdisplaysauthorizedusersandusergroups(accesslevels):

Viewer-AccesstotheLiveViewpage

Operator-AccessstotheLiveViewpageandtoallsettingsexceptSystemOptions

Administrator-Unrestrictedaccesstoallsettings;canadd,modifyandremoveotherusers.

UndeHTTP/RTSIPasswordSettingsselectthypopasswordallowYoumayneedallowunencryptepasswordsthere areviewingclientsthatdonotsupportencryption,orifyouupgradedthefirmwareandexistingclientssupportencryptionbutneed tologinagainandbeconfiguredtousethisfunctionality.

UndeUseSettingsselecttheEnablanonymousviewelogimptionallowanonymoususersaccesstheLiveViewpage.

Select the Enable Anonymou PTZ contrologirt allow an anonymous users access the PTZ controls.

Deselect the Enable Basi Setup option to hide the Basi Setup menu Basi Setup provides quick access settings that should be made before using the Axis product.

ONVIF

ONVIF(OpenNetworkVideoInterfaceForum)isaglobalinterfacestandardthatmakesiteasierforendusers,integrators,consultants,andmanufacturerstotakeadvantageofthepossibilitiesofferedbynetworkvideotechnology.ONVIFenablesinteroperabilitybetweendifferentvendorproducts,increasedflexibility,reducedcostandfuture-proofsystems.

BycreatingauseryouautomaticallyenableONVIFcommunication.UsetheusernameandpasswordwithallONVIFcommunication withtheproduct.Formoreinformationseewww.onvif.org

IPAddressFilter

IAddressfiltering enableorth SystemOptions Security/AddressFiltepage Once enabled the listed address are allowed denied access the Axiproduct Select Allow Denfrom the dashed Apply to enable address filtering.

The administrator can add up to 256IP addressentriestothelist (asingleentry can contain multiple IP addresses).

HTTPS

HTTPS(HyperTextTransferProtocoloverSecureSocketLayer,orHTTPoverSSL)isawebprotocolprovidingencryptedbrowsing. HTTPScanalsobeusedbyusersandclientstoverifythatthecorrectdeviceisbeingaccessed.Thesecuritylevelprovidedby HTTPSisconsideredadequateformostcommercialexchanges.

TheAxisproductcanbeconfiguredtorequireHTTPSwhenusersfromdifferentusergroups(administrator,operator,viewer)connect.

TousHTTPSarHTTPScertificatenusfirstbaninstalledGoSystemOptionsSecurityCertificatesinstallandmanage certificates.See Certificates,onpage43.

ToenableHTTPSontheAxisproduct:

1. GotoSystemOptions>Security>HTTPS

SystemOptions

1. SelectanHTTPCertificatefromthelistofinstalledcertificates.
2. Optionally, click Ciphers and select the encryption algorithm for SSL.
3. SettheHTTPSConnectionPolicyforthedifferentusergroups.
   5.ClickSavetoenablethesettings.

TaccesstheAxiproductviathelesireprotocolenthttps://ohttp://irtheaddressfieldnbrowser.

The HTTP Sport change of the System Options Network TCP/IP Advance page.

IEEE802.1X

IEEE802.1Xisastandardforport-basedNetworkAdmissionControlprovidingsecureauthenticationofwiredandwirelessnetwork devices.IEEE802.1XisbasedonEAP(ExtensibleAuthenticationProtocol).

ToaccessanetworkprotectedbyIEEE802.1X,devicesmustbeauthenticated.Theauthenticationisperformedbyanauthentication servertypicallyRADIUServerexampleswhicharFreeRADIUSandMicrosoftInternetAuthenticationService.

InAxisimplementation, theAxisproductandtheauthenticationserveridentifythemselveswithdigitalcertificatesusingEAP-TLS (ExtensibleAuthenticationProtocolTransportLayerSecurity)ThecertificatesareprovidedbyCertificationAuthority(CA). Youneed:

• aCAcertificatetoauthenticatetheauthenticationserver
• aCA-signedclientcertificatetoauthenticatetheAxisproduct.

TreatandInstallcertificatesgdSystemOptionsSecurityCertificateSecCertificatesprpage4ManyCAcertificates arepreinstalled.

ToallowtheproducttoaccessanetworkprotectedbyIEEE802.1X:

1. GotoSystemOptions>Security>IEEE802.1X. Select CACertificate and Client Certification from the list of installed certificates.

UndeSettingsselect the EAP0version and provide the EAPidentity associated with the client certificate.

1. ChecktheboxtoenableIEEE802.1XandclickSave.

Note

Forauthenticationtoworkproperly, the date and timesettings in the Axis product should be synchronized with an NTP server. See Date & Time, on page 44.

Certificates

Certificatesareusedtoauthenticateddevicesonanetwork.Typicalapplicationsincludeencryptedwebbrowsing(HTTPS),network protectionviaIEEE802.1Xandsecureuploadofimagesandnotificationmessagesforexampleviaemail.Twotypesofcertificates canbeusedwiththeAxisproduct:

Server/Clientcertificates-toauthenticatetheAxisproduct

CAcertificates:authenticatpeercertificatesforexamplethecertificato:authenticationserveincastheAxisproducts connectedtoanIEEE802.1Xprotectednetwork.

Note

Installedcertificates,exceptpreinstalledCAcertificates,willbedeletediftheproductisresettofactorydefault.PreinstalledCAcertificatesthathavebeendeletedwillbereinstalled.

Server/Client certificate can self-signed issued by Certificate Authority (CA) Self-signed certificate offers limited protection and can be used before CA-issued certificate has been obtained.

SystemOptions

Toinstallaself-signedcertificate:

1. GotoSystemOptions>Security>Certificates.
2. ClickCreateself-signedcertificateandprovidetherequestedinformation.

TocreateandinstallaCA-signedcertificate:

1. Createaself-signedcertificateasdescribedabove.
2. GotoSystemOptions>Security>Certificates.
   ClickCreatecertificatesigningequestanprovidetherequestedinformation.
3. CopythePEM-formattedrequestandsendtotheCAofyourchoice.
   Whether signed certificates returned clicked install certificate and upload certificate.

Server/Clientcertificatesarbeninstalled.Certificatfromsigningequesba.CertificatonprivatekeySelectCertificateandprivatekeyiftheprivatekeyistobeuploadasaseparatefileorifthecertificateisinPKCS#12format.

The Axi product shipped with severapreinstalled C certificates required additional C certificates are installed:

1. GotoSystemOptions>Security>Certificates
2. ClickInstallcertificateanduploadthecertificate.

AudioSupport

SelectEnableaudisupportallowclientsRetrievaudiostreamfromtheAxisproductFoinformationhowtconfigure audiosettings,seeAudioSettings,onpage22.

Note

Deselecting this option will disable audioglobally in the Axis product, for configured events and profiles with audio as well.

Date&Time

The Axi product's lat and dim settings are configured under System Options DateTime.

CurrenServeTimedisplaythecurrentlatandtime(24clock)Theimcarbelisplayedn12clockrthetextoverlay(see below).

Tochangethelatandimsettingsselect preferred TimmodundeNewServeTime:

Synchronizewithcomputetimeslatandimaccordingthecomputer'slockWiththisoptiondatandtimearesetonceandwillnotbeupdatedautomatically.
SynchronizovitNTBerverobtainslatandimfromanNTBerverWiththisoptionlatandimsettingsare updatedcontinuouslyEoinformationonNTBettingsseeNTRConfigurationorpage47.
IfusingnostnameforthNTRerverDNServemusbconfiguredSeeDNSConfigurationprpage46.

- Setmanuallyallowsyoutomanuallysetdateandtime.

If using NTServer select your Timezone from the drop-downlist if required check Automatically adjust todaylight saving timechanges.

TheDateTimeFormaUsedImagesthdatandimformatdisplayedstexoverlaythevideostreamUsthe

predefinedformatsorseeFileNaming&Date/TimeFormatsintheonlinehelp forinformationonhowtocatecustomdateand timeformatsIncluddatandimitheroverlaytextg0dVideAudianselectIncluddatandncludtime.

Network

BasicTCP/IPSettings

TheAxisproductsupportsIPversion4andIPversion6.Bothversionscanbeenabledsimultaneously, andatleastoneversion mustalwaysbeenabled.

IPv4AddressConfiguration

Bydefault, theAxisproductissettouseIPv4(IPversion4) and to obtain theIPaddress automatically via DHCP. TheIPv4 settings are configured under SystemOptions > Network > TCP/IP > Basic.

DHCP(DynamicHostConfigurationProtocol) allows network administrator stocentrally manage and automate the assignment of IP addresses. DHCP should only be enabled if using dynamicIP address notification, or if the DHCP can update a DNS server. It is then possible to access the Axis product by name (hostname).

If DHCPisenabledandtheproductcannotbeaccessed,runAXISIPUtilitytosearchthenetworkforconnectedAxisproducts,orresettheproductthefactorydefaultsetting(sepage53)andherperformtheninstallationagain.

TouestatidAddresscheckUsethfollowingAddressandspecifytheAddresssubnetmaslanddefaultrouter.

IPv6AddressConfiguration

IfIPv6(IPversion6)isenabled,theAxisproductwillreceiveanIPaddressaccordingtotheconfigurationinthenetworkrouter.

TenablePv6gdcSystemOptionsNetworkTCP/IPBasicOthesettingsforPv6shouldbeconfiguredrthenetworkrouter.

ARP/Ping

The product's Address can be assigned using ARP and Ping. For instructions see Assign/Address Using ARP/Ping on page 45.

TheARP/Pingserviceisenabledbydefaultbutisautomaticallydisabledtwominutesaftertheproductisstarted,orassoonasanIP addressisassigned.Tore-assignIPaddressusingARP/Ping,theproductmustberestartedtoenableARP/Pingforanadditional twominutes.

TalisabletheServicegodoSystemOptionsNetworkTCP/IPBasicandleathoptionEnableARP/PingettingofAddress.

Pinging the product is still possible when the service is disabled.

AssignIPAddressUsingARP/Ping

Theproduct'sIPaddresscanbeassignedusingARP/Ping.Thecommandmustbeissuedwithin2minutesofconnectingpower.

1. AcquireafreestaticlPaddressonthesamenetworksegmentasthecomputer.
2. Locatetheserialnumber(S/N) on the product label.
   3.Openacommandpromptandenterthefollowingcommands:

Linux/Unixsyntax

arp-s<IPaddress><serialnumber>temp
ping-1408<IPaddress>

Linux/Unixexample

arp-s192.168.0.12500:40:8c:18:10:00temp
ping-1408192.168.0.125

Windowssyntax(thismayrequirethatyourunthecommandpromptasanadministrator)

arp-s<IPaddress><serialnumber>

SystemOptions

ping-1408-t<IPaddress>

Windowsexample(thismayrequirethatyourunthecommandpromptasanadministrator)

arp-s192.168.0.12500-40-8c-18-10-00

ping-1408-t192.168.0.125

1. Check that thenetwork cable is connected and then restart the product by disconnecting and reconnecting power.

Glosthe command prompt whether products respond with Reply from 92.168.0.125:... similar.

Openbrowseandyphttp://intheLocation/Addressfield.

For themethods of assigning the Address, each installation and Management Software. The document Assigned IP Address and Access the Video Stream on Axis Support web at www.axis.com/techsup

Note

ToopercommandpromptWindowsoperthStartmenuandtypecmdrthRun/Searchfield.

- TousetheARPcommandinWindows7/WindowsVista,right-clickthecommandprompticonandselectRunas administrator.

ToopercommanpromptMacOSxopenthTerminalutilityfromApplicationUtilities.

AXISVideoHostingSystem(AVHS)

AVHSusedinconjunctionwithanAVHSservice,provideaseasyandsecureInternetaccesstoliveandrecordedvideoaccessiblefromanylocation.FormoreinformationandhelptofindalocalAVHSServiceProvidergotowww.axis.com/hosting

The AVHSettings are configured under SystemOptions Network TCPBasic the possibility to connect AVHService is enabled by default. Todisable, clear the Enable AVHSbox.

One-clickenabledPressproduct'sontrobuttonisedHardwareOverviewprag &connectarAVHService the Internet Once registered Always wilbenabled and the Axiproductstaysconnected the AVHService the product not registered within 24 hours from when the button is pressed, the product will disconnect from the AVHService.

Always The AxiproductwilconstantlyattemptconnecttheAVHServiceovethinternetOnceregistered the product will stayconnectedtotheservice.Thisoptioncanbeusedwhentheproductisalreadyinstalledanditisnotconvenienttousethe one-clickinstallation.

AXISInternetDynamicDNSService

AXISInternetDynamicDNSServiceassignsahostnameforeasyaccesstotheproduct.Formoreinformation,seewww.axiscam.net

To register the Axis product with AXIS Interne Dynamic DNS service and System Options Network TCP/IPBasid Under Services click the AXIS Interne Dynamic DNS Service Settings button (requires access to the Internet) The domain name currently registered at AXIS Internet Dynamic DNS service for the product can at any time be removed.

AdvancedTCP/IPSettings

DNSConfiguration

DNS(DomainNamService) provided the translation of host names and addresses The DNS settings are configured under System Options > Network > TCP/IP > Advanced.

SelectObtainDNServeaddressviaDHCRousetheDNSettingsprovidedbytheDHCRerver.

TomakemanuataettingsselectUschfollowingDNServeaddressandspecifythofollowing:

DomainnameEntethelomain(st)searchforthostnameusedbytheAxiproductMultipledomainscarbseparated by semicolonsThehostnameisalwayshefirsparbfullyqualifieddomainameforexamplemyserverithhostnamethefullyqualifieddomainamemyserver.mycompany.comwheremycompany.comthedomainame.

SystemOptions

Primary/SecondaryDNServerEntethAddresses the primary and secondaryDNServers The secondaryDNServes optionalandwillbeusediftheprimaryisunavailable.

NTPConfiguration

NTP(NetworkTimeProtocol)isusedtosynchronizetheclocktimesofdevicesinanetwork.TheNTPsettingsareconfiguredunder SystemOptions>Network>TCP/IP>Advanced.

SelectObtainNTBerveaddressidHCRaustheNTBettingprovidedbytheDHCServer.

TomakemanuasettingsselectUsethfollowingNTBervaddressandentethoshnameofAddressoftheNTBerver.

HostNameConfiguration

TheAxisproductcanbeaccessedusingahostnameinsteadofanIPaddress.ThehostnameisusuallythesameastheassignedDNS nameThehostnameisconfiguredundesystemOptionsNetworkTCP/IPAdvanced.

SelectObtainostnameidPv4DHCRuschostnameprovidedbythDHCRerverunningnPv4.

SelectUsethehostnametosetthehostnamemanually.

SelectEnablDynamiDNSUpdates dynamically update docaDNServers whenever the Axi product's Paddress changes.

Formoreinformation,seetheonlinehelp

Link-LocalIPv4Address

Link-LocalAddress enabled by default and assign the Axiproduct additionaladdress which can be used to access the product from other hosts on the same segment on the local network. The product can have a Link-LocalIPandastic or DHCP-suppliedIPaddress at the same time.

This function can be disabled under System Options Network TCP/IP Advanced.

HTTP

The HTTP port used by the Axis product can be changed under System Options Network TCP/IP Advanced addition the default setting, which is 80, any port in therange 1024-65535 can be used.

HTTPS

The HTTP sport used by the Axi product are changed under System Options Network TCP/IP Advanced addition to the default setting, which is 443, any portion in the range 1024-65535 can be used.

TenableHTTPSgetSystemOptionsSecurityHTTPSFomoreinformationsedHTTPSpage42.

NATtraversal(portmapping)forIPv4

Anetworkrouterallowsdevicesonaprivatenetwork(LAN)toshareasingleconnectiontotheInternet.Thisisdonebyforwarding networktrafficfromtheprivatenetworktothe"outside",thatis,theInternet.Securityontheprivatenetwork(LAN)isincreased sincemostroutersarepre-configuredtostopattemptsstoaccesstheprivatenetwork(LAN)fromthepublicnetwork(Internet).

UsNATraversawhetherAxiproductlocatedanintrane(LAN)andowishtonaketavailablefromtheother (WAN)sideofaNATrouter.WithNATtraversalproperlyconfigured,allHTTPtraffictoanexternalHTTPportintheNATrouter isforwardedtotheproduct.

NATraversalsconfiguredindeSystemOptionsNetworkTCP/IPAdvanced.

Note

• ForNATtraversaltowork, this must be supported by the router. Therouter must also support UPnP
  TM.
• Therouterhasmanydifferentnames:"NATrouter","Networkrouter","InternetGateway","Broadbandrouter","Broadband sharingdevice"or"Homefirewall"buttheessentialpurposeofthedeviceisthesame.

SystemOptions

Enable/DisableWhenenabledtheAxiproductattemptstoconfigureportmappingnNATouteoryounetworkusingUPnP NotethatUPnP™ mustbeenabledintheproduct(seeSystemOptions>Network>UPnP).

Usmanually selected NATouterSelect this option manually select NATouter and the address other route in the field. If norouter is specified, the product automatically searches for NATrouterson your network. If more than one router is found, the default router is selected.

Alternative HTTP port Select this option manually defines external HTTP port Enteth port number field. Ports entered here, a port number is automatically selected when NAT traversal is enabled.

Note

• AnalternativeHTTPportcanbeusedorbeactiveevenifNATtraversalisdisabled. ThisisusefulifyourNATrouterdoesnot supportUPnPandyouneedtomanuallyconfigureportforwardingintheNATrouter.
• If you attempt to manually enter a port that is already in use, another available port is automatically selected.
  WhertheportselectedautomaticallyitsdisplayedrthisfieldTochangethisentemewpornumbeandclickSave.

FTP

TheFTPserverrunningintheAxisproductenablesuploadofnewfirmware,userapplications,etc.TheFTPservercanbedisabled underSystemOptions>Network>TCP/IP>Advanced.

Note

ThisFTPserverhasnothingtodowiththeproduct'sabilitytotransferimagesviaFTPtootherlocationsandservers.

RTSP

TheRTSPserverrunningintheAxisproductallowsaconnectingclienttostartanH.264stream.TheRTSPportnumbercanbe changedundeSystemOptionsNetworkTCP/IPAdvancedThedefaultport554.

Note

H.264videostreamswillnotbeavailableiftheRTSPserverisdisabled.

SOCKS

SOCKSisanetworkingproxyprotocol.TheAxisproductcanbeconfiguredtouseaSOCKSservertoreachnetworksontheother sideofafirewallorproxyserver.ThisfunctionalityisusefuliftheAxisproductislocatedonalocalnetworkbehindafirewall,and notifications,uploads,alarms,etcneedtobesenttoadestinationoutsidethelocalnetwork(forexamplethelnternet).

SOCKSconfiguredundesystemOptionsNetworkSOCKSFomoreinformationsethonlinehelp

QoS(QualityofService)

QoS(QualityofService)guaranteesacertainlevelofaspecifiedresourcetoselectedtrafficonanetwork.AQoS-awarenetwork prioritizesnetworktrafficandprovidesagreaternetworkreliabilitybycontrollingtheamountofbandwidthanapplicationmayuse.

TheQoSettingsareconfiguredndesystemOptionsNetworkQoSUsingDSCRDifferentiatedServiceCodepointvaluestheAxisproductcanmarkthefollowingtypesoftraffic:livevideo,liveaudio,event/alarmtrafficandmanagementtraffic.

Note

LiveaudioDSCPwillbeequaltolivevideoDSCPifH.264overRTSPisused.

SMTP(email)

TosendemailmessagesfromtheAxisproductviaSMTP(SimpleMailTransferProtocol),anSMTPmailservermustbesetup.This isdoneunderSystemOptions>Network>SMTP(email).

SystemOptions

Entethosnames of addresses an for numbers to the primary and secondary ma iservers the field provided. From email address also required, the ma iserver requires authentication check Use authentication to get this server and enter the necessary information.

SNMP

TheSimpleNetworkManagementProtocol(SNMP) allows remotemanagementofnetworkdevices.AnSNMPcommunityisthe groupofdevicesandmanagementstationrunningSNMP.Communitynamesareusedtoidentifygroups.

The Axiproductarbeconfigured support SNMPorth System Options Network SNMPage.

Dependingonthelevelofsecurityrequired,selecttheversiononSNMPtouse.

SNMR1/v2provide the lowest website security. The community name can be specified as password for a read/write access supported SNMR device. The default password for the community public and default password for the write community is write.

Note

If HTTPSisenabled, SNMPv1 and SNMPv2 should be disabled.

TrapfoSNMR1/v2areused by the Axiproduct send messages to management system important events and status change CheckEnabletrapandentethAddress where the trapmessage should be sent and the community that should receive them message.

The followingtrapsareavailable:

•Coldstart
•Warmstart
- Linkup
- Authenticationfailed

SNMR3provide:encryptionandsecurpasswordsTausdrapswithSNMR3arSNMR3managementapplicationrequired.

TousSNMR3;HTTPSmustenabled,edHTTPSpage42 enableSNMR3;checkboxanprovidethenitialuser password.

Note

The initial password can only be set once. If the password is lost, the Axis product must be reset to factory default, see Resetto Factory Default Settings, on page 53.

UPnP ^TM

TheAxisproductincludessupportforUPnP ^TM .UPnP ^TM isenabledbydefaultandtheproductisautomaticallydetectedbyoperating systemsandclientsthatsupportthisprotocol.

UPnP ^TM canbedisabledunderSystemOptions>Network>UPnP ^TM .

RTP/H.264

The RT Portugal and multicast settings are configured under SystemOptionsNetworkRTP.

The RTP portranged defines the range of ports from which the video or audiports are automatically selected. Form multicast streams, only certain IP addresses and port numbers should be used.

SelectAlwaysMulticasVideoand/orAlwaysMulticastAudiostartmulticaststreamingwithoutpeningrRTSBession.

SystemOptions

Bonjour

TheAxisproductincludessupportforBonjour.Bonjourisenabledbydefaultandtheproductisautomaticallydetectedbyoperating systemsandclientsthatsupportthisprotocol.

BonjourcanbedisabledunderSystemOptions>Network>Bonjour.

Storage

SDCard

TheAxisproductsupportsSDcardswithupto64GBofstorage.Forbestrecordingperformance,useanSDHCorSDXCcard withspeedclass10.

NOTICE

Topreventcorruptionofrecordings, the SDcardshouldalwaysbeunmountedbeforeitisejected.

TheAxisproductsupportsSDcardswiththefollowingfilesystems:

ext4-recommended due to resiliency against data loss if cards ejected if there is bruppower loss to access data stored on the card from the Windows operating system, at third-party ext4 driver or application is required.

• vFAT—mostSDcardsarepre-formattedwithvFATwhenpurchased.

Ifrequired, the SDcard can be manually formatted to the desired filesystem. To format the SDcard:

1. Insert the SD card in the SD card slot.

GoSystemOptionsStorageandlicSICard.

3.ClickFormatandselectthedesiredfilesystem.

Note

During formatting any previous data stored on the disk will belost.

Mountingisdoneautomaticallywhenthecardisinsertedorwhentheproductisstarted.Amanualmountisonlyrequiredifthe cardhasbeenunmountedandnotejectedandre-inserted.

TounmounttheSDcard:

GoSystemOptionsStorageandlicSICard.

2.ClickUnmount.

1. Thecardcannowberemoved.

ThSDcardsmanagedorthSystemOptionsStoragePageClickSDCardoperStorageManagement.

If the card's status shows a failed click Check disk to see the problem can be found and then Repair This option only available for SD cards with next 4. For SD cards with v FAT, use a card reader or computer to troubleshoot the card.

T avoid filling the card is recommended to remove recordings continuously. Under Recording Settings select Remove recordings older than and select then number of days or weeks.

TstopwritingthecardinprotectecordingsfrombeingemovedselectLockundeRecordingSettings.

NetworkShare

NetworkshareallowsyoutoaddnetworkstoragesuchasaNAS(NetworkAttachedStorage)oranyserverthatusesCIFS(Common InternetFileSystem)andusethemforstorageofrecordings.

SystemOptions

Toaddanetworkshare:

1. GotoSystemOptions>Storage.
   2.ClickNetworkShare.
   3.EntertheIPaddress,DNSorBonjourametothehostserverintheHostfield.
   4.EnterthenameoftheshareintheSharefield.Subfolderscannotbeused.

I ^s required ^e selectThe ^h are ^r requiresogirandentethusenamandpassword.

6.ClickConnect.

To clean recordings and data from the Axiproduct's folder, the designated share policy Clearunde Storage Tools.

T avoid filling the share if recommended remove recordings continuously Under Recording Settings select Remove recordings older than and select then number of days or weeks.

Tstopwriting the share and protect recordings from being removed, select Lockunde Recording Settings.

Ports&Devices

I/OPorts

TheAxisproductprovidesfourconfigurableinputandoutputportsforconnectionofexternaldevices.Forinformationabout howtoconnectexternaldevices,seeConnectors,onpage61.

The Port are configured under System Options, Ports Devices, Ports Select port direction (Input Output) The ports are given descriptive names and the Normastates are configured as Open circuit Grounded circuit.

PortStatus

The disbrth System Options Port Devices Port Status page show the status of the product input and output ports.

Maintenance

The Axiproduc provides several maintenance functions. These are available under System Options Maintenance.

ClickRestart perform correct start the Axiproducts no behaving expected This will have any of the current settings.

ClickRestoreresetmostsettingsthefactorydefaultvaluesThefollowingsettingsarenotaffected:

•thebootprotocol(DHCPorstatic)
- thestaticIPaddress
- thedefaultrouter
- thesubnetmask
- thesystemtime
•theIEEE802.1Xsettings
- uploadedapplicationsarekeptbutmustberestarted

ClickDefaultResetSettingsincludingtheAddress factorydefaultvaluesThisbuttonshouldusedwithcautionTheAxiproductandsoresetfactorydefaultusingthecontrolbuttonsetResetFactoryDefaultSettingsprpage53.

Toesthproduct'PTZmechanicsclicTestundePTZstatus.

SystemOptions

Forinformationaboutfirmwareupgrade,see UpgradingtheFirmware,onpage55.

Support

SupportOverview

The SystemOptionsSupportSupportOverviewPageprovideinformationtroubleshootingandcontactInformation, shouldyourequiretechnicalassistance.

SeealsoTroubleshooting,onpage55.

SystemOverview

Together overview of the Axi product's status and settings and System Options Support System Overview Information that can be found here includes firmware version, IP address, network and security settings, event settings, imagesettings and recent log items. Many of the captions are linked to the proper Setup page.

Logs&Reports

ThSystemOptionsSupportLogReportpagegeneratelogsandreportsusefufosystemanalysisandtroubleshootingf contactingAxisSupport,pleaseprovideavalidServerReportwithyourquery.

SystemLog-Providesinformationaboutsystemevents.

AccesLogListsfailed attempts to access the product The AccesLogans also configured disal connections the product(see below).

ServeReport Provides information about the product status: pop-up window. The Access log automatically included in the Server Report.

Youcanviewordownloadtheserverreport.Downloadingtheserverreportcreatesa.zipfilethatcontainsacompleteserverreport texfileUTF-FormaSelecthndludenapshowthdefaultmagsettingsoptionincludesnapshobfheproduct's LivViewthatalsshowthsettingsspecifiedundeVideStream>Image>ImageAppearanceTheserverreportzipfileshould alwaysbeincludedwhencontactingsupport.

ParametelisShow the product parameters and their current settings This may prove useful when troubleshooting or when contacting AxisSupport.

ConnectionList-Listsallclientsthatarecurrentlyaccessingmediastreams.

CrashReport-Generatesanarchivewithdebugginginformation.Thereporttakesseveralminutestogenerate.

TheodevelsforthSystemLogandheAccessLogresetndeSystemOptionsSupportLogReportsConfiguration. TheAccessLogcanbeconfiguredtolistallconnectionstotheproduct(selectCritical,Warnings&Info).

Advanced

Scripting

Scriptingallowsexperienceduserstocustomizeandusetheirownscripts.

NOTICE

ImproperusemaycauseunexpectedbehaviorandlossofcontactwiththeAxisproduct.

Axisstronglyrecommendsthatyoudonotusethisfunctionunlessyouunderstandtheconsequences.AxisSupportdoesnotprovide assistanceforproblemswithcustomizedscripts.

SystemOptions

To PerthScriptEditor@SystemOptionsAdvancedScriptingScriptauseproblemsresetproductotsfactorydefaultsettings,seepage53.

Formoreinformation,seewww.axis.com/developer

FileUpload

Files,forexamplewebpagesandimages,canbeuploadedtotheAxisproductandusedascustomsettings.Tuploadafile,go toSystemOptions>Advanced>FileUpload.

Uploadedfilesaccessedthroughhttp:///local//wherethe selectedusergroup(viewer,operatororadministrator)fortheuploadedfile.

PlainConfig

PlainConfigisforadvanceduserswithexperienceofAxisproductconfiguration.Mostparameterscanbesetandmodifiedfromthis page.Helpisavailablefromthestandardhelppages.

ToperPlainConfigdSystemOptionsAdvancedPlainConfigAxisSupportdoesnoprovideassistance.

ResettoFactoryDefaultSettings

Important

Resettofactorydefaultshouldbeusedwithcaution.Aresettofactorydefaultwillresetallsettings,includingtheIP address,tothefactorydefaultvalues.

Note

The installation and management software tools are available on the CDs supplied with the product and from the support pages on www.axis.com/techsup

Toresettheproducttothefactorydefaultsettings:

1. Disconnectpowerfromtheproduct.
   PresandholdthecontrobuttonandeconnectpoweSedHardwareOverviewprpag6
2. Keep the control button pressed for about 15–30 seconds until the status LED indicator flashes amber.
3. Releasethecontrolbutton. The process is complete when the status LED indicator turns green. The product has been reset to the factory default settings in DHC server available through network default address 92.168.0.90
4. Using the installation and management software tools, assign an Paddress, set the password, and access the videostream.

Italspossible oese parameters factory default via the web interface Gd Setup System Options Maintenance.

RepaintingtheCamera

The coverscanberepaintedtomatchtheinstallationenvironment.

ThematerialusedinthecoversisASAGeloyXTWM206.Usepaintsuitableforthismaterial.

1. Removethetwotopcoverscrews.
2. Useathinpaletteknifetoreleasethelockingtabswhilepullingthetopcoverstraightupwardstoremovethecover.
3. Removethetwobottomcoverscrewsandremovethebottomcover.
4. Maskthelockingtabsinthebottomcoverandthethreescrewcovers.
5. Repaintthetopcover, thebottomcover, thescrewcovers, and theconduitcover.
   6.Assembleinthereverseorder.

1 Topcoverscrew
2 Topcover
3 Lockingtab
4 Bottomcoverscrew
5 Bottomcover
6 Conduitcover
7 Screwcover

Troubleshooting

CheckingtheFirmware

Firmwareissoftwarethatdeterminesthefunctionalityofnetworkdevices.Oneofyourfirstactionswhentroubleshootingaproblem shouldbetocheckthecurrentfirmwareversion.Thelatestversionmaycontainacorrectionthatfixesyourparticularproblem.The currenfirmwareversiontheAxiproductsdisplayedthepagSetupBasiSetupandSetupAbout.

UpgradingtheFirmware

Whenyouupgradethe>withthelatestfirmwarefromAxiswebsite,theproductreceivesthelatestfunctionalityavailable.Alwaysreadtheupgradeinstructionsandreleasenotesavailablewitheachnewrelease,beforeupgradingthefirmware.

Toupgrade, followtheseinstructions:

1. Savethefirmwarefiletoyourcomputer. The latest version of the firmware is available free of charge from Axis website at www.axis.com/techsup
2. GotoSetup>SystemOptions>Maintenanceintheproduct'swebpages.

UndeUpgradServerClicBrowsandocatchfileyourcomputerClicUpgrade.

Afterstartingtheupgradeprocess,alwayswaitatleast5–10minutesbeforerestartingtheproduct,evenifyoususpectthe upgradehasfailed.

AXISCameraManagementcanbeusedformultipleupgrades.Seewww.axis.comformoreinformation.

Note

• Yourdealerreservestherighttochargeforanyrepairattributabletofaultyupgradebytheuser.
• Preconfiguredandcustomizedsettingsaresavedwhenthefirmwareisupgraded(providingthefeaturesareavailableinthenewfirmware)althoughthisisnotguaranteedbyAxisCommunicationsAB.

EmergencyRecoveryProcedure

If power or network connection is lostduring the upgrade, the process fails and the product becomes unresponsive. Flashing red Status indicator indicates a failed upgrade. Torecover the product, follow the steps below. The serial number is found on the product's label.

1. In UNIX/Linux, typethefollowing from the commandline:

Troubleshooting

arp-s<IPaddress><serialnumber>temp
ping-1408<IPaddress>

In Window stypd following from command/DO prompt(this may require that your the command prompts an administrator);

arp-s<IPaddress><serialnumber>
ping-1408-t<IPaddress>

1. If the product does not reply in 30 seconds, restart it and wait for areply. Press CTRL + Ctstop Ping.

Openbrowseandyparthropduct'sAddressrthepagthatappearsustheBrowsbuttontoselectheupgradefiletouse.ThenclickLoadtorestarttheupgradeprocess.

1. After the upgrade is complete (1–10 minutes), the product automatically restarts and shows a steady green on the Status indicator.

2. Reinstall the product, referring to the Installation Guide.

If the emergency recovery procedure does not get the product up and running again, contact Axissupport at www.axis.com/techsup/

Symptoms, Possible Causes and Remedial Actions

ProblemssettingtheIPaddress

WhenusingARP/Ping	Trytheinstallationagain.TheIPaddressmustbesetwithintwominutesafterpowerhasbeen appliedtotheproduct.EnsurethePinglengththissetto408.Forinstructions,seeAssignIPAddressUsingARP/Ping,onpage45.
Theproductislocatedona differentsubnet	IfthelPaddressintendedfortheproductandthelPaddressofthecomputerusedtoaccessthe productarelocatedondifferentsubnets,youwillnotbeabletosethelPaddress.Contactyour networkadministratortoobtainanIPaddress.
ThelPaddressisbeingused byanotherdevice	DisconnecttheAxisproductfromthenetwork.RunthePingcommand(inaCommand/DOS window,typepingandthelPaddressoftheproduct):·Ifyoureceive:Replyfrom:bytes=32;time=10... thismeansthatthelPaddressmayalreadybeinusebyanotherdeviceonthenetwork. ObtainanewIPaddressfromthenetworkadministratorandreinstalltheproduct.·Ifyoureceive:Requesttimedout,thismeansthatthelPaddressisavailable forusewiththeAxisproduct.Checkallcablingandreinstalltheproduct.
PossibleIPaddressconflict withanotherdeviceonthe samesubnet.	ThestaticIPaddressintheAxisproductisusedbeforetheDHCPserversetsadynamicaddress. ThismeansthatifthesamedefaultstaticIPaddressisalsousedbyanotherdevice,theremay beproblemsaccessingtheproduct.
Theproductcannotbeaccessedfromabrowser
Cannotlogin	WhenHTTPSisenabled,ensurethatthecorrectprotocol(HTTPorHTTPS)isusedwhenattempting tdognYoumayneedmanuallytypehttphttpsithebrowser'saddressfield.Ifthepasswordfortheuserrootislost,theproductmustberesettothefactorydefaultsettings.SeeResettoFactoryDefaultSettings,onpage53.

Troubleshooting

TheIPaddresshasbeen changedbyDHCP

IPaddressesobtainedfromaDHCPserveraredynamicandmaychange.IftheIPaddresshas beenchanged,useAXISIPUtilityorAXISCameraManagementtolocatetheproductonthe network.Identifytheproductusingitsmodelorserialnumber,orbytheDNSname(ifthename hasbeenconfigured).Ifrequired,astaticIPaddressscanbeassignedmanually.Forinstructions,seethInstallationand ManagemenSoftwareCDothedocumentAssignandAddressandAccesstheVideStreamonAxisSupportwebatwww.axis.com/techsup.

Certificateerrorwhenusing IEEE802.1X

Forauthenticationtoworkproperly,thedateandtimesettingsintheAxisproductshouldbe synchronizedwithanNTPserver.SeeDate&Time,onpage44.

Theproductisaccessiblelocallybutnotexternally

RouterconfigurationToconfigureyourroutertoallowincomingdatatrafficitotheAxisproduct,enabletheNAT-traversalfeaturewhichwillattempttoautomaticallyconfiguretheroutertoallowaccesstotheAxisproductsedNATtraversal(portmapping)forIPv4prpage47TheoutemustupporUPnP		TM.
Firewallprotection	CheckthelInternetfirewallwithyournetworkadministrator.
Defaultroutersrequired	CheckifyouneedtoconfiguretheroutersettingsfromSystemOptions>Network>TCP/IP>Basic.

ProblemswithstreamingH.264

ProblemswithAXISMedia Control(InternetExplorer only)	ToenabletheupdatingofvideoimagesinInternetExplorer,setthebrowsertoallowActiveX controls.Also,makesurethatAXISMediaControlisinstalledonyourcomputer.
NoH.264displayedinthe client	CheckthattherelevantH.264connectionmethodsandcorrectinterfaceareenabledintheAMC ControlPanel(streamingtab).SeeAXISMediaControl(AMC),onpage13.IntheAMControPanelselectdH.264bandlicSetdefaultH.264decoder.CheckhaRTSRenabledundesystemOptionsNetworkTCP/IPAdvanced.
MulticastH.264only accessiblebylocalclients	Checkifyourroutersupportsmulticasting,orifteroutersettingsbetweentheclientandthe productneedtobeconfigured.TheTTL(TimeToLive)valuemayneedtobeincreased.
NomulticastH.264 displayedintheclient	CheckwithyournetworkadministratorthatthemulticastaddressesusedbytheAxisproduct arevalidforyournetwork.Checkwithyournetworkadministratortoseeifthereisafirewallpreventingviewing.
Installationofadditional ActiveXcomponent restrictedorprohibited	ConfiguretheAxisproducttouseaJavaappletforupdatingvideoimagesinyourbrowser.Goto SetupLiveViewConfigandelectlavaappletundeDefaultviewer.
PoorrenderingofH.264 images	Ensurethatyourgraphicscardisusingthelatestdriver.Thelatestdriverscanusuallybe downloadedfromthemanufacturer'swebsite.
Colorsaturationisdifferent inH.264andMotionJPEG	Modifythesettingsforyourgraphicsadapter.Refertotheadapter'sdocumentationformore information.

Troubleshooting

Lowerframeratethan expected	SeePerformanceConsiderations,onpage63.
	Reducethenumberofapplicationsrunningontheclientcomputer.
	Limitthenumberofsimultaneousviewers.
	Checkwiththenetworkadministratorthatthereisenoughbandwidthavailable.
	CheckintheAMCControlPanel(H.264tag)thatvideoprocessingisNOTsettoDecodeonlykeyframes.
	Lowertheimageresolution.
	Themaximumframespersecondisdependentontheutilityfrequency(60/50Hz)oftheAxisproduct.SeeTechnicalSpecifications,onpage59.
Videoandimageproblems,general
Imageunsatisfactory	CheckthevidestreamandamerasettingsundeSetupAudioVidestreamand Setup>Video&Audio>CameraSettings.
MotionDetectiontriggersunexpectedly
Changesinluminance	Motiondetectionisbasedonchangesinluminanceintheimage.Thismeansthatiftherearesuddenchangesinthelighting,motiondetectionmaytriggermistakenly.Lowerthesensitivitysettingtoavoidproblemswithluminance.
Noaudio
Incorrectsetup	Checkthesoundcardinthecomputer.Ensurethatmuteisnotselectedandthatthevolumesettingsarecorrect.
	CheckthaEnableaudisupportselectedundesetupSystemOptionsSecurityAudioSupport.
	CheckthacorrectAudionputourceselectedundesetupVidestAudioAudioSettings.
Pooraudioquality
Stuttering	Reducethenumberoflistenersandviewers.Decreaseimageresolutionandcompression.
Unsynchronizedaudioand videousingH.264	Synchronizetheproduct'sdateandtimesettingswithanNTPserver.GotoSetup>System Options>Date&Time.
Distortedaudio	CheckthatcorrectAudionputourceselectedundesetupVidestAudioAudioSettings.
FeedbackloopsFeedbackloopsmightappearinfull-duplexmode.Trymovingthemicrophoneorthespeaker,or usehalf-duplexmodeinstead.
Storageanddiskmanagementproblems
Storagedisruption	Astoragedisruptionalarmissentifastoragedeviceisunavailable,removed,full,lockedorifotherreadwriteproblemsccurIdentifythesourceofhproblemchecktheSystemLogunder SystemOptions>Support>LogsetReports.Dependingontheproblem,itmightbenecessaryto re-mountthestorgagedevice.
	Forinformationonhowtosetupastoragedisruptionalarm,seeEvents,onpage35.
Videocannotberecorded	CheckthattheSDcardisnotwriteprotected(thatis,readonly).
SDcardcannotbemountedReformattheSDcardandthenclickMount.

TechnicalSpecifications

Function/group	Item	Specifications
Camera	Models	AXISP5414-E50HzAXISP5414-E60Hz
	Imagesensor	1/2.9"progressivescanRGBCMOS
	Lensf=4.7mm-84.6mm	F1.6-2.8AutofocusAutomaticdayandnightfunctionalityHorizontalangleofview:59°-4°
	Minimumillumination	Color:0.4luxat30IREF1.6B/W:0.04luxat30IREF1.6
	Shuttertime	1/28000sto2s
	Pan/Tilt/ZoomPan±1	35°,0.2-350°/s*Tilt:0-90°,0.2-350°/s18xopticalzoomand12xdigitalzoom,total216xzoom100presetpositions*Thereisslightvisualobstructionfromthehousingintheupperleft/rightcornerofthe imageatpanendpoints.
	Pan/Tilt/Zoomfunctionalities	Guardtour,controlqueue,focuswindow,on-screendirectionalindicator
Video	Videocompression	H.264MainandBaselineprofile(MPEG-4Part10/AVC)MotionJPEG
	Resolutions	1280x720to240x135
	FramerateH.264	Upto30/25(60/50Hz)inallresolutions
	FramerateMotionJPEG	Upto30/25(60/50Hz)inallresolutions
	Videostreaming	Multiple,individuallyconfigurablestreamsinH.264andMotionJPEGControllableframerateandbandwidthVBR/CBRH.264
	Imagesettings	WideDynamicRange(WDR),Compression,Color,Brightness,Sharpness,Contrast,White balance,Exposurecontrol,Exposurezones,Backlightcompensation,Finetuningof behavioratlowlight,Textandimageoverlay,20individual3Dprivacymasks
Audio	AudiostreamingTwo-way
	Audiocompression	AACLC8/16kHzG.711PCM8kHzG.726ADPCM8kHzConfigurablebitrate
	Audioinput/output	Externalmicrophoneorlineinput,andlineoutput

TechnicalSpecifications

Function/group	Item	Specifications
Network	SecurityPasswordpro	tection,IPaddressfiltering,HTTPSencryption*,IEEE802.1Xnetworkaccess control*,digestauthentication,useraccesslog*ThisproductincludessoftwaredevelopedbytheOpenSSLProjectforuseintheOpen SSLToolkit(www.openssl.org)
	Supported protocols	IPv4/v6,HTTP,HTTPS*,SSL/TLS*,QoSLayer3DiffServ,FTP,CIFS/SMB,SMTP,Bonjour, UPnP,SNMPv1/v2c/v3(MIB-II),DNS,DynDNS,NTP,RTSP,RTP,TCP,UDP,IGMP,RTCP, ICMP,DHCP,ARP,SOCKS,etc*ThisproductincludessoftwaredevelopedbytheOpenSSLProjectforuseintheOpen SSLToolkit(www.openssl.org)
System Integration	Application Programming Interface	OpenAPIforsoftwareintegration,includingVAPIX®andAXISCameraApplication PlatformfromAxisCommunications;specificationsavailableatwww.axis.com AXISVideoHostingSystem(AVHS)withOne-ClickCameraConnection ONVIFProfileS,specificationsavailableatwww.onvif.org
	Intelligentvideo	Videomotiondetection,AdvancedGatekeeper,SupportforAXISCameraApplication Platformenablinginstallationofadditionalapplications
	EventtriggersVideom	motiondetection,audiodetection,externalinput,PTZpreset,temperature,memory cardfull
	EventactionsFileupload	adviaFTP,HTTP,networkshareandemailNotificationviaemail,HTTPandTCPExternaloutputactivationGotoPTZpresetRunguardtourRecordtolocalstoragePlayaudioclipDay/nightmode
	Videobuffer	80MBpre-andpostalarm
	Videoaccessfrom webbrowser	CameraliveviewVideorecordingtofile(ASF)CustomizableHTMLpagesWindows7,WindowsVista,WindowsXP,WindowsServer2008,WindowsServer2003 DirectX9corhigherForotheroperatingsystemsandbrowsers,seewww.axis.com/techsup
	Installation, management and maintenance	AXISCameraManagementtoolonCDandweb-basedconfigurationConfigurationofbackupandrestoreFirmwareupgradesoverHTTPorFTP,firmwareavailableonwww.axis.com

TechnicalSpecifications

Function/group	Item	Specifications
General	Casing	IP66-andNEMA4X-ratedmetalcasing(aluminum),cleardome(PC),sunshield(ASA)
	memory	256MBRAM,128MBFlash
	Power	PoweroverEthernetPlus(PoE+)IEEE802.3atType2Class4,max30W20-28VDCmax16W
	Connectors	RJ-45for10BASE-T/100BASE-TXPoETerminalblockforDCinputTerminalblockfor4configurablealarminputsandoutputsTerminalblockformic/lininputandlineoutput
	Localstorage	SupportsSDcardswithupto64GBofstorage.Forbestrecordingperformance,usean SDHCorSDXCcardwithspeedclass10.(cardnotincluded)Supportforrecordingtonetworkshare(NetworkAttachedStorageorfileserver)
	Operating conditions	Temperature:-20°Cto50°C(-4°Fto122°F)Humidity10-100%RH(condensing)
	Approvals	EN50121-4,IEC62236-4,EN55022ClassB,EN61000-6-1,EN61000-6-2,EN55024,FCCPart15SubpartBClassB,ICES-003ClassB,VCCIClassB,C-tickAS/NZSCISPR22ClassB,KCKKN22ClassB,KN24,IEC/EN/UL60950-1,IEC/EN/UL60950-22,IEC60068-2-1,IEC60068-2-2,IEC60068-2-6,IEC60068-2-14,IEC60068-2-27,IEC60068-2-30,IEC60068-2-78,IEC60529IP66,EN50581,NEMA250Type4X,ISO4892-2
	Weight	3.5kg(7.7lb)
	Included accessories	InstallationGuide,AVHSAuthenticationkey,installationandmanagementsoftwareCD,Windowsdecoder1-userlicense
	Video management software(sold separately)	AXISCameraCompanion(included),AXISCameraStationandvideomanagement softwarefromAxis'ApplicationDevelopmentPartners(notincluded).Formore information,seewww.axis.com/products/video/software
	Optional accessories	SmokeddomecoverT8123HighPoE-30WMidspan1-portAXIST94P01BCornerBracketAXIST8310VideoSurveillanceControlBoardAXIST90AlluminatorsInstallationDisplayMulti-userdecoderlicensepack

Connectors

I/OTerminalConnector

6-pinterminalblockfor:

•Auxiliarypowerandground(GND)

• DigitalInput
• DigitalOutput

1 2 3 4 5 6

FunctionPinNotes			Specifications
GND	1	Ground
12VDCPower	2	Canbeusedtopowerauxiliaryequipment.Note:Thispincanonlybeusedaspowerout.	Maxload=50mA

TechnicalSpecifications

(InputorOutput)	3-6	Digitalinput—ConnecttoGNDtoactivate,orleavefloating(unconnected)todeactivate.	0to+30VDC Configurable
		Digitaloutput—Internalconnectiontogroundwhenactivated,floating(unconnected)whendeactivated.Ifusedwithaninductiveload,e.g.arelay,adiodemustbeconnectedinparallelwiththeload,forprotectionagainstvoltagetransients.	Maxload=100mAMaxvoltage=+30VDC

1. I/Oconfiguredasinput
2. I/Oconfiguredasoutput

PowerConnector

2-pinterminalblockforpowerinput. UseaSafetyExtraLowVoltage(SELV) compliantlimitedpowersource(LPS) witheitheraratedoutputpower limitedto≤100Woraratedoutput currentlimitedto≤5A.

DCpowerinput

AudioConnector

4-pinterminalblockfor:

•Audioinput
•Audiooutput

1 2 3 4

TechnicalSpecifications

FunctionPinNotes
Microphone/Linein	1	Microphoneorlinein(mono)
GND	2	Ground
Lineout	3	Lineaudioout
GND	4	Ground

SDCardSlot

SupportsSDcardswithupto64GBofstorage.Forbestrecordingperformance,useanSDHCorSDXCcardwithspeedclass10.

PerformanceConsiderations

Whensettingsupyoursystem, it is important to consider how various settings and situations will affect performance. Some factors affect the amount of bandwidth (the bitrate) required, others can affect the framerate, and some affect both. If the load on the CPU reaches its maximum, this will also affect the framerate.

The following factors are among them most important to consider:

• Highimageresolutionand/orlowercompressionlevelsresultinimagescontainingmoredata.Bandwidthaffected.
• AccessbylargenumbersofMotionJPEGand/orunicastH.264clients.Bandwidthaffected.
• Simultaneousviewingofdifferentstreams(resolution, compression)bydifferentclients.Effectonframerateand bandwidth.
• AccessingMotionJPEGandH.264videostreamssimultaneously.Framerateandbandwidthaffected.
• Heavyusageofeventsettingsaffecttheproduct'sCPUload.Framerateaffected.
• Heavynetworkutilizationduetopoorinfrastructure.Bandwidthaffected.
• Viewingonpoorlyperformingclientcomputerslowersperceivedperformance.Framerateaffected.
