System x 3650 M4 - Server IBM - Kostenlose Bedienungsanleitung

Produkttyp	Rack-Server (2U)
Marke	IBM
Modell	System x 3650 M4
Prozessor	Intel Xeon E5-2600 v2 (bis zu 12 Kerne)
Arbeitsspeicher	768 GB max. (24 DIMM-Steckplätze, DDR3)
Festplatten	Bis zu 16 Hot-Swap 2,5"-SAS/SATA/SSD
RAID-Unterstützung	Hardware-RAID 0/1/10/5/6/50/60 (optional)
Netzwerk	4x Gigabit-Ethernet (Broadcom)
Erweiterungssteckplätze	6x PCIe 3.0 x8
Abmessungen (H x B x T)	86 mm x 445 mm x 746 mm
Gewicht	25,4 kg (max. Konfiguration)
Stromversorgung	2x 550 W oder 750 W (redundant, hot-plug)
Kühlung	6x Lüfter (hot-plug, redundant)
Fernverwaltung	Integrated Management Module II (IMM2)
Betriebssysteme	Windows Server, Red Hat, SUSE, VMware vSphere
Betriebstemperatur	10 °C bis 35 °C
Lagertemperatur	-40 °C bis 60 °C
Sicherheitszertifikate	UL, CE, FCC, VCCI, C-Tick
Wartung	Hot-Swap-Komponenten (Lüfter, Netzteile, Festplatten)
Reinigung	Staubfilter regelmäßig reinigen, Druckluft verwenden
Ersatzteile	Original IBM-Teile über Servicepartner
Reparierbarkeit	Einfache Zugänglichkeit, FRU-Liste im Handbuch
Garantie	3 Jahre Vor-Ort-Service (erweiterbar)

Häufig gestellte Fragen - System x 3650 M4 IBM

Wie installiere ich das Betriebssystem auf dem IBM System x 3650 M4?

Verwenden Sie die ServerGuide-DVD oder booten Sie von einem USB-Stick. Das IMM2 ermöglicht Remote-Installation.

Welche RAID-Level werden unterstützt?

Der integrierte Controller unterstützt RAID 0/1/10. Optionaler ServeRAID M5110 unterstützt RAID 5/6/50/60.

Wie kann ich den Arbeitsspeicher aufrüsten?

Schalten Sie den Server aus und öffnen Sie das Gehäuse. Die 24 DIMM-Steckplätze sind farblich markiert – beachten Sie die Bestückungsreihenfolge.

Wie setze ich die CMOS-Batterie zurück?

Entfernen Sie die Batterie für 30 Sekunden oder verwenden Sie den CMOS-Reset-Jumper auf der Hauptplatine.

Welche Fernverwaltungsfunktionen bietet das IMM2?

Das IMM2 ermöglicht Remote-Konsole, virtuelle Medien, SNMP und Alarme. Zugriff über https://.

Wie tausche ich eine defekte Festplatte aus?

Die Festplatten sind hot-plug fähig. Entriegeln Sie den Träger, ziehen Sie die Platte heraus und setzen Sie eine neue ein – der RAID-Verband baut sich automatisch wieder auf.

Warum leuchtet die gelbe LED auf dem Netzteil?

Gelb bedeutet Netzteilfehler oder Wechselstromausfall. Überprüfen Sie die Stromversorgung und tauschen Sie das Netzteil gegebenenfalls aus.

Kann ich den Server in einem 19-Zoll-Rack montieren?

Ja, das System ist für 2U-Racks ausgelegt. Ein Montagesatz (optional) ist erforderlich.

Wie führe ich ein BIOS-Update durch?

Laden Sie das Update von der IBM-Supportseite herunter und führen Sie es über das IMM2 oder per bootfähigem USB-Stick aus.

Welche Stromaufnahme hat der Server im Leerlauf?

Je nach Konfiguration ca. 200-300 W im Leerlauf und bis zu 800 W unter Volllast.

BEDIENUNGSANLEITUNG System x 3650 M4 IBM

IBM®

Redbooks

IBM System x3650 M4

IBM Redbooks Product Guide

The IBM® System x3650 M4 server provides outstanding performance for your business-critical applications. Its energy-efficient design supports more cores, memory, and data capacity in a scalable 2U package that is easy to service and manage. With more computing power per watt and the latest Intel Xeon processors, you can reduce costs while maintaining speed and availability.

Suggested use: database, virtualization, enterprise applications, collaboration/email, streaming media, web, HPC, Microsoft RemoteFX, and cloud applications.

Figure 1 shows the IBM System x3650 M4.

Front view of a server rack unit with multiple drive bays and indicator lights (no visible text or labels)

Figure 1. The IBM System x3650 M4

Key features

The x3650 M4 is an outstanding 2U two-socket business-critical server, offering improved performance and pay-as-you grow flexibility along with new features that improve server management capability. This powerful system is designed for your most important business applications and cloud deployments.

Combining balanced performance and flexibility, the x3650 M4 is a great choice for small and medium businesses up to the large enterprise. It can provide outstanding uptime to keep business-critical applications and cloud deployments running safely. Ease of use and comprehensive systems management tools make it easy to deploy. Outstanding RAS and high-efficiency design improve your business environment and help save operational costs.

Scalability and performance

The x3650 M4 offers numerous features to boost performance, improve scalability, and reduce costs:

• Intel Xeon processor E5-2600 product family improves productivity by offering superior system performance with 8-core processors and up to 2.9 GHz core speeds, up to 20 MB of L3 cache, and up to two 8 GT/s QPI interconnect links.
• Up to two processors, 16 cores, and 32 threads maximize the concurrent execution of multi-threaded applications.
• Intelligent and adaptive system performance with Intel Turbo Boost Technology 2.0 allows CPU cores to run at maximum speeds during peak workloads by temporarily going beyond processor TDP.
• Intel Hyper-Threading Technology boosts performance for multi-threaded applications by enabling simultaneous multi-threading within each processor core, up to two threads per core.
• Intel Virtualization Technology integrates hardware-level virtualization hooks that allow operating system vendors to better utilize the hardware for virtualization workloads.
• Intel Advanced Vector Extensions (AVT) significantly improve floating-point performance for compute-intensive technical and scientific applications compared to Intel Xeon 5600 series processors.
• Supports up to 24 Load Reduced DIMMs (LRDIMMs) of 1333 MHz DDR3 ECC memory provide speed, high availability, and a memory capacity of up to 768 GB (running at 1066 MHz).
• Theoretical maximum memory bandwidth of the Intel Xeon processor E5 family is 51.6 GB/s, which is 60% more than in the previous generation of Intel Xeon processors.

Availability and serviceability

The x3650 M4 provides many features to simplify serviceability and increase system uptime:

• The server offers memory mirroring and memory rank sparing for redundancy in the event of a non-correctable memory failure.
• Tool-less cover removal provides easy access to upgrades and serviceable parts, such as CPU, memory, and adapter cards.
• The server offers hot-swap drives, supporting RAID redundancy for data protection and greater system uptime.
• The server has up to two redundant hot-swap power supplies and four hot-swap dual-motor redundant fans (two fan zones with an N+1 fan design) to provide availability for business-critical applications.
• The power source independent light path diagnostics panel and individual light path LEDs quickly lead the technician to failed (or failing) components, which simplifies servicing, speeds up problem resolution, and helps improve system availability.
• Predictive Failure Analysis (PFA) detects when system components (processors, VRMs, memory, HDDs, fans, and power supplies) operate outside of standard thresholds and generates proactive alerts in advance of a possible failure, therefore increasing uptime.
• Solid-state drives (SSDs) offer significantly better reliability than traditional mechanical HDDs for greater uptime.
• Built-in Integrated Management Module Version II (IMM2) continuously monitors system parameters, triggers alerts, and performs recovering actions in case of failures to minimize downtime.
• Built-in diagnostics, using Dynamic Systems Analysis (DSA) Preboot, speed up troubleshooting tasks to reduce service time.
• Three-year customer-replaceable unit and on-site limited warranty, 9x5 next business day. Optional service upgrades are available.

Manageability and security

Powerful systems management features simplify local and remote management of the x3650 M4:

• The server includes an Integrated Management Module II (IMM2) to monitor server availability and perform remote management.

- Integrated industry-standard Unified Extensible Eimmuno Interface (IEEE) enables immuval saturation

Energy efficiency

The x3650 M4 offers the following energy-efficiency features to save energy, reduce operational costs, increase energy availability, and contribute to the green environment:

• Energy-efficient planar components help lower operational costs.
- Highly efficient 550 W, 750 W, and 900 W ac power supplies with 80 PLUS Platinum certification. Available 750W dc power option.
- Intel Xeon processor E5-2600 product family offers significantly better performance over the previous generation while fitting into the same thermal design power (TDP) limits.
- Intel Intelligent Power Capability powers individual processor elements on and off as needed, to reduce power draw.
- Low-voltage Intel Xeon processors draw less energy to satisfy the demands of power and thermally constrained data centers and telecommunication environments.
- Low-voltage 1.35 V DDR3 memory RDIMMs consume 15% less energy compared to 1.5 V DDR3 RDIMMs.
- Solid state drives (SSDs) consume as much as 80% less power than traditional spinning 2.5-inch HDDs.
- The server uses hexagonal ventilation holes, which is a part of IBM Calibrated Vectred Cooling™ technology. Hexagonal holes can be grouped more densely than round holes, providing more efficient airflow through the system.
- IBM Systems Director Active Energy Manager™ provides advanced data center power notification and management to help achieve lower heat output and reduced cooling needs.

Locations of key components and connectors

Figure 2 shows the front of the server.


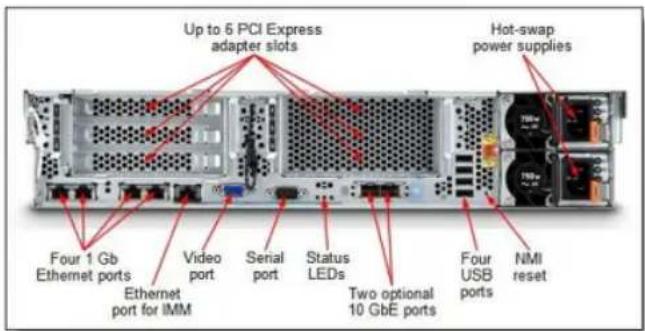

Figure 3 shows the rear of the server.

Up to 6 PCI Express adapter slots Hot-swap power supplies Four 1 Gb Ethernet ports Ethernet port for IMM Video port Serial port Status LEDs Two optional 10 GbE ports Four USB ports NMI reset

Figure 3. Rear view of the IBM System x3650 M4

Figure 4 shows the locations of key components inside the server.

PCIe riser slots CPU 1 24 DIMM sockets Light path diagnostics panel and optical drive

Standard specifications

The following table lists the standard specifications.

Table 1. Standard specifications (part 1)

Components Specification
Form factor 2U Rack.
Processor Up to two Intel Xeon processor E5-2600 product family CPUs with eight cores (up to 2.9 GHz) or six cores (up to 2.9 GHz) or quad-cores (up to 3.3 GHz). Two QPI links up to 8.0 GT/s each. Up to 1600 MHz memory speed. Up to 20 MB L3 cache.
Chipset Intel C602J.
Memory Up to 24 DIMM sockets (12 DIMMs per processor). RDIMMs, UDIMMs, HyperCloud DIMMs, and LRDIMMs (Load Reduced DIMMs) supported, but memory types cannot be intermixed. Memory speed up to 1600 MHz.
Memory maximums	With RDIMMs: Up to 384 GB with 24x 16 GB RDIMMs and two processorsWith UDIMMs: Up to 64 GB with 16x 4 GB UDIMMs and two processorsWith HyperCloud DIMMs: Up to 768 GB with 24x 32 GB HyperCloud DIMMs and two processorsWith LRDIMMs: Up to 768 GB with 24x 32 GB LRDIMMs and two processors
Memory protection	ECC, Chipkill, memory mirroring, and memory rank sparing.
Disk drive bays	Up to 32 1.8" SSD bays, or 16 2.5" hot-swap SAS/SATA bays, or up to six 3.5" hot-swap SAS/SATA bays, or up to eight 2.5" Simple Swap SATA bays, or up to six 3.5" Simple Swap SATA bays.
Maximum internal storage	Up to 14.4 TB with 900 GB 2.5" SAS HDDs, up to 16 TB with 1 TB 2.5" NL SAS/SATA HDDs, or up to 18 TB with 3 TB 3.5" NL SAS/SATA HDDs. Intermix of SAS/SATA is supported.
RAID support RAID 0, 1, 10 with integrated ServeRAID M5110e; optional upgrades to RAID 5, 50 are available (zero-cache; 512 MB battery-backed cache; 512 MB or 1 GB flash-backed cache). Optional upgrade to RAID 6, 60 is available for 512 MB or 1 GB cache.
Optical drive bays	One bay for optional DVD-ROM or Multiburner drive.
Tape drive bays	Optional Tape Enablement Kit is available to support one DDS5, DDS6, or RDX internal USB tape drive.
Network interfaces	Four integrated Gigabit Ethernet 1000BASE-T ports (RJ-45); two embedded 10 Gb Ethernet ports (10GBASE-T RJ-45 or 10GBASE-SR SFP+ based) on optional 10 Gb Ethernet mezzanine card (does not consume PCIe slot).
PCI Expansion slots	Up to six slots depending on the riser cards installed. The slots are as follows:Slot 1: PCIe 3.0 x8; full-height, full-lengthSlot 2: PCIe 3.0 x8; full-height, half-lengthSlot 3: PCIe 3.0 x8; full-height, half-lengthSlot 4: Optional, requires second processor and second riser cardSlot 5: Optional, requires second processor and second riser cardSlot 6: Optional, requires second processor and second riser cardOptional riser cards available with PCIe x8 or PCIe x16 or PCI-X slots.
Ports Two USB 2.0 and one DB-15 video on front. Four USB 2.0, one DB-15 video, one DB-9 serial, one RJ-45 systems management, four RJ-45 GbE network ports, two optional RJ-45 or SFP+ 10 GbE network ports on rear. Two internal USB ports (for embedded hypervisor and internal tape drive).

Table 1. Standard specifications (part 2)

Components	Specification
Cooling	IBM Calibrated Vectored CoolingTM with up to four redundant hot swap fans (three standard, additional fan with second processor); two fan zones with N+1 fan design; each fan has two motors.
Power supply	Up to two redundant hot-swap 550 W ac or 750 W ac or 900 W ac power supplies (all 80 PLUS Platinum certification), or -48V 750 W dc power supply options.
Video	Matrox G200eR2 with 16 MB memory integrated into the IMM2. Maximum resolution is 1600x1200 at 75 Hz with 16 M colors.
Hot-swap parts	Hard drives, power supplies, and fans.
Systems management	UEFI, IBM Integrated Management Module II (IMM2), Predictive Failure Analysis, Light Path Diagnostics, Automatic Server Restart, IBM Systems Director and Active Energy Manager, IBM ServerGuide. Optional IMM Advanced Upgrade software feature for remote presence.
Security features	Power-on password, administrator's password, Trusted Platform Module (TPM).
Operating systems supported	Microsoft Windows Server 2012, 2008 R2 and 2008, Red Hat Enterprise Linux 5 and 6, SUSE Linux Enterprise Server 10 and 11, VMware ESX 4.1 and VMware ESXi 4.1 embedded hypervisor, VMware vSphere 5.
Limited warranty	Three-year customer-replaceable unit and on-site limited warranty with 9x5 next business day (NBD).
Service and support	Optional service upgrades are available through IBM ServicePacs®: Four-hour or two-hour response time, eight-hour fix time, one-year or two-year warranty extension, remote technical support for IBM hardware and some IBM and third-party applications.
Dimensions	Height: 86 mm (3.4 in), width: 445 mm (17.5 in), depth: 746 mm (29.4 in)
Weight	Minimum configuration: 25 kg (55 lb), maximum: 30 kg (65 lb)

The x3650 M4 servers are shipped with the following items:
• Statement of Limited Warranty
• Important Notices • Back Installation Instructions
- Documentation CD that contains the installation and Units Guide

Standard models

The following table lists the standard models.

Table 2. Standard models

Model	Intel Xeon processors†(two maximum)	Memory	RAID	Diskbays	Disks	GbE	Optical	Powersupply
Models announced August 2012
7915-32x	1x ES-2643 4C 3.3GHz10MB 1600MHz 130W	1x 4 GB	M5110e	8 / 162.5" HS	Open	4	Open	1x 900W
7915-GSx(SAP*)	1x ES-2650 8C 2.0GHz20MB 1600MHz 95W	4x 8 GB	M5110e1GB flash	8 / 162.5" HS	1x 1TB NL SAS7x 600GB SASVMware key*	4	Open	2x 750W
7915-M2x	1x ES-2690 8C 2.9GHz20MB 1600MHz 135W	1x 4 GB	M5110e	8 / 162.5" HS	Open	4	Open	1x 900W
Models announced March 2012
7915-A2x	1x ES-2603 4C 1.8GHz10MB 1066MHz 80W	1x 4 GB	M5110e	8 / 162.5" HS	Open	4	Open	1x 550W
7915-B2x	1x ES-2609 4C 2.4GHz10MB 1066MHz 80W	1x 4 GB	M5110e	8 / 162.5" HS	Open	4	Open	1x 550W
7915-C2x	1x ES-2620 6C 2.0GHz15MB 1333MHz 95W	1x 8 GB	M5110e	8 / 162.5" HS	Open	4	Open	1x 550W
7915-C4x	1x ES-2620 6C 2.0GHz15MB 1333MHz 95W	1x 8 GB	M5110e	6 / 63.5" HS	Open	4	Open	1x 550W
7915-D2x	1x ES-2630 6C 2.3GHz15MB 1333MHz 95W	1x 8 GB	M5110e512MB flash	8 / 162.5" HS	Open	4	Open	1x 750W
7915-F2x	1x ES-2640 6C 2.5GHz15MB 1333MHz 95W	1x 8 GB	M5110e512MB flash	8 / 162.5" HS	Open	4	Open	1x 750W
7915-G2x	1x ES-2650 8C 2.0GHz20MB 1600MHz 95W	1x 8 GB	M5110e1GB flash	8 / 162.5" HS	Open	4	Open	1x 750W
7915-S2x	1x ES-2650L 8C 1.8GHz20MB 1600MHz 70W	1x 8 GB	M5110e1GB flash	8 / 162.5" HS	Open	4	Open	1x 550W
7915-H2x	1x ES-2660 8C 2.2GHz20MB 1600MHz 95W	1x 8 GB	M5110e1GB flash	8 / 162.5" HS	Open	4	Open	1x 750W

Workload optimized model - SAP Discovery system

Model GSx comes preinstalled with SAP Discovery system V5. The SAP Discovery system is a fully configured and preintegrated service-oriented architecture (SOA) platform enabler for SAP development environments. The IBM Systems solution with SAP Discovery system provides a robust IBM System x hardware platform for evaluating SAP software. The x3650 M4 model is pre-installed with a wide range of SAP software and development tools, the solution offers a fast, easy and cost-effective way to explore, evaluate and train on SAP products including SAP HANA, before deploying new software in your infrastructure.

Learn more at http://ibm.com/systems/x/solutions/sap/discoverysystem

Note: The model that includes the preinstalled copy of SAP software does not include a license to use such SAP software. Please contact your SAP representative to obtain the appropriate license rights to use the SAP software.

Express models

The following table lists the express models.

Table 3. Express models (Part 1)

Model	Processor	Memory	RAID controller	Disk bays	Disk	GbE	Slots	Optical	Power
North America (NA)
7915-EAU	1x Xeon E5-2609 4C 2.4GHz 10MB 1066MHz 80W	1 x 4 GB	M5110e 512MB Flash	8x 2.5" HS/16	Optional	4x GbE	3/6	Multi-burner	1x 550 W
7915-EBU	1x Xeon E5-2620 6C 2.0GHz 15MB 1333MHz 95W	1 x 8 GB	M5110e 512MB Flash	8x 2.5" HS/16	Optional	4x GbE	3/6	Multi-burner	1x 550 W
7915-ECU	1x Xeon E5-2630 6C 2.3GHz 15MB 1333MHz 95W	1 x 8 GB	M5110e 512MB Flash	8x 2.5" HS/16	Optional	4x GbE	3/6	Multi-burner	1x 750 W
7915-EDU	1x Xeon E5-2640 6C 2.5GHz 15MB 1333MHz 95W	2 x 8 GB	M5110e 512MB Flash	8x 2.5" HS/16	Optional	4x GbE	3/6	Multi-burner	2x 750 W
7915-EEU	1x Xeon E5-2650 8C 2.0GHz 20MB 1600MHz 95W	1 x 8 GB	M5110e 1GB Flash	8x 2.5" HS/16	Optional	4x GbE	3/6	Multi-burner	1x 750 W
Latin America (LA)
7915-EAU	1x Xeon E5-2609 4C 2.4GHz 10MB 1066MHz 80W	1 x 4 GB	M5110e 512MB Flash	8x 2.5" HS/16	Optional	4x GbE	3/6	Multi-bumer	1x 550 W
7915-EBU	1x Xeon E5-2620 6C 2.0GHz 15MB 1333MHz 95W	1 x 8 GB	M5110e 512MB Flash	8x 2.5" HS/16	Optional	4x GbE	3/6	Multi-burnor	1x 550 W
7915-ECU	1x Xeon E5-2630 6C 2.3GHz 15MB 1333MHz 95W	1 x 8 GB	M5110e 512MB Flash	8x 2.5" HS/16	Optional	4x GbE	3/6	Multi-burnor	1x 750 W
7915-EDU	1x Xeon E5-2640 6C 2.5GHz 15MB 1333MHz 95W	2 x 8 GB	M5110e 512MB Flash	8x 2.5" HS/16	Optional	4x GbE	3/6	Multi-burnor	2x 750 W
7915-EEU	1x Xeon E5-2650 8C 2.0GHz 20MB 1600MHz 95W	1 x 8 GB	M5110e 1GB Flash	8x 2.5" HS/16	Optional	4x GbE	3/6	Multi-burnor	1x 750 W
Europe Integrated Operating Team (IOT)
7915-E1G	1x Xeon E5-2603 4C 1.8GHz 10MB 1066MHz 80W	1 x 4 GB	M5110e	8x 2.5" HS/16	Optional	4x GbE	3/6	Multi-burnor	1x 550 W
7915-E2G	1x Xeon E5-2620 6C 2.0GHz 15MB 1333MHz 95W	1 x 8 GB	M5110e	8x 2.5" HS/16	2 x 300GB 2.5" 10k HS SAS	4x GbE	3/6	Multi-burnor	2x 550 W
7915-E3G	1x Xeon E5-2620 6C 2.0GHz	1 x 8 GB	M5110e	8x 2.5"	Optional	4x	3/6	Multi-	1x 550 W

Table 3. Express models (Part 2)

Model	Processor	Memory	RAID controller	Disk bays	Disks	GbE	Slots	Optical	Power
Central and Eastern Europe (CEE) and Middle East & Africa (MEA)
7915-E1G	1x Xeon E5-2603 4C 1.8GHz 10MB 1066MHz 80W	1x 4 GB	M5 110e	8x 2.5" HS/16	Optional	4x GbE	3/6	Multi-burner	1x 550 W
7915-E2G	1x Xeon E5-2620 6C 2.0GHz 15MB 1333MHz 95W	1x 8 GB	M5 110e	8x 2.5" HS/16	2 x 300GB 2.5" 10k HS SAS	4x GbE	3/6	Multi-burner	2x 550 W
7915-E3G	1x Xeon E5-2620 6C 2.0GHz 15MB 1333MHz 95W	1x 8 GB	M5 110e	8x 2.5" HS/16	Optional	4x GbE	3/6	Multi-burner	1x 550 W
7915-E4G	1x Xeon E5-2630 6C 2.3GHz 15MB 1333MHz 95W	1x 8 GB	M5 110e 512MB Flash	8x 2.5" HS/16	2 x 300GB 2.5" 10k HS SAS	4x GbE	3/6	Multi-burner	1x 750 W
7915-E5G	2x Xeon E5-2650 8C 2.0GHz 20MB 1600MHz 95W	2x 8 GB	M5 110e 512MB Flash	8x 2.5" HS/16	3 x 300GB 2.5" 10k HS SAS	4x GbE	6/6	Multi-burner	2x 750 W
7915-K1G	1x Xeon E5-2609 4C 2.4GHz 10MB 1066MHz 80W	1x 4 GB	M5 110e	6x 3.5" HS/6	Optional	4x GbE	3/6	Multi-burner	1x 550 W
7915-K4G	1x Xeon E5-2630 6C 2.3GHz 15MB 1333MHz 95W	1x 8 GB	M5 110e 512MB Flash	8x 2.5" HS/16	Optional	4x GbE	3/6	Multi-burner	2x 750 W
7915-K5G	1x Xeon E5-2650 8C 2.0GHz 20MB 1600MHz 95W	2x 8 GB	M5 110e 512MB Flash	8x 2.5" HS/16	Optional	4x GbE	3/6	Multi-burner	2x 750 W
Russia/Commonwealth of Independent States (CIS)
7915-K2G	1x Xeon E5-2603 4C 1.8GHz 10MB 1066MHz 80W	1x 4 GB	M5 110e 512MB Cache + Battery	8x 2.5" HS/16	Optional	4x GbE	3/6	Multi-burner	1x 550 W
7915-K3G	1x Xeon E5-2620 6C 2.0GHz 15MB 1333MHz 95W	1x 8 GB	M5 110e 512MB Flash	8x 2.5" HS/16	Optional	4x GbE	3/6	Multi-burner	1x 550 W
7915-K4G	1x Xeon E5-2630 6C 2.3GHz 15MB 1333MHz 95W	1x 8 GB	M5 110e 512MB Flash	8x 2.5" HS /16	Optional	4x GbE	3/6	Multi-burner	2x 750 W
7915-K5G	1x Xeon E5-2650 8C 2.0GHz 20MB 1600MHz 95W	2x 8 GB	M5 110e 512MB Flash	8x 2.5"HS/16	Optional	4x GbE	3/6	Multi-burner	2x 750 W

Processor options

The x3650 M4 supports the processor options listed in the following table. The server supports up to two processors. This table shows which server models have each processor standard. If there is no corresponding where-used model for a particular processor, this processor is only available through CTO. Second processor options include an additional cooling fan.

Table 4. Processor options

Part number	Feature codes*	Description	Models where used
69Y5323	A1KJ / A1KV	Intel Xeon E5-2603 4C 1.8GHz 10MB 1066MHz 80W	A2x
69Y5325	A1KL / A1KX	Intel Xeon E5-2609 4C 2.4GHz 10MB 1066MHz 80W	B2x
69Y5326	A1KM / A1KY	Intel Xeon E5-2620 6C 2.0GHz 15MB 1333MHz 95W	C2x, C4x
69Y5327	A1KN / A1KZ	Intel Xeon E5-2630 6C 2.3GHz 15MB 1333MHz 95W	D2x
94Y6603	A2AW / A2AZ	Intel Xeon E5-2630L 6C 2.0GHz 15MB 1333MHz 60W	-
94Y6686	A2VP / A2QM	Intel Xeon E5-2637 2C 3.0GHz 5MB 1600MHz 80W	-
69Y5328	A1KP / A1L0	Intel Xeon E5-2640 6C 2.5GHz 15MB 1333MHz 95W	F2x
94Y6604	A2AX / A2B0	Intel Xeon E5-2643 4C 3.3GHz 10MB 1600MHz 130W	32x
00D9451	A396 / A398	Intel Xeon E5-2648L 8C 1.8GHz 20MB 1600MHz 70W	-
69Y5329	A1KQ / A1L1	Intel Xeon E5-2650 8C 2.0GHz 20MB 1600MHz 95W	G2x, GSx
69Y5336	A1KU / A1L5	Intel Xeon E5-2650L 8C 1.8GHz 20MB 1600MHz 70W	52x
00D9450	A395 / A397	Intel Xeon E5-2658 8C 2.1GHz 20MB 1600MHz 95W	-
69Y5330	A1KR / A1L2	Intel Xeon E5-2660 8C 2.2GHz 20MB 1600MHz 95W	H2x
94Y6687	A2GU / A2GV	Intel Xeon E5-2665 8C 2.4GHz 20MB 1600MHz 115W	62x
69Y5333	A1KT / A1L4	Intel Xeon E5-2667 6C 2.9GHz 15MB 1600MHz 130W	-
94Y6602	A2AV / A2AY	Intel Xeon E5-2670 8C 2.6GHz 20MB 1600MHz 115W	J2x
69Y5331	A1KS / A1L3	Intel Xeon E5-2680 8C 2.7GHz 20MB 1600MHz 130W	L2x

• Maximum number of ranks per one channel is eight (with the exception of Load Reduced DIMMs where more than eight ranks are supported, because one quad-rank LRDIMM provides the same electrical load on a memory bus as a single-rank RDIMM).
• The maximum quantity of DIMMs that can be installed in the server depends on the number of CPUs, DIMM type, rank, and operating voltage, as shown in the "Max. qty supported" row in Table 5.
• All DIMMs in the server operate at the same speed, which is determined as the lowest value of:
  • Memory speed that is supported by the specific CPU.
• Lowest of maximum operating speeds for selected memory configuration that depends on rated speed, operating voltage, and quantity of DIMMs per channel, as shown under "Max. operating speed" section in Table 5.

The following table (Parts 1 and 2) shows the characteristics of the supported DIMMs. Tables cells highlighted with a gray background indicate when the combination of DIMM voltage and the number of DIMMs per channel still allows the DIMMs to operate at a rated speed.

Table 5. Maximum memory speeds (Part 1: UDIMMs and RDIMMs)

DIMM specification	UDIMM		RDIMM
Rank	Dual rank		Single rank			Dual rank			Quad rank
Part numbers	49Y1404 (4 GB)		49Y1405 (2 GB)49Y1406 (4 GB)		49Y 1559(4GB)	49Y1407 (4 GB)49Y1397 (8 GB)49Y1563 (16 GB)		90Y3178(4GB)90Y3109(8GB)00D4968(16GB)	49Y 1399 (8 GB)
Rated speed	1333 MHz		1333 MHz		1600 MHz	1333 MHz		1600 MHz	1066 MHz
Rated voltage	1.35 V		1.35 V		1.5 V	1.35 V		1.5 V	1.35 V
Operating voltage	1.35 V	1.5 V	1.35 V	1.5 V	1.5 V	1.35 V	1.5 V	1.5 V	1.35 V	1.5 V
Max. qty supported*	16	16	16	24	24	16	24	24	16	16
Max. DIMM capacity	4 GB	4 GB	4 GB	4 GB	4 GB	16 GB	16 GB	16 GB	8 GB	8 GB
Max. memory capacity	64 GB	64 GB	64 GB	96 GB	96 GB	256 GB	384 GB	384 GB	128 GB	128 GB
Max. memory	32 GB	64 GB	64 GB	64 GB	64 GB	256 GB	256 GB	256 GB	128 GB	64 GB

Table 5. Maximum memory speeds (Part 2: HyperCloud DIMMs and LRDIMMs)

DIMM specification	HyperCloud DIMM		LRDIMM
Rank	Dual rank		Quad rank
Part number	00D5004 (32 GB)	00D4964 (16 GB)	90Y3105 (32 GB)
Rated speed	1066 MHz	1333 MHz	1333 MHz
Rated voltage	1.5 V	1.5 V	1.35 V
Operating voltage	1.5 V	1.5 V	1.35 V	1.5 V
Max. qty supported*	24	24	24	24
Max. DIMM capacity	32 GB	16 GB	32 GB	32 GB
Max. memory capacity	768 GB	384 GB	768 GB	768 GB
Max. memoryat rated speed	768 GB	384 GB	256 GB	512 GB
Maximum operating speed
1 DIMM per channel	1066 MHz	1333 MHz	1333 MHz	1333 MHz
2 DIMMs per channel	1066 MHz	1333 MHz	1066 MHz	1333 MHz
3 DIMMs per channel	1066 MHz	1333 MHz	1066 MHz	1066 MHz

* Maximum quantity supported is shown for two processors installed. When one processor is installed, the maximum quantity supported is a half of the quantity that is shown. Shaded cells indicate when all DIMM sockets can be occupied.
** NS = Not Supported

The following memory protection technologies are supported:

• ECC
  • Chipkill (for x4-based memory DIMMs)

• Memory mirroring

• Memory rank sparing

If memory mirroring is used, DIMMs must be installed in pairs (minimum of one pair per each CPU), and both DIMMs in a pair must be identical in type and size.

If memory rank spacing is used, then a minimum of one round mark DIM or two single mode or dual mode

The following table lists the memory options that are available for x3650 M4 server.

Table 6. Memory options

Part number	Feature codes	Description	Maximum supported	Standard models where used
UDIMMs
49Y1404	8648	4 GB ( 1x 4 GB, 2Rx8, 1.35 V) PC3L-10600 CL9 ECC 1333 MHz LP UDIMM	16 (8 per CPU)	-
RDIMMs - 1333 MHz and 1066 MHz
49Y1405	8940	2 GB (1x 2 GB, 1Rx8, 1.35 V) PC3L-10600 CL9 ECC DDR3 1333 MHz LP RDIMM	24 (12 per CPU)	-
49Y1406	8941	4 GB ( 1x 4 GB, 1Rx4, 1.35 V) PC3L-10600 CL9 ECC DDR3 1333 MHz LP RDIMM	24 (12 per CPU)	A2x, B2x
49Y1407	8942	4 GB (1x 4 GB, 2Rx8, 1.35 V) PC3L-10600 CL9 ECC DDR3 1333 MHz LP RDIMM	24 (12 per CPU)	-
49Y1397	8923	8 GB (1x 8 GB, 2Rx4, 1.35 V) PC3L-10600 CL9 ECC 1333 MHz LP RDIMM	24 (12 per CPU)	C2x, C4x, D2x, F2x
49Y1399	A14E	8 GB (1x 8 GB, 4Rx8, 1.35 V) PC3L-8500 CL7 ECC DDR3 1066 MHz LP RDIMM	16 (8 per CPU)	-
49Y1563	A1QT	16 GB (1x 16 GB, 2Rx4, 1.35 V) PC3L-10600 CL9 ECC DDR3 1333 MHz LP RDIMM	24 (12 per CPU)	-
RDIMMs - 1600 MHz
49Y1559	A28Z	4 GB (1x 4 GB, 1Rx4, 1.5 V) PC3-12800 CL11 ECC DDR3 1600 MHz LP RDIMM	24 (12 per CPU)	32x, M2x
90Y3178	A24L	4 GB (1x4GB, 2Rx8, 1.5V) PC3-12800 CL11 ECC DDR3 1600MHz LP RDIMM	24 (12 per CPU)	-
90Y3109	A292	8 GB (1x 8 GB, 2Rx4, 1.5 V) PC3-12800 DDR3-1600 LP RDIMM	24 (12 per CPU)	52x, 62x, G2x, H2x, J2x, L2x, GSx

Internal disk storage options

IBM System x3650 M4 server supports 1.8-inch solid-state drives (SSDs), 2.5-inch SSDs and HDDs, and 3.5-inch HDDs. The server supports the following configurations:

1. 16x 2.5-inch hot-swap drive bays, either with or without a SAS expander
2. 8x2.5-inch hot-swap drive bays
3. 6x 3.5-inch hot-swap hard drive bays
4. 8x 2.5-inch hot-swap drive bays + 16x 1.8-inch SSD drive bays
5. 8x2.5-inch simple swap drive bays (only available in CTO)
6. 32x 1.8-inch SSD drive bays (only available in CTO)
7. 6x3.5-inch simple-swap SATA hard drive bays (only available in CTO)

The following figure shows the first three of these configurations.

Sixteen 2.5" hot-swap HDDs Eight 2.5" hot-swap HDDs Six 3.5" hot-swap HDDs

Figure 5. Internal drive configurations (3 of 6 configurations shown)

Backplanes and enablement kits

All standard models, except model C4x, ship with eight 2.5" Slim-SFF SAS/SATA hot-swap hard drive bays. Model C4x ships with six 3.5" SAS/SATA hot-swap hard drive bays.

The following table shows the internal storage expansion options that are available for x3650 M4 server.

Table 7. Internal storage expansion options

Part number	Feature code	Name and description	Maximum supported
69Y5319	A1JY	x3650 M4 Plus 8x 2.5" HS HDD Assembly Kit with ExpanderFor models with eight 2.5-inch hot-swap bays, adds eight more bays for a total of 16 2.5-inch hot-swap HDD bays.This option includes a SAS expander card that is mounted on an HDD backplane, and it does not consume a PCIe slot.Includes internal cables.	1
00D9490	A39W	x3650 M4 Plus 8 2.5" HS HDD Assembly Option KitFor models with eight 2.5-inch hot-swap bays, adds eight more bays for a total of 16 2.5-inch hot-swap HDD bays.Does not include a SAS expander.Requires a second RAID adapter for the second set of eight drives.Includes internal cables.	1
00D9493	A39Z	x3650 M4 8 2.5" Plus 16 1.8" SSD Assembly Option KitFor models with eight 2.5-inch hot-swap bays, adds 16 1.8-inch SSD bays for a total of 24 bays.Requires two SSD controllers for the 16 SSDs.Includes internal cables.	1
None*	A39X	x3650 M4 Hot-Swap 16/32 HDD Assembly KitFor CTO only. First set of 16 1.8-inch SSD bays.	1
00D9492	A39Y	x3650 M4 16 Plus 16 1.8" SSD Assembly Option KitFor CTO only. Second set of 16 1.8-inch SSD bays.Use with feature A39X to configure a total of 32 1.8-inch SSD bays.	1
None*	A3A0	x3650 M4 2.5" Simple Swap KitFor CTO onlySupports eight simple-swap drivesNo support for 16 simple-swap drives	1

Use the following table to determine what backplane kits you need.

Table 8. Drive combinations

Drive combination	Configure these kits	Controllers needed
Hot-swap drives
6x 3.5-inch hot-swap drives	• x3650 M4 3.5" HS HDD Assembly Kit, feature A1JV (standard in model C4x, or CTO)	Onboard
8x 2.5-inch hot-swap drives	• x3650 M4 8x 2.5" HS HDD Assembly Kit, feature A1JX (standard in all models except C4x)	Onboard
16x 2.5-inch hot-swap drives with a SAS expander	• x3650 M4 8x 2.5" HS HDD Assembly Kit, feature A1JX (standard in all models except C4x)• x3650 M4 Plus 8x 2.5" HS HDD Assembly Kit with Expander, part 69Y5319, feature A1JY	Onboard
16x 2.5-inch hot-swap drives without a SAS expander	• x3650 M4 8x 2.5" HS HDD Assembly Kit, feature A1JX (standard in all models except C4x)• x3650 M4 Plus 8 2.5" HS HDD Assembly Option Kit, part 00D9490, feature A39W	Onboard + 1x adapter
8x 2.5-inch drives + 16x 1.8-inch drives	• x3650 M4 8x 2.5" HS HDD Assembly Kit, feature A1JX (standard in all models except C4x)• x3650 M4 8 2.5" Plus 16 1.8" SSD Assembly Option Kit, part 00D9493, feature A39Z	Onboard + 2x adapters
16x 1.8-inch drives (CTO only)	• x3650 M4 Hot-Swap 16/32 HDD Assembly Kit, feature A39X	2x adapters
32x 1.8-inch drives (CTO only)	• x3650 M4 Hot-Swap 16/32 HDD Assembly Kit, feature A39X• x3650 M4 16 Plus 16 1.8" SSD Assembly Option Kit, part 00D9492, feature A39Y	4x adapters
Simple-swap drives
6x 3.5-inch simple-swap drives (CTO only)	• x3650 M4 3.5" SS HDD Assembly Kit, feature A1JW (CTO only)	Onboard
8x 2.5-inch simple-swap drives (CTO only)	• x3650 M4 2.5" Simple Swap Kit, feature A3A0 (CTO only)	Onboard

RAID controllers

The following table lists the RAID controllers and additional options used for internal disk storage of x3650 M4 server.

Table 9. RAID controllers and SAS HBAs for internal storage

Part number	Feature code	Description	Maximum supported	Standard models where used
Integrated	None	ServeRAID M5110e SAS/SATA Controller	1	All other models
81Y4481	A347	ServeRAID M5110 SAS/SATA Controller	3	-
46M0912	3876	IBM 6 Gb Performance Optimized HBA	4	-
Hardware upgrades for the M5110 and M5110e
81Y4508	A22E	ServeRAID M5100 Series Battery Kit	1*	-
90Y5046	A2BB	x3650 M4 Remote Supercap and Battery Tray**	1	-
81Y4484	A1J3	ServeRAID M5100 Series 512MB Cache/RAID 5 Upgrade	1	-
81Y4487	A1J4	ServeRAID M5100 Series 512MB Flash/RAID 5 Upgrade	1	D2x, F2x, 52x, 62x
81Y4559	A1WY	ServeRAID M5100 Series 1GB Flash/RAID 5 Upgrade	1	G2x, H2x, J2x, L2x, GSx
Feature on Demand upgrades for the M5110 and M5110e
81Y4544	A1X2	ServeRAID M5100 Series Zero Cache/RAID 5 Upgrade	1	-
90Y4318	A2MD	ServeRAID M5100 Series SSD Caching Enabler	1	-
90Y4273	A2MC	ServeRAID M5100 Series SSD Performance Key	1	-
81Y4546	A1X3	ServeRAID M5100 Series RAID 6 Upgrade	1†	-

* The ServeRAID M5100 Series Battery Kit (81Y4508) is only supported with ServeRAID M5100 Series 512MB Cache/RAID 5 Upgrade (81Y4484).

The integrated ServeRAID M5110e SAS/SATA Controller has the following specifications:

• Two Mini-SAS internal connectors
• Supports RAID levels 0, 1, and 10
• Supports RAID levels 5 and 50 with optional M5100 Series RAID 5 upgrades
• Supports RAID 6 and 60 with the optional M5100 Series RAID 6 Upgrade
• Supports 512 MB battery-backed cache or 512 MB or 1 GB flash-backed cache
• 6 Gbps throughput per port
• PCIe x8 Gen 3 host interface
• Based on the LSI SAS2208 6 Gbps ROC controller

The ServeRAID M5110 SAS/SATA Controller has the following specifications:

• Eight internal 6 Gbps SAS/SATA ports
• Two x4 mini-SAS internal connectors (SFF-8087)
• Supports connections to SAS/SATA drives and SAS Expanders
• Supports RAID levels 0, 1, and 10
• Supports RAID levels 5 and 50 with optional M5100 Series RAID 5 upgrades
• Supports RAID 6 and 60 with the optional M5100 Series RAID 6 Upgrade
• Supports 512 MB battery-backed cache or 512 MB or 1 GB flash-backed cache
• 6 Gbps throughput per port
• PCIe 3.0 x8 host interface
• Based on the LSI SAS2208 6 Gbps ROC controller

For more information, see the list of IBM Redbooks Product Guides in the RAID adapters category:

http://www.redbooks.ibm.com/portals/systemx?Open&page=pg&cat=raid

The following table lists hard drive options for the internal disk storage of the x3650 M4 server.

Table 10. Disk drive options for internal disk storage (Part 1)

Part number	Feature code	Description	Maximum supported
1.8" solid-state drives (SSDs)
43W7726	5428	IBM 50GB SATA 1.8" MLC SSD	32
43W7746	5420	IBM 200GB SATA 1.8" MLC SSD	32
00W1120	A3HQ	IBM 100GB SATA 1.8" MLC Enterprise SSD	32
49Y6119	A3AN	IBM 200GB SATA 1.8" MLC Enterprise SSD	32
49Y6124	A3AP	IBM 400GB SATA 1.8" MLC Enterprise SSD	32
49Y5993	A3AR	IBM 512GB SATA 1.8" MLC Enterprise Value SSD	32
49Y5834	A3AQ	IBM 64GB SATA 1.8" MLC Enterprise Value SSD	32
2.5" solid-state drives (SSDs) - hot-swap
43W7718	A2FN	IBM 200GB SATA 2.5" MLC HS SSD	16
90Y8648	A2U4	IBM 128GB SATA 2.5" MLC HS Enterprise Value SSD	16
90Y8643	A2U3	IBM 256GB SATA 2.5" MLC HS Enterprise Value SSD	16
49Y5844	A3AU	IBM 512GB SATA 2.5" MLC HS Enterprise Value SSD	16
49Y5839	A3AS	IBM 64GB SATA 2.5" MLC HS Enterprise Value SSD	16
49Y6139	A3F0	IBM 800GB SAS 2.5" MLC HS Enterprise SSD	16
49Y6134	A3EY	IBM 400GB SAS 2.5" MLC HS Enterprise SSD	16
49Y6129	A3EW	IBM 200GB SAS 2.5" MLC HS Enterprise SSD	16
2.5" solid-state drives (SSDs) - simple-swap
43W7742	5419	IBM 200GB SATA 2.5" MLC SS SSD	16
90Y8668	A2UB	IBM 128GB SATA 2.5" MLC SS Enterprise Value SSD	16

Table 10. Disk drive options for internal disk storage (Part 2)

Part number	Feature code	Description	Maximum supported
2.5" SAS Hot-Swap HDDs
90Y8926	A2XB	IBM 146GB 15K 6Gbps SAS 2.5" SFF G2HS HDD	16
90Y8944	A2ZK	IBM 146GB 15K 6Gbps SAS 2.5" SFF G2HS SED	16
90Y8877	A2XC	IBM 300GB 10K 6Gbps SAS 2.5" SFF G2HS HDD	16
90Y8913	A2XF	IBM 300GB 10K 6Gbps SAS 2.5" SFF G2HS SED	16
81Y9670	A283	IBM 300GB 15K 6Gbps SAS 2.5" SFF HS HDD	16
90Y8872	A2XD	IBM 600GB 10K 6Gbps SAS 2.5" SFF G2HS HDD	16
90Y8908	A3EF	IBM 600GB 10K 6Gbps SAS 2.5" SFF G2HS SED	16
81Y9662	A3EG	IBM 900GB 10K 6Gbps SAS 2.5" SFF G2HS SED	16
81Y9650	A282	IBM 900GB 10K 6Gbps SAS 2.5" SFF HS HDD	16
3.5" NL SAS Hot-Swap HDDs
90Y8567	A26M	IBM 1TB 7.2K 6Gbps NL SAS 3.5" G2HS HDD	6
90Y8572	A2U0	IBM 2TB 7.2K 6Gbps NL SAS 3.5" G2HS HDD	6
90Y8577	A2R2	IBM 3TB 7.2K 6Gbps NL SAS 3.5" G2HS HDD	6
3.5" NL SATA Hot-swap HDDs
81Y9790	A22P	IBM 1TB 7.2K 6Gbps NL SATA 3.5" G2HS HDD	6
81Y9794	A22T	IBM 2TB 7.2K 6Gbps NL SATA 3.5" G2HS HDD	6
81Y9798	A22S	IBM 3TB 7.2K 6Gbps NL SATA 3.5" G2HS HDD	6
81Y9786	A22Y	IBM 500GB 7.2K 6Gbps NL SATA 3.5" G2HS HDD	6
3.5" NL SATA Simple-swap HDDs*
81Y9806*	A22X	IBM 1TB 7.2K 6Gbps NL SATA 3.5" G2SS HDD	6

Internal backup units

The server supports the internal tape drive options listed in the following table. The x3650 M4 Tape Enablement Kit (69Y5320) is required to support these tapes internally.

Table 11. Internal tape drives

Part number	Feature code	Description	Maximum quantity supported
00D2786	A2VE	IBM RDX Internal USB 3.0 Dock with 320GB Cartridge	1
00D2787	A2VF	IBM RDX Internal USB 3.0 Dock with 500GB Cartridge	1
00D2788	A2VG	IBM RDX Internal USB 3.0 Dock with 1TB Cartridge	1
36251TY	None	IBM RDX USB 3.0 Dock with 1TB Cartridge	1
362532Y	None	IBM RDX USB 3.0 Dock with 320GB Cartridge	1
362550Y	None	IBM RDX USB 3.0 Dock with 500GB Cartridge	1
46C5399	5711	IBM DDS Generation 5 USB Tape Drive	1
39M5636	5395	IBM DDS Generation 6 USB Tape Drive	1

For more information, see the list of IBM Redbooks Product Guides in the Backup units category: http://www.redbooks.ibm.com/portals/systemx?Open&page=pg&cat=tape

Optical drives

The server supports the optical drive options listed in the following table.

Table 12. Optical drives

Part number Feature code	Description Maximum quantity	supported	Standard models where used
46M0901 4161 IBM UltraSlim Enhanced SATA DVD-ROM		1	-

46M0902 4163 UltraSlim Enhanced SATA Multi-Burner 1 -

IBM UltraSlim Enhanced SATA DVD-ROM (part number 46M0901) supports the following media and speeds for reading:

• CD-ROM 24X
• CD-DA (DAE) 20X
• CD-R 24X
• CD-RW 24X
  • DVD-ROM (single layer) 8X
  • DVD-ROM (dual layer) 8X
  • DVD-R (4.7 GB) 6X
  • DVD-R DL 4X
• DVD+R 6X
• DVD+R DL 4X
  • DVD-RW (4.7 GB) 4X
• DVD+RW 4X
  • DVD-RAM (4.7/9.4 GB) 4X

IBM UltraSlim Enhanced SATA Multi-Burner (46M0902) supports the same media and speeds for reading as DVD-ROM (46M0901). This drive also supports the following media and speeds for writing:

• CD-R 24X
• CD-RW 4X
  • High Speed CD-RW 10X
  • Ultra Speed CD-RW 16X
  • Ultra Speed Plus CD-RW 16X
• DVD-R 8X
  • DVD-R DL 6X
• DVD+R 8X
  • DVD+R DL 6X
• DVD-RW 6X
• DVD+RW 8X
• DVD-RAM 5X

I/O expansion options

The server supports up to six PCIe slots with different riser cards installed into two riser sockets on the system planar (one riser socket supports installation of one riser card). Riser 1 supplies slots 1, 2, and 3. Riser 2 supplies slots 4, 5, and 6. Standard models have Riser card 1 installed with three PCIe 3.0 x8 slots. To enable slots 4 - 6, install a second processor and a second riser card.

The following table lists the PCI riser card options available.

Table 13. PCI riser card options

Part number	Feature code	Description	Maximum supported
69Y5321	A1JU	x3650 M4 PCIe Riser Card (3 x8 PCIe slots)(one included in standard models in Riser socket 1)	2
69Y5322	A1JQ	x3650 M4 PCIe Riser Card (1 x16 + 1 x8 PCIe slots)	2
81Y6843	A1JS	x3650 M4 PCIX Riser Card (2 PCIX + 1 x16 PCIe slots)	2
90Y5085	A3A1	x3650 M4 PCIe Riser Card 2 (1 x16 for GPU + 1 x8 FH/HL Slots)	2

The slot form factors are as follows:

• Slot 1: PCIe x8, PCIe x16, or PCI-X; full-height, full-length
• Slot 2: PCIe x8 or PCI-X; full-height, half-length (not present if Riser 1 contains 90Y5085 riser card)
• Slot 3: PCIe x8 or PCIe x16; full-height, half-length (not present if Riser 1 contains 69Y5322 riser card)
• Slot 4: PCIe x8, PCIe x16, or PCI-X; full-height, full-length
• Slot 5: PCIe x8 or PCI-X; full-height, full-length (not present if Riser 2 contains 90Y5085 riser card)
• Slot 6: PCIe x8 or PCIe x16; full-height, half-length (not present if Riser 2 contains 69Y5322 riser card)

The slots are shown in the following figure.

The specific slots that are available depend on the riser cards installed in Riser socket 1 and Riser socket 2, as shown in the following table. Standard models have 69Y5321 installed in Riser socket 1.

Tip: All slots support full-height adapters. Slots 1, 4, and 5 support full-length adapters, whereas slots 2, 3, and 6 (when present) support half-length adapters.

Table 14. PCIe slot descriptions (FH=full height, FL=full length, HL=half length, DW=double width)

Slot number	PCIe 3 x8 riser69Y5321 (standard)	PCIe x16 riser69Y5322	PCI-X riser81Y6843	GPU riser90Y5085
Riser socket 1(CPU 1)	1: PCIe 3.0 x8; FH/FL	1: PCIe 3.0 x16 FH/FL	1: PCI-X 64b/133 FH, FL	1: No slot present
	2: PCIe 3.0 x8; FH/HL	2: PCIe 3.0 x8 FH/HL	2: PCI-X 64b/133 FH, HL	2: PCIe 3.0 x16 FH, FL, DW
	3: PCIe 3.0 x8; FH/HL	3: No slot present	3: PCIe 3.0 x16 FH, HL	3: PCIe 3.0 x8 FH, FL
Riser socket 2(CPU 2 required)	4 :PCIe 3.0 x8 FH/FL	4: PCIe 3.0 x16 FH/FL	4: PCI-X 64b/133 FH, FL	4: No slot present
	5: PCIe 3.0 x8 FH/FL	5: PCIe 3.0 x8 FH/FL	5: PCI-X 64b/133 FH, FL	5: PCIe 3.0 x16 FH, FL, DW
	6: PCIe 3.0 x8 FH/HL	6: No slot present	6: PCIe 3.0 x16 FH, HL	6: PCIe 3.0 x8 FH, HL

Note: Slots 4, 5, and 6 require a second processor to be installed.

Network adapters

x3650 M4 supports four integrated Gigabit Ethernet ports. Optionally, two 10 Gb Ethernet ports can be added by installing one of the available dual-port 10 Gb Ethernet mezzanine cards listed in the following table. These cards use a dedicated connector on the motherboard and do not consume a PCI expansion slot.

Integrated NICs have the following features:

Intel I350AM4 chip
• Four GbE ports
• TCP Offload Engine (TOE) support
• Wake on LAN support
• 802.1Q VLAN tagging support
• NIC Teaming (load balancing and failover)

Table 15. Network adapters (Part 2)

Part number	Feature code	Description	Maximum supported#
10 Gb Ethernet
49Y7910	A18Y	Broadcom NetXtreme II Dual Port 10GBaseT Adapter for IBM System x	6
46M2237	3025	Chelsio T420-CR Dual-port (SFP+) 10GbE PCI-E 2.0 Adapter	6
81Y8021	A0R2	Chelsio T420-SO-CR Dual-port (SFP+) 10GbE PCI-E 2.0 Adapter	6
46M2241	3026	Chelsio T440-CR Quad-Port (SFP+) 10GbE PCI-E 2.0 Adapter	6
95Y3762	A2U1	Emulex Dual Port 10GbE SFP+ VFA III for IBM System x	6
95Y3760	A2U2	Emulex VFA IIIFCoE/ISCSI License for IBM System x(Feature on Demand upgrade license for 95Y3762 -- one for each adapter)	6
00D9501	A3A2	IBM LLM-SM Dual Port 10GbE SFP+ Adapter for IBM System x	6
49Y7960	A2EC	Intel X520 Dual Port 10GbE SFP+ Adapter for IBM System x	6
49Y7970	A2ED	Intel X540-T2 Dual Port 10GBaseT Adapter for IBM System x	6
81Y9990	A1M4	Mellanox ConnectX-2 Dual Port 10GbE Adapter for IBM System x	6
00W0053	A2ZQ	Mellanox ConnectX-3 EN Dual-port SFP+ 10GbE Adapter	6
00D9690	A3PM	Mellanox ConnectX-3 10GbE Adapter for IBM System x	6
Converged Network Adapters (CNA)
42C1800	5751	QLogic 10 Gb Dual Port CNA for IBM System x	6
42C1820	1637	Brocade 10 Gb Dual-port CNA for IBM System x	6
Gigabit Ethernet
90Y9370	A2V4	Broadcom NetXtreme I Dual Port GbE Adapter for IBM System x	6
90Y9352	A2V3	Broadcom NetXtreme I Quad Port GbE Adapter for IBM System x	6
49Y4230	5767	Intel Ethernet Dual Port Server Adapter I340-T2 for IBM System x	6
49Y4240	5768	Intel Ethernet Quad Port Server Adapter I340-T4 for IBM System x	6
42C1780	2995	NetXtreme II 1000 Express Dual Port Ethernet Adapter	6

Storage host bus adapters

The following table lists storage HBAs supported by x3650 M4 server. The maximum quantity listed is for configurations with two processors installed. If one processor is installed, the maximum quantity supported is half of the listed value.

Table 16. Storage adapters

Part number	Feature code	Description	Maximum supported
Fibre Channel - 16 Gb
81Y1655	A2W5	Emulex 16Gb FC Single-port HBA for IBM System x	6
81Y1662	A2W6	Emulex 16Gb FC Dual-port HBA for IBM System x	6
81Y1668	A2XU	Brocade 16Gb FC Single-port HBA for IBM System x	6
81Y1675	A2XV	Brocade 16Gb FC Dual-port HBA for IBM System x	6
00Y3337	A3KW	QLogic 16Gb FC Single-port HBA for IBM System x	6
00Y3341	A3KX	QLogic 16Gb FC Dual-port HBA for IBM System x	6
Fibre Channel - 8 Gb
42D0485	3580	Emulex 8 Gb FC Single-port HBA for IBM System x	6
42D0494	3581	Emulex 8 Gb FC Dual-port HBA for IBM System x	6
42D0501	3578	QLogic 8 Gb FC Single-port HBA for IBM System x	6
42D0510	3579	QLogic 8 Gb FC Dual-port HBA for IBM System x	6
46M6049	3589	Brocade 8 Gb FC Single-port HBA for IBM System x	6
46M6050	3591	Brocade 8 Gb FC Dual-port HBA for IBM System x	6
Fibre Channel - 4 Gb
42C2069	1698	Emulex 4 Gbps FC Single-Port PCIe HBA for IBM System x	6
42C2071	1699	Emulex 4 Gbps FC Dual-Port PCIe HBA for IBM System x	6
50Y1082	2895	Brocade 4 Gb FC Single-port HBA for IBM System x	6

PCIe SSD adapters

The server supports the High IOPS SSD adapters listed in the following table.

Table 17. SSD adapters

Part number	Feature code	Description	Maximum supported
46C9078	A3J3	IBM 365GB High IOPS MLC Mono Adapter	6
46C9081	A3J4	IBM 785GB High IOPS MLC Mono Adapter	6
90Y4377	A3DY	IBM 1.2TB High IOPS MLC Mono Adapter	6

For details about these adapters, see the IBM Redbooks Product Guide IBM High IOPS MLC Adapters, found at the following address:

http://www.redbooks.ibm.com/abstracts/tips0907.html?Open

GPU adapters

The server supports graphics processing units (GPUs) provided riser card 90Y5085 is installed. The server supports up to two NVIDIA Quadro 600 GPU adapters, one in each riser card. Only one NVIDIA Quadro 2000 or 4000 is supported, only in riser card 2. The server provides up to 225W of external power to each GPU. The following table lists the supported GPUs.

Table 18. GPU adapters

Part number	Feature code	Description	Maximum supported
None*	A26Q	NVIDIA Quadro 6000	2*
00W2299	A1QU	NVIDIA Quadro 2000	1
94Y5957	4798	NVIDIA Quadro 4000	1
81Y6399	A13K	NVIDIA Quadro 600	2

* The NVIDIA Quadro 6000 is available by special bid only

Power supplies

The server supports up to two redundant power supplies. Standard models come with one or two power supplies (model dependent). The following table lists the power supplies.

Table 19. Power supplies

Part number	Feature code	Description	Maximum supported	Standard models where used
94Y6668	A1H5	IBM System x 550W High Efficiency Platinum AC Power Supply	2	A2x, B2x, C2x, C4x, 52x
94Y6669	A1H5	IBM System x 750W High Efficiency Platinum AC Power Supply	2	D2x, F2x, G2x, H2x, J2x, 62x, GSx
94Y7631	A39N	IBM System x 750W High Efficiency -48 V DC Power Supply	2	-
94Y6667	A2EB	IBM System x 900W High Efficiency Platinum AC Power Supply	2	L2x, 32x, M2x

An AC power supply ships standard with one 2.8 m C13 - C14 power cord.

Integrated virtualization

The server supports VMware ESXi installed on a USB memory key. The key is installed in a USB socket inside the server. The following table lists the virtualization options.

Table 20. Virtualization options

Part number	Feature code	Description	Maximum supported
41Y8298	A2G0	IBM Blank USB Memory Key for VMware ESXi Downloads	1
41Y8300	A2VC	IBM USB Memory Key for VMware vSphere 5.0	1
41Y8307	A383	IBM USB Memory Key for VMware ESXi 5.0 Update 1	1

Remote management

The server contains IBM Integrated Management Module II (IMM2), which provides advanced service-processor control, monitoring, and an alerting function. If an environmental condition exceeds a threshold or if a system component fails, the IMM2 lights LEDs to help you diagnose the problem, records the error in the event log, and alerts you to the problem. Optionally, the IMM2 also provides a virtual presence capability for remote server management capabilities.

The IMM provides remote server management through industry-standard interfaces:

• Intelligent Platform Management Interface (IPMI) Version 2.0
• Simple Network Management Protocol (SNMP) Version 3
• Common Information Model (CIM)
- Web browser

The optional IBM Integrated Management Module Advanced Upgrade is required to enable the remote presence and blue-screen capture features. The remote presence feature provides the following functions:

• Remotely viewing video with graphics resolutions up to 1600x1200 at 75 Hz with up to 23 bits per pixel colors, regardless of the system state
  • Remotely accessing the server using the keyboard and mouse from a remote client
• Mapping the CD or DVD drive, diskette drive, and USB flash drive on a remote client, and mapping ISO and diskette image files as virtual drives that are available for use by the server
• Uploading a diskette image to the IMM memory and mapping it to the server as a virtual drive

The blue-screen capture feature captures the video display contents before the IMM restarts the server when the IMM detects an operating-system hang condition. A system administrator can use the blue-screen capture to assist in determining the cause of the hang condition. The following table lists the remote management option.

Table 21. Remote management option

Part number	Feature code	Description	Maximum supported
90Y3901	A1ML	IBM Integrated Management Module Advanced Upgrade	1

Supported operating systems

The server supports the following operating systems:

• Microsoft Windows Server 2012

• Microsoft Windows Server 2008 R2

• Microsoft Windows Server 2008, Datacenter x64 Edition

• Microsoft Windows Server 2008, Datacenter x86 Edition

• Microsoft Windows Server 2008, Enterprise x64 Edition

• Microsoft Windows Server 2008, Enterprise x86 Edition

• Microsoft Windows Server 2008, Standard x64 Edition

• Microsoft Windows Server 2008, Standard x86 Edition

• Microsoft Windows Server 2008, Web x64 Edition

• Microsoft Windows Server 2008, Web x86 Edition

• Microsoft Windows Small Business Server 2008 Premium Edition

• Microsoft Windows Small Business Server 2008 Standard Edition

• Red Hat Enterprise Linux 5 Server with Xen x64 Edition

• Red Hat Enterprise Linux 5 Server x64 Edition

• Red Hat Enterprise Linux 6 Server Edition

• Red Hat Enterprise Linux 6 Server x64 Edition

• SUSE LINUX Enterprise Server 10 for AMD64/EM64T

• SUSE LINUX Enterprise Server 11 for AMD64/EM64T

• SUSE LINUX Enterprise Server 11 for x86

• SUSE LINUX Enterprise Server 11 with Xen for AMD64/EM64T

VMware ESX 4.1

VMware ESXi 4.1

VMware vSphere 5

VMware vSphere 5.1

See the IBM ServerProven® website for the latest information about the specific versions and service levels supported and any other prerequisites:

http://www.ibm.com/systems/info/x86servers/serverproven/compat/us/nos/matrix.shtml

Physical and electrical specifications

Dimensions and weight

• Height: 86.5 mm (3.4 in)
- Width: 445 mm (17.5 in) - Depth: 746 mm (20.4 in)
• Depth: 746 mm (29.4 in) • Weight

- Weight

• Minimum configuration: 25 kg (55 lb)
• Maximum configuration: 30 kg (65 lb)

Supported environment:

• Air temperature:

• Server on: 5 C to 40 C (41.0 F to 104 F); altitude: 0 to 915 m (3,000 ft) for 60W to 95W processor models.
• Server on: 10 C to 35 C (50.0 F to 95 F); altitude: 0 to 915 m (3,000 ft) for 115W to 135W processor models.
  • Server off: 5 C to 45 C (41.0 F to 113 F)
  • Shipment: -40 C to +60 C (-40 F to 140 F)

Humidity:

• For 115W to 130W processors/135W processor models:
- Server on: 20% to 80%, maximum dew point 21 C, maximum rate of change 5 C/hr - Server off: 8% to 80%, maximum dew point 27 C
• For 60W to 95W processor models:
- Server on: 8% to 85%, maximum dew point 24 C, maximum rate of change 5 C/hr - Server off: 8% to 80%, maximum dew point 27 C

Electrical:

• Models with 900 W power supplies:

- 100 to 127 (nominal) Vac; 50 Hz or 60 Hz; 10 A - 200 to 240 (nominal) Vac; 50 Hz or 60 Hz; 5 A - Input kilovolt-amperes (kVA) (approximately):

1. 2017年 ，

• BTU output:

• Minimum configuration: 525 Btu/hr (123 watts)
• Maximum configuration: 3480 Btu/hr (1020 watts)

- Noise level:

• 6.6 bels (operating)
• 6.4 bels (idle)

Warranty options

The IBM System x3650 M4 has a three-year on-site warranty with 9x5/next business day terms. IBM offers the warranty service upgrades through IBM ServicePacs, discussed in this section. The IBM ServicePac is a series of prepackaged warranty maintenance upgrades and post-warranty maintenance agreements with a well-defined scope of services, including service hours, response time, term of service, and service agreement terms and conditions.

IBM ServicePac offerings are country-specific, that is, each country might have its own service types, service levels, response times, and terms and conditions. Not all covered types of ServicePacs might be available in a particular country. For more information about the IBM ServicePac offerings that are available in your country, visit the IBM ServicePac Product Selector:

https://www-304.ibm.com/sales/gss/download/spst/servicepac

The following table explains warranty service definitions in more detail.

Table 22. Warranty service definitions

Term	Description
IBM on-site repair (IOR)	A service technician will come to the server's location for equipment repair.
24x7x2 hour	A service technician is scheduled to arrive at your customer's location within two hours after remote problem determination is completed. We provide service around the clock, every day, including IBM holidays.
24x7x4 hour	A service technician is scheduled to arrive at your customer's location within four hours after remote problem determination is completed. We provide service around the clock, every day, including IBM holidays.

In general, the types of IBM ServicePacs are as follows:

• Warranty and maintenance service upgrades:

• One, 2, 3, 4, or 5 years of 9x5 or 24x7 service coverage
• On-site repair from next business day to 4 or 2 hours
• One or two years of warranty extension

• Remote technical support services:

• One or three years with 24x7 coverage (severity 1) or 9x5/next business day for all severities
• Installation and start-up support for System x servers
• Remote technical support for System x servers
• Software support - Support Line:

• Microsoft or Linux software

VMware

• IBM Director

Regulatory compliance

The server conforms to the following standards:

• FCC - Verified to comply with Part 15 of the FCC Rules, Class A
• Canada ICES-003, issue 4, Class A
UL/IEC 60950-1
CSA C22.2 No. 60950-1
NOM-019
• Argentina IEC60950-1
• Japan VCCI, Class A
• Australia/New Zealand AS/NZS CISPR 22, Class A
• IEC 60950-1(CB Certificate and CB Test Report)
• China CCC (GB4943), GB9254 Class A, GB17625.1
• Taiwan BSMI CNS13438, Class A; CNS14336-1
• Korea KN22, Class A; KN24
• Russia/GOST ME01, IEC-60950-1, GOST R 51318.22, GOST R 51318.24, GOST R 51317.3.2,
GOSTR 51317.3.3
• IEC 60950-1 (CB Certificate and CB Test Report)
CE Mark (EN55022 Class A, EN60950-1, EN55024, EN61000-3-2, EN61000-3-3)
• CISPR22, Class A

- TIN CO (SHENZA LIPEGA 2541 FR000)

External disk storage expansion

The x3650 M4 supports attachment to external storage expansion enclosures, such as the EXP2500 series, by using the ServeRAID M5120 SAS/SATA Controller. The x3650 M4 can also be attached to supported external storage systems, such as the IBM System Storage® DS3500 series, using a supported HBA.

Table 23. RAID controllers and options for external disk storage expansion

Part number	Feature code	Description	Maximum supported	Standard models where used
81Y4478	A1WX	ServeRAID M5120 SAS/SATA Controller	4	-
Hardware upgrades for the M5120
81Y4508	A22E	ServeRAID M5100 Series Battery Kit	1*	-
90Y5046	A2BB	x3650 M4 Remote Supercap and Battery Tray**	1	-
81Y4484	A1J3	ServeRAID M5100 Series 512MB Cache/RAID 5 Upgrade	1	-
81Y4487	A1J4	ServeRAID M5100 Series 512MB Flash/RAID 5 Upgrade	1	-
81Y4559	A1WY	ServeRAID M5100 Series 1GB Flash/RAID 5 Upgrade	1	-
Feature on Demand upgrades for the M5120
81Y4544	A1X2	ServeRAID M5100 Series Zero Cache/RAID 5 Upgrade	1	-
90Y4318	A2MD	ServeRAID M5100 Series SSD Caching Enabler	1
90Y4273	A2MC	ServeRAID M5100 Series SSD Performance Key	1
81Y4546	A1X3	ServeRAID M5100 Series RAID 6 Upgrade	1†	-

* The ServeRAID M5100 Series Battery Kit (81Y4508) is only supported with ServeRAID M5100 Series 512MB
Cache/RAID 5 Upgrade (81Y4484)
† The ServeRAID M5100 Series RAID 6 Upgrade (81Y4546) requires RAID 5 upgrades with cache (81Y4484,
81Y4487, or 81Y4559 only)
** Cannot be installed if an internal tape drive is installed

The ServeRAID M5120 SAS/SATA Controller supports connectivity to the IBM System Storage external expansion enclosures listed in the following table. Up to nine expansion enclosures can be daisy-chained per one M5120 external port. For better performance, distribute expansion enclosures evenly across both M5120 ports.

Table 24. IBM System Storage external expansion enclosures

Part number	Description	Maximum quantity supported per one M5120
174712X	IBM System Storage EXP2512 Express	18
174724X	IBM System Storage EXP2524 Express	9

The external SAS cables listed in the following table support connectivity between external expansion enclosures and the ServeRAID M5120 SAS/SATA Controller.

Table 25. External SAS cables for external storage expansion enclosures

Part number	Description	Maximum quantity supported per one enclosure
39R6531	IBM 3 m SAS Cable	1
39R6529	IBM 1 m SAS Cable	1

The following table lists the drives supported by EXP2512 external expansion enclosures.

Table 26. Drive options for EXP2512 external expansion enclosures

Part number	Description	Maximum quantity supported per one enclosure
3.5-inch NL SAS HS HDDs
49Y1903	1TB 7,200 rpm 6Gb SAS NL 3.5" HDD	12
49Y1902	2TB 7,200 rpm 6Gb SAS NL 3.5" HDD	12
90Y8720	3TB 7,200 rpm 6Gb SAS NL 3.5" HDD	12
3.5-inch SAS HS HDDs
49Y1899	300GB 15,000 rpm 6Gb SAS 3.5" HDD	12
49Y1900	450GB 15,000 rpm 6Gb SAS 3.5" HDD	12
49Y1901	600GB 15,000 rpm 6Gb SAS 3.5" HDD	12

The following table lists the hard disk drives supported by EXP2524 external expansion enclosures.

Table 27. Drive options for EXP2524 external expansion enclosures

Part number	Description	Maximum quantity supported per one enclosure
2.5-inch NL SAS HS HDDs
49Y1898	500GB 7,200 rpm 6Gb SAS NL 2.5" HDD	24
81Y9952	1TB 7,200 rpm 6Gb SAS NL 2.5" HDD	24
2.5-inch SAS HS HDDs
49Y1896	146GB 15,000 rpm 6Gb SAS 2.5" HDD	24
49Y1895	300GB 10,000 rpm 6Gb SAS 2.5" HDD	24
81Y9944	300GB 15,000 rpm 6Gb SAS 2.5" HDD	24
81Y9596	600GB 10,000 rpm 6Gb SAS 2.5" HDD	24

External disk storage systems

The following tabel lists the external storage systems that are supported by x3650 M4 and can be ordered through the System x sales channel. The server might support other IBM disk systems that are not listed in this table. Refer to IBM System Storage® Interoperability Center for further information.

Table 28. External disk storage systems

Part number	Description
1746A2D	IBM System Storage DS3512 Express Dual Controller Storage System
1746A2S	IBM System Storage DS3512 Express Single Controller Storage System
1746A4D	IBM System Storage DS3524 Express Dual Controller Storage System
1746A4S	IBM System Storage DS3524 Express Single Controller Storage System
181494H	IBM System Storage DS3950 Model 94
181498H	IBM System Storage DS3950 Model 98
181492H	IBM System Storage EXP395 Expansion Unit
1746A2E	IBM System Storage EXP3512 Express Storage^TM Expansion Unit
1746A4E	IBM System Storage EXP3524 Express Storage Expansion Unit

For more information, see the list of IBM Redbooks Product Guides in the System Storage category: http://www.redbooks.ibm.com/portals/systemx?Open&page=pg&cat=externalstorage

External backup units

The server supports the external backup attachment options that are listed in the following table.

Table 29. External backup options (Part 1)

Part number	Description
External tape expansion enclosures for internal tape drives
87651UX	1U Tape Drive Endlosure
8767HHX	Half High Tape Drive Enclosure
87651NX	1U Tape Drive Endlosure (with Nema 5-15P LineCord)
8767HNX	Half High Tape Drive Enclosure (with Nema 5-15P LineCord)
Tape enclosure adapters (with cables)
44E8869	USB Enclosure Adapter Kit
40K2599	SAS Enclosure Adapter Kit
Internal backup drives supported by external tape enclosures
46C5364	IBM RDX Removable Hard Disk Storage System - Internal USB 160 GB Bundle
46C5387	IBM RDX Removable Hard Disk Storage System - Internal USB 320 GB Bundle
46C5388	IBM RDX Removable Hard Disk Storage System - Internal USB 500 GB Bundle
46C5399	IBM DDS Generation 5 USB Tape Drive
39M5636	IBM DDS Generation 6 USB Tape Drive
43W8478	IBM Half High LTO Gen 3 SAS Tape Drive
44E8895	IBM Half High LTO Gen 4 SAS Tape Drive
49Y9898	IBM Half High LTO Gen 5 Internal SAS Tape Drive

Table 29. External backup options (Part 2)

Part number	Description
External backup units*
362516X	IBM RDX Removable Hard Disk Storage System - External USB 160 GB Bundle
362532X	IBM RDX Removable Hard Disk Storage System - External USB 320 GB Bundle
362550X	IBM RDX Removable Hard Disk Storage System - External USB 500 GB Bundle
3628L3X	IBM Half High LTO Gen 3 External SAS Tape Drive (with US line cord)
3628L4X	IBM Half High LTO Gen 4 External SAS Tape Drive (with US line cord)
3628L5X	IBM Half High LTO Gen 5 External SAS Tape Drive (with US line cord)
3628N3X	IBM Half High LTO Gen 3 External SAS Tape Drive (without line cord)
3628N4X	IBM Half High LTO Gen 4 External SAS Tape Drive (without line cord)
3628N5X	IBM Half High LTO Gen 5 External SAS Tape Drive (without line cord)
3580S3V	System Storage TS2230 Tape Drive Express Model H3V
3580S4V	System Storage TS2240 Tape Drive Express Model H4V
3580S5E	System Storage TS2250 Tape Drive Express Model H5S
3580S5X	System Storage TS2350 Tape Drive Express Model S53
3572S4R	TS2900 Tape Library with LTO4 HH SAS drive & rackmount kit
3572S5R	TS2900 Tape Library with LTO5 HH SAS drive & rackmount kit
35732UL	TS3100 Tape Library Model L2U Driveless
35734UL	TS3200 Tape Library Model L4U Driveless
46X2682†	LTO Ultrium 5 Fibre Channel Drive
46X2683†	LTO Ultrium 5 SAS Drive Sled
46X2684†	LTO Ultrium 5 Half High Fibre Drive Sled
46X2685†	LTO Ultrium 5 Half High SAS Drive Sled

Top-of-rack Ethernet switches

The server supports the top-of-rack Ethernet switches from IBM System Networking listed in the following table.

Table 30. IBM System Networking - Top-of-rack switches

Part number	Description
IBM System Networking - 1 Gb top-of-rack switches
0446013	IBM System Networking RackSwitch G8000R
7309CFC	IBM System Networking RackSwitch G8000F
7309CD8	IBM System Networking RackSwitch G8000DC
7309G52	IBM System Networking RackSwitch G8052R
730952F	IBM System Networking RackSwitch G8052F
427348E	IBM Ethernet Switch J48E
6630010	Juniper Networks EX2200 24 Port
6630011	Juniper Networks EX2200 24 Port with PoE
6630012	Juniper Networks EX2200 48 Port
6630013	Juniper Networks EX2200 48 Port with PoE
IBM System Networking - 10 Gb top-of-rack switches
7309BD5	IBM System Networking RackSwitch G8124DC
7309BR6	IBM System Networking RackSwitch G8124ER
7309BF7	IBM System Networking RackSwitch G8124EF
7309G64	IBM System Networking RackSwitch G8264R
730964F	IBM System Networking RackSwitch G8264F
7309CR9	IBM System Networking RackSwitch G8264TR
7309CF9	IBM System Networking RackSwitch G8264TF

Uninterruptible power supply units

The server supports attachments to the uninterruptible power supply (UPS) units listed in the following table.

Table 31. Uninterruptible power supply units

Part number Description

Rack-mounted UPS

21304RX IBM UPS 10000XHV

53951AX IBM 1500VA LCD 2U Rack UPS (100V/120V)

53951KX IBM 1500VA LCD 2U Rack UPS (230V)

53952AX IBM 2200VA LCD 2U Rack UPS (100V/120V)

53952KX IBM 2200VA LCD 2U Rack UPS (230V)

53953AX IBM 3000VA LCD 3U Rack UPS (100 V/120 V)

53953JX IBM 3000VA LCD 3U Rack UPS (200 V/208 V)

53956AX IBM 6000VA LCD 4U Rack UPS (200 V/208 V)

53956KX IBM 6000VA LCD 4U Rack UPS (230 V)

53959KX IBM 11000VA LCD 5U Rack UPS (200V/208V/230V)

For more information, see the list of IBM Redbooks Product Guides in the Power infrastructure category: http://www.redbooks.ibm.com/portals/systemx?Open&page=pg&cat=power

Power distribution units

The server supports attachments to the power distribution units (PDUs) listed in the following table.

Table 32. Power distribution units (part 1)

Part number	Description
Switched and Monitored PDUs
46M4002	IBM 1U 9 C19/3 C13 Active Energy Manager DPI PDU
46M4003	IBM 1U 9 C19/3 C13 Active Energy Manager 60A 3 Phase PDU
46M4004	IBM 1U 12 C13 Active Energy Manager DPI PDU
46M4005	IBM 1U 12 C13 Active Energy Manager 60A 3 Phase PDU
46M4167	IBM 1U 9 C19/3 C13 Switched and Monitored 30A 3 Phase PDU
46M4116	IBM 0U 24 C13 Switched and Monitored 30A PDU
46M4119	IBM 0U 24 C13 Switched and Monitored 32A PDU
46M4134	IBM 0U 12 C19/12 C13 Switched and Monitored 50A 3 Phase PDU
46M4137	IBM 0U 12 C19/12 C13 Switched and Monitored 32A 3 Phase PDU
Enterprise PDUs
71762MX	IBM Ultra Density Enterprise PDU C19 PDU+ (WW)
71762NX	IBM Ultra Density Enterprise PDU C19 PDU (WW)
71763MU	IBM Ultra Density Enterprise PDU C19 3 Phase 60A PDU+ (NA)
71763NU	IBM Ultra Density Enterprise PDU C19 3 Phase 60A PDU (NA)
39M2816	IBM DPI C13 Enterprise PDU without line cord
39Y8923	DPI 60A Three Phase C19 Enterprise PDU with IEC309 3P+G (208 V) fixed line cord
39Y8941	DPI Single Phase C13 Enterprise PDU without line cord
39Y8948	DPI Single Phase C19 Enterprise PDU without line cord

Table 32. Power distribution units (part 2)

Part number	Description
Universal PDUs
39Y8951	DPI Universal Rack PDU with US LV and HV line cords
39Y8952	DPI Universal Rack PDU with CEE7-VII Europe LC
39Y8953	DPI Universal Rack PDU with Denmark LC
39Y8954	DPI Universal Rack PDU with Israel LC
39Y8955	DPI Universal Rack PDU with Italy LC
39Y8956	DPI Universal Rack PDU with South Africa LC
39Y8957	DPI Universal Rack PDU with UK LC
39Y8958	DPI Universal Rack PDU with AS/NZ LC
39Y8959	DPI Universal Rack PDU with China LC
39Y8962	DPI Universal Rack PDU (Argentina)
39Y8960	DPI Universal Rack PDU (Brazil)
39Y8961	DPI Universal Rack PDU (India)
0U Basic PDUs
46M4122	IBM 0U 24 C13 16A 3 Phase PDU
46M4125	IBM 0U 24 C13 30A 3 Phase PDU
46M4128	IBM 0U 24 C13 30A PDU
46M4131	IBM 0U 24 C13 32A PDU
46M4140	IBM 0U 12 C19/12 C13 60A 3 Phase PDU
46M4143	IBM 0U 12 C19/12 C13 32A 3 Phase PDU

For more information, see the list of IBM Redbooks Product Guides in the Power infrastructure category: http://www.redbooks.ibm.com/portals/systemx?Open&page=po&cat=power

Rack cabinets

The server supports the rack cabinets listed in the following table.

Table 33. Rack cabinets

Part number	Description
201886X	IBM 11U Office Enablement Kit
93072PX	IBM 25U Static S2 Standard Rack
93072RX	IBM 25U Standard Rack
93074RX	IBM 42U Standard Rack
93074XX	IBM 42U Standard Rack Extension
93084EX	IBM 42U Enterprise Expansion Rack
93084PX	IBM 42U Enterprise Rack
93604EX	IBM 42U 1200 mm Deep Dynamic Expansion Rack
93604PX	IBM 42U 1200 mm Deep Dynamic Rack
93614EX	IBM 42U 1200 mm Deep Static Expansion Rack
93614PX	IBM 42U 1200 mm Deep Static Rack
93624EX	IBM 47U 1200 mm Deep Static Expansion Rack
93624PX	IBM 47U 1200 mm Deep Static Rack
99564RX	IBM S2 42U Dynamic Standard Rack
99564XX	IBM S2 42U Dynamic Standard Expansion Rack

For more information, see the list of IBM Redbooks Product Guides in the Rack cabinets and options category:
http://www.redbooks.ibm.com/portals/systemx?Open&page=pg&cat=rack

Rack options

The server supports the rack console switches and monitor kits listed in the following table.

Table 34. Rack options

Part number	Description
Monitor kits and keyboard trays
172317X	1U 17in Flat Panel Console Kit
172319X	1U 19in Flat Panel Console Kit
Console switches
1754D2X	IBM Global 4x2x32 Console Manager (GCM32)
1754D1X	IBM Global 2x2x16 Console Manager (GCM16)
1754A2X	IBM Local 2x16 Console Manager (LCM16)
1754A1X	IBM Local 1x8 Console Manager (LCM8)
Console cables
43V6147	IBM Single Cable USB Conversion Option (UCO)
39M2895	IBM USB Conversion Option (4 Pack UCO)
39M2897	IBM Long KVM Conversion Option (4 Pack Long KCO)
46M5383	IBM Virtual Media Conversion Option Gen2 (VCO2)
46M5382	IBM Serial Conversion Option (SCO)

For more information, see the list of IBM Redbooks Product Guides in the Rack cabinets and options

category:

http://www.redbooks.ibm.com/portals/systemx?Open&page=pg&cat=rack

IBM Global Financing

IBM Global Financing can help you obtain the IT solution you need while preserving funding for other strategic investments and optimizing cash flow. Our Fair Market Value (FMV) lease helps ensure that you have the latest IBM technology and with our mid-lease upgrade capability, you can increase the capacity of the system with little to no change in monthly payments. At the end of the lease, take advantage of our flexible end-of-lease options to fit your changing business needs. IBM Global Financing has the breadth and depth of offerings, longevity, proven success and global reach to help you develop a robust financing and asset management strategy that provides you the opportunity to leverage new technologies and turn your ambitious vision into a tangible solution.

Here are some other reasons why working with us makes solid financial sense:

• Expand your purchasing power—Affordable monthly payments allow you to change the technology acquisition discussion from "what can I afford right now" to "what solution is really right for my business." IBM Global Financing allows you to expand your purchase power to get you the right solution.
• Accelerate your project's cash flow break-even point—Acquire your IBM technology today and begin to realize its benefits now. An FMV lease can help you get the solution you need now, with low monthly payments that better align upfront costs with the anticipated return on investment from the technology.
• Easy to acquire with affordable rates—We offer one-stop shopping for a total IT solution, so you can acquire IBM hardware, software, services and the financing you need—from one IT provider.

Plus, we provide simple, easy-to-understand contracts and quick approvals. As the world's largest IT financing provider, with an asset base of US\$35.8 billion and over 125,000 customers, IBM Global Financing offers highly competitive rates that promote low total cost of ownership and low monthly payments.

IBM Global Financing operates in more than 50 countries. Go to http://ibm.com/financing for financing options in your country and to contact a local financing specialist.

IBM Global Financing offerings are provided through IBM Credit LLC in the United States and other IBM subsidiaries and divisions worldwide to qualified commercial and government clients. Rates and availability subject to client's credit rating, financing terms, offering type, equipment and product type and options, and may vary by country. Non-hardware items must be one-time, non-recurring charges and are financed by means of loans. Other restrictions may apply. Rates and offerings are subject to change, extension or withdrawal without notice and may not be available in all countries. Please contact your local

Related publications and links

For more information, see these resources:

• IBM System x3650 M4 product page http://www.ibm.com/systems/x/hardware/rack/x3650m4/index.html
• IBM System x 3650 M4 Installation and User's Guide http://ibm.com/support
• IBM System x 3650 M4 Problem Determination and Service Guide http://ibm.com/support/
• ServerProven hardware compatibility page for the x3650 M4 http://www.ibm.com/systems/info/x86servers/serverproven/compat/us/xseries/7915.html
• IBM Redbooks Product Guides for IBM System x servers and options http://www.redbooks.ibm.com/portals/systemx?Open&page=pgbycat
• Configuration and Option Guide http://www.ibm.com/systems/xbc/cog/
  • xREF - IBM System x Reference Sheets http://www.redbooks.ibm.com/xref
• IBM System x Support Portal http://ibm.com/support/entry/portal/ http://ibm.com/support/entry/portal/Downloads/Hardware/Systems/System_x/System_x3650_M4
  • IBM System Storage Interoperation Center http://www.ibm.com/systems/support/storage/ssic

Notices

This information was developed for products and services offered in the U.S.A.

IBM may not offer the products, services, or features discussed in this document in other countries. Consult your local IBM representative for information on the products and services currently available in your area. Any reference to an IBM product, program, or service is not intended to state or imply that only that IBM product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any IBM intellectual property right may be used instead. However, it is the user's responsibility to evaluate and verify the operation of any non-IBM product, program, or service. IBM may have patents or pending patent applications covering subject matter described in this document. The furnishing of this document does not give you any license to these patents. You can send license inquiries, in writing, to:

IBM Director of Licensing, IBM Corporation, North Castle Drive, Armonk, NY 10504-1785 U.S.A.

The following paragraph does not apply to the United Kingdom or any other country where such provisions are inconsistent with local law: INTERNATIONAL BUSINESS MACHINES CORPORATION PROVIDES THIS PUBLICATION "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of express or implied warranties in certain transactions, therefore, this statement may not apply to you. This information could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in new editions of the publication. IBM may make improvements and/or changes in the product(s) and/or the program(s) described in this publication at any time without notice.

Any references in this information to non-IBM Web sites are provided for convenience only and do not in any manner serve as an endorsement of those Web sites. The materials at those Web sites are not part of the materials for this IBM product and use of those Web sites is at your own risk. IBM may use or distribute any of the information you supply in any way it believes appropriate without incurring any obligation to you. Information concerning non-IBM products was obtained from the suppliers of those products, their published announcements or other publicly available sources. IBM has not tested those products and cannot confirm the accuracy of performance, compatibility or any other claims related to non-IBM products. Questions on the capabilities of non-IBM products should be addressed to the suppliers of those products. This information contains examples of data and reports used in daily business operations. To illustrate them as completely as possible, the examples include the names of individuals, companies, brands, and products. All of these names are fictitious and any similarity to the names and addresses used by an actual business enterprise is entirely coincidental.

Any performance data contained herein was determined in a controlled environment. Therefore, the results obtained in other operating environments may vary significantly. Some measurements may have been made on development-level systems and there is no guarantee that these measurements will be the same on generally available systems. Furthermore, some measurement may have been estimated through extrapolation. Actual results may vary. Users of this document should verify the applicable data for their specific environment.

This document was created or updated on March 15, 2013.

Send us your comments in one of the following ways:

• Use the online Contact us review form found at: lbm.com/redbooks

- Send your comments in an e-mail to: [e-mail]

- Mail your comments to: IBM Corporation, International Technical Support Organization Dept. HYTD Mail Station P099 2455 South Road Poughkeepsie, NY 12601-5400 U.S.A.

This document is available online at http://www.ibm.com/redbooks/abstracts/tips0850.html.

Trademarks

IBM, the IBM logo, and ibm.com are trademarks or registered trademarks of International Business Machines Corporation in the United States, other countries, or both. These and other IBM trademarked terms are marked on their first occurrence in this information with the appropriate symbol (® or *). indicating US registered or common law trademarks owned by IBM at the time this information was published. Such trademarks may also be registered or common law trademarks in other countries. A current list of IBM trademarks is available on the Web at http://www.ibm.com/legal/copytrade.shtml

The following terms are trademarks of the International Business Machines Corporation in the United States, other countries, or both:

BladeCenter®

Calibrated Vectored Cooling™

Express Storage™

IBM Systems Director Active Energy Manager™

BM®

Redbooks®

Redbooks (logo)®

ServerProven®

ServicePad®

System Storage®

System x®
