PARTS LIST

MODEL 712T

Technical diagram of a mechanical assembly with numbered components and exploded views

1 749638108 Face plate unit
2 749009506 Face plate
3 840602006 Thread cutter unit
4 000170507 Setscrew 4 x 12
5 749003005 Top cover bracket

6 000081005 Setscrew 4 x 8
7 749626206 Front cover unit
8 749039136 Front cover
9 749069009 Ornament plate
10 749042006 Front cover bracket

11 000161206 Setscrew 3 x 10 (B)
12 000115205 TP screw 4 x 6
13 738034001 Thread guide

Technical diagram of mechanical components with numbered parts, likely for assembly or maintenance instructions.

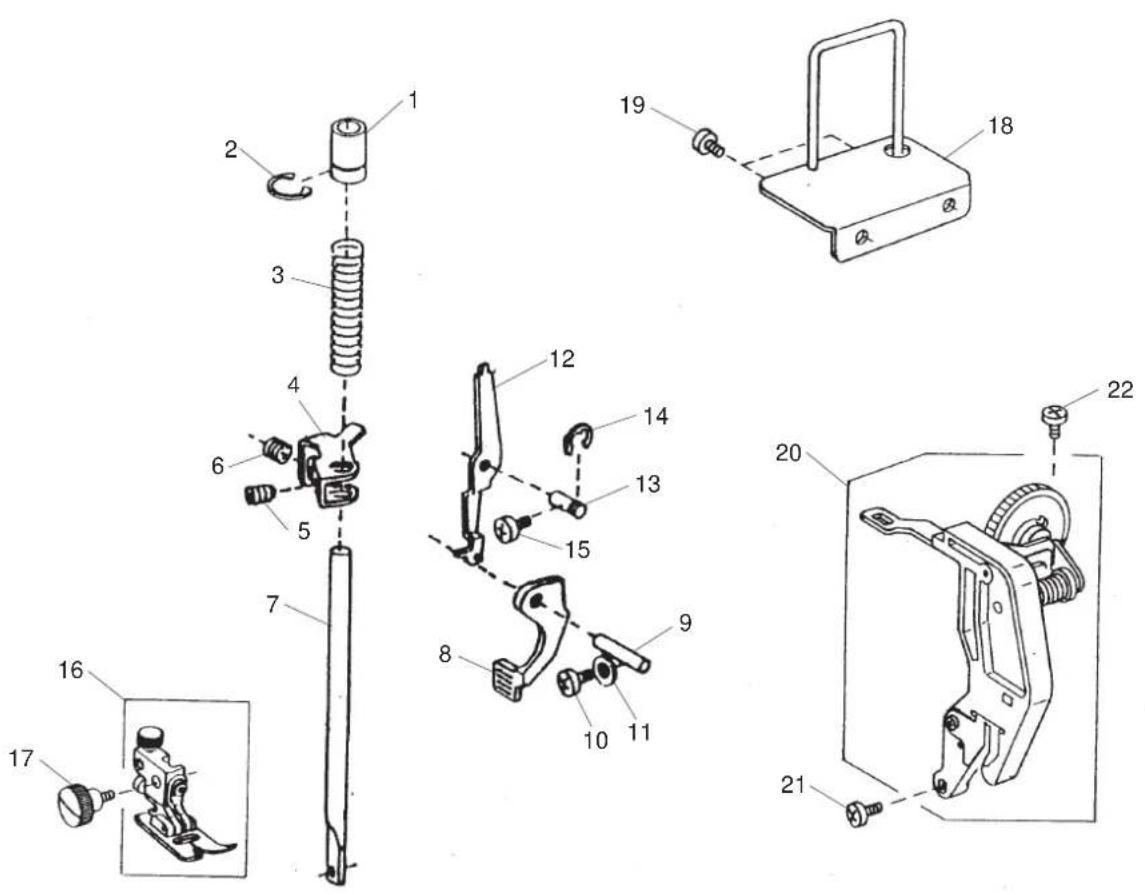

1 802021007 Presser bar bushing (upper)
2 000032609 Snap ring
3 730026006 Presser bar spring
4 822069009 Presser bar bracket
5 000111500 Hexagonal socket screw 4 x 8
6 102222009 Darner spring
7 102801008 Presser bar
8 652145007 Presser foot lifter
9 822072005 Presser foot lifter pin
10 000103509 Setscrew 4 x 10

11 000072302 Plain washer 4
12 738018009 Tension releasing lever
13 652042003 Tension releasing lever spring
14 000001609 Snap ring E-5
15 000081005 Setscrew 4 x 8

16 820557003 Zigzag foot unit

17 647112009 Thumbscrew

18 367511407 Spool stand unit

19 000101426 Setscrew 4 x 6

20 749501101 Tension assembly

21 000101703 Setscrew 4 x 12

22 000101404 Set screw 4 x 6

753172009 Check spring

Technical diagram of mechanical assembly with numbered parts for identification

1 738017008 Lamp socket bracket
2 000081005 Setscrew 4 x 8
3 730024004 Needle bar supporter spring
4 000101404 Setscrew 4 x 6
5 732618029 Needle bar supporter unit
6 732061010 Needle bar supporter
7 735144006 Needle bar supporter pin
8 673022002 Wave washer
9 000070609 Plain washer 6
10 000002507 Snap ring E-4

11 000111304 Hexagonal socket screw 5 x 5
12 000111201 Hexagonal socket screw 4 x 4
13 678084007 Eccentric pin
14 748021006 Zigzag rod washer
15 735119002 Zigzag rod
16 732502018 Needle bar unit
17 102408089 Needle HA1-14
18 680504005 Needle bar connecting stud unit
19 820511108 Thread take-up lever unit
20 650062003 Thread take-up lever pin unit

21 000002806 Snap ring E-6
22 732505000 Needle bar crank pin unit
23 749058005 Supporter guide
24 803008001 Supporter stopper
25 732064002 Supporter stopper spring

26 000066303 Hexagonal bolt

27 803069000 Supporter adjusting plate

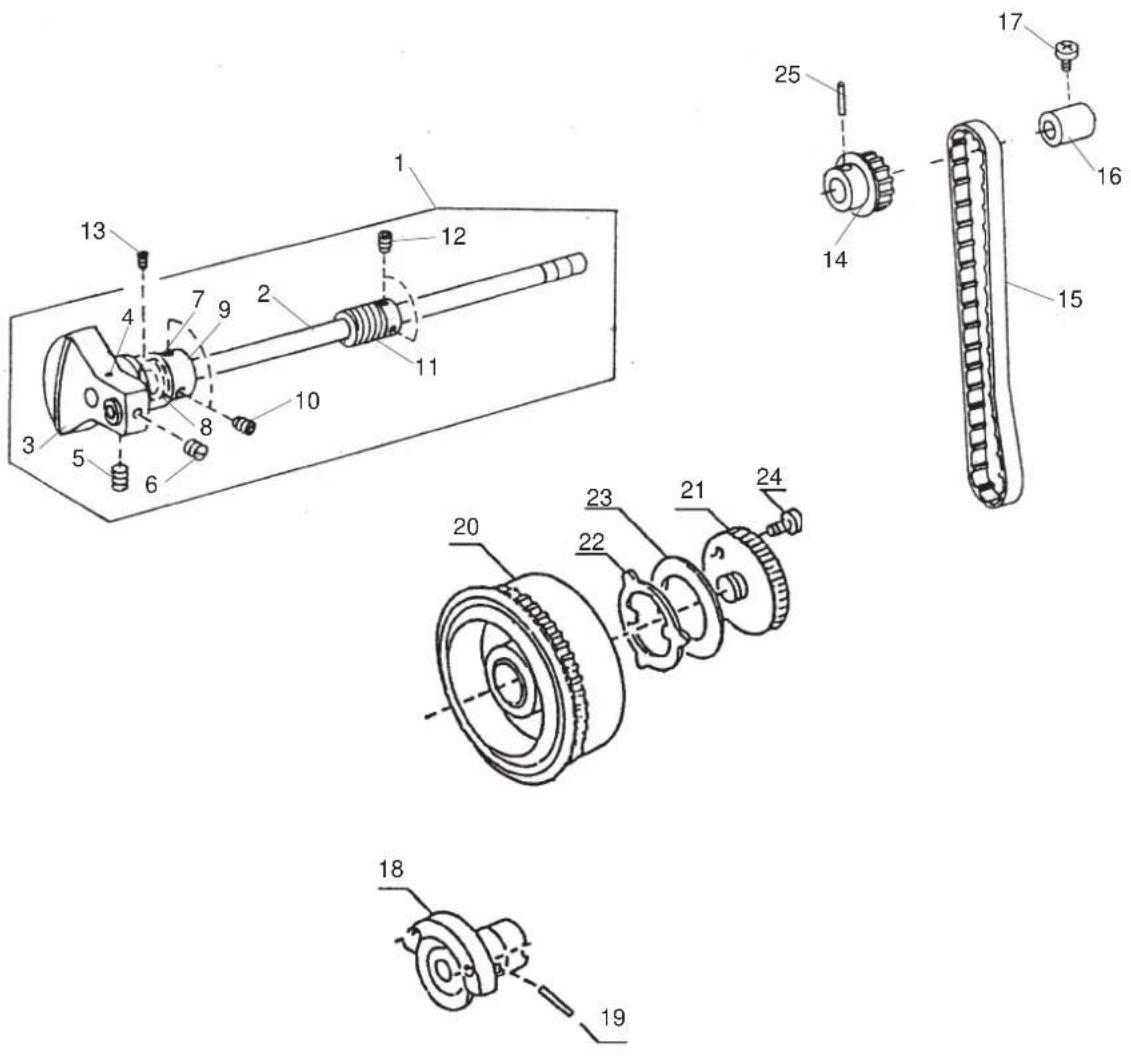

1 749639006 Upper shaft unit
2 749070003 Upper shaft
3 627184000 Take-up lever crank
4 000021708 Spring pin 4 x 22
5 102073003 Setscrew
6 102063000 Setscrew
7 732025001 Upper shaft bushing (front)
8 000038605 Washer
9 673063005 Upper shaft ring
10 000111304 Hexagonal socket screw
11 749011109 Worm (749011006)
12 000111201 Hexagonal socket screw 4 x 4 (553245008)
13 000111108 Hexagonal socket screw 4 x 6
14 756017004 Upper shaft timing gear
15 733008001 Timing belt
16 732003003 Upper shaft bushing (rear)
17 000103509 Setscrew 4 x 10
18 749071004 Hand wheel bushing
19 000019002 Spring pin
20 749072005 Balance wheel
21 102076006 Washer
22 647036400 Stop-motion large screw
23 647037009 Washer
24 102078101 Stop-motion small screw
25 000020501 Spring pin

Technical diagram of a mechanical assembly with numbered components and exploded views

1 749628002 Top cover unit
2 749006008 Top cover
3 730501011 Thread guide plate unit
4 000160102 Adjustable nut 4
5 749602000 Top cover thread guide unit
6 749005007 Top cover thread guide
7 749007009 Thread guide plate
8 820374004 Setscrew 2 x 2.3
9 000149301 Setscrew 3 x 8 (B)
10 735016307 Bobbin winder stopper

11 000103107 Setscrew 4 x 14
12 000061205 Hexagonal nut
13 728501003 Bobbin winder arm unit
14 000070506 Plain washer 4
15 000121905 Setscrew 4 x 12 (B)

16 735015007 Bobbin winder arm spring
17 000103222 Setscrew 4 x 20
18 749607005 Feed regulator arm unit
19 749059006 Feed regulator arm
20 736012007 Feed regulator plate

21 648010009 Setscrew
22 749016001 Feed regulator shaft
23 000001609 Snap ring E-5
24 735077007 Feed regulator spring
25 735073003 Plain washer

26 000013800 Snap ring CS-6
27 732043005 Feed rod
28 000002105 Snap ring E-3
29 738025009 Reverse feed rod
30 749017002 Drop feed connecting link (1)

31 749018003 Drop feed connecting link (2)
32 000101301 Setscrew 5 x 10
33 749609007 Cam block unit
34 000081005 Setscrew 4 x 8
35 749611301 Pattern selector dial unit

36 749037008 Dial
37 749038308 Pattern indicator plate
38 000111201 Hexagonal socket screw 4 x 4
39 749612302 Stitch length dial unit
40 749040303 Stitch length indicator plate

Exploded view diagram of a mechanical assembly with numbered parts for identification

1 732619606 Needle plate unit
2 732014007 Hook cover plate holder (left)
3 732015008 Hook cover plate holder (right)
4 820374004 Setscrew 2 x 2.3
5 732126003 Hook cover plate
6 681009101 Flat screw
7 732633008 Feed shaft unit
8 650083011 Feed dog
9 000104005 Setscrew 3.5 x 8
10 000002507 Snap ring E-4

11 000111304 Hexagonal socket screw 5 x 5
12 749024002 Straight pin
13 650085002 Feed bar spring
14 732054010 Feed bar spring holder
15 000103705 Setscrew 4 x 5
16 749606004 Feed shaft unit
17 749015000 Feed shaft
18 650612004 Feed regulator unit
19 820387000 Ring
20 000111201 Hexagonal socket screw 4 x 4

21 000069605 Setscrew 4 x 8
22 732039008 Feed shaft bushing (front)
23 625102008 Plain washer
24 650088005 Feed regulator spring
25 732038007 Feed shaft plate

26 000111108 Hexagonal socket screw 4 x 6
27 732035004 Bush holder
28 000101208 Setscrew 5 x 6
29 000002105 Snap ring E-3

Exploded view diagram of a mechanical assembly with numbered parts for identification

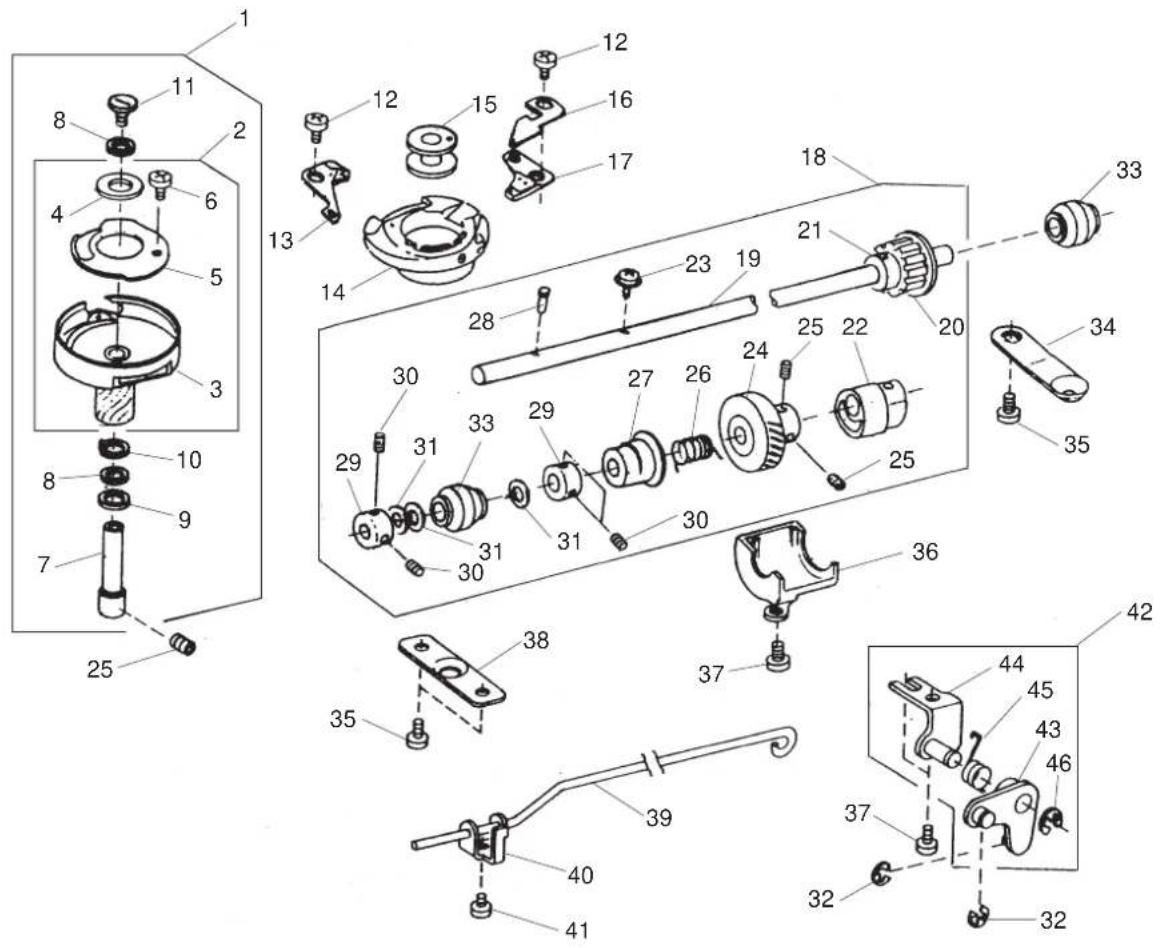

1 732611103 Hook unit
2 652623004 Hook race unit
3 650950010 Hook shaft gear unit
4 627190009 Hook race magnet
5 627191000 Hook race bottom plate

6 820374004 Setscrew 2 x 2.3
7 625613100 Hook shaft unit
8 000038409 Washer
9 625102008 Plain washer
10 627192001 Hook shaft washer (1)

11 625103009 Hook shaft screw
12 810220003 Setscrew
13 627179013 Stopper
14 627569106 Bobbin holder unit
15 102261000 Bobbin

16 732099006 Stopper shield plate
17 627567001 Hook stopper
18 732610009 Lower shaft unit
19 732032001 Lower shaft
20 650073007 Lower shaft timing gear

21 000004200 Spring pin 3 x 18
22 823026111 Feed cam
23 000149600 Setscrew 3 x 14
24 650076000 Lower shaft gear
25 000111304 Hexagonal socket screw 5 x 5

26 686035008 Feed lifting cam spring
27 753183025 Feed lifting cam
28 820161006 Feed lifting pin
29 820166001 Ring
30 000111201 Hexagonal socket screw 4 x 4

31 000038502 Washer
32 000002105 Snap ring E-3
33 732034003 Lower shaft bushing
34 732035004 Bush holder
35 000101208 Setscrew 5 x 6

36 732036005 Gear cover
37 000081005 Setscrew 4 x 8
38 749014009 Bush holder plate
39 749023001 Drop feed connecting rod (2)
40 732052007 Drop feed selector plate

41 000078319 Setscrew 3 x 6
42 749608006 Drop feed connecting link unit
43 749020008 Drop feed connecting link (2)
44 749022000 Connecting link supporter
45 749021009 Drop feed connecting link spring
46 000001609 Snap ring E-5

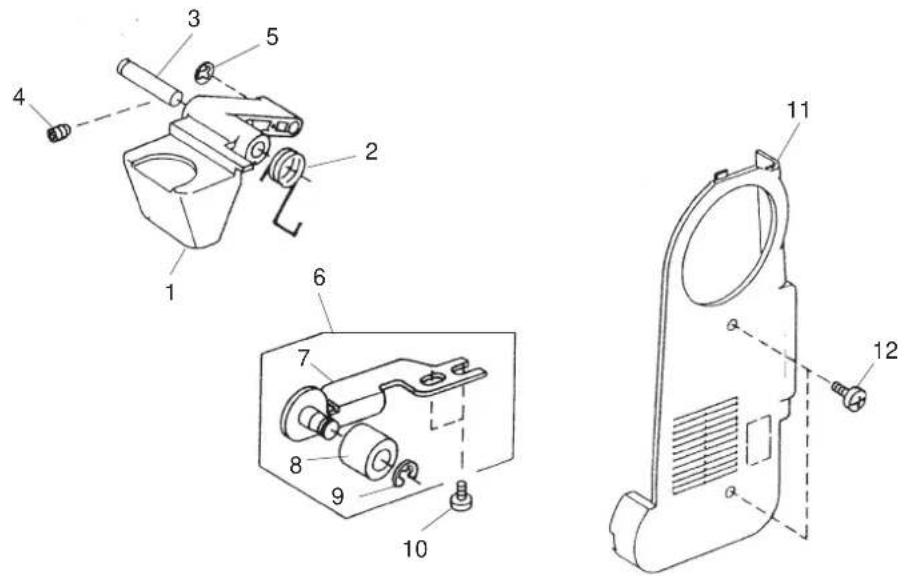

1 749019004 Reverse button
2 736014009 Reverse button spring
3 736015000 Reverse button shaft
4 000112707 Hexagonal socket screw 5 x 10
5 000014007 Snap ring CS-4
6 749605003 Idler unit
7 749013008 Idler bracket
8 625217100 Idler
9 000002806 Snap ring E-6
10 000081005 Setscrew 4 x 8

11 749074007 Belt cover
12 000104119 Setscrew 4 x 20

Exploded view diagram of electronic components with numbered parts and labeled parts

Simple line drawing of a closed book with visible pages and spine (no text or symbols)

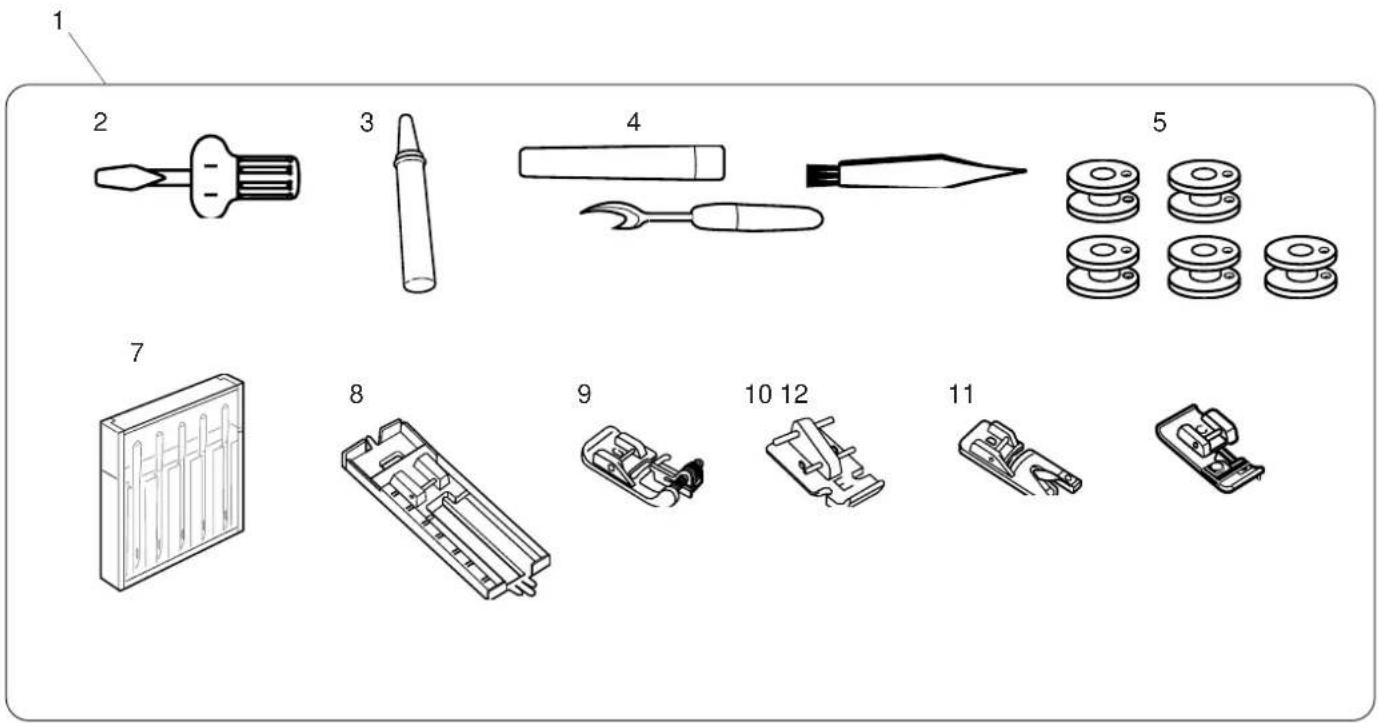

1 749870403 Accessory unit
2 820832005 Screwdriver
3 741814003 Oiler with oil
4 647808009 Seam ripper
5 802424004 Lint brush

6 102261000 Bobbin
7 540401026 Needle set
8 732802000 Buttonhole foot
9 820817015 Blind hem foot
10 823803006 Zipper foot

11 820809014 Rolled hem foot
12 820804019 Overedging foot
13 749800011 Instruction book 749880118 Carton box
