BRUGSANVISNING 58-455 Biltema
Replacement of wiper blade 58-455, 58-486 and 58-500 for Mercedes-Benz

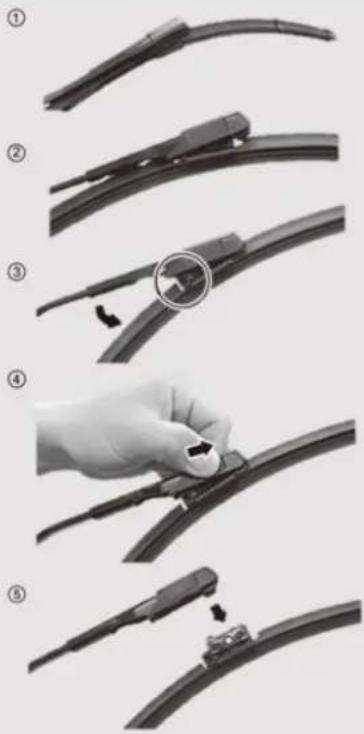

How to remove the old wiper blade
Raise the arm of the wiper blade. Make sure it does not fall back to avoid any damage on the windshield. If necessary, refer to the vehicle instructions
Step 2 & 3
Separate the wiper arm from the wiper blade as shown
Step 4
Remove the worn wiper blade by pressing on the sides of the connector and lightly sliding it up
Step 5
The wiper blade will unclip from the arm and can be removed

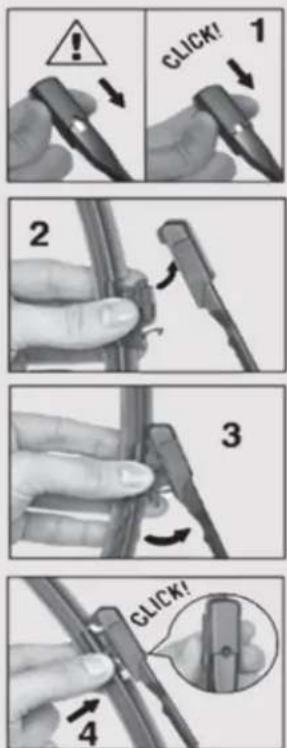

How to fit the new wiper blade
Notice:
To avoid noise, rubber damage, wiper jumps and vibrations ensure your windshield is complete clean
Push down the connector until you hear a "click"
Step 2
Connect the new wiper blade into the arm
Step 3
Fit the wiper blade starting with the top of the adaptor
Step 4
Push the arm to the wiper blade until you hear a "click". Make sure the wiper blade is correctly fixed
