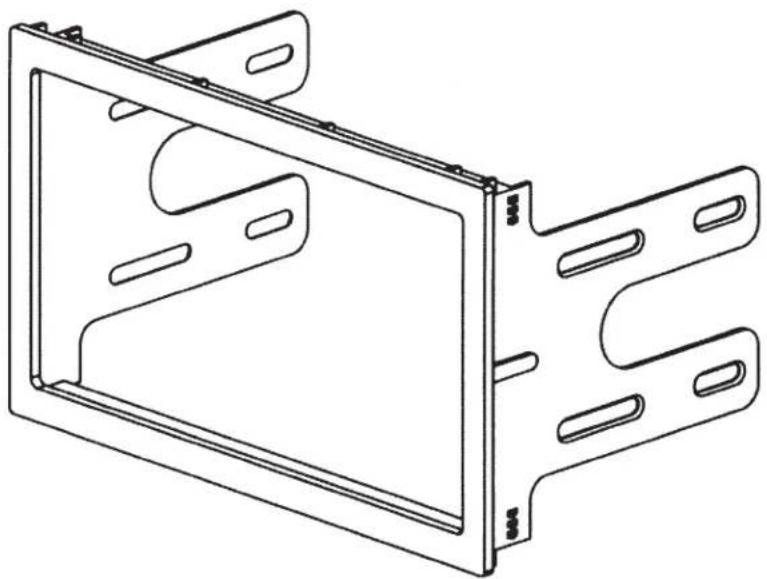

Technical line drawing of a mechanical housing or bracket assembly (no text or symbols)

VEHICLE APPLICATIONS

Volkswagen

1999-06 GOLF

1999-05 GTI

1999-05 JETTA

(Excluding the new 2005 A5 Jetta)

For the all new A5 2005 Jetta kit#VW-K1017 is required.

2000-05 PASSAT

DASH DISASSEMBLY AND RADIO REMOVAL INSTRUCTIONS

1. Using Radio Removal keys, insert 1 key into each of the (2) key holes for single DIN radio with factory pocket equipped vehicles, or (4) key holes for Double DIN radio equipped vehicles.

NOTE: the flat side of the keys must face the outside edges of the radio.

1. Depress the keys slightly inward and pull the radio forward.
2. Disconnect the attached harness(s) and antenna lead and remove radio.
   4 If the vehicle has the single DIN pocket, pull the pocket forward to remove, then if equipped, pull the radio/pocket divider tray out and remove.

KIT ASSEMBLY INSTRUCTIONS

1. Insert the Double DIN audio/video component from the back of the VW-K1015 installation kit, then loosely secure to the mounting brackets with the (8) counter sunk screws supplied with the radio. If your new radio does not come with these screws you will need to get them from a car stereo installation shop.
2. Slide the Audio/Video component forward or back for your desired look and tighten the screws.
3. NOTE: Some radio faces are larger in size than the ITR-1017 Trim Ring allows. You may need to file the radio opening larger for some radios.

WARNING NOTE: You must completely wire and test the radio and all features and functions prior to installing the assembled kit and radio into the dash opening.

The dash opening of for these vehicles is extremely tight and may require some minor force to lock the assembled kit with radio into the dash opening. Once assembled and installed the kit is a very tight fit, removal will be very tough.

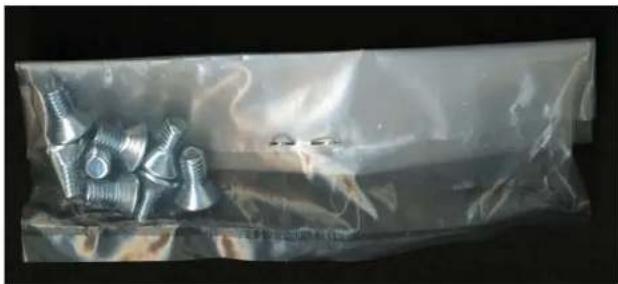

Close-up of a transparent plastic bag containing metallic threaded components, no visible text or symbols.

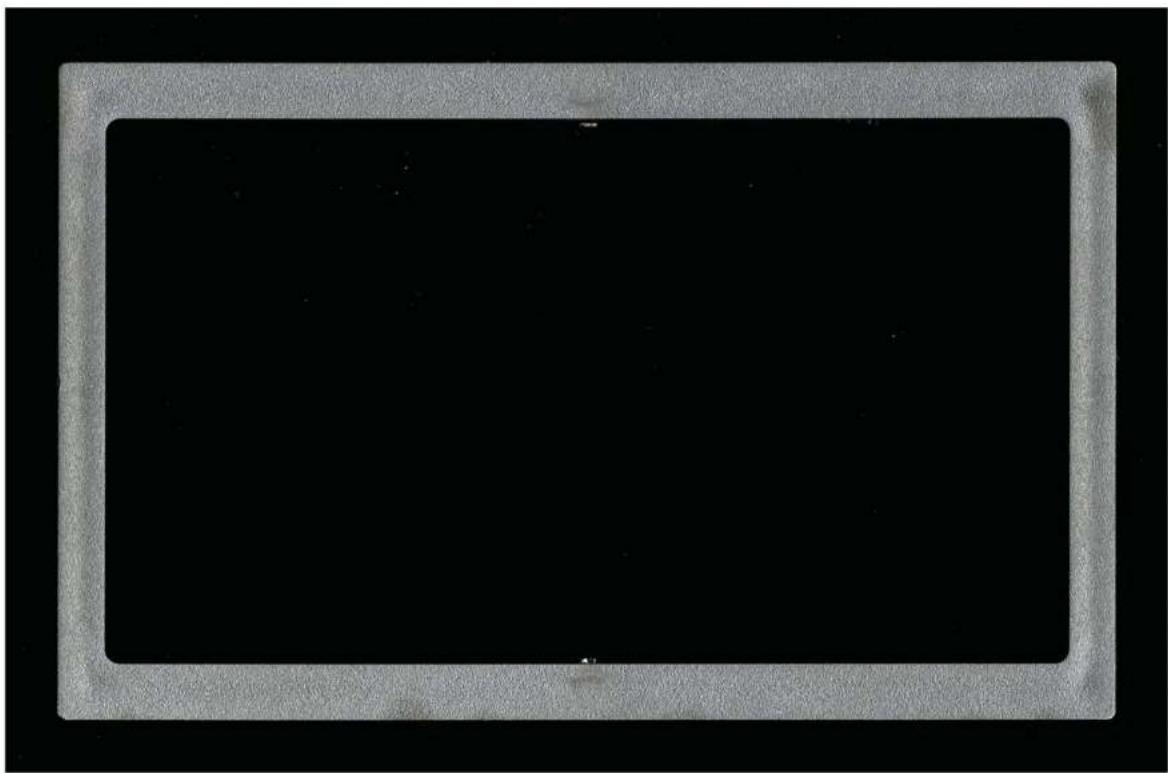

Blank rectangular frame with textured border and no visible text or symbols

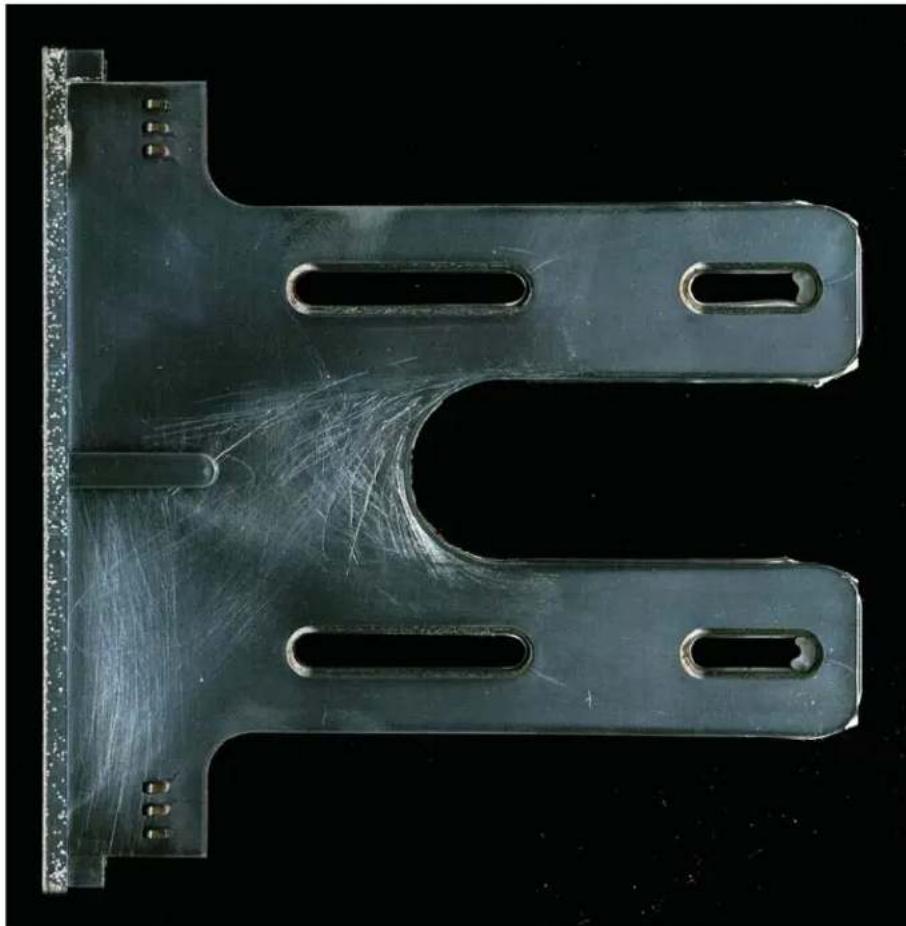

Metal U-shaped metal bracket with cutouts and internal fibers, displayed against a black background (no text or symbols)
