BRUGSANVISNING 70-1677 Metra
Receiver Wiring Adaptor
IMPORTANT
Before starting, compare items on your invoice with items received. Carefully check through packaging material. If an item is missing, please call Crutchfield at 1-888-955-6000.
120 70-1677
Revision 09/05/13

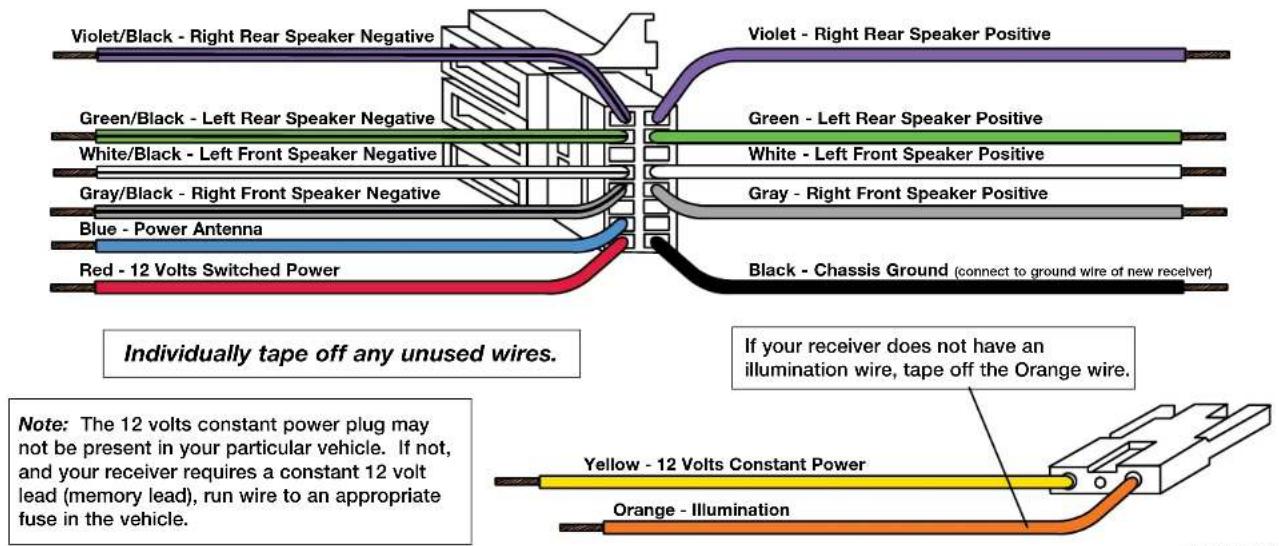

STEP 1 -- MATCH & CONNECT WIRES
A. Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.
B. If your receiver does not have an Illumination wire, tape off the Orange wire.
C. Individually tape off any unused wires.
D. Make final wiring connections following instructions on the next page.
Copyright 2013 Crutchfield Corporation

*120701677*
Receiver Wiring Adaptor Connections
120 70-1677
STEP 2 -- CRIMP CONNECTIONS

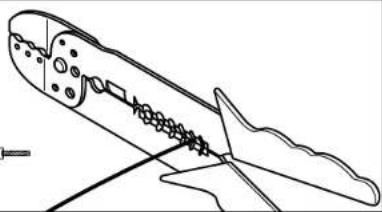

Tools & Parts Required ▶
Wire Stripper/Crimp Tool Crmp Caps


A. Strip wires back 1/2".


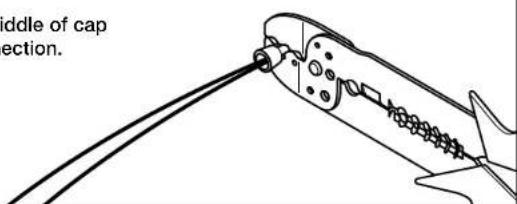

Diagram showing a cable being inserted into a plug, with no text or symbols present.C. Squeeze middle of cap for tight connection.
D. Complete crimp connections for all necessary wires.

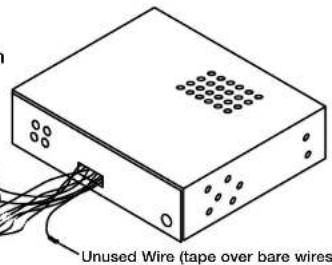

E. Be sure to wrap any wires from the Wiring Adaptor that are not necessary (wires with no match from the new receiver) with electrical tape.
Receiver Wiring Adaptor
Generic Illustration


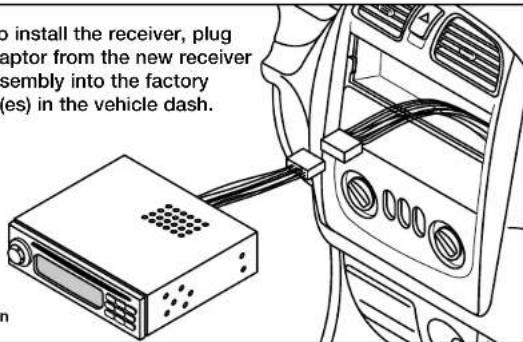

Unused Wire (tape over bare wires)STEP 3 -- APPLICATION
When ready to install the receiver, plug the Wiring Adaptor from the new receiver or receiver assembly into the factory radio harness(es) in the vehicle dash.

