BRUGSANVISNING 70-7550 Metra
Receiver Wiring Adaptor
IMPORTANT
120 70-7550
Before starting, compare items on your invoice with items received. Thoroughly check packing materials. If an item is missing, please call Crutchfield at 1-888-955-6000.
Revision 10/07/13

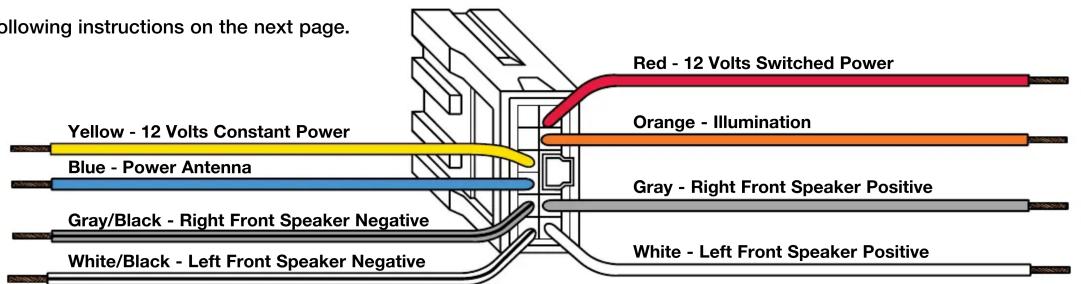

STEP 1 -- CONNECT WIRES
A. Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.
B. If your receiver does not have an Illumination wire, tape off the Orange wire.
C. Connect the Black wire of the new receiver to the vehicle chassis.
D. Individually tape off any unused wires.
E. Make final wiring connections following instructions on the next page.


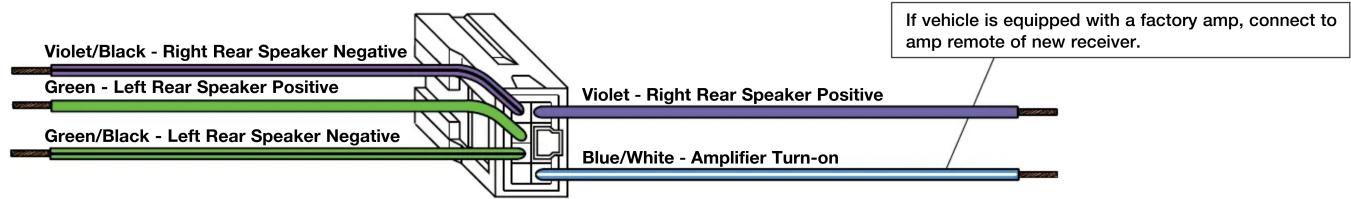

Violet/Black - Right Rear Speaker Negative Green - Left Rear Speaker Positive Green/Black - Left Rear Speaker Negative Violet - Right Rear Speaker Positive Blue/White - Amplifier Turn-on If vehicle is equipped with a factory amp, connect to amp remote of new receiver.NOTE: 1998-2003 Nissan Frontier with 2-speaker system
The White and Gray speaker wires in the wiring adaptor will not be used. Connect the front speaker wires of the new receiver to the Green and Violet wires of the adaptor.
CRUTCHFIELD®
Copyright 2013 Crutchfield Corporation
*120707550*
Receiver Wiring Adaptor Connections
120 70-7550
STEP 2 -- CRIMP CONNECTIONS
Tools & Parts Required ▶
Wire Stripper/Crimp Tool Crimp Caps

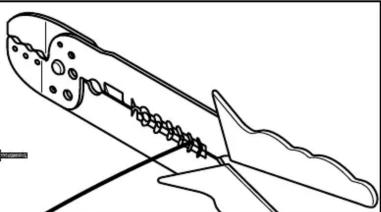

A. Strip wires back 1/2".


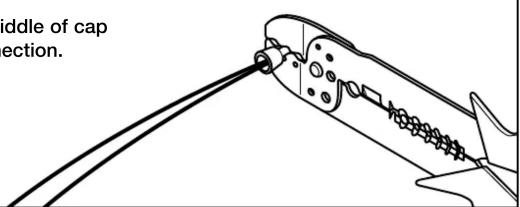

andC. Squeeze middle of cap for tight connection.
D. Complete crimp connections for all necessary wires.

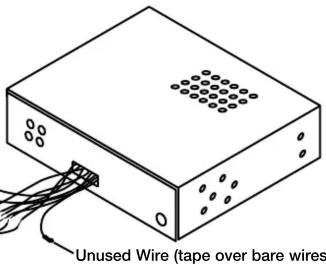

E. Be sure to wrap any wires from the Wiring Adaptor that are not necessary (wires with no match from the new receiver) with electrical tape.
Receiver Wiring Adaptor
Generic Illustration


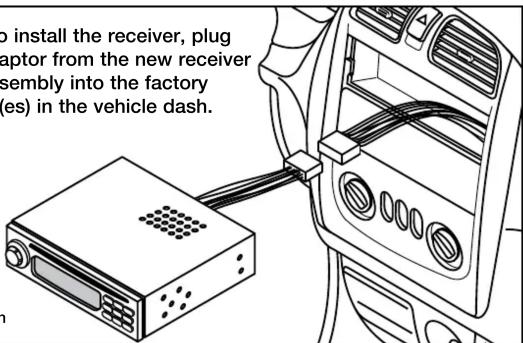

Unused Wire (tape over bare wires)STEP 3 -- APPLICATION
When ready to install the receiver, plug the Wiring Adaptor from the new receiver or receiver assembly into the factory radio harness(es) in the vehicle dash.

