BRUGSANVISNING 70-1781 Metra
Receiver Wiring Adaptor
IMPORTANT
120 70-1781
Before starting, compare items on your invoice with items received. Thoroughly check packing materials. If an item is missing, please call Crutchfield at 1-888-955-6000.
Revision 09/16/15
STEP 1 -- MATCH & CONNECT WIRES
A. Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.
B. Your receiver illumination wire could be Orange or Orange/White. As with other wires, match this wire to illumination wire in this harness by function, not by color. If your receiver does not have an illumination wire, tape off the illumination wire.
C. Individually tape off any unused wires.
D. Make final wiring connections following instructions on the next page.
If you received instructions for the 120 E5000 wiring harness, refer to those instructions for wiring of vehicles with factory-equipped power antenna.
120 70-1781
STEP 2 -- CRIMP CONNECTIONS
Tools & Parts Required ▶
Wire Stripper/Crimp Tool Crimp Caps
A. Strip wires back 1/2".


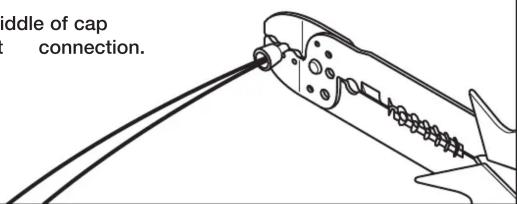

Diagram showing a cable being inserted into a plug, with an arrow indicating the insertion process (no text or symbols present)C. Squeeze middle of cap for tight connection.
D. Complete crimp connections for all necessary wires.
E. Be sure to wrap any wires from the Wiring Adaptor that are not necessary (wires with no match from the new receiver) with electrical tape.
Receiver Wiring Adaptor
Generic Illustration


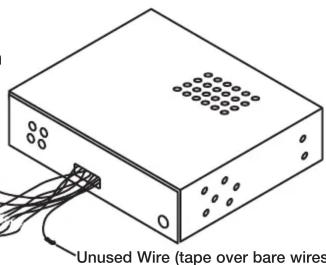

Unused Wire (tape over bare wires)STEP 3 -- APPLICATION

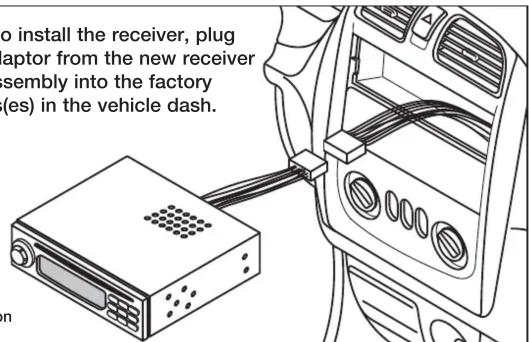

When ready to install the receiver, plug the Wiring Adaptor from the new receiver or receiver assembly into the factory radio harness(es) in the vehicle dash.
CRUTCHFIELD®
Copyright 2015 Crutchfield Corporation
