BRUGSANVISNING 70-7001 Metra

Receiver Wiring Adaptor

IMPORTANT

120 70-7001

Before starting, compare items on your invoice with items received. Thoroughly check packing materials. If an item is missing, please call Crutchfield at 1-888-955-6000.

Revision 04/18/16

STEP 1 -- MATCH & CONNECT WIRES

A. Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.
B. Your receiver illumination wire could be Orange or Orange/White. As with other wires, match this wire to illumination wire in this harness by function, not by color. If your receiver does not have an illumination wire, tape off the illumination wire.
C. Individually tape off any unused wires.
D. Make final wiring connections following instructions on the next page.
E. Ground receiver to vehicle chassis.

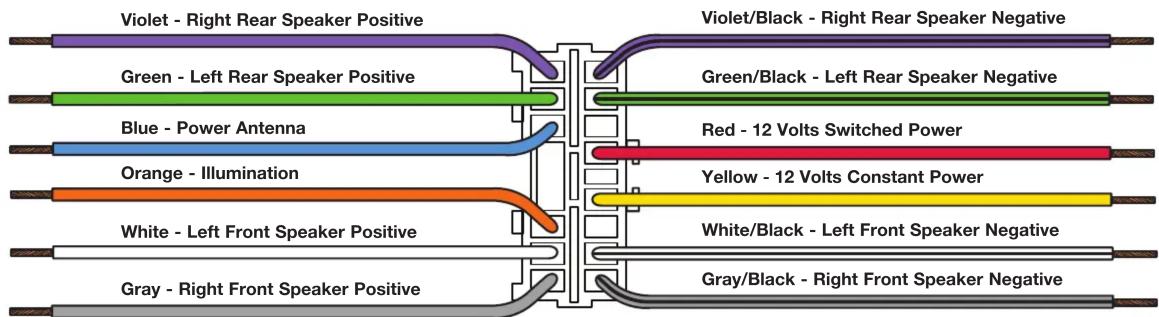

Violet - Right Rear Speaker Positive Green - Left Rear Speaker Positive Blue - Power Antenna Orange - Illumination White - Left Front Speaker Positive Gray - Right Front Speaker Positive Violet/Black - Right Rear Speaker Negative Green/Black - Left Rear Speaker Negative Red - 12 Volts Switched Power Yellow - 12 Volts Constant Power White/Black - Left Front Speaker Negative Gray/Black - Right Front Speaker Negative

Ground receiver to vehicle chassis.

Receiver Wiring Adaptor Connections

120 70-7001

STEP 2 -- CRIMP CONNECTIONS

Tools & Parts Required ▶

Wire Stripper/Crimp Tool Crimp Caps

Metra 70-7001 - Tools & Parts Required ▶ - 1

Metra 70-7001 - Tools & Parts Required ▶ - 2

A. Strip wires back 1/2".

Metra 70-7001 - Tools & Parts Required ▶ - 3

Metra 70-7001 - Tools & Parts Required ▶ - 4

natural_image Line drawing of a mechanical component with internal gear-like structure (no text or symbols)

B. Twist wires together and insert in crimp cap.

Metra 70-7001 - Tools & Parts Required ▶ - 5

natural_image Diagram showing a cable being inserted into a plug, with no text or symbols present

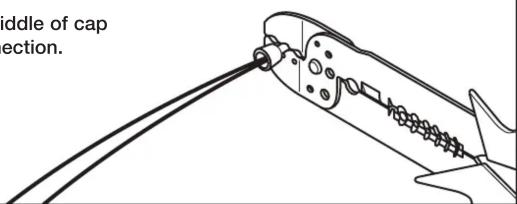

C. Squeeze middle of cap for tight connection.

diddle of cap ection.

STEP 2 -- CONTINUED

D. Complete crimp connections for all necessary wires.

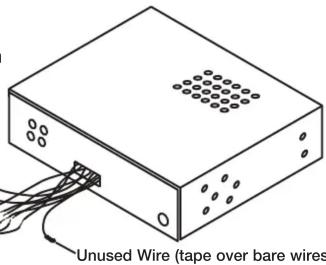

E. Be sure to wrap any wires from the Wiring Adaptor that are not necessary (wires with no match from the new receiver) with electrical tape.

Receiver Wiring Adaptor

Generic Illustration

Unused Wire (tape over bare wires)

STEP 3 -- APPLICATION

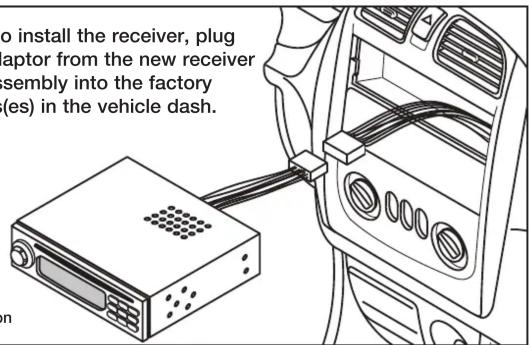

When ready to install the receiver, plug the Wiring Adaptor from the new receiver or receiver assembly into the factory radio harness(es) in the vehicle dash.

to install the receiver, plug aptor from the new receiver sembly into the factory (es) in the vehicle dash.

Generic Illustration

CRUTCHFIELD®

Copyright 2016 Crutchfield Corporation
