Installation

The patented MEM4400SK mechanical electro magnet locking device is designed for securing automatic sliding door mechanisms. The MEM device has a holding force of 4000N. Simple installation with little or no fabrication or machining required to provide high security to automatic sliding doors of all types of construction.

Wiring and power input requirements

MEM lock wiring (to PCB):
MEM power input 12VDC, RED (+); BLACK (-)
EW sensor output	White (NC), BROWN (C), GRAY (NO), 30VDC, 0.2A max

PCB connection:
Power input +12VDC/24VDC, 1A max
DSS sensor input Normally open
MEM lock power output	Connect to MEM Power Input. Connect L+ to RED (+), Connect L- to BLACK (-)
Exit input Normally open
Auto door control output Normally open. Relay output. Connect to auto door control panel input
Alarm relay timer input	Normally open. Short to active the C/NC/NO alarm relay output. Connect EW sensor output BROWN and GRAY.
Alarm relay output C/NC/NO Relay output. 0-30 seconds delay timer

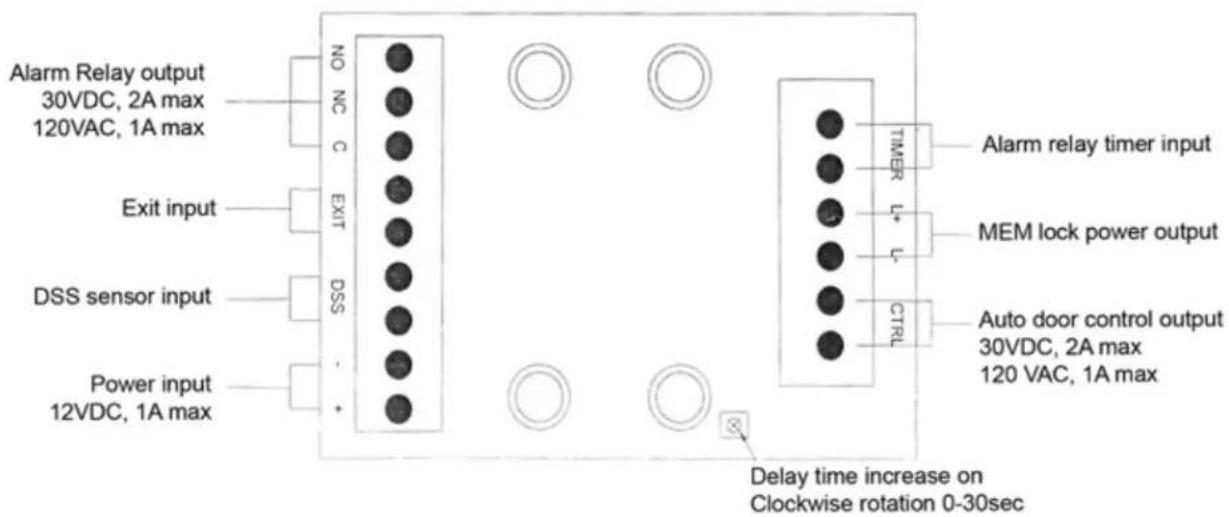

Alarm Relay output 30VDC, 2A max 120VAC, 1A max Exit input DSS sensor input Power input 12VDC, 1A max NO NC C EXIT DSS - + - Delay time increase on Clockwise rotation 0-30sec Timer L+ MEM lock power output CTRL Alarm relay timer input Auto door control output 30VDC, 2A max 120 VAC, 1A max
