BRUGSANVISNING iRevive Slide Dormakaba
iRevive Slide
Intelligent Revival for Existing Sliding Doors
Intelligent Revival Benefits
- iRevive technology, meets new ANSI 156.10 standard for monitoring
• 18-month Warranty on the motor control and gear box
• Improves sliding door performance, safety and reliability
• Cost-effective alternative to complete door replacement - Compatible with Stanley DuraGlide 2-panel SS and 4-panel bipart, and Horton 2001, 2003, 2500, 2-panel SS and 4-panel bipart
dormakaba
The iRevive slide is an intelligent, economical and practical solution for reviving aging electronic sliding door systems to meet the new 2017 ANSI 156.10 standard.
Why revive rather than replace? Whether your doors are more than 10 years old, your building usage has changed or you are looking to update to the latest safety standards, retrofitting your existing door is an economical solution. The iRevive Slide standard kit includes the motor, control board, power supply, belt return pulley and monitored presence sensor.
Heavy-duty
Our German engineered ESA controller is designed to easily accommodate door panels weighing as much as 220 pounds.
High torque
The ESA controller features a high torque motor to produce smoother and consistent opening and closing door speed.
Meet the ANSI standard for monitoring
The 2017 ANSI 156.10 standard requires a "handshake" connection between the presence sensor and the automatic door controller. This closed loop monitoring system ensures that in the event of a presence sensor failure, the door will stop automatic function.
The ESA controller ensures existing sliding doors meet the latest standard without having to replace the entire door. Our controller and the presence sensors are tested and approved by dormakaba engineers to ensure they comply with the 2017 ANSI standard.
Innovation
dormakaba was the first to design an automatic sliding drive controller that fits within a 4-1/2"-depth header. The ESA low profile allows iRevive Slide to retrofit Stanley DuraGlide 2-panel SS and 4-panel bipart and Horton 2001, 2003, 2500, 2-panel SS and 4-panel bipart sliding systems.
Energy efficient
The ESA controller's energy-efficient design requires less power to operate. The presence sensors allow doors to safely close in a timely manner to maintain temperate interior climates.
Microprocessor control
The microprocessor controlled system interfaces with any security system to continuously monitor door position for a higher level of efficiency and safety. dormakaba's innovative software ensures smooth operation and lasting performance.


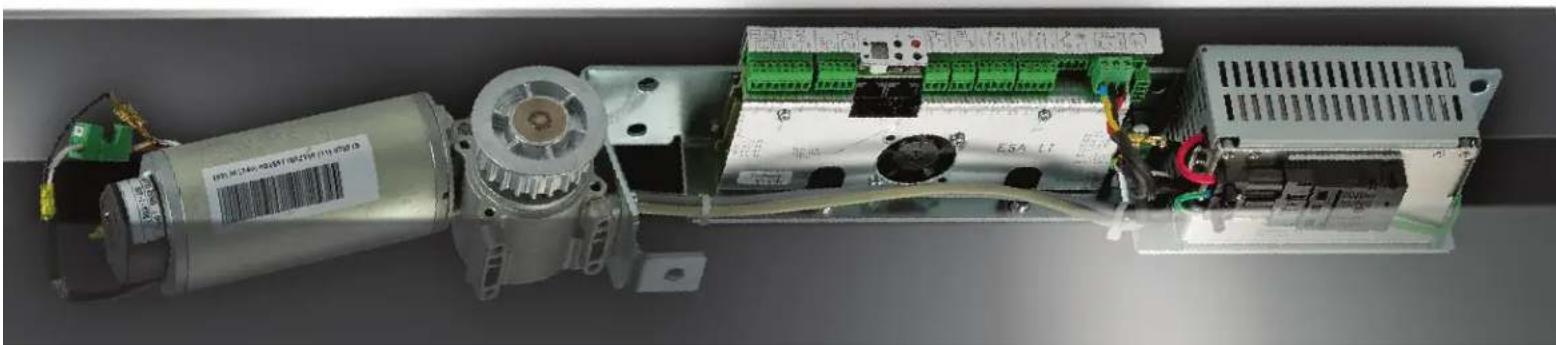

Interior view of an electric motor assembly with visible wiring, motors, and control panel (no text or symbols)


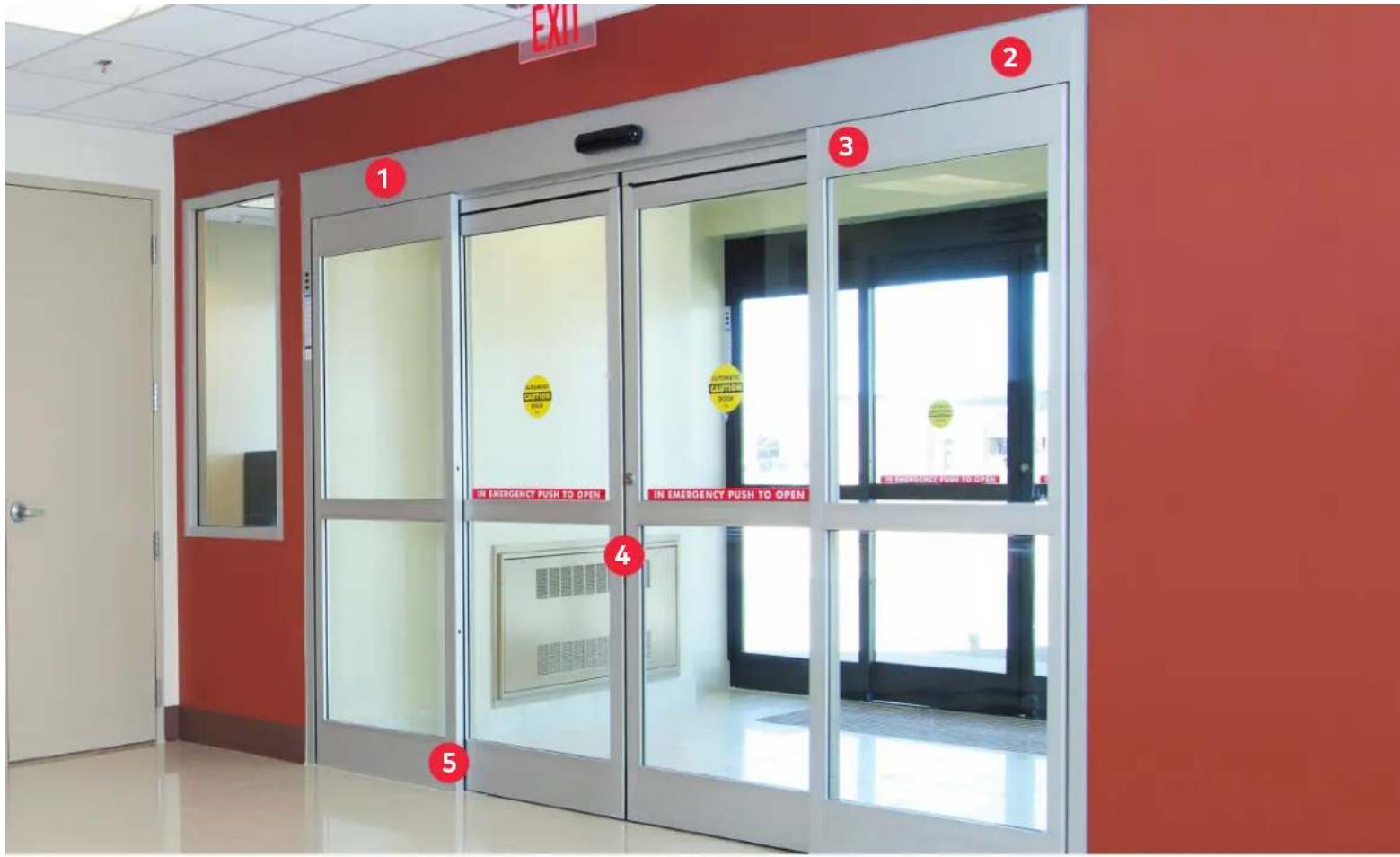

EXIT 1 2 3 4 5 IN EMERGENCY PUSH TO OPEN IN EMERGENCY PUSH TO OPEN1
Base kit includes motor drive unit & all new electronics including presence sensors with an 18 month warranty
2
3
Optional new door rollers for smooth sliding
4
Optional new weather stripping to keep door stop air infiltration
5
Optional door guide for smooth operation
