FTS-M02

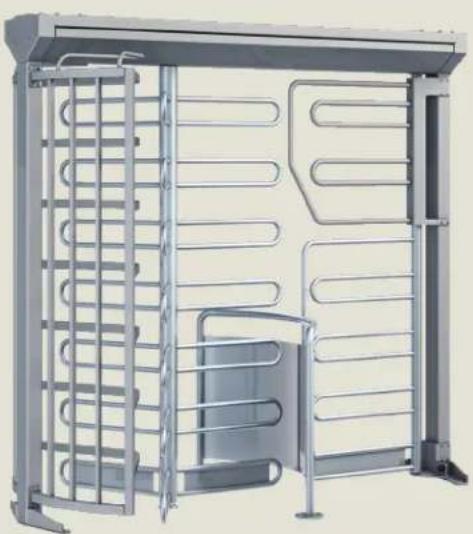

Full height turnstile with bicycle gate

Standard units FTS-M02
Construction column diameter 51-13/16" (1300 mm)
Portal width 92-1/8" (2340 mm)
Total height 89-3/8" (2270 mm)
with optional canopy D1 94-1/16" (2390 mm)
with optional canopy D2 95-1/4" (2420 mm)
with optional canopy D3 95-1/4" (2420 mm)
Passage height 81-1/8" (2060 mm)
Passage width 25-7/16" (646 mm)
Portal and housing Steel
Lockable maintenance opening Aluminum
Rotating unit with tubular column, ∅3-1/2" (∅89 mm)	120° each with 7 U-shaped crossbars ∅1-1/16" (∅27 mm), made of glossy AISI 304 stainless steel.
Barrier element	Curved with 7 horizontal steel bars.
Passage limitation	Half-height made of curved tubular AISI 304 stainless steel with plate panel.
Additional feature	Automatic bike door with three U-shaped crossbars ∅1-1/16" (∅27 mm) and guard plate at bottom. Tube frame, guard plate and crossbars made of AISI 304 glossy stainless steel. Fixed barrier element above the bike door with two U-shaped crossbars ∅1-1/16" (∅27 mm) and tube frame made of steel.
Finish	Rotating unit made of glossy stainless steel, hot-dip galvanized steel elements, aluminum elements in RAL 9006 (white aluminum).
Rotor	3-blade rotor
Function (see Function note)	Power assist. Automatic bicycle door with two induction loops and loop detector, electronically controlled in two directions.
Electrical equipment	Control system integrated in the unit.
Power supply	100 - 240 VAC, 50/60 Hz, 506 VA.
Standby power consumption	10 VA.
Installation	Finish floorSub-floorSleeve foundation
Protection classes	Housing IP33, components conducting supply voltage IP43.

Optional components

Housing

Console 1

Console 2

Console 3

Housing with lockable front panel made of silver anodized aluminum, plastic-coated according to RAL or glossy stainless steel

Plastic in color of unit or in RAL 9006 W: 3-11/16" (94 mm) H: 3-11/16" (94 mm) D: 2-9/16" (65 mm)

Aluminum in color of unit or in RAL 9006 W: 5-1/2" (140 mm) H: 7-1/16" (180 mm) D: 4-5/16" (110 mm)

Aluminum in color of unit or in RAL 9006 W: 5-1/2" (140 mm) H: 14-3/8" (365 mm) D: 4-5/16" (110 mm)

Technical illustration of a vertical walkway with horizontal ladders and a central door (no text or symbols)

Function

Power assist—Power-assisted motion; servo-positioning drive/electronically controlled in both directions (behavior in event of power failure can be selected for each direction: free or blocked).

Entrance systems

Subject to change without notice

FTS-M02

Installation drawings

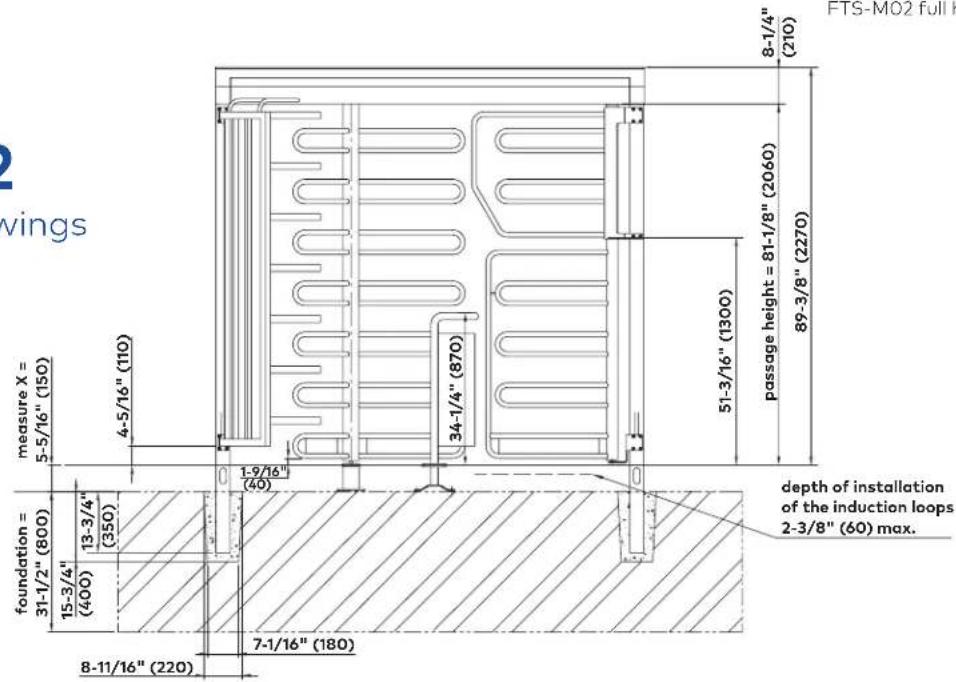

FTS-M02 full 8-1/4" (210) passage height = 81-1/8" (2060) 89-3/8" (2270) 51-3/16" (1300) 34-1/4" (870) measure X = 5-5/16" (150) 4-5/16" (110) 1-9/16" (40) depth of installation of the induction loops 2-3/8" (60) max. foundation = 31-1/2" (800) 13-3/4" (350) 15-3/4" (400) 7-1/16" (180) 8-11/16" (220)

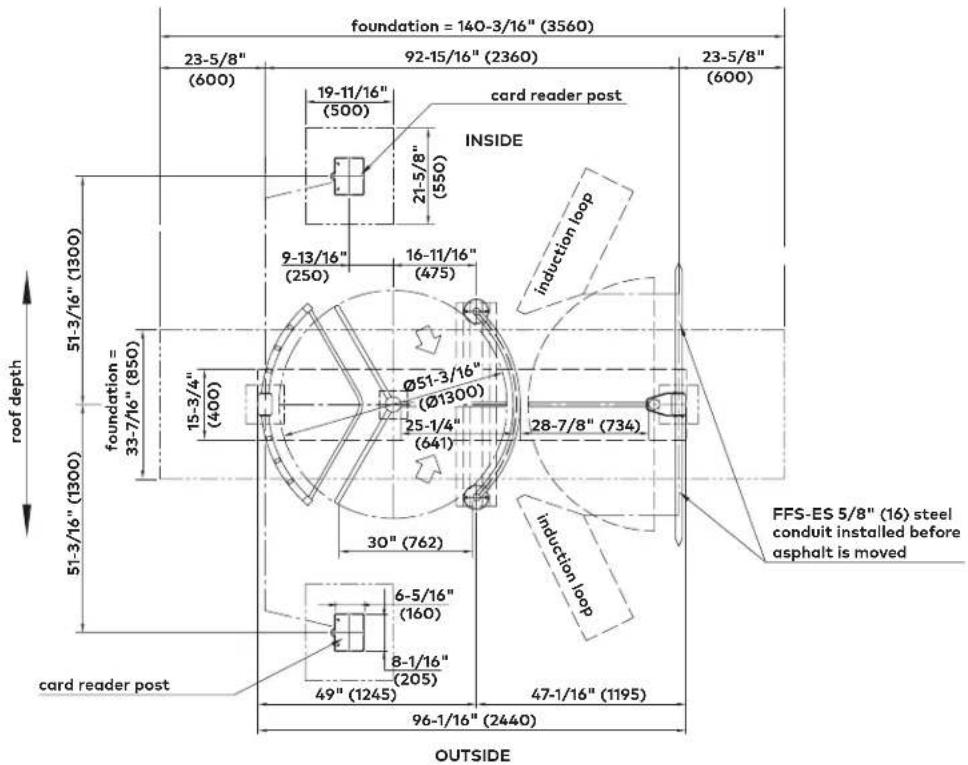

foundation = 140-3/16" (3560) 23-5/8" (600) 92-15/16" (2360) 23-5/8" (600) card reader post INSIDE 19-11/16" (500) 21-5/8" (550) 9-13/16" (250) 16-11/16" (475) induction loop 51-3/16" (1300) foundation = 33-7/16" (850) φ51-3/16" (Ø1300) 25-1/4" (641) 28-7/8" (734) 30" (762) induction loop 51-3/16" (1300) card reader post 6-5/16" (160) 8-1/16" (205) 49" (1245) 47-1/16" (1195) OUTSIDE FFS-ES 5/8" (16) steel conduit installed before asphalt is moved 96-1/16" (2440)

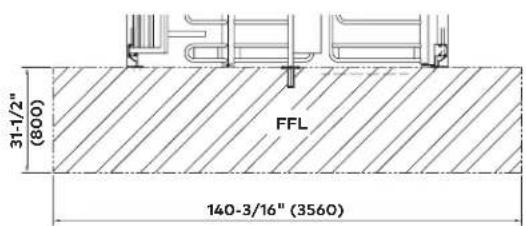

31-1/2" (800) FFL 140-3/16" (3560)

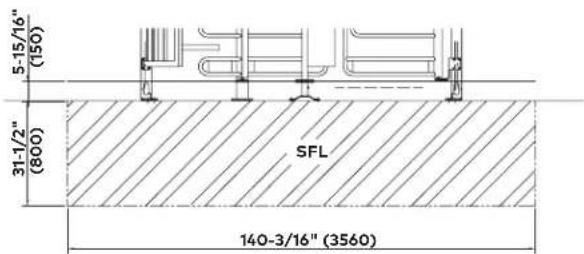

5-15/16" (150) 31-1/2" (800) SFL 140-3/16" (3560)
