BRUGSANVISNING AFT-100 DSC

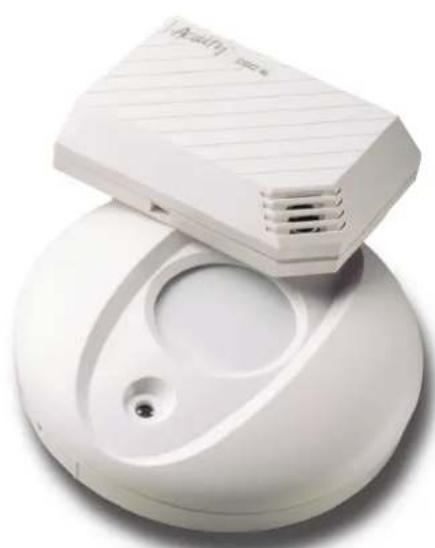

Breaking a window is one of the easiest and most common ways for an intruder to enter a home or business. To help protect against this type of intrusion, an Acuity glassbreak detector is needed. "Smart" enough to distinguish the sound of breaking glass from other common sounds found in homes and businesses, the detectors feature high-performance microphones and advanced microprocessor-based Digital Sound Analysis (DSA) that can determine all types of breaking framed glass (plate, float, tempered, wired and laminated) up to 25 feet away. Acuity glassbreak detectors can be mounted on walls or ceilings.

White portable electronic device with ventilation grille and circular base (no visible text or symbols)

Abstract illustration of a mechanical wrench emerging from a cracked, fragmented blue-tinted surface (no text or symbols)

Product Features:

Omnidirectional microphone
▶ Advanced microprocessor-based glassbreak sensor
▶ High-level static and transient protection High RF immunity with SMD construction White noise rejection mechanism
▶ Installer test mode for glassbreak sensor
▶ Alarm memory (latching LED) for glassbreak sensor
▶ MOV transient / static protection
▶ Jumper selectable sensitivity range

Locating the Detector

For optimum protection, Acuity glassbreak detectors should be placed in clear view of their intended area of protection. Curtains, blinds and other window coverings will absorb sound energy from the shattering glass. If this is a potential problem, mount the detector as close as possible to the protected glass.

Note: Do not mount the detector on the same wall as the protected glass or near objects, such as speakers, that produce prolonged sounds.

AFT-100 Glassbreak Simulator

The AFT-100 glassbreak simulator provides the most reliable and accurate indication of the correct mounting location for the detector. Do not install the detector beyond the maximum recommended range, even if the glassbreak simulator reports additional range. Future changes in room acoustics could reduce any additional range.

Test for false alarm immunity by creating sounds in the room that will likely occur when the detector is armed.

White DSC medical device with circular lens and black body (no visible text or symbols)

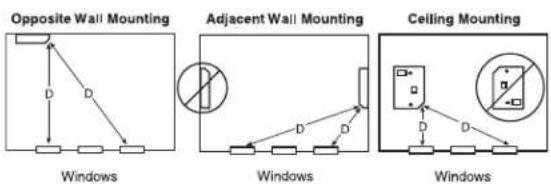

Acuity Mounting Locations

Ordering Information:

Wall-Mount

AC-100 Form 'A' Alarm Contact

AC-101 Form 'A' Alarm Contact and Tamper Switch

AC-102 Form 'C' Alarm Contact and Tamper Switch

Ceiling-Mount

AC-500 Form 'A' Alarm Contact

AC-501 Form 'A' Alarm Contact and Tamper Switch

AC-502 Form 'C' Alarm Contact and Tamper Switch

Accessories

AFT-100 Glassbreak Simulator

Specifications

Wall-Mount Models

Dimensions ....3.5" (L) x 2.5" (W) x 0.8" (D) (89 mm x 64 mm x 20 mm)

Input Voltage 9 to 16 Vdc

Current Draw 12 mA to 12 Vdc

Current in Alarm 35 mA @ 12 Vdc

Alarm Relay: Contact Rating ... 1 Amp @ 24 Vdc

Tamper Switch: Contact Rating.0.1 Amp @ 24 VDC

Microphone Type.....Omnidirectional Electret

Installer Test Mode ....Jumper J1

Alarm Memory Mode ....Jumper J2

Detection Level ...... Jumper J3

Ceiling-Mount Models

Dimensions 4.6" (D) x 1.4" (H) (117 mm x 36 mm)

Input Voltage 9 to 14.5 Vdc

Current Draw 24 mA to 12 VDC

Current in Alarm 32 mA @ 12 VDC

Alarm Relay: Contact Rating ... 1 Amp @ 24 Vdc

Tamper Switch: Contact Rating..0.1 Amp @ 24 Vdc

Microphone Type....Omnidirectional Electret

Installer Test Mode ....Jumper J1

Alarm Memory Mode ....Jumper J2

Detection Level ...... Jumper J5
