Download vejledningen til din TV-beslag i PDF-format gratis! Find din vejledning TS 8060 - TITAN og tag din elektroniske enhed tilbage i hånden. På denne side er alle dokumenter nødvendige for brugen af din enhed offentliggjort. TS 8060 af mærket TITAN.
BRUGSANVISNING TS 8060 TITAN
by Vivanco
www.vivanco.com
TV Table Stand
VESA
45kg
+/- 30° Swing
+/- 2°
Level
Correction
Height correction 41/45/49/53cm
up to
178cm/70"

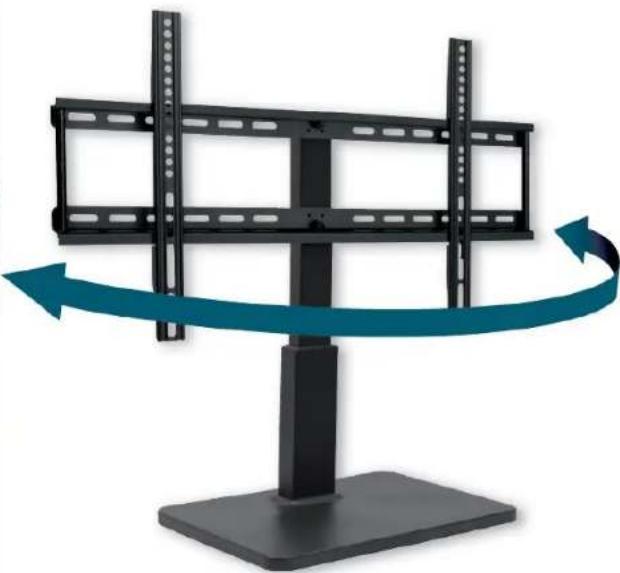

The perfect alternative to wall mounting. Most televisions stand firmly on a piece of furniture or a low board. They can not be swiveled or adjusted in height. With this swiveling and height-adjustable TV table stand you can change your sitting position without any problems. Guaranteed without drilling and wall mounting.
- VESA 100x100 / 100x150 / 100x200 / 200x100 / 200x200 / 200x300 / 200x400 / 300x200 / 300x300 / 400x200 / 400x300 / 400x400 / 600x400
- For screen sizes up to 70"/178cm
— Max. weight load: 45 kg - Swivel: +/-30°
- Horizontal level correction: +/- 2°
- Height adjustable in 4 steps: 41cm / 45cm / 49cm / 53cm
— Mounting kit for the TV included.
EDP No. 39294 | TS 8060 | 4008928392944


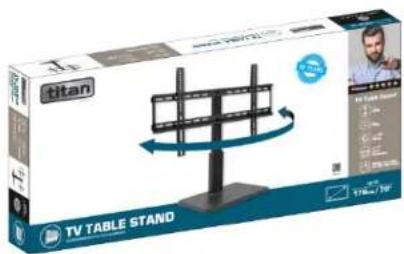

titan TV TABLE STANDPackaging: LBW cm: 34 x 76 x 10
by Vivanco

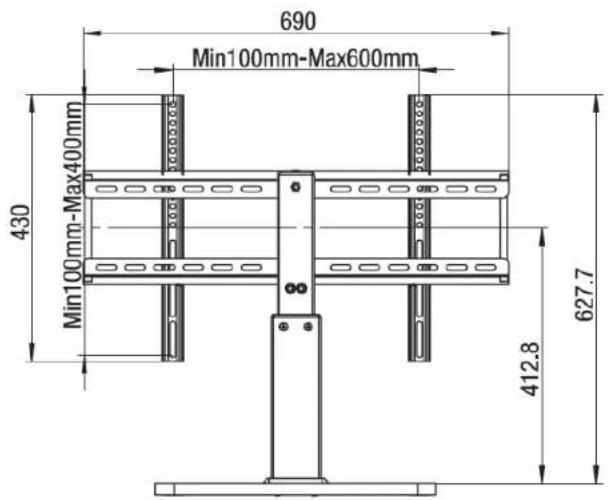

Technical Drawing
(Subject to modifications)
www.vivanco.com

