BRUGSANVISNING BFMO 8140 TITAN
by Vivanco
www.vivanco.com
TV Wall Bracket
VESA
40kg
+/·15°
Tilt
+/90° Swing
+/- 5°
Level
Correction
610mm Wall Distance
up to
140cm/55"


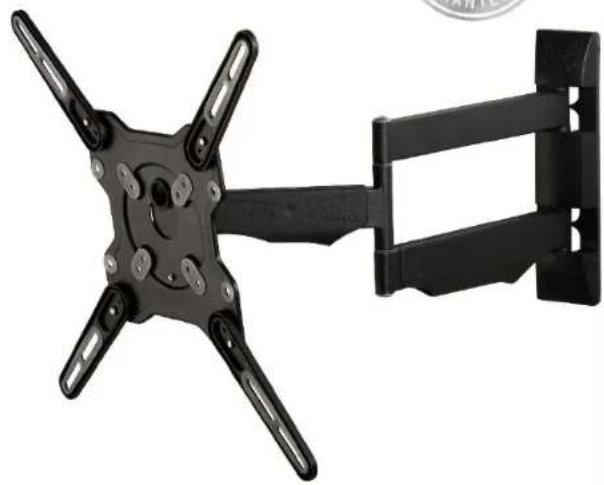

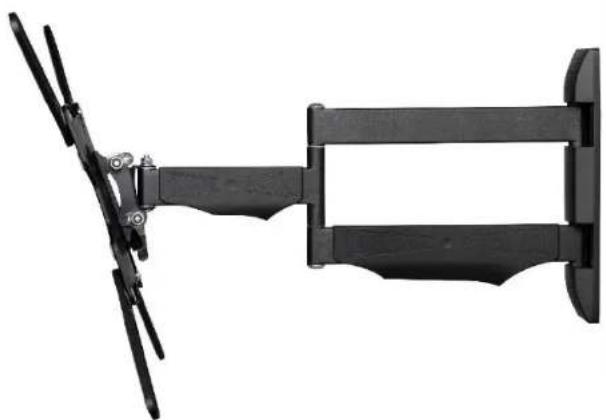

Mechanical device with articulated arms and mounting bracket (no visible text or symbols)TITAN TV TV Wall Bracket, Full Motion, VESA 400, max 40 kg
– Full motion TV wall bracket
— For small and medium screen sizes up to 140 cm /55"
- 2 swing arms / 3 hinges with 180^ swing angle; full flexibility
- 10 years warranty
- Quick & easy installation
- VESA 75 x 75 / 100 x 100 / 100 x 150 / 200 x 100 / 200 x 200 / 200 x 300 / 200 x 400 / 300 x 200 / 300 x 300 / 400 x 200 / 400 x 400
— Wall distance 60-610mm
- Swing radius +/- 90° (max radius for screen width smaller 1220mm only)
- +/-15° stepless tilt adjustment
— Horizontal level correction +/-5°
— Max weight load: 40 kg
- Color: titan
— Incl. wall fixing kit (Fischer® anchors) and drill template
EDP No. 39500 | BFMO 8140 | 40089283945006
by Vivanco
Technical Drawing
(Subject to modifications)
www.vivanco.com


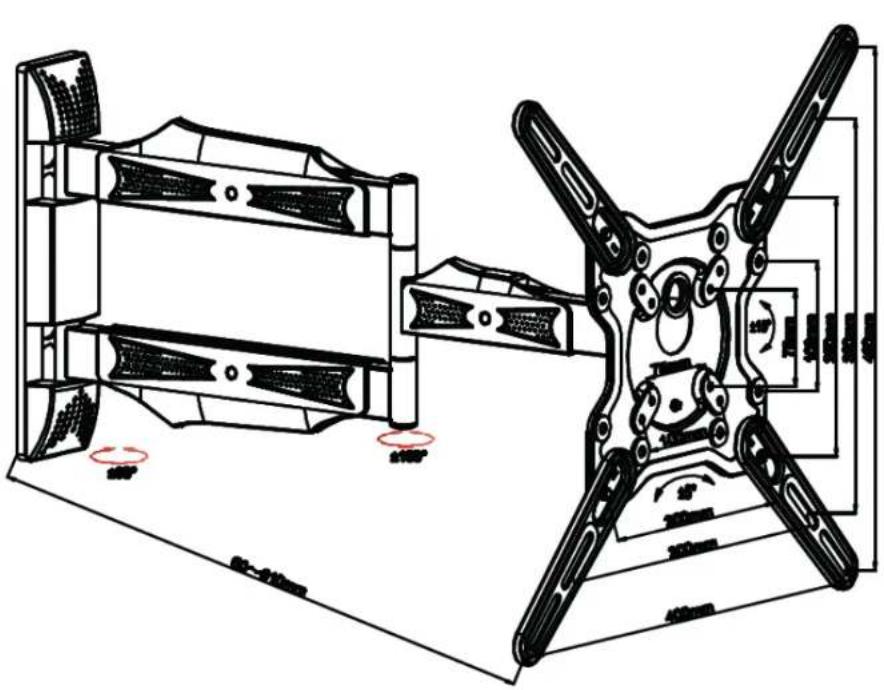

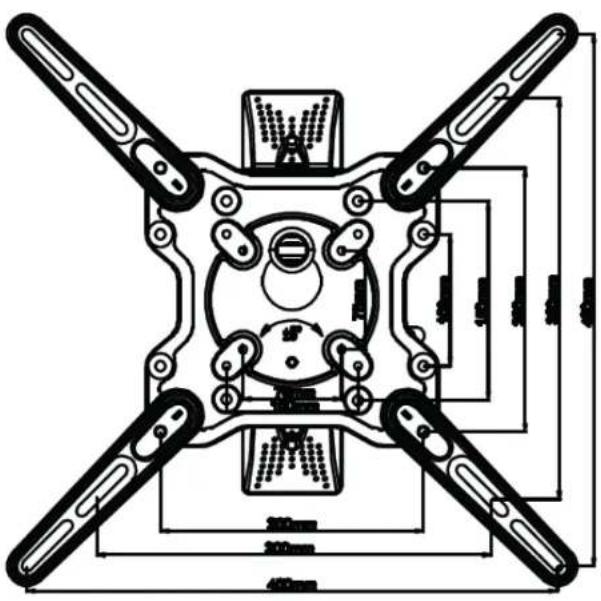

Technical line drawing of a mechanical assembly with no visible text or symbols
Technical Drawing
(Subject to modifications)
www.vivanco.com


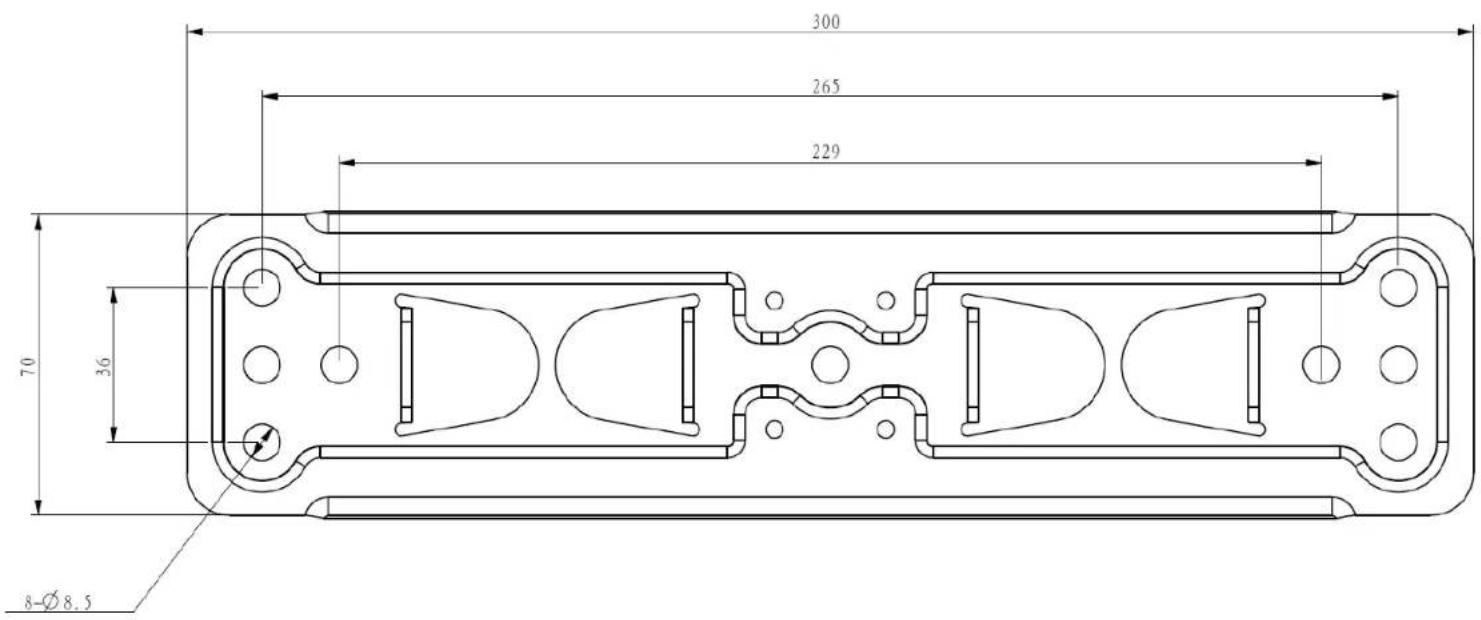

300 265 229 70 36 8-Ø 8.5Vivanco GmbH - Ewige Weide 15 - 22926 Ahrensburg Phone +49(0)4102/231-0 - Fax +49(0)4102/231-160


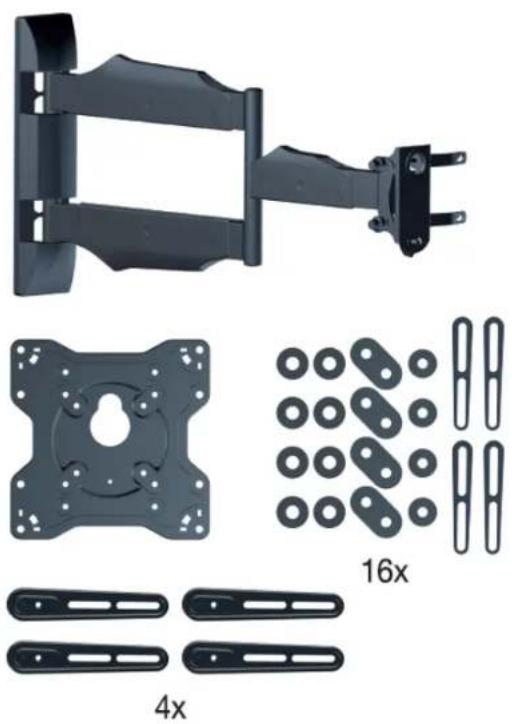

Technical illustration of a mechanical assembly with mounting bracket, mounting flange, and multi-pin components (no text or symbols)Delivery Content
(Subject to modifications)
www.vivanco.com
(A)
5x 8 x 50
(B)
5x 10 x 50
(C)
4x ∅ 5 x ∅ 12
(D)
4x
(E)
5x ∅ 8 x ∅ 16
(N)
1x S6
(0)
4x M8 x 8mm
(P)
(F-M)
4x M4 x 15mm
4x M4 x 30mm
4x M4 x 45mm
4x M6 x 15mm
4x M6 x 30mm
4x M8 x 15mm
4x M8 x 30mm
4x M8 x 45mm
