BRUGSANVISNING ICKIT Robinhood

Description: ROBINHOOD IRONING CENTRE KITSET

Model Number: ICKIT

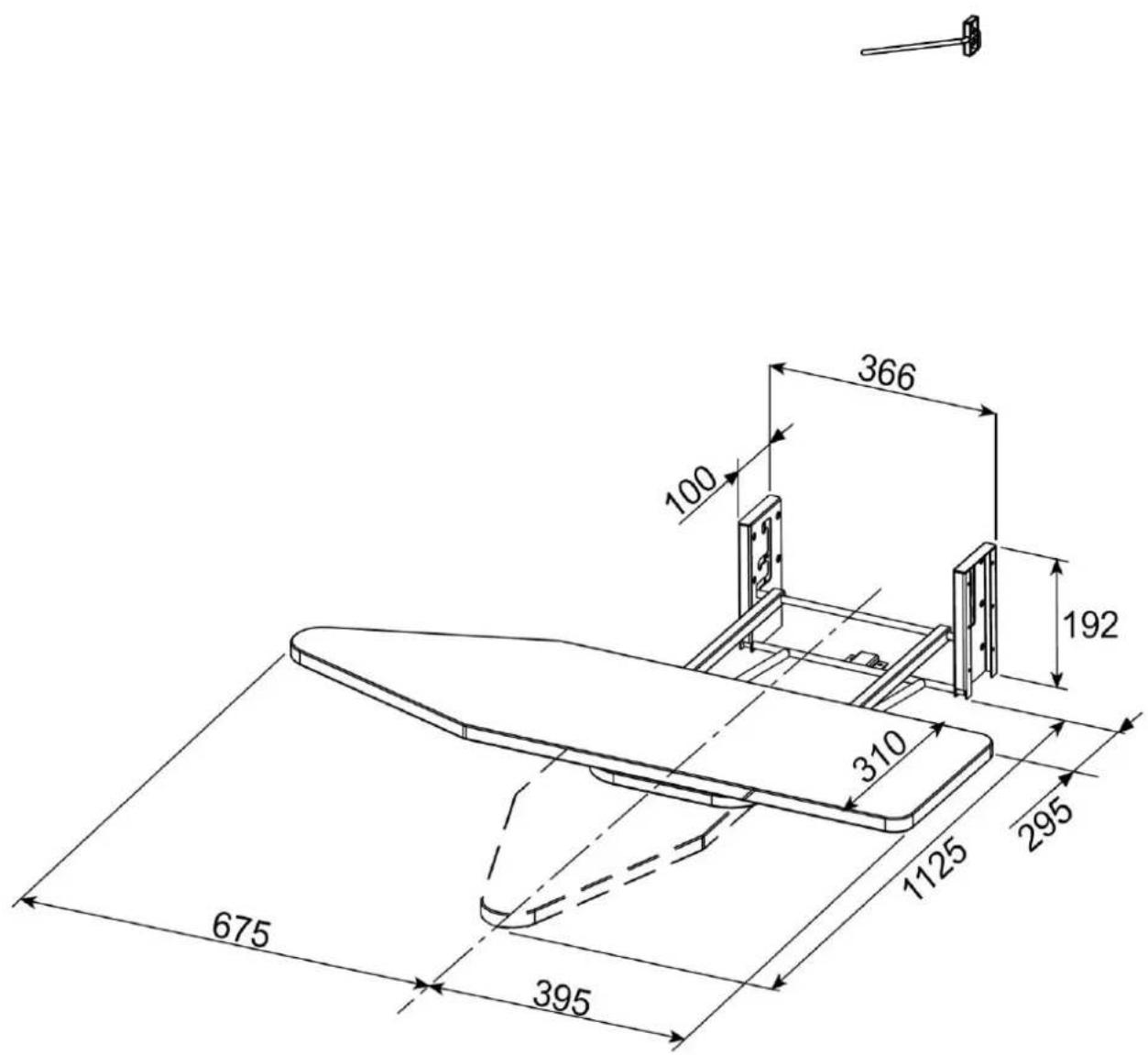

366 100 192 310 675 395 1125 295


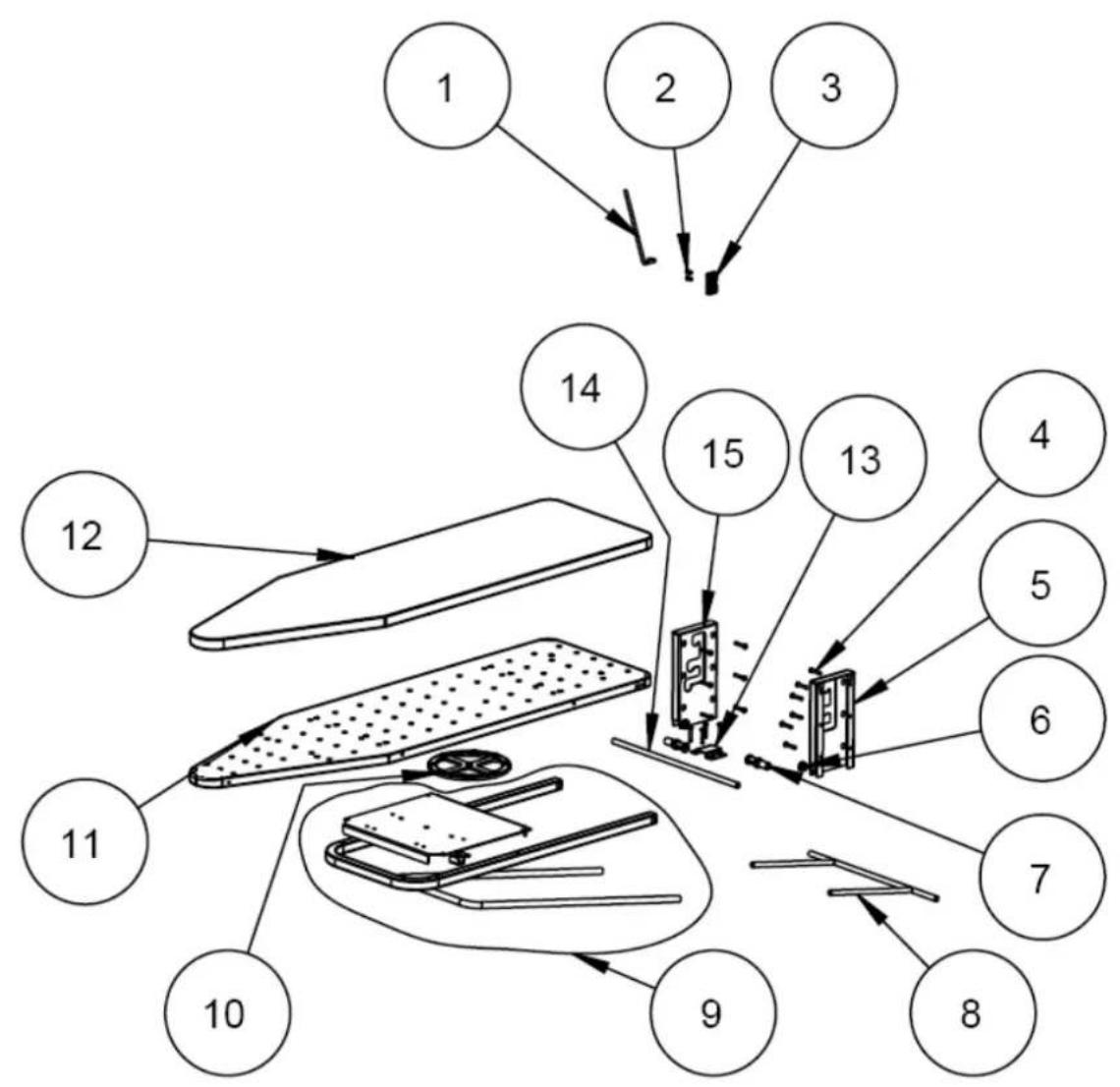

Part number

Item	Description
1	Board Retainer	107876WH
2	Screws - 6 X 34 PH ZP	*
3	Retainer Bracket Plastic	107789WH
4	Screws - 10 X ^5/_8 PAN POZI ZP
5	Height Adjustment Bracket RH	107544WH
6	Bush	107845
7	Height Adjustment Bracket RH	107544WH
8	Pivot stop	107873WH
9	Swivel Assembly	107673
9	M8 Lock Nut	999133
9	U-Bar	107875WH
9	^5/_16 X ^3/_4 Washer	999144
10	Rotational Bearing	107617
11	Ironing Board	107753WH
12	Board Cover	IBC01
13	Pivot Stop	107873WH
14	Pivot Rod	107855WH
15	Height Adjustment Bracket LH	107545WH
16	Installation Kit ICKIT	107925

Removing the ironing board

1. Remove the M8 nut under the ironing board.
2. Replace the ironing board.
3. Replace the flat washer and locknut; tighten to achieve correct locking when rotated.
