Download vejledningen til din Automatisk sprinkler i PDF-format gratis! Find din vejledning OS 3.220 - KARCHER og tag din elektroniske enhed tilbage i hånden. På denne side er alle dokumenter nødvendige for brugen af din enhed offentliggjort. OS 3.220 af mærket KARCHER.

BRUGSANVISNING OS 3.220 KARCHER

KARCHER OS 3.220 - 1

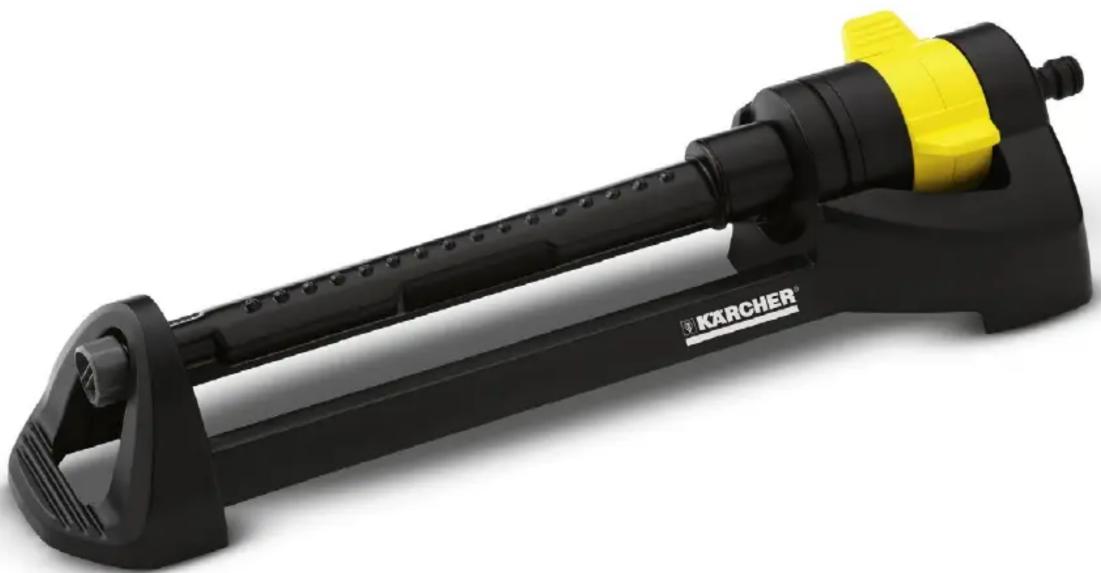

natural_image Black and yellow Karcher water spray tool with handle and spout (no text or symbols visible on body)

Oscillating sprinkler OS 3.220

Oscillating sprinkler OS 3.220 for watering medium-sized and large areas and gardens. Infinite coverage adjustment. Extremely durable gear drive. Maximum coverage: 220 m2

KARCHER OS 3.220 - Oscillating sprinkler OS 3.220 - 1

MISSING PICTURE: M:\

print\26451330_det

dd_1502x502_169918.tif

MISSING PICTURE: M:\

print\26451330_det

dd_4502x502_169920.tif

MISSING PICTURE: M:\

print\26451330_det

dd_3502x502_169919.tif

1 Continuous reach adjustment

- Precise watering.

3 Includes cleaning needle

For easy cleaning of the nozzles

2 Loop for hanging the device integrated into the handle

For simple storage/hanging.

KARCHER OS 3.220 - Oscillating sprinkler OS 3.220 - 2

natural_image Exterior view of a modern sprinkler on a grassy field with water spray, no text or symbols visible

Oscillating sprinkler OS 3.220

  • Adjustable spray pattern on swivel arm
    Spray nozzle cleaner
  • Suspension brackets for secure storage
    ■ Dirt-resistant, long-lasting gear
    Max. irrigation area (4 bar): 220 m

Technical data

Order no. 2.645-133.0
EAN code4039784426337
Sprinkling area (2 bar)45 - 120 m^2
Sprinkling area (4 bar)80 - 220 m^2
Width of spray (2 bar) m9
Width of spray (4 bar) m13
Area coverage (2 bar) m5 / 14
Area coverage (4 bar) m6 / 17
Weight kg0.43
Weight incl. packaging kg0.54
Dimensions (L x W x H) mm450 × 136 × 86

KARCHER OS 3.220 - Oscillating sprinkler OS 3.220 - 1

KARCHER OS 3.220 - Oscillating sprinkler OS 3.220 - 2

KARCHER OS 3.220 - Oscillating sprinkler OS 3.220 - 3

KARCHER OS 3.220 - Oscillating sprinkler OS 3.220 - 4

Order no. PriceDescription
Hoses
PrimoFlex® hose 1/2" - 20 m12.645-138.0 ThePrimoFlex® (1/2") flexible gardenhose is 20 m long,temperature-resistant, comes with pressure-resistant reinforcement technology and contains no substances that are harmful to health. Bursting pressure: 24 bar.☐
Hose connection systems
Universal Hose Connector with Aqua Stop22.645-192.0 Universal hose coupling with Aqua Stop. Ergonomic designfor convenient handling.☐
G3/4 tap adaptor with G1/2 reduc-er32.645-006.0 Extremely tough tap connector 3/4" thread with 1/2" threadreducer. The reducer allows connection to two thread sizes.Compatible with all click systems.☐
Universal Hose Connector42.645-191.0 Economically designed universal hose coupling for convenient handling.☐

□ Available accessories.
