BRUGSANVISNING LF-2060 L CATA
CONVENTIONAL
LF-2060 X
Cod. 02011317 EAN 8422248105231
Mechanical control panel
3 extraction levels
☐ Extraction power (according to UNE/EN 61591): 195m3/h - 107m3/h
Motor maximum airflow free outlet: 350m3/h
Sound power (Reg.(EU) n°65/2014): 56dB(A), maximum: 68dB(A)
☐ Tangential motor. Extra silent. Maximum energy consumption 65W
☐ E-14 LED lighting
□ Easy-to-install system
☐ Dishwasher-washable filters
□ Finished in stainless steel
Max. pressure 325 Pa
□ 120mm outlet diameter
Energy Class: C
▶ Accesorios (not included)
Active charcoal filter .Cod. 02846764 / EAN 8422248078276


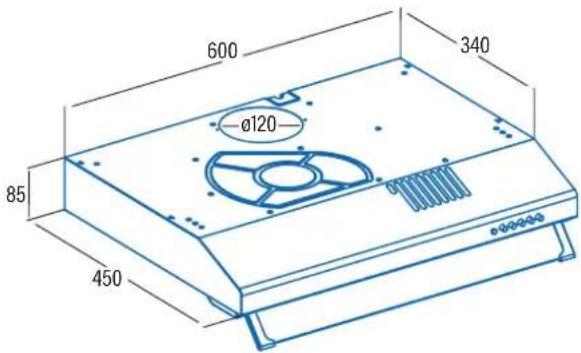

600 340 Ø120 85 450| Code | 02011317 |
| EAN | 8422248105231 |
| Model | LF-2060 X |
| Type | Standard |
| "Product fiche according to directives EU65/2014 - EN61591, EN60704-2-13, EN50564" | |
| AEC (Annual Energy consumption) (kWh/annum) | 45,1 |
| EEI class (Energy Efficiency Class) | C |
| FDE (Fluid Dynamic Efficiency) | 9,4 |
| FDE class (Fluid Dynamic Efficiency Class) | E |
| LE (Lighting Efficiency) (lux/W) | 14,5 |
| LE class (Lighting Efficiency Class) | D |
| GFF (Grease Filtering Efficiency) | 79,6 |
| GFE Class (Grease Filtering Efficiency class) | C |
| Air flow at minimum speed (m3/h) | 1075 |
| Air flow at maximum speed (m3/h) | 195,6 |
| Air flow at intensive speed (TURBO) (m3/h) | - |
| Sound Power Level at minimum speed (dB) | 56 |
| Sound Power Level at maximum speed (dB) | 69 |
| Sound Power Level at intensive speed (TURBO) (dB) | - |
| Po (Power Consumption in off mode) (W) | 0 |
| Ps (Power Consumption in standby) (W) | 0 |
| Integration directive EU 66/2014 | |
| f (Time Increase Factor) | 1,7 |
| EEI (Energy Efficiency Index) | 82,4 |
| OBEP (Flow Rate at Best Efficiency Point) (m3/h) | 116,2 |
| PEEP (Static Pressure Difference at Best Efficiency Point) (Pa) | 192 |
| WBLP (Electric Power Input at Best Efficiency Point) (W) | 66,2 |
| WL (Nominal Power Consumption of Lighting system) (W) | 5,5 |
| EMIDDLE (Average Illumination of Lighting system on Cooking surface) (lux) | 80 |
| External Dimensions | |
| Width (mm) | 600 |
| Depth (mm) | 452 |
| Total max height(mm) | 85 |
| Total min height(mm) | 85 |
| Outlet Diameter (mm) | 120 |
| Characteristics | |
| Motor | LIN |
| Extraction Levels | 3 |
| Motor Maximum Power Consumption | 65 |
| Maximum Pressure | 325 |
| Intensive Speed (TURBO) Pressure | - |
| Control Type | Mechanic |
| Automatic shut-down timer | - |
| Electronic Filter Saturation Indicator | - |
| Filter Type | Metallic |
| Anti-grease Filter Number | 2 |
| Inner Shield | - |
| Lighting | |
| Light Type | LED E-14 |
| Adjustable Intensity Lighting | - |
| N° of Lamps | 1 |
| Installation | |
| Minimum height distance to a electric worktop hob (mm) | 550 |
| Minimum height distance to a gas worktop hob (mm) | 650 |
| Instalation with Outlet tube to the exterior / Recirculating | BOTH |
| Easy Instalation System | √ |
| Electric Connection | |
| Total Rush Power (W) | 65,5 |
| Rated Voltage (V) | 220-240 |
| Network Frequency (Hz) | 50 |
| Electrical Insulation Class | CLASS I |
| Plug | - |
| Accessories | |
| Upper Decorative tube Extension | - |
| White Decorative Tube | - |
| Black Decorative Tube | - |
| Island Tube Enhancer | - |
| Check Valve | 02849002 |
| MAX PRO Metal Filter | - |
| Metal Filter | 02833170 |
| DUAL Filter (metal + active charcoal) | - |
| Active Charcoal Filter | 02846764 |
| Noiseless Flexible Duct | - |
