BRUGSANVISNING SV1290 Sven

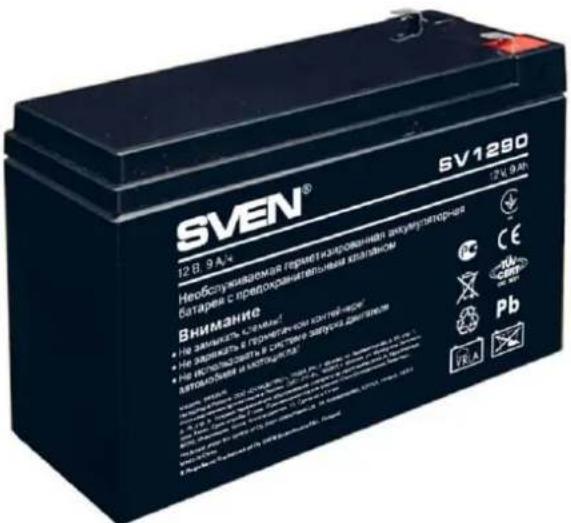

SV1290
■ AGM maintenance-free lead-acid battery
■ High-efficiency lead-calcium plates
■ Construction of fiber-glass separators stabilizes temperature of electrolyte
■ High-quality insulation of plates
■ Safe system of internal pressure regulating valves
■ Reduced self-discharge current
■ Sealed construction
■ Long cycle life both in float and cycle charge modes
■ Quality of products is guaranteed by the control of the manufacturing process in accordance with the standards
SPECIFICATION
| Nominal Voltage | 12 V |
| Nominal Capacity | 9 A·h at 20Hr-rate to 1.75V/cell |
| Approx. Weight | 2.6 Kg |
| Number of cells in battery | 6 |
| Internal Resistance | 16 mΩ (Fully Charged) at 25 °C |
| Self-Discharge | Average 3% of capacity declined per month at 25 °C |
| Operating Temp. Range | Discharge: -20 °C ~ 50 °CCharge: -15 °C ~ 40 °CStorage: -20 °C ~ 40 °C |
| Max. Discharge Current | 128 A (5 sec.) |
| Capacity Affected by Temp. | 40 °C 102%25 °C 100%0 °C 85%-15 °C 65% |
| Container Material | ABS plastic |
APPLICATION
All Purpose
UPS
Signal Light
Alarm and Security System
DC Power Supply
Auto Control System
APPLICABLE STANDARDS
IEC61056-1/2
JIS C8702-2003
GB/T19639.1-2005
CHARGE PROCEDURE
| Application | Constant Voltage Charge (V/cell) | Max. Charge Current | ||
| Temperature | Set Point | Allowable Range | ||
| Cycle Use | 25 °C | 2.425 | 2.40~2.45 | 0.3C |
| Standby Use | 25 °C | 2.275 | 2.25~2.30 | |
DISCHARGE CURRENT VS. DISCHARGE VOLTAGE
| Final Discharge Voltage (V/cell) | 1.75 | 1.70 | 1.60 |
| Discharge Current (A) | 0.2C>(A) | 0.2C<(A)<1C | (A)>1C |
OUTER DIMENSION
■ Length 151 ± 1.5
■ Width
65 ± 1.5
■ Height 94 ± 1.5
■ Total height 98 ± 2
Unit: mm
Terminal F2


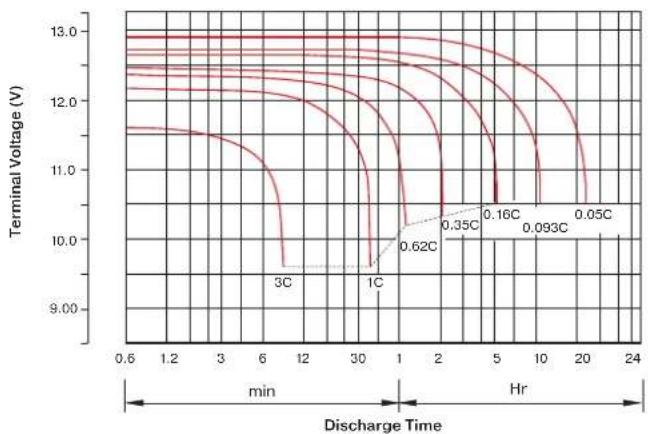

3.6 6.2 8.1 0.72Discharge Characteristics at 25 °C
line

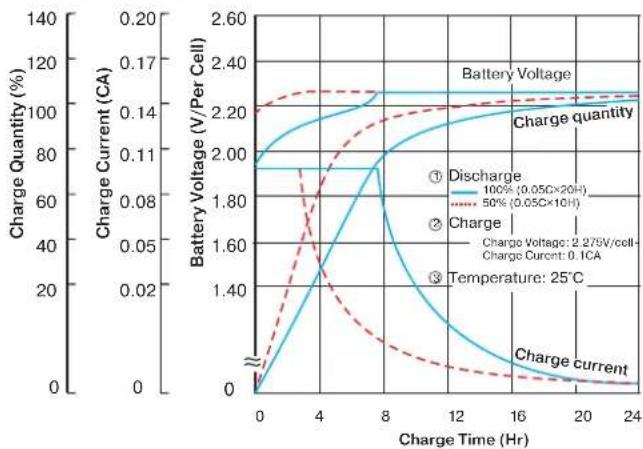

| Discharge Time | Terminal Voltage (V) | | -------------- | -------------------- | | min | 13.0 | | 6 | 12.0 | | 30 | 11.0 | | 1 | 10.0 | | 2 | 9.5 | | 5 | 9.0 | | 10 | 9.0 | | 20 | 9.0 | | 24 | 9.0 |Charge characteristics (Standby use)
line

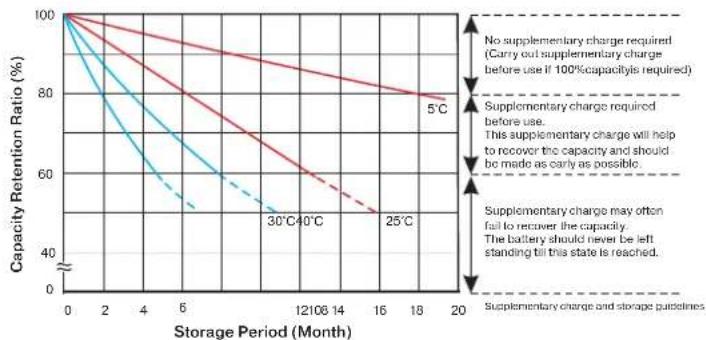

| Charge Time (Hr) | Charge Quantity (%) | Battery Voltage (V/Per Cell) | | ---------------- | ------------------- | ---------------------------- | | 0 | 0 | 2.2 | | 4 | 0.08 | 2.2 | | 8 | 0.11 | 2.2 | | 12 | 0.14 | 2.2 | | 16 | 0.17 | 2.2 | | 20 | 0.19 | 2.2 | | 24 | 0.20 | 2.2 |Capacity Retention Characteristics
line

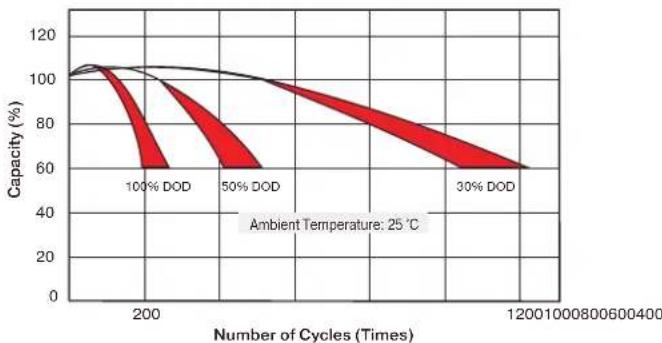

| Storage Period (Month) | 5°C Retention Ratio (%) | 30°C Retention Ratio (%) | 25°C Retention Ratio (%) | | ---------------------- | ------------------------ | ------------------------- | ------------------------- | | 0 | 100 | 100 | 100 | | 2 | ~98 | ~95 | ~90 | | 4 | ~96 | ~85 | ~75 | | 6 | ~94 | ~75 | ~65 | | 8 | ~92 | ~65 | ~55 | | 10 | ~90 | ~55 | ~45 | | 12 | ~88 | ~45 | ~35 | | 14 | ~86 | ~35 | ~25 | | 16 | ~84 | ~25 | ~15 | | 18 | ~82 | ~15 | ~5 | | 20 | ~80 | ~5 | ~0 |Cycle Service Life
line
| Number of Cycles (Times) | Capacity (%) | | ------------------------ | ------------ | | 200 | 100 | | 50 | 60 | | 1200 | 60 |Constant Current (CC, Unit: A) & Constant Power (CP, Unit: W) Discharge Table at 25 °C
| F.V.(V/cell) | TimeModel | 5 Min | 10 Min | 15 Min | 30 Min | 1 Hr | 2 Hr | 3 Hr | 4 Hr | 5 Hr | 8 Hr | 10 Hr | 20 Hr |
| 1.60 | CC(A) | 32.4 | 21.2 | 15.8 | 5.8 | 5.4 | 3.15 | 2.32 | 1.86 | 1.58 | 1.04 | 0.85 | 0.47 |
| CP(W) | 382 | 240 | 182 | 110 | 62 | 36.5 | 26.81 | 21.53 | 18.26 | 12.04 | 9.86 | 5.40 | |
| 1.70 | CC(A) | 29.7 | 20.3 | 14.5 | 9.8 | 5.1 | 3.02 | 2.25 | 1.80 | 1.55 | 1.02 | 0.84 | 0.45 |
| CP(W) | 360 | 227 | 171 | 109 | 59 | 35.0 | 26.06 | 20.85 | 17.93 | 11.85 | 9.68 | 5.25 | |
| 1.75 | CC(A) | 27.0 | 19 | 13.5 | 9.5 | 4.9 | 2.96 | 2.21 | 1.71 | 1.54 | 1.01 | 0.83 | 0.45 |
| CP(W) | 347 | 221 | 163 | 108 | 57 | 34.3 | 25.61 | 19.80 | 17.81 | 11.74 | 9.60 | 5.21 | |
| 1.80 | CC(A) | 26 | 18.2 | 12.6 | 9.3 | 4.7 | 2.89 | 2.18 | 1.68 | 1.46 | 0.99 | 0.81 | 0.44 |
| CP(W) | 304 | 214 | 157 | 108 | 55 | 33.6 | 25.31 | 19.56 | 17.03 | 11.25 | 9.38 | 5.10 | |
| 1.85 | CC(A) | 304 | 17.1 | 11.7 | 9 | 4.6 | 2.81 | 2.06 | 1.65 | 1.4 | 0.96 | 0.79 | 0.43 |
| CP(W) | 294 | 207 | 150 | 107 | 54 | 33.4 | 24.56 | 19.5 | 16.65 | 10.87 | 9.19 | 5.06 |
Note: The above data are average values, and can be obtained with 3 charge/discharge cycles.
