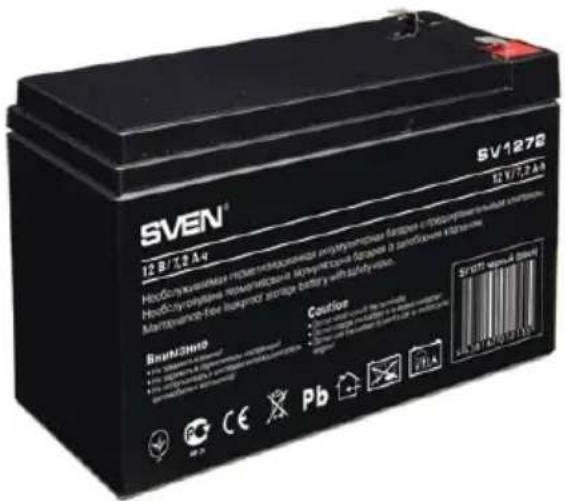

SVEN® 12 V/7,2 Aq No碰-junk-wainne-rememink-wainne inklur-mirken banken e smelkurs-mirken banken Hindolus-rugulana neomink-wainne inklur-mirken banken e smelkurs-mirken banken Maintenance-free inklurrost storage battery with safety warning. Bhinalno Cautone +/- 300V or -500V or -1000V or -1500V or -2000V or -2500V or -3000V or -3500V or -4000V or -4500V or -5000V or -5500V or -6000V or -6500V or -7000V or -7500V or -8000V or -8500V or -9000V or -9500V or -10000V or -10500V or -11000V or -11500V or -12000V or -12500V or -13000V or -13500V or -14000V or -14500V or -15000V or -15500V or -16000V or -16500V or -17000V or -17500V or -18000V or -18500V or -19000V or -19500V or -20000V or -20500V or -21000V or -21500V or -22000V or -22500V or -23000V or -23500V or -24000V or -24500V or -25000V or -25500V or -26000V or -26500V or -27000V or -27500V or -28000V or -28500V or -29000V or -29500V or -30000V or -30500V or -31000V or -31500V or -32000V or -32500V or -33000V or -33500V or -34000V or -34500V or -35000V or -35500V or -36000V or -36500V or -37000V or -37500V or -38000V or -38500V or -39000V or -39500V or -40000V or -40500V or -41000V or -41500V or -42000V or -42500V or -43000V or -43500V or -44000V or -44500V or -45000V or -45500V or -4600SV1272
FEATURES
■ AGM maintenance-free lead-acid battery
■ High-efficiency lead-calcium plates
■ Construction of fiber-glass separators stabilizes temperature of electrolyte
■ High-quality insulation of plates
■ Safe system of internal pressure regulating valves
■ Reduced self-discharge current
■ Sealed construction
■ Long cycle life both in float and cycle charge modes
■ Quality of products is guaranteed by the control of the manufacturing process in accordance with the standards
SPECIFICATION
| Nominal Voltage | 12 V |
| Nominal Capacity | 7,2 A·h at 20Hr-rate to 1.75V/cell |
| Approx. Weight | 2.14 Kg |
| Number of cells in battery | 6 |
| Internal Resistance | 18 mΩ (Fully Charged) at 25 °C |
| Self-Discharge | Average 3% of capacity declined per month at 25 °C |
| Operating Temp. Range | Discharge: -20 °C ~ 50 °CCharge: -15 °C ~ 40 °CStorage: -20 °C ~ 40 °C |
| Max. Discharge Current | 105 A (5 sec.) |
| Capacity Affected by Temp. | 40 °C 102%25 °C 100%0 °C 85%-15 °C 65% |
| Container Material | ABS plastic |
APPLICATION
All Purpose
UPS
Signal Light
Alarm and Security System
DC Power Supply
Auto Control System
APPLICABLE STANDARDS
IEC61056-1/2
JIS C8702-2003
GB/T19639.1-2005
CHARGE PROCEDURE DISCHARGE CURRENT VS. DISCHARGE VOLTAGE
| Application | Constant Voltage Charge (V/cell) | Max. Charge Current | ||
| Temperature | Set Point Allowable Range | |||
| Cycle Use | 25°C | 2.425 | 2.40~2.45 | 0.3C |
| Standby Use | 25°C | 2.275 | 2.25~2.30 | |
| Final Discharge Voltage (V/cell) | 1.75 1.70 | 1.60 | |
| Discharge Current (A) | 0.2C>(A) 0.2C<(A)<1C (A)>1C | ||
OUTER DIMENSION
■ Length 151 ± 1.5
Width 65 ± 1.5
Height 94 ± 1.5
■ Total height 98 ± 2
Unit: mm
Terminal F2
Discharge Characteristics at 25 °C
line

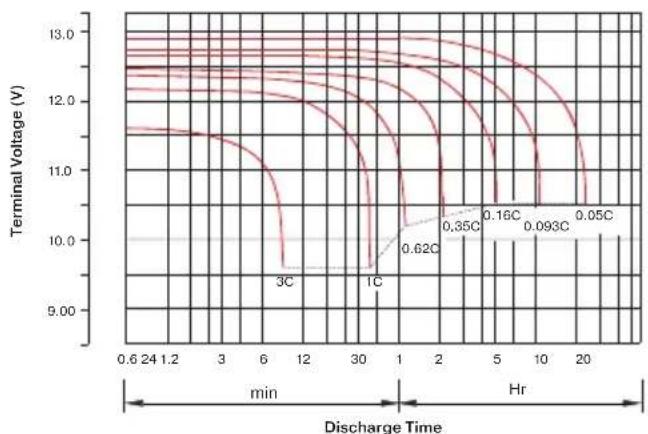

| Discharge Time | Terminal Voltage (V) | | -------------- | -------------------- | | 0.6 | ~12.5 | | 24 | ~12.5 | | 1.2 | ~12.5 | | 3 | ~12.5 | | 6 | ~12.0 | | 12 | ~11.5 | | 30 | ~10.5 | | 6 | ~9.5 | | 1 | ~10.0 | | 2 | ~10.5 | | 5 | ~11.0 | | 10 | ~11.5 | | 20 | ~12.0 | | 24 | ~12.5 |Charge characteristics (Standby use)
line

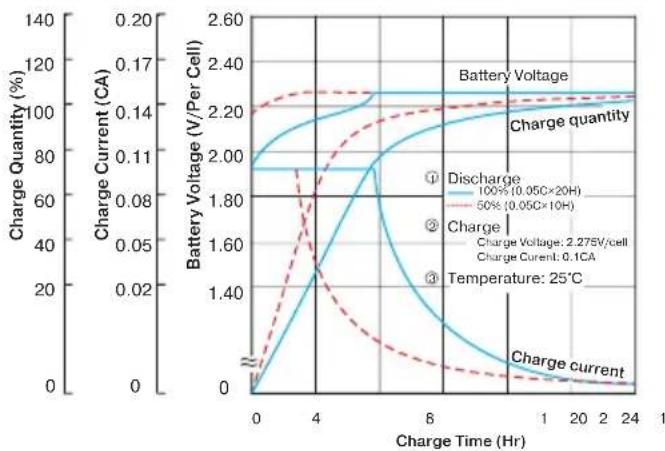

| Charge Time (Hr) | Charge Current (%) | Battery Voltage (V/Per Cell) | | ---------------- | ------------------ | ---------------------------- | | 0 | 0 | 0 | | 4 | 1.80 | 2.275 | | 8 | 1.40 | 2.275 | | 12 | 1.00 | 2.275 | | 16 | 0.60 | 2.275 | | 20 | 0.30 | 2.275 | | 24 | 0.10 | 2.275 |Capacity retention characteristics
line

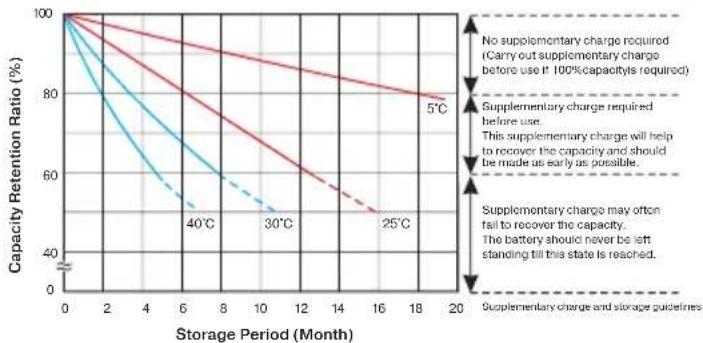

| Storage Period (Month) | No supplementary charge required (Carry out supplementary charge before use if 100% capacity is required) | Supplementary charge required before use. This supplementary charge will help to recover the capacity and should be made as early as possible. | Supplementary charge may often fail to recover the capacity. The battery should never be left standing till this state is reached. | | ---------------------- | ---------------------------------------------------------------------------------- | ---------------------------------------------------------------------------------- | ---------------------------------------------------------------------------------- | | 0 | 100 | 100 | 100 | | 2 | ~98 | ~95 | ~90 | | 4 | ~95 | ~85 | ~75 | | 6 | ~92 | ~75 | ~60 | | 8 | ~90 | ~65 | ~50 | | 10 | ~88 | ~55 | ~45 | | 12 | ~85 | ~45 | ~40 | | 14 | ~83 | ~35 | ~35 | | 16 | ~80 | ~25 | ~30 | | 18 | ~78 | ~15 | ~25 | | 20 | ~75 | ~5 | ~20 |Cycle Service life
line

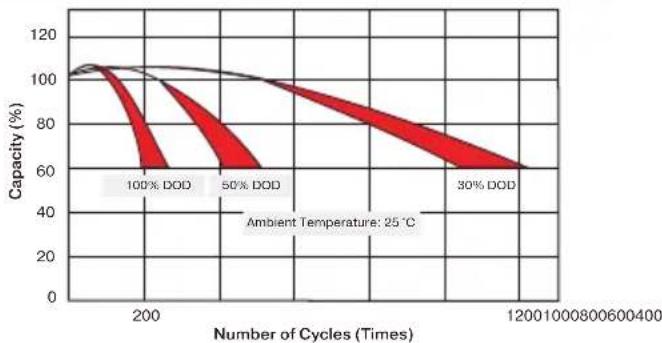

| Number of Cycles (Times) | Capacity (%) | | ------------------------ | ------------ | | 200 | 100 | | 1200 | 60 |Constant Current (CC, Unit: A) & Constant Power (CP, Unit: W) Discharge Table at 25°C
| F.V.(V/cell) | TimeModel | 5 Min | 10 Min | 15 Min | 30 Min | 1 Hr | 2 Hr | 3 Hr | 4 Hr | 5 Hr | 8 Hr | 10 Hr | 20 Hr |
| 1.60 | CC(A) | 25.2 | 16.5 | 12.3 | 8.1 | 4.2 | 2.45 | 1.8 | 1.45 | 1.23 | 0.81 | 0.66 | 0.36 |
| CP(W) | 297 | 187 | 141 | 85 | 48 | 28.4 | 20.85 | 16.74 | 14.20 | 9.36 | 7.67 | 4.20 | |
| 1.70 | CC(A) | 23.1 | 15.8 | 11.3 | 7.6 | 3.9 | 2.35 | 1.75 | 1.4 | 1.20 | 0.8 | 0.65 | 0.35 |
| CP(W) | 280 | 177 | 133 | 85 | 46 | 27.2 | 20.27 | 16.22 | 13.94 | 9.22 | 7.53 | 4.08 | |
| 1.75 | CC(A) | 21 | 14.8 | 10.5 | 7.4 | 3.8 | 2.3 | 1.72 | 1.33 | 1.20 | 0.79 | 0.64 | 0.35 |
| CP(W) | 270 | 172 | 127 | 84 | 44 | 26.7 | 19.92 | 15.4 | 13.85 | 9.13 | 7.47 | 4.05 | |
| 1.80 | CC(A) | 20.2 | 14.1 | 9.8 | 7.2 | 3.7 | 2.25 | 1.69 | 1.31 | 1.14 | 0.77 | 0.63 | 0.34 |
| CP(W) | 237 | 166 | 122 | 84 | 43 | 26.1 | 19.69 | 15.21 | 13.24 | 8.75 | 7.29 | 3.97 | |
| 1.85 | CC(A) | 18.7 | 13.3 | 9.1 | 7.0 | 3.6 | 2.19 | 1.6 | 1.28 | 1.09 | 0.75 | 0.61 | 0.33 |
| CP(W) | 229 | 161 | 116 | 83 | 42 | 26.0 | 19.1 | 15.17 | 12.95 | 8.46 | 7.15 | 3.94 |
Note: The above data are average values, and can be obtained with 3 charge/discharge cycles.
