BRUGSANVISNING LC97FLP60I SIEMENS

iQ500, wall-mounted cooker hood, 90 cm, clear glass black printed LC97FLP60I

Exterior view of a Siemens air conditioner tower with control panel and indicator lights (no text or symbols on main structure)

HZG9AS00S Adapter

LZ00XXP00 Long Life odor filter (replacement)

LZ10AFR00 Long Life recirculation kit (chimless)

LZ10AFS00 Long Life recirculation kit

LZ10AXK50 Chimney extension 1000 mm

LZ10AXL50 Chimney extension 1500 mm

LZ11AFB16 Clean Air Plus odor filter (replacement)

LZ11AFI16 Clean Air Plus recirculation kit

LZ11AFV16 Clean Air Plus recirc. kit (chimless)

LZ11AXC56 Clean Air Plus recirc. kit external

LZ11AXE61 Chimney standard black

LZ31XXB16 Clean Air Plus odor filter (replacement)

The wall-mounted chimney hood: mount it on the wall, giving you complete freedom in your kitchen planning.

√ iQdrive motor - The quiet, high-performance motor ensures efficient removal of odours and steam.
√ LED light: Optimal visibility and atmosphere when cooking.
√ The power level and the LED light can be selected directly – touchControl
√ Pleasantly quiet - motor.
√ Intensive setting with automatic after revert setting

Typology: ....Wall-mounted

Length electrical supply cord: 130.0 cm

Height of product, without chimney: 430 mm

Net weight: 21.7 kg

Type of control: Electronic

Number of speed settings: 3-stage + 2 intensive

Maximum output air extraction: 394 m³/h

Boost position output recirculating: 404 m ^3 /h

Maximum output recirculating air: 249 m³/h

Boost position air extraction: 717 m³/h

Number of lights: 2

Noise level: 57 dB(A) re 1 pW

Diameter of air outlet: 120 / 150 mm

Grease filter material: Washable aluminium

Odour filter: No

Air circulation: ......Convertible

Optional accessories: HZG9AS00S,

LZ00XXP00, LZ10AFR00, LZ10AFS00, LZ10AXK50, LZ10AXL50,

LZ11AFB16, LZ11AFI16, LZ11AFV16, LZ11AXC56, LZ11AXE61, LZ31XXB16

Type of lamps used: LED

Grease filter type: Multilayer cassette

Connection Rating: 143 W

Fuse protection: 10 A

Voltage: 220-240 V

Frequency: 50; 60 Hz

Plug type: ......India plug (6 Ampere)

Type: Wall-mounted

Material body: Glass, Lacquered

Plug type: ......India plug (6 Ampere)

Dimensions of the product, with chimney (if exists) (in): ......x x

Dimensions of the packed product: 21.25 x 29.13 x 40.94

Net weight: 48.000 lbs

Gross weight: 64.000 lbs

Motor location:....Integrated motor in hood body

No-return airflow flap: Yes

Length electrical supply cord: 130.0 cm

Dimensions of the product, with chimney (if exists): ..500 x 890.0 x 263.0 mm

Dimensions of the packed product (HxWxD): .540 x 740 x 1040 mm

Net weight: 21.7 kg

Gross weight: 29.0 kg

Delay Shut off modes: 10 min

iQ500, wall-mounted cooker hood, 90 cm, clear glass black printed LC97FLP60I

Variant

• LC97FLP60I black
• For wall mounted installation
• Flat brand design

Design

• black Flat brand design
• Touch control with 2x7-segment
  • Steel filter cover, dishwasher safe

Technical information

• 3 speeds plus 2 intensive
• Maximum extraction power 412 m³/h (freeblowing)
- 2 x LM3-01_LED_1,5W
- Suitable for ducted and re-circulating operation only
• Recirculation kit or clean air kit

Comfort

• Noise min./max. Normal Level: 43/57 dB
  • Light Intensity: 225 lux
  • Colour Temperature: 3500 K

Dimensions:

• 90 cm black Flat brand design hood

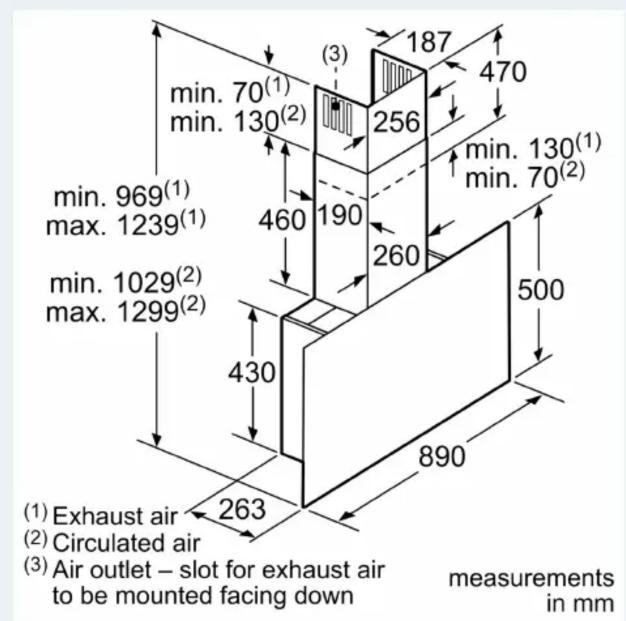

• Dimensions exhaust air (HxWxD): 969-1239 x 890 x 263 mm

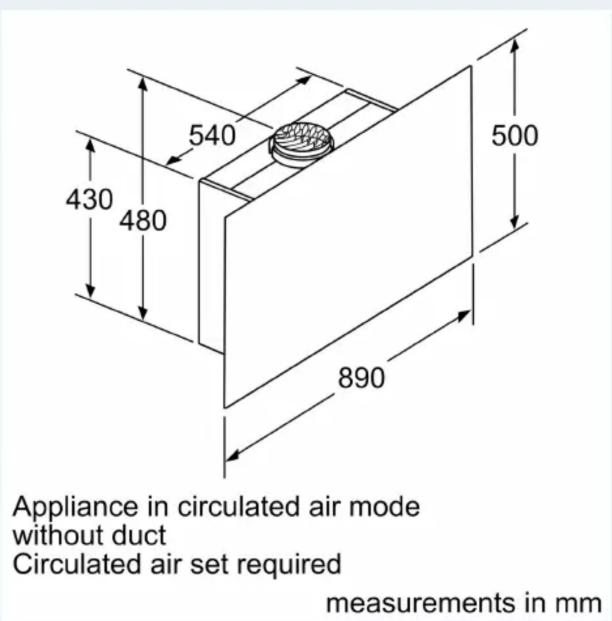

• Dimensions recirculating (HxWxD): 1029-1299 x 890 x 263 mm
• Diameter pipe ∅ 150 mm (∅ 120 mm enclosed)

iQ500, wall-mounted cooker hood, 90 cm, clear glass black printed LC97FLP60I

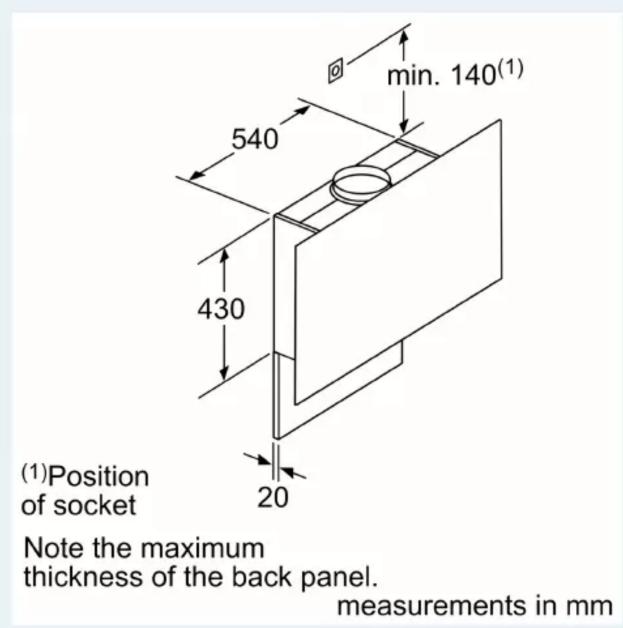

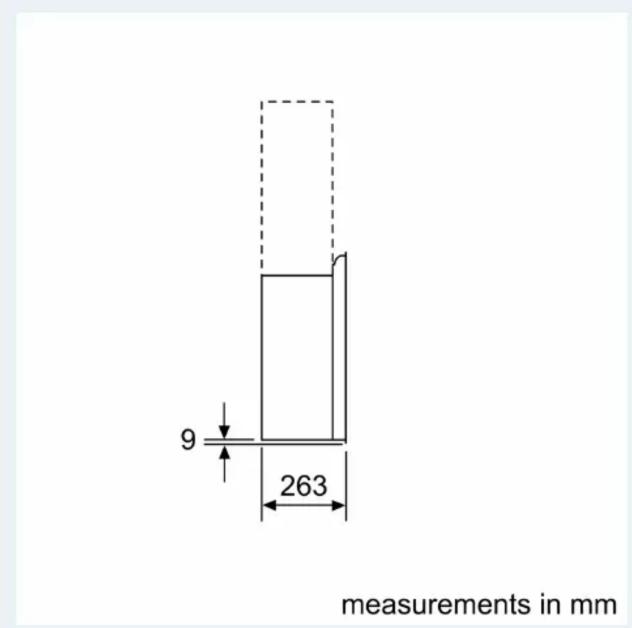

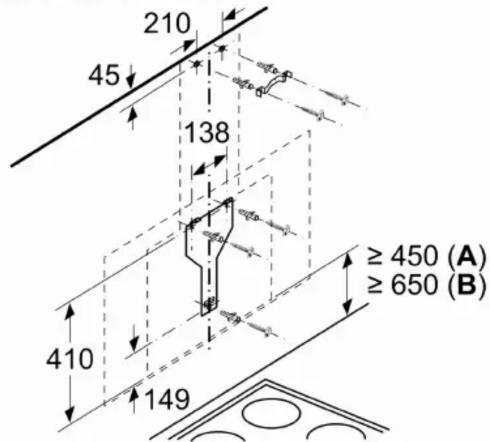

Measurements in mm

From upper edge of pan support

A: Electric

B: Gas

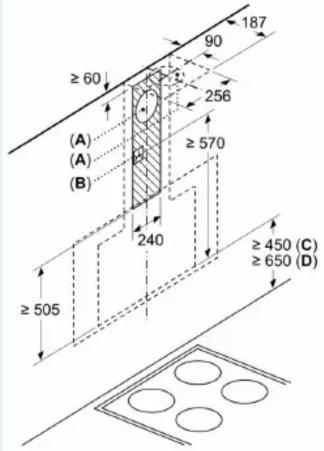

Measurements in mm

A: Exhaust air

B: Socket

From upper edge of pan support

C: Electric

D: Gas
