B322S, B330P, B530P/S, B842S, B948S - Storage Bins
Modular Storage Bins
Features
- New sleek, contemporary styling. A perfect match to Prodigy Plus® cube ice machines and other Scotsman ice machines.
• Convenient, built-in scoop holder. - Easily removable baffle, no tools required for cleaning.
Lightweight. - Unique recessed drain fitting for maximum installation flexibility.
Corrosion resistant.
• Spring loaded door with hidden hinges for easy opening and closing (except for B230P).
• Available in metallic finish or durable rotocast plastic. - Ice scoop included.
Storage Capacity
| B322S | B330P | B530P/S | B842S | B948S |
| Application Capacity | Application Capacity | Application Capacity | Application Capacity | Application Capacity |
| 370/168 lb/kg | 344/156 lb/kg | 536/244 lb/kg | 778/353 lb/kg | 893/406 lb/kg |
Application capacity is based on 90% of total volume in cubic feet x 34 lb/ft ^-1

Polyurethane Insulation
Foam insulation is forced between the wall and liner under heat and pressure to form a perfect wall to wall bond, preserving ice supply for long periods.

Bin Interior
The polyethylene bin interior is sanitary and easy to clean. Resists scratches and scuffs from ice scoops.

Warranty
• 3 years parts and labor on all components.
- Warranty valid in North, South & Central America for commercial installations.
- Contact factory for warranty in other regions.
• Residential Applications: 1 year parts and labor


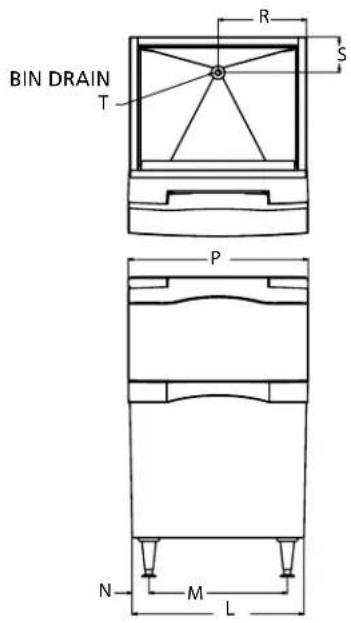

BIN DRAIN T R S P N M LInstallation Note: Allow 6" space at back for utility connections.


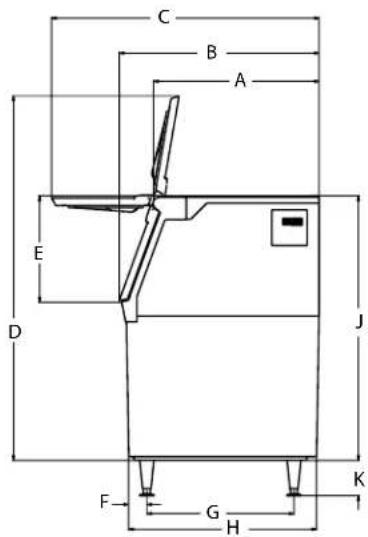

C B A E D J F G H K
Dimensions
| Model # | A | B | C | D | E | F | G | H | J | K | L | M | N | P | R | S | T |
| B322S | 28.23 | 34 | 45.5 | 61.24 | 18 | 3.88 | 25 | 32.75 | 44 | 6 | 22 | 15.5 | 3.25 | 22.5 | 11 | 6 | .75 NPT |
| B330P | 28.15 | 34 | 45.5 | 47.24 | 18 | 3.33 | 25 | 32.42 | 31 | 6 | 30 | 23.5 | 3.08 | 30.5 | 15 | 6 | .75 NPT |
| B530P/S | 28.15 | 34 | 45.5 | 61.24 | 18 | 3.09 | 25 | 31.93 | 44 | 6 | 30 | 23.5 | 2.83 | 30.5 | 15 | 6 | .75 NPT |
| B842S | 28.07 | 34 | 45.5 | 61.87 | 18 | 3.88 | 25 | 32.75 | 44 | 6 | 42 | 35.5 | 3.25 | 42.5 | 21 | 6 | .75 NPT |
| B948S | 28.05 | 34 | 45.5 | 61.24 | 18 | 3.88 | 25 | 32.75 | 44 | 6 | 48 | 41.5 | 3.25 | 48.5 | 24 | 6 | .75 NPT |

Overall Dimensions
| Model # Carton (W x D x H)* | |
| B322S | 22" x 34" x 44" |
| B330P | 30" x 34" x 31" |
| B530P | 30" x 34" x 44" |
| B530S | 30" x 34" x 44" |
| B842S | 42" x 34" x 44" |
| B948S | 48" x 34" x 44" |
* Add 6" Height for bin legs.

Shipping Information
| Model # Carton (W x D x H) Weight (lb/kg) | ||
| B322S | 26" x 36" x 49" | 140/64 |
| B330P | 33" x 36" x 35" | 90/41 |
| B530P | 33" x 37" x 49" | 110/50 |
| B530S | 33" x 37" x 49" | 150/68 |
| B842S | 45" x 36" x 49" | 190/86 |
| B948S 51" x 36" x 49" 209/95 | ||

Accessories*
| Model Number | Description |
| KBC1 | Kit, bit casters for B530S, B842S, B948S and SB380.** Not for use with B322S or SB480 when using extensions. |
| KBC1P | Kit, bin casters for B330P and B530P.** |
| KLP7 | Kit, legs, 6", flanged feet, for B bins, HD dispensers, AFE, CU1/2/3 and NSE. |
| KLP8S | Kit, legs, 6", stainless steel, for B bins, HD dispensers, AFE, CU1/2/3 and NSE. |
| BGS10 | Bagger, hooks on any bin. |
| KBAG | Kit, bags, 1000, for BGS10. |
| KSEALER | Kit, tape sealer, for BGS10. |
| KTAPE | Kit, tape, 180 ft. roll, for BGS10. |
| KHOLDER | Kit, scoop holder, stainless steel. |
**3.5" Diameter, 2 locking, raises bin 4.5".
