BRUGSANVISNING 50944 KENMORE
22-50941 - 24" Convertible
22-51041 - 30" Convertible
22-51141 - 36" Convertible
• 160 CFM, two-speed rocker control
- Vented 31/4" x 10" (kit required) or ventless
(22-50183 filter required for ventless operation, sold separately)
- Requires damper kit 22-59102 for vented operation
• Work light (lamp sold separately)


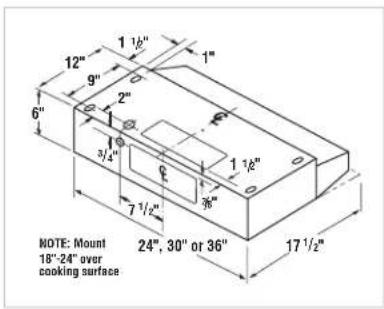

12" 9" 6" 1 1/2" 1" 2" 3/4" 7 1/2" 1 1/2" 36" 24", 30" or 36" 17 1/2" NOTE: Mount 18"-24" over cooking surface| SIZE SELECTION | KENMORE |
| 24" | 22-5094X |
| 30" | 22-5104X |
| VENTING | CONVERTIBLE |
| Vertical CFM (Rectangular / Round) | 160 |
| Horizontal CFM | 160 |
| Rectangular/ (Inches) | 312 × 10 |
| Vertical Sonos (Vented) | 6.5 |
| Horizontal Sonos (Vented) | 6.5 |
| GENERAL FEATURES | |
| Fan Type | Single |
| Control Type | Rocker |
| Speeds | 2 |
| Work Light ^11 | 75W |
| Amos | 2.0 |
| Volts | 110 - 120 |
| Shipping Weight (Approx. Lbs ) 24"-12 / 30"-12 | |
ACCESSORIES
| Aluminum Grease Filter | Included | |
| Recirculation Filter* | 24' | 22-233-50183 |
| 30" | 22-233-50183 | |
| Replacement Grease Filters ^1 (Pack of 2)** | 24' 22-233-9700693130' 22-233-97006931 | |
| Dampor Kit*** | Rectangular | 22-233-59102 |
| Range Hood Power Cord | 22-233-50300 | |
| White / Almond | 22-233-58128 | |
| Stainless Steel | 22-233-58129 | |
| Black / Bisque | 22-233-58120 | |
| Wall Cap - 3 1⁄4" x 10", Black* | 22-233-59391 | |
| Wall Cap - 6" Round, Aluminum ^1 | 22-233-59691 | |
| Roof Cap - 3 1⁄4" x 10" or up to 8" Round, Black* | 22-233-59091 | |
| Dual Transition - 3 1⁄4" x 10" to 6" Round | 22-233-59561 | |
| WARRANTY | ||
| 1 Year Limited Warranty –Entire Appliance | Parts & Labor | |
If used for other than private family purposes, warranty applies for only 90 days. †Call Sears Paris at 1 500 275 2664 †Lamps sold separately *Required for ventless operation **Requires filters (sold separately) for recirculating operation ***Required for vented operation
TYPE CFM 24" 30" WHITE STAINLESS BISQUE BLACK
| Convertible Hoods(Vented 3 1/4" x 10" Rectangular or Ventless) | 160 | • | 22-50941 22-50944 | |||
| 160 | • | 22-51041 22-51040 | 22-51049 |
RANGE HOOD ACCESSORIES
| 24" High Wall Backsplash: 30-Inch 30-Inch | ||
| White/Almond 22-58128 | 22-58138 | |
| Stainless Steel 22-58129 | 22-58139 | |
| Black/Bisque | 22-58120 | 22-58130 |
| Caps: 22-59691 - Wall Cap - 6" (Round) - Aluminum22-59391 - Wall Cap - 3 1/4" x 10" - Black22-59091 - Roof Cap - 3 1/4" x 10" or up to 8" Round - Black | ||
| Duct Transition: 22-59581 - 3 1/4" x 10" to 6" Round | ||
