BRUGSANVISNING S PLUS X CATA
S PLUS 600 X
Cod. 02060600 EAN 8422248087094
Mechanical Control Panel
3 extraction levels
Extraction power (according to UNE/EN 61591): 645m^3/h-385m^3/h
Maximum air flow (free outlet): 1150m ^3 /h
Sound power (Reg.(EU) n°65/2014): 57dB(A), maximum: 71dB(A)
Motor M3R. Extra silent. Maximum energy consumption 270W
High efficiency LED lighting
Easy-to-install system
Dishwasher-washable filters
Finished in Stainless steel
Max. Pressure 430 Pa
150/125 mm Outlet diameter
Energy Class: C
▶ Accessories (not included)
Active charcoal filter .Cod. 02859391 / EAN B422248001595
Check valve Cod. 02832001 / EAN 8422248044677
Top tube. .Cod. 02861301 / EAN 6422248031073


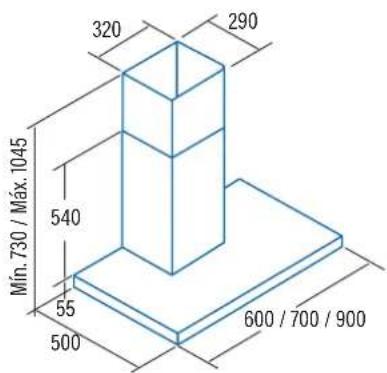

320 290 540 Mín.730 / Máx.1045 55 500 600 / 700 / 900| Code | 02060600 |
| EAN | 8422248087094 |
| Model | S PLUS 600 X |
| Type | Box |
| Product fiche according to directives EU65/2014 - EN61591, EN60704-2-13, EN50564 | |
| AEC (Annual Energy consumption) (kWh/annum) | 102,5 |
| EEI class (Energy Efficiency Class) | C |
| FDE (Fluid Dynamic Efficiency) | 16,3 |
| FDE class (Fluid Dynamic Efficiency Class) | D |
| LE (Lighting Efficiency) (lux/W) | 36 |
| LE class (Lighting Efficiency Class) | A |
| GFF (Grease Filtering Efficiency) | 88,5 |
| GFE Class (Grease Filtering Efficiency class) | B |
| Air flow at minimum speed (m3/h) | 385 |
| Air flow at maximum speed (m3/h) | 645 |
| Air flow at intensive speed (TURBO) (m3/h) | - |
| Sound Power Level at minimum speed (dB) | 56 |
| Sound Power Level at maximum speed (dB) | 74 |
| Sound Power Level at intensive speed (TURBO) (dB) | - |
| Po (Power Consumption in off mode) (W) | 0 |
| Ps (Power Consumption in standby) (W) | 0 |
| Integration directive EU 66/2014 | |
| f (Time Increase Factor) | 1,4 |
| EEI (Energy Efficiency Index) | 83,4 |
| OBEP (Flow Rate at Best Efficiency Point) (m3/h) | 375,3 |
| PEEP (Static Pressure Difference at Best Efficiency Point) (Pa) | 295 |
| WBLP (Electric Power Input at Best Efficiency Point) (W) | 188 |
| WL (Nominal Power Consumption of Lighting system) (W) | 7 |
| EMIDDLE (Average Illumination of Lighting system on Cooking surface) (lux) | 188,8 |
| External Dimensions | |
| Width (mm) | 600 |
| Depth (mm) | 500 |
| Total max height (mm) | 1045 |
| Total min height (mm) | 730 |
| Outlet Diameter (mm) | 150/125 |
| Characteristics | |
| Motor | M3R |
| Extraction Levels | 3 |
| Motor Maximum Power Consumption | 270 |
| Maximum Pressure | 430 |
| Intensive Speed (TURBO) Pressure | - |
| Control Type | Mechanic |
| Automatic shut-down timer | - |
| Electronic Filter Saturation Indicator | - |
| Filter Type | Metallic |
| Anti-grease Filter Number | 2 |
| Inner Shield | - |
| Lighting | |
| Light Type | EcoLed |
| Adjustable Intensity Lighting | - |
| N° of Lamps | 2 |
| Installation | |
| Minimum height distance to a electric worktop hob (mm) | 650 |
| Minimum height distance to a gas worktop hob (mm) | 650 |
| Instalation with Outlet tube to the exterior / Recirculating | BOTH |
| Easy Instalation System | √ |
| Electric Connection | |
| Total Rush Power (W) | 277 |
| Rated Voltage (V) | 220-240 |
| Network Frequency (Hz) | 50 |
| Electrical Insulation Class | CLASS II |
| Plug | EU - 2 pins |
| Accessories | |
| Upper Decorative tube Extension | 02861301 |
| White Decorative Tube | - |
| Black Decorative Tube | - |
| Island Tube Enhancer | - |
| Check Valve | 02832001 |
| MAX PRO Metal Filter | 02800917 |
| Metal Filter | 02800905* |
| DUAL Filter (metal + active charcoal) | 02800918 |
| Active Charcoal Filter | 02859391 |
| Noiseless Flexible Duct | 02893002 |
