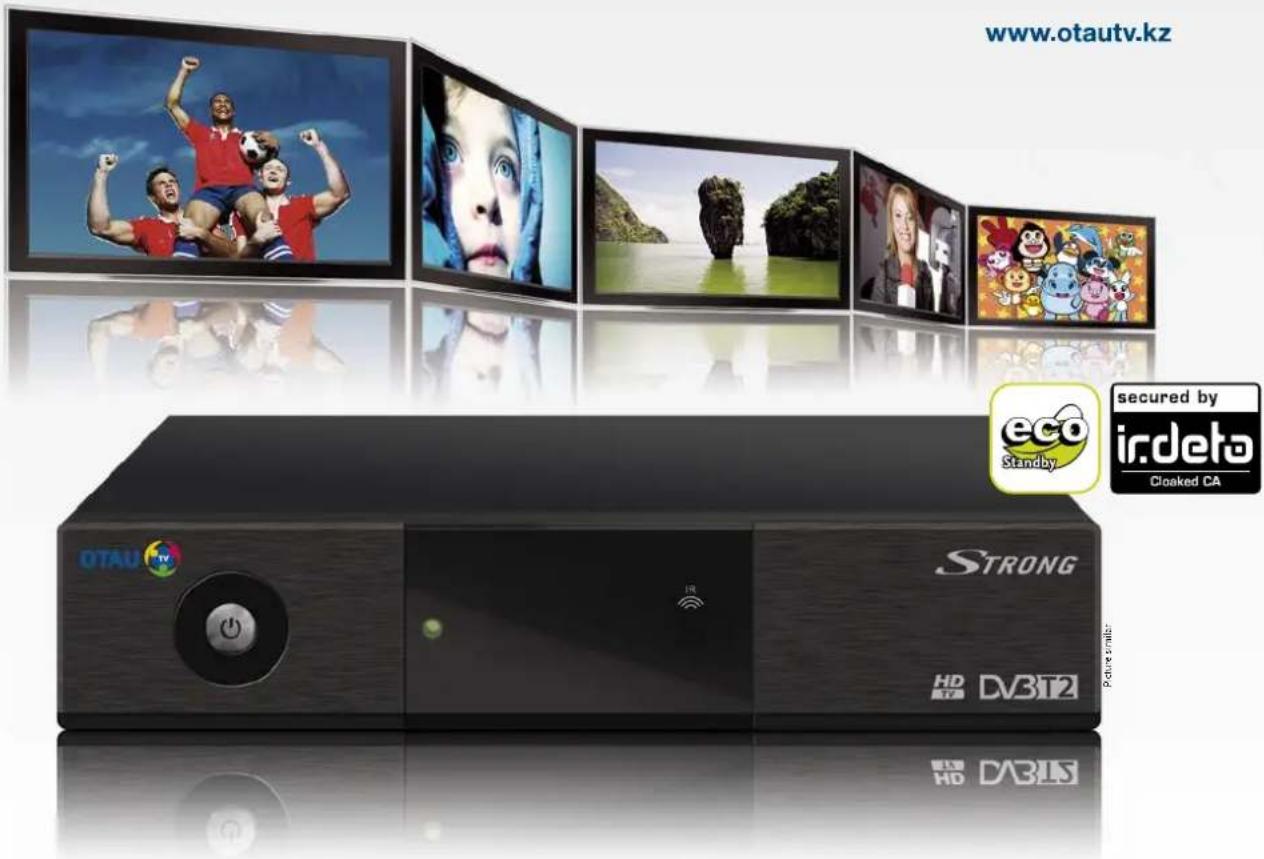

Exciting and convenient HDTV receiver

The STRONG SRT 8520 is a high-tech HD receiver for Free-to-Air and Irdeto encrypted channels via terrestrial antenna. The USB connector allows you to play video, music and photo files from external USB devices. Easy setup and use, excellent picture and audio quality, an Electronic Programme Guide (EPG), favourite lists, teletext and subtitles support make this model an excellent choice.

Digital HDTV receiver for DVB-T2 Free-to-Air TV and radio programmes*
- Cardless embedded Conditional Access System for watching programmes encrypted by Irdeto
USB port: play video***, music and photo files, update receiver software via USB storage device
400 channels memory capacity
- Channel numbering as given by the operator
- Extremely bright and clear picture and excellent sound quality

*Depending on local signal conditions. **Availability depending on broadcaster, ***STRONG cannot guarantee the playback of video files although extensions are listed, as it depends on codec used, data bit rate and resolution.

Exterior view of a black DAS3824 streaming device (no visible text or symbols on body)

Electronic TV Programme Guide (EPG) for on screen programme information of present/following event information up to 7 days**

• Booking of events directly from EPG
  ■ Energy saving: automatic standby function and low power consumption in standby
• Teletext, full multi-lingual DVB subtitling and audio track support**
  4 favourite lists for TV and radio programmes
  ■ 30 event timers with 3 modes (once, daily, weekly)
• Parental lock function for menu and rating control for channel**
  ■ Multi-lingual support on screen menu (OSD)
  ■ Aspect ratio adjustment 4:3, 16:9, Pan & Scan,

Letterbox

■ Software update via terrestrial antenna (OTA) and external USB storage device
■ Automatic and manual channel scan for TV and/or radio programmes
■ Many channel handling options: sorting, moving, locking, deleting and searching

■ Automatic channel list update

■ Power on with last viewed channel

■ Video outputs: HDMI, 3 RCA (Video, Audio L/R), TV SCART

■ Digital sound through coaxial output (S/PDIF) by connecting to digital amplifier

■ VHF/UHF tuner with loop-through
■ Support of active antenna by 5 V output
- Selectable resolution 1080p, 1080i, 720p and 576p
■ Supports MPEG-4 and H.264
Connectors: ANT IN, TO TV, HDMI, 3 RCA, TV SCART, S/PDIF coaxial, USB

*Depending on local signal conditions; **Availability depending on broadcaster; ***STRONG cannot guarantee the playback of video files although extensions are listed, as it depends on codec used, data bit rate and resolution.

248 Mujana: Undepressi adipressi prabiusen TEPV SRT SSD Supplied by STRONG & Co. Aspen 167 3 5 HDMI KAVITB ONACHO secured by ir.deta Classified CTR AC 100 - 340 B- 80-60 T- mm. 10 lb Made in China Figure similar

Tuner:

Input connector: IEC60169-2, female,

75 Ohm nominal

Input frequency range: VHF: 177.5 \~ 226.5 MHz
UHF: 474 \~ 858 MHz

Input signal level: -82 -- -25 dBm

Antenna power: 5 V DC (+/-5), max. 50 mA, short cut protected

Demodulation DVB-T/T2:

Demodulation: Compliant to DVB-T2 (EN 302 755)

Demodulation modes: QPSK, 16/64/256 QAM Bandwidth: 7 or 8 MHz

Guard interval: DVB-T2: 1/128, 1/32, 1/16,

19/256, 1/8, 19/128, 1/4 FFT mode: 1K, 2K, 4K; 8K, 16K, 32K and extended normal

Forward Error Corrections: DVB-T2: 1/2, 3/5, 2/3, 3/4, 4/5 5/6

Video decoder:

Profile: MP @ HL, MPEG-4 H.264/AVC

Input bit rate: Up to 30 Mbit/s

Aspect ratio: 4:3 and 16:9, Letterbox, Pan & Scan, Auto

Frame rate: 25 Hz for PAL

Video resolution: 576p, 720p, 1080i, 1080p

Audio decoder:

Audio support: MPEG-1 Layer 1 & 2

Audio mode: Mono L/R, Stereo

Frequency response: 20 Hz - 20 kHz, unevenness in the frequency range 60 Hz - 18 kHz + / - 0.5 dB

Sampling rate: 32, 44.1, 48 kHz

Conditional Access System:

System: Irdeto CCA

Card reader: 1 slot, conforming to ISO 7816

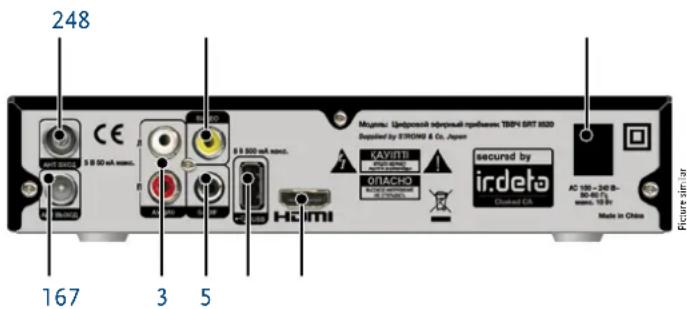

1. Antenna

1. TV set/extra receiver

(analogue signal)

1. TV/HI-FI/Amplifier

2. Digital audio amplifier

3. External USB device
4. TV (HDMI)
5. Power cable

System and Memory:

Processor: MSD5043

Flash memory: 8 MB

System Memory: 128 MB

Multimedia:

Video playback: Various file formats (MPG, MPEG, TS, VOB, MP4, AVI, MKV) *

Audio playback: MP3, WMA

Picture view: JPG, PNG, BMP

Connectors:

Antenna Input

Antenna output

3 RCA (Composite Video, Audio Left and Right)

S/PDIF (coaxial)

USB 2.0, Type A connector

HDMI Type A, Version 1.3 with HDCP

General data:

Power Supply: AC 100 – 240 V – 50/60 Hz
Power consumption: 10 W max. (with USB device connected)
Power consumption in standby: 0.70 W (without USB device connected)
Operating temperature range: 0 \~ +40°C Storage temperature: -10 \~ +50°C
Operating humidity range: 10 - 85% RH, non-condensing
Dimensions (W x D x H) in mm: 210 x 145 x 49 Weight: 0.59 kg

EAN SRT 8520: 8717185446913
