BRUGSANVISNING 15RTCSR ORION
| 15RTCSR | ||
| Display | Screen Size | 15 Inch |
| Max. Resolution | 1024 x 768 @ 75Hz | |
| Pixel Pitch | 0.297 x 0.297mm | |
| Brightness | 1000cd/m^2 | |
| Contrast Ratio | 700 : 1 | |
| Aspect Ratio | 4 : 3 | |
| Viewing Angle (H/V) | 140° / 125° | |
| Display Color | 16.2 Million | |
| Response Time | < 8ms | |
| Video System | NTSC / PAL | |
| Interface | Video In / Out (BNC Type) | 2 / 2 |
| S-Video In / Out | 1 / 1 | |
| VGA In (15Pin D-Sub) | 1 | |
| Audio In (RCA Type) | 2 (L+R) | |
| PC Stereo In | 1 | |
| Transmitter | Remote Control | Yes |
| Audio | Built-in Speakers | Yes (2W x 2) |
| Features | Filter Type | 3D Comb Filter |
| Deinterlace | Yes | |
| Noise Reduction Control (NR) | Yes | |
| Transflective Technology | Yes | |
| LED High Brightness BLU | Yes | |
| Multi-Language Support | English, Spanish, French, German, Italian | |
| Dimension | Outline Dimension (w/o Stand) | 13.7" W x 11.7" H x 2.3" D |
| Net. Weight | 4.79Kg (10.58 lbs) | |
| Cabinet | Material / Color | Electronic galvanized Iron / Black |
| Base Stand | Folding Leg | |
| Warranty | Part Labor | 2year / 2year |
| MTBF (Approx.) | 30,000 Hours | |
| Regulations | RoHS, TUV NRTL (=optional), CB, FCC (A), CE-Emc (LVD) | |
| Power | Consumption: < On | < 35W |
| Electrical Ratings | AC100 ~ 240V(50/60Hz) | |
| DC12V / 3A | ||
| Circumstance | Operating Temperature | 0 ~ 50°C / 32 ~ 122°F |
| Storage Temperature | -20 ~ 60°C / -4 ~ 140°F | |
| Mounts | VESA Mount Size | 75 x 75mm |
| Wall | WB-5, WB-10, WB-30, WB-31 | |
| Ceiling | CMK-01 | |
| Rack | RMK-08 | |
*Design and specifications are subject to change without notice
SPECIAL FEATURES
- Metal Chassis
• 3D Comb Filter, Deinterlace, Noise Reduction, Transflective Technology LED High Brightness BLU, Multi-Language Support
• 1000Nit Brightness, 700:1 Aspect Ratio - BNC Video 2 In / 2 Out, S-Video 1 In / 1 Out, VGA 1 In, Audio 2 In, PC Stereo 1 In
- 2W x 2 Built-In Speakers
• Wall and Rack Mount Kit

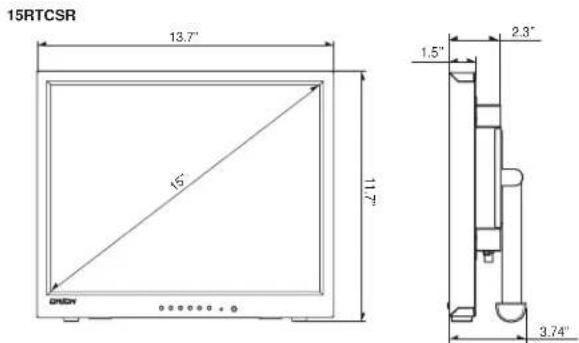

DIMENSIONS


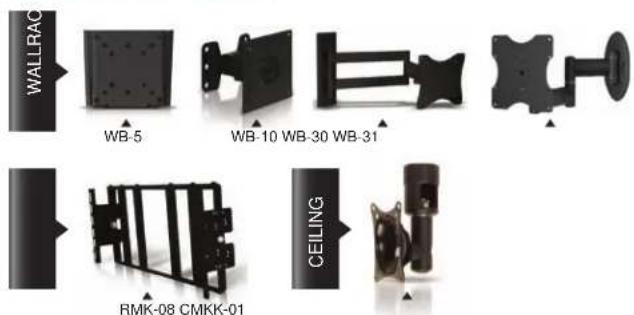

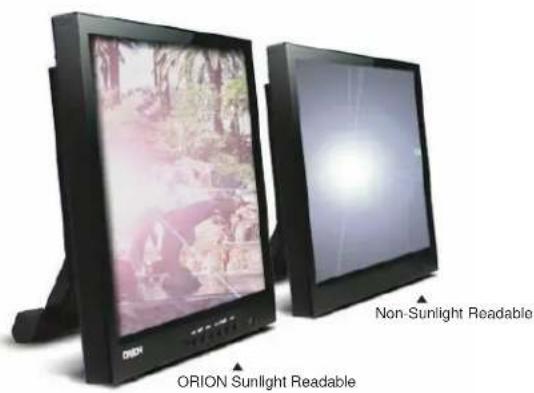

ORION Non-Sunlight Readable ORION Sunlight ReadableMOUNT OPTION
