BRUGSANVISNING VT800 Voice Technologies
VT800 Lightweight Headworn Cardioid
Voice is present and focused.
The Voice Technologies VT800 is a lightweight Cardioid headworn microphone for applications where there is an abundance of ambient sound. Much consideration has been put into the physical design of the VT800: the adjustable, gooseneck style mic boom enables the talent to stay close to monitor speakers and to produce a clear, intelligible voice over the noise.
The cable runs neatly to the back of the neck for best concealment. The headband is highly resistant to corrosion and is easy to clean.
Colors: beige or black
Application area: Presentations - Speaker - Moderator - Vocals
The VT800 comes in an elegant black case with the following accessories:
| STRAP Colors: beige or black | ||
 | WS800 | WindscreenColors: beige or black |
 | Case4 Size: 190x210x100mm | |
| Specifications Wiring Configuration (3-wire): | |
| Generating Element: | Electret Condenser |
| Polar pattern: | Cardioid |

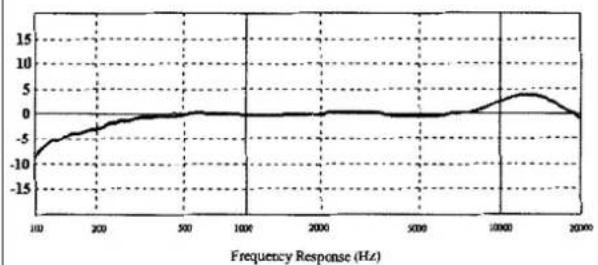

| Frequency Range: 100Hz- 10kHz | |
| Sensitivity (@1kHz): -53dB ±3dB 1V/microbar (2.2mV/Pa) | |
| Noise Level 32dB "A" weighted | |
| Max. Input SPL: 120dB based on 9V supply | |
| Impedance: 2.8 to 6.8 kOhms, nominal 4.4 kOhms | |
| Bias/+VDC: 1.5V to 9.0V (max.) | |
| Dynamic Range: 88dB | |
| Signal Noise Ratio: 62dB @94dB SPL | |
| Color: | beige or black |
| Cable: | Length 1,5m ∅ 2mm |
| Weight; | 18 g |
| Red +VDC | |
| Shield Ground | |
| Copper NF |
