BRUGSANVISNING CG9BLS Euromaid

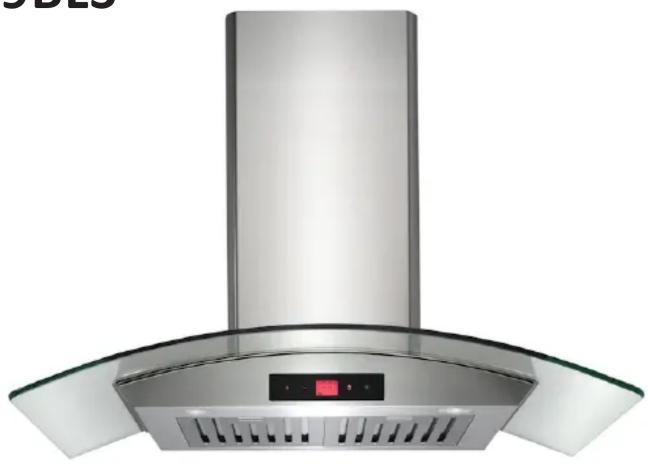

CURVED GLASS CANOPY
900mm
CG9BLS
- 1000m^3/hr
- Ducted operation
• Re-circulating operation optional*
• LED touch control
- 3 speed fan
- 2 x Baffle filters for easy cleaning - dishwasher safe
- 2 x 3 watt LED lamps cooler and longer lasting
specifications
| Airflow: | 1000m 3/hr |
| Noise level: | 65 dBA on maximum setting |
| Lighting: | 2 x 3 watt LED lamps |
| Total wattage | 270 Watts |
| *Re-circulating Kit: | IA150BRK |
| Extension Flue: | IAGXSE1 (900mm) |
| Carbon Filter: | CF260 |
Power: 220 -240 volt / 50Hz (fitted with 10amp, 3 pin plug)
Power Cord: 1.5 metre cable
Ducting Spigot size: 150mm

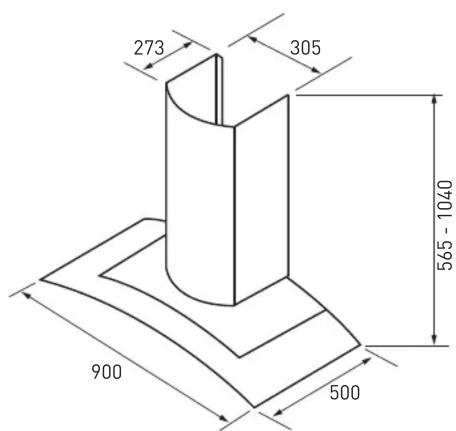

dimensions
Product Dimensions 900mm (W) x 565-1040mm (H) x 500mm (D)
warranty - customer service
Warranty
2 years Parts and Labour
Customer Service
Our Nationwide Service Team can be contacted on our Toll Free Customer Service Number 1800 805 300 or by logging on to http://customersupport.hapl.com.au/
HOME APPLIANCES
20 Carlotta Street
Artarmon NSW 2064
T: 02 9958 3111
F: 02 9958 3555
E: info@hapl.com.au
Mærke : Euromaid
Model : CG9BLS
Kategori : Emhætte
