BRUGSANVISNING Blazer Sport Sanwa

TRANSMITTER BATTERY INSTALLATION

Press down on the battery cover and slide
in the direction of the arrow to remove.
Install 8 pieces "AA" size alkaline batteries as
indicated on the battery tray. Make sure to match the polarity (+ and -) as shown in the battery.
the polarity (+ and -) as shown in the battery compartment or the transmitter will not function
Install the battery cover in place and slide to close

To Open slide cover
Sanwa Blazer Sport - TRANSMITTER BATTERY INSTALLATION - 1

Install Batteries
Sanwa Blazer Sport - TRANSMITTER BATTERY INSTALLATION - 2

To Close slide cover
Sanwa Blazer Sport - TRANSMITTER BATTERY INSTALLATION - 3

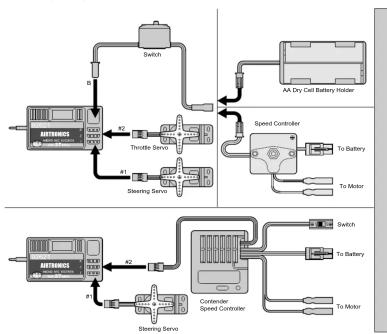

RECEIVER AND SERVO CONNECTIONS

Your Blazer or Blazer Sport R/C system is equipped with a BEC receiver to eliminate the need for a separate battery receiver pack, but you can use a separate power supply if desired for your particular model. The following diagram shows a typical connection for the servos and receiver. Note that the receiver antenna should be located at least 2^ (50 mm) away from any servo leads and switches. In electric cars, we recommend that it be at least 4^ (100mm) from the electric motor.

Extend the receiver antenna to the full length. Failure to do so will cause loss of control. Do not cut or bend the receiver antenna.
Be careful to avoid any metal parts coming in contact with the servo connectors as this will affect the performance. Insulate the connectors with tape or use tie wraps to avoid contact with metal car chassis. Please follow the model manufactures recommendations for the correct installation of your radio system in your car or boat.

Sanwa Blazer Sport - RECEIVER AND SERVO CONNECTIONS - 1
    end

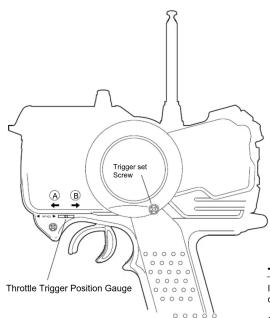

Trigger set Screw A B Control Throttle Trigger Position Gauge

Sanwa Blazer Sport - RECEIVER AND SERVO CONNECTIONS - 3

Troubleshooting Guide

If your radio system does not operate properly, please check the following items:

Make sure the batteries are properly installed and check the polarity (+ and -) again.
Check that both the transmitter and receiver power
switches are in the ON position.
Check the LED Power Indicators and make certain
that all three are on. If not, replace the batteries.
Make sure all the receiver and servo connections are tight
Make sure that the proper frequency crystals are
installed in the transmitter and receiver.

WARNINGS

DO NOT OPERATE YOUR SYSTEM IF SOMEONE

ELSE IS ON YOUR FREQUENCY AT THE SAM TIME

YOUR MODEL CAN CAUSE SERIOUS

DAMAGE OR INJURY SO PLEASE USE CAUTION

AND COURTESY AT ALL TIMES.

DO NOT EXPOSE THE RADIO SYSTEM TO WATER OR

EXCESSIVE MOISTURE

PLEASE WATER PROOF THE RECEIVER AND SERVOS

BY PLACING THEM IN PLASTIC BAGS OR A WATER

TIGHT RADIO BOX WHEN OPERATING R/C BOAT MODELS

IF YOU HAVE LITTLE OR NO EXPERIENCE OPERATING

R/C MODELS< WE STRONGLY RECOMMEND YOU SEEK

THE ASSISTANCE OF EXPERIENCED MODEL YOUR LOCAL HOPEY OUDER FOR OUR RANGE

YOUR LOCAL HOBBY SHOP FOR GUIDANCE.

AIRTRONICS® Get The Advantage

1185 Stanford Court, Anaheim, CA. 92805

Tel:(714) 978-1895 Fax:(714) 978-1540

www.Airtronics.net

Sanwa Blazer Sport - AIRTRONICS® Get The Advantage - 1

AIRTRONICS®

Get The Advantage

BLAZER

2 Channel Systems Manual

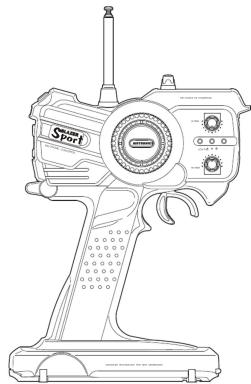

Sanwa Blazer Sport - BLAZER - 1

We appreciate your purchase of this new AIRTRONICS Blazer Sport Radio Control System. These instructions are intended to familiarize you with the many unique features of this modem, state of the art equipment. Please read them carefully so you may obtain maximum success and enjoyment from its operation.

SYSTEM FEATURES

Unique and functional pistol grip- transmitter design Well balanced for precise control Well placed trim and rate functions High power output Color LED power indicators for easy reference of battery condition Retractable transmitter antenna

Please note that the Blazer Sport is designed for comfort and precise control of all types of model cars and boats. We wish you the best of success with your radio system. Enjoy!

Servo reversing for easy installation (70/30) Throttle trigger Quick access transmitter crystal. Lightweight, high performance mini Receiver includes BEC (Battery Elim which allows the use of a common p the model and receiver High torque and high speed 94102Z Receiver dry battery holder NiCd Charger Jack in transmitter

SYSTEM SPECIFICATIONS

(A) Transmitter

Model: Blazer Sport
Output power: 500 MW
Modulation: AM/PPM
Power supply: 8 AA alkaline dry cells DC 12V
Weight: 14.46 ounces
Frequencies: 27 MHz-6 frequencies
75 MHz-30 frequencies

(B) Receiver (Mini BEC type)

Model: 92721Z (27 Mhz) or 92723Z (75 MHz) Modulation: AM/PPM Intermediate frequency: 455 KHz Power supply: DC 6.0-8.4 V Weight: 1.13 ounces Dimensions: 1.9"(L) x 1.3"(W) x .75"(H)

(C) Servo

Model: 94102Z Heavy duty standard servo Power supply: 6.0 V through BEC receiver Dimensions: 1.54"(L) x .79"(W) x 1.42"(H) Weight: 1.59 ounces Speed: 0.18 sec. at 6.0V for 60 deg rotation Torque: 50 oz./inches: Operating Voltage 4.8-6.0

(D) Accessories

97004 BEC switch harness Frequency flag Receiver dry battery holder Instruction Manual

(E) Options

96315 Contender speed controller with reverse 96720 Grip Pad 99104 Deluxe wrist strap 96305Z BL-Racer Speed Controller with reverse 96316Z F-2000 Speed Controller with reverse 96301Z ES-01 Micro Speed Controller with reverse

TRANSMITTER FUNCTIONS AND OPERATIONS

Antenna

Pull antenna up until it is fully extended before operating the system. Failure to do so can cause loss of control

Transmitter crystal

The transmitter crystal can be removed to change frequencies. Use only genuine AIRTRONICS crystals to insure proper operation.

Power switch The power switch slides up to turn on the transmitter. When operating your model always turn on the transmitter before the receiver. This will prevent the model from accidentally running away.

NiCd Charger Jack Only to be used when NiCd batteries are installed.

Attachment point for the optional 39104 Deluxe Wrist Strap.

Battery Cover Slide battery cover open as indicated on battery cover. Install batteries as indicated

on battery tray.

[Non-Text]

Sanwa Blazer Sport - Transmitter crystal - 1

Steering Dual Rate Steering dual rate is used to change steering Sensitivity (Note) Dual Rate option not on some models

Steering Wheel

Turn clockwise to make the model turn right. Turn counter clockwise to make the model turn left.

Steering Trim

Is used to adjust the neutral point for

steering operation

Throttle Trim

is used to adjust the neutral point for throttle / brake operation.

Throttle Trigger

Pull back for forward throttle. Push forward for reverse throttle/brake.

LED Power Indicators

These color indicators will give you a visual reference for the condition of the transmitter batteries.

Full ○ Green

Green be lit when the power is on and the

Red batteries are in their best condition

Mid ○ Green

are losing capacity. Use caution when operating you model, and replace the batteries as soon as possible.

Low Red

One indicator (red) will be lit when the power is on and the batteries are dead or to weak to power the transmitter. DO NOT attempt to operate your model, and replace the batteries immediately. If the batteries are improperly installed, the LED indicators will not be lit. Check your battery installation and/or individual batteries. DO NOT mix old and new batteries

[Non-Text]
