HD7300 Home Theater Projector
Projector Plus Video Processor Equals the Finest in 720p Picture Quality
The Optoma HD7300 is a top-of-the-line 720p DLP ^® home theater projector and a studio-quality imaging processor. Featuring Texas Instruments' DarkChip3 ^™ technology, the HD7300 is a unique projection system which creates vibrant, vivid images that are rich in color and contrast. The HD7300's two-piece design delivers impressive, personalized adjustment setting to achieve deep blacks, high precision and high-contrast images.


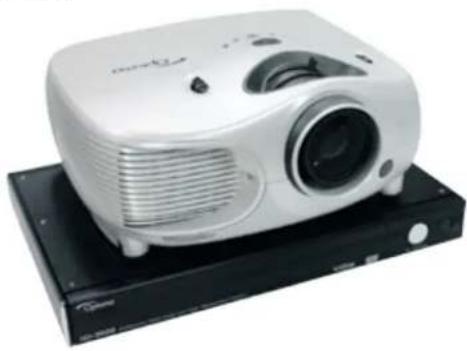

White projector mounted on a black rectangular base (no visible text or symbols)Features
■ Advanced 720p DarkChip3 DLP technology by Texas Instruments
- Bright 1000 lumens and 5000:1 (full on/off) contrast ratio delivers subtle details and vibrant images
- 4-way optical lens shift (vertical and horizontal), allows for ease and precision during projector installation
- Extensive connectivity options through image processor includes, three HDMI plus one external HDMI expansion, two BNC component YPbPr/RGBHV, two component, three s-video, three composite video, one VGA, RS-232, two 12V triggers and one IR port extension
- 10-bit video processing and advanced color enhancement, including user definable gamma, RGBCYM 6-color, 16 region adjustments and ISF _ccc color setting
- Single cable connection between projector and image processor eliminates the need for multiple cables, simplifying the installation
- Short throw lens capable of projecting 100" diagonal image from less than 10 feet
Specifications
Brightness (Typical)
1000 Lumens
Resolution
720p Native (1280 x 720)
UXGA (1600 x 1200) Compression
Contrast Ratio (Full On/Off)
5000:1
Image Processing
Motion Adaptive 480i, 576i, 720p and 1080i De-Interlacing, 10-bit Image Processing, Advanced 3D Comb Filter, Three Presets Plus Three Programmable Display Formats, Advanced Noise Reduction and Sharpening
Color Management
User Definable Gamma, RBGCYM
6-Color 16 Region Adjustment, Three
User Definable Modes Plus ISF _000 Color Settings
Lamp Life and Type
2000/3000 Hours (STD/ECO), 250W UHP
Display Type
Single 0.80" DarkChip3 0.80" DLP by Texas Instruments
Throw Ratio (Distance/Width)
1.30:1 - 1.62:1
Image Size (Diagonal)
30" to 300" (0.76 to 7.62 m)
Lens Shift
Horizontal and Vertical
Projection Distance
4.92' to 37.40' (1.5 to 11.4 m)
Computer Compatibility
SXGA, XGA, SVGA, VGA, VESA,
Macintosh and PC Compatible
Video Compatibility
Full NTSC, PAL, SECAM, True HDTV
(720p, 1080i/p) & 480i/p, 576i/p
User Controls
Advanced Adjustability Offered Through
Onscreen Display Menus
I/O Ports
Video Processor: Three HDMI Plus One
External HDMI Expansion, Two BNC
Component YPbPr/RGBHV, Two
Component, Three S-Video, Three
Composite Video, One VGA, RS-232,
Two 12V Triggers, One IR Port
Extension
Projector: DVI w/HDCP, Two Component
Video, Composite Video (RCA), S-Video,
RGB, RS-232, Dual IR Receivers
Projection Lens
f=24.0-30.1 mm, F/2.36-2.50
Noise Level
31dB/33dB (STD/ECO)
Operating Temperature
23 - 95°F (-5 - 35°C)
80% Maximum Humidity
Storage Temperature
-7 - 140°F (-20° - 60°C),
80% Maximum Humidity
Weight
Projector: 14 lbs (6.2 kg)
Video Processor: 9.2 lbs (4.2 kg)
Dimensions (W x D x H)
Projector:
13.5" x 12.5" x 5.6" (342 x 320 x 144 mm)
Video Processor:
16" x 12" x 5.5" (406 x 304 x 139 mm)
Power Consumption
370 Watts, <5 Watts in Standby Mode
Power Supply
AC Input 100 to 240 Volts, 50-60 Hz
CEDIA Features
ISF _cc2 Discrete IF Commands (On/Off,
Sources, Formats, User Settings), External
IR Input Pod, RS-232 Control,
Programmable 12V Trigger
Warranty
Three Years Limited Parts and Labor, 90 Days on Lamp
Standard Accessories
AC Power Cord, DVI to HDMI Cable,
S-Video Cable, Composite Cable, Remote
Control, Lens Cap, Two Batteries for
Remote, User's Manual, RS232 Cable and
IR Expansion
Optional Accessories
Ceiling Mount, GrayWolfII™ Series
Screens, Carrying Case and Gold Service
Warranty
UPC
796435 21 815 7
HIGH-DEFINITION LIFESTYLE
