B299 Expansion module, SDI2
www.boschsecurity.com
BOSCH
Invented for life


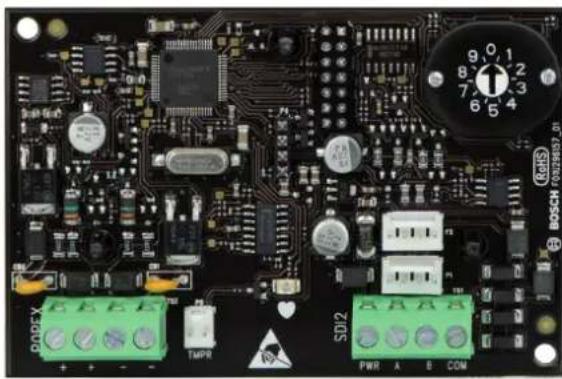

Close-up of a black printed circuit board with electronic components and a rotary dial (no readable text or symbols)The B299 POPEX Module is an SDI2 compatible device. The module communicates to the control panel over the SDI2 bus, and provides support for up to 100 POPIT (Point Of Protection Input Transponder) devices. This occurs over a single expansion loop using two pairs of terminals.
System overview
Each module installs in the control panel enclosure or in an adjacent approved enclosure. Future system expansion is very economical as the module supports zone expansion through supporting D9127U/T POPIT modules and POPIT'ed detectors. The POPIT modules can be placed anywhere along the two-wire data expansion loop from the module.
Certifications and approvals
| Region Regulatory compliance/quality marks | ||
| USA ANSI- | SIA | CP-01-2010-Control Panel Standard - Features for False Alarm Reduction |
| UL Underwriters Laboratories | ||
| UL UL 1023 - Household Burglar Alarm System Units | ||
| UL UL 1076 - Proprietary Burglar Alarm Units and Systems | ||
- Provides point identification for up to 100 connected addressable initiating devices using POPITs
▶ Supervises wiring to devices for circuit integrity
▶ Expands the number of points in the system
▶ Compact size
▶ Interconnect wiring connectors for easy installation
| Region Regulatory compliance/quality marks | |
| UL UL 1610 - Central Station Burglar Alarm Units | |
| UL UL 1635 - Standard for Digital Alarm Communicator System Units | |
| UL UL 294 - Standard for Access Control Units and Systems | |
| UL UL 365 - Police Station Connected Bur-glar Alarm Units | |
| UL UL 609 - Standard for Local Burglar Alarm Units and Systems | |
| UL UL 636 - Holdup Alarm Units and Sys-tems | |
| UL UL 864 - Standard for Control Units and Accessories for Fire Alarm Systems (10th edition) | |
| UL UL 985 - Household Fire Warning Sys-tem Units (6th edition) | |
| FM Central Station | |
| FM Local Protective Signaling | |
| FM Remote Station | |
| CSFM California Office of The State Fire Mar-shall | |
| FCC Part 15 Class B | |
Region Regulatory compliance/quality marks
| Canada ULC Underwriters Laboratories of Canada | |
| ULC CAN/ULC S303 - Local Burglar Alarm Units and Systems | |
| ULC CAN/ULC S304 - Standard for Signal Receiving Center and Premise Burglar Alarm | |
| ULC CAN/ULC S545 - Residential Fire Warning System Control Units | |
| ULC ULC-ORD C1023 - Household Burglar Alarm System Units | |
| ULC ULC-ORD C1076 - Proprietary Burglar Alarm Units and Systems | |
| IC ICES-003 - Information Technology Equipment (ITE) | |
Installation/configuration notes
Mounting
Mount the module into the enclosure's 3-hole mounting pattern using the mounting screws and mounting bracket.
Wiring
Use the control panel SDI2 terminals labeled R, Y, G, B (PWR, A, B, COM) when wiring to the module. Connect the control panel terminals to the module terminals labeled R, Y, G, B (PWR, A, B, COM). You can also use the SDI2 interconnect cable.
Compatibility
| POPIT devices D9127U/T POPIT module | |
| ZX776Z/ZX794Z PIR motion detector | |
| ZX835 TriTech motion detector | |
| ZX935Z/ZX938Z PIR motion detector | |
| ZX970 TriTech motion detector | |
| D278S 12V smoke base | |
| D298S 24V smoke base | |
| F220-B6PM POPIT smoke (master) | |
| F220-B6PS POPIT smoke base | |
Parts included
| Quantity | Component |
| 1 Module | |
| 1 Hardware pack | |
| Quantity | Component |
| 1 Interconnect cable | |
| 1 Installation manual | |
Technical specifications
Properties
| Dimensions 2.9 in x 5.0 in x 0.6 in(73.5 mm x 127 mm x 15.25 mm) |
| Weight 11.2 oz (0.30 kg) |
Environmental considerations
| Relative humidity 5% to 93% at +32°C (+90°F) |
| Temperature (operating) 0°C to +49°C (+32°F to +120°F) |
Power requirements
| Current Standby: 35 mA + total device currentAlarm: 35 mA + total device current | |
| Voltage (input) 12 VDC | |
Wiring
| Terminal wire size 12 AWG to 22 AWG (2.0 mm to 0.65 mm) |
| SDI2 wiring Maximum distance – Wire size(unshielded wire only): 200 ft (60 m) - 22 AWG (0.65 mm), 500 ft (152 m) - 18 AWG (1.02 mm) |
| POPIT loop wiring Maximum wire length: 1800 ft (548 m)- 22 AWG (0.65 mm), 4600 ft (1402 m) - 18 AWG (1.02 mm) |
Ordering information
B299 Expansion module, SDI2
Provides system expansion support for up to 100 POPIT devices Order number B299
