BRUGSANVISNING Holdall Handi

HandiHoldall™

The easy to store foldable roof box

Fitting & Safety Instructions

For use with a HandiRack ^® or Metal Roof Bars

Black-and-white circular image of a tent-like structure with open canopies, set against a forest background (no text or symbols visible)

Close-up of a person wearing a dark jacket, viewed through a circular frame (no visible text or symbols)

Black-and-white circular photo of a soccer ball resting on grass with a draped cloth in the background (no text or symbols)

Black-and-white circular image of an industrial machine with visible gears and components (no text or symbols)

HandiWorld.co.uk

Are you on the road to Handiness?

More fun, less hassle...

Before you begin please read the following safety guidelines

Please ensure that your load is carried securely at all times and in a way that will not endanger other persons or road users.

When a load is carried on the roof of a vehicle, it will change that vehicle's handling characteristics, notably its susceptibility to side winds and its behaviour on bends and under braking. It is recommended that you drive with more care, reduce your speed and allow for longer braking distances. Any heavier items stored in the HandiHoldall ^19 may be at risk of moving around during transit and therefore care should be taken to ensure that these items are secured within the HandiHoldall ^19 .

Please do not store the following items in the HandiHoldall ^™ :

• Hazardous materials or chemicals
- Food stuffs
- Sharp items
• Building materials

Liability

The following instructions must be followed carefully. Handirack UK Ltd cannot accept liability for injuries or damage caused by improper use of the product or for any application of the product not outlined within these instructions.

• The HandiHoldall ^™ is designed for use with the HandiRack ^™ or with metal roof bars using the roof bar fitting kit.
  • Intended for occasional use and shorter journeys
• Please do not exceed the maximum speed limits for the road and for your vehicle.
• Your HandiHoldall™ should not be overloaded and the contents not exceed the recommended weight limit of 50kg. If the vehicle manufacturer recommends a lower maximum load for the vehicle's roof, please use this guideline.
• Please distribute your load evenly over the base of the HandiHoldall™ and ensure that items are not free to move about whilst in transit.
• Check the tension of all fastening straps at regular intervals during travel.
• In extreme wet weather conditions, all items stored in the HandiHoldall "should be packed in plastic bags or HandiDuffels".
• Avoid removing the HandiHoldall™ from the roof of the car when it is fully loaded.
• Always remember to load your HandiHoldall ^™ from the offside of the road.
• Do not drive with the HandiHoldall™ unloaded.
• Your HandiHoldall® should always be stored in a dry place and where necessary, cleaned with a damp sponge using just warm water.

Step 1

Firstly and following the fitting guidelines, attach the HandiRack™ to the roof of the vehicle ensuring that there is a gap of 25 - 50cm between the two sets of bars. The HandiRack™ logo should be pointing towards the front of the vehicle. (1A & 1B)

Step 2

Remove the HandiHoldall™ and its component parts from the travel bag and familiarise yourself with the contents.

Step 3

Unclip the 2 x fastening belts, unroll the HandiHoldall™ and unzip the top cover.

Step 4

Detach the base cushion from the Velcro and feed the 4 x support tubes into the sleeves on the bottom - the 2 x shorter tubes on each side and the 2 x longer tubes in the middle sleeves (3 & 4). Refasten the cushion to the bottom of the HandiHoldall™ using the Velcro strips.

Step 5

Lift the HandiHoldall™ (unloaded) onto the HandiRack™. Determine which line of loops on the bottom of the bag, match the position of the 'D' ring anchor points on the front and rear sets of HandiRacks™.(5) Please note that we recommend that the front and back sections of the HandiHoldall™ sit well over both bars of each HandiRack™.(6)

Step 6

Start at the side on which the HandiRack ^™ logo is printed on the HandiRack ^™ .

Step 7

Feed the HandiStrap™ through the end 'D' ring, pass the HandiStrap™ through the first two loops on the bottom of the bag and then through the 2nd 'D' ring. Repeat this procedure along the bottom of the HandiHoldall™.[7]

Step 8

Feed the HandiStrap ^™ through the last 'D' ring on the opposing end of the HandiRack ^™ and pass the HandiStrap back through the 2nd to last 'D'.

Step 9

Load the HandiHoldall™ following the recommended guidelines and zip shut the top ensuring that the zip pulls are positioned at the back of the bag and that the top flap is secured to the Velcro on the lower section of the HandiHoldall.

Step 10

Pass the HandiStrap ^™ through the side loop and the loops on the top of the bag. Repeat this process for the rear section. (10).

Pass the HandiStrap ^™ through the side loop on the other side and fasten securely through the buckle. Fasten tightly and ensure that the HandiStrap ^™ is not snagged or twisted and tie-off any excess strap. Repeat this process for the rear section (11).

Step 11

Recheck the fastening

of the HandiStraps™.

FOR METAL ROOF BAR FITTING INSTRUCTIONS PLEASE SEE OVERLEAF

HandiHoldall™

The easy to store foldable roof box

Fitting & Safety Instructions

Close-up of a car's rear seat with black and silver bands (no visible text or symbols)

Close-up of a car seatbelt with 'Handback' branding (no additional text or symbols visible)

HandiHoldall

Black rectangular object with horizontal stripes, resembling a cushion or tray (no text or symbols visible)

Close-up of a dark fabric or cushion with horizontal ridges and small protrusions (no text or symbols visible)

Close-up of a car's roof cover with visible black fabric and white trim (no text or symbols)

HandHoldall bag on a car (no visible text or symbols)

Close-up of a backpack with 'Handbook' label, no visible text or symbols beyond the label

Black-and-white photo of a person in uniform sitting on a bed with folded bedding (no visible text or symbols)

Child sitting on a vehicle with a large black backpack (no visible text or symbols)

Close-up of a dark fabric or cushioned item with a strap, no visible text or symbols

Close-up of a black athletic bag with visible straps and cushion (no text or symbols)

Close-up of a textured fabric with a rectangular patch and four small square indentations (no text or symbols visible)

Close-up of a black fabric buckle strap securing a small white object (no text or symbols visible)

Close-up of a mechanical component with textured surfaces and a metallic clip (no visible text or symbols)

Close-up of a car roof-mounted cargo bag on a roof, no visible text or symbols

Close-up of a car roof rack with metal trim and a bag (no visible text or symbols)

Black and white photo of a backpack on a vehicle roof, no visible text or symbols

Metal roof bar fitting instructions

Please note that the letters in brackets refer to the images

Step 1

Firstly, please make sure that the roof bars are approximately 70cm apart. Then follow steps 1 to 4 of the HandiHoldall fitting and safety guidelines.

Step 2

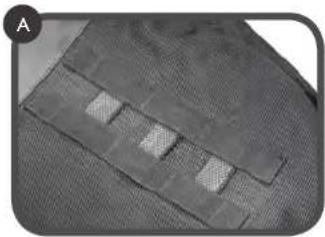

Lift the HandiHoldall™ (unloaded) onto the roof bars ensuring that a set of the Hi Grip horizontal loops on the bottom of the HandiHoldall (A) are positioned over the top of the roof bar. Please note that we recommend that the HandiHoldall sits with a slight overhang over the front and rear roof bars.

Step 3

Take the first of the shorter Hi Grip HandiStraps and pass this through the horizontal loop on the bottom of the HandiHoldall ensuring that the rubberised side is facing down (B).

Holding the clamp open, pass the strap under the roof bar and back through the clamp. Pull the strap tightly and secure by releasing the clamp. Ensure that the clamp is sitting underneath the roof bar (C). Repeat this process for the other 3 loops at each corner and tie-off any excess strap.

Step 4

Load the HandiHoldall™ following the recommended guidelines (D) and zip shut the top ensuring that the zip pulls are positioned at the back of the bag and that the top flap is secured to the Velcro on the lower section of the HandiHoldall™.

Step 5

With the HandiHoldall™ now fully loaded, take the first of the 1.5 metre HandiStraps and pass the strap through the loops on the side and top of one corner of the HandiHoldall™.

Now pass the strap around the end of the roof bar where it meets the roof rail or the stem of the carrier fixing point. Pass the strap back through the buckle, tighten and tie-off any excess strap (E).

Step 6

Repeat at all 4 corners of the HandiHoldall ^™ . Recheck the fastening of all the HandiStraps ^™ (F).
