BRUGSANVISNING ROS 5 Spamel

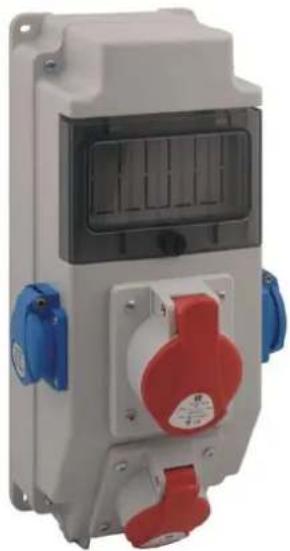

Distribution board ROS 5\X without protection

$Spamel ROS 5 - Distribution board ROS 5\X without protection - 1$

Technical data

Rated voltage 400/230 V, (50 Hz)
Rated insulation voltage U_i	500 V
Rated withstand impulse voltage U_imp	4 kV
Rated continuous current I_u	32 A
Protection level IP44
Protection class II
Wire gauge 2.5...6 mm ^2

Ordering code
$Spamel ROS 5 - Distribution board ROS 5\X without protection - 2$


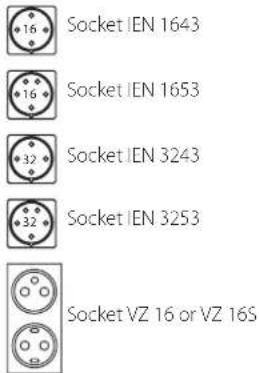

Design of the distribution boards

$Spamel ROS 5 - Distribution board ROS 5\X without protection - 3$


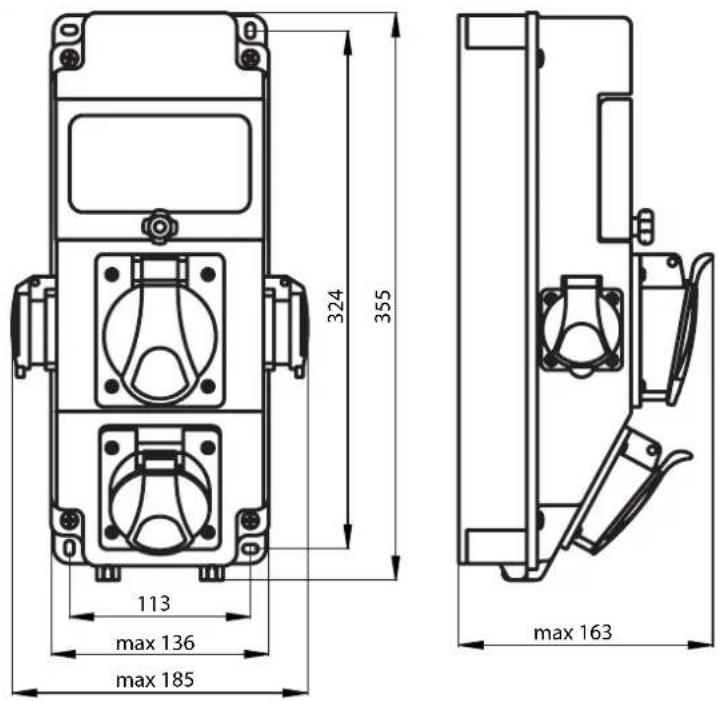

Dimensions
$Spamel ROS 5 - Distribution board ROS 5\X without protection - 4$

Assemblies
$Spamel ROS 5 - Distribution board ROS 5\X without protection - 5$

ROS 5\X-01

$Spamel ROS 5 - Distribution board ROS 5\X without protection - 6$

ROS 5\X-10

$Spamel ROS 5 - Distribution board ROS 5\X without protection - 7$
ROS 5\X-12

$Spamel ROS 5 - Distribution board ROS 5\X without protection - 8$

ROS 5\X-14

$Spamel ROS 5 - Distribution board ROS 5\X without protection - 9$

ROS 5\X-15

$Spamel ROS 5 - Distribution board ROS 5\X without protection - 10$
ROS 5\X-41

$Spamel ROS 5 - Distribution board ROS 5\X without protection - 11$
ROS 5\X-50

$Spamel ROS 5 - Distribution board ROS 5\X without protection - 12$
ROS 5\X-52

$Spamel ROS 5 - Distribution board ROS 5\X without protection - 13$

ROS 5\X-54

$Spamel ROS 5 - Distribution board ROS 5\X without protection - 14$

ROS 5\X-55
