BRUGSANVISNING BY-PVM50 BOYA
BY-PVM50
Stereo Condenser Microphone


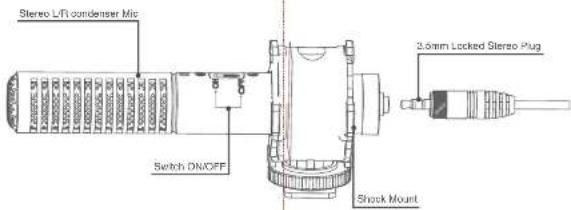

Stereo L/R condenser Mic Switch DN/OFF Shock Mount 2.5mm Locked Stereo PlugFeatures
■ Stereo X/Y condenser microphone
■ Compact, lightweight and easy-use.
■ Designed for DSLR cameras, Camcorders, Audio recorders etc.
■ Professional condenser circuitry ensures excellent sound quality.
- Locked cable with 3.5mm stereo mini plug.
■ Powered by included LR44 battery
■ Integrated cold-shoe mount and foam windshield
■ ON/OFF switch for convenient operation.
■ Also includes fur windscreen, battery, and pouch.
BY-PVM50
Stereo Condenser Microphone
Specifications
| Polar Pattern: | X/Y Stereo |
| Frequency Response: | 60Hz - 18kHz±3dB |
| Sensitivity: | -30dB +/- 1dB / 0dB=1V/Pa, 1kHz |
| Impedance: | 2000 ohms |
| Maximum SPL: | 120dB, 1KHz |
| Signal to Noise ratio: | 78dB |
| Dynamic Range: | 95dB, 1 KHz |
| Battery Type: | 1.5V LR44 |
| Battery Current: | 6.5 mA |
| Switch: | ON/OFF |
| Weight: | 80g (2.8 oz) |
| Dimension: | 153 x 50 x 56 mm (6"x 2"x 2") |
| Output Connector: | 3.5mm stereo locked mini plug |
| Accessories: | Shock mount; foam windscreen; fur windscreen; LR44 battery; pouch |
BOYA AUDIO EQUIPMENT (SHENZHEN) CO., LIMITED
Add: A16 building, New Material Industrial Park of Silicon Valley Power, Guanlan Town, Shenzhen, China Tel: (86)0755-26435910
Email: sales@boya-mic.com
2015 BOYA inc. Visit us on the web at www.BOYA-mic.com 2015 BOYA inc. Visit us on the web at www.BOYA-mic.com
