Setup

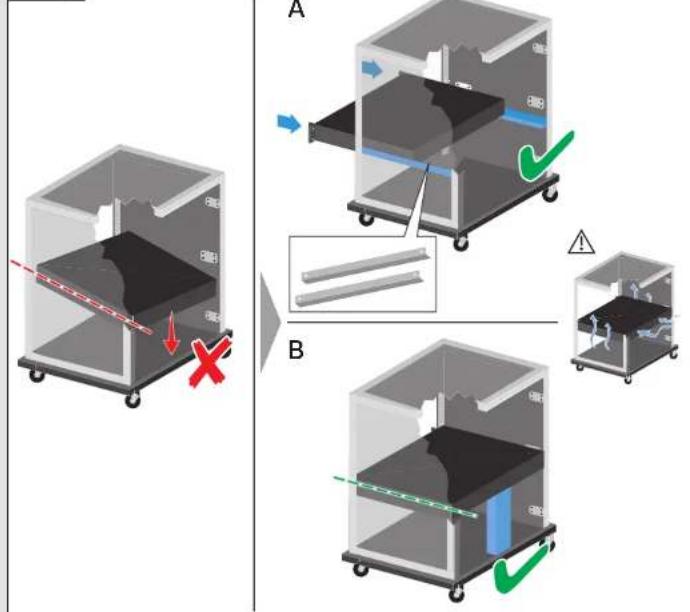

Technical diagram illustrating a mechanical assembly process with labeled components and directional arrows, including section A and B views.

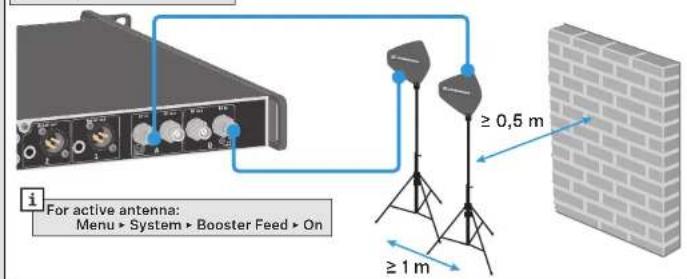

Recommended antenna setup for best performance

i For active antenna: Menu ▶ System ▶ Booster Feed ▶ On ≥ 0,5 m ≥ 1 m

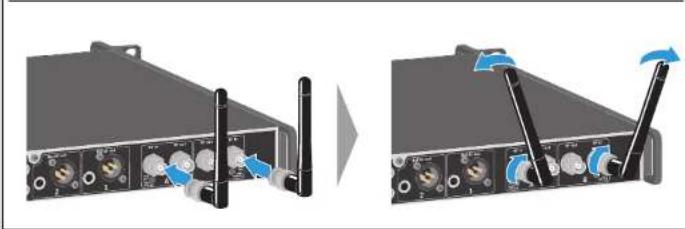

Two-panel illustration showing a device with ports, cables, and a switch, no text or symbols present.

Setup
ANALOG AUDIO OUT CH 1 & CH 2 DIGITAL AUDIO OUT WORD CLOCK

OR 6.3 mm XLR-3

AES/EBU XLR-3

BNC

Dante
Audio Network (EM 6000 DANTE only)

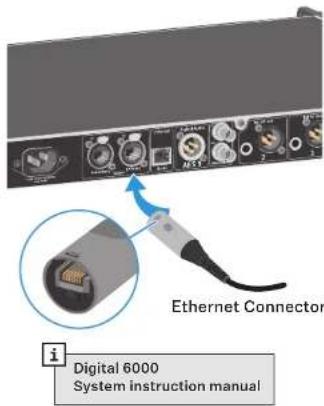

Ethernet Connector Digital 6000 System instruction manual

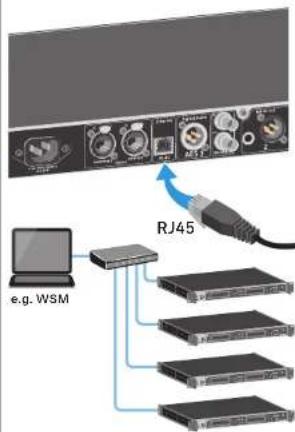

Remote Network

100 - 240 V AC

6.3 mm press HEADPHONE button (CH 1 & CH 2) to listen VOLUME

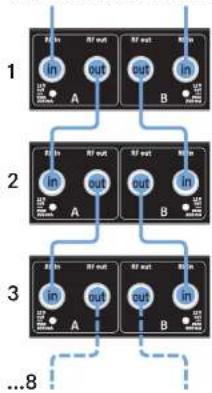

Daisy chaining
ANTENNA A ANTENNA B


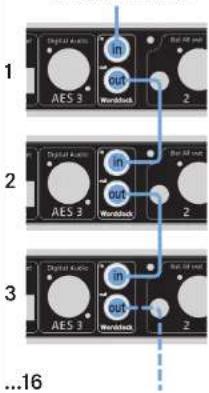

Wordclock master

max. 16 EM 6000 max.

On/Off

short = On long = Off

EM 6000

CH1

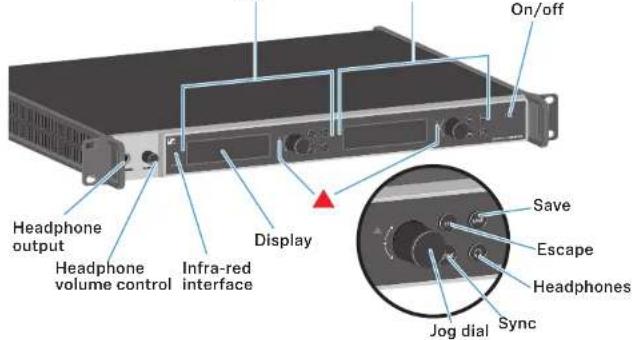

On/off Headphone output Headphone volume control Infra-red interface Display Save Escape Headphones Jog dial Sync

Digital 6000 System Instruction Manual

www.sennheiser.com/download

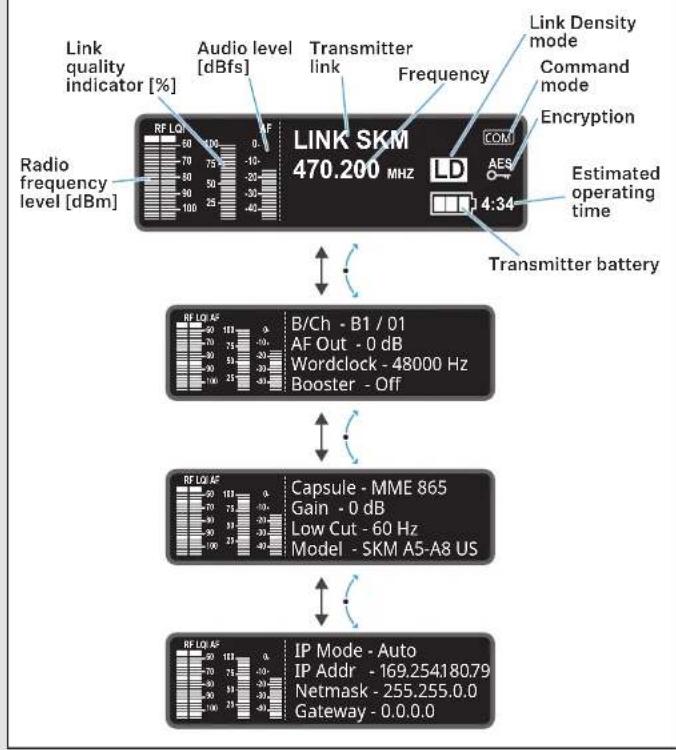

Home screens


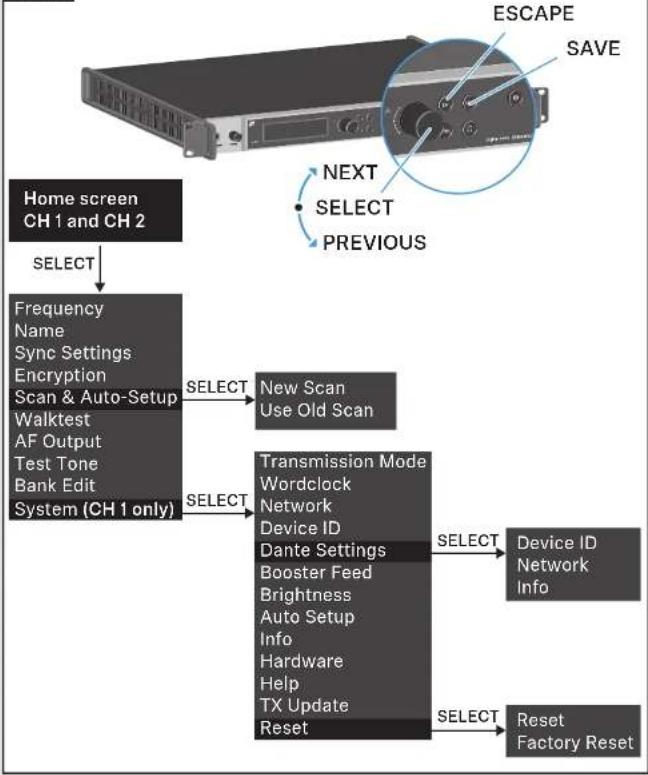

Menu


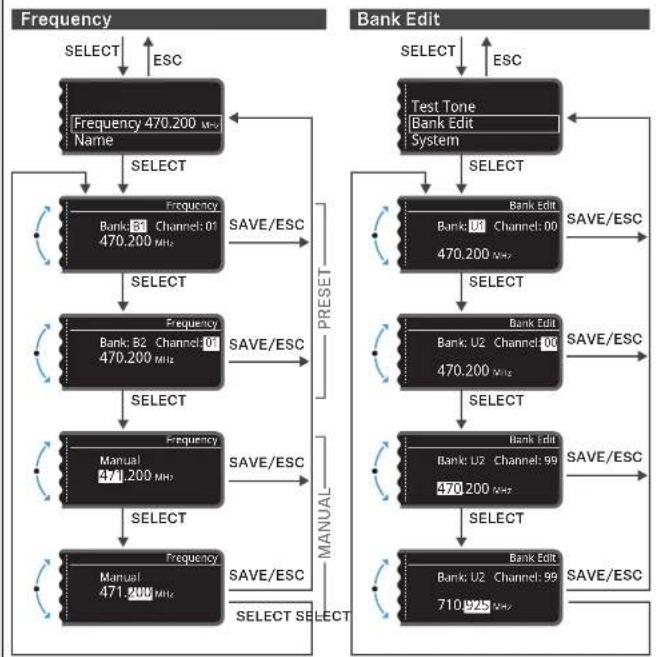

Change frequency
        direction TB
        A["Frequency 470.200 MHz"] -->|SELECT| B["Frequency"]
        B -->|SAVE/ESC| C["Bank B1 Channel: 01 470.200 MHz"]
        C -->|SELECT| D["Frequency"]
        D -->|SAVE/ESC| E["Bank B2 Channel: 01 470.200 MHz"]
        E -->|SELECT| F["Frequency"]
        F -->|SAVE/ESC| G["Manual 471.200 MHz"]
        G -->|SELECT| H["Frequency"]
        H -->|SAVE/ESC| I["Manual 471.200 MHz"]
        I -->|SELECT| J["Frequency"]
    end

    subgraph Bank Edit
        direction TB
        K["Test Tone Bank Edit System"] -->|SELECT| L["Frequency"]
        L -->|SAVE/ESC| M["Bank Edit"]
        M -->|SAVE/ESC| N["Bank U1 Channel: 00 470.200 MHz"]
        N -->|SELECT| O["Frequency"]
        O -->|SAVE/ESC| P["Bank U2 Channel: 00 470.200 MHz"]
        P -->|SELECT| Q["Frequency"]
        Q -->|SAVE/ESC| R["Bank U2 Channel: 99 470.200 MHz"]
        R -->|SELECT| S["Frequency"]
        S -->|SAVE/ESC| T["Bank Edit"]
        T -->|SAVE/ESC| U["Frequency"]
        U -->|SELECT| V["Frequency"]
    end

    A -->|SELECT| K
    B -->|SELECT| L
    C -->|SELECT| M
    D -->|SELECT| N
    E -->|SELECT| P
    F -->|SELECT| Q
    G -->|SELECT| R
    H -->|SELECT| S
    I -->|SELECT| T
    J -->|SELECT| U
    K -->|SELECT| L
    L -->|SELECT| M
    M -->|SELECT| N
    N -->|SELECT| O
    O -->|SELECT| P
    P -->|SELECT| Q
    Q -->|SELECT| R
    R -->|SELECT| S
    S -->|SELECT| T
    T -->|SELECT| U
    U -->|SELECT| V
    V -->|SELECT| W
    W -->|SELECT| X
    X -->|SELECT| Y
    Y -->|SELECT| Z

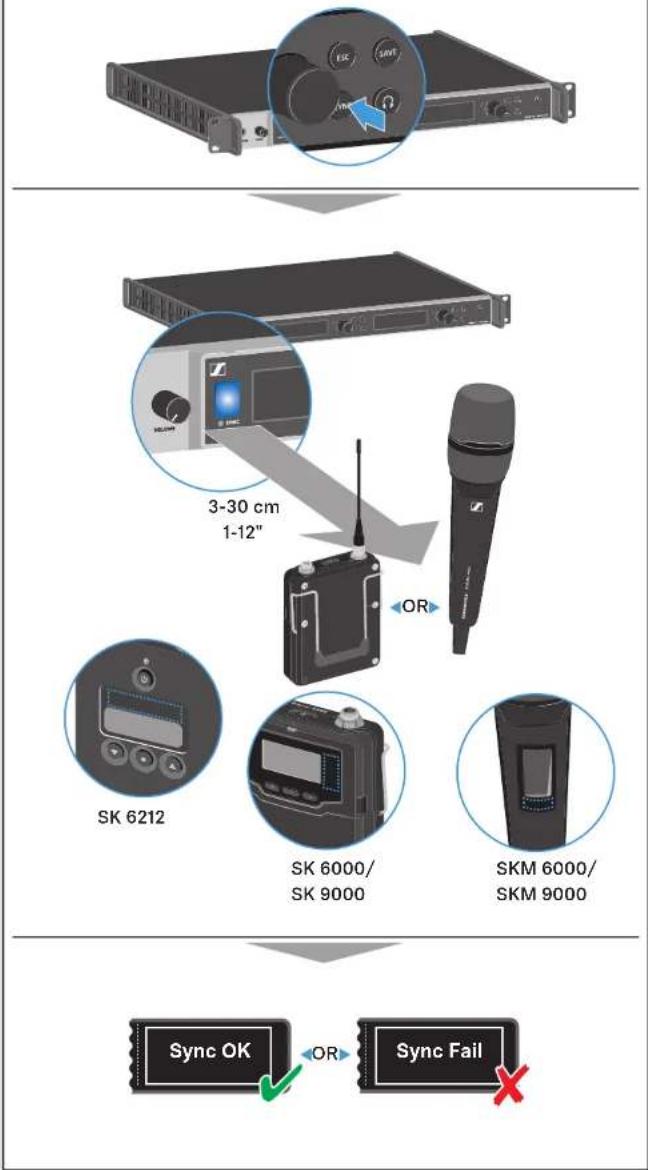

Sync

3-30 cm 1-12" OR SK 6212 SK 6000/ SK 9000 SKM 6000/ SKM 9000 Sync OK OR Sync Fail

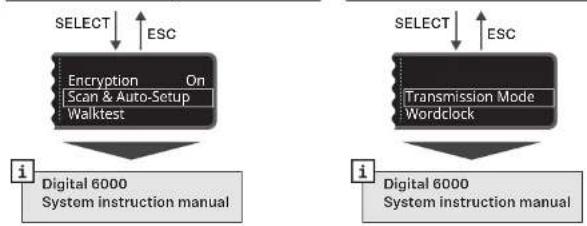

Scan & Auto-Setup
        A["Digital 6000 System instruction manual"]
        B["Encryption On Scan & Auto-Setup Walktest"]
        C["ESCC"]
        D["Digital 6000 System instruction manual"]
    end
    subgraph "Transmission Mode Wordclock"
        E["Transmission Mode Wordclock"]
        F["ESCC"]
        G["Digital 6000 System instruction manual"]
    end
    A --> H["Select"]
    B --> I["Select"]
    C --> J["Select"]
    D --> K["Select"]
    E --> L["Select"]
    F --> M["Select"]
    G --> N["Select"]
    H --> O["ESC"]
    I --> P["ESC"]
    J --> Q["ESC"]
    K --> R["ESC"]
    L --> S["ESC"]
    M --> T["ESC"]
    N --> U["ESC"]
