BRUGSANVISNING SC205 EVE Audio

EVE AUDIO QUICK START GUIDE

SC204/SC205/SC207/SC208/SC305/SC307

EVE Audio SC205 - EVE AUDIO QUICK START GUIDE - 1

natural_image Abstract orange geometric logo with symmetrical V-shape and circular base (no text or symbols)

English

1 PACKAGE CONTENT

▶ Monitor
▶ Grid
▶ Power cord
▶ Product manual
▶ Rubber feet

EVE Audio SC205 - PACKAGE CONTENT - 1

EVE Audio SC205 - PACKAGE CONTENT - 2

EVE Audio SC205 - PACKAGE CONTENT - 3

EVE Audio SC205 - PACKAGE CONTENT - 4

EVE Audio SC205 - PACKAGE CONTENT - 5

natural_image Technical diagram of a dual-tiered electronic device with no visible text or symbols

MAINS POWER

▶ Check voltage selector (except SC204 & SC205)
▶ Check fuse value (see silkscreen)
▶ Connect mains cord

EVE Audio SC205 - MAINS POWER - 1

EVE Audio SC205 - MAINS POWER - 2

EVE Audio SC205 - MAINS POWER - 3

EVE Audio SC205 - MAINS POWER - 4

natural_image Simple line drawing of a two-part electrical socket or socket (no text or symbols)

AUDIO CONNECTIONS

▶ Connect balanced XLR input...
▶ ... or/and unbalanced RCA input

1 = (±) 2 = (+) 3 = (-)

(↓)
(+)

EVE Audio SC205 - AUDIO CONNECTIONS - 2

natural_image Line drawing of a cylindrical electrical plug with a curved tip (no text or symbols)

POWERING UP

▶ Set DIP switches to variable
▶ Set Woofer Sel. so that low woofers are outside in a stereo setup (only SC305 & SC307)
▶ Power switch On
▶ LEDs light up counterclockwise

... Go to 5 for rotary knob operation.

EVE Audio SC205 - POWERING UP - 1

EVE Audio SC205 - POWERING UP - 2

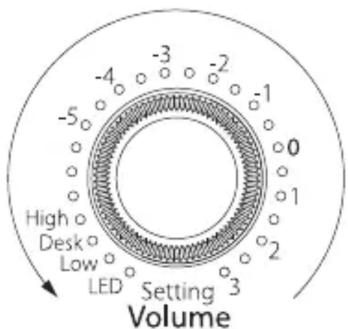

High Desk Low LED Setting Volume

locked var. Woofer Sel. (Front View)

locked var. Woofer Sel. (Front View)

EVE Audio SC205 - POWERING UP - 6

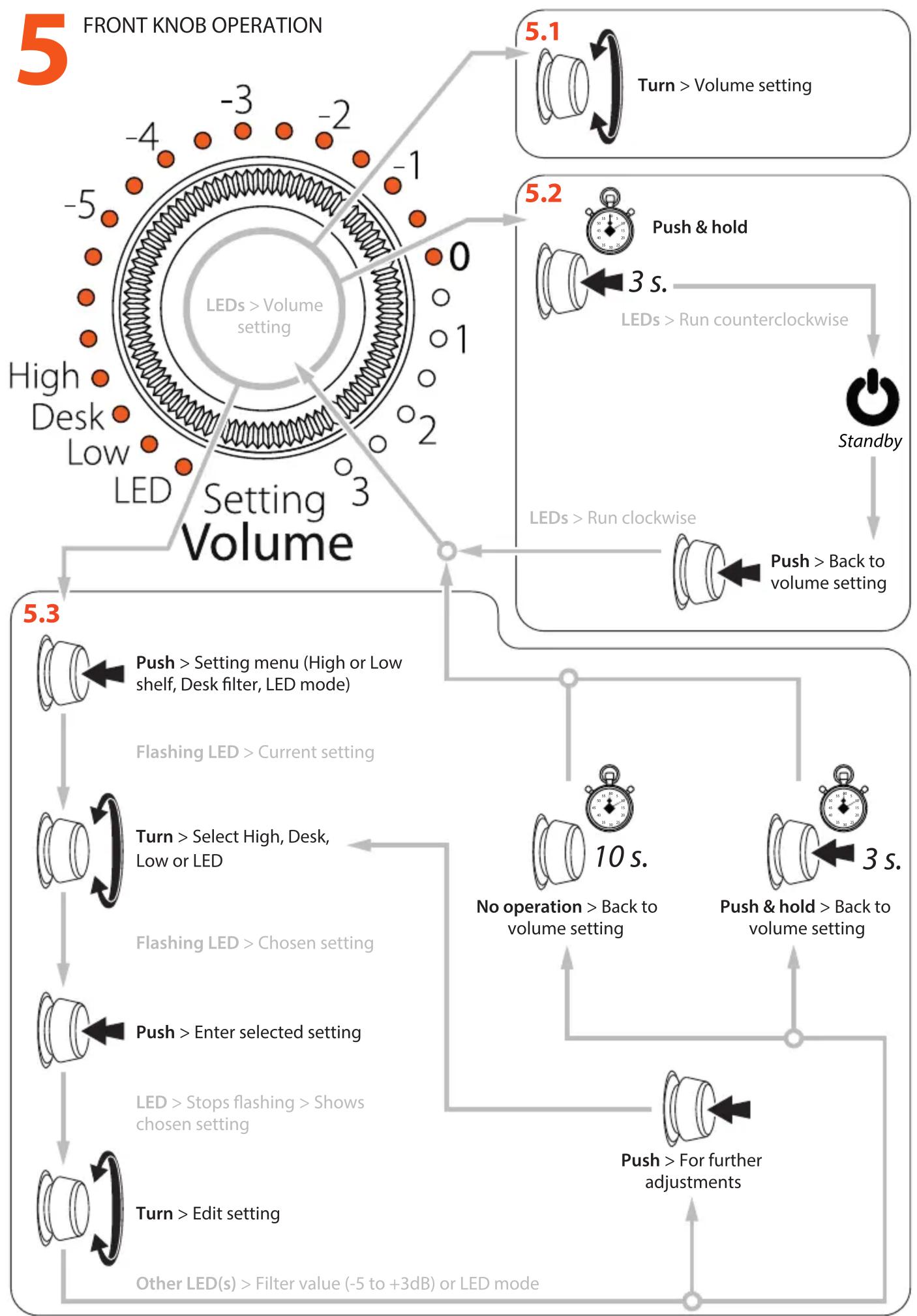


03.2013 © EVE Audio. All rights reserved.
