LINE + GRADIENT CONDENSER MICROPHONE

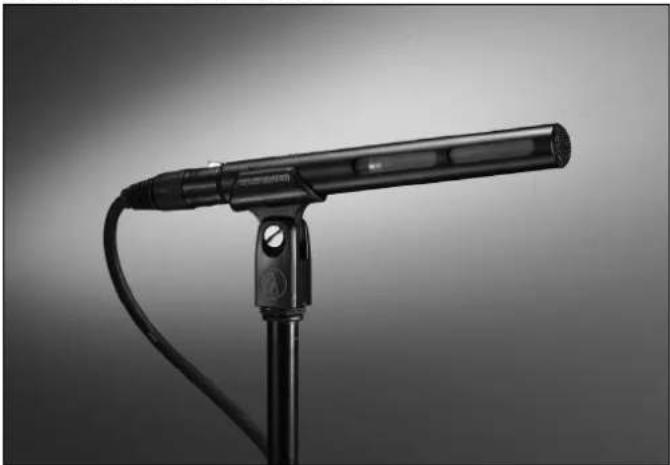

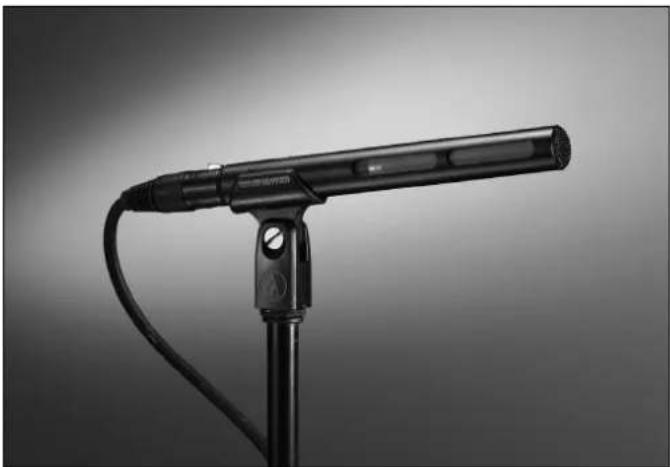

Close-up of a black audio recording device on a stand, showing microphone and cable (no text or symbols visible)

• Designed for video production and broadcast (ENG/EFP) audio acquisition
• Extremely short length (175mm) ideal for use with compact digital cameras
• Provides the narrow acceptance angle desirable for long-distance sound pickup
• Excellent sound rejection from the sides and rear of mic
• Tailored response minimizes camera and handling noise
• Operates on phantom power only

The AT875R requires 11V to 52V DC phantom power for operation.

Output from the microphone's XLRM-type connector is low impedance (Lo-Z) balanced. The signal appears across Pins 2 and 3; Pin 1 is ground (shield). Output phase is "Pin 2 hot" – positive acoustic pressure produces positive voltage at Pin 2.

To avoid phase cancellation and poor sound, all mic cables must be wired consistently: Pin 1-to-Pin 1, etc.

The high sensitivity of the AT875R assures useful output and an excellent match to most input sources. In some cases, however, an attenuator such as the Audio-Technica AT8202 may be required between the microphone and preamplifier to avoid overloading sensitive input stages.

The microphone is RoHS compliant-free from all substances specified in the EU directive on hazardous substances.

Avoid leaving the microphone in the open sun or in areas where temperatures exceed 43^ C for extended periods. Extremely high humidity should also be avoided.

SPECIFICATIONS

ELEMENT	Fixed-charge back plate permanently polarized condenser

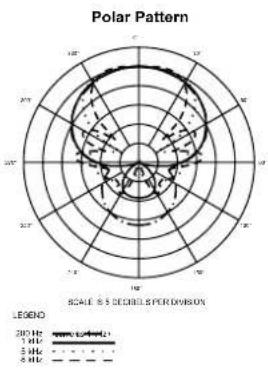

POLAR PATTERN Line + gradient

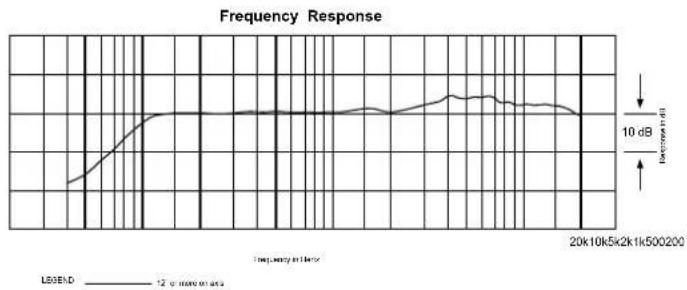

FREQUENCY RESPONSE 90-20,000 Hz
OPEN CIRCUIT SENSITIVITY	-30 dB (31.6 mV) re 1V at 1 Pa
IMPEDANCE 100 ohms
MAXIMUM INPUT SOUND LEVEL	127 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical)	107 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO	74 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS	11 - 52V DC, 2 mA typical
WEIGHT (less cable and accessories)	80 g
DIMENSIONS	175.0 mm long,21.0 mm diameter
OUTPUT CONNECTOR	Integral 3-pin XLRM-type
ACCESSORIES FURNISHED	AT8405a stand clamp for 58 "-27 threaded stands; 58 "-27 to 38 "-16 threaded adapter; windscreen;protective carrying case

CE

audio-technica®

Machida • Tokyo • Japan

超指向性电容话筒

Close-up of a black studio microphone on a stand, showing its neck and cable (no text or symbols visible)

• 专为 影视 制作 和广 (NG源 FP) 的音频收音而计。
• 十分短的长度设计（175mm），适合于小型数字摄像机使用。
• 提供窄角度的超指向性能，给与远距离的收音效果。
• 由话筒两旁到后方均有极佳抗噪音能力。
• 特有的频率响应，可减低摄像机和手持噪声。
• 使用幻象供电工作。

AT875R话筒需使用11V至52V幻象供电工作。

话筒的XLRM卡农输出端为低阻抗平衡输出，话筒音频信号最终以卡农公头的2号及3号针脚输出，而1号针脚则为地线(屏蔽)连接。输出相位将以正相位电平2号设门脚上。

为避免出现相位相互抵消而失真的情况，时，接线必需以1-1，2-2，3-3型式把针脚连接。

AT875R提供高灵敏度的收音效能，可确保能接收到最大的音源。而在某些情况下，为避免发生超负载输入而出现破声情况，需要在话筒和前置放大器之间加入AT8202等的电平衰减器。

话筒符合 RoHS 规格，在构造上不含有欧盟禁用的危害性物质。

把话筒暴露于高温中可能导致输出电平逐弱，应避免将话筒留在口晒的地方或长时间置于温度超过43℃的地方，而极高湿度也应避免。

技术指标

收音头	固定充电背板,静电型电容式
指向特性	超指向性
频率响应	90-20,000 Hz
开通灵敏度	-30 dB (31.6 mV) 以 1V 于 1 Pa
输出阻抗	100 欧姆
最大承受声压	127 dB 声压, 1 kHz 于 1% T.H.D.
动态范围(典型)	107 dB, 1 kHz 于最高声压
讯噪比	74 dB, 1 kHz 于 1 Pa
幻像供电	直流 11 - 52V, 耗电 2mA 典型
重量	80 g
外形尺寸	175.0 mm 长, 21.0 mm 直径
输出连接器	内置 XLRM-3针卡农公头
附属品设	AT8405a %-27接头转轴式支架;海棉防风罩;%" -27至%" -16转接头;保护袋

指向特性 所有话筒连接 2024Hz 1 kHz 5 kHz 5 kHz
