BRUGSANVISNING UA507 SHURE

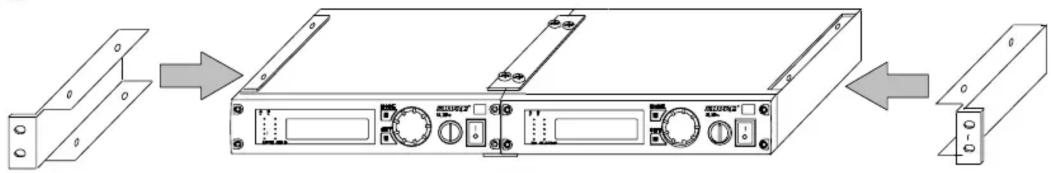

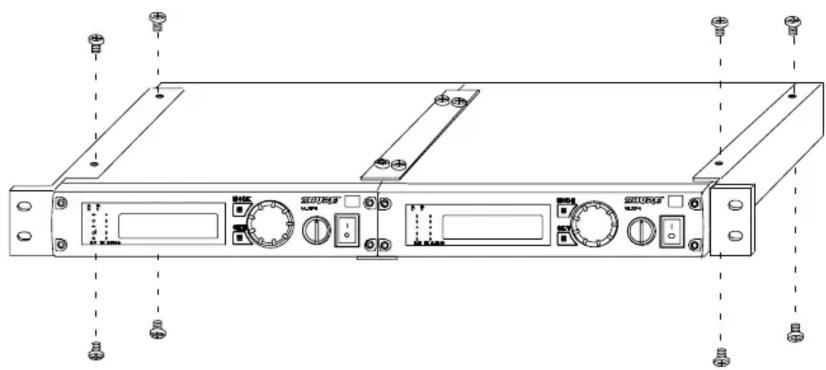

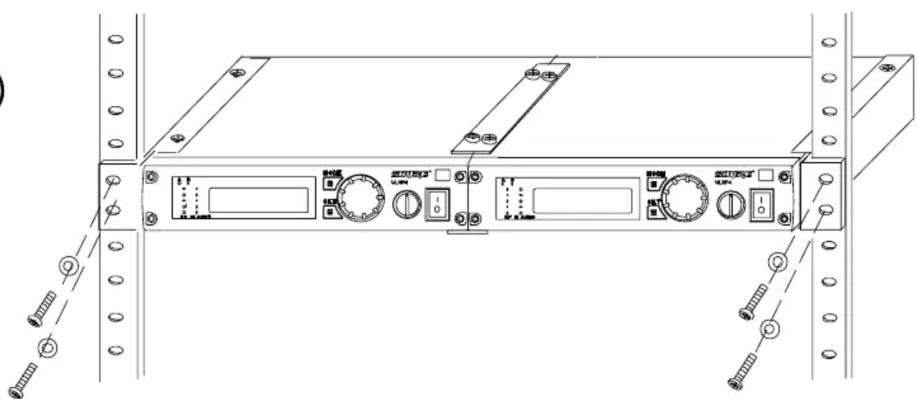

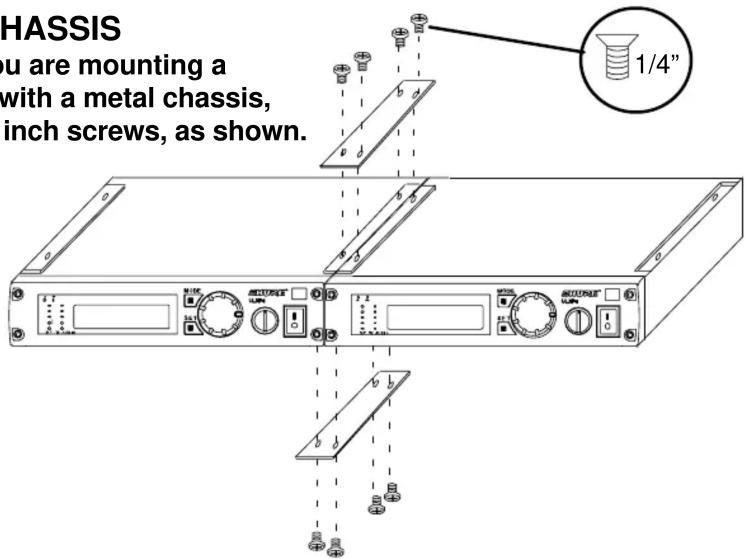

METAL CHASSIS

NOTE: If you are mounting a

Shure unit with a metal chassis,

use the 1/4 inch screws, as shown.

①

②

③

④

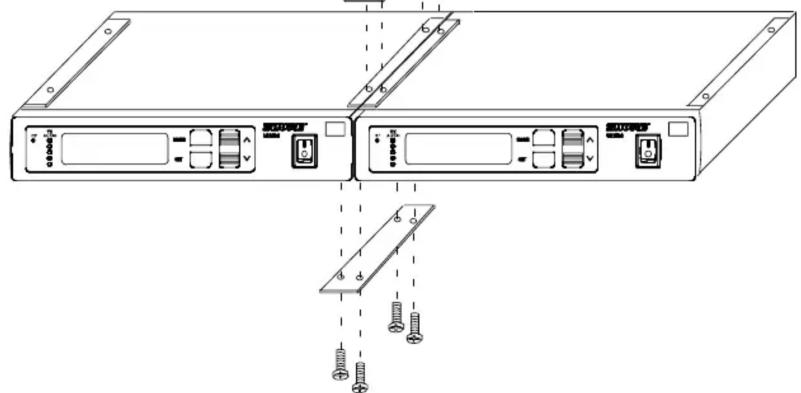

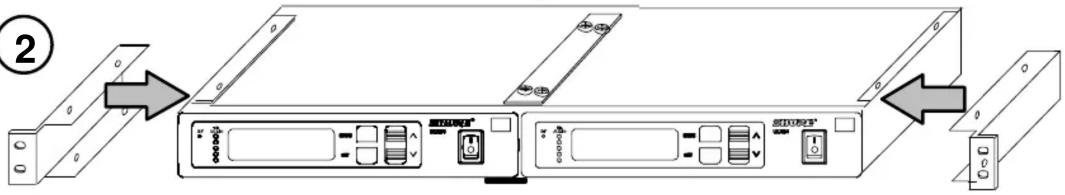

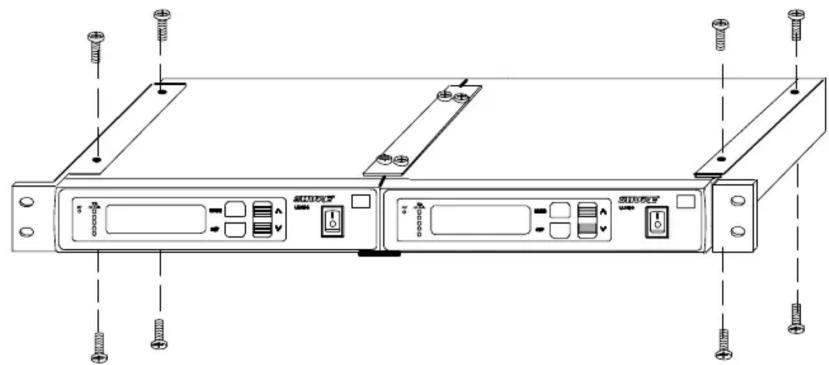

PLASTIC CHASSIS

NOTE: If you are mounting a Shure unit with a plastic chassis, use the 1/2 inch screws, as shown.

①

Diagram of a server rack with two ports and three screws, showing internal components and mounting hardware (no text or labels)

②

③

4
