INSTRUCTION MANUAL

SONANCE® LANDSCAPE SERIES

RK83, RK63 ROCK SPEAKERS

Abstract geometric pattern of three black squares arranged diagonally on white background (no text or symbols)

SONANCE®

Introduction

Thank you for purchasing Sonance Rock Speakers. When properly installed, these speakers will provide you with years of outdoor entertainment pleasure. To get the most out of your new speakers, please read this manual thoroughly before you begin installation.

Box Contents

Sonance Rock Speaker boxes contain two (2) Rock Speakers.

Connecting the Speakers

1. Determine the locations for the speakers and estimate the length of additional wire you will need for each speaker. (Sonance Rock Speakers feature a wide angle of coverage — only a few speakers are needed to cover a large area with sound.)

NOTE: WHEN PURCHASING ADDITIONAL WIRE, SONANCE STRONGLY RECOMMENDS USING DIRECT BURIAL GRADE WIRE.

1. Dig a 4" - 5" deep trench to run the speaker wires in.
2. Run the wire through the trench from your amplifier to the speaker locations. Do not connect the wires to the amplifier at this time.

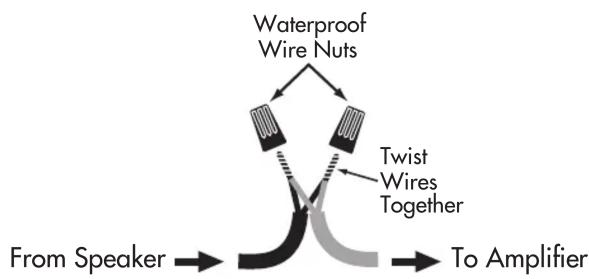

3. Connect the speaker wires you ran from your amplifier to the wires that came attached to the speakers (see Figure 1). Sonance recommends using waterproof wire nuts (not included) to secure the wires.

FIGURE 1: CONNECTING THE ROCK SPEAKERS

IMPORTANT: BE SURE NOT TO LET ANY STRAY '+' AND '-' STRANDS TOUCH EACH OTHER. TOUCHING STRANDS CAN CAUSE A SHORT-CIRCUIT THAT COULD DAMAGE YOUR AMPLIFIER.

1. After you have made the above connections, connect the wires to your amplifier.

NOTE: CONFIRM THAT YOU HAVE CONNECTED SPEAKER “+” TO AMPLIFIER “+” AND SPEAKER “-” TO AMPLIFIER “-”.

1. Turn your amplifier on and test the system with your favorite music. If the speakers are operating properly, refill the wire trench and enjoy your new speakers.

Specifications

RK83

Tweeter: 1" (25mm) polyurethane dome, ferrofluid-cooled

Woofer: 8" (203mm) polypropylene cone with a Santoprene™ surround

Frequency Response: 40Hz - 20 kHz ±3dB

Impedance: 8 ohms nominal; 6 ohms minimum

Power Handling: 5 watts minimum; 150 watts maximum

Sensitivity: 90dB SPL (2.83V/1 meter)

Available Finishes: Granite; brown

Dimensions (WxHxD): 14^5/8 x 14^1/4 x 17^3/4 (372mm x 362mm x 451mm)

Shipping Weight: 35 lbs (15.8kg) pair

RK63

Tweeter: 1" (25mm) polyurethane dome, ferrofluid-cooled

Woofer: 6 ^1/2 (165mm) polypropylene cone with a Santoprene™ surround

Frequency Response: 50Hz - 20 kHz ±3dB

Impedance: 8 ohms nominal; 6 ohms minimum

Power Handling: 5 watts minimum; 100 watts maximum

Sensitivity: 89dB SPL (2.83V/1 meter)

Available Finishes: Granite; brown

Dimensions (WxHxD): 11" x 10 ^1/2 " x 14" (279mm x 267mm x 356mm)

Shipping Weight: 28 lbs (12.6kg) pair

LIMITED FIVE (5) YEAR WARRANTY

Sonance warrants to the first end-user purchaser that this Sonance-brand product ("Product"), when purchased from an authorized Sonance Dealer/Distributor, will be free from defective workmanship and materials for the period stated below. Sonance will at its option and expense during the warranty period, either repair the defect or replace the Product with a new or remanufactured Product or a reasonable equivalent.

EXCLUSIONS

TO THE EXTENT PERMITTED BY LAW, THE WARRANTY SET FORTH ABOVE IS IN LIEU OF, AND EXCLUSIVE OF, ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND IS THE SOLE AND EXCLUSIVE WARRANTY PROVIDED BY SONANCE. ALL OTHER EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY, IMPLIED WARRANTY OF FITNESS FOR USE, AND IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE ARE SPECIFICALLY EXCLUDED. No one is authorized to make or modify any warranties on behalf of Sonance.

The warranty stated above is the sole and exclusive remedy and Sonance's performance shall constitute full and final satisfaction of all obligations, liabilities and claims with respect to the Product. IN ANY EVENT, SONANCE SHALL NOT BE LIABLE FOR CONSEQUENTIAL, INCIDENTAL, ECONOMIC, PROPERTY, BODILY INJURY, OR PERSONAL INJURY DAMAGES ARISING FROM THE PRODUCT, ANY BREACH OF THIS WARRANTY OR OTHERWISE.

This warranty statement gives you specific legal rights, and you may have other rights which vary from state to state. Some states do not allow the exclusion of implied warranties or limitations of remedies, so the above exclusions and limitations may not apply. If your state does not allow disclaimer of implied warranties, the duration of such implied warranties is limited to period of Sonance's express warranty.

Your Product Model and Description: Landscape Series Rock Speakers

Warranty Period for this Product: Five (5) years from the date on the original sales receipt or invoice or other satisfactory proof of purchase.

Additional Limitations and Exclusions from Warranty Coverage: The warranty described above is non-transferable, applies only to the initial installation of the Product, does not include installation of any repaired or replaced Product, does not include damage to allied or associated equipment which may result for any reason from use with this Product, and does not include labor or parts caused by accident, disaster, negligence, improper installation, misuse (e.g. overdriving the amplifier or speaker, excessive heat or cold or humidity, outdoor installation), or from service or repair which has not been authorized by Sonance.

Obtaining Authorized Service: To qualify for the warranty, you must contact your authorized Sonance Dealer/Installer or call Sonance Customer Service at [phone] within the warranty period, must obtain a return merchandise number (RMA), and must deliver the Product to Sonance shipping prepaid during the warranty period, together with the original sales receipt, or invoice or other satisfactory proof of purchase.

Abstract geometric pattern of three black squares arranged diagonally on white background (no text or symbols)

SONANCE®

©2008 Sonance. All rights reserved. Sonance is a registered trademarks of Dana Innovations.

Santoprene is a trademark of Exxon Mobil Corporation.

Due to continuous product improvement, all features and specifications are subject to change without notice.

For the latest Sonance product specification information visit our website: www.sonance.com

SONANCE • 991 Calle Amanecer • San Clemente, CA 92673 USA

[phone] • FAX: [phone] • Technical Support: [phone]
