BRUGSANVISNING VQGI5541NSS VIKING

Installation MANUAL

VIKING VQGI5541NSS - Installation MANUAL - 1

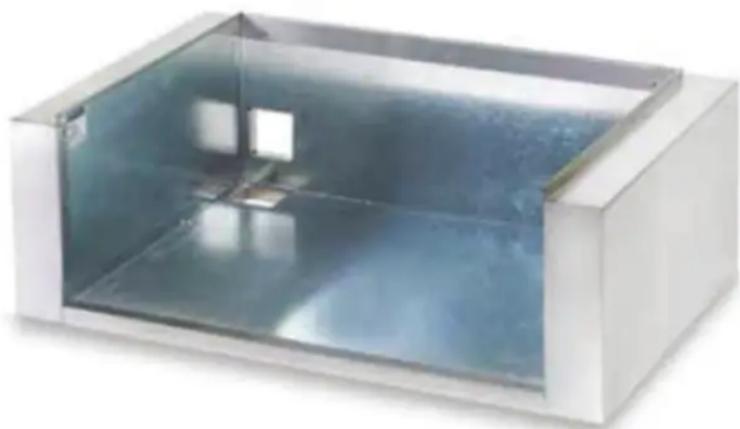

natural_image Exterior view of a transparent rectangular enclosure with internal compartments and a small white square opening (no text or symbols visible)

5 SERIES

Insulated Jacket

VIJ5301

VIJ5361

VIJ5421

VIJ5541

IMPORTANT: Before you build the frame, you must take into consideration the total weight of the liner, grill and any finishing materials.

Refer to the cutout dimension table for the proper framing dimensions for the insulation jacket. Determine the entry point for both the gas inlet and electrical connections. Make the 4" square holes for gas and electrical connections (rear or bottom access) based on your requirements.

Note: that the electrical connections are located on the left side and the gas connections are located on the right side.

A Carpenter's "spirit level" should be used to assure that the framing is level, both front to back and side to side. Note: Never under any circumstance should you install the transformer or run a quick disconnect hose inbetween the grill and the inside of the insulating jacket.

Liner Installation

Position the liner into the frame. No part of the combustible enclosure can protrude above the top surface or in front of the face surface of the liner. Shim the liner if necessary.

Grill Installation

Use the proper equipment to support the grill. Place the grill into the liner and engage it over the liner lip across the back and sides. The liner is designed to support the grill without additional fasteners.

If desired any gap remaining between the liner and the combustible enclosure may be filled with a non-combustible sealant or caulk.

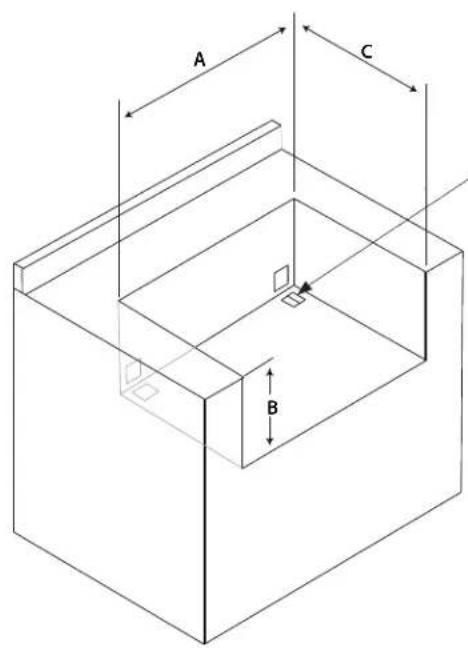

Cutout Dimensions

A C B

4" square holes for gas and electrical connections both left and right sides (rear or bottom access). Make these holes in the frame based on your requirements

MODELABC

VIJ5301 36.00 11.63 26.50
VIJ5361 42.00 11.63 24.00
VIJ5421 48.00 11.63 26.50
VIJ5541 60.00 11.63 26.50

VIKING VQGI5541NSS - Cutout Dimensions - 2

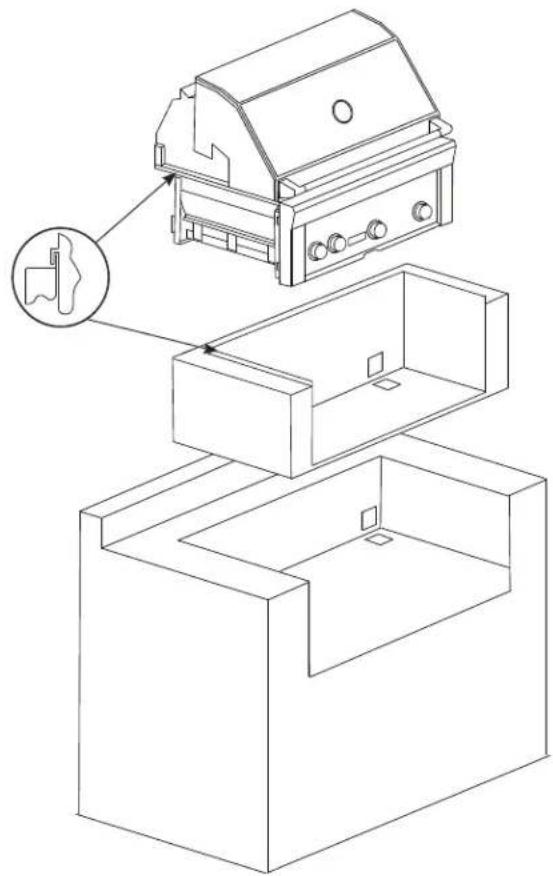

natural_image Isometric line drawing of a gas stove with internal compartments and a close-up view of the stove (no text or labels)

Insulated Jacket Dimensions

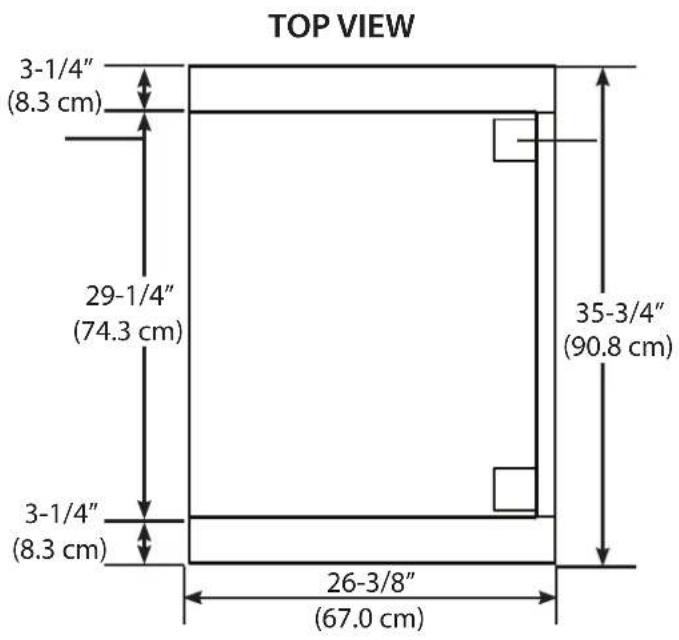

VIJ5301

TOP VIEW 3-1/4" (8.3 cm) 29-1/4" (74.3 cm) 35-3/4" (90.8 cm) 3-1/4" (8.3 cm) 26-3/8" (67.0 cm)

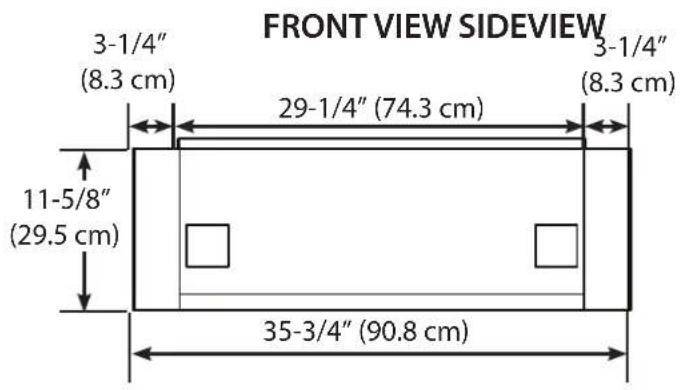

FRONT VIEW SIDEVIEW 3-1/4" (8.3 cm) 29-1/4" (74.3 cm) 3-1/4" (8.3 cm) 11-5/8" (29.5 cm) 35-3/4" (90.8 cm)

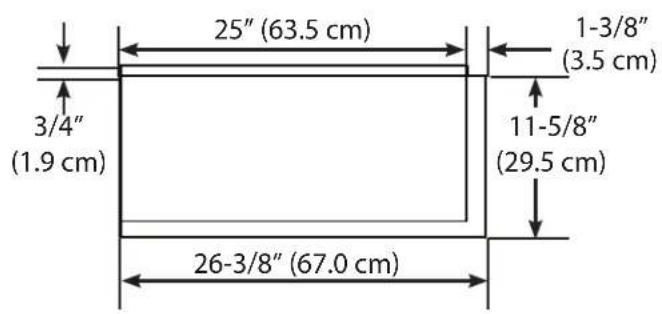

25" (63.5 cm) 1-3/8" (3.5 cm) 3/4" (1.9 cm) 11-5/8" (29.5 cm) 26-3/8" (67.0 cm)

VIJ5361

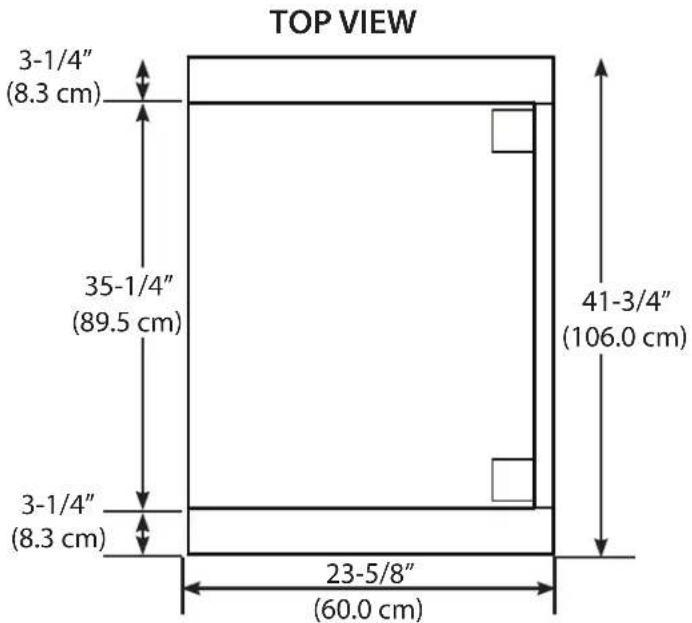

TOP VIEW 3-1/4" (8.3 cm) 35-1/4" (89.5 cm) 3-1/4" (8.3 cm) 23-5/8" (60.0 cm) 41-3/4" (106.0 cm)

FRONT VIEW SIDEVIEW 3-1/4" (8.3 cm) 35-1/4" (89.5 cm) 3-1/4" (8.3 cm) 11-5/8" (29.5 cm) 41-3/4" (106.0 cm)

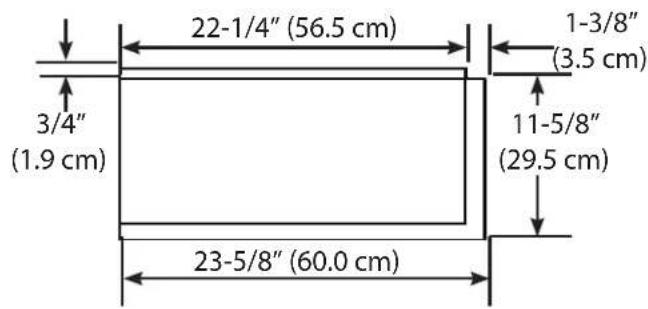

22-1/4" (56.5 cm) 3/4" (1.9 cm) 1-3/8" (3.5 cm) 11-5/8" (29.5 cm) 23-5/8" (60.0 cm)

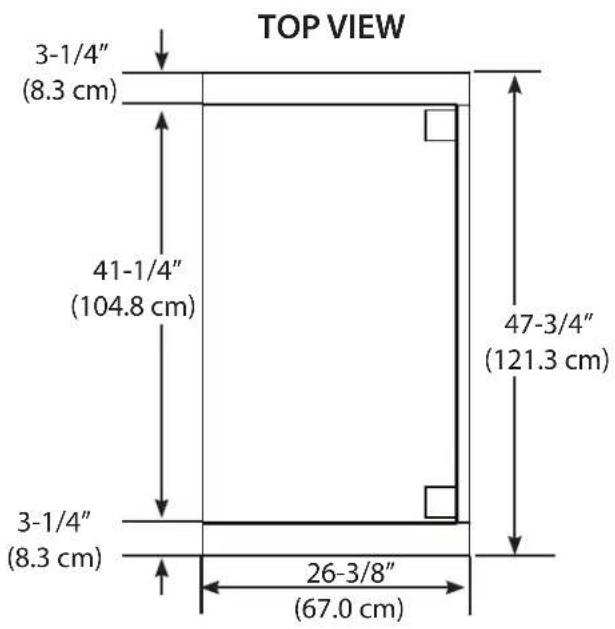

TOP VIEW 3-1/4" (8.3 cm) 41-1/4" (104.8 cm) 3-1/4" (8.3 cm) 26-3/8" (67.0 cm) 47-3/4" (121.3 cm)

FRONT VIEW SIDEVIEW

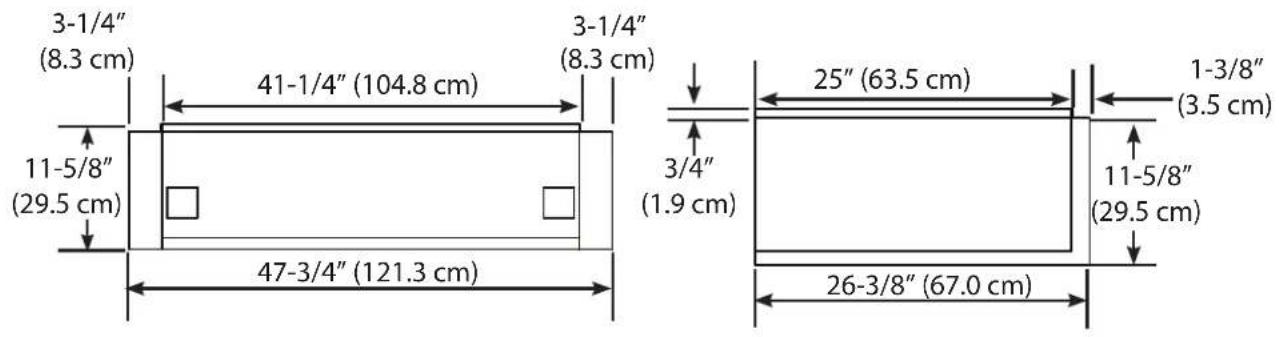

3-1/4" (8.3 cm) 41-1/4" (104.8 cm) 3-1/4" (8.3 cm) 11-5/8" (29.5 cm) 47-3/4" (121.3 cm) 25" (63.5 cm) 1-3/8" (3.5 cm) 3/4" (1.9 cm) 11-5/8" (29.5 cm) 26-3/8" (67.0 cm)

TOP VIEW

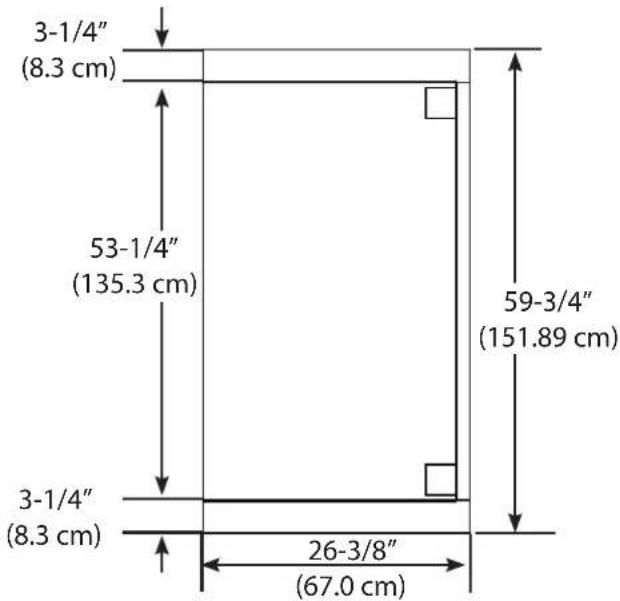

3-1/4" (8.3 cm) 53-1/4" (135.3 cm) 3-1/4" (8.3 cm) 26-3/8" (67.0 cm) 59-3/4" (151.89 cm)

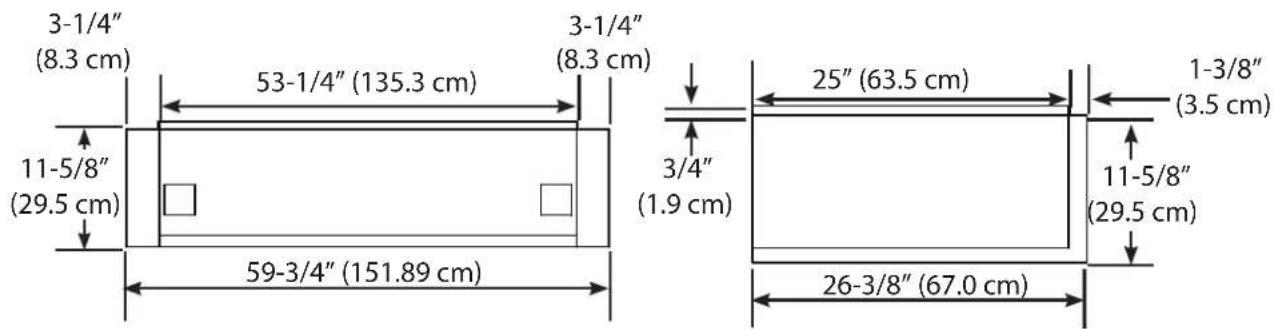

FRONT VIEW SIDEVIEW
3-1/4" (8.3 cm) 53-1/4" (135.3 cm) 3-1/4" (8.3 cm) 11-5/8" (29.5 cm) 59-3/4" (151.89 cm) 3/4" (1.9 cm) 25" (63.5 cm) 1-3/8" (3.5 cm) 11-5/8" (29.5 cm) 26-3/8" (67.0 cm)

Viking Range, LLC

111 Front Street

Greenwood, Mississippi 38930 USA

(662) 455-1200

For product information, call 1-888-(845-4641) or visit our web site at vikingrange.com
