BRUGSANVISNING MSZ-GL12NA-U1 MITSUBISHI
Job Name:
System Reference: Date:
Wireless Remote Controller
ACCESSORIES:
Indoor Unit
□ Condensate Pump (BlueDiamond X87-711/721; 115/230V)
☐ Condensate Pump (Sauermann SI30-115/230; 115/230V)
□ Anti-Allergy Enzyme Filter (MAC-408FT-E)
☐ Platinum Catalyst Deodorizing Filter (MAC-308FT-E)
□ Drain Pan Level Sensor (DPLS2)
Controls
□ Wireless Controller (MHK1)
□ Wired Remote Controller PAR-31MAA (Requires MAC-333IF-E)
☐ Wireless Interface for kumo cloud™ (PAC-WHS01WF-E)
☐ Thermostat Interface (PAC-US444CN-1)
SPECIFICATIONS:
| Rated Capacity* | ||
| Cooling1 | Btu/h / W | 12,000 |
| Heating at 47° F2 | Btu/h / W | 14,400 |
Rating Conditions per AHRI Standard:
^1 Cooling | Indoor: 80° F(27° C)DB / 67° F(19° C)WB; Outdoor: 95° F(35° C)DB / 75° F(24° C)WB
^2 Heating at 47^ F | Indoor: 70^ F ( 21^ C)DB / 60^ F ( 16^ C)WB; Outdoor: 47^ F ( 8^ C)DB / 43^ F ( 6^ C)WB
For data on specific indoor units (all ducted, all non-ducted, and both ducted and non-ducted) combinations, see the MXZ Technical and Service Manual.
Applications should be restricted to comfort cooling only; equipment cooling applications are not recommended for low ambient temperature conditions.
| Electrical Power Requirements | 208 / 230V, 1-Phase, 60 Hz | ||
| Minimum Circuit Ampacity (MCA) | A | 1 | |
| Blower Motor (ECM) | F.L.A. | 0.76 | |
| Blower Motor Output | W | 30 | |
| Field Drainpipe Size O.D. | In.(mm) | 5/8 (15) | |
| Airflow Rate (Quiet - Lo - Med - Hi - Super Hi) | |||
| Cooling | DRY | CFM | 145-170-237-321-399 |
| WET | 109-134-201-286-364 | ||
| Heating DRY | 145-170-237-321-406 | ||
| Sound Pressure Level (Quiet - Lo - Med - Hi - Super Hi) | ||
| Cooling | dB(A) | 19-22-30-37-45 |
| Heating | 19-22-30-37-43 | |
| External Dimensions(H x W x D) | In.(mm) | 11-5/8 x 31-7/16 x 9-1/8(295 x 798 x 232) |
| Net Weight | Lbs.(kg) | 22 (10) |
| External Finish | Munsell 1.0Y 9.2 / 0.2 | |
| Refrigerant Piping (Flared) | ||
| Liquid (High Pressure) | In.(mm) | 1/4 (6.35) |
| Gas (Low Pressure) | 3/8 (9.52) | |

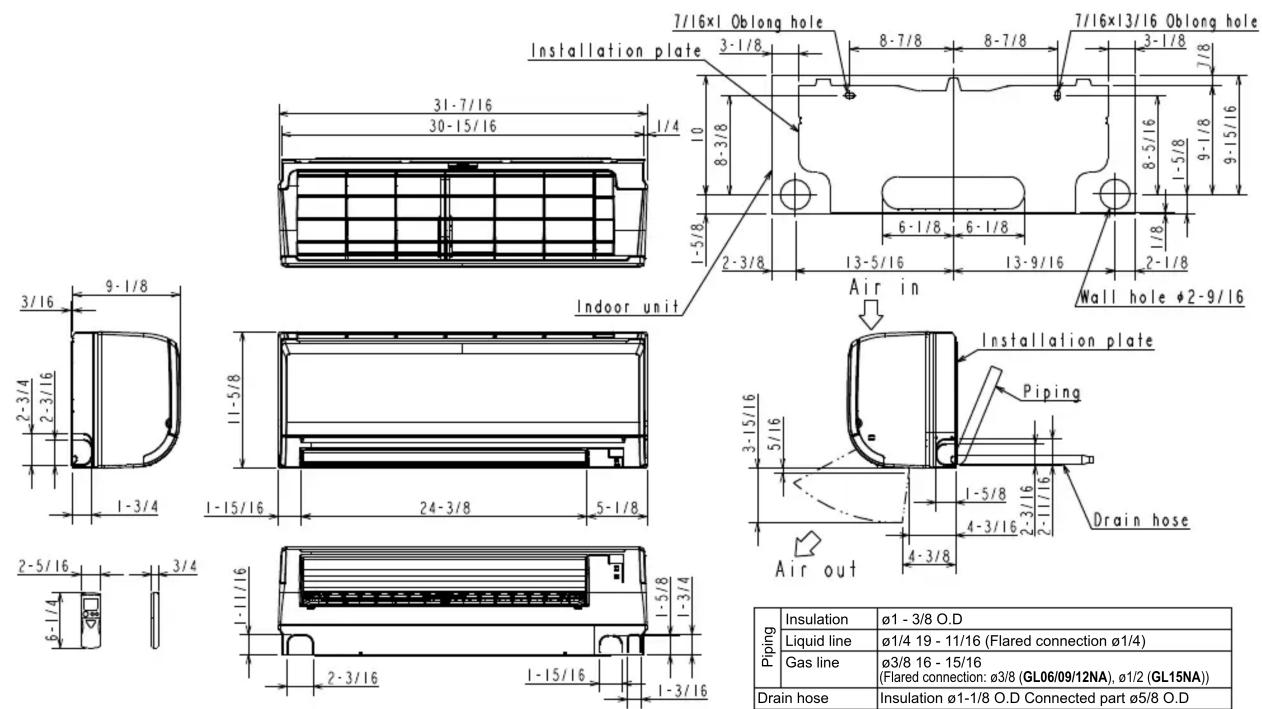

DIMENSIONS: MSZ-GL12NA-U1
MSZ-GL12NA-U1
Unit: in. (mm)
| Piping | Insulation | ø1 - 3/8 O.D |
| Liquid line | ø1/4 19 - 11/16 (Flared connection ø1/4) | |
| Gas line | ø3/8 16 - 15/16(Flared connection: ø3/8 (GL06/09/12NA), ø1/2 (GL15NA)) | |
| Drain hose | Insulation ø1-1/8 O.D Connected part ø5/8 O.D | |
MITSUBISHI ELECTRIC
COOLING & HEATING
1340 Satellite Boulevard. Suwanee, GA 30024
Toll Free: 800-433-4822 www.mehvac.com
FORM# MSZ-GL12NA-U1 FOR MXZ-C MULTI-ZONE SYSTEMS - 201602
